Improving Transactional Applications with Analytics
The document outlines the introduction of MariaDB Platform X3, emphasizing its capabilities in handling hybrid workloads and scalability for transactional and analytical queries. It details real-world use cases in various industries, such as retail and finance, while also exploring features like database consolidation, containerization, and managed services. Additionally, it compares MariaDB with other database solutions and highlights the benefits of using MariaDB in hybrid cloud environments.
Improving Transactional Applications with Analytics
- 1. Introducing MariaDB Platform X3and the rise of hybrid everything Shane K Johnson Senior Director of Product Marketing MariaDB Corporation
- 2. Agenda 1. Hybrid workloads 2.MariaDB Platform X3 3. Scalability 4. Real-world use cases 5. Hybrid cloud 6. Database consolidation 7. Getting started with Docker 8. Managed Service
- 3.

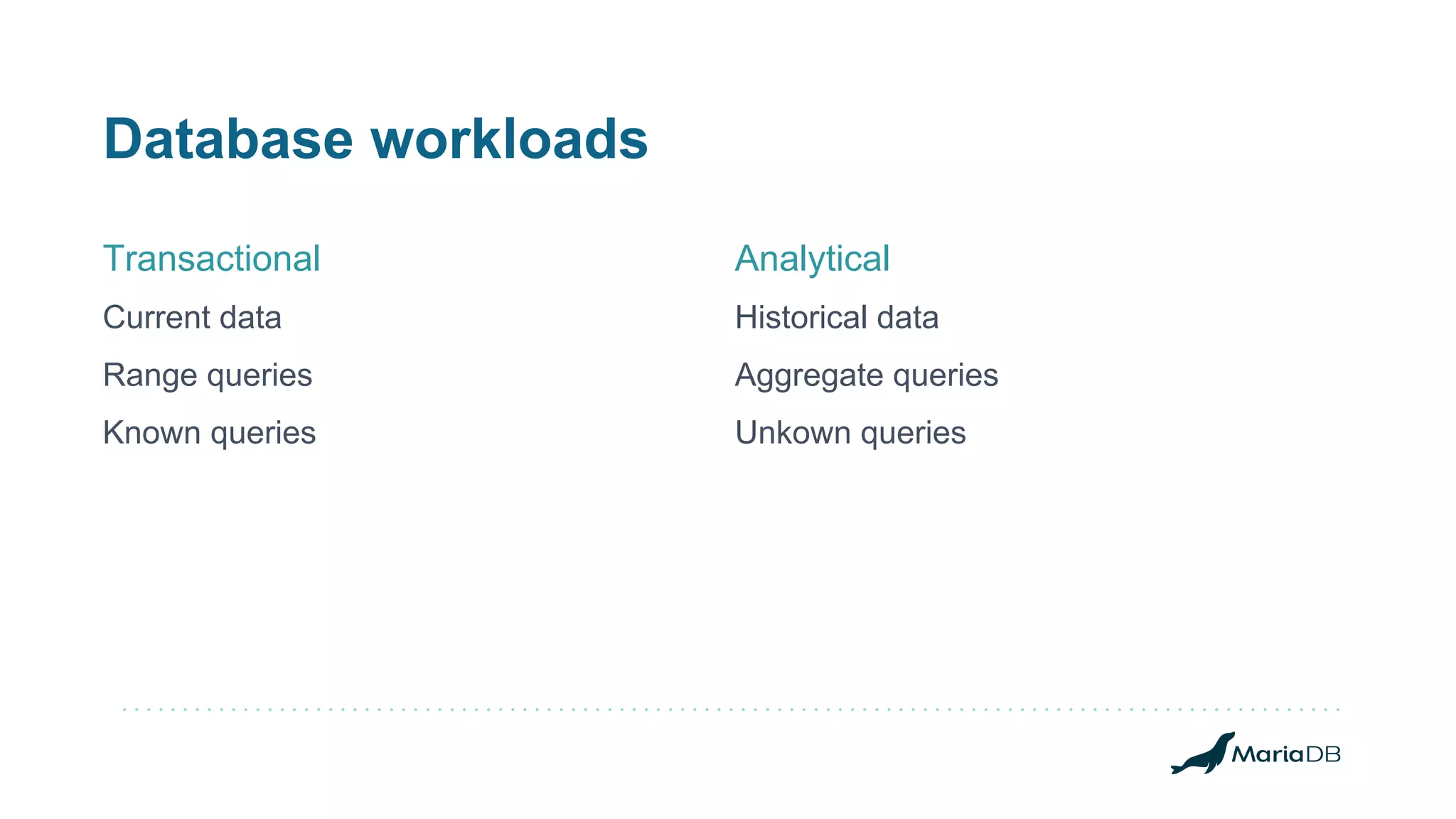

- 4. Database workloads Transactional Current data Rangequeries Known queries Historical data Aggregate queries Unkown queries Analytical
- 5.
- 6.

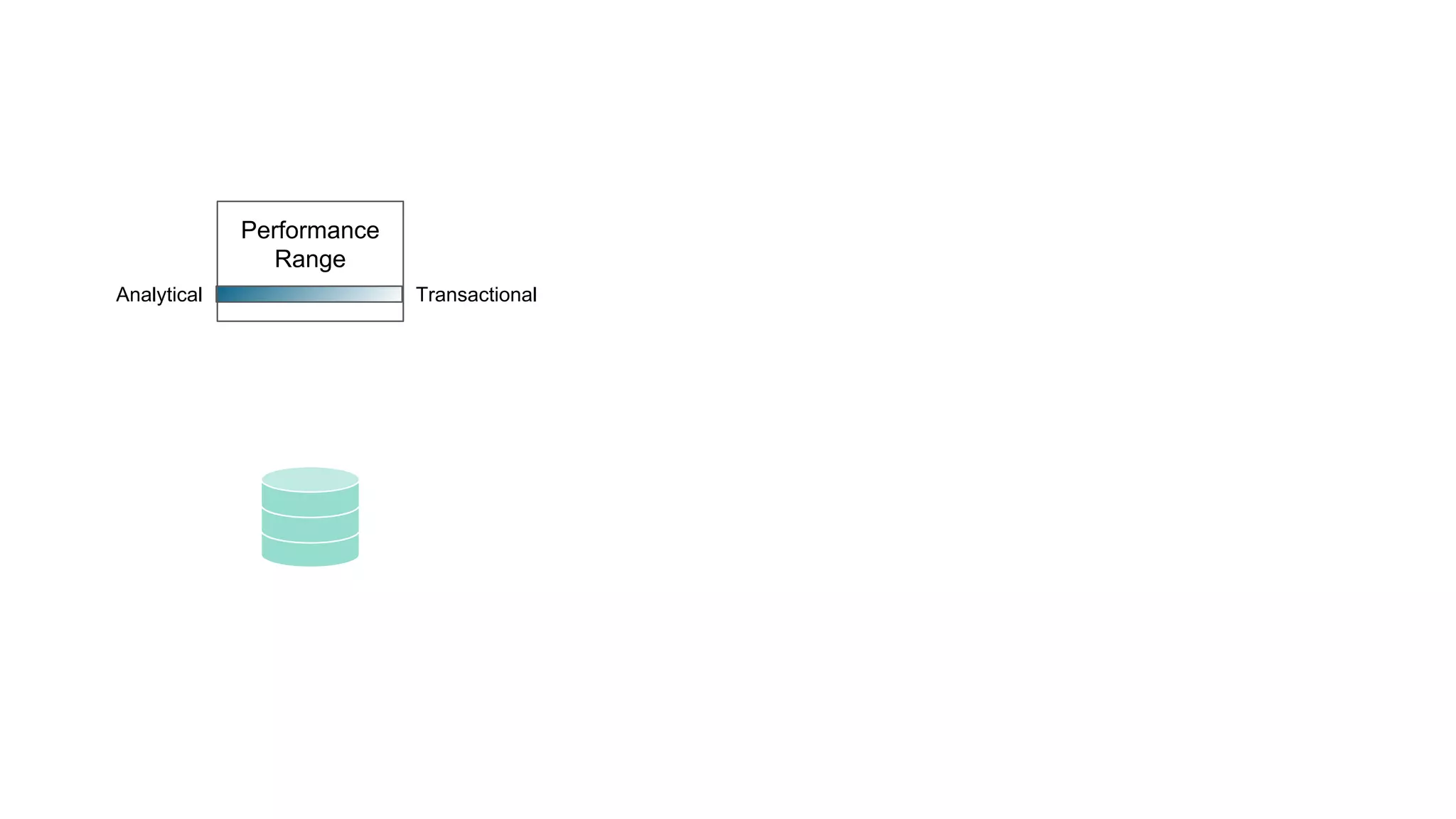

- 7. AX TX Performance Range Database (OLTP) AXTX Performance Range Data warehouse (OLAP)
- 8. Database workloads Transactional Current data Rangequeries Known queries Row-based storage Indexes Clustered/Replicated Historical data Aggregate queries Unkown queries Columnar storage No indexes Distributed Analytical

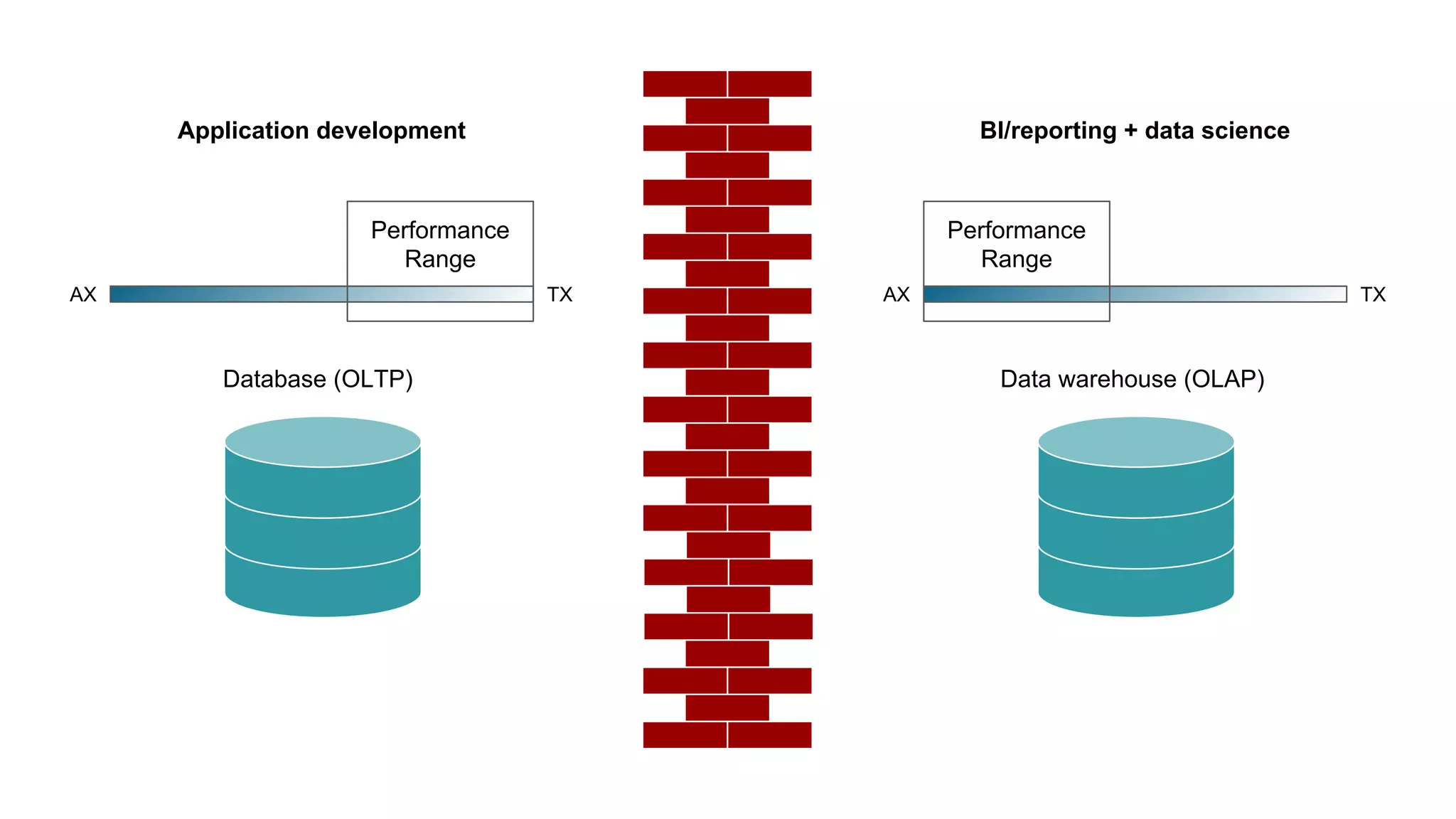

- 9. AX TX Performance Range Database (OLTP) AXTX Performance Range Data warehouse (OLAP) Application development BI/reporting + data science

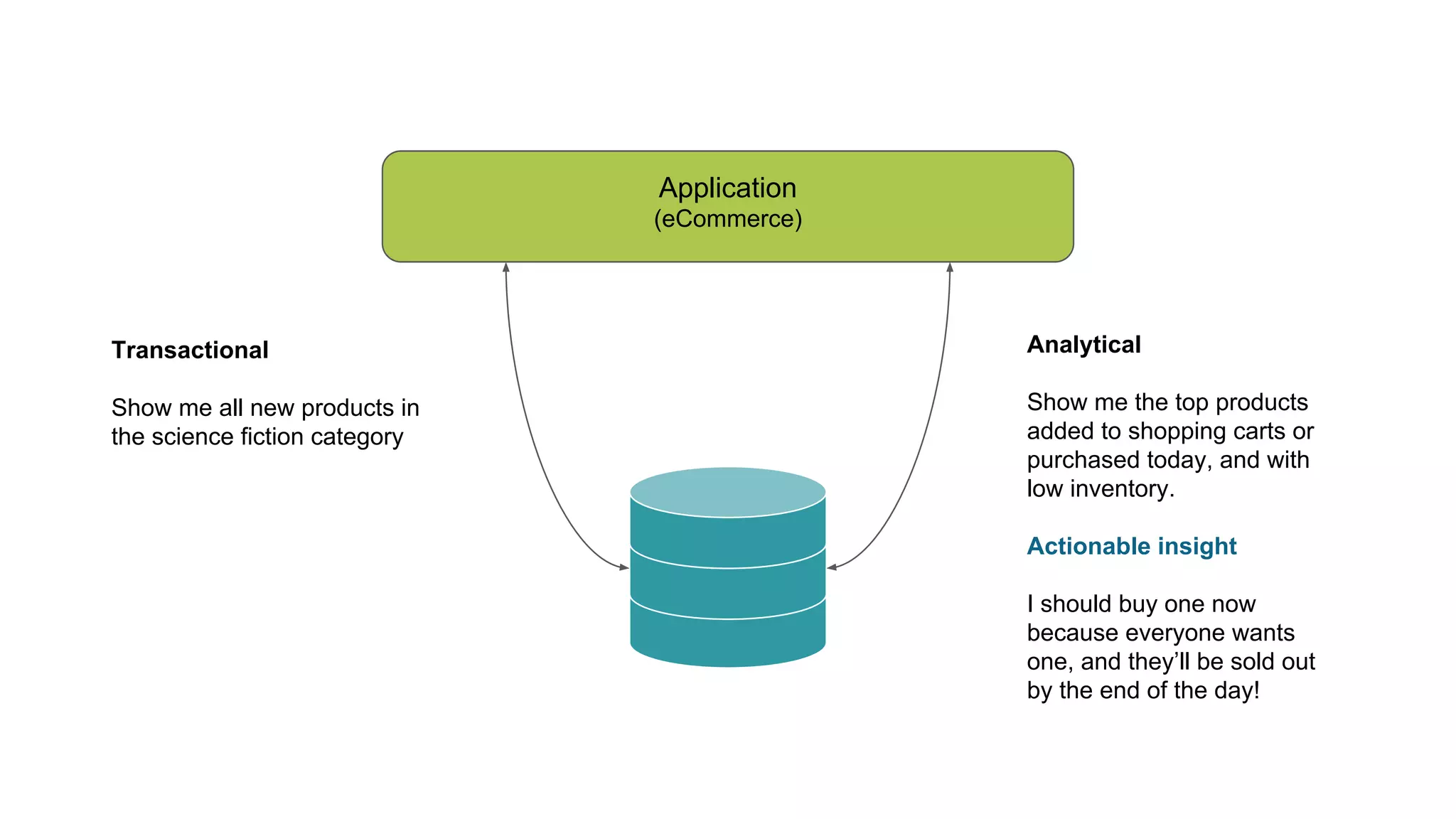

- 10. Application (eCommerce) Transactional Show me allnew products in the science fiction category Analytical Show me the top products added to shopping carts or purchased today, and with low inventory. Actionable insight I should buy one now because everyone wants one, and they’ll be sold out by the end of the day!
- 11. Application (banking) Transactional Show me allpending transactions Analytical Show me when my balance will run low based on historical transactions and my current spending rate Actionable insight I should transfer some money from my savings account to my checking account until I get paid again!
- 12. Application (pay-per-click ads) Transactional Create campaign Createad group Create ad Capture impressions Capture clicks Capture charges Analytical Show me which ads will perform worse based past performance and changes in keyword costs and searches Actionable insight I should pause this ad and raise the budget on others in order to meet my goals!
- 13. Data warehouse (OLAP) Database (OLTP) Hybrid workloads:the problem Transactions App/dev Analytics BI/reporting + data science

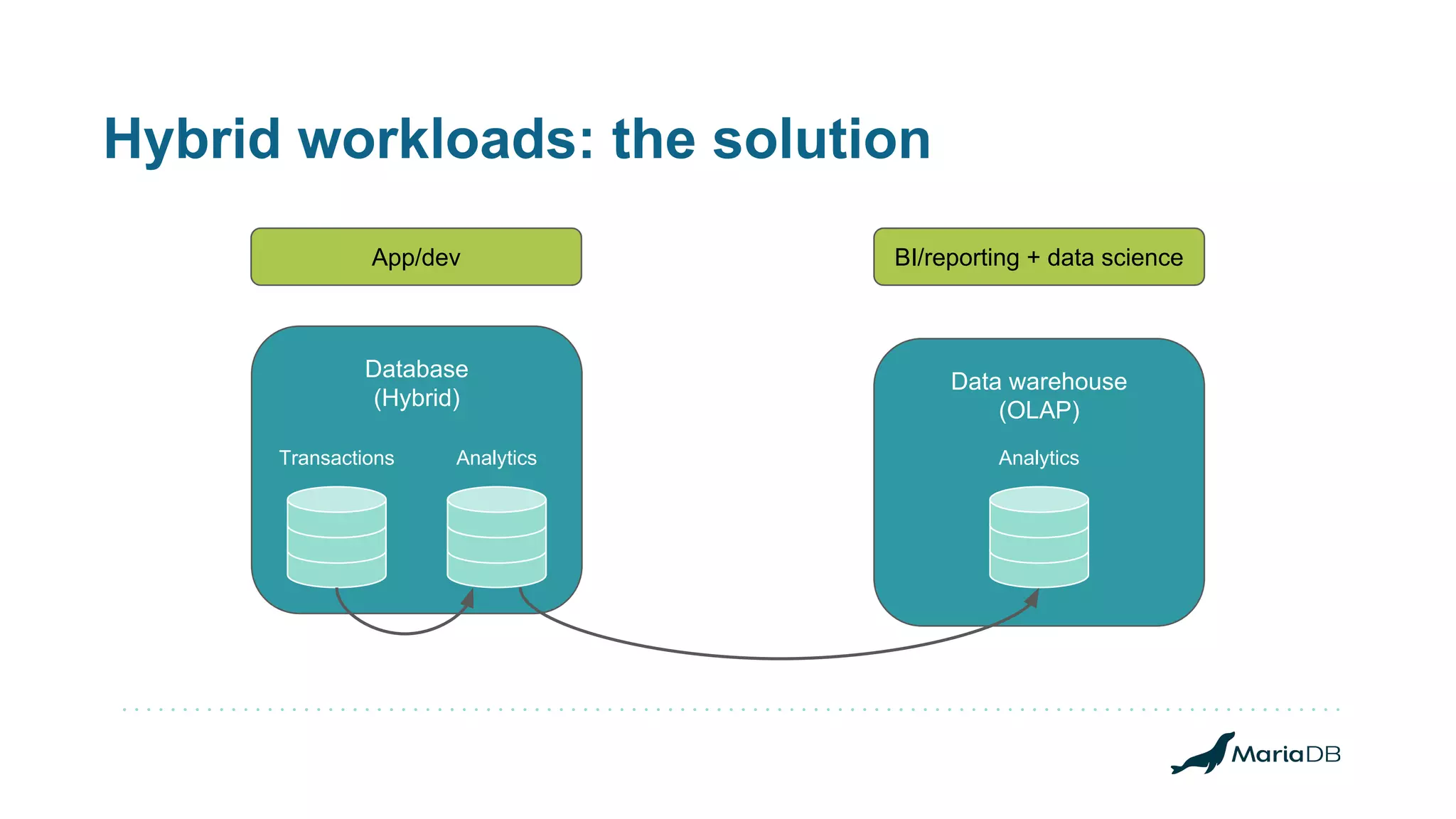

- 14. Data warehouse (OLAP) Database (Hybrid) Hybrid workloads:the solution Transactions Analytics App/dev Analytics BI/reporting + data science
- 15.
- 16. MariaDB TX MariaDB Server MariaDBMaxScale InnoDB/MyRocks MariaDB AX MariaDB Server MariaDB MaxScale ColumnStore App/dev MariaDB TX BI/data science MariaDB AX

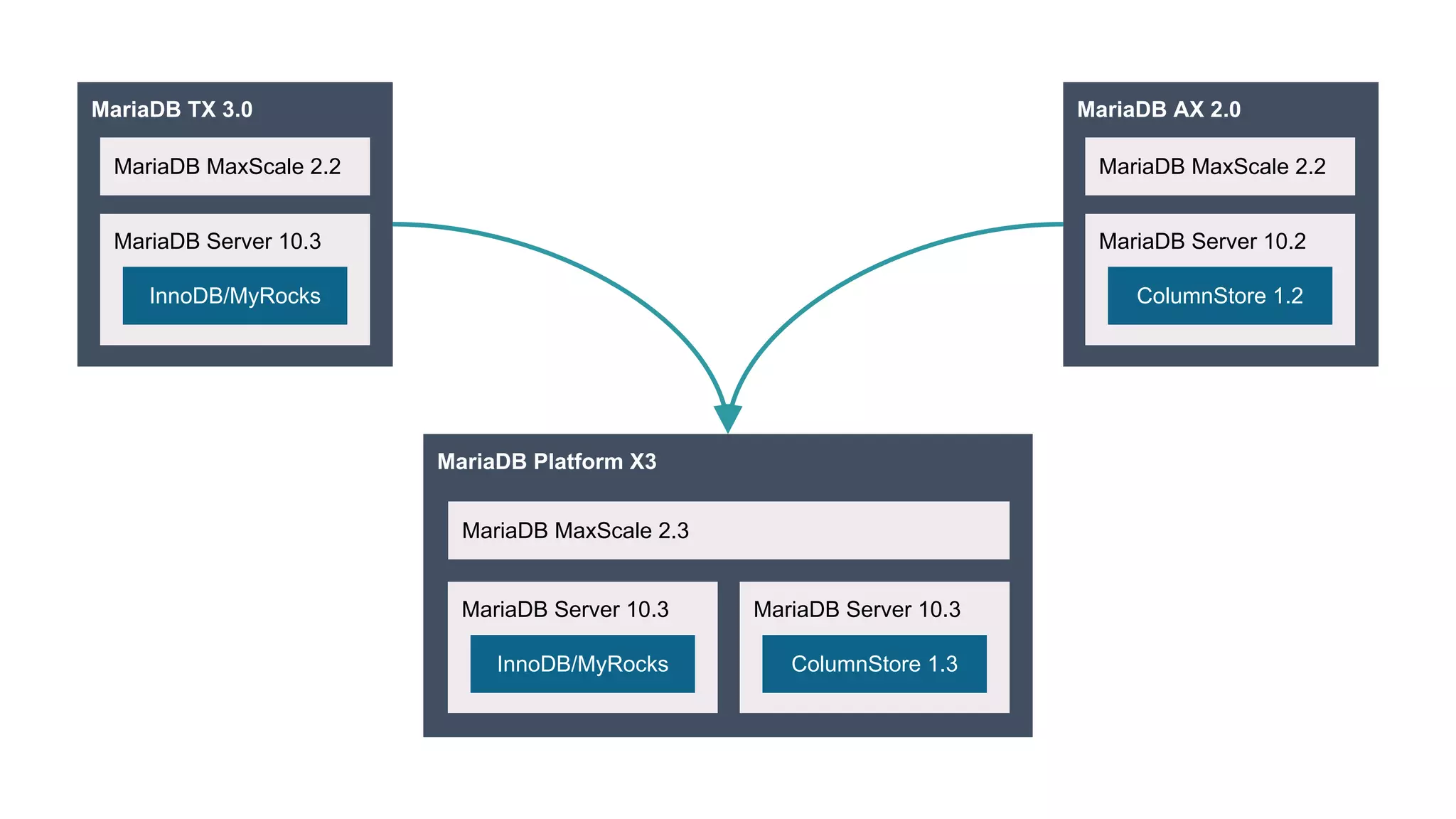

- 17. MariaDB TX 3.0 MariaDBServer 10.3 MariaDB MaxScale 2.2 InnoDB/MyRocks MariaDB AX 2.0 MariaDB Server 10.2 MariaDB MaxScale 2.2 ColumnStore 1.2 MariaDB Platform X3 MariaDB MaxScale 2.3 MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3
- 18. Application development MariaDB PlatformX3 MariaDB MaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical

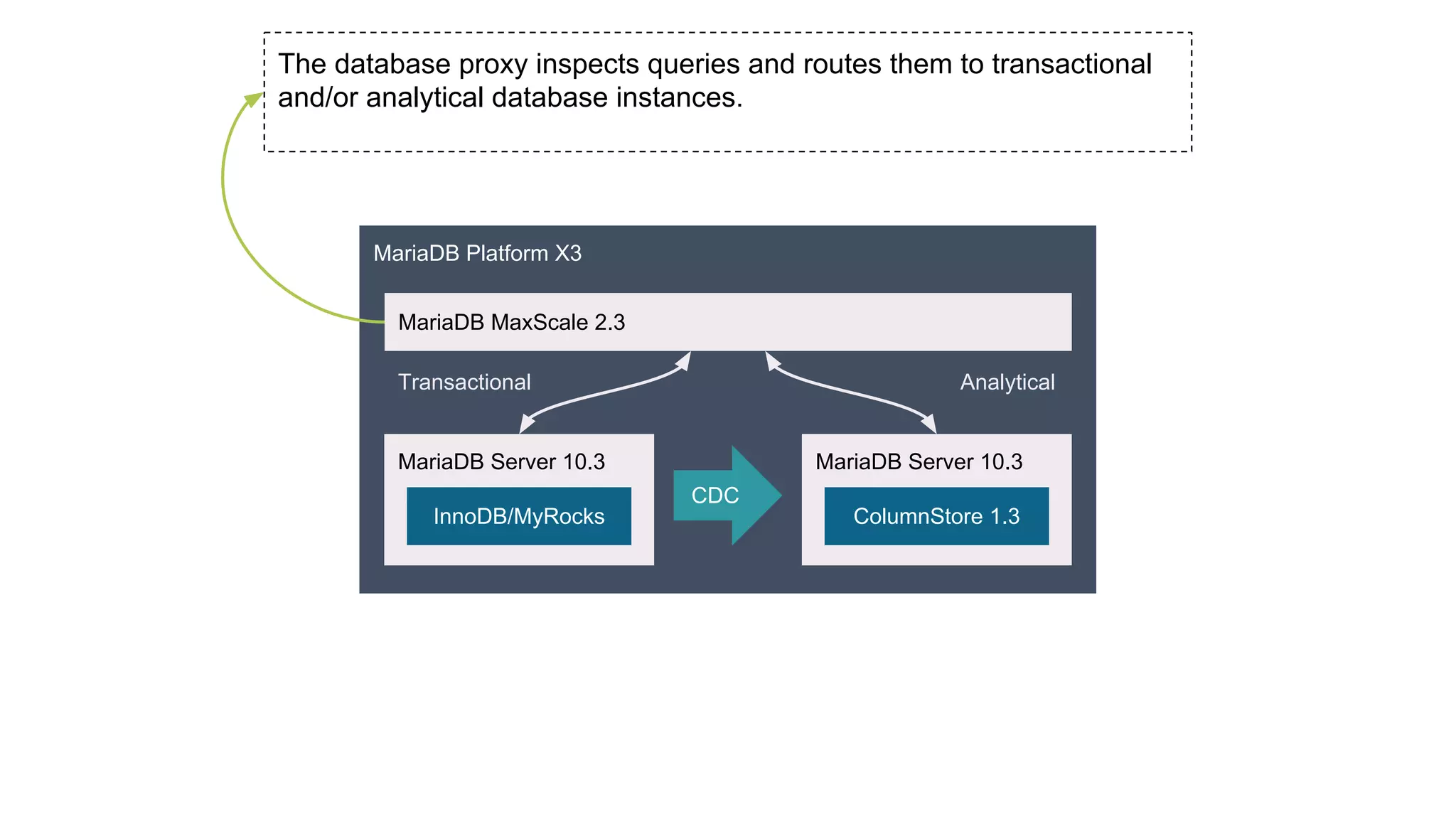

- 19. The database proxyinspects queries and routes them to transactional and/or analytical database instances. MariaDB Platform X3 MariaDB MaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical
- 20. The database proxyinspects queries and routes them to transactional and/or analytical database instances. The change-data-capture stream replicates all writes from transactional databases to analytical databases within microbatches. MariaDB Platform X3 MariaDB MaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical

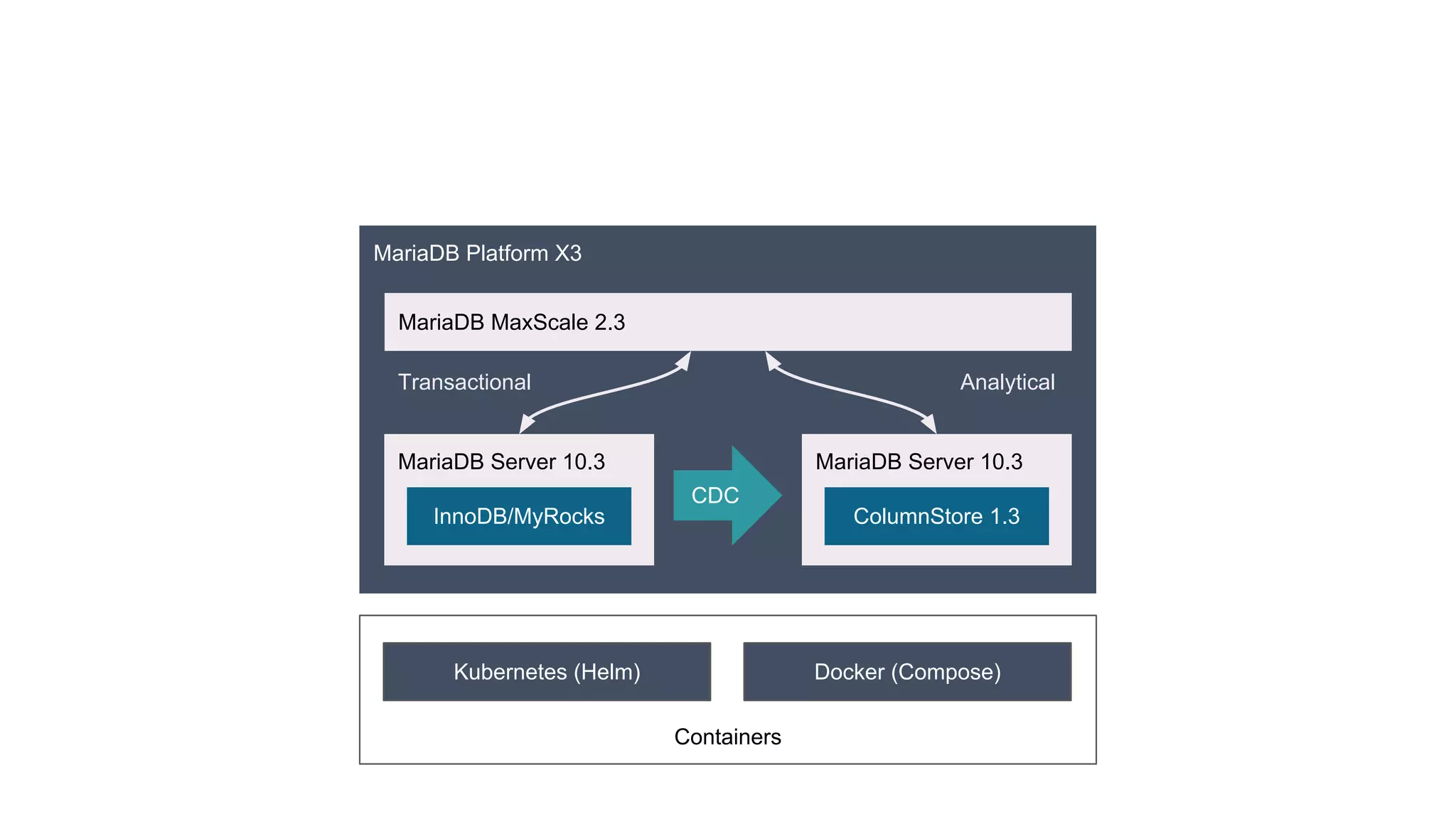

- 21. Containers MariaDB Platform X3 MariaDBMaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical Kubernetes (Helm) Docker (Compose)

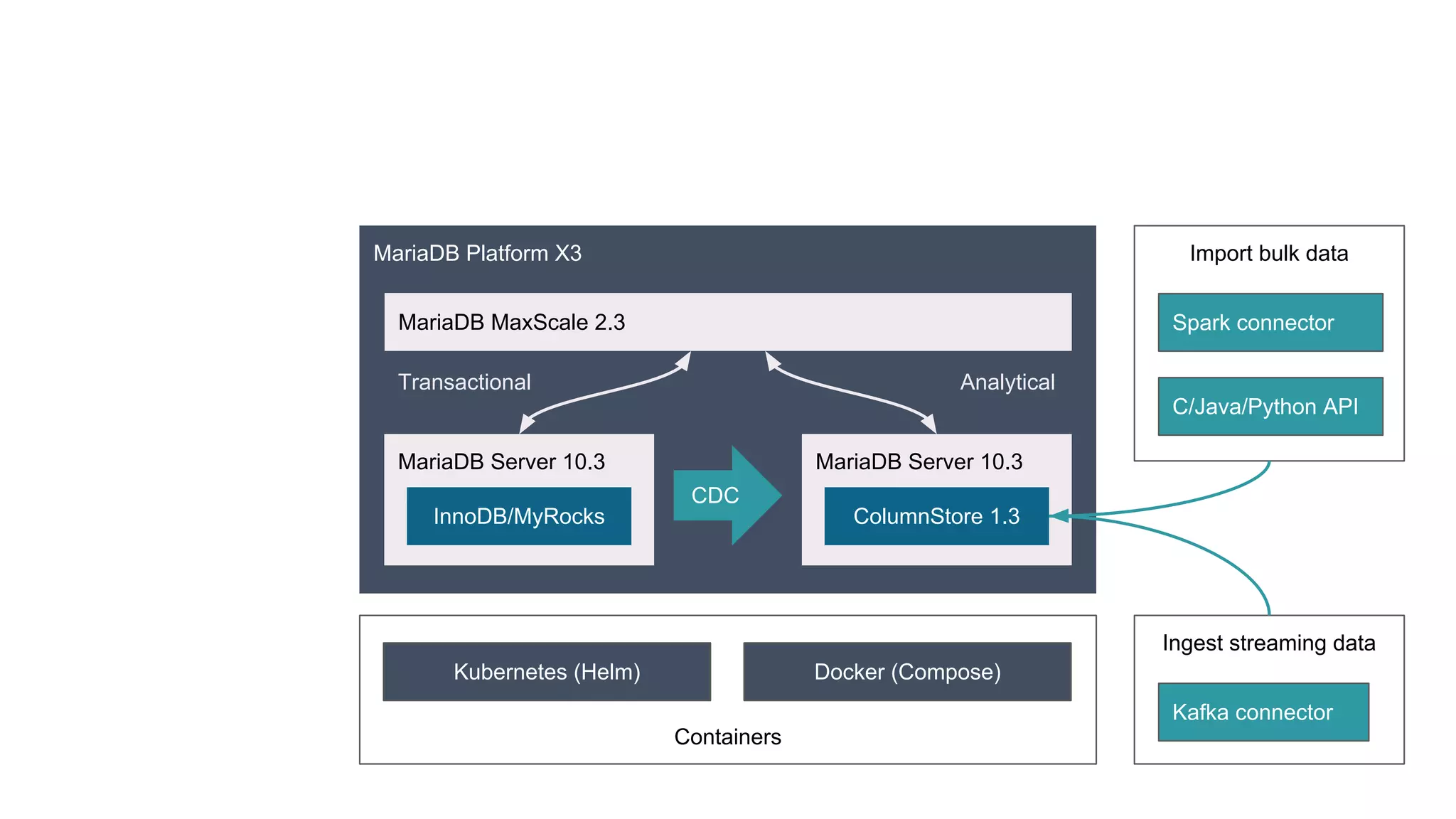

- 22. Import bulk data Containers MariaDBPlatform X3 MariaDB MaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical Kubernetes (Helm) Docker (Compose) Spark connector C/Java/Python API Ingest streaming data Kafka connector

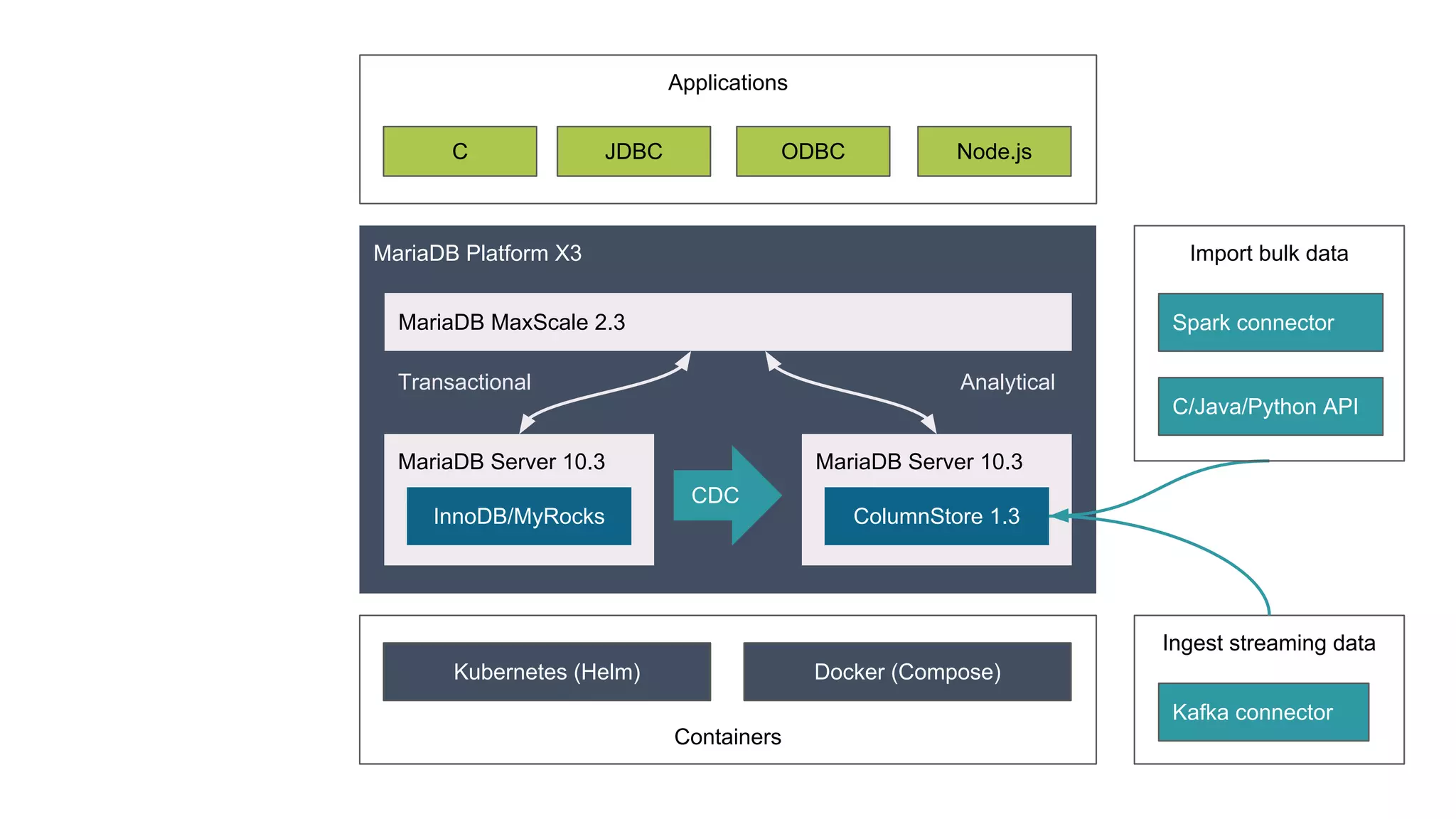

- 23. Applications Containers MariaDB Platform X3 MariaDBMaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical Kubernetes (Helm) Docker (Compose) C JDBC ODBC Node.js Ingest streaming data Kafka connector Import bulk data Spark connector C/Java/Python API

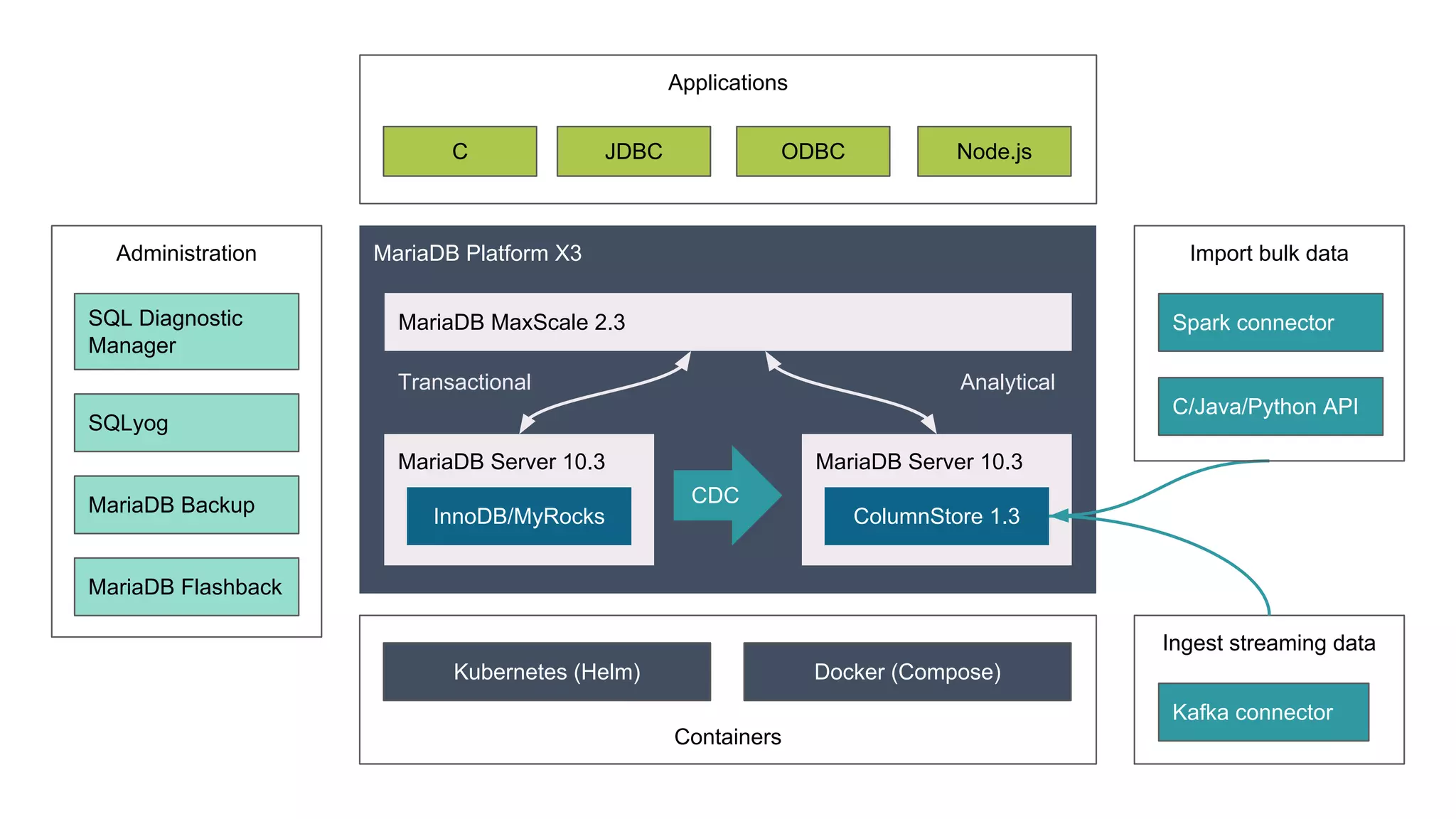

- 24. Applications Containers MariaDB Platform X3 MariaDBMaxScale 2.3 CDC MariaDB Server 10.3 InnoDB/MyRocks MariaDB Server 10.3 ColumnStore 1.3 Transactional Analytical Kubernetes (Helm) Docker (Compose) C JDBC ODBC Node.js Ingest streaming data Kafka connector Administration SQL Diagnostic Manager SQLyog MariaDB Backup MariaDB Flashback Import bulk data Spark connector C/Java/Python API
- 25.
- 26. Hybrid workloads: whyscalability is needed Applications have transactional and analytical queries 1. Constrained by limited, lightweight analytics 2. Need full analytics to create competitive features Outgrowing OLTP Applications with lots of customers, lots of transactions 1. Limited to current or recent transaction data (months) 2. Need access to all historical data (years) Using historical data SaaS customers are becoming data-driven organizations 1. They don’t have access to their own data 2. They need to analyze it in unknown/unexpected ways Exposing analytics
- 27. Hybrid workloads: options ●Oracle ○ In-Memory Column Store ● Microsoft SQL Server ○ ColumnStore Indexes (Clustered or Nonclustered) ● IBM Db2 ○ Shadow Tables ● MySQL Enterprise ○ None ● EnterpriseDB Postgres Platform ○ None
- 28. Hybrid workloads: fullcomparison * IBM Db2 Shadow Tables, ** Oracle IM column store can read from on-disk row storage if needed Oracle Microsoft IBM * MariaDB MySQL Postgres Row storage (OLTP) Yes Yes Yes Yes Yes Yes Sharded Yes No Yes Yes No No Columnar storage (OLAP) Yes Yes Yes Yes No No Disk-based No ** Yes Yes Yes - - Distributed Yes (RAC) No No Yes - -
- 29. Microsoft SQL Server Columnar storage Rowstorage Microsoft SQL Server Row storage Columnar storage Application Connection 1 Connection 2 Transactional Analytical
- 30. Application Connection 1 MariaDB Server Row storage MariaDBServer Columnar storage MariaDB MaxScale Transactional Analytical

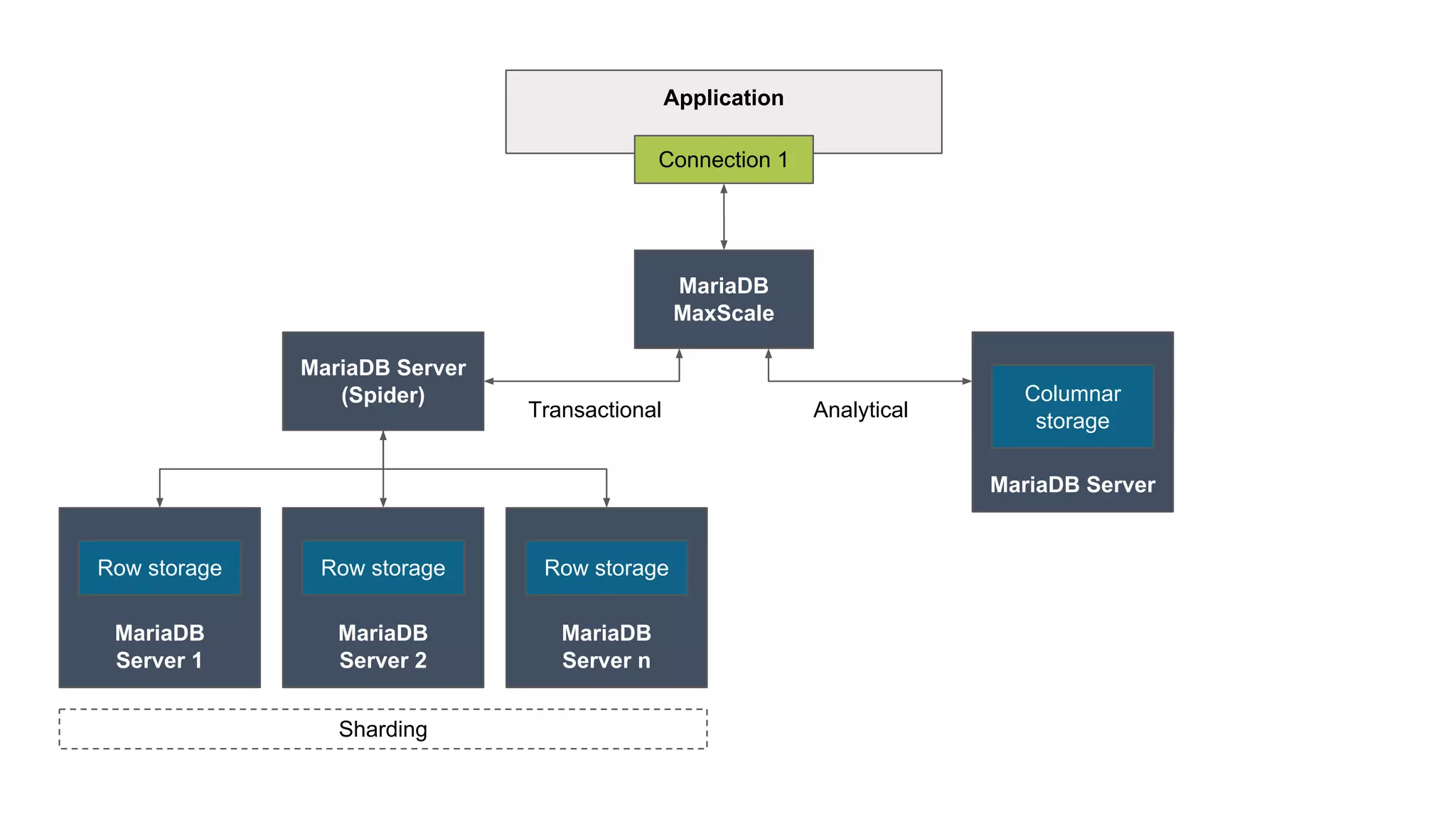

- 31. MariaDB Server (Spider) Application Connection 1 MariaDB Server1 Row storage MariaDB Server 2 Row storage MariaDB Server n Row storage MariaDB Server (ColumnStore) Sharding MariaDB MaxScale Transactional Analytical MariaDB Server Columnar storage

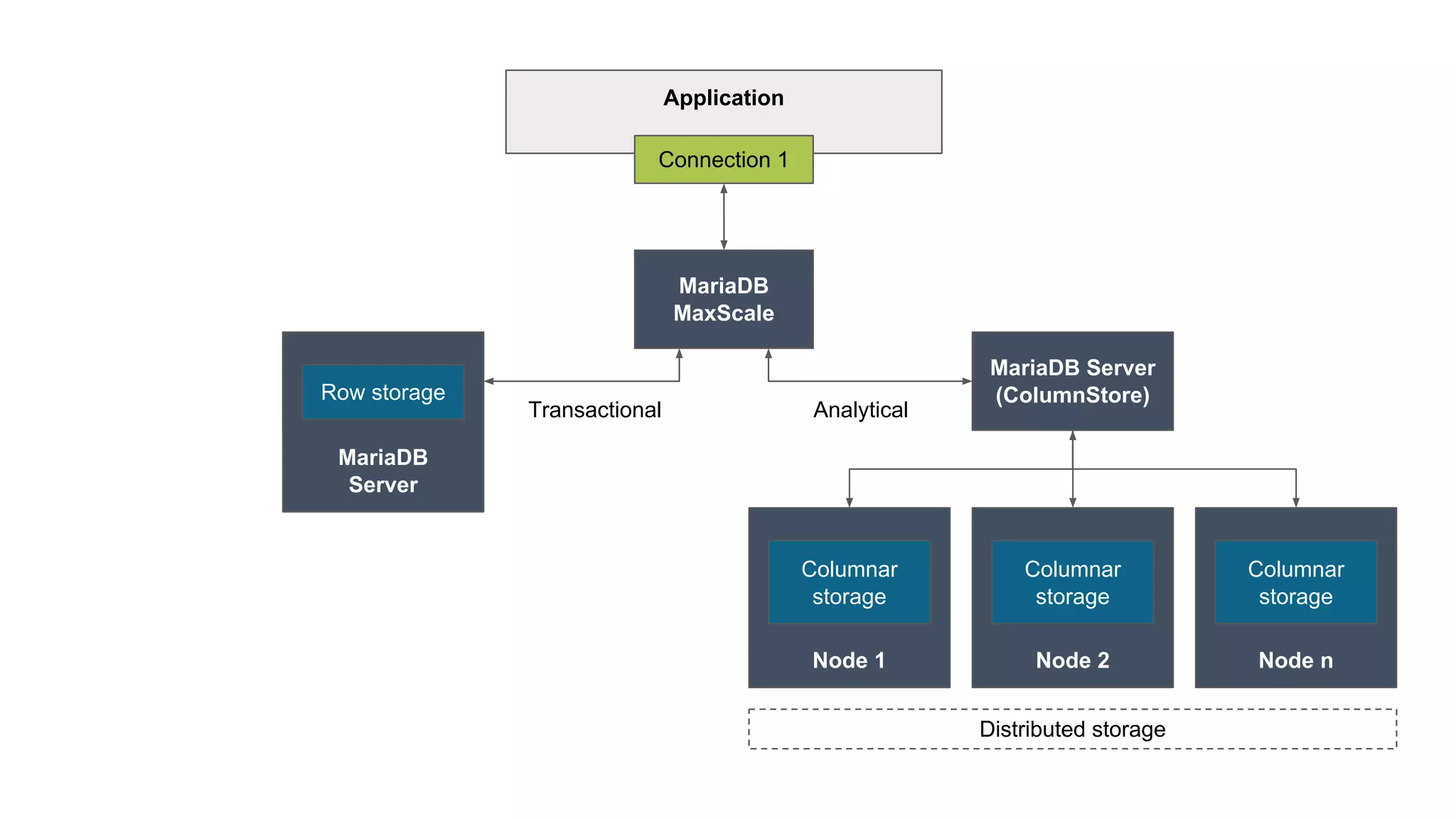

- 32. MariaDB Server (Spider) Application Connection 1 MariaDBServer (ColumnStore) Node 1 Columnar storage Node 2 Columnar storage Node n Columnar storage Distributed storage MariaDB MaxScale Transactional Analytical MariaDB Server Row storage

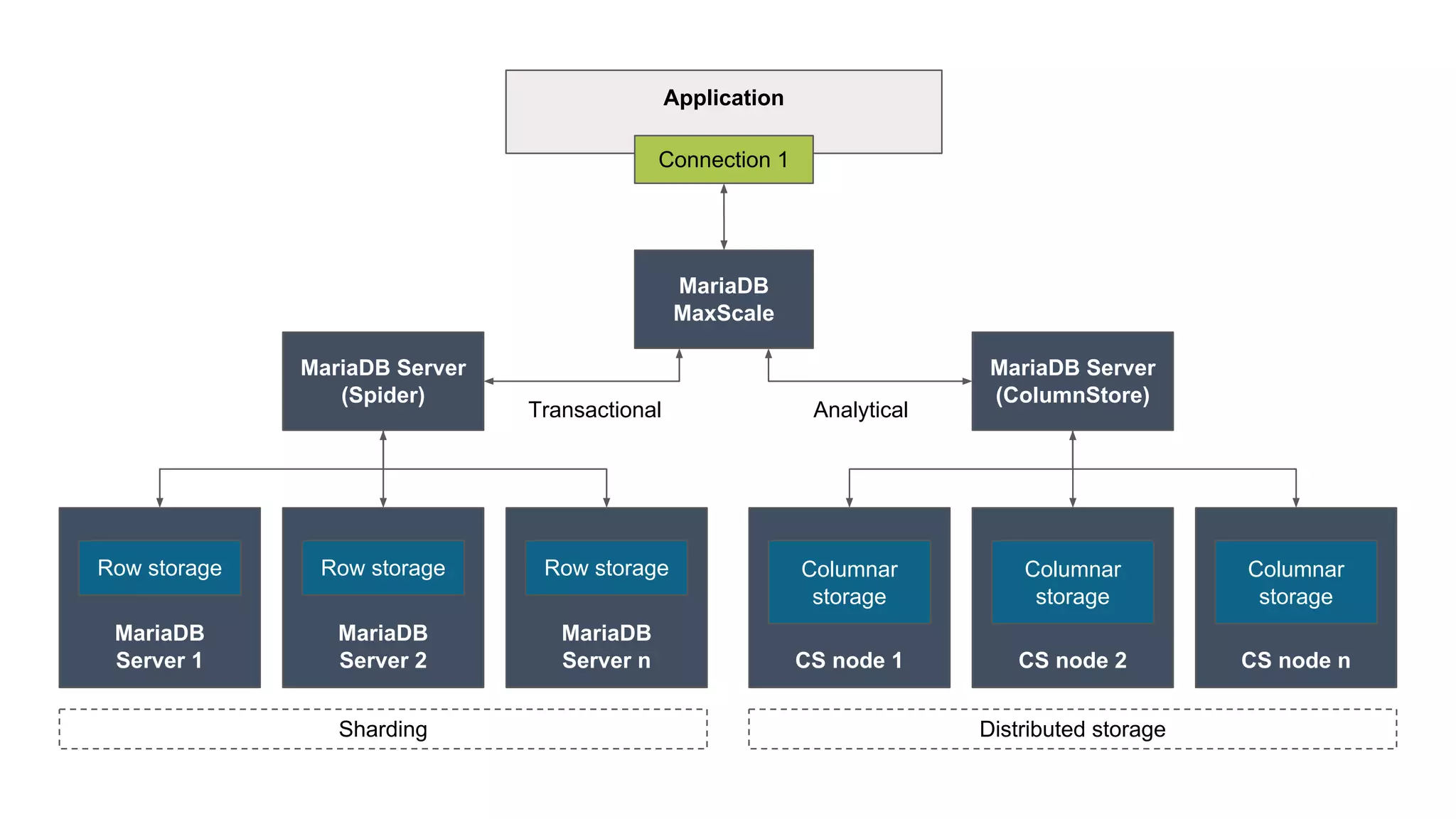

- 33. MariaDB Server (Spider) Application Connection 1 MariaDB Server1 Row storage MariaDB Server 2 Row storage MariaDB Server n Row storage MariaDB Server (ColumnStore) CS node 1 Columnar storage CS node 2 Columnar storage CS node n Columnar storage Sharding Distributed storage MariaDB MaxScale Transactional Analytical
- 34.

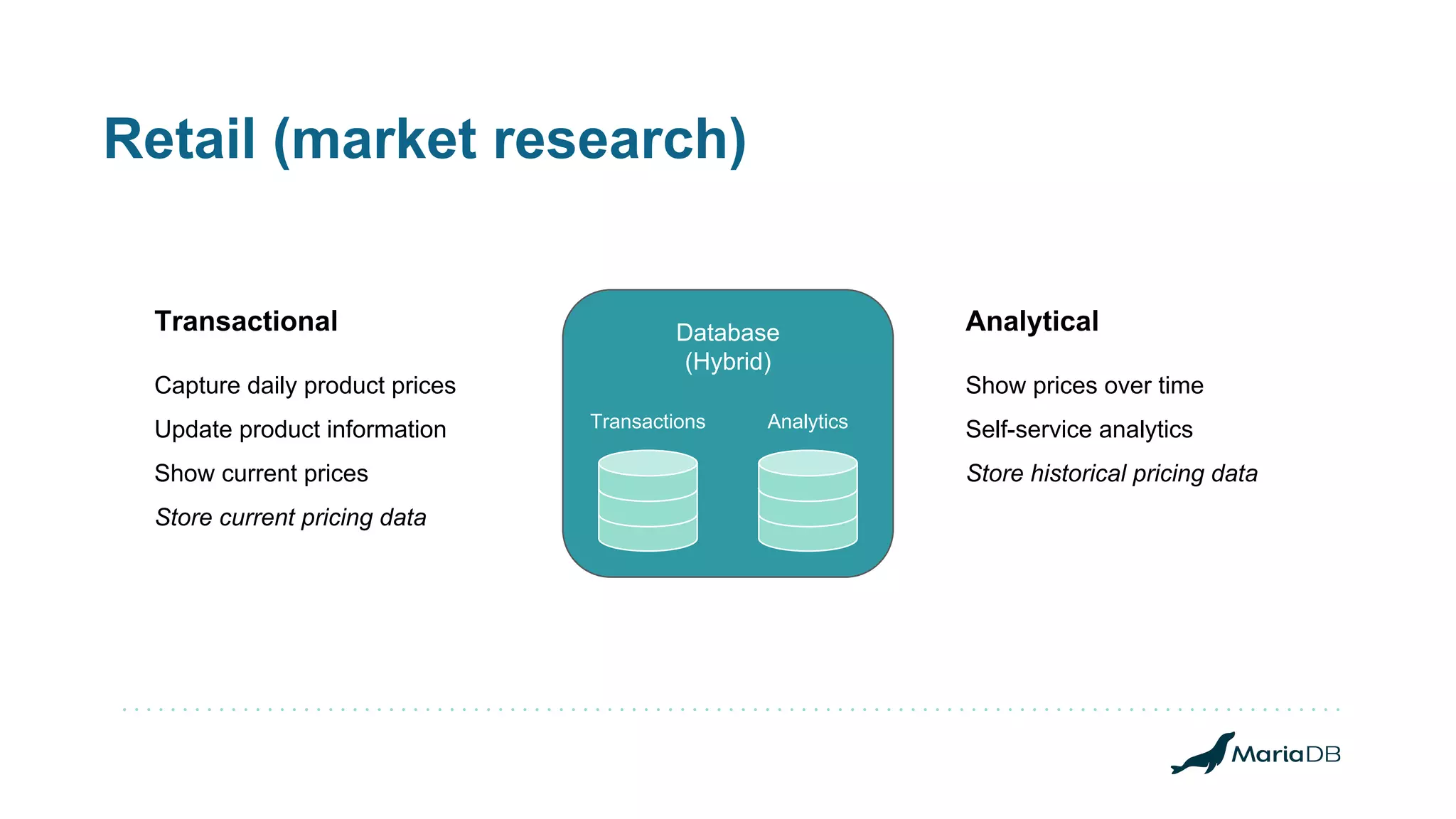

- 35. Retail (market research) Database (Hybrid) TransactionsAnalytics Transactional Capture daily product prices Update product information Show current prices Store current pricing data Analytical Show prices over time Self-service analytics Store historical pricing data
- 36. Telecommunications (IP telephony– SaaS) Database (Hybrid) Transactions Analytics Transactional Capture call detail records Charge by call/message Generate bills Analytical Monitor usage Identify peak periods Estimate costs Self-service analytics

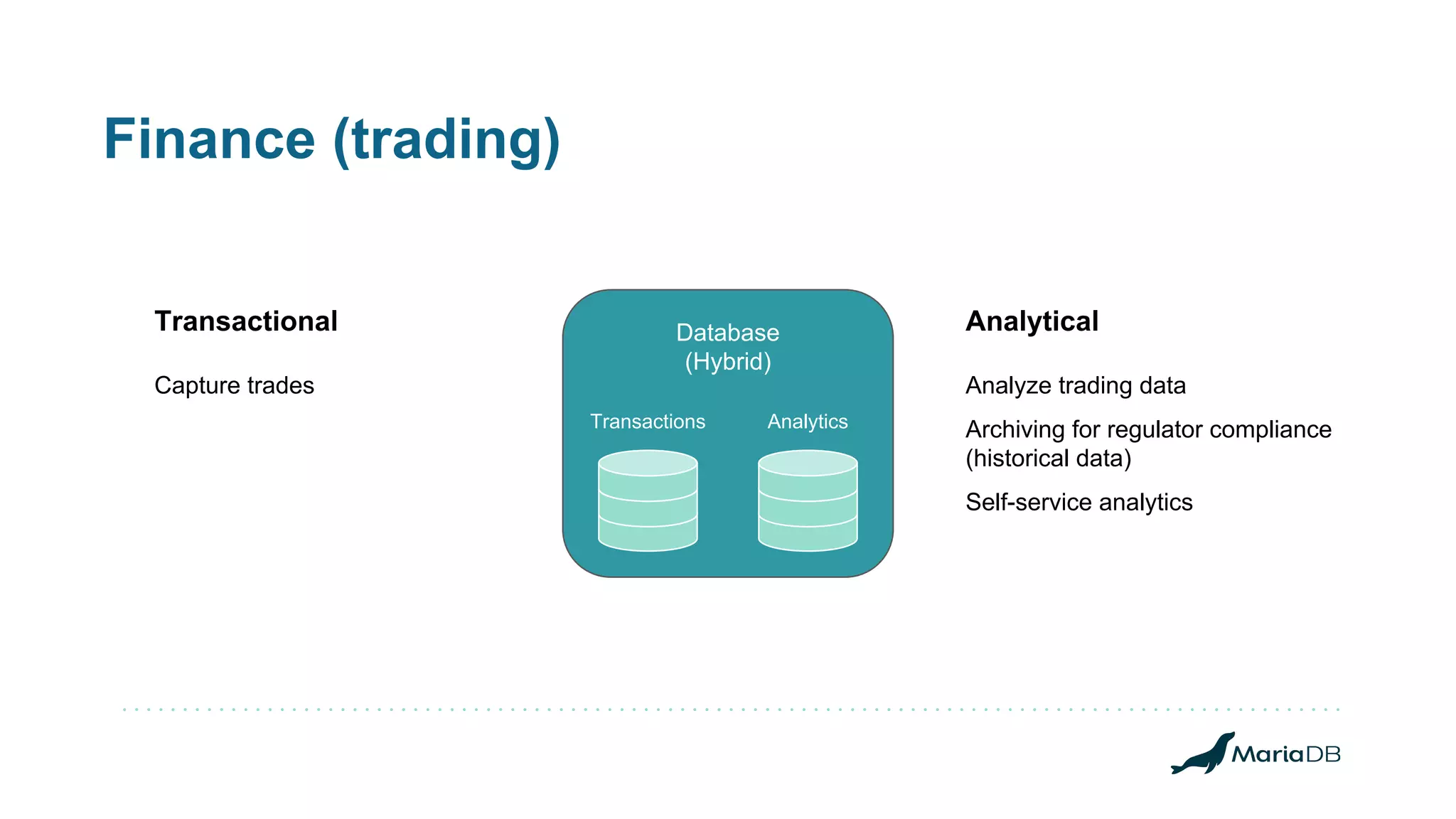

- 37. Finance (trading) Database (Hybrid) Transactions Analytics Transactional Capturetrades Analytical Analyze trading data Archiving for regulator compliance (historical data) Self-service analytics
- 38.
- 39. Hybrid workloads: perfectfor hybrid cloud ● MariaDB Platform separates and isolates different workloads ○ Run different workloads on different infrastructure ○ Place different workloads closer to different users ○ Scale different workloads on different hardware

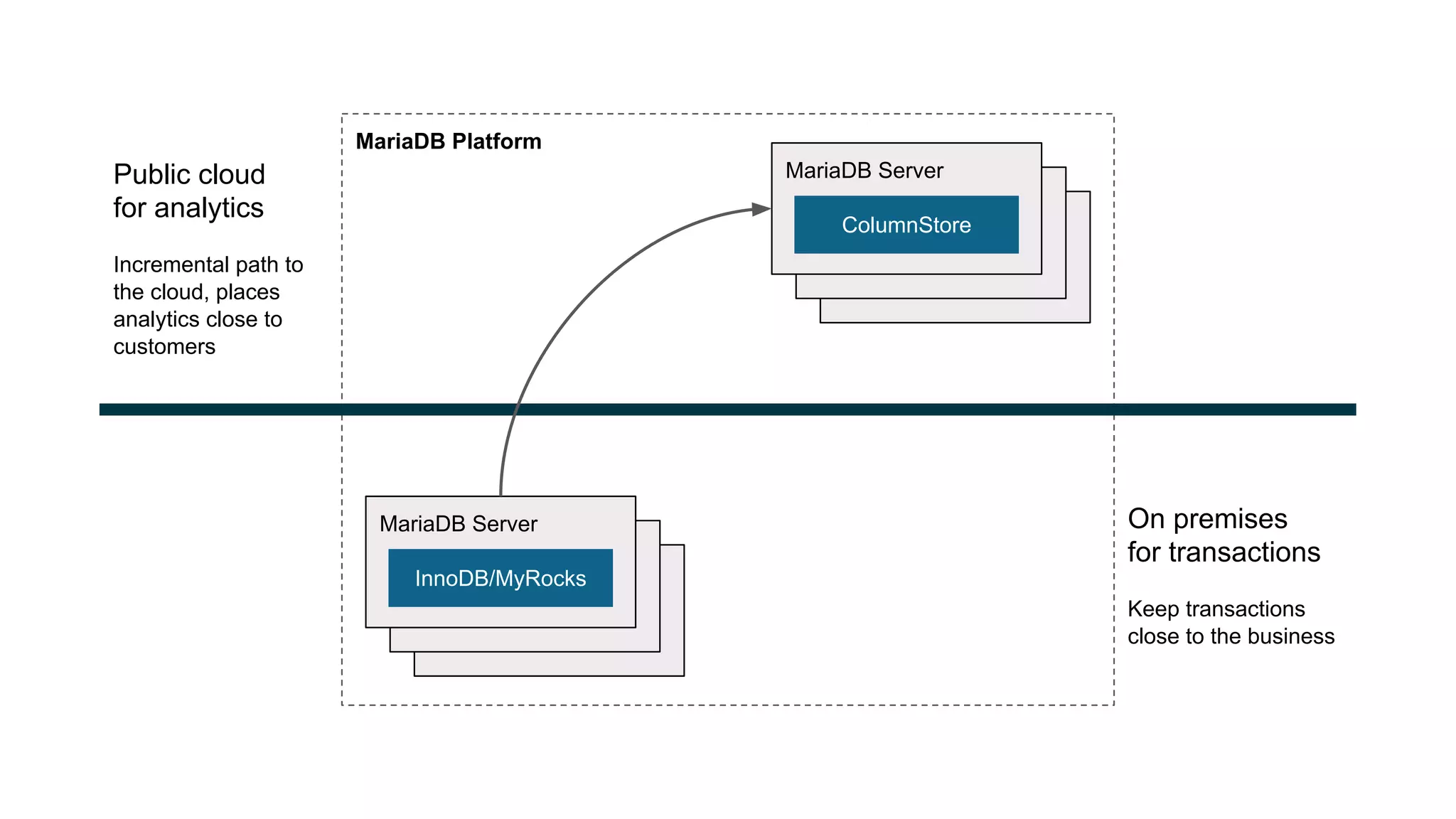

- 40. MariaDB Platform MariaDB Server MariaDBServer MariaDB Server MariaDB Server MariaDB Server InnoDB/MyRocks MariaDB Server ColumnStore On premises for transactions Keep transactions close to the business Public cloud for analytics Incremental path to the cloud, places analytics close to customers

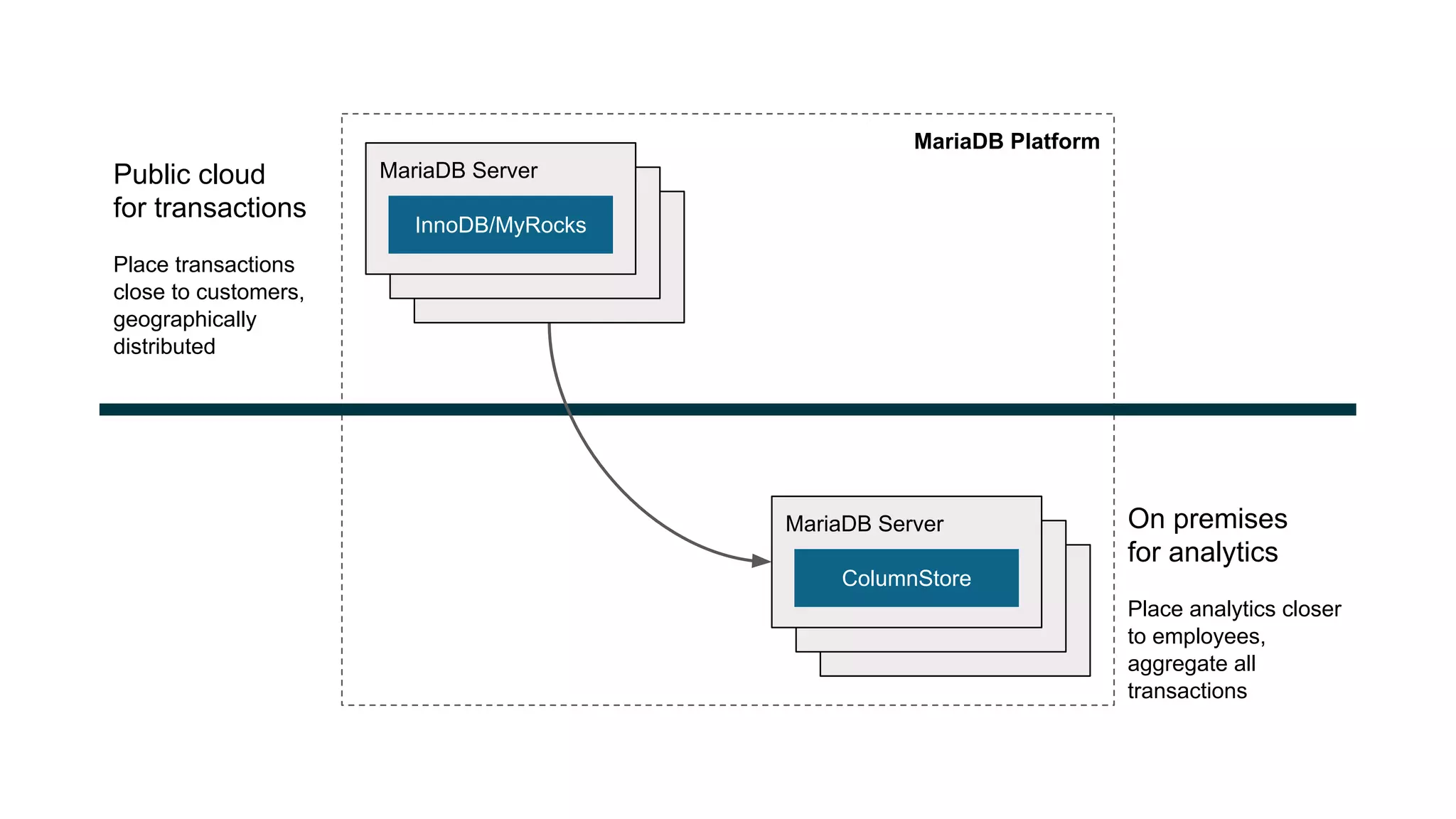

- 41. MariaDB Platform On premises foranalytics Place analytics closer to employees, aggregate all transactions Public cloud for transactions Place transactions close to customers, geographically distributed MariaDB Server MariaDB Server MariaDB Server ColumnStore MariaDB Server MariaDB Server MariaDB Server InnoDB/MyRocks
- 42.

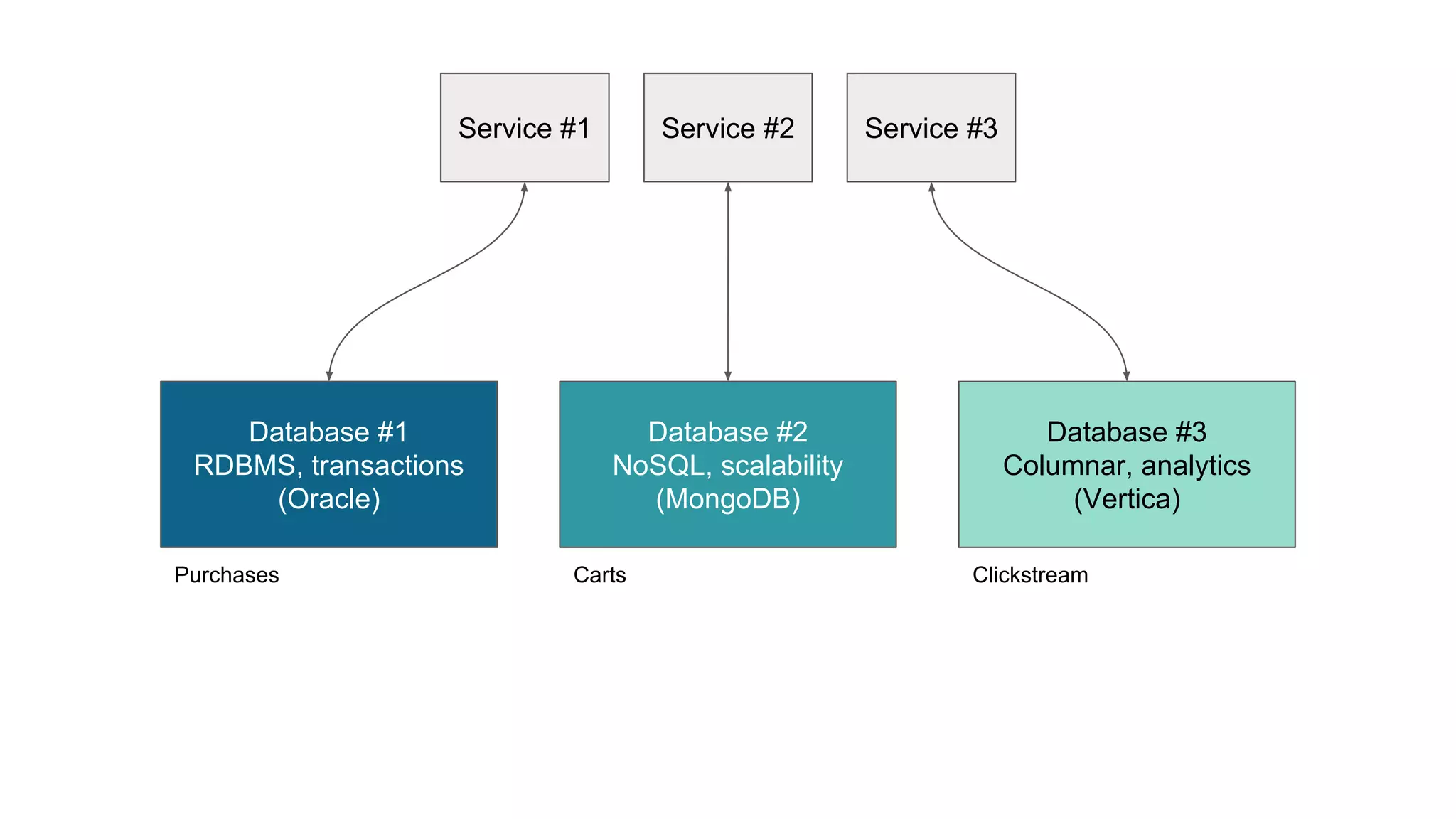

- 43. Service #2 Database #1 RDBMS,transactions (Oracle) Database #2 NoSQL, scalability (MongoDB) Database #3 Columnar, analytics (Vertica) Purchases Carts Clickstream Service #1 Service #3
- 44. MariaDB Platform Carts MariaDB ServerMariaDB Server MariaDB Server Purchases Clickstream MyRocks Spider Shard 2Shard 1 Shard 3 ColumnStore MariaDB MaxScale Service #2Service #1 Service #3
- 45.
- 46. MariaDB Platform X3in a container ● MariaDB Platform “in-a-box” ● Fully-configured and ready to use out of the box ● Intended as a quickstart for development ● Launched with a Docker command ● Runs on a laptop https://github.com/mariadb-corporation/mariadb-platform-docker/tree/master/single-container
- 47. MariaDB Platform X3in a container
- 48.

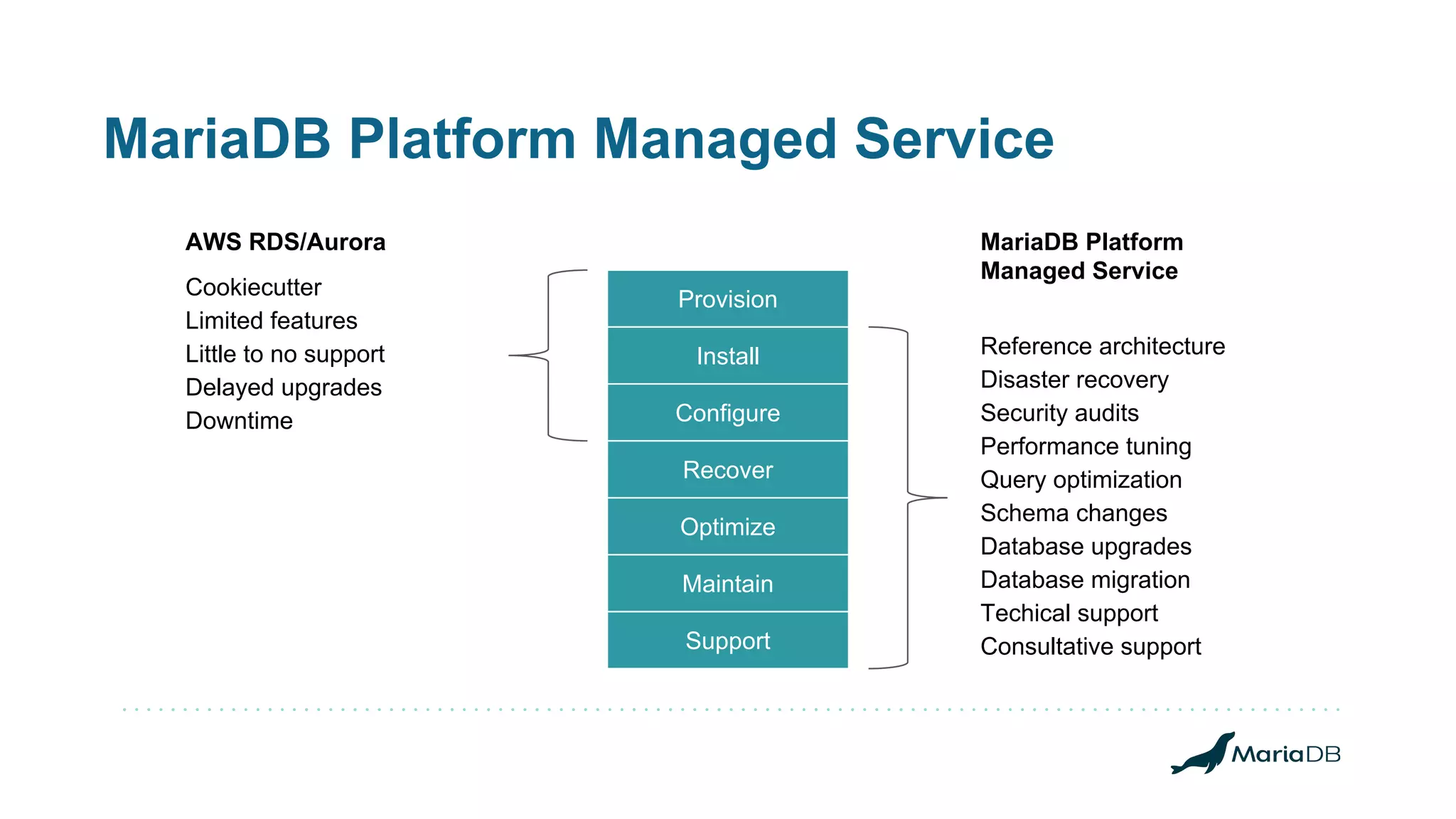

- 49. MariaDB Platform ManagedService Provision Install Configure Optimize Recover Maintain Support Reference architecture Disaster recovery Security audits Performance tuning Query optimization Schema changes Database upgrades Database migration Techical support Consultative support Cookiecutter Limited features Little to no support Delayed upgrades Downtime AWS RDS/Aurora MariaDB Platform Managed Service

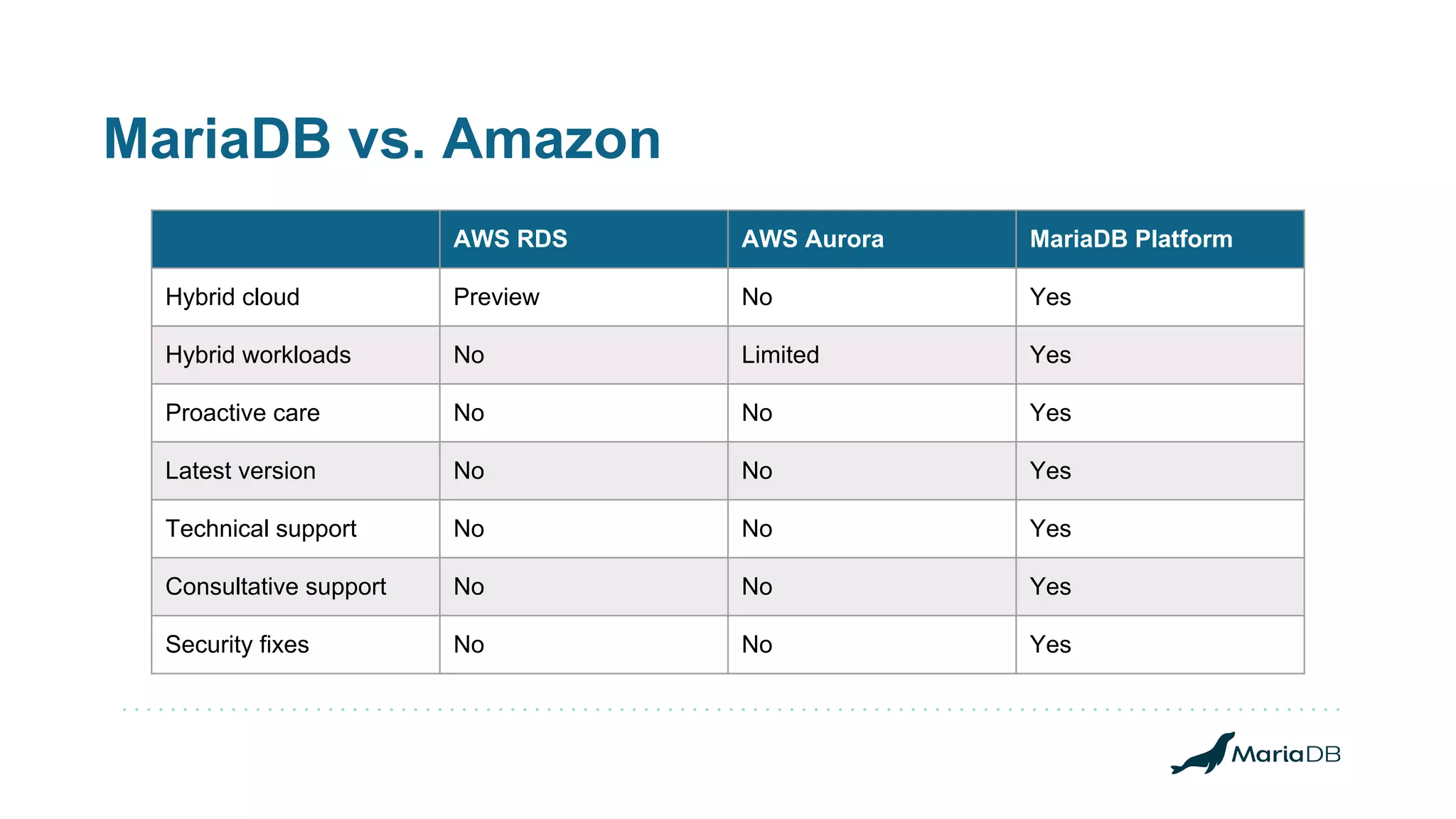

- 50. MariaDB vs. Amazon AWSRDS AWS Aurora MariaDB Platform Hybrid cloud Preview No Yes Hybrid workloads No Limited Yes Proactive care No No Yes Latest version No No Yes Technical support No No Yes Consultative support No No Yes Security fixes No No Yes

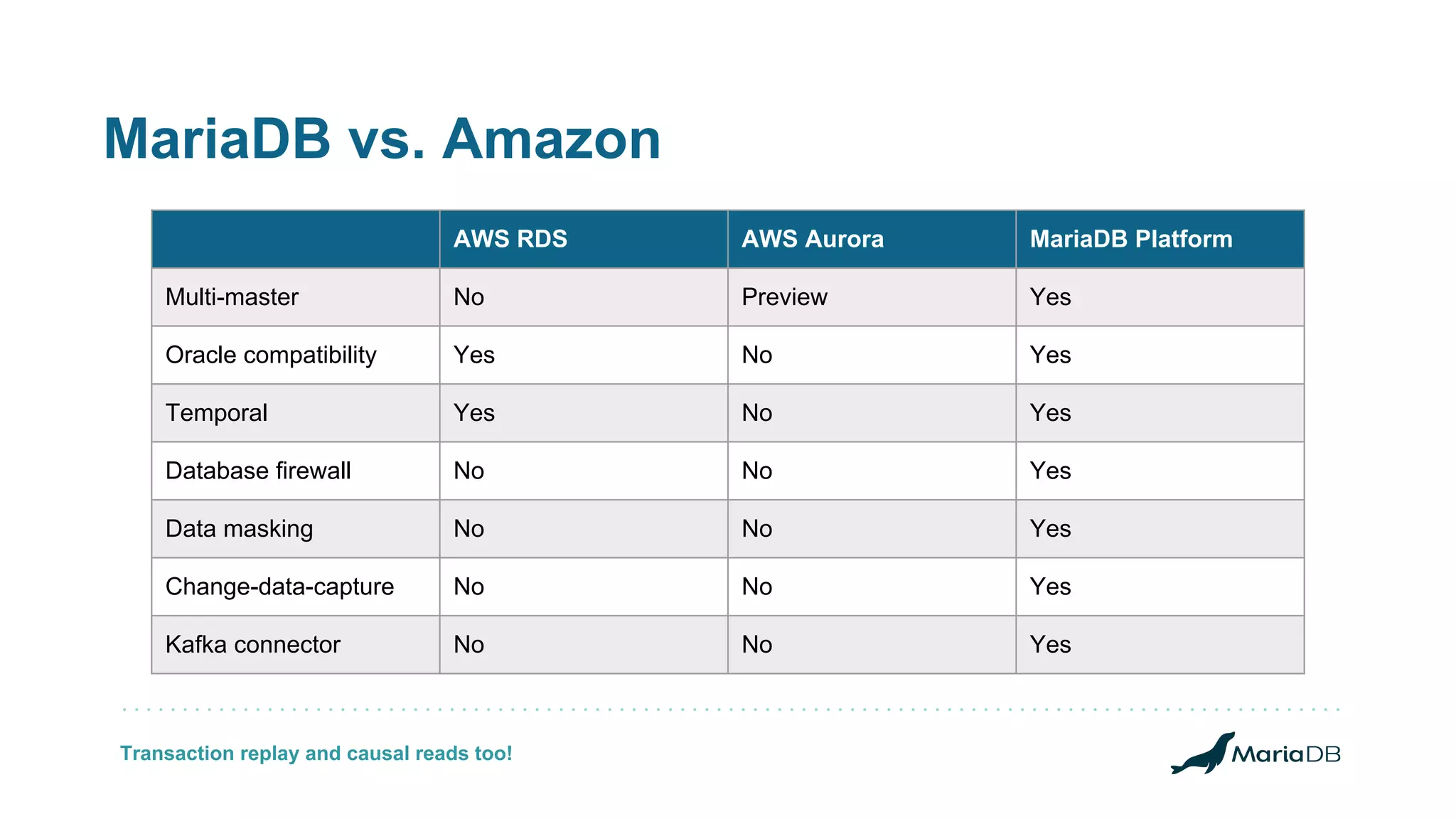

- 51. MariaDB vs. Amazon Transactionreplay and causal reads too! AWS RDS AWS Aurora MariaDB Platform Multi-master No Preview Yes Oracle compatibility Yes No Yes Temporal Yes No Yes Database firewall No No Yes Data masking No No Yes Change-data-capture No No Yes Kafka connector No No Yes
- 52.
