Hekaton – SQL 2014 In-Memory OLTP A journey BACK TO THE FUTURE

About me Shy Engelberg, SQL Server consultant. shy.engelberg@hynt.co.il 054-7717115 @ShyEngelberg www.blogs.Microsoft.co.il/ShyEngel www.hynt.co.il www.facebook.com/HYNTil

Agenda • What is Hekaton? • Why now? • Removing the performance bottlenecks • Disk • Locking • Latches • Logging • Interpreted query language • Performance results • Integration into SQL Server

What is Hekaton? • Hekaton - "hundred“ (100) in Greek. figures in an archaic stage of Greek mythology, three giants of incredible strength and ferocity each of them having a hundred hands (100 hands working together in parallel?) and fifty heads. (Wikipedia)

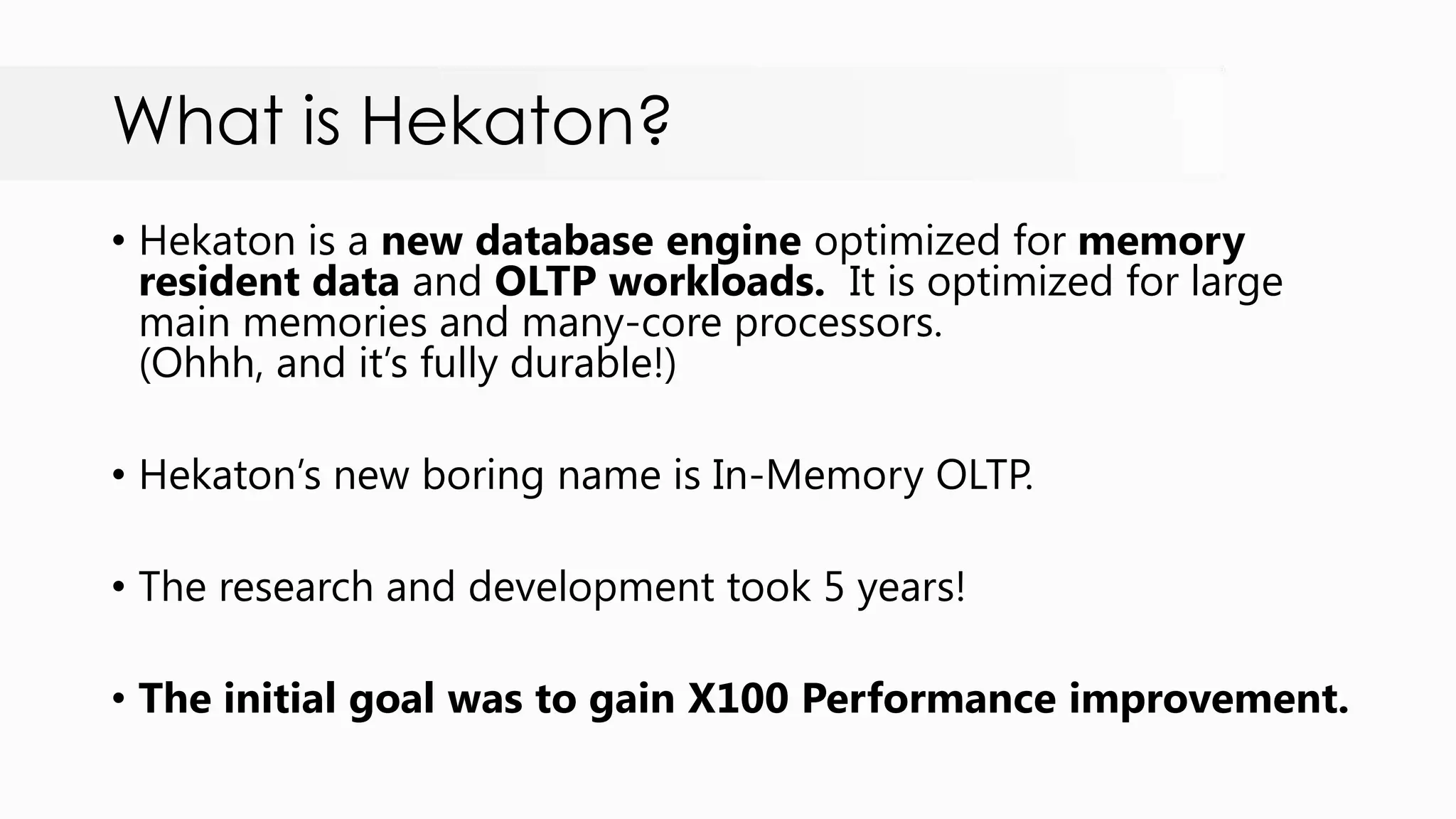

What is Hekaton? • Hekaton is a new database engine optimized for memory resident data and OLTP workloads. It is optimized for large main memories and many-core processors. (Ohhh, and it‟s fully durable!) • Hekaton‟s new boring name is In-Memory OLTP. • The research and development took 5 years! • The initial goal was to gain X100 Performance improvement.

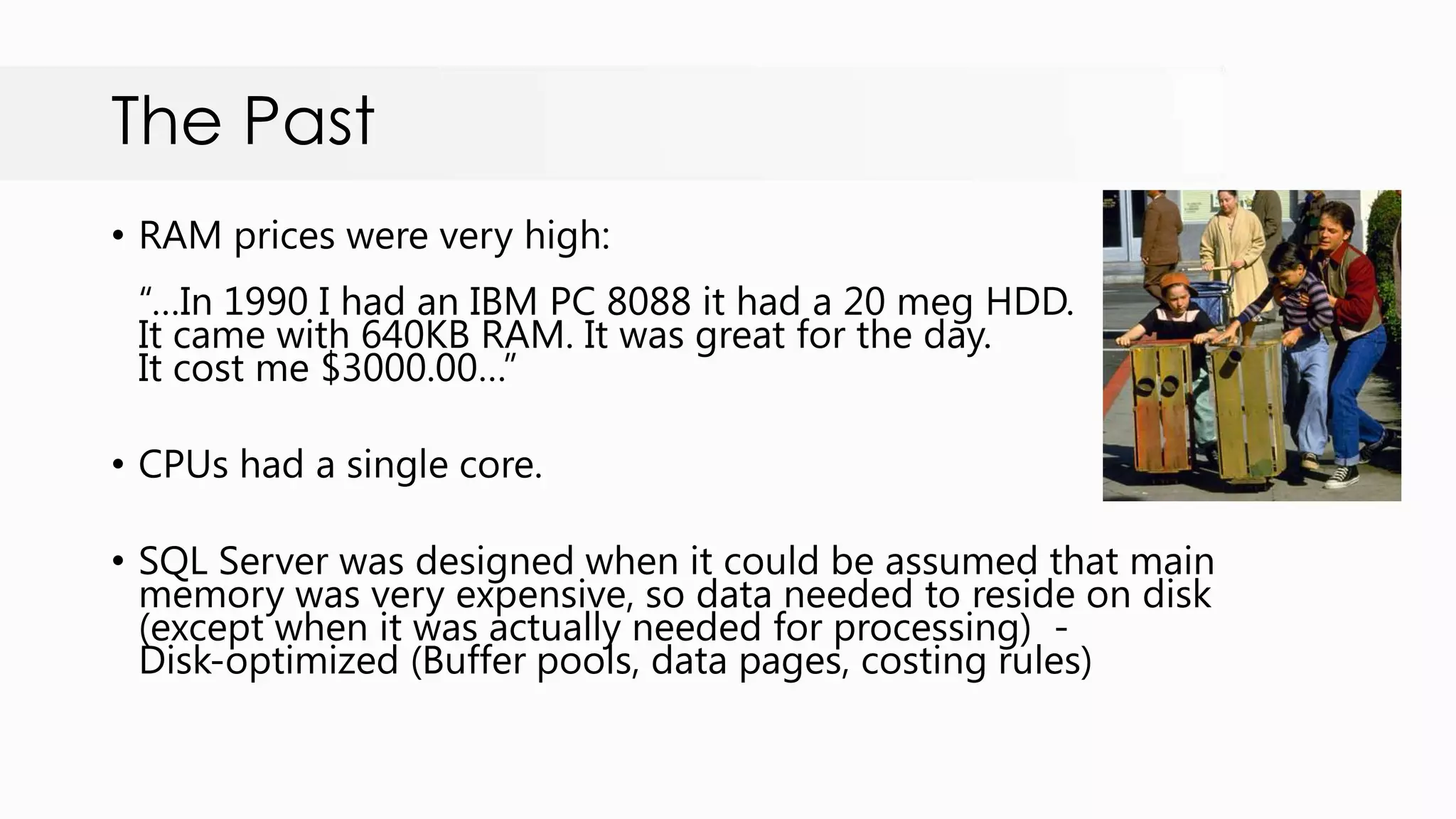

The Past • RAM prices were very high: “…In 1990 I had an IBM PC 8088 it had a 20 meg HDD. It came with 640KB RAM. It was great for the day. It cost me $3000.00…” • CPUs had a single core. • SQL Server was designed when it could be assumed that main memory was very expensive, so data needed to reside on disk (except when it was actually needed for processing) - Disk-optimized (Buffer pools, data pages, costing rules)

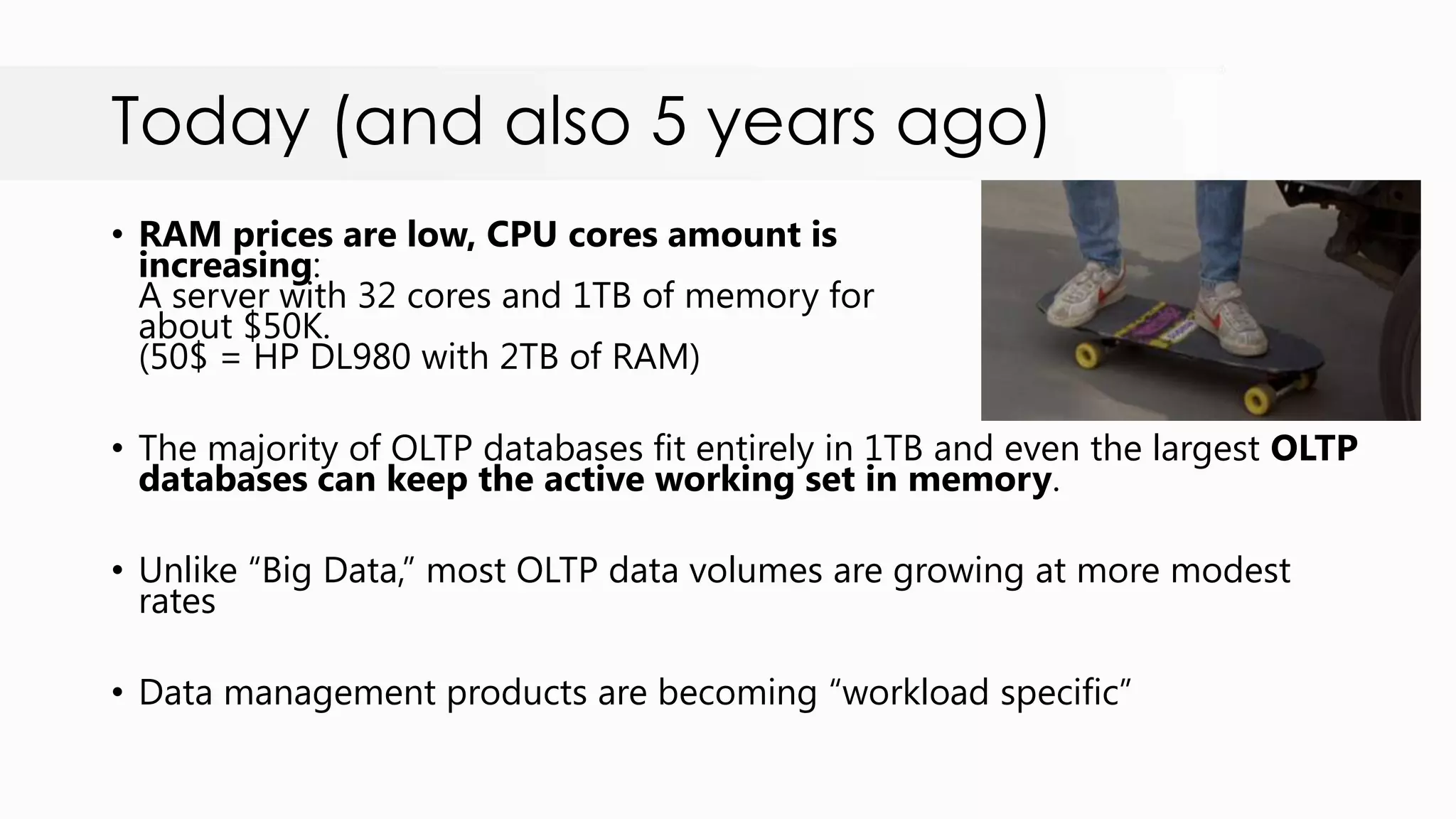

Today (and also 5 years ago) • RAM prices are low, CPU cores amount is increasing: A server with 32 cores and 1TB of memory for about $50K. (50$ = HP DL980 with 2TB of RAM) • The majority of OLTP databases fit entirely in 1TB and even the largest OLTP databases can keep the active working set in memory. • Unlike “Big Data,” most OLTP data volumes are growing at more modest rates • Data management products are becoming “workload specific”

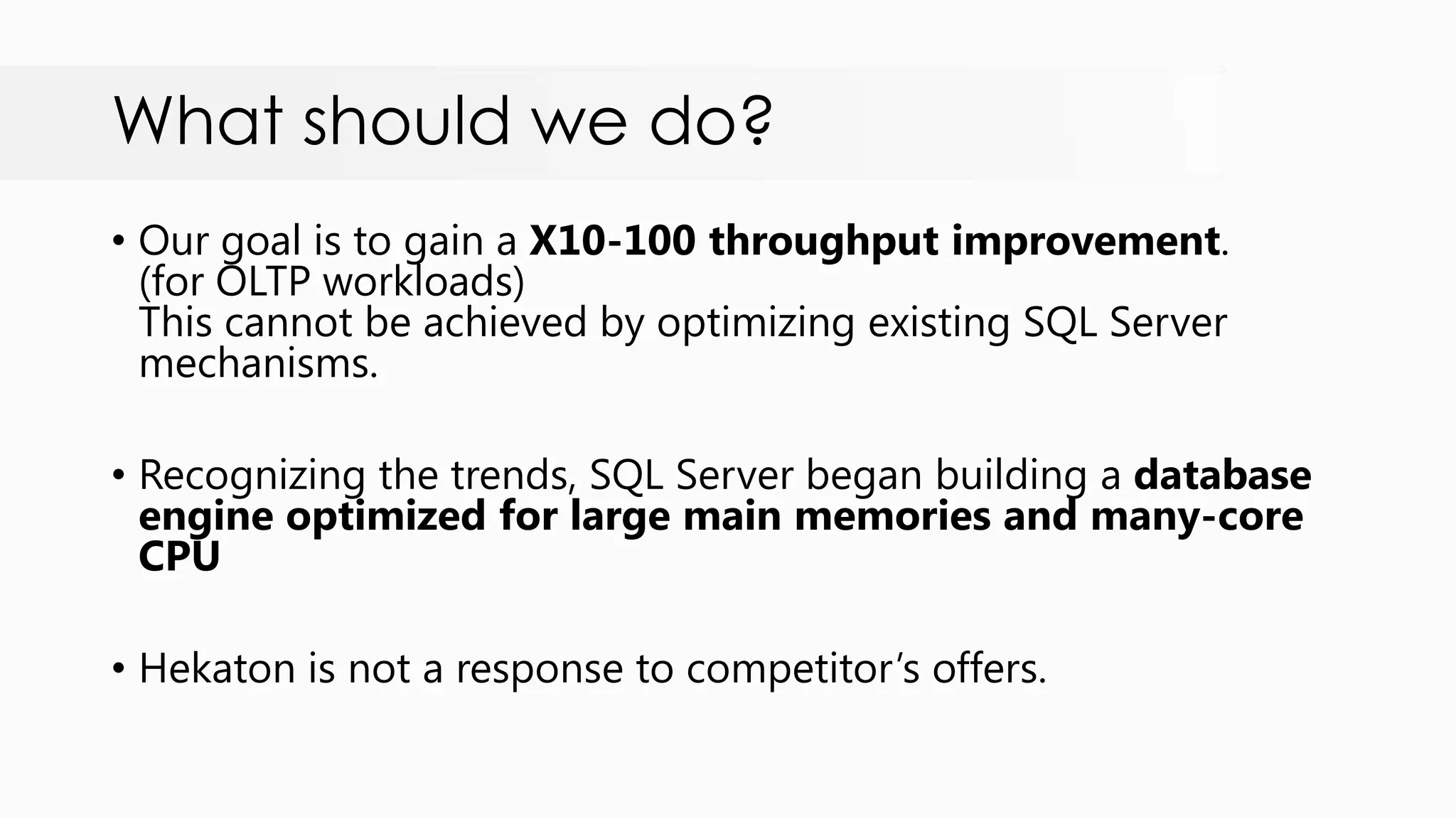

What should we do? • Our goal is to gain a X10-100 throughput improvement. (for OLTP workloads) This cannot be achieved by optimizing existing SQL Server mechanisms. • Recognizing the trends, SQL Server began building a database engine optimized for large main memories and many-core CPU • Hekaton is not a response to competitor‟s offers.

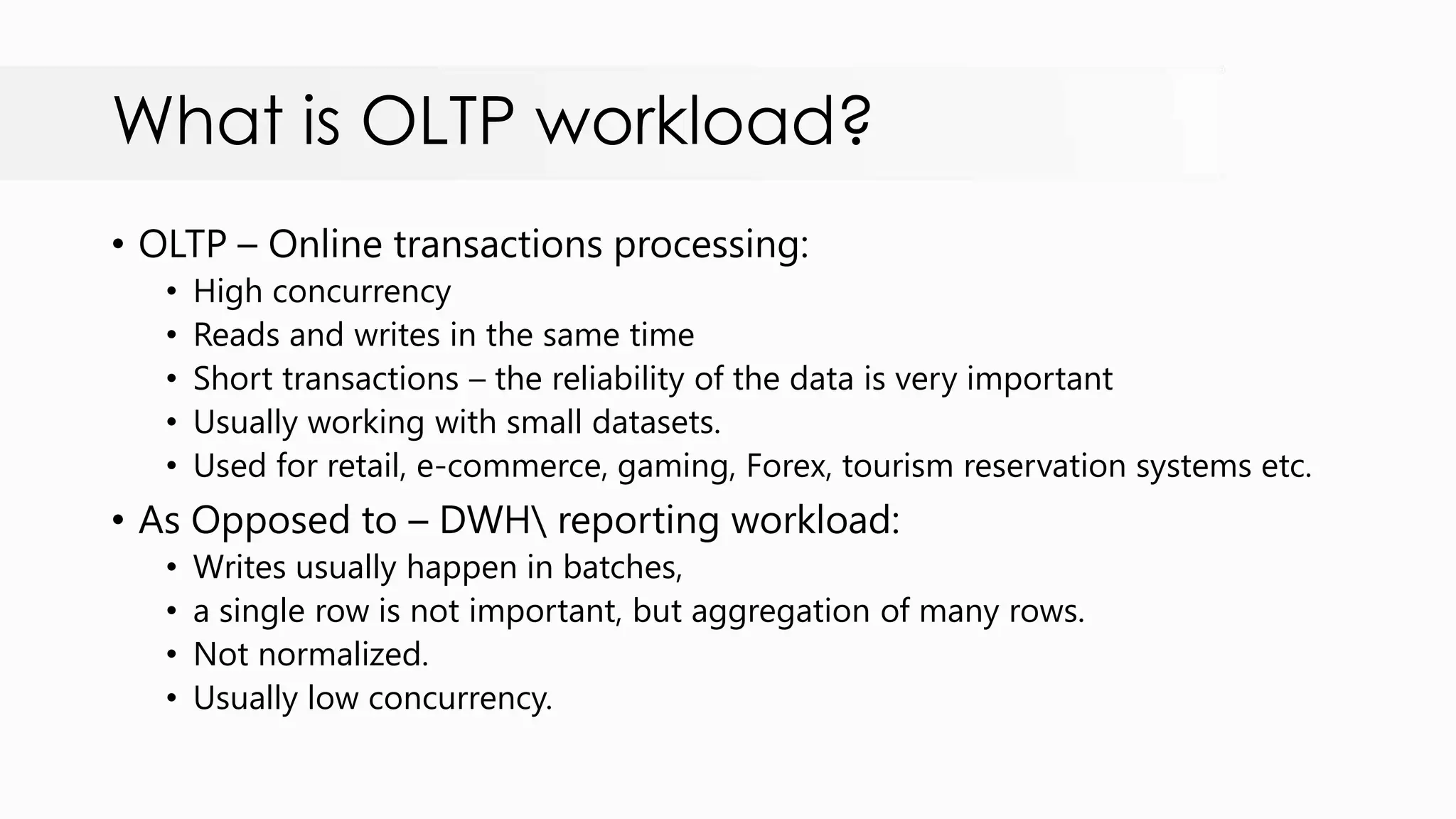

What is OLTP workload? • OLTP – Online transactions processing: • High concurrency • Reads and writes in the same time • Short transactions – the reliability of the data is very important • Usually working with small datasets. • Used for retail, e-commerce, gaming, Forex, tourism reservation systems etc. • As Opposed to – DWH reporting workload: • Writes usually happen in batches, • a single row is not important, but aggregation of many rows. • Not normalized. • Usually low concurrency.

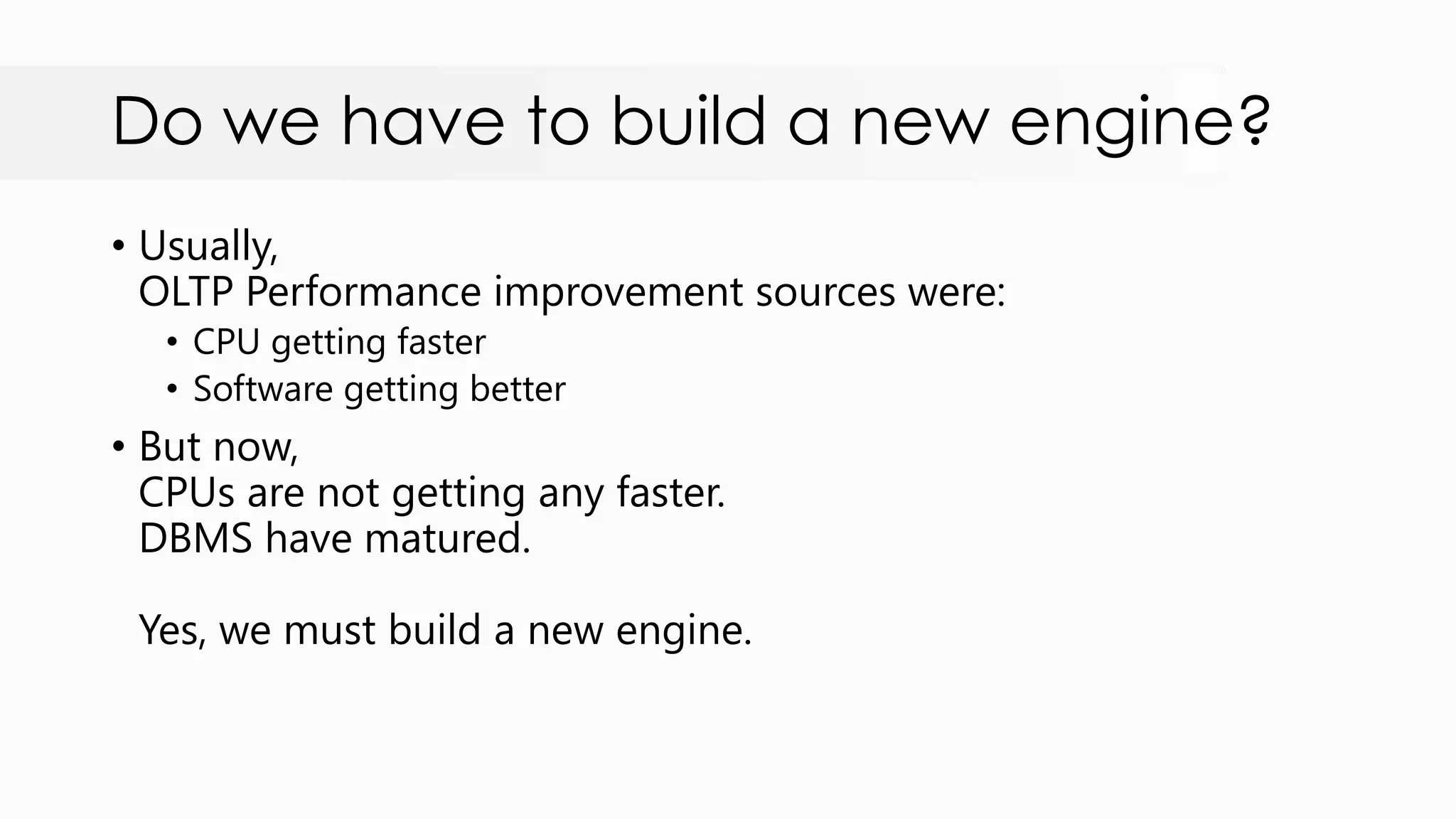

Do we have to build a new engine? • Usually, OLTP Performance improvement sources were: • CPU getting faster • Software getting better • But now, CPUs are not getting any faster. DBMS have matured. Yes, we must build a new engine.

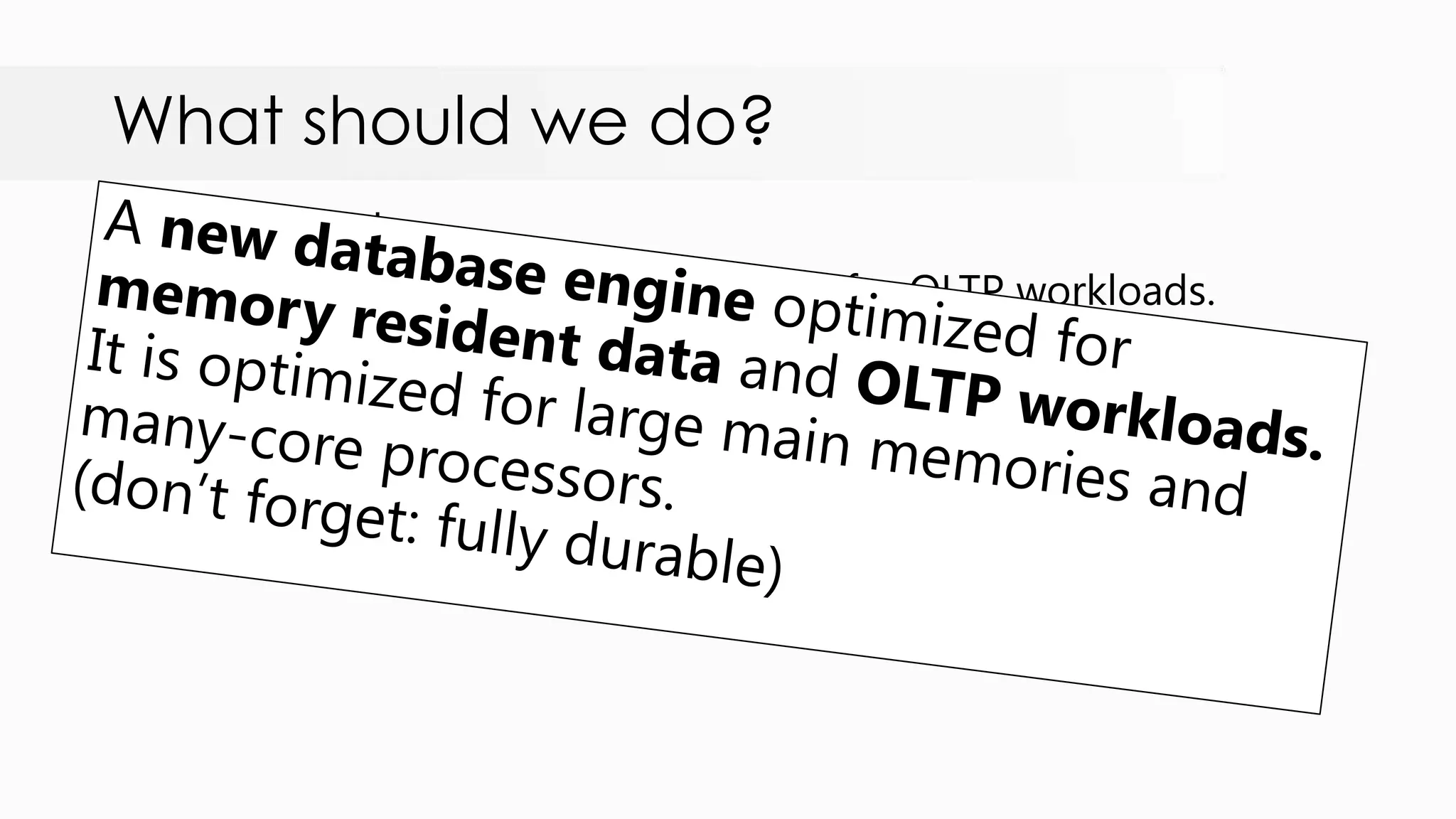

What should we do? In Other words: 1. Specialized database engine tuned for OLTP workloads. 2. Fitting most or all of data required by a workload into main- memory. 3. Lower latency time for data operations

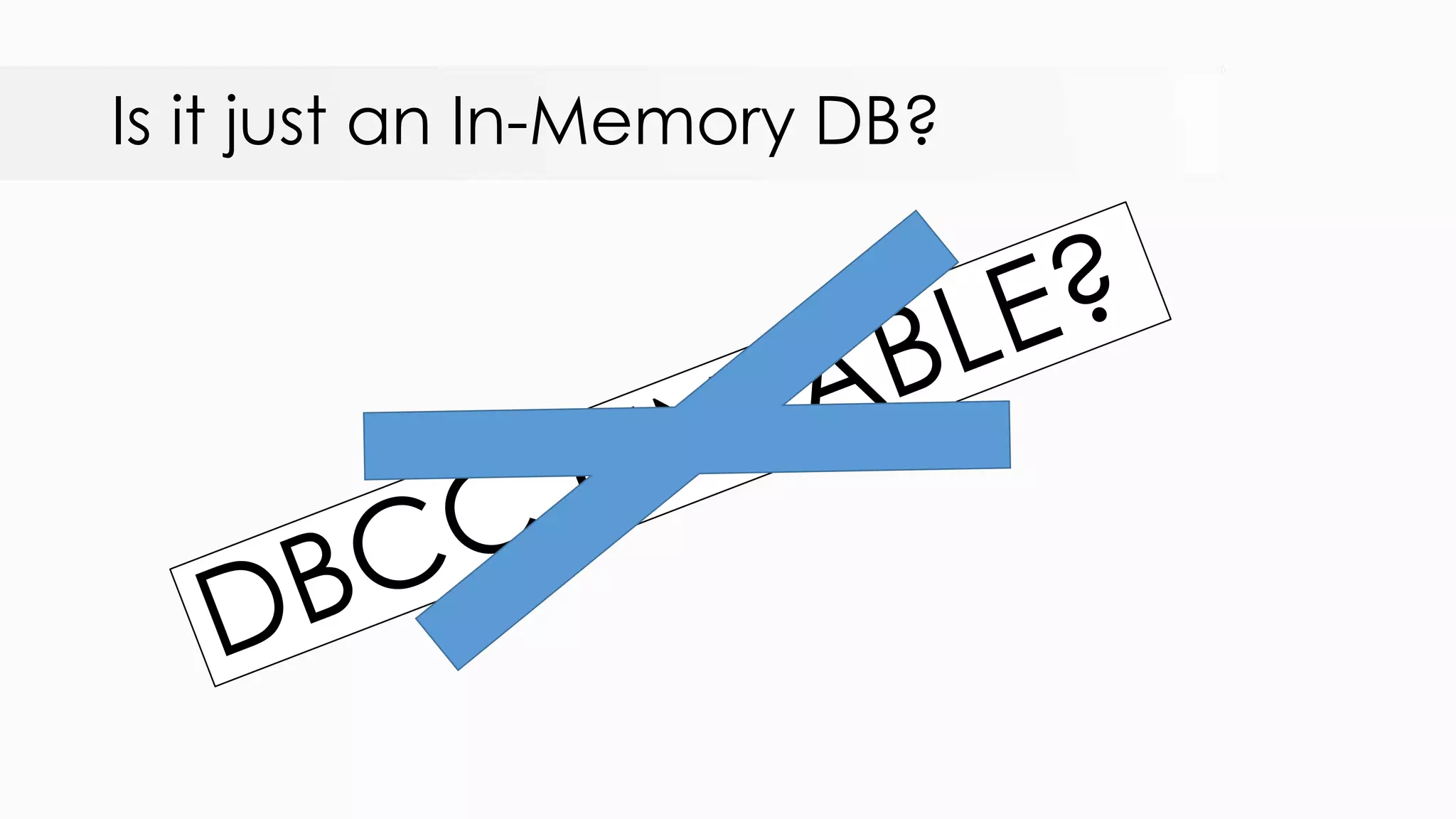

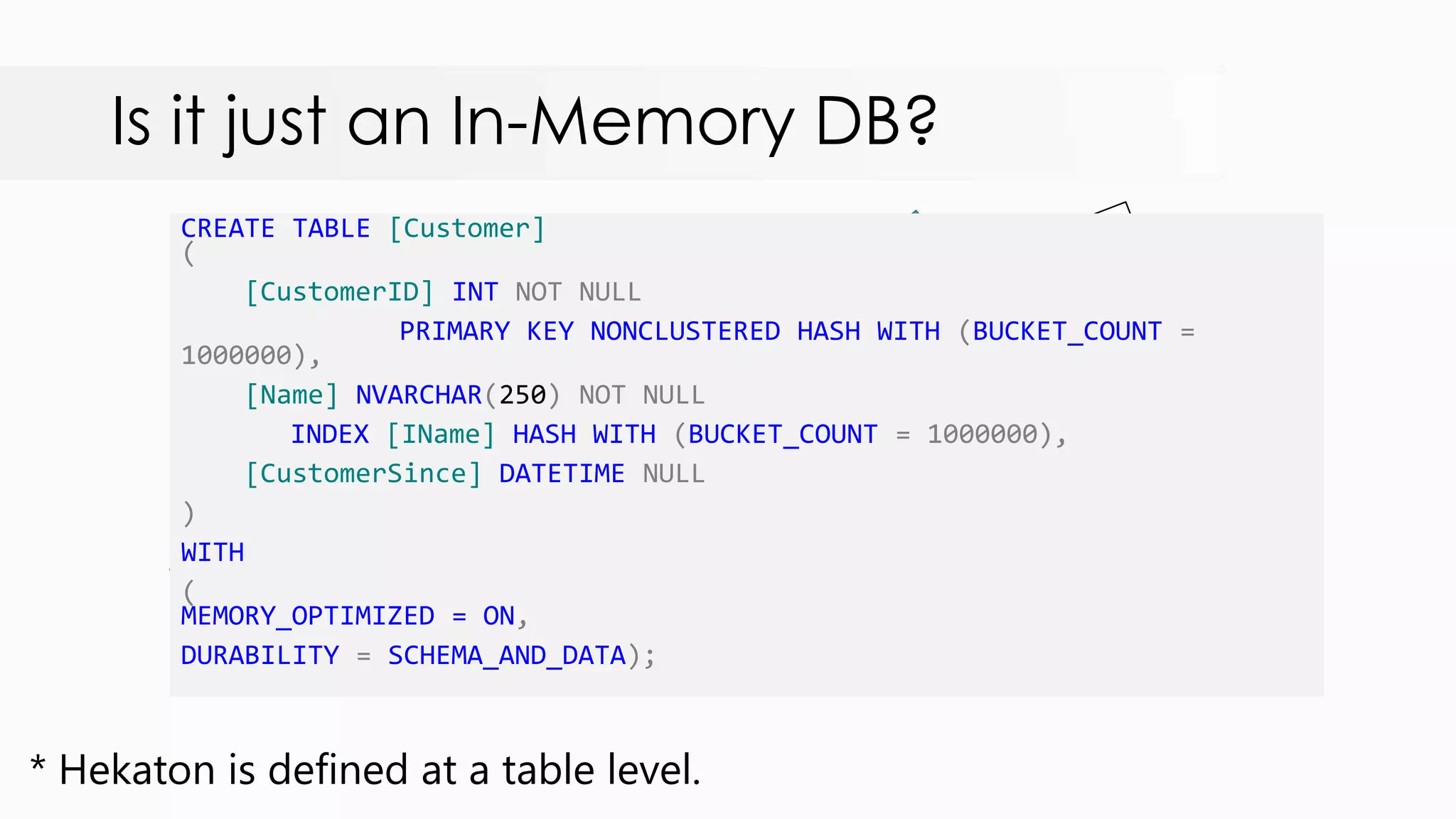

Is it just an In-Memory DB? CREATE TABLE [Customer] ( [CustomerID] INT NOT NULL PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 1000000), [Name] NVARCHAR(250) NOT NULL INDEX [IName] HASH WITH (BUCKET_COUNT = 1000000), [CustomerSince] DATETIME NULL ) WITH ( MEMORY_OPTIMIZED = ON, DURABILITY = SCHEMA_AND_DATA); * Hekaton is defined at a table level.

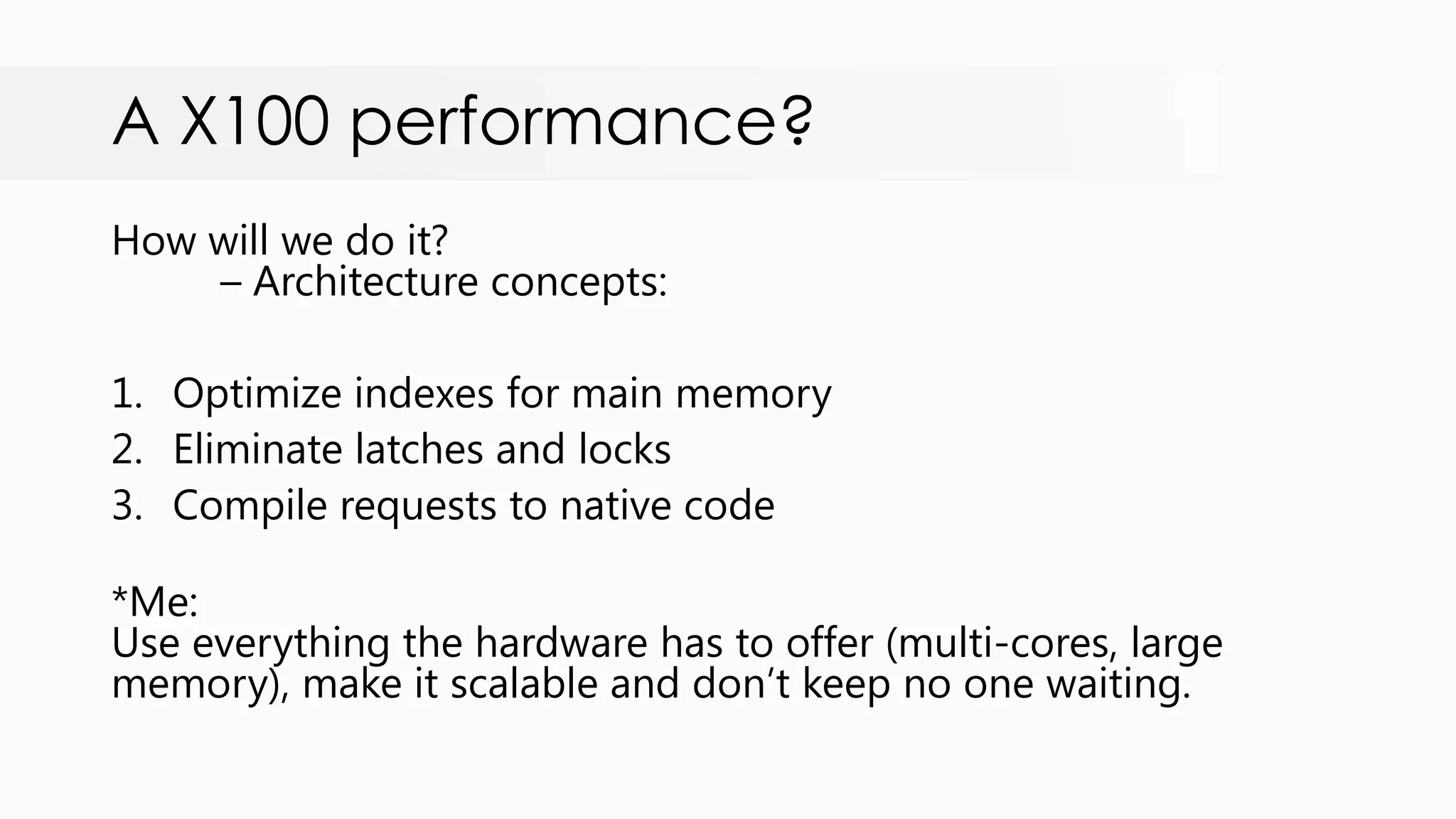

A X100 performance? How will we do it? – Architecture concepts: 1. Optimize indexes for main memory 2. Eliminate latches and locks 3. Compile requests to native code *Me: Use everything the hardware has to offer (multi-cores, large memory), make it scalable and don‟t keep no one waiting.

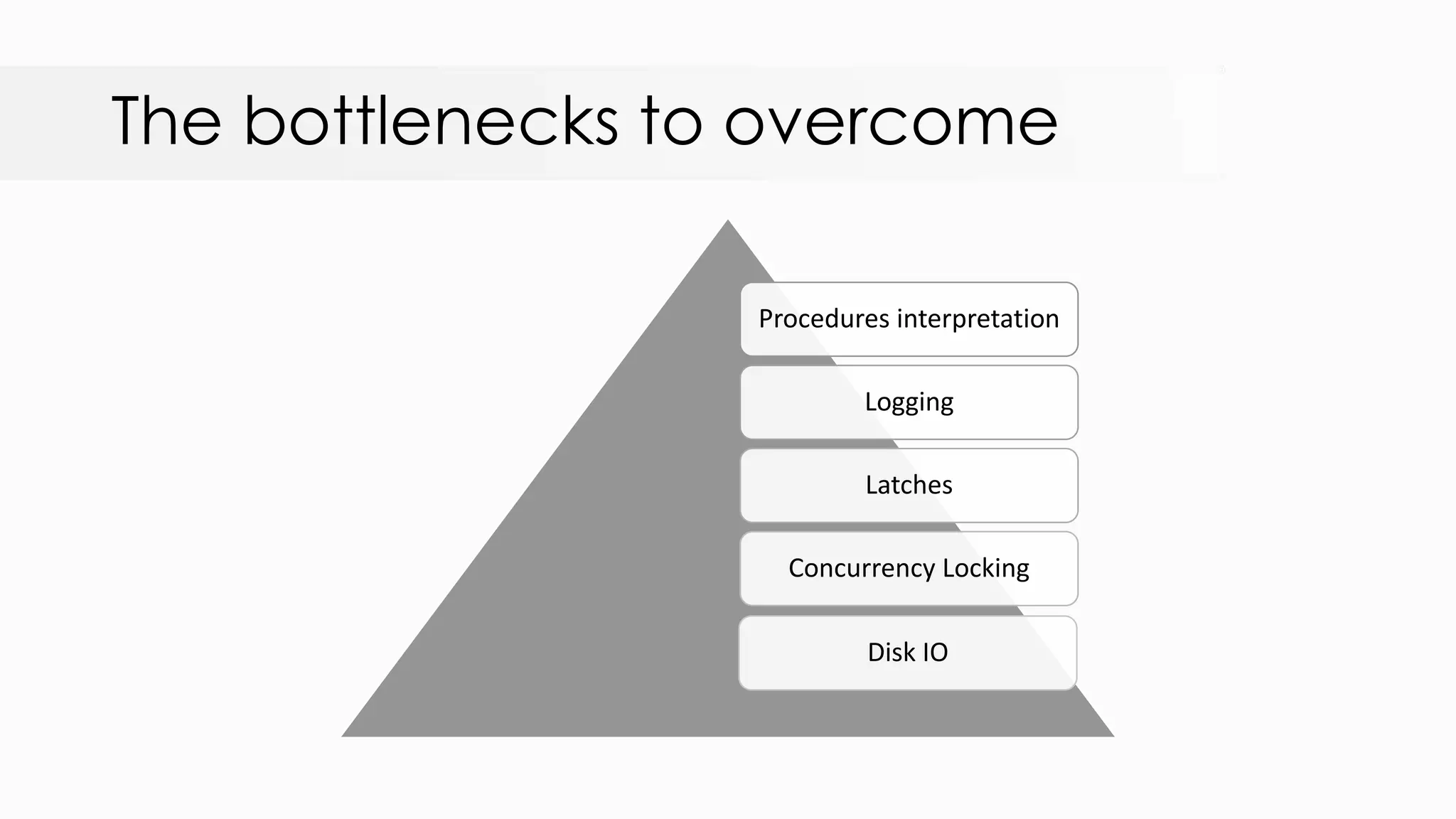

The bottlenecks to overcome Procedures interpretation Logging Latches Concurrency Locking Disk IO

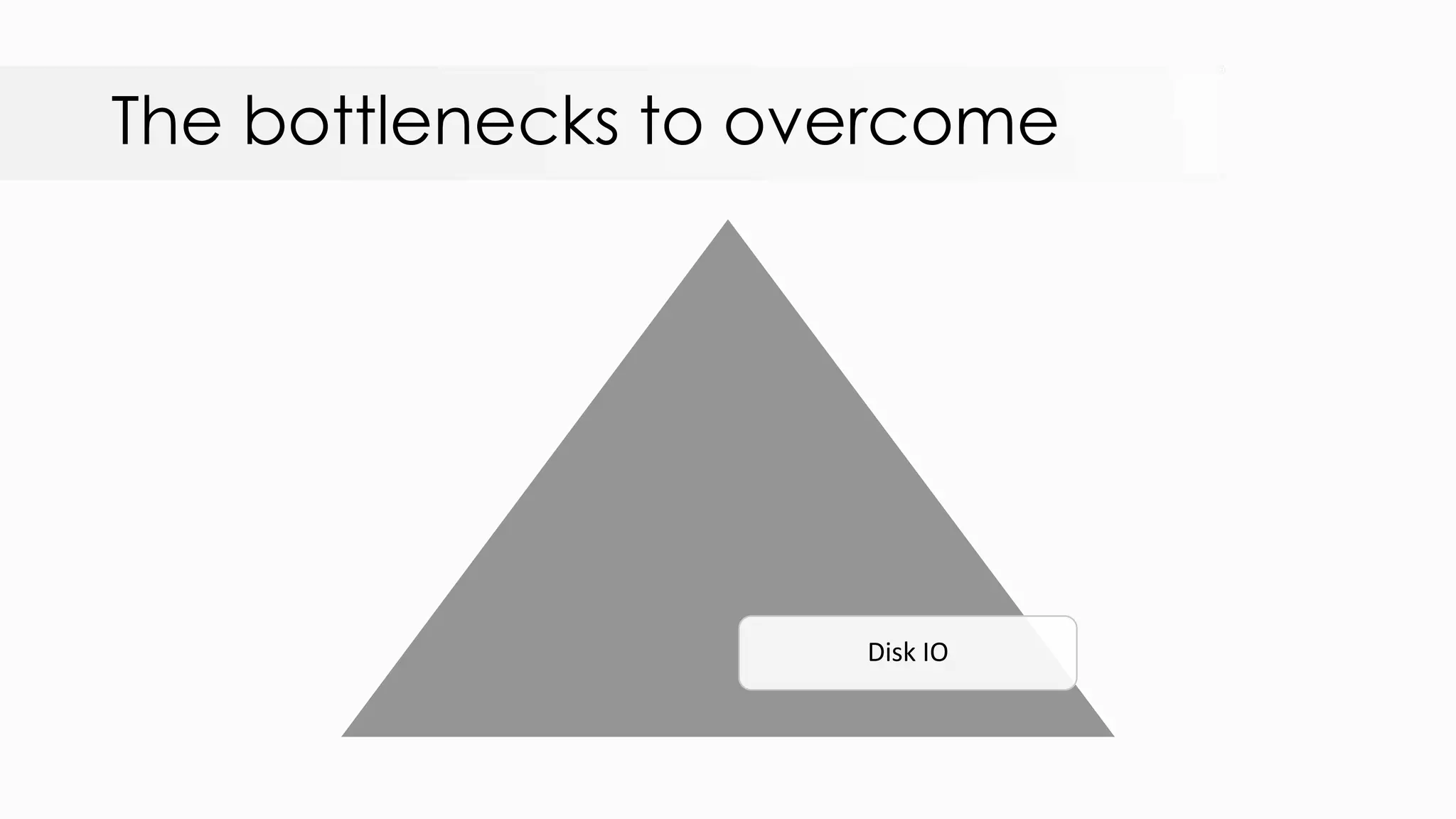

The bottlenecks to overcome Disk IO

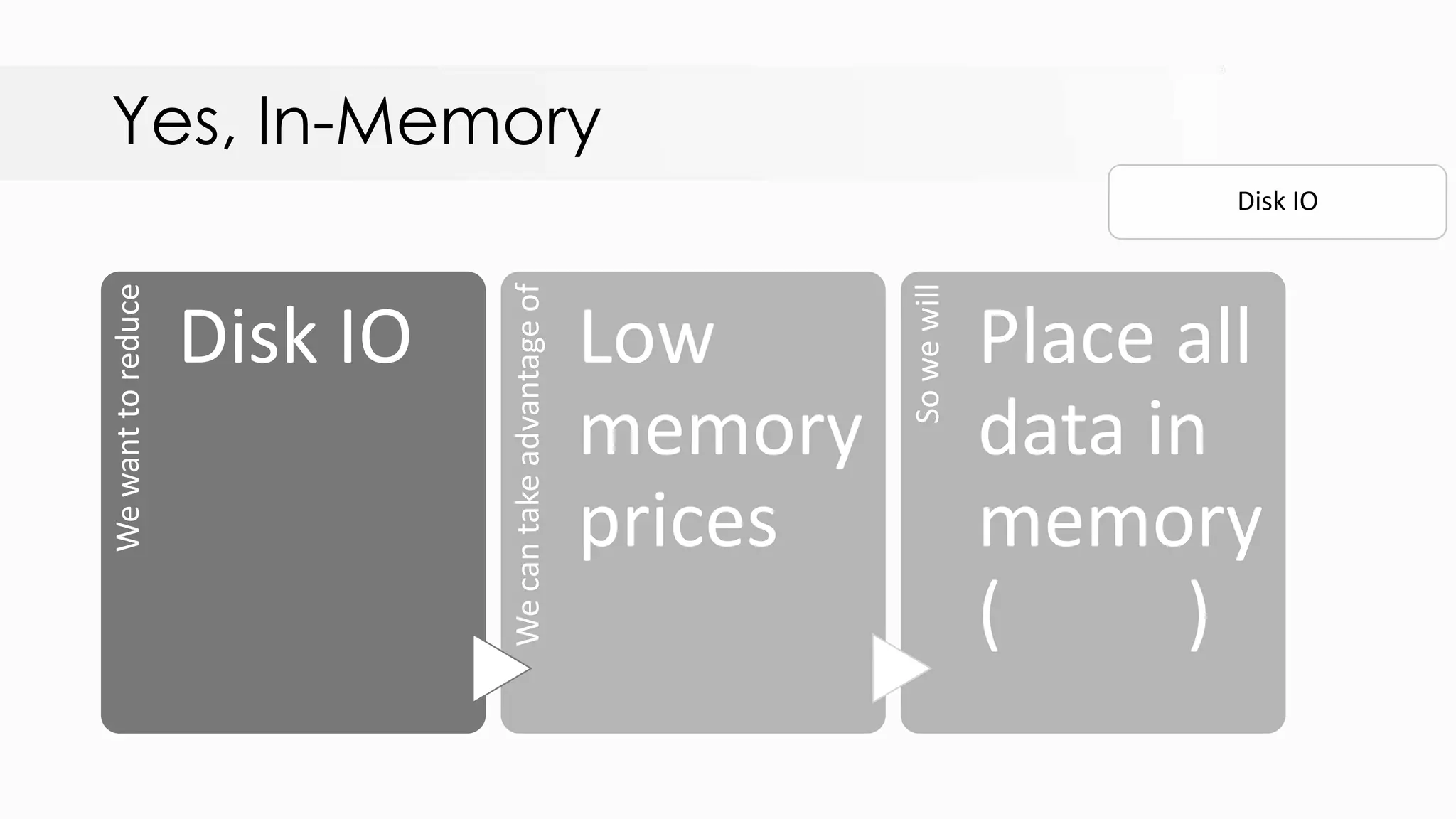

Yes, In-MemoryWewanttoreduce Disk IO Wecantakeadvantageof Low memory prices Sowewill Place all data in memory ( ) Disk IO

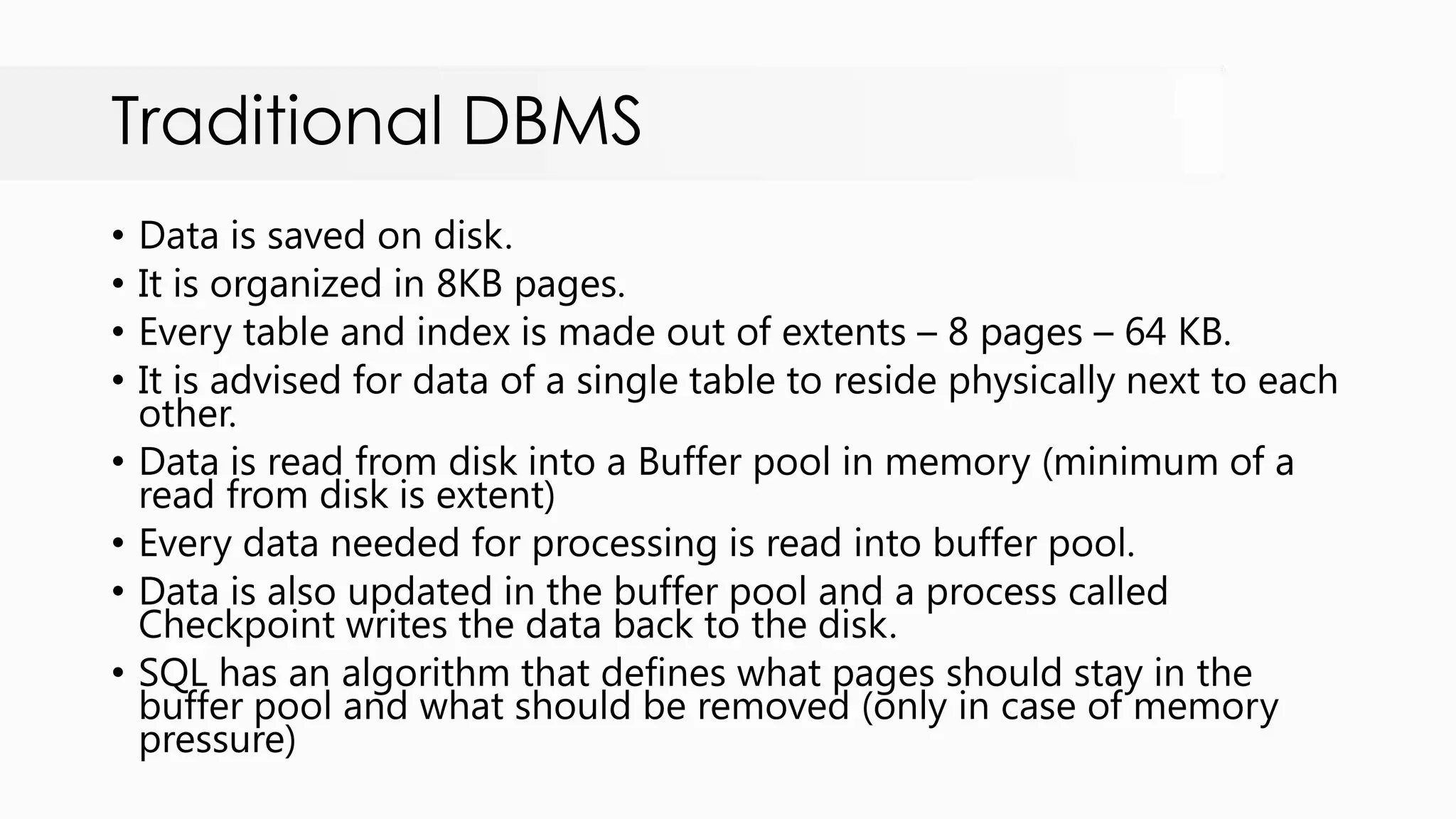

Traditional DBMS • Data is saved on disk. • It is organized in 8KB pages. • Every table and index is made out of extents – 8 pages – 64 KB. • It is advised for data of a single table to reside physically next to each other. • Data is read from disk into a Buffer pool in memory (minimum of a read from disk is extent) • Every data needed for processing is read into buffer pool. • Data is also updated in the buffer pool and a process called Checkpoint writes the data back to the disk. • SQL has an algorithm that defines what pages should stay in the buffer pool and what should be removed (only in case of memory pressure)

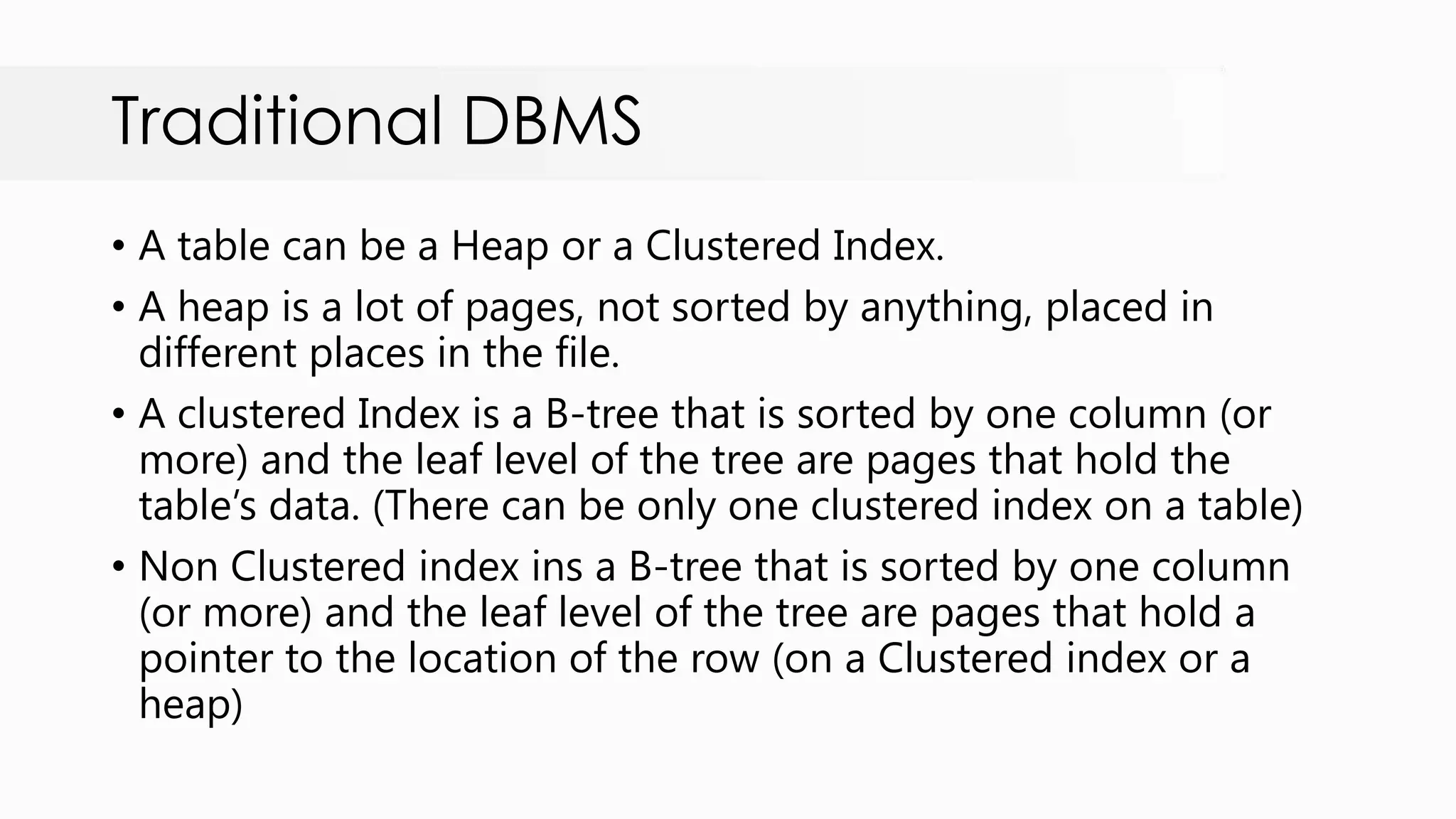

Traditional DBMS • A table can be a Heap or a Clustered Index. • A heap is a lot of pages, not sorted by anything, placed in different places in the file. • A clustered Index is a B-tree that is sorted by one column (or more) and the leaf level of the tree are pages that hold the table‟s data. (There can be only one clustered index on a table) • Non Clustered index ins a B-tree that is sorted by one column (or more) and the leaf level of the tree are pages that hold a pointer to the location of the row (on a Clustered index or a heap)

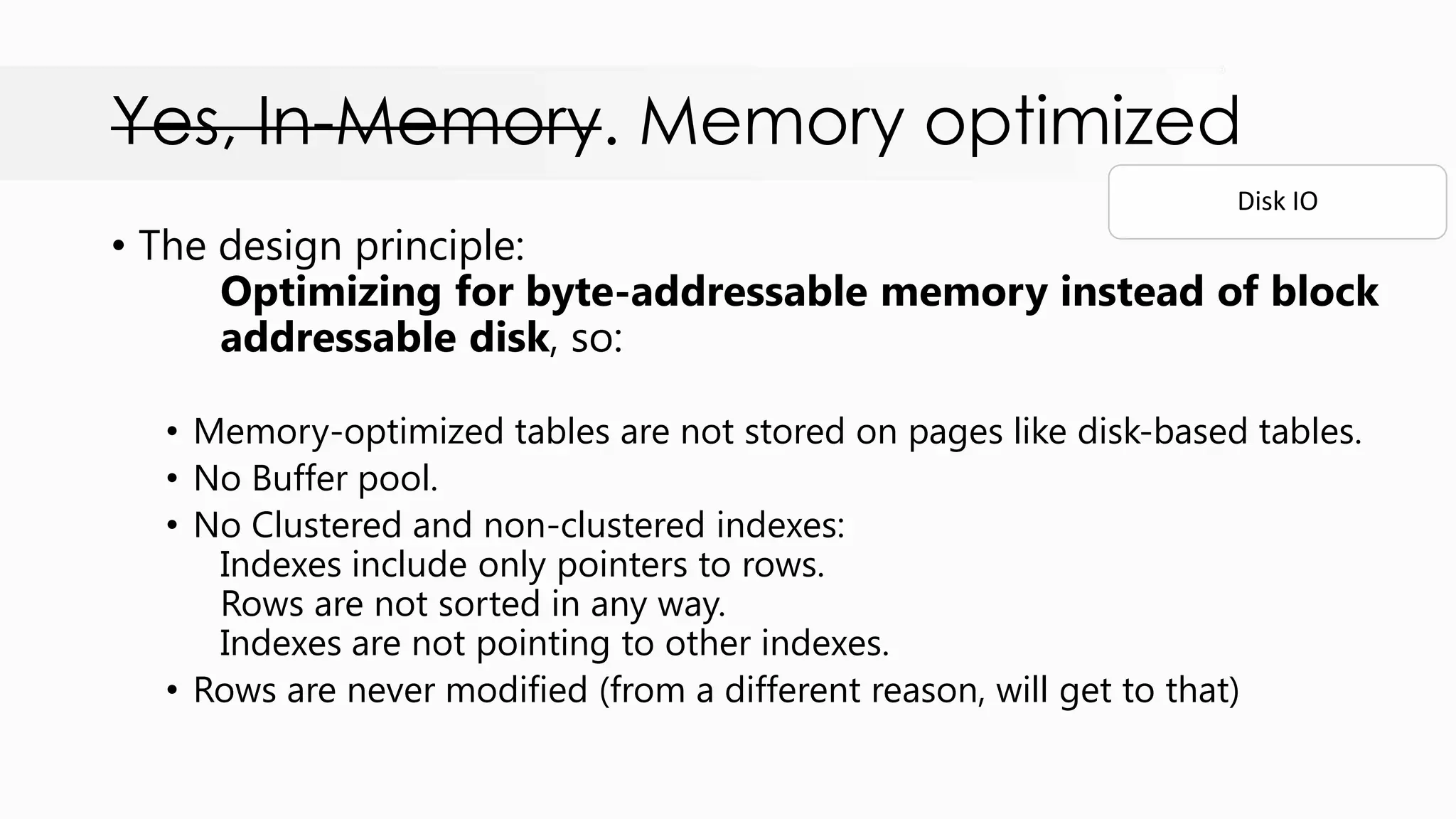

Yes, In-Memory. Memory optimized • The design principle: Optimizing for byte-addressable memory instead of block addressable disk, so: • Memory-optimized tables are not stored on pages like disk-based tables. • No Buffer pool. • No Clustered and non-clustered indexes: Indexes include only pointers to rows. Rows are not sorted in any way. Indexes are not pointing to other indexes. • Rows are never modified (from a different reason, will get to that) Disk IO

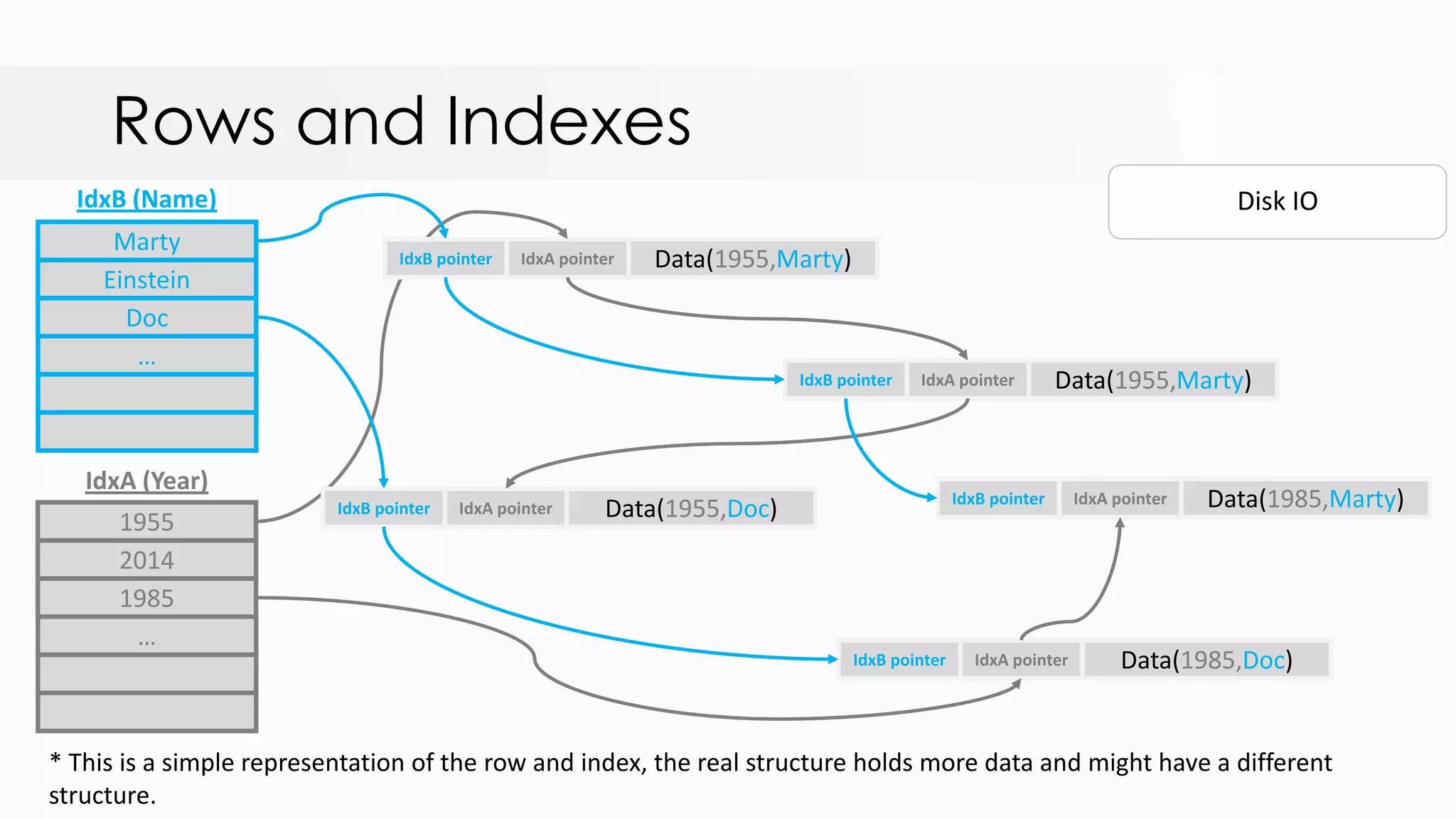

Rows and Indexes Data(1955,Marty) Data(1955,Marty) Data(1985,Marty)Data(1955,Doc) Data(1985,Doc) IdxA pointer IdxA pointer IdxA pointer IdxA pointer IdxA pointer 1955 2014 1985 … IdxA (Year) * This is a simple representation of the row and index, the real structure holds more data and might have a different structure. IdxB pointer IdxB pointer IdxB pointer IdxB pointer IdxB pointer Marty Einstein Doc … IdxB (Name) Disk IO

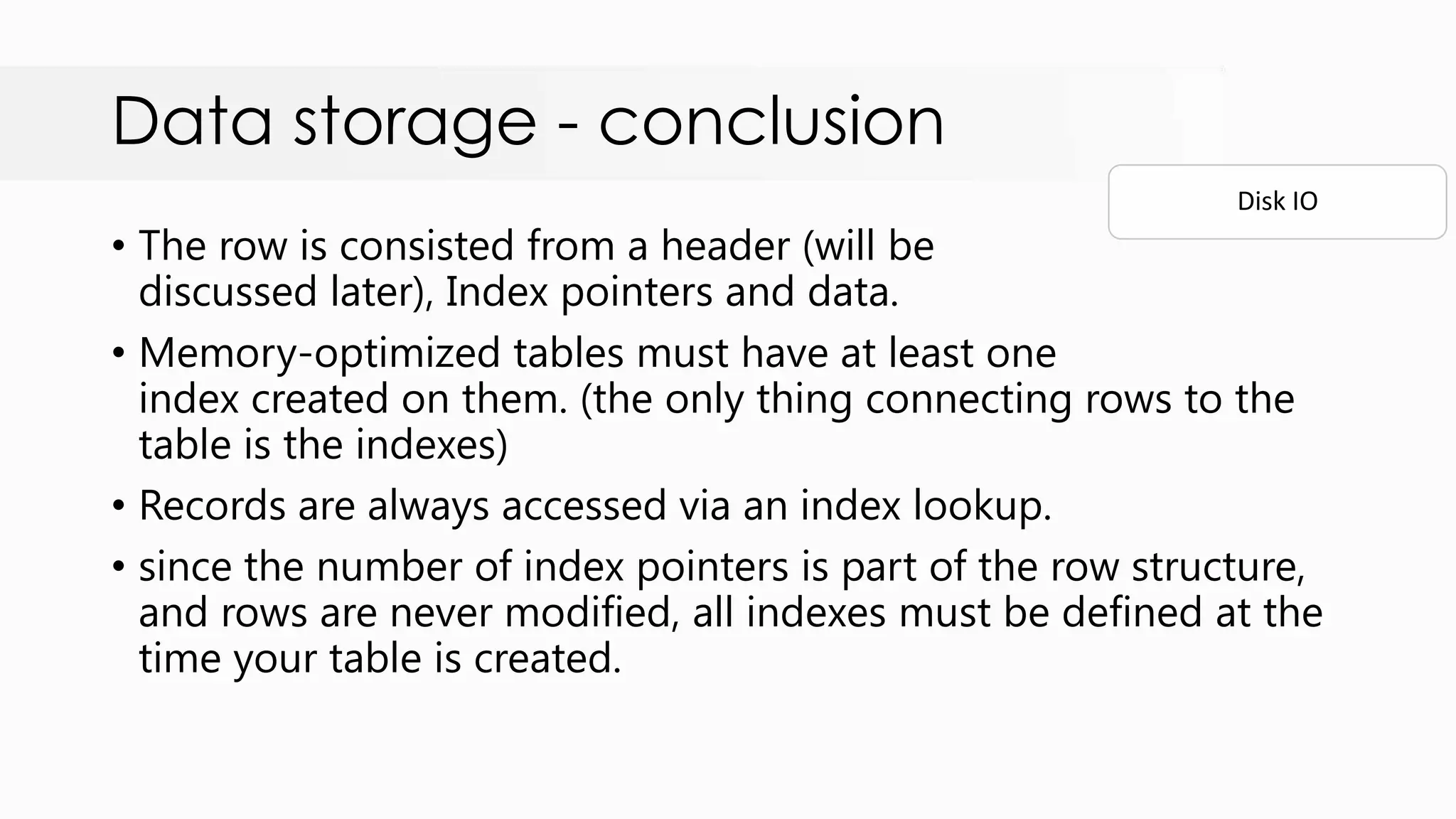

Data storage - conclusion • The row is consisted from a header (will be discussed later), Index pointers and data. • Memory-optimized tables must have at least one index created on them. (the only thing connecting rows to the table is the indexes) • Records are always accessed via an index lookup. • since the number of index pointers is part of the row structure, and rows are never modified, all indexes must be defined at the time your table is created. Disk IO

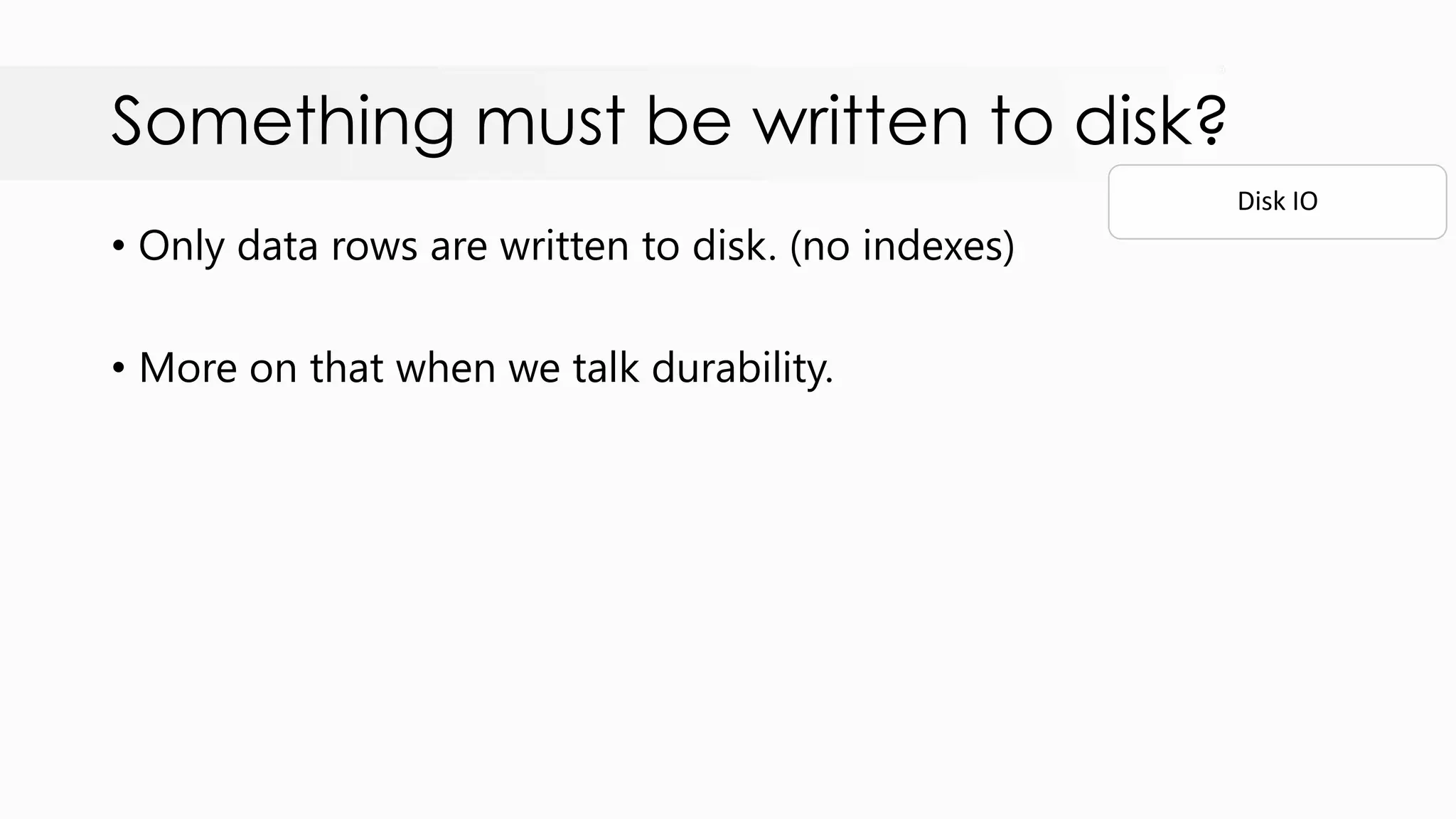

Something must be written to disk? • Only data rows are written to disk. (no indexes) • More on that when we talk durability. Disk IO

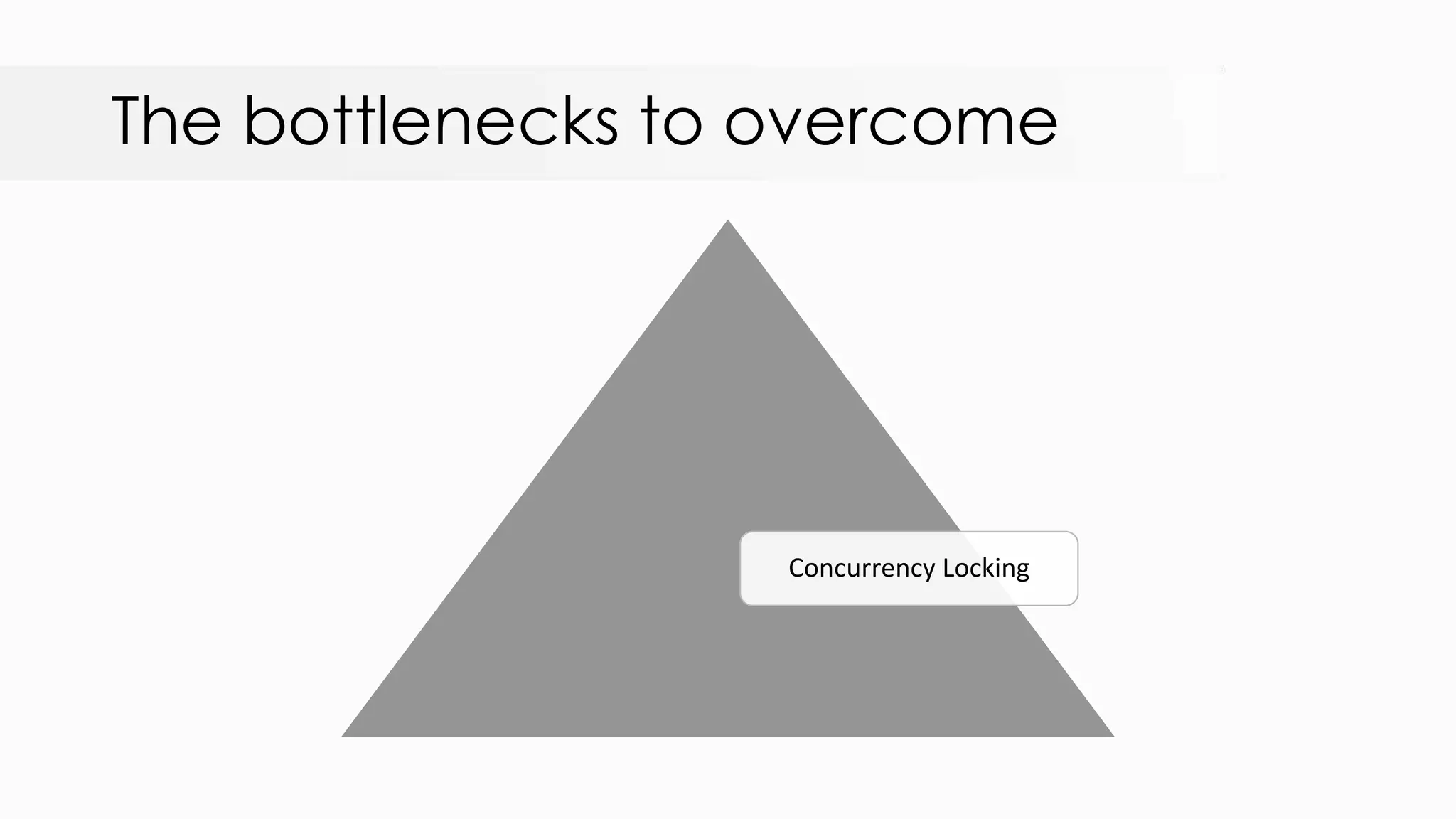

The bottlenecks to overcome Concurrency Locking

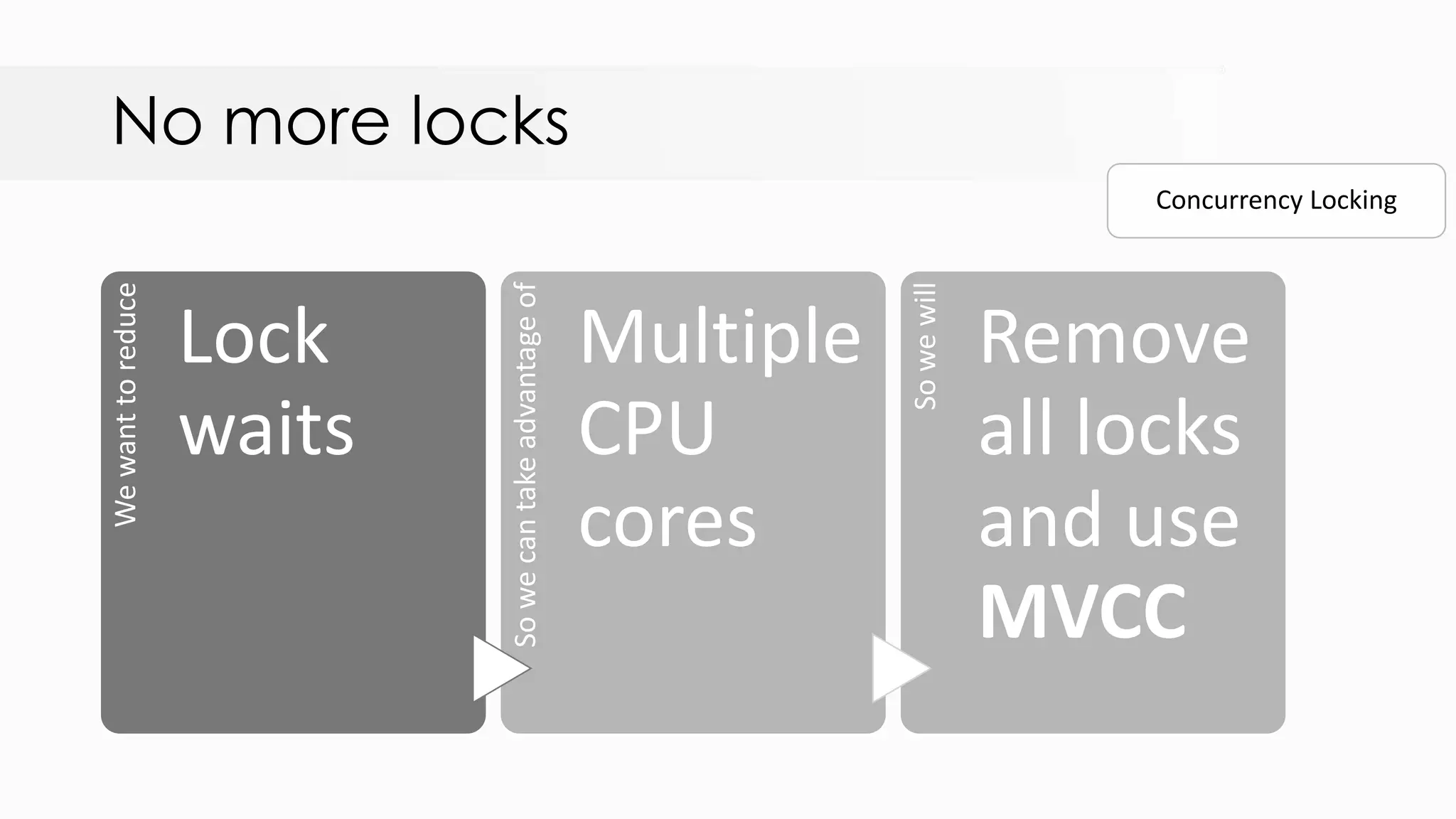

No more locksWewanttoreduce Lock waits Sowecantakeadvantageof Multiple CPU cores Sowewill Remove all locks and use MVCC Concurrency Locking

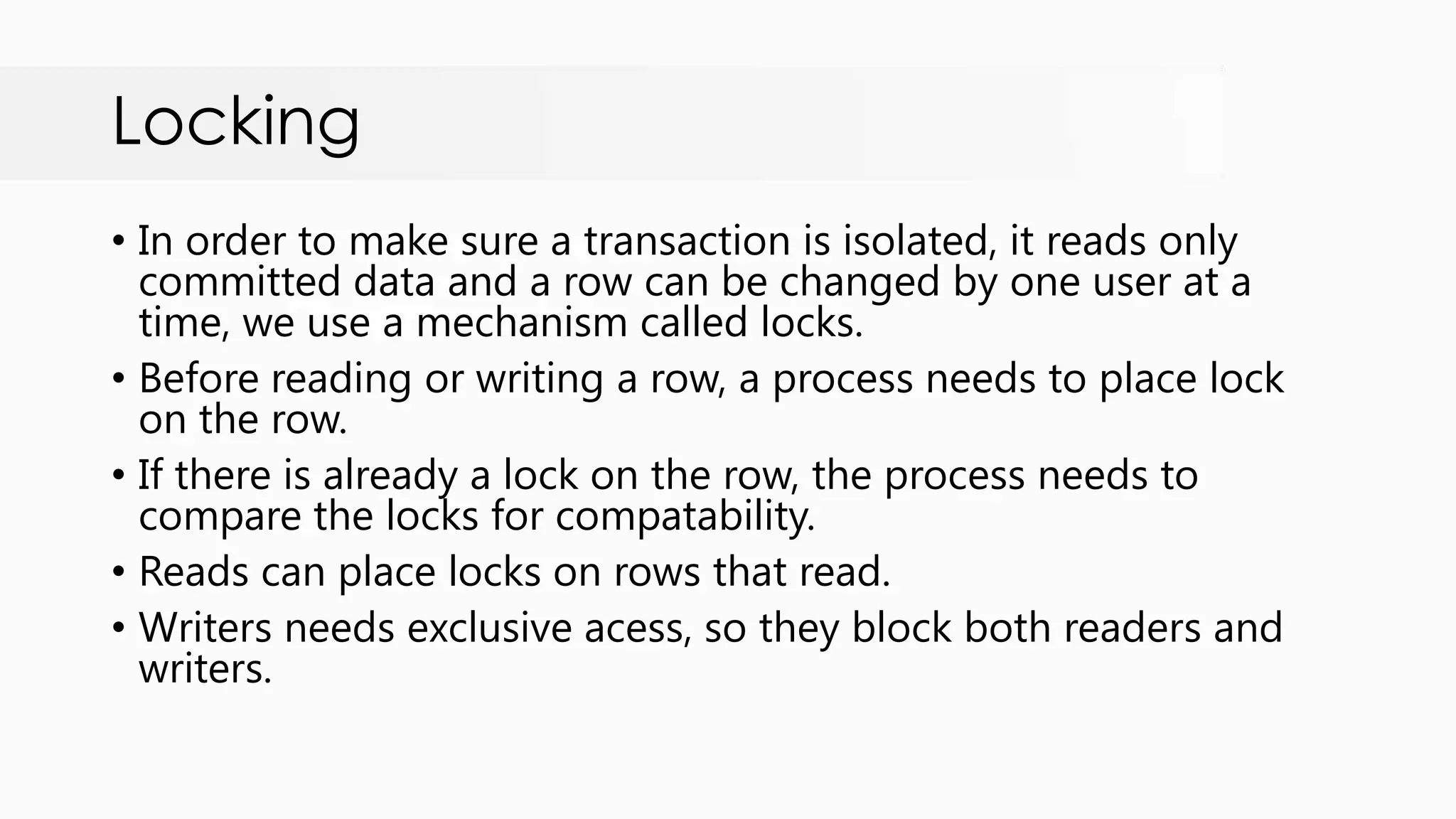

Locking • In order to make sure a transaction is isolated, it reads only committed data and a row can be changed by one user at a time, we use a mechanism called locks. • Before reading or writing a row, a process needs to place lock on the row. • If there is already a lock on the row, the process needs to compare the locks for compatability. • Reads can place locks on rows that read. • Writers needs exclusive acess, so they block both readers and writers.

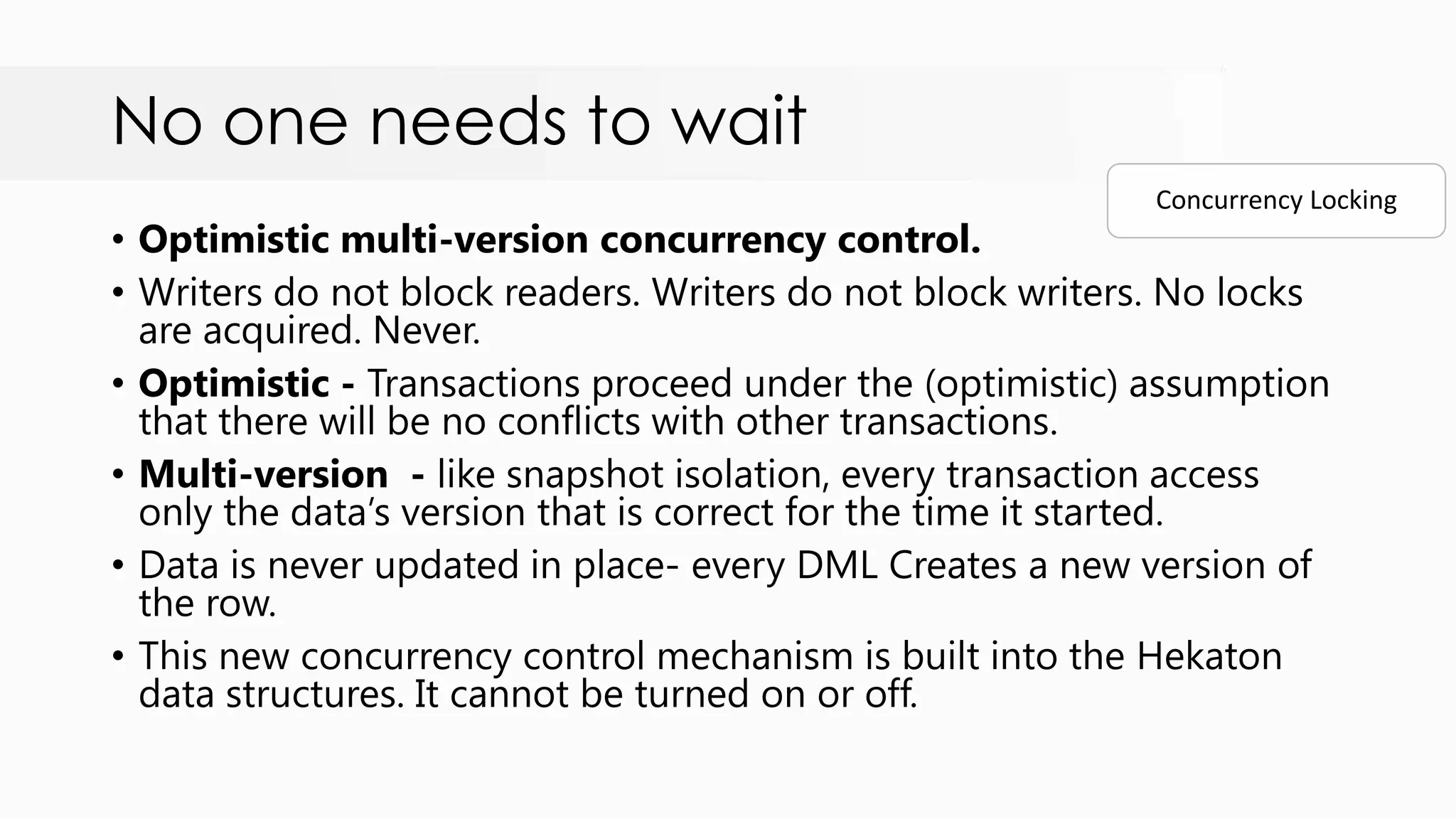

No one needs to wait • Optimistic multi-version concurrency control. • Writers do not block readers. Writers do not block writers. No locks are acquired. Never. • Optimistic - Transactions proceed under the (optimistic) assumption that there will be no conflicts with other transactions. • Multi-version - like snapshot isolation, every transaction access only the data‟s version that is correct for the time it started. • Data is never updated in place- every DML Creates a new version of the row. • This new concurrency control mechanism is built into the Hekaton data structures. It cannot be turned on or off. Concurrency Locking

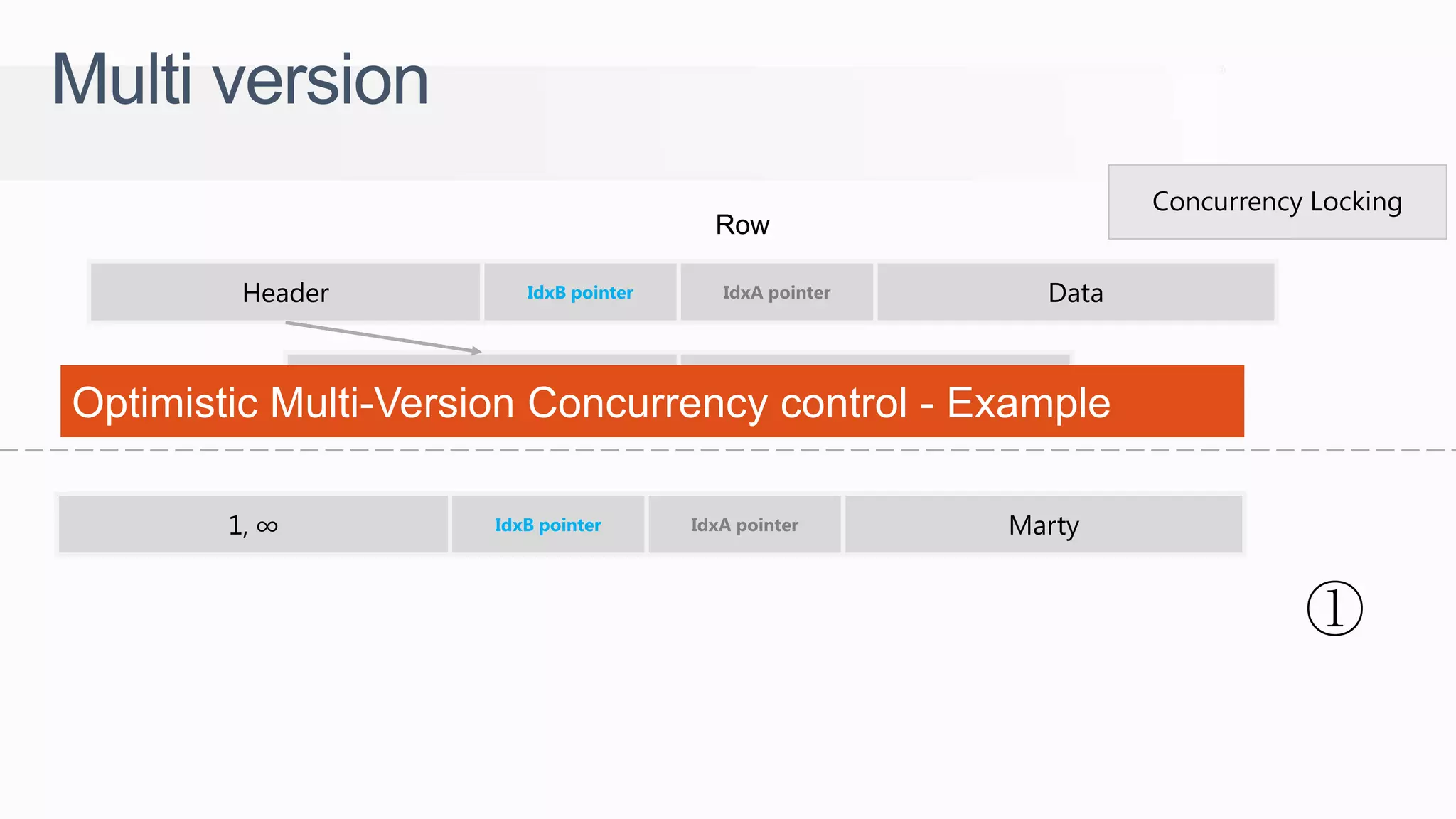

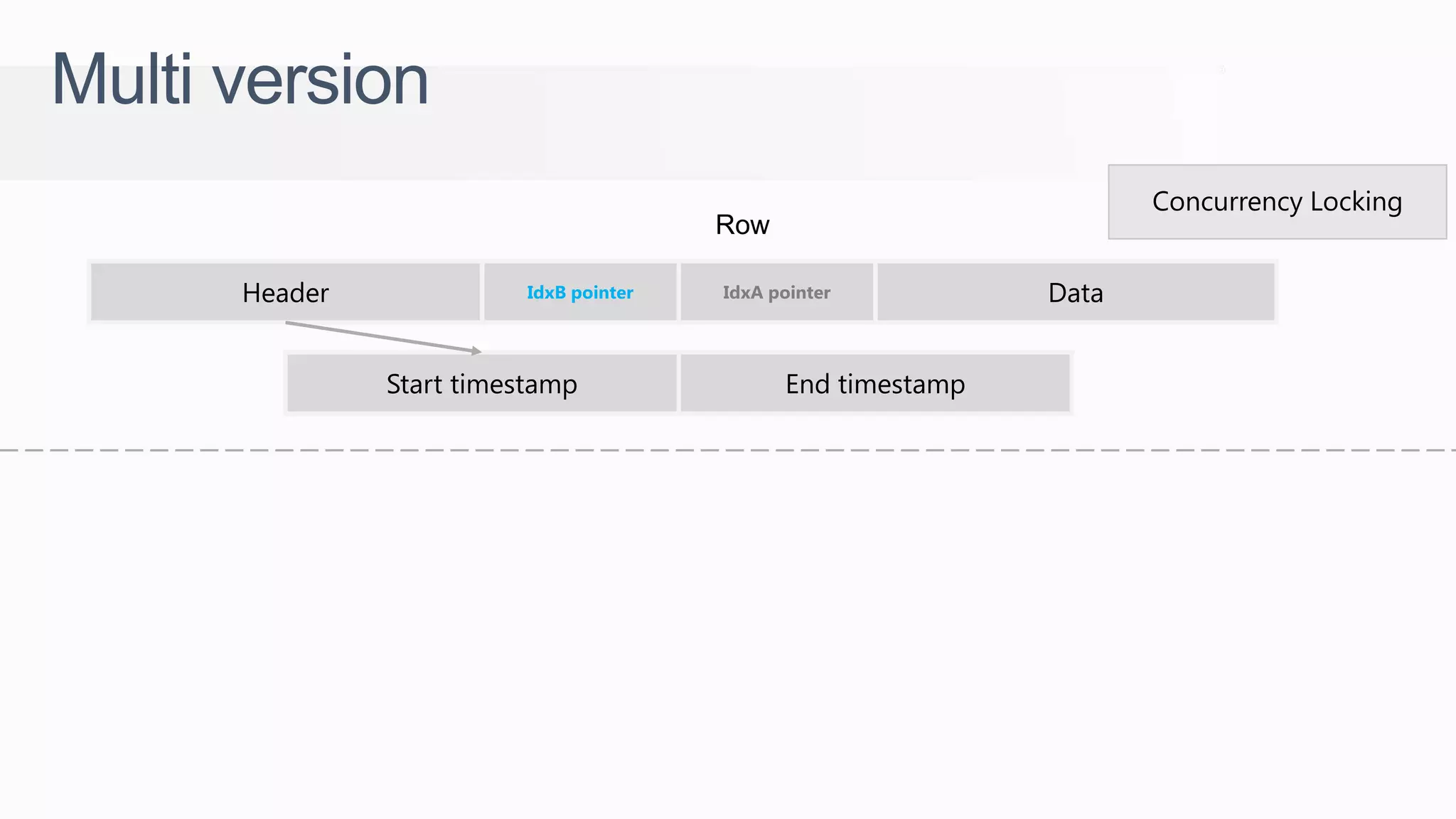

DataIdxA pointerIdxB pointerHeader End timestampStart timestamp Concurrency Locking Multi version Row

DataIdxA pointerIdxB pointerHeader End timestampStart timestamp MartyIdxA pointerIdxB pointer1, ∞ ① Concurrency Locking Multi version Row Optimistic Multi-Version Concurrency control - Example

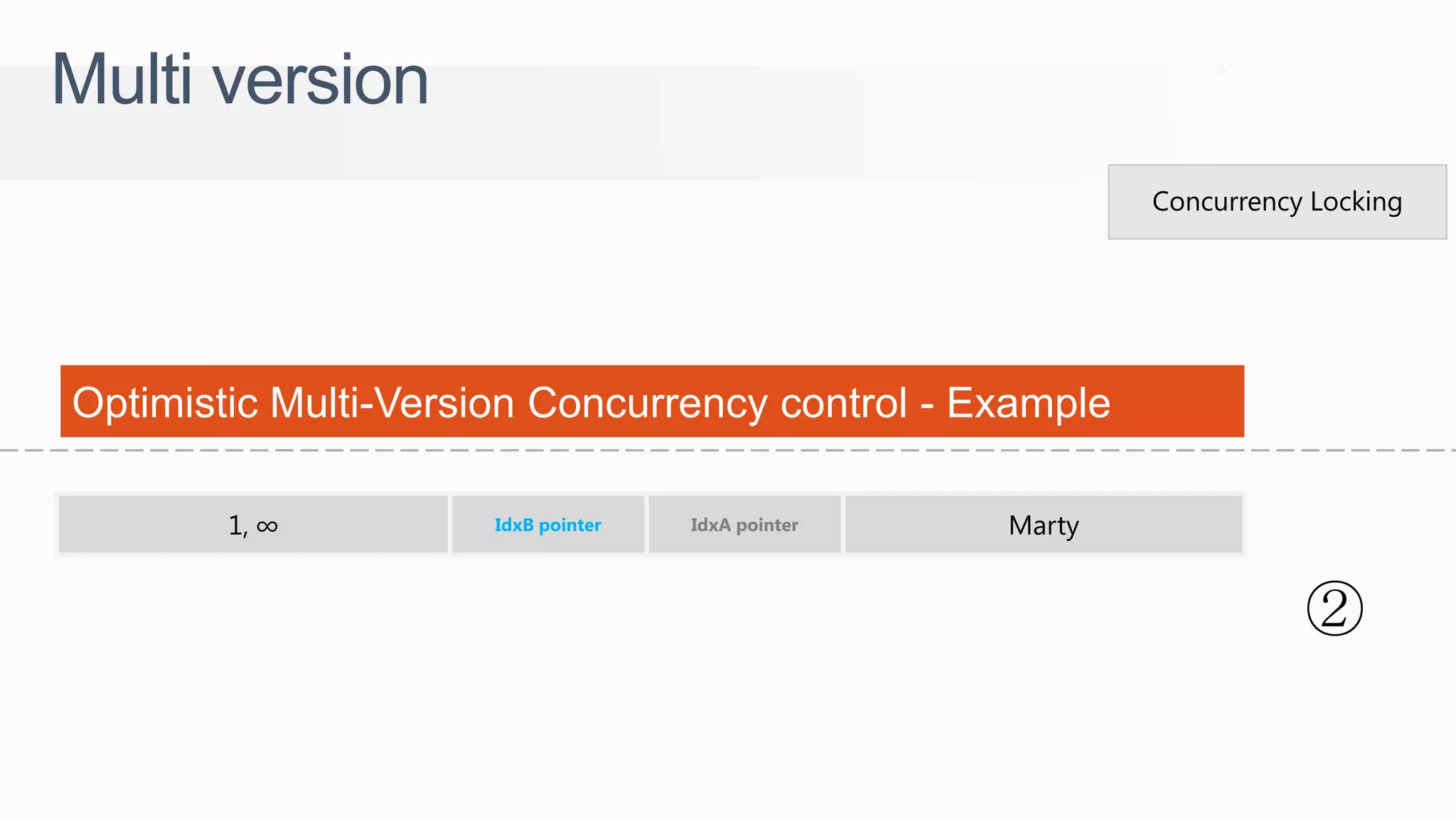

MartyIdxA pointerIdxB pointer1, ∞ ② Concurrency Locking Multi version Optimistic Multi-Version Concurrency control - Example

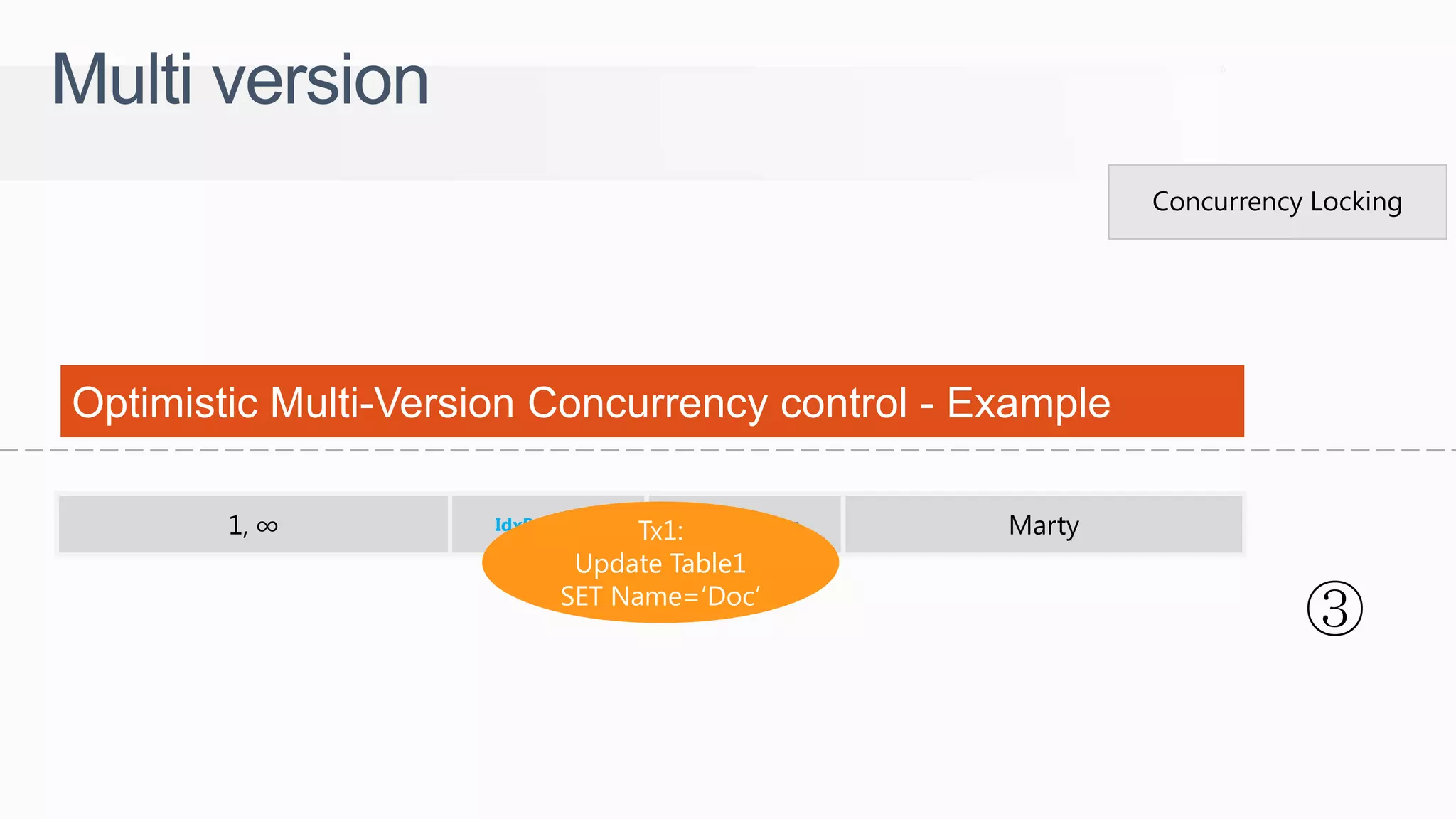

MartyIdxA pointerIdxB pointer1, ∞ ③ MartyIdxA pointerIdxB pointer1, ∞ Concurrency Locking Multi version Tx1: Update Table1 SET Name=„Doc‟ Optimistic Multi-Version Concurrency control - Example

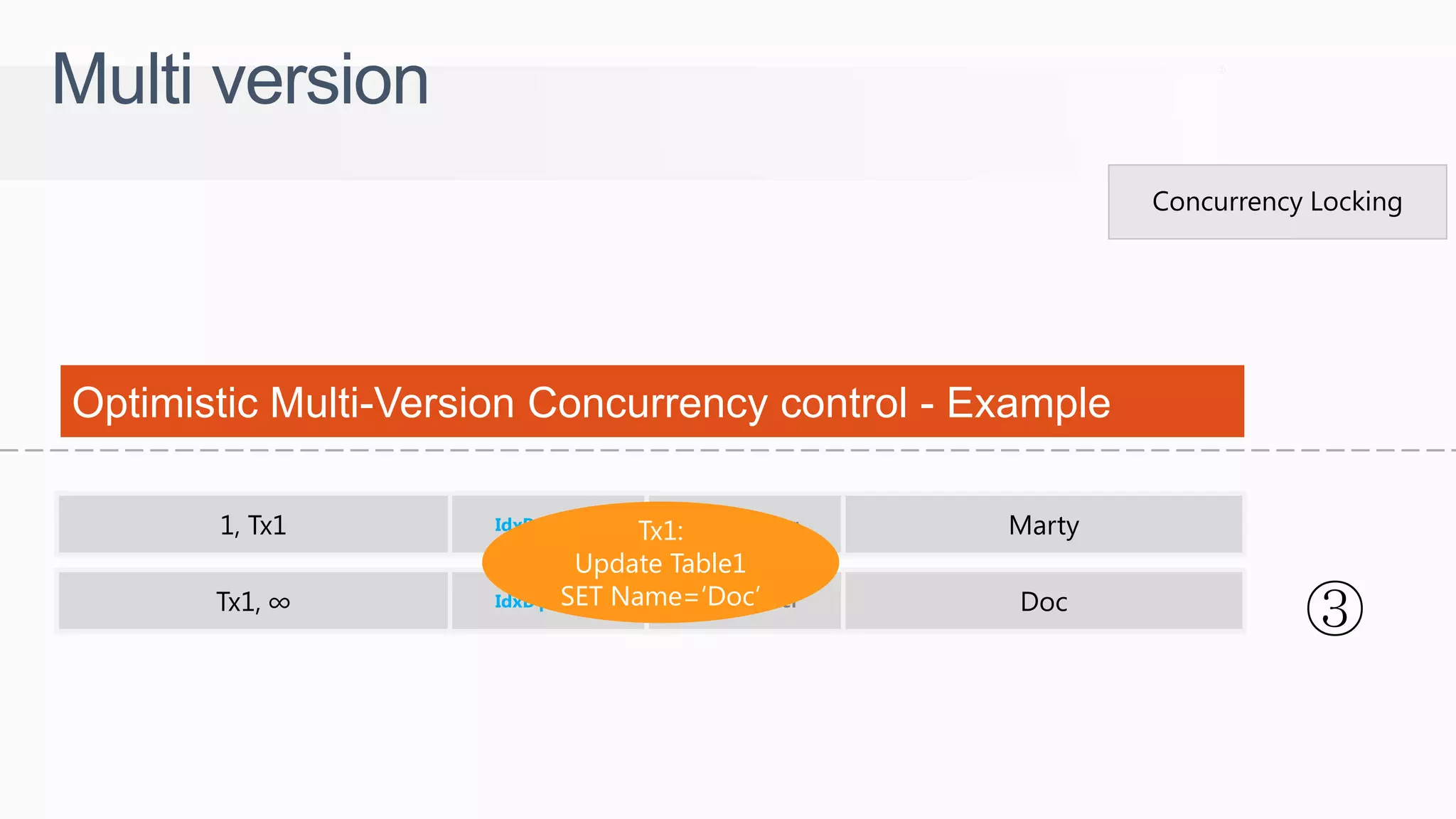

MartyIdxA pointerIdxB pointer1, ∞ DocIdxA pointerIdxB pointerTx1, ∞ ③ MartyIdxA pointerIdxB pointer1, Tx1 Concurrency Locking Multi version Tx1: Update Table1 SET Name=„Doc‟ Optimistic Multi-Version Concurrency control - Example

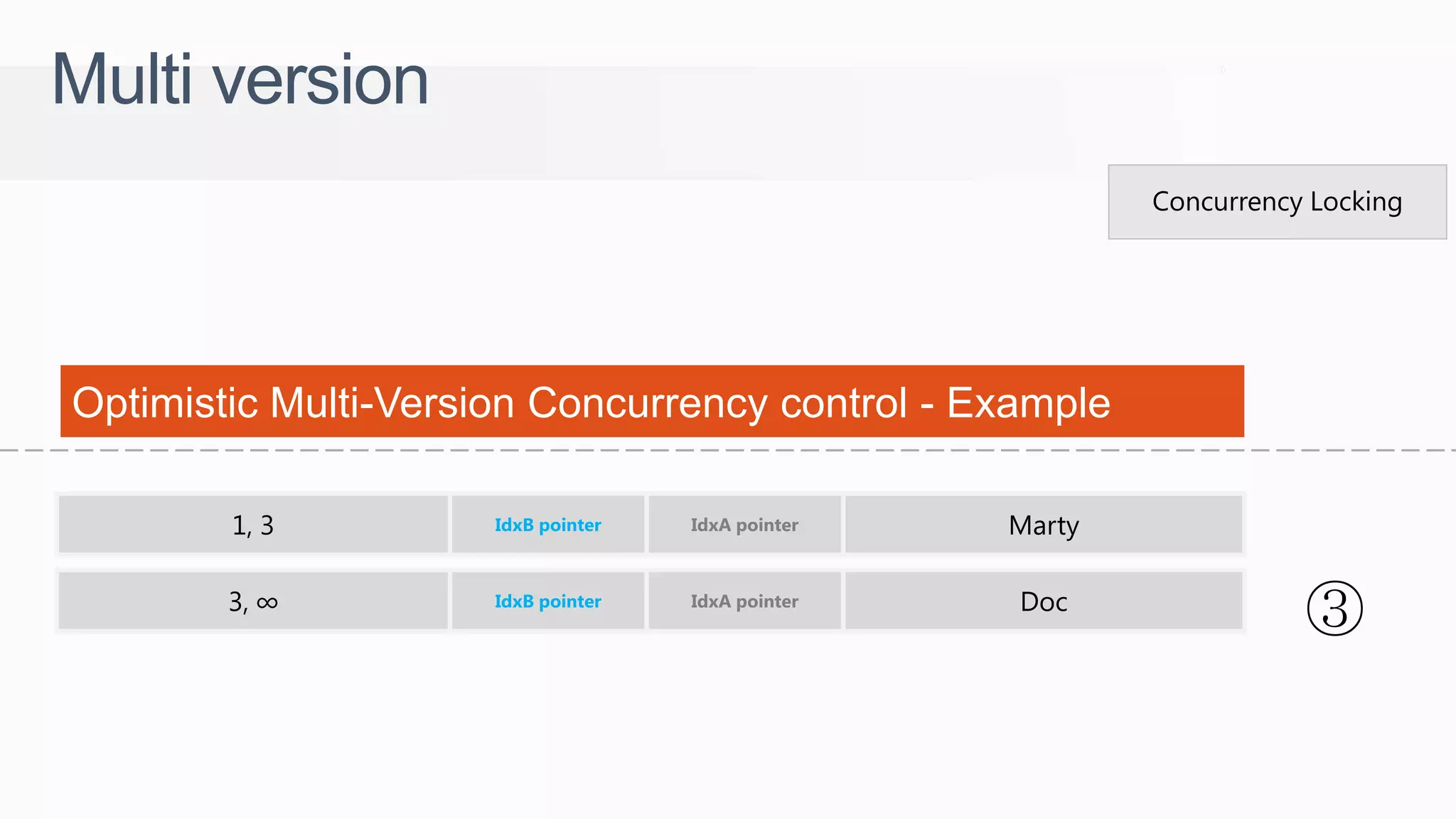

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ③ Concurrency Locking Multi version Optimistic Multi-Version Concurrency control - Example

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ④ Concurrency Locking Multi version Optimistic Multi-Version Concurrency control - Example

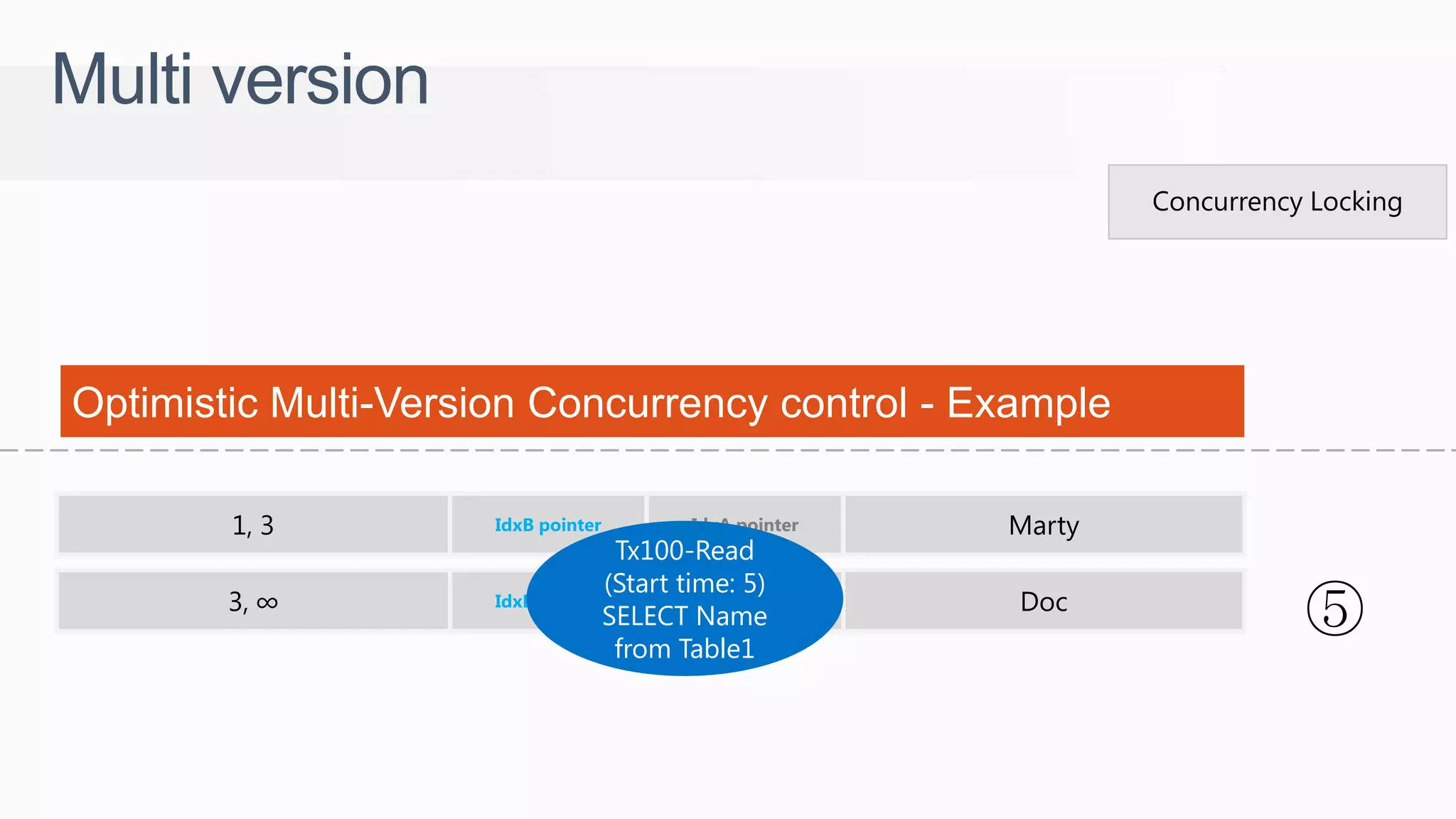

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ⑤ Tx100-Read (Start time: 5) SELECT Name from Table1 Concurrency Locking Multi version Optimistic Multi-Version Concurrency control - Example

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ⑤ Concurrency Locking Multi version Tx100-Read (Start time: 5) SELECT Name from Table1 Optimistic Multi-Version Concurrency control - Example

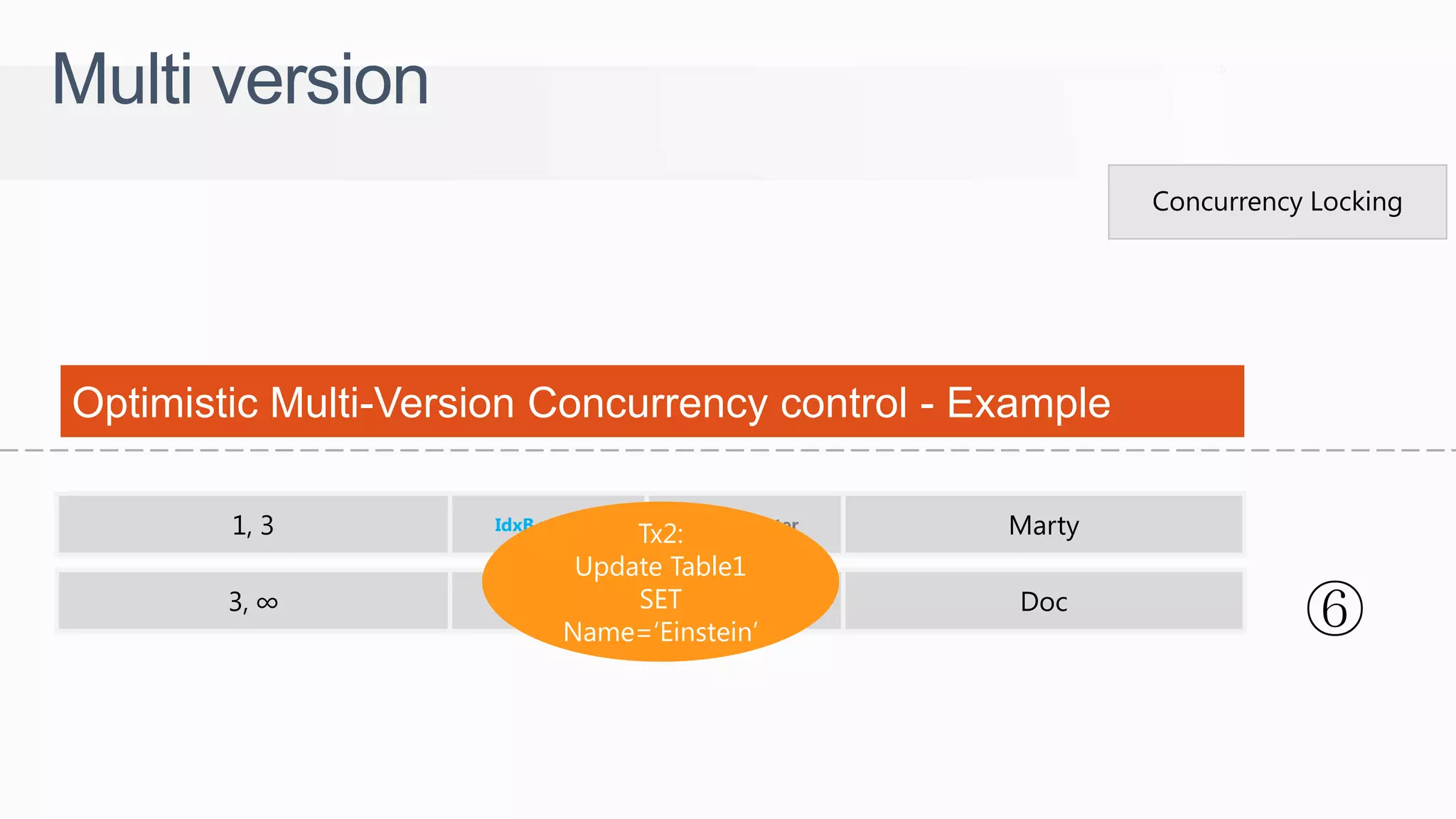

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ⑥DocIdxA pointerIdxB pointer3, ∞ Concurrency Locking Multi version Tx2: Update Table1 SET Name=„Einstein‟ Optimistic Multi-Version Concurrency control - Example

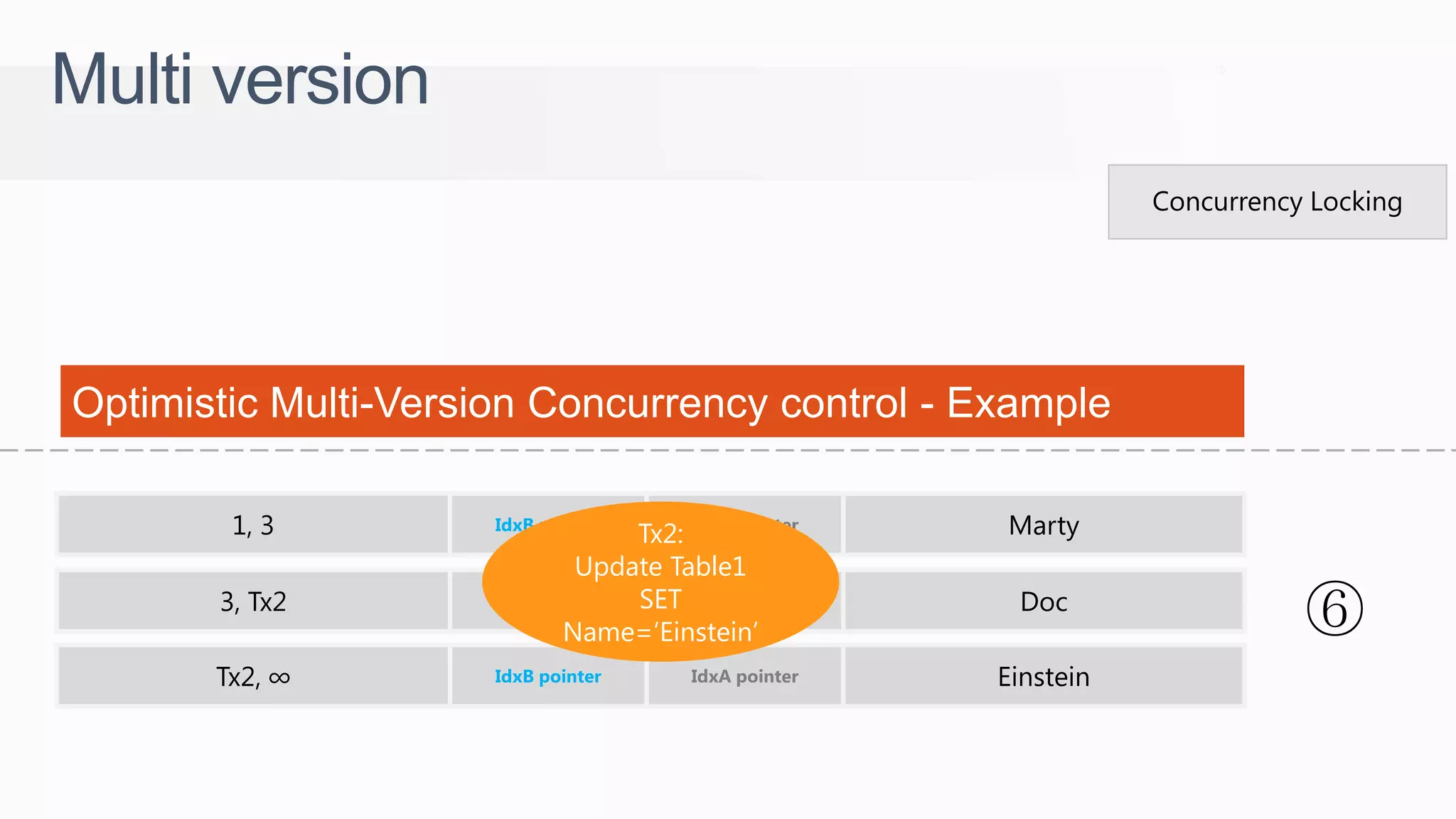

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, ∞ ⑥ EinsteinIdxA pointerIdxB pointerTx2, ∞ DocIdxA pointerIdxB pointer3, Tx2 Concurrency Locking Multi version Tx2: Update Table1 SET Name=„Einstein‟ Optimistic Multi-Version Concurrency control - Example

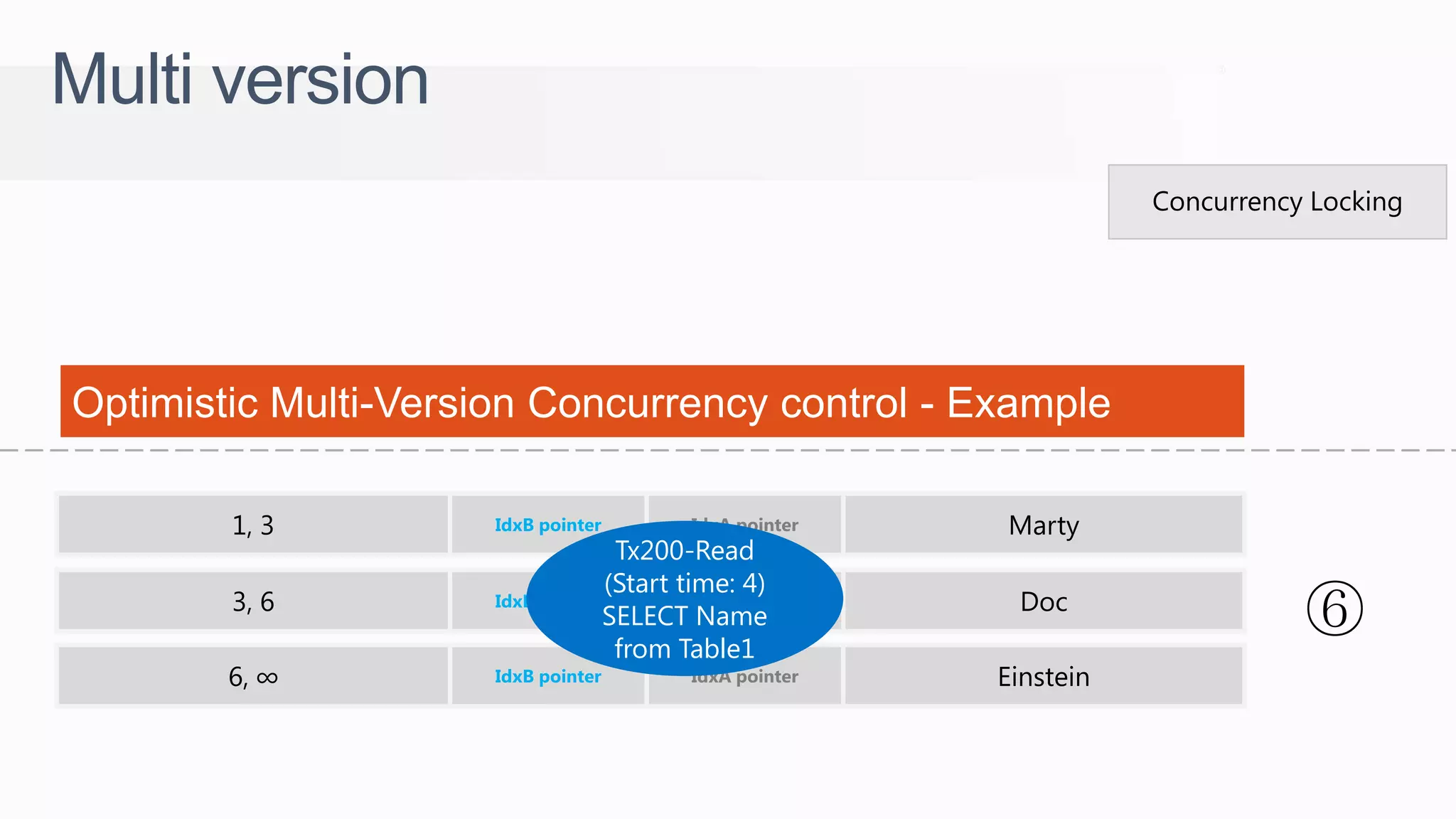

MartyIdxA pointerIdxB pointer1, 3 DocIdxA pointerIdxB pointer3, 6 ⑥ EinsteinIdxA pointerIdxB pointer6, ∞ Concurrency Locking Multi version Tx200-Read (Start time: 4) SELECT Name from Table1 Optimistic Multi-Version Concurrency control - Example

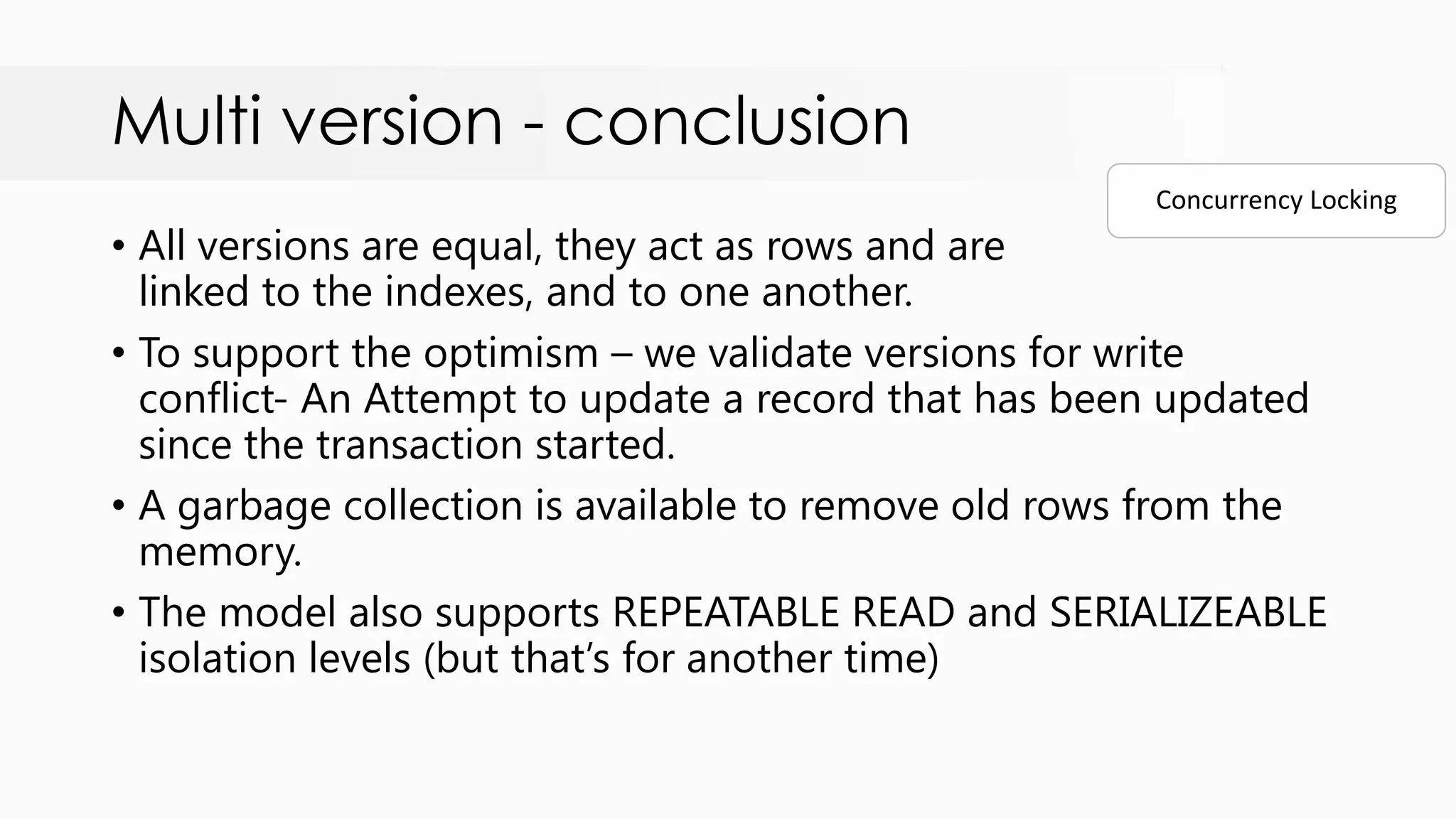

Multi version - conclusion • All versions are equal, they act as rows and are linked to the indexes, and to one another. • To support the optimism – we validate versions for write conflict- An Attempt to update a record that has been updated since the transaction started. • A garbage collection is available to remove old rows from the memory. • The model also supports REPEATABLE READ and SERIALIZEABLE isolation levels (but that‟s for another time) Concurrency Locking

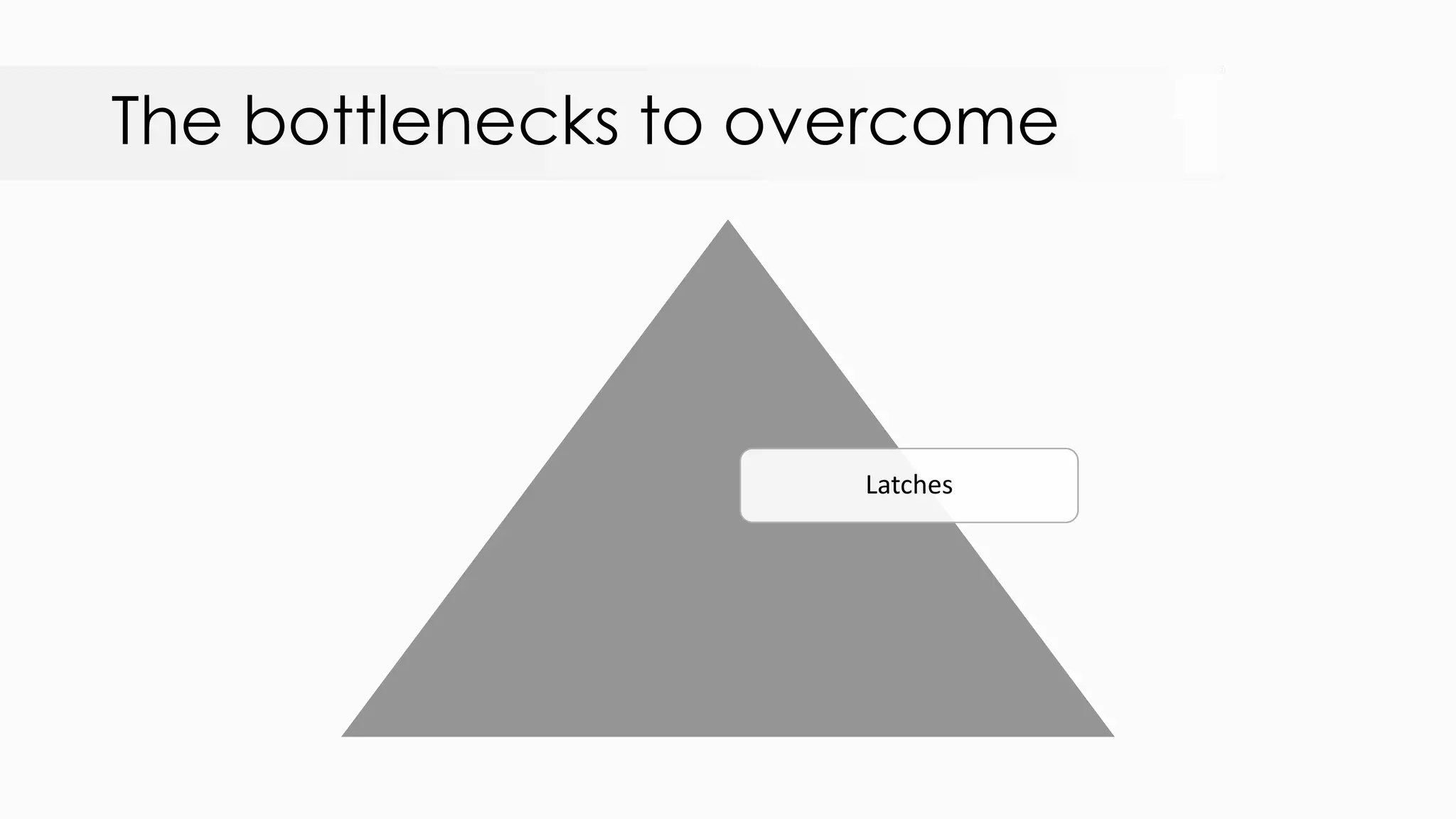

The bottlenecks to overcome Latches

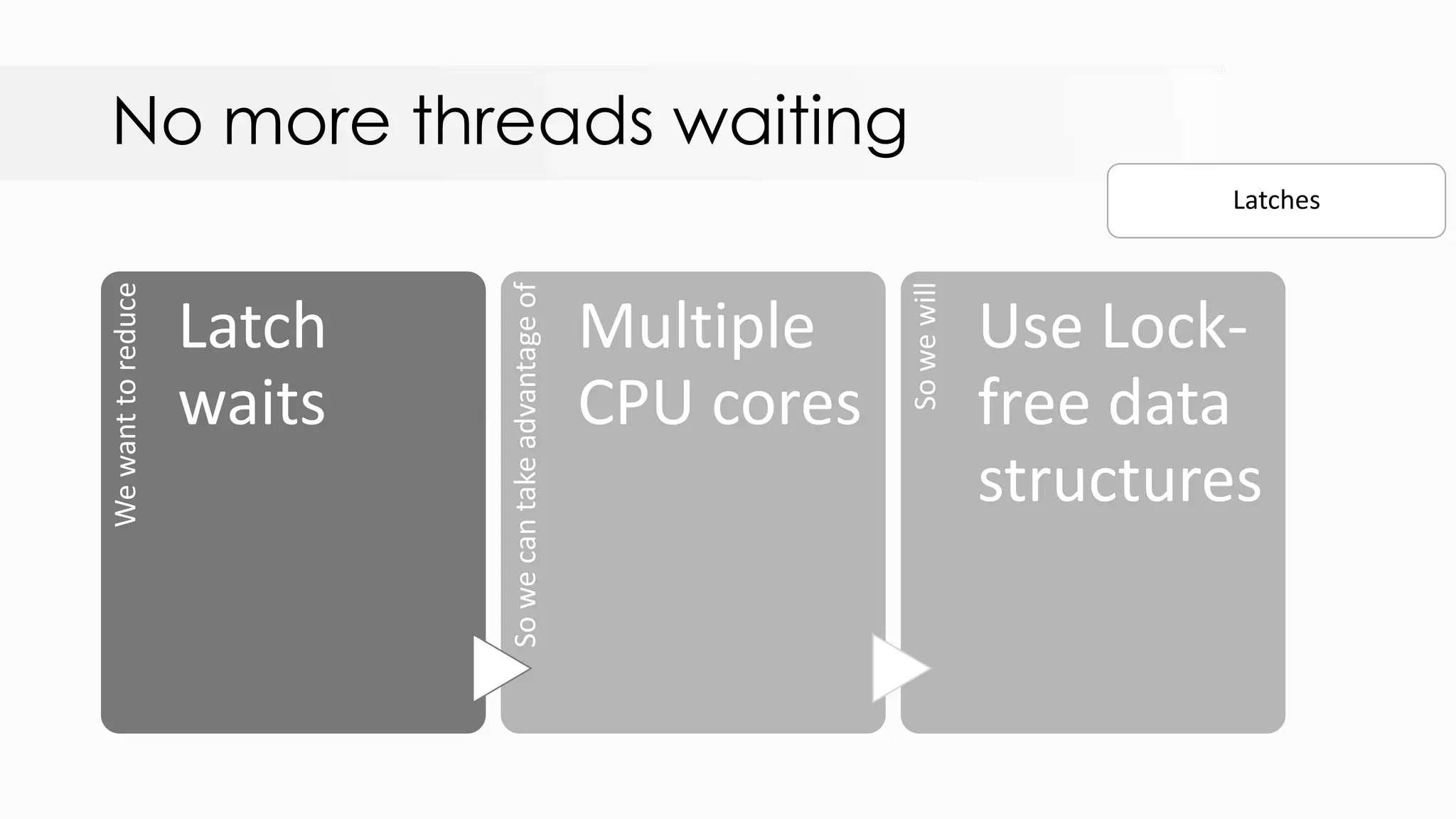

No more threads waitingWewanttoreduce Latch waits Sowecantakeadvantageof Multiple CPU cores Sowewill Use Lock- free data structures Latches

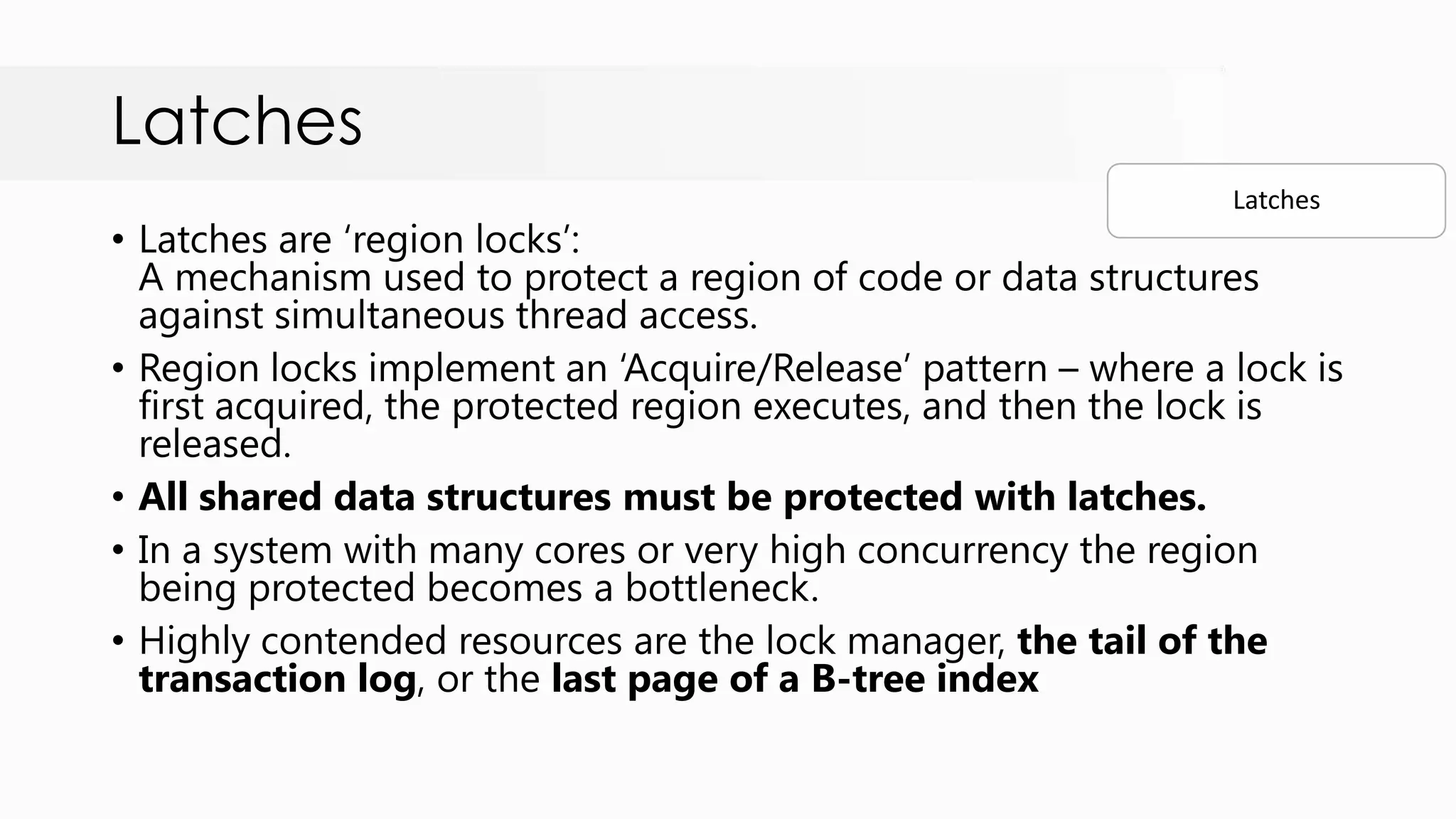

Latches • Latches are „region locks‟: A mechanism used to protect a region of code or data structures against simultaneous thread access. • Region locks implement an „Acquire/Release‟ pattern – where a lock is first acquired, the protected region executes, and then the lock is released. • All shared data structures must be protected with latches. • In a system with many cores or very high concurrency the region being protected becomes a bottleneck. • Highly contended resources are the lock manager, the tail of the transaction log, or the last page of a B-tree index Latches

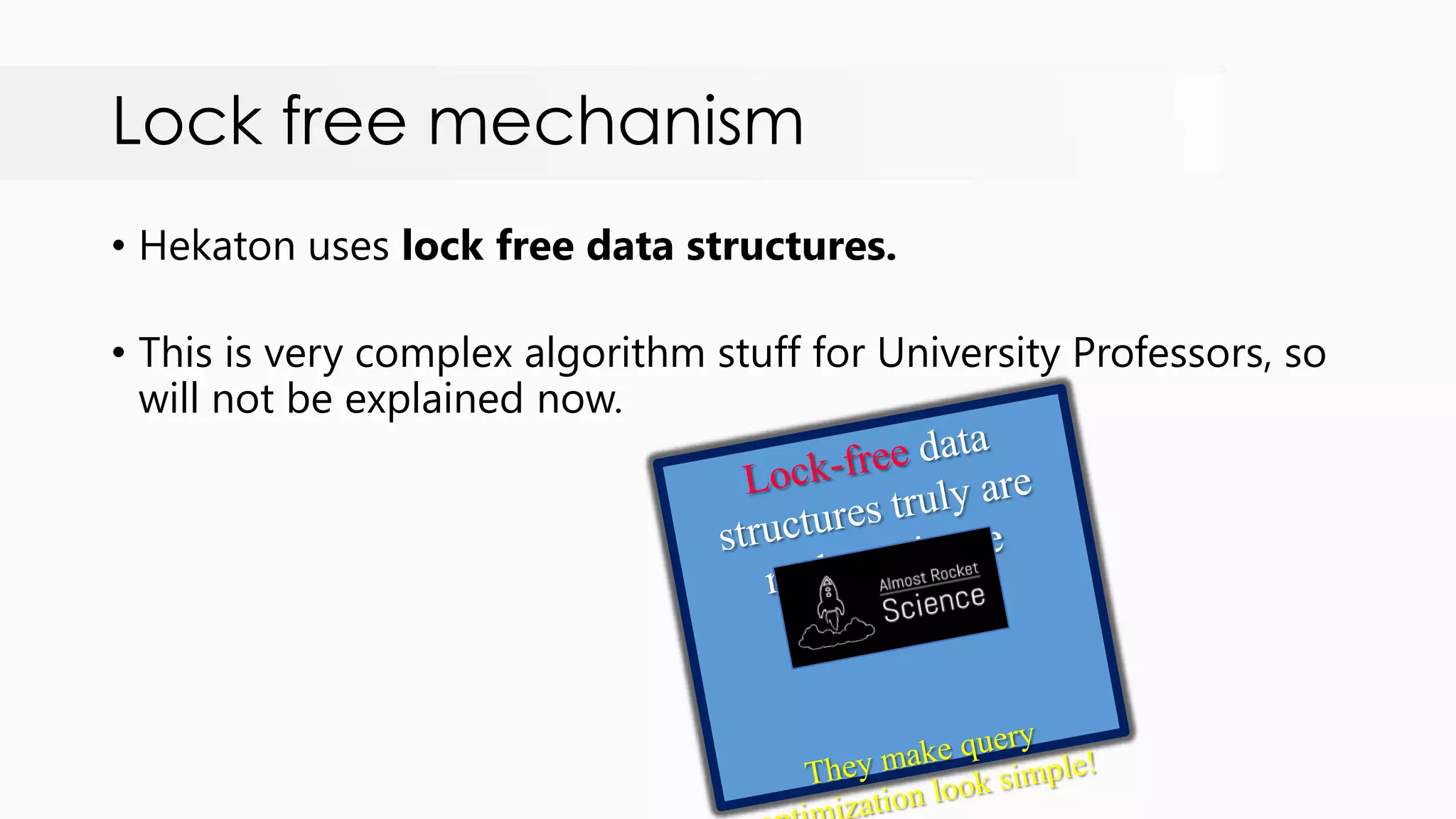

Lock free mechanism • Hekaton uses lock free data structures. • This is very complex algorithm stuff for University Professors, so will not be explained now.

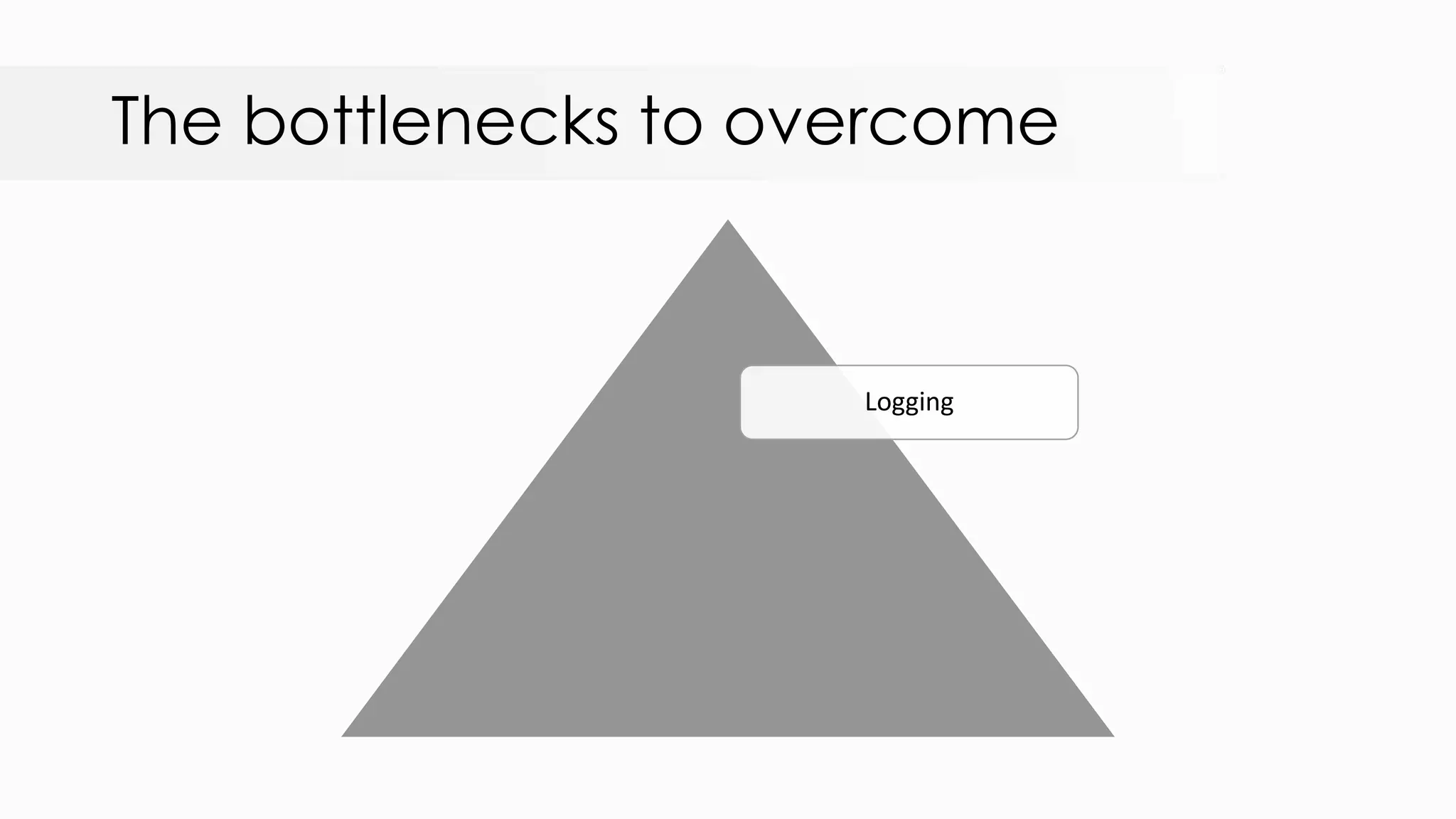

The bottlenecks to overcome Logging

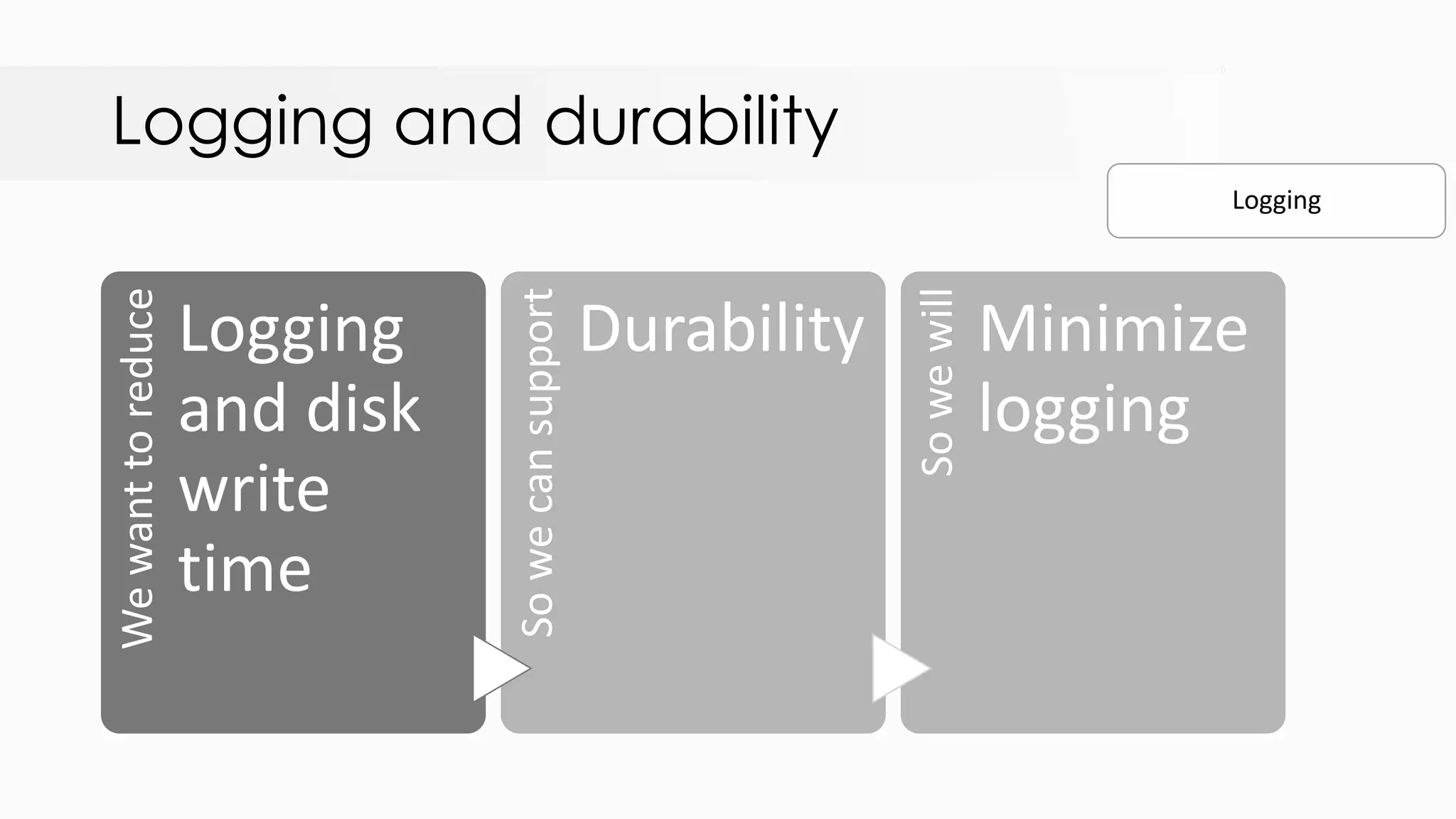

Logging Logging and durabilityWewanttoreduce Logging and disk write time Sowecansupport Durability Sowewill Minimize logging

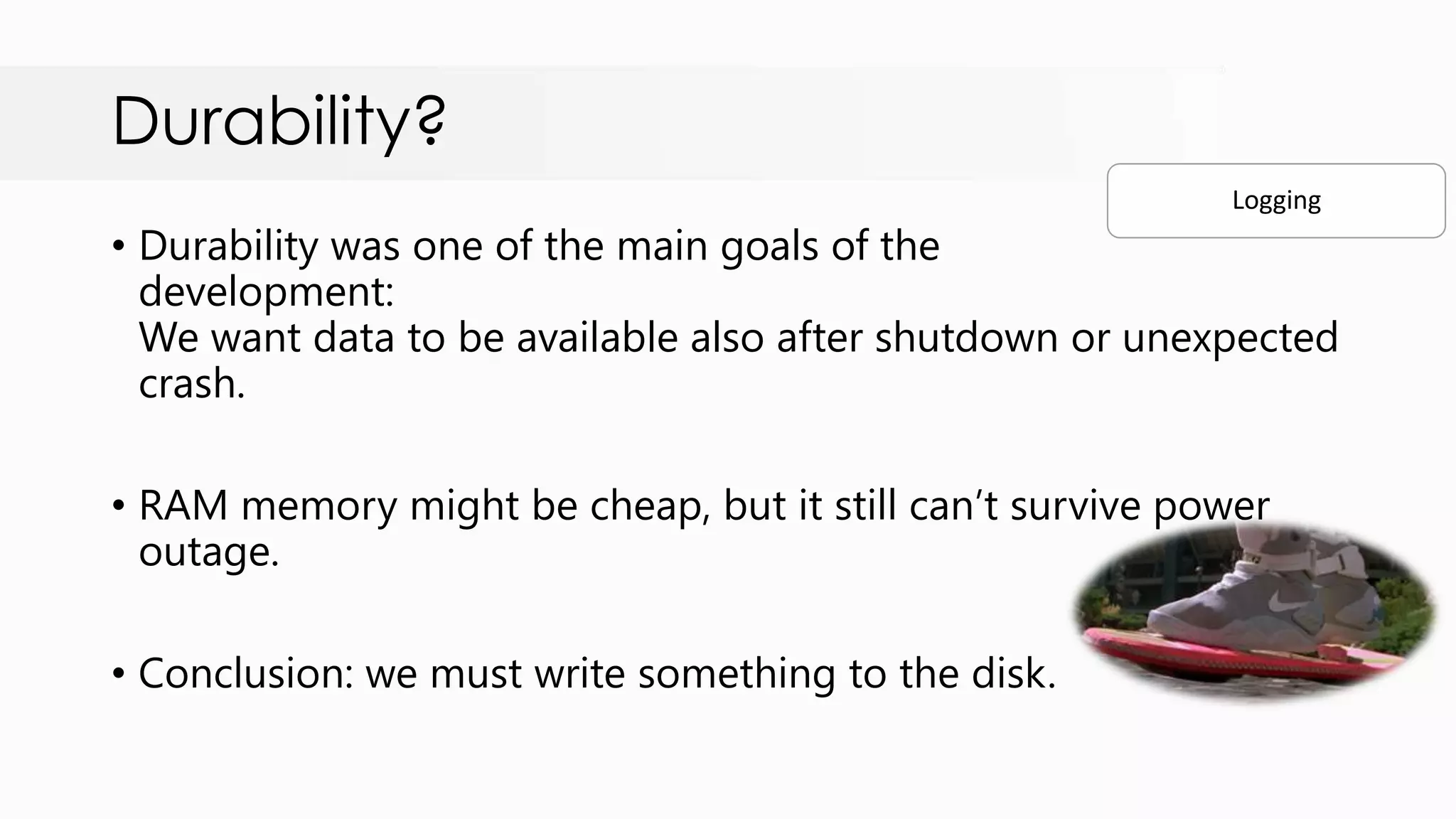

Durability? • Durability was one of the main goals of the development: We want data to be available also after shutdown or unexpected crash. • RAM memory might be cheap, but it still can‟t survive power outage. • Conclusion: we must write something to the disk. Logging

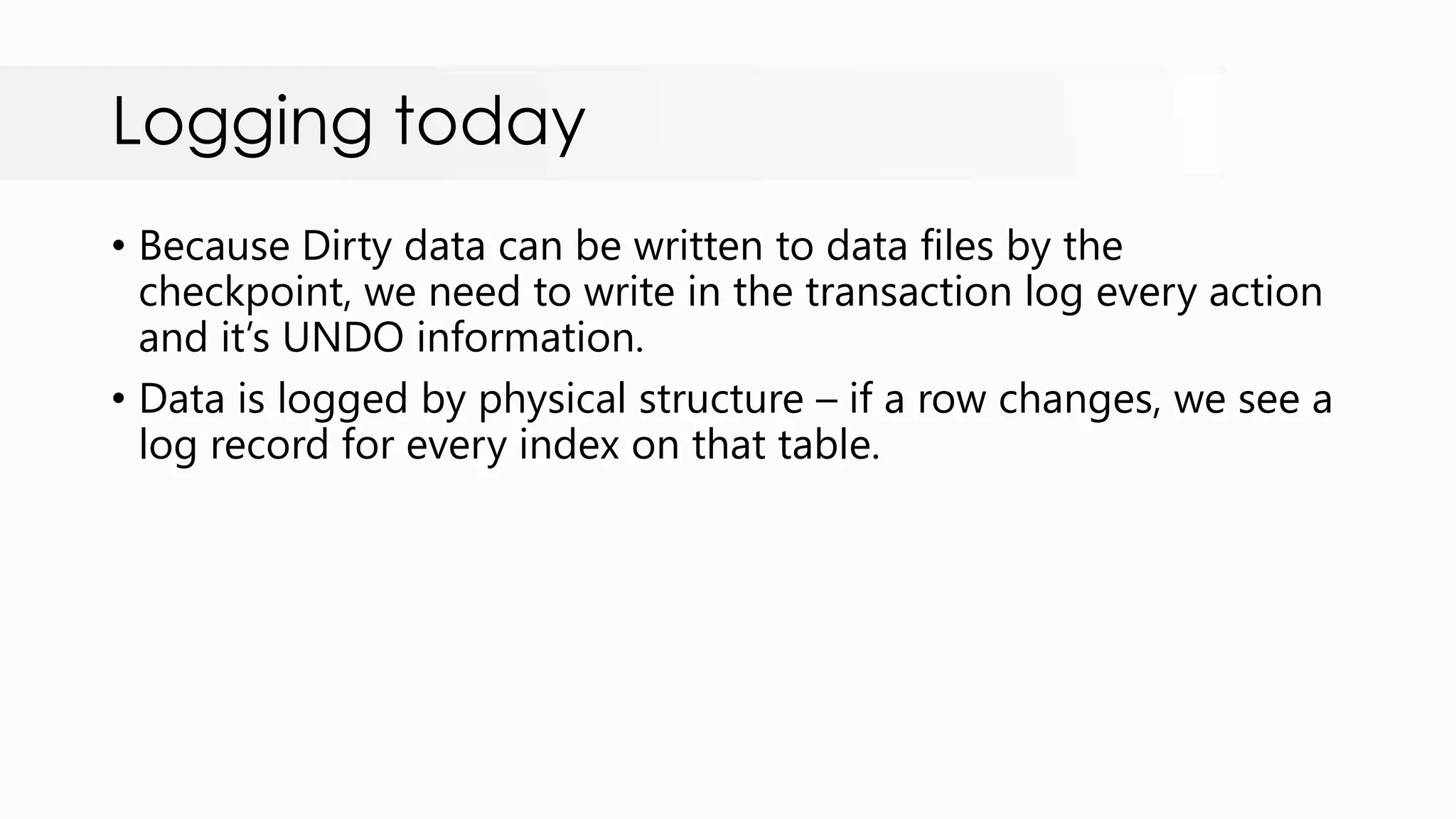

Logging today • Because Dirty data can be written to data files by the checkpoint, we need to write in the transaction log every action and it‟s UNDO information. • Data is logged by physical structure – if a row changes, we see a log record for every index on that table.

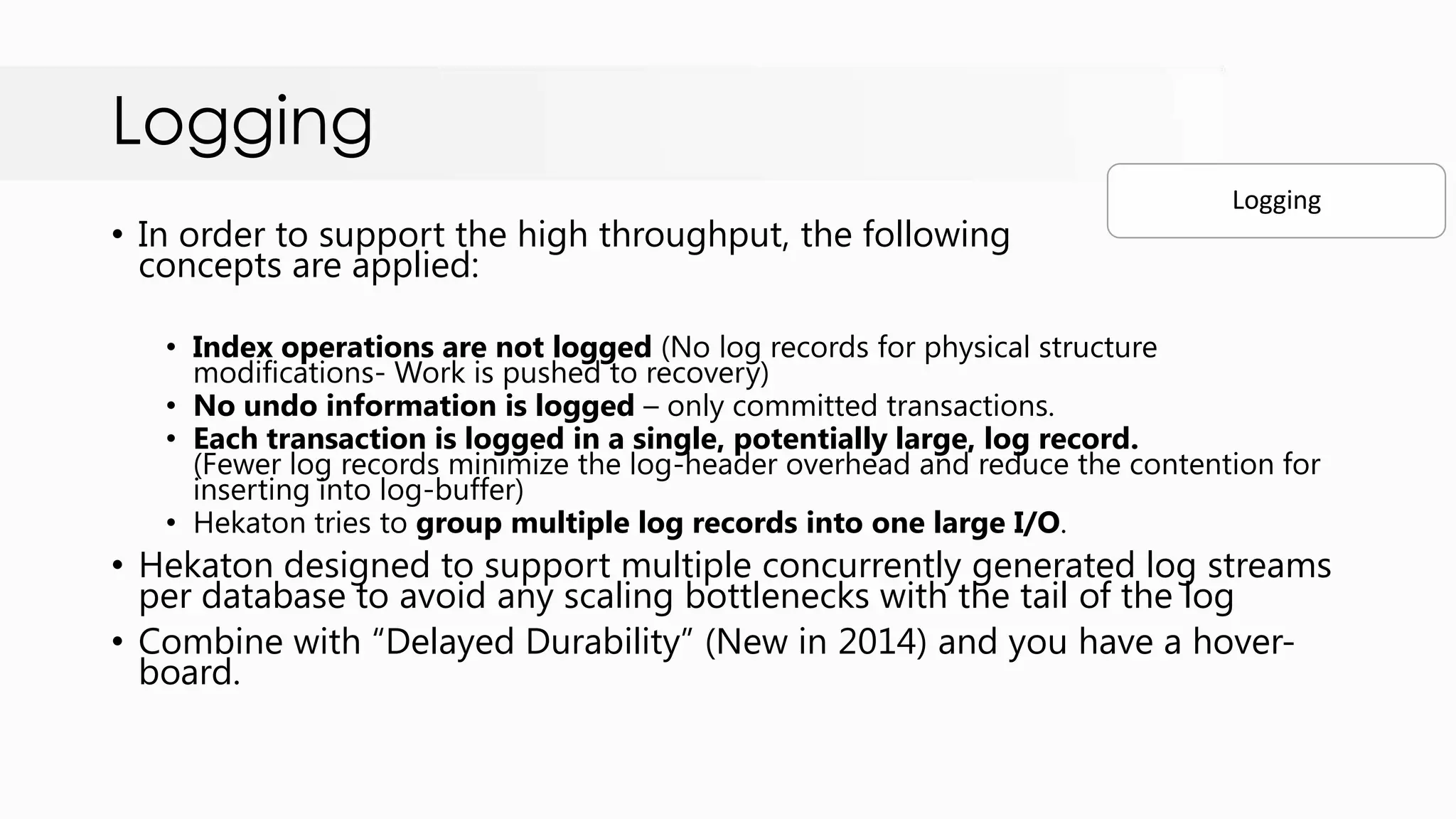

Logging • In order to support the high throughput, the following concepts are applied: • Index operations are not logged (No log records for physical structure modifications- Work is pushed to recovery) • No undo information is logged – only committed transactions. • Each transaction is logged in a single, potentially large, log record. (Fewer log records minimize the log-header overhead and reduce the contention for inserting into log-buffer) • Hekaton tries to group multiple log records into one large I/O. • Hekaton designed to support multiple concurrently generated log streams per database to avoid any scaling bottlenecks with the tail of the log • Combine with “Delayed Durability” (New in 2014) and you have a hover- board. Logging

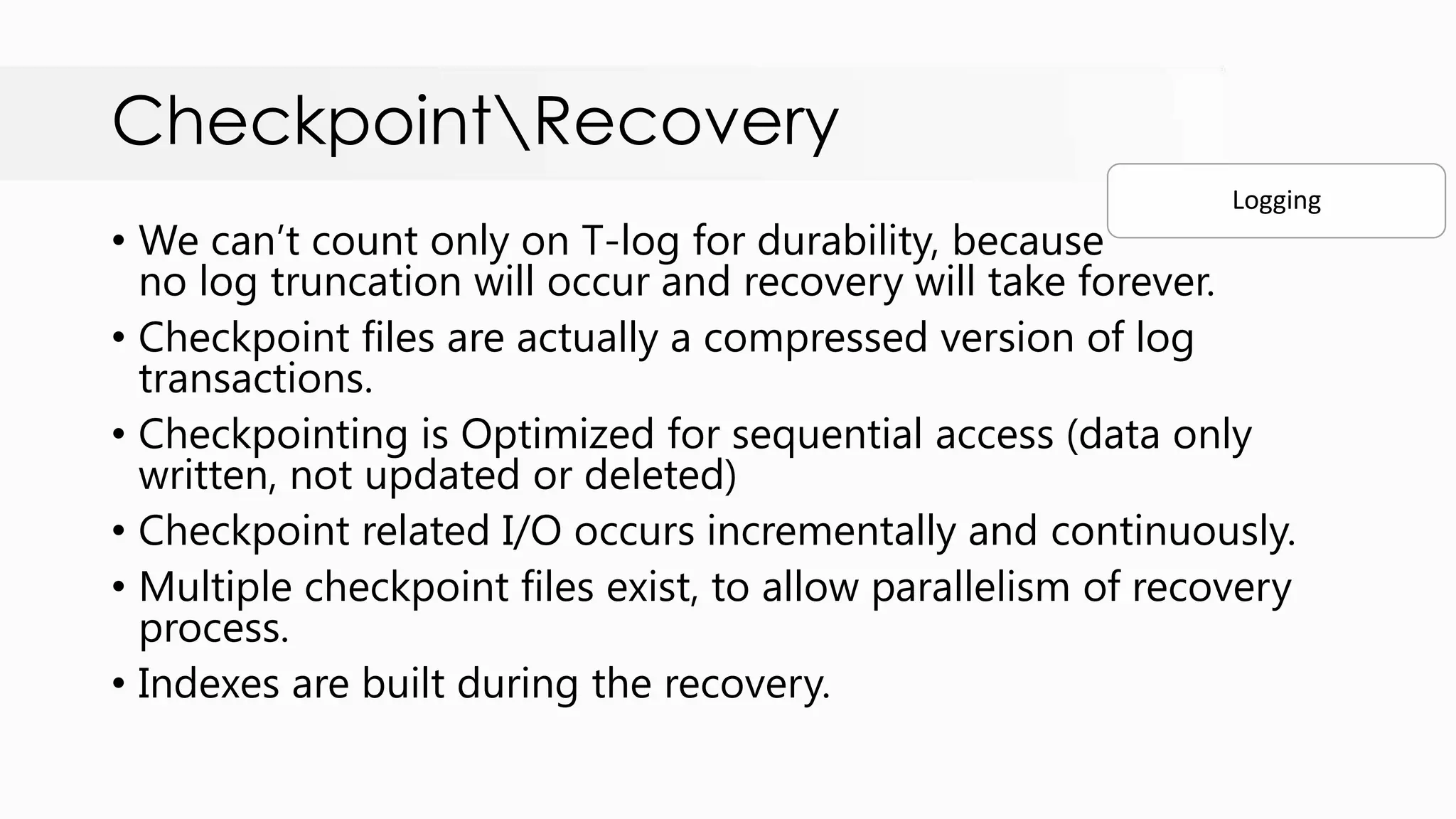

CheckpointRecovery • We can‟t count only on T-log for durability, because no log truncation will occur and recovery will take forever. • Checkpoint files are actually a compressed version of log transactions. • Checkpointing is Optimized for sequential access (data only written, not updated or deleted) • Checkpoint related I/O occurs incrementally and continuously. • Multiple checkpoint files exist, to allow parallelism of recovery process. • Indexes are built during the recovery. Logging

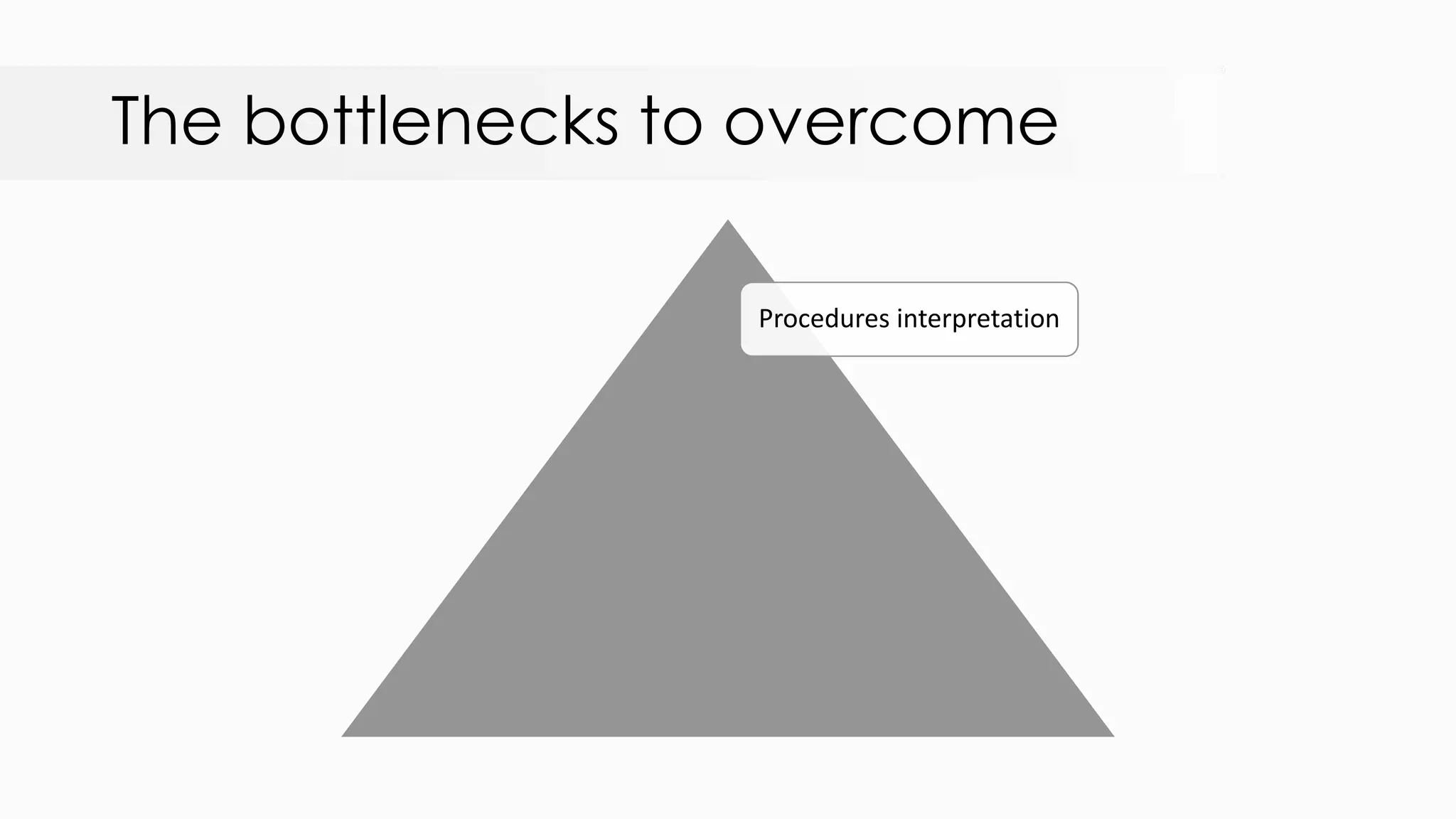

The bottlenecks to overcome Procedures interpretation

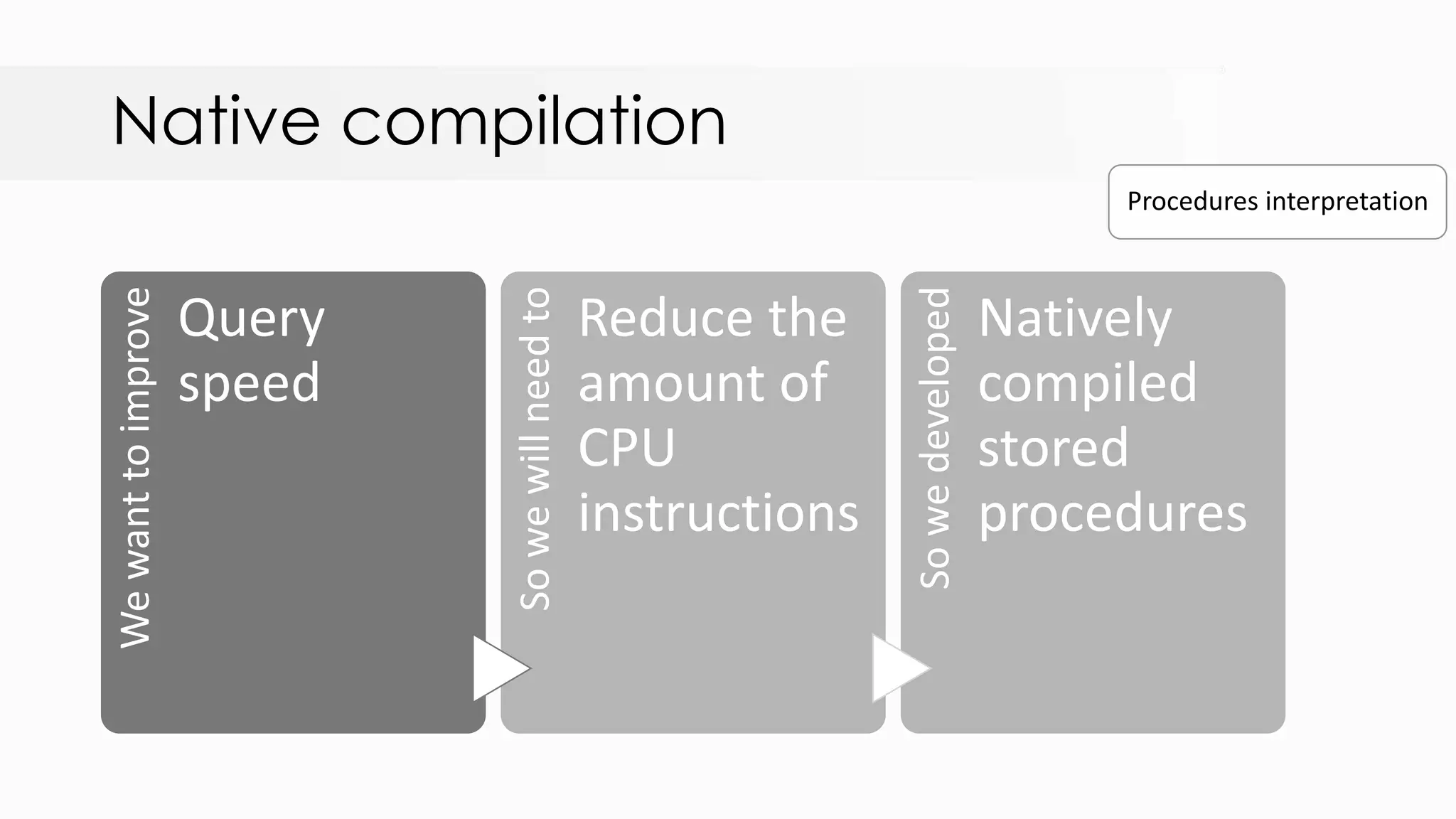

Native compilationWewanttoimprove Query speed Sowewillneedto Reduce the amount of CPU instructions Sowedeveloped Natively compiled stored procedures Procedures interpretation

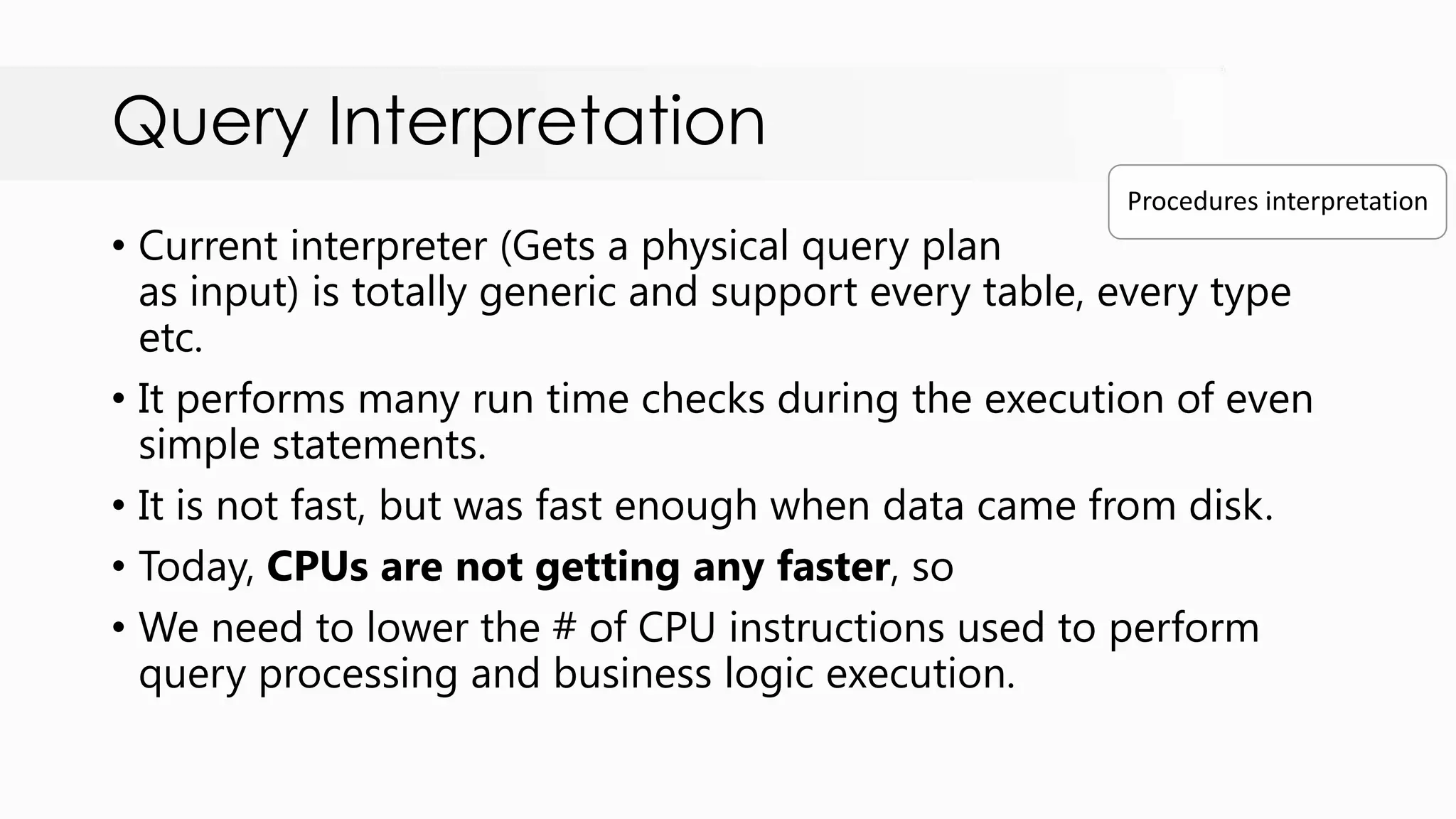

Query Interpretation • Current interpreter (Gets a physical query plan as input) is totally generic and support every table, every type etc. • It performs many run time checks during the execution of even simple statements. • It is not fast, but was fast enough when data came from disk. • Today, CPUs are not getting any faster, so • We need to lower the # of CPU instructions used to perform query processing and business logic execution. Procedures interpretation

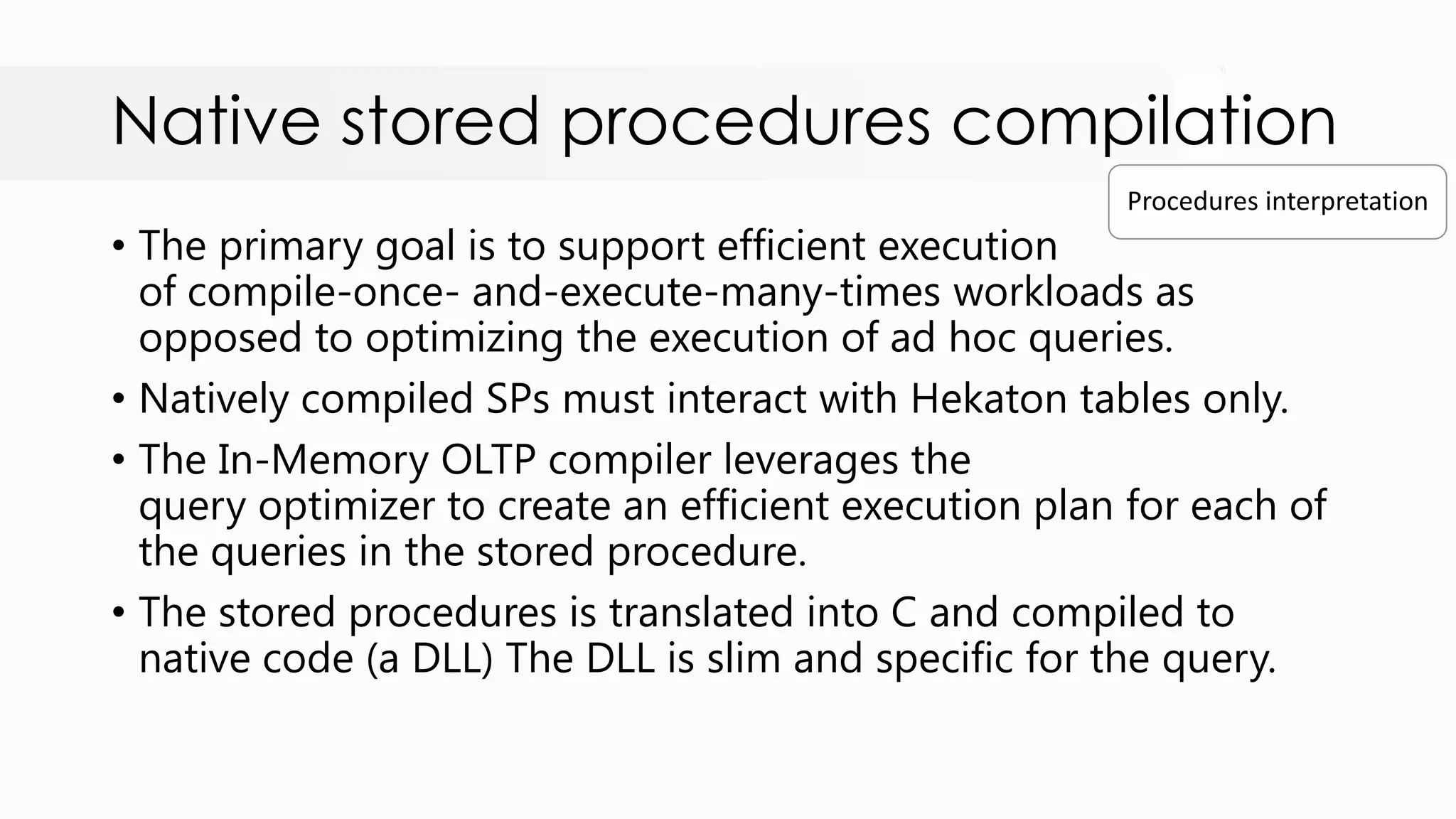

Native stored procedures compilation • The primary goal is to support efficient execution of compile-once- and-execute-many-times workloads as opposed to optimizing the execution of ad hoc queries. • Natively compiled SPs must interact with Hekaton tables only. • The In-Memory OLTP compiler leverages the query optimizer to create an efficient execution plan for each of the queries in the stored procedure. • The stored procedures is translated into C and compiled to native code (a DLL) The DLL is slim and specific for the query. Procedures interpretation

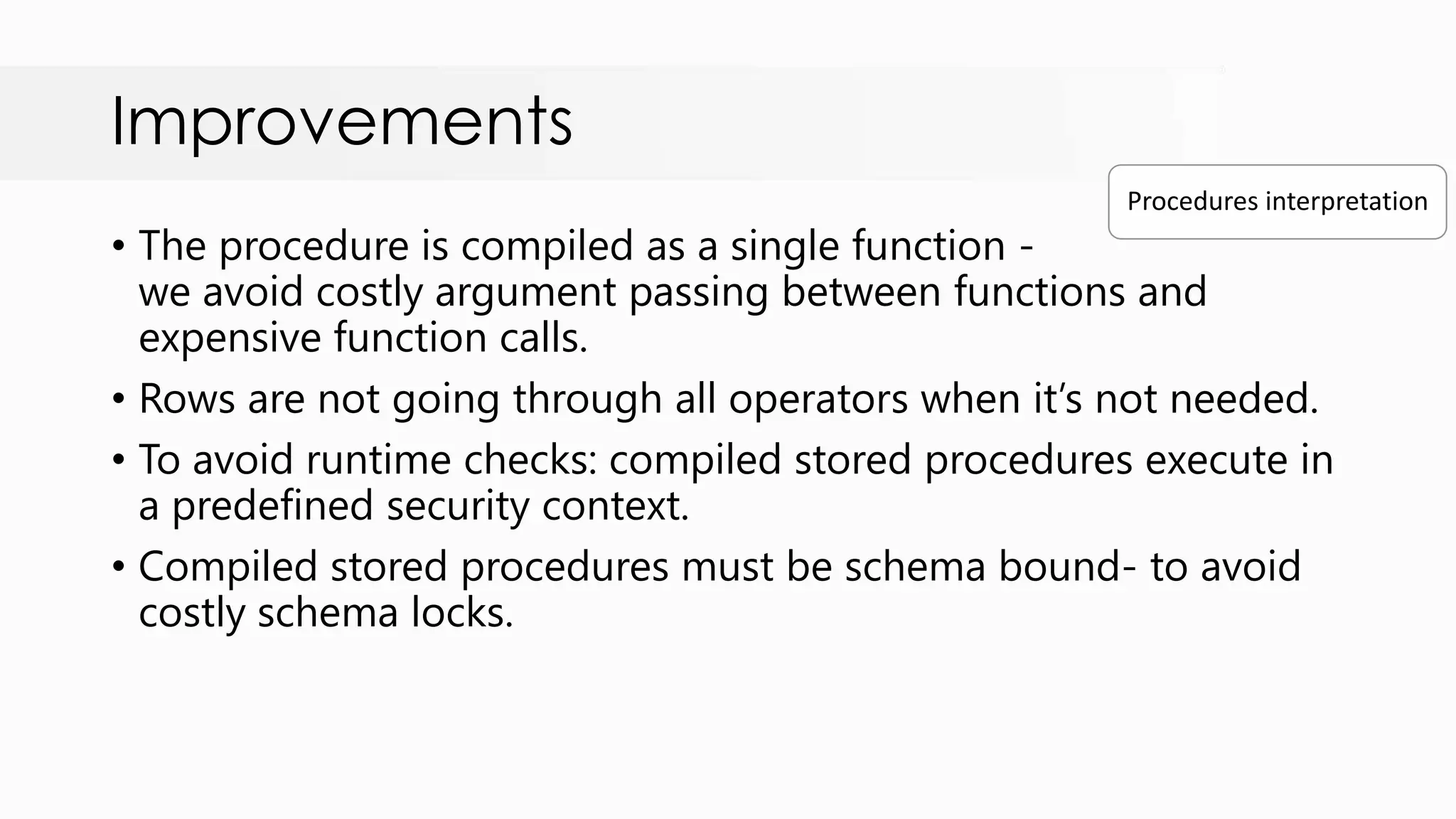

Improvements • The procedure is compiled as a single function - we avoid costly argument passing between functions and expensive function calls. • Rows are not going through all operators when it‟s not needed. • To avoid runtime checks: compiled stored procedures execute in a predefined security context. • Compiled stored procedures must be schema bound- to avoid costly schema locks. Procedures interpretation

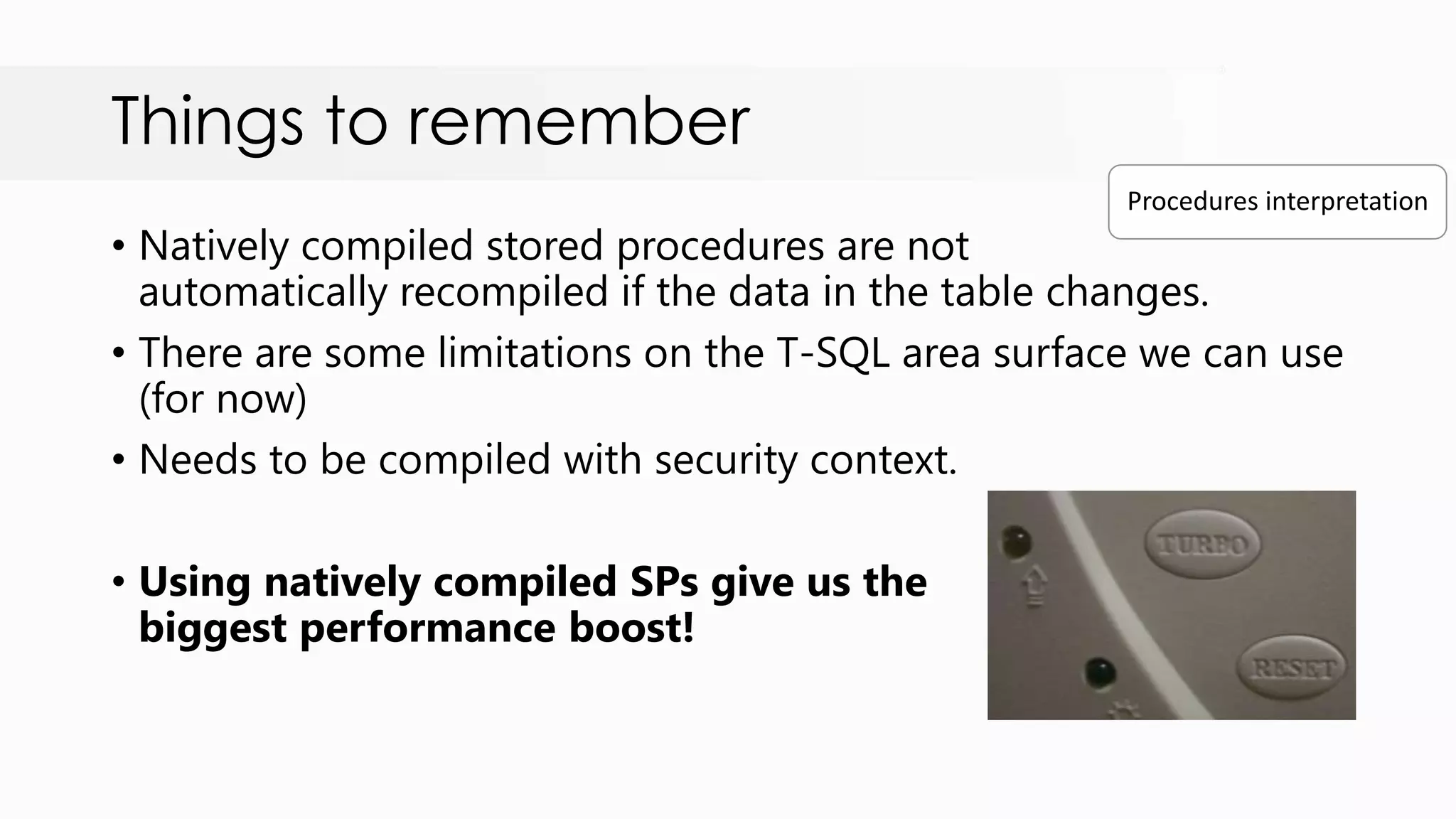

Things to remember • Natively compiled stored procedures are not automatically recompiled if the data in the table changes. • There are some limitations on the T-SQL area surface we can use (for now) • Needs to be compiled with security context. • Using natively compiled SPs give us the biggest performance boost! Procedures interpretation

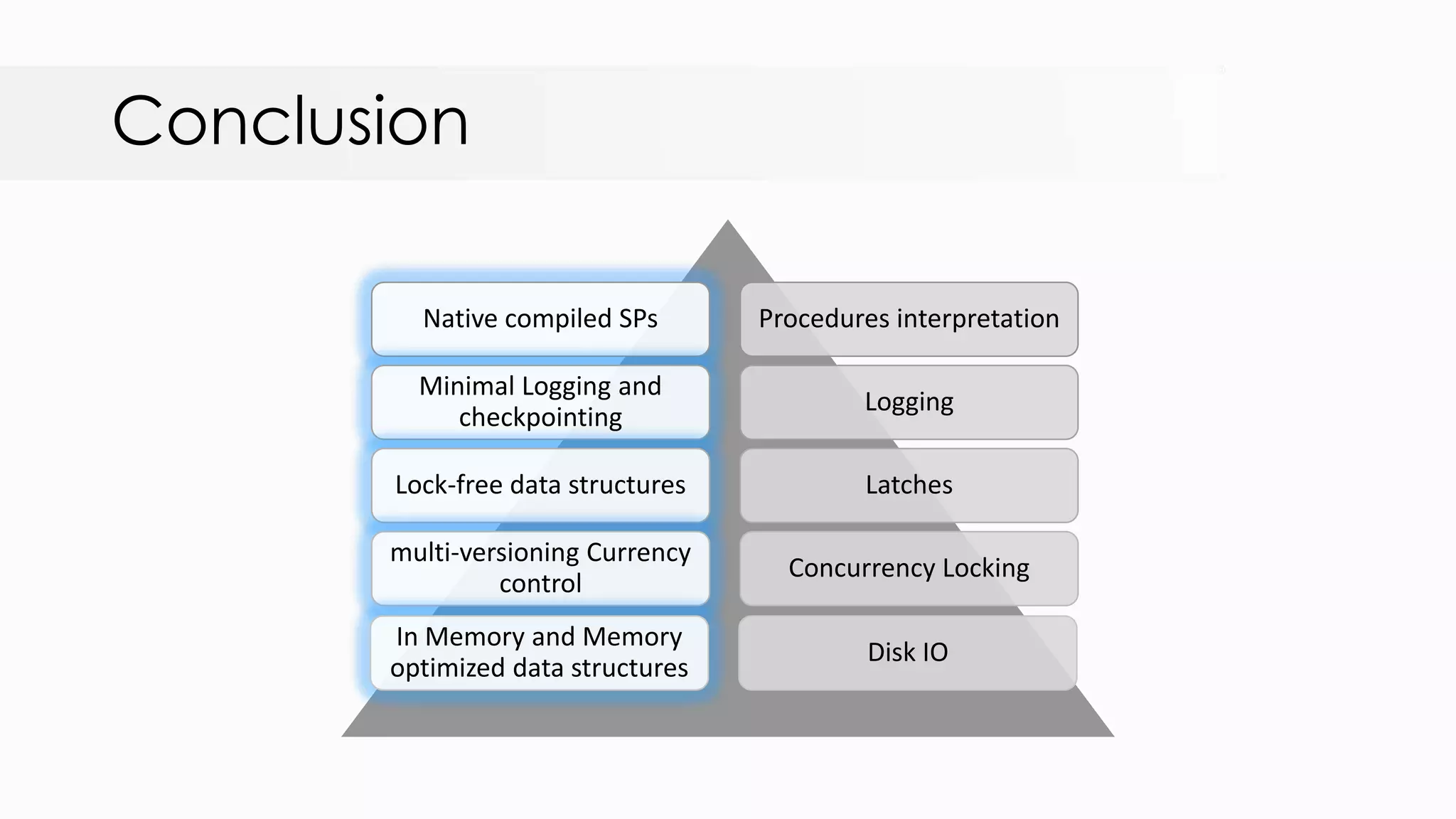

Conclusion Procedures interpretation Logging Latches Concurrency Locking Disk IO Native compiled SPs Minimal Logging and checkpointing Lock-free data structures multi-versioning Currency control In Memory and Memory optimized data structures

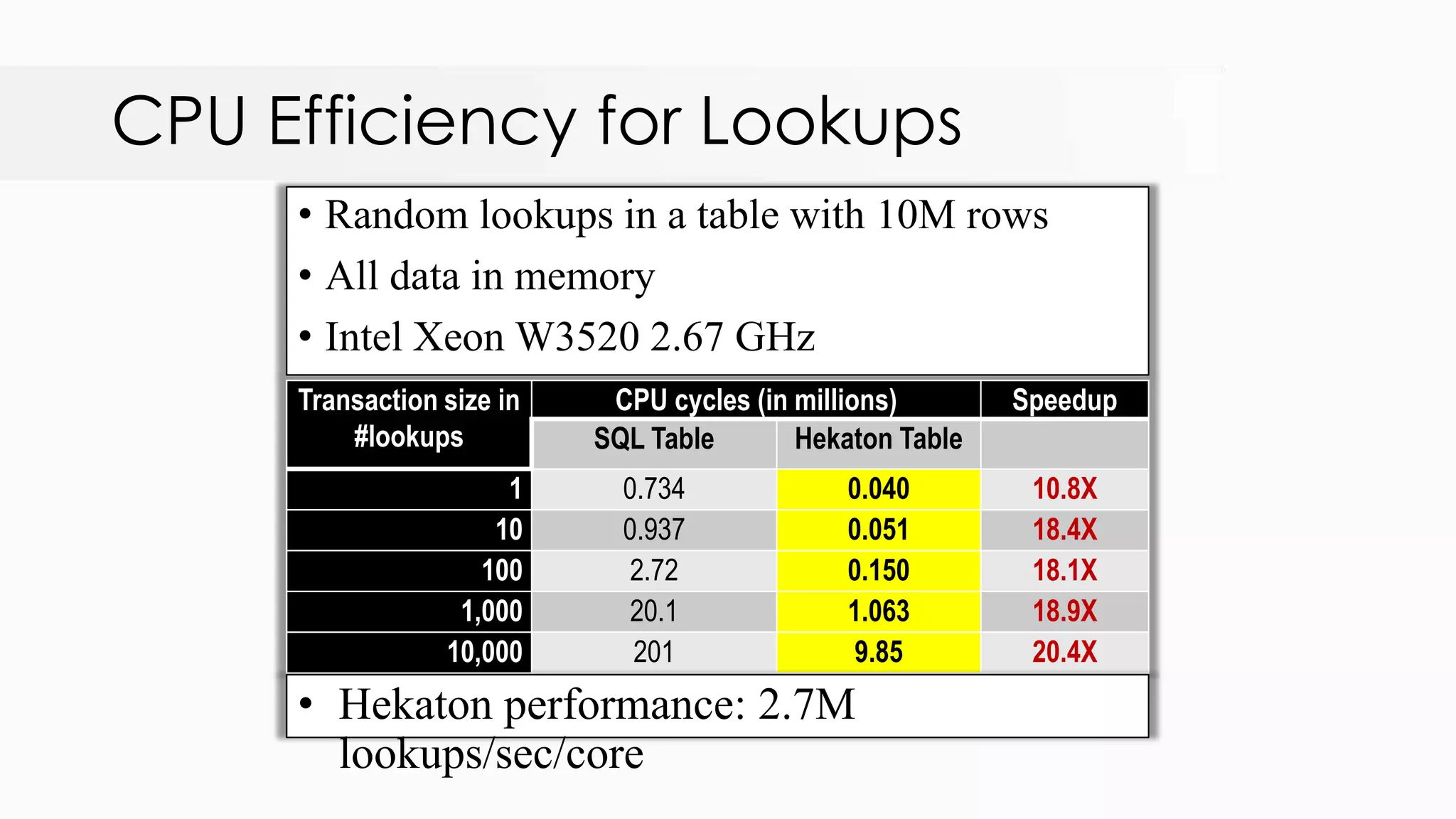

CPU Efficiency for Lookups • Random lookups in a table with 10M rows • All data in memory • Intel Xeon W3520 2.67 GHz Transaction size in #lookups CPU cycles (in millions) Speedup SQL Table Hekaton Table 1 0.734 0.040 10.8X 10 0.937 0.051 18.4X 100 2.72 0.150 18.1X 1,000 20.1 1.063 18.9X 10,000 201 9.85 20.4X • Hekaton performance: 2.7M lookups/sec/core

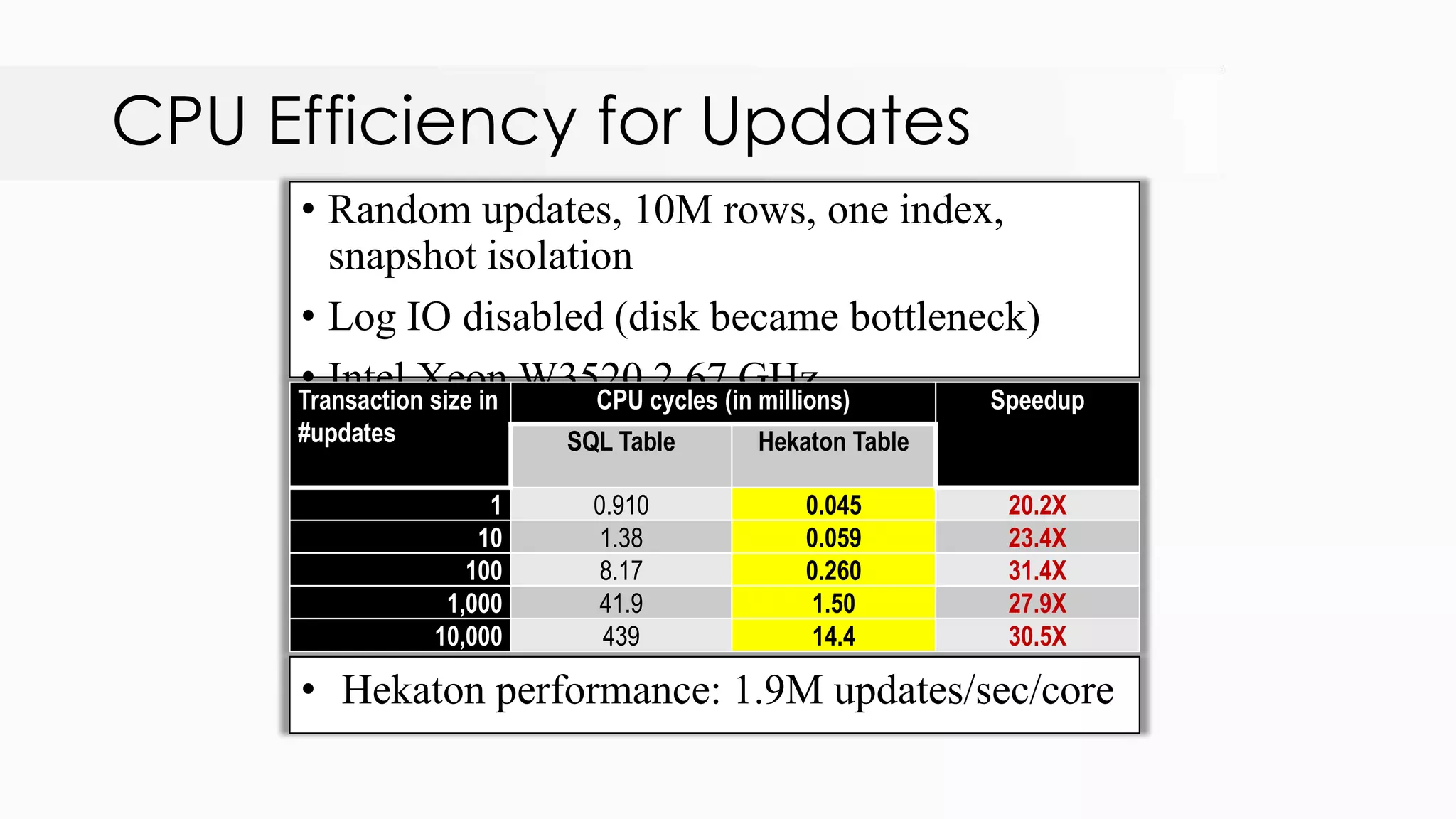

CPU Efficiency for Updates • Random updates, 10M rows, one index, snapshot isolation • Log IO disabled (disk became bottleneck) • Intel Xeon W3520 2.67 GHzTransaction size in #updates CPU cycles (in millions) Speedup SQL Table Hekaton Table 1 0.910 0.045 20.2X 10 1.38 0.059 23.4X 100 8.17 0.260 31.4X 1,000 41.9 1.50 27.9X 10,000 439 14.4 30.5X • Hekaton performance: 1.9M updates/sec/core

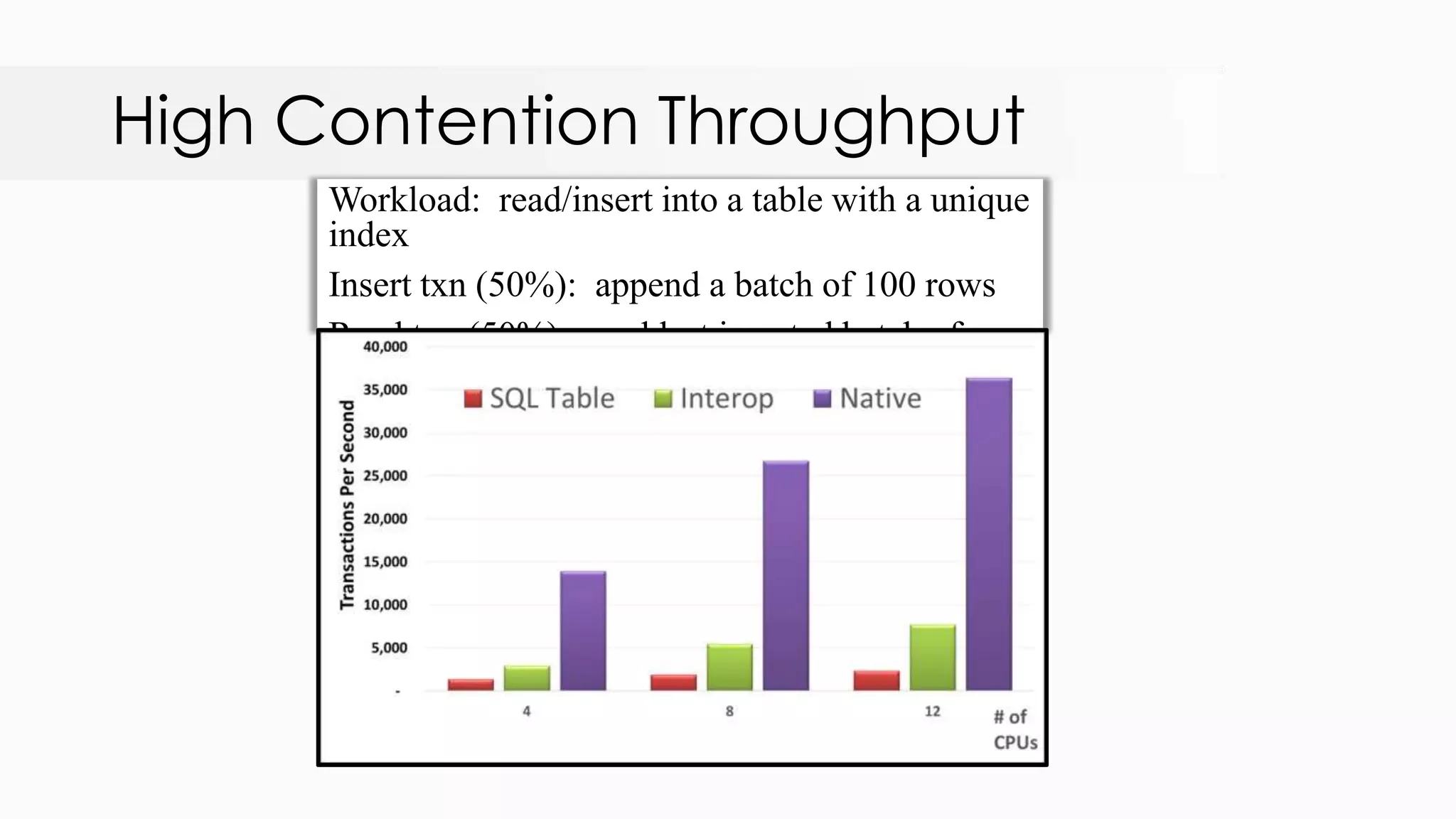

High Contention Throughput Workload: read/insert into a table with a unique index Insert txn (50%): append a batch of 100 rows Read txn (50%): read last inserted batch of rows

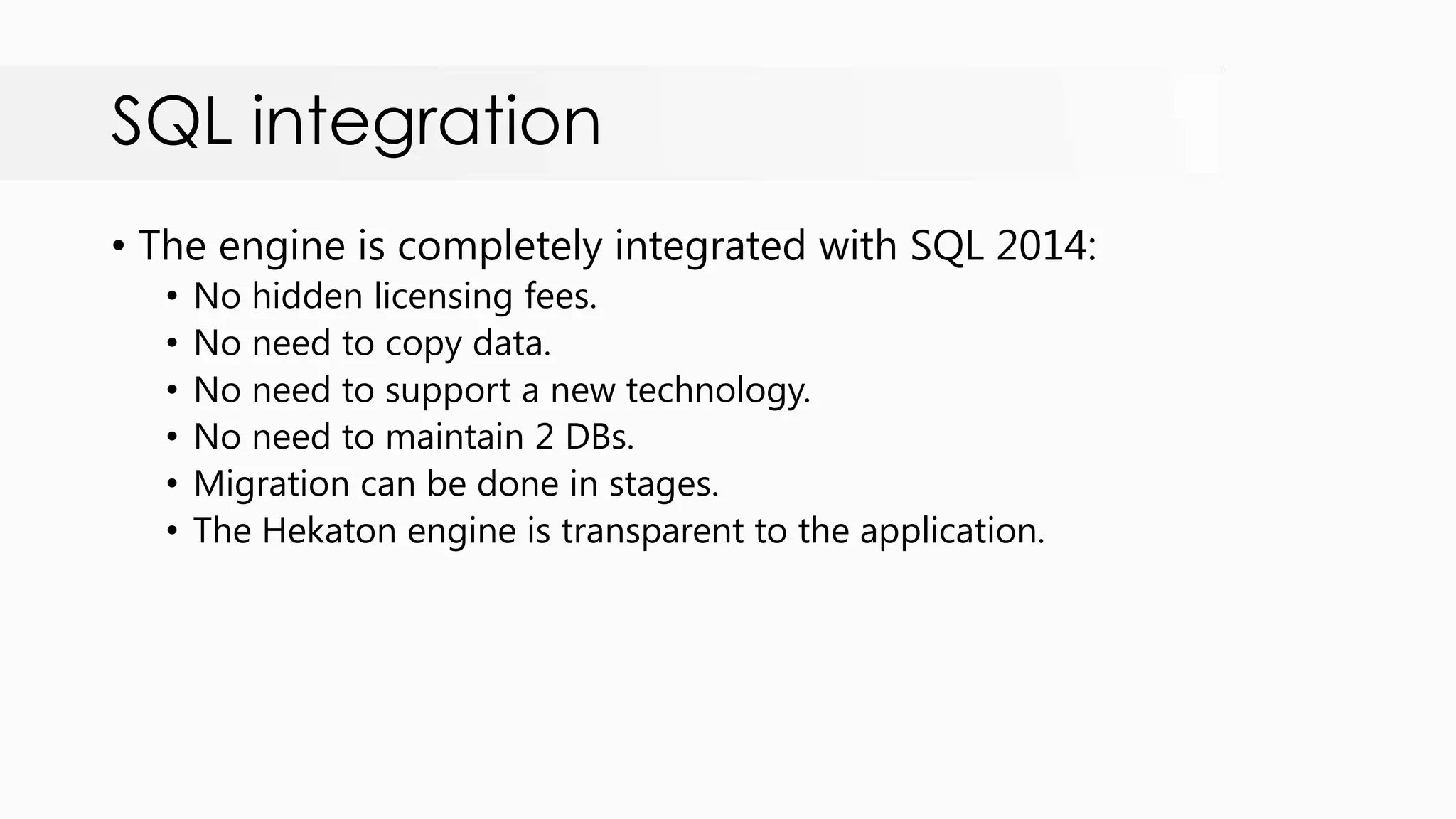

SQL integration • The engine is completely integrated with SQL 2014: • No hidden licensing fees. • No need to copy data. • No need to support a new technology. • No need to maintain 2 DBs. • Migration can be done in stages. • The Hekaton engine is transparent to the application.

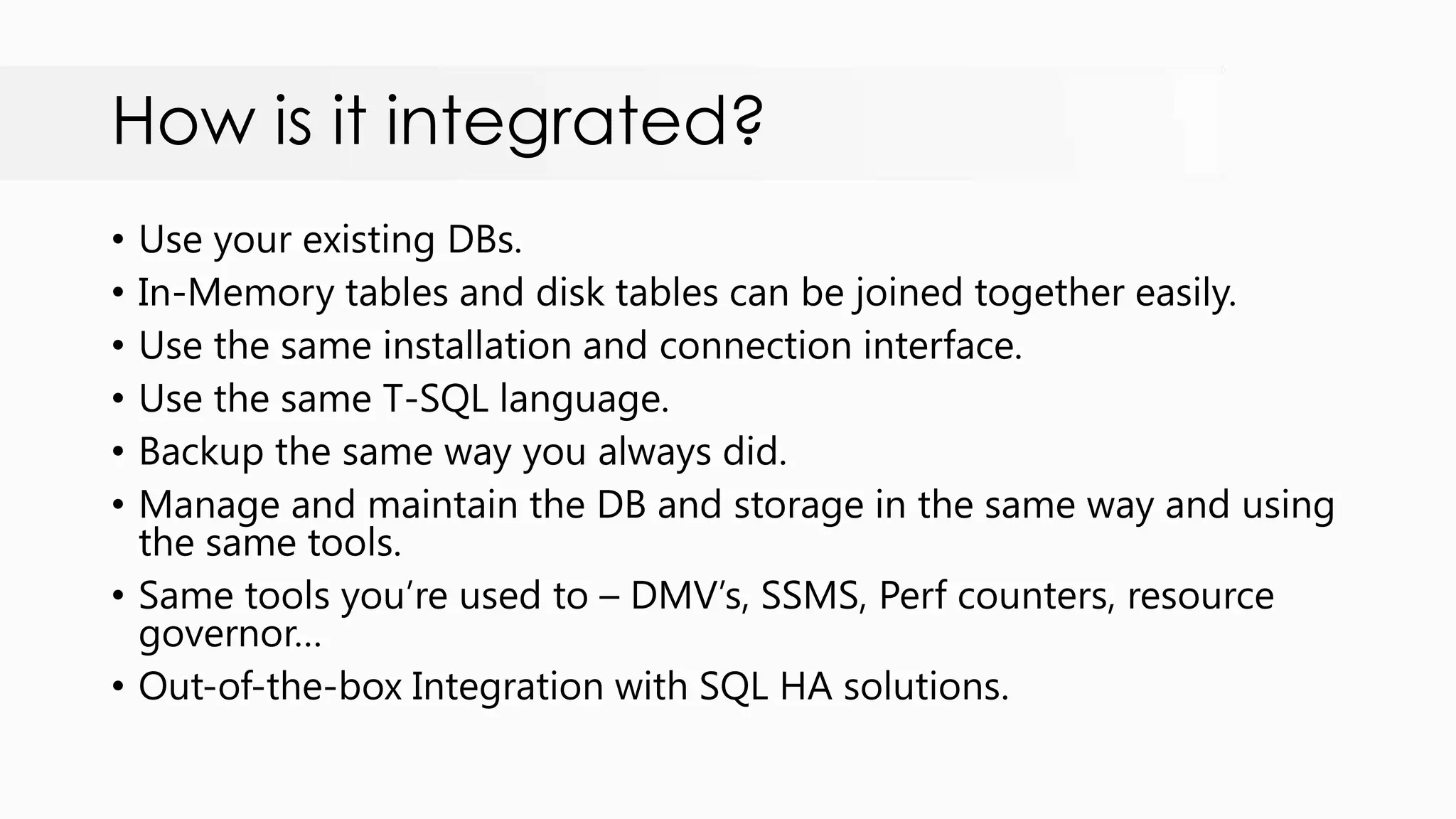

How is it integrated? • Use your existing DBs. • In-Memory tables and disk tables can be joined together easily. • Use the same installation and connection interface. • Use the same T-SQL language. • Backup the same way you always did. • Manage and maintain the DB and storage in the same way and using the same tools. • Same tools you‟re used to – DMV‟s, SSMS, Perf counters, resource governor… • Out-of-the-box Integration with SQL HA solutions.

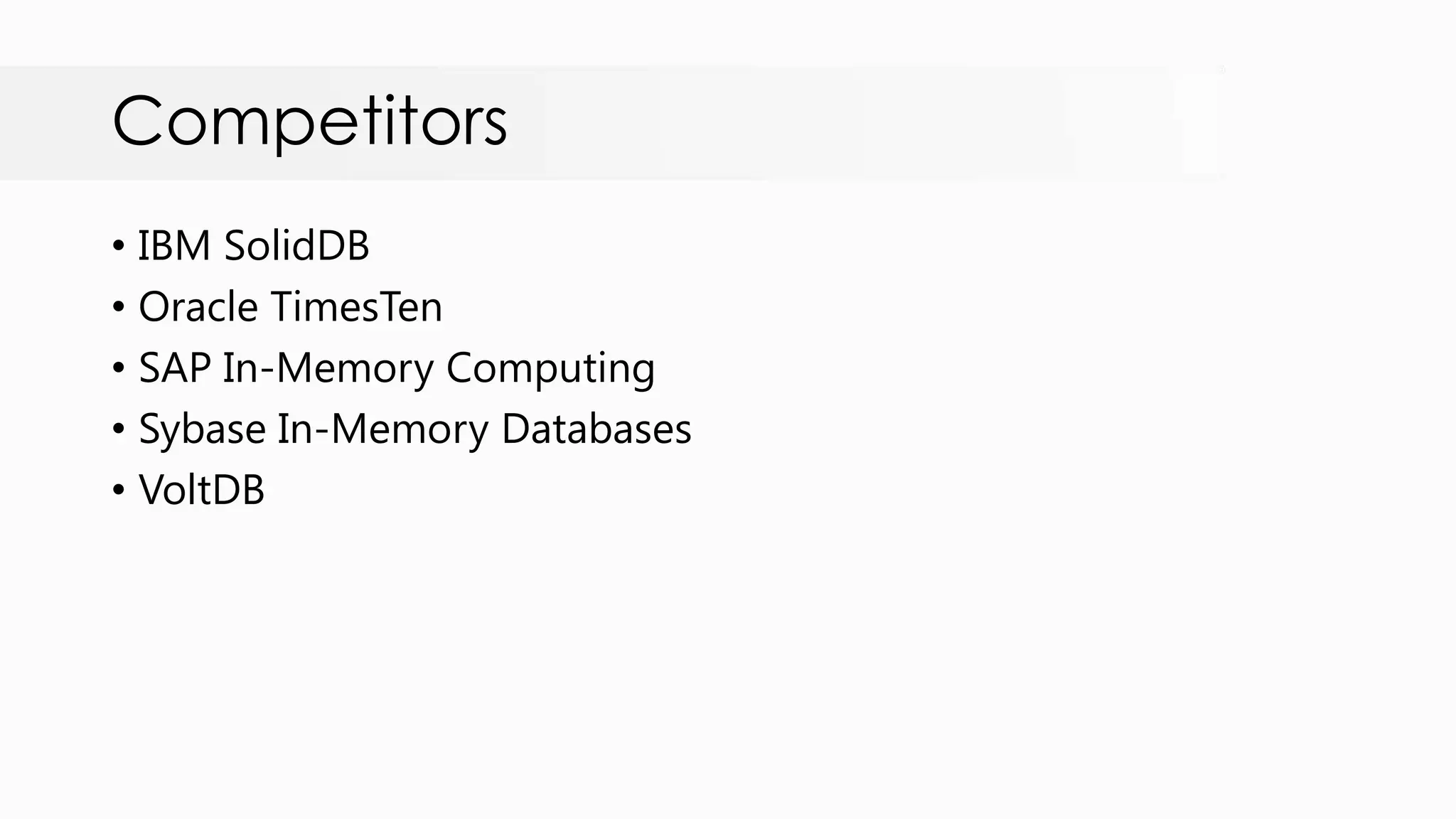

Competitors • IBM SolidDB • Oracle TimesTen • SAP In-Memory Computing • Sybase In-Memory Databases • VoltDB

How to get started Some scripts and basic knowledge

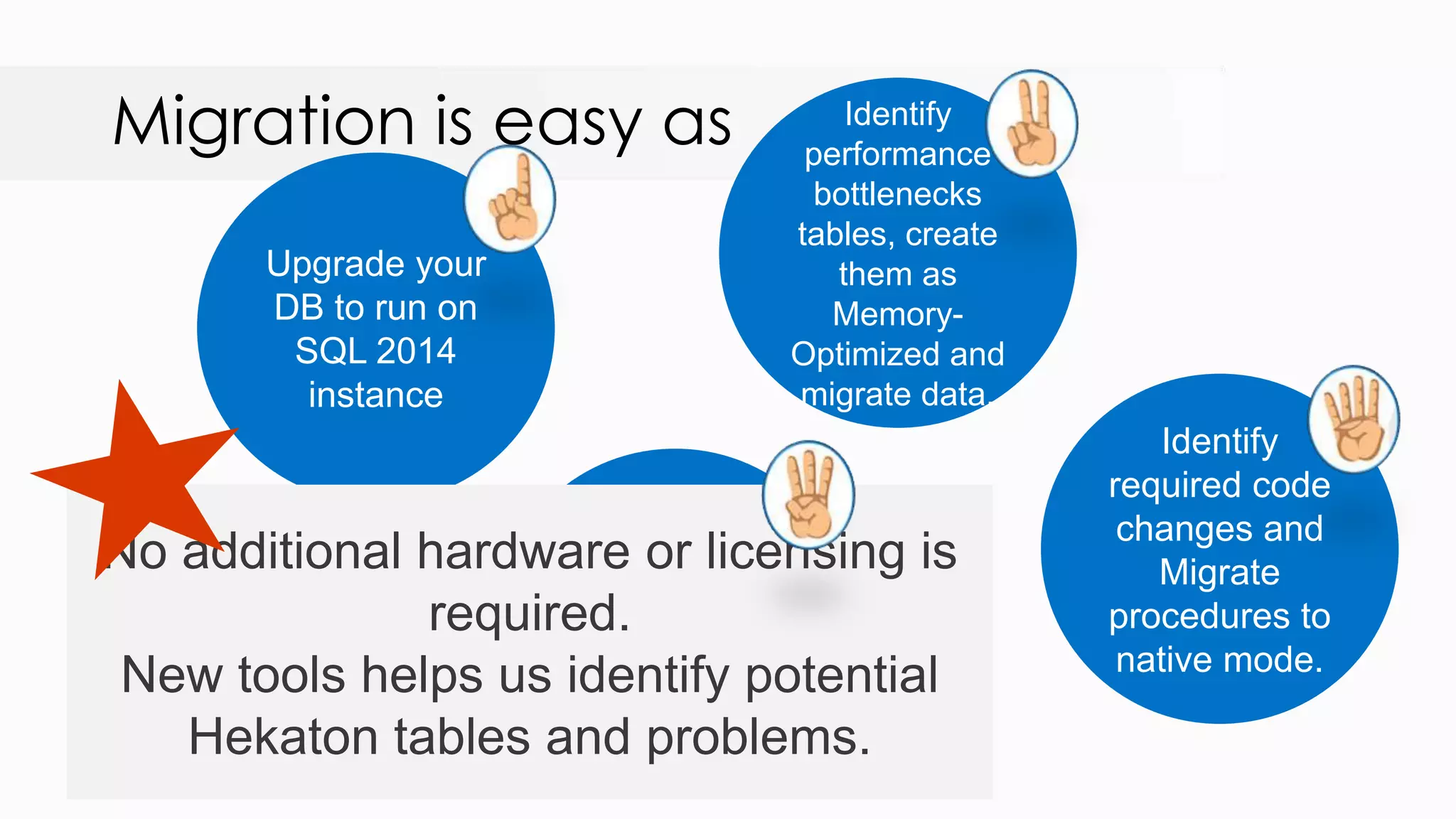

Migration is easy as Upgrade your DB to run on SQL 2014 instance Identify performance bottlenecks tables, create them as Memory- Optimized and migrate data. Continue querying the DB without any change using Interop mode. Identify required code changes and Migrate procedures to native mode. No additional hardware or licensing is required. New tools helps us identify potential Hekaton tables and problems.

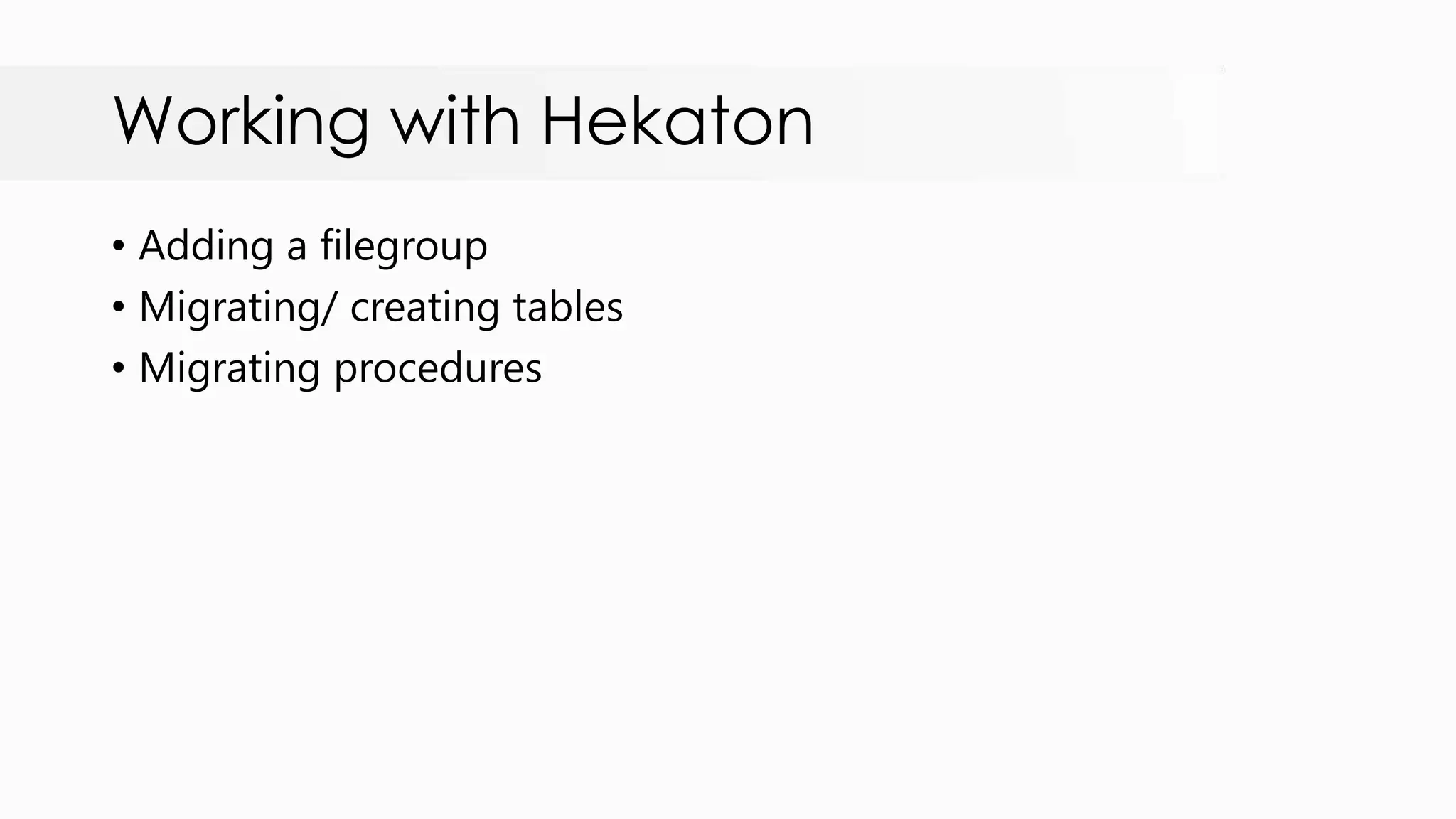

Working with Hekaton • Adding a filegroup • Migrating/ creating tables • Migrating procedures

Memory optimized tables and indexes

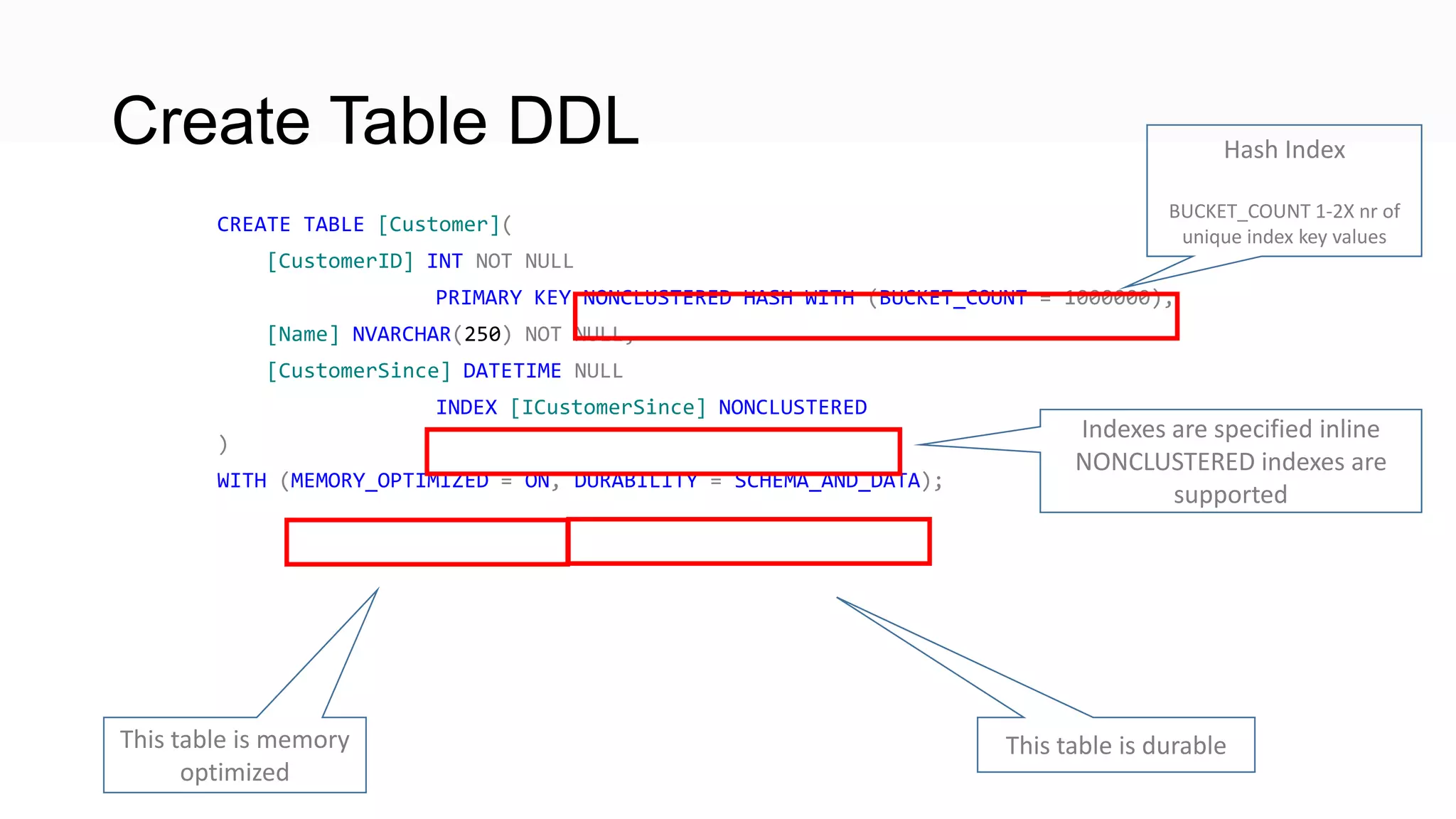

Create Table DDL CREATE TABLE [Customer]( [CustomerID] INT NOT NULL PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 1000000), [Name] NVARCHAR(250) NOT NULL, [CustomerSince] DATETIME NULL INDEX [ICustomerSince] NONCLUSTERED ) WITH (MEMORY_OPTIMIZED = ON, DURABILITY = SCHEMA_AND_DATA); This table is memory optimized This table is durable Indexes are specified inline NONCLUSTERED indexes are supported Hash Index BUCKET_COUNT 1-2X nr of unique index key values

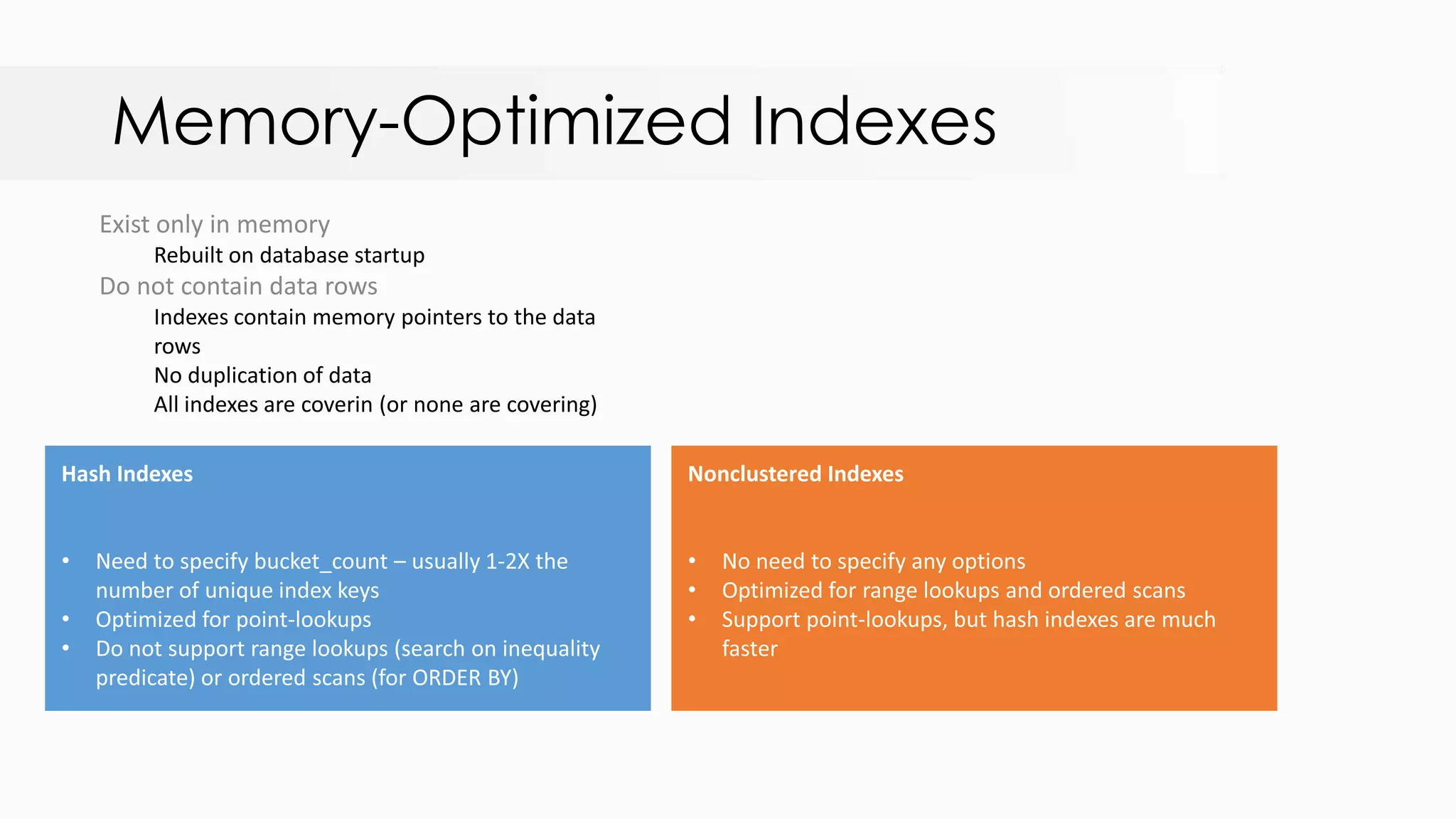

Memory-Optimized Indexes Exist only in memory Rebuilt on database startup Do not contain data rows Indexes contain memory pointers to the data rows No duplication of data All indexes are coverin (or none are covering)

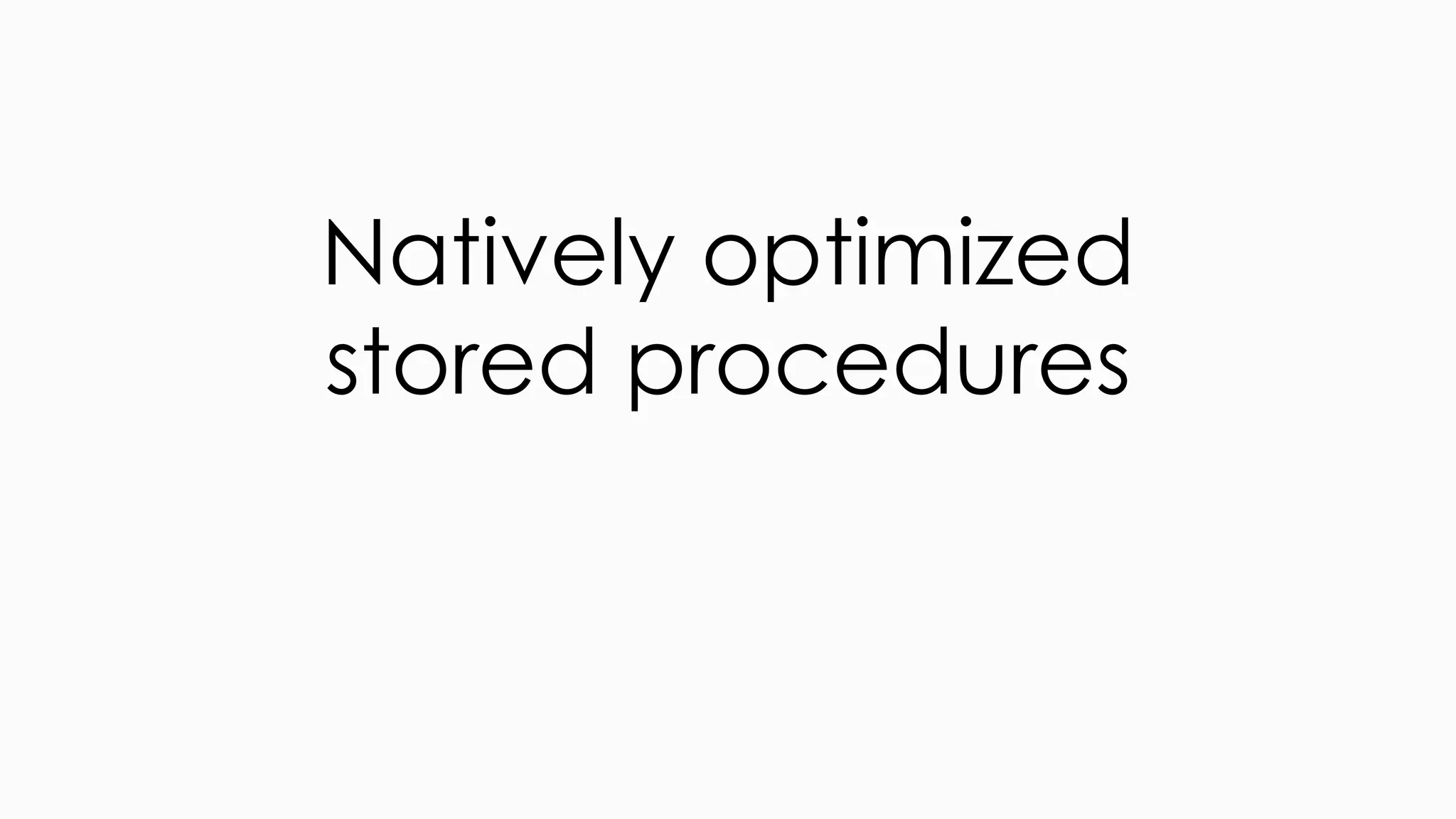

Natively optimized stored procedures

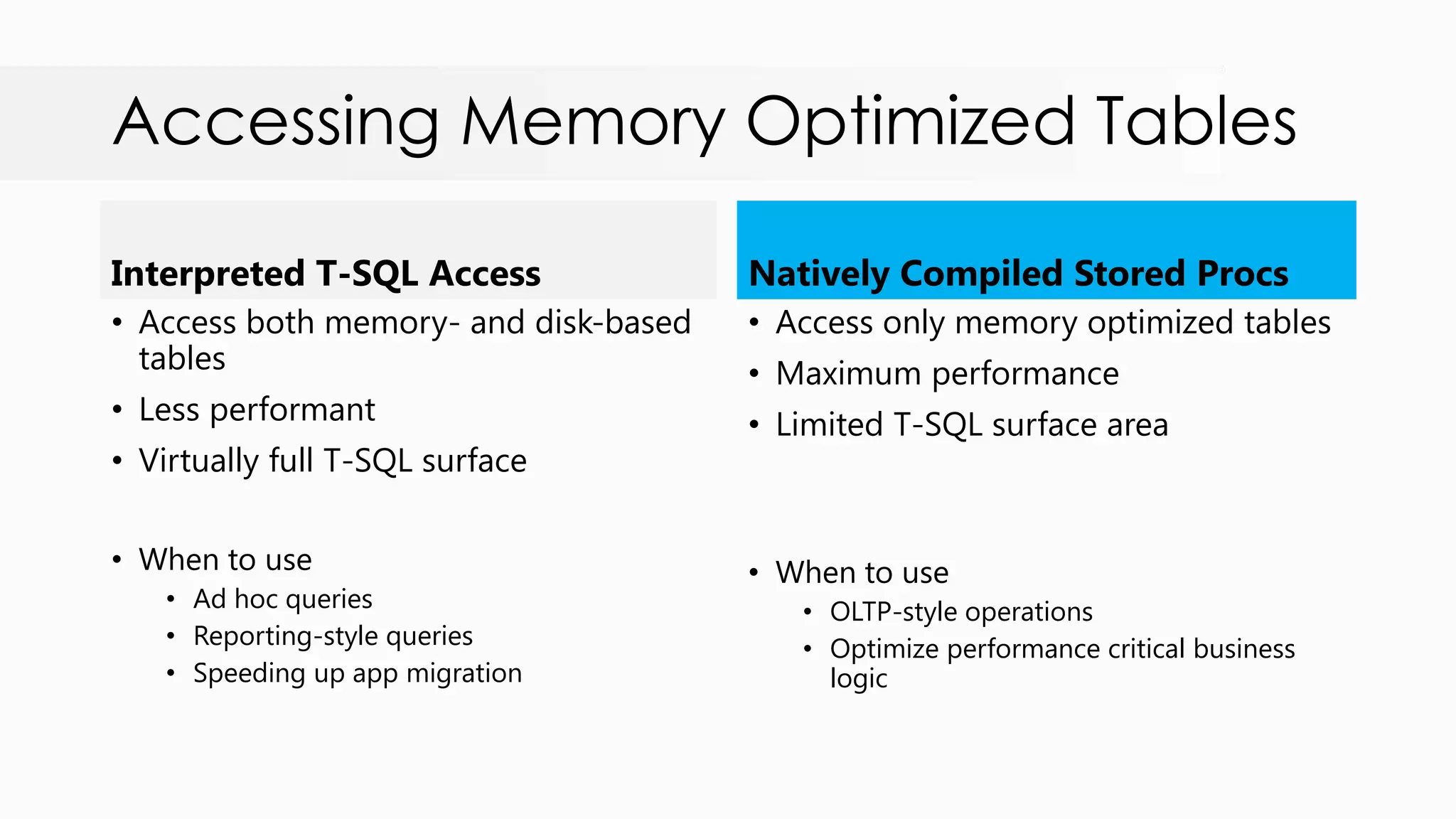

• Access both memory- and disk-based tables • Less performant • Virtually full T-SQL surface • When to use • Ad hoc queries • Reporting-style queries • Speeding up app migration Accessing Memory Optimized Tables Interpreted T-SQL Access Natively Compiled Stored Procs • Access only memory optimized tables • Maximum performance • Limited T-SQL surface area • When to use • OLTP-style operations • Optimize performance critical business logic

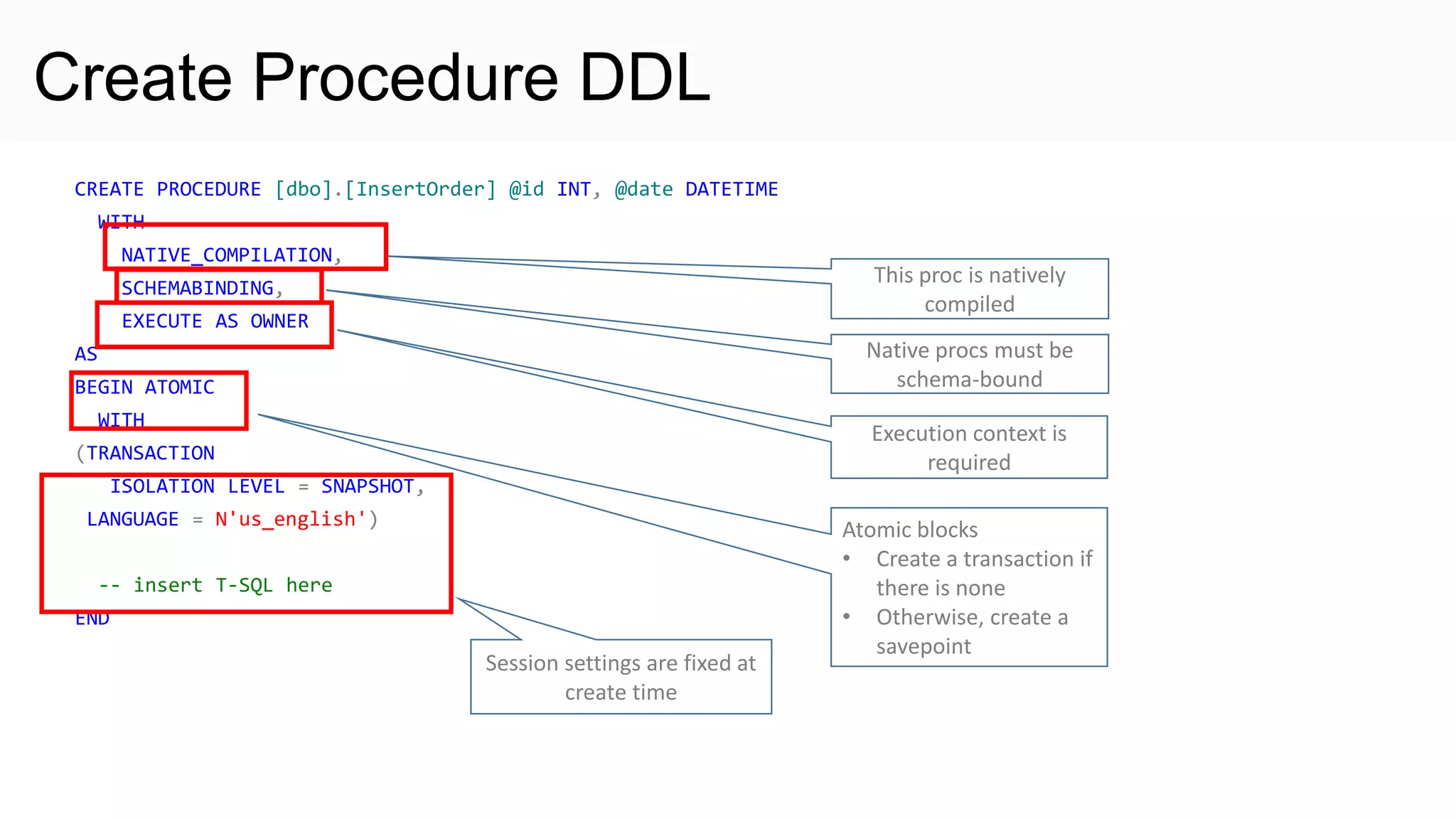

Create Procedure DDL CREATE PROCEDURE [dbo].[InsertOrder] @id INT, @date DATETIME WITH NATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER AS BEGIN ATOMIC WITH (TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE = N'us_english') -- insert T-SQL here END This proc is natively compiled Native procs must be schema-bound Atomic blocks • Create a transaction if there is none • Otherwise, create a savepoint Execution context is required Session settings are fixed at create time

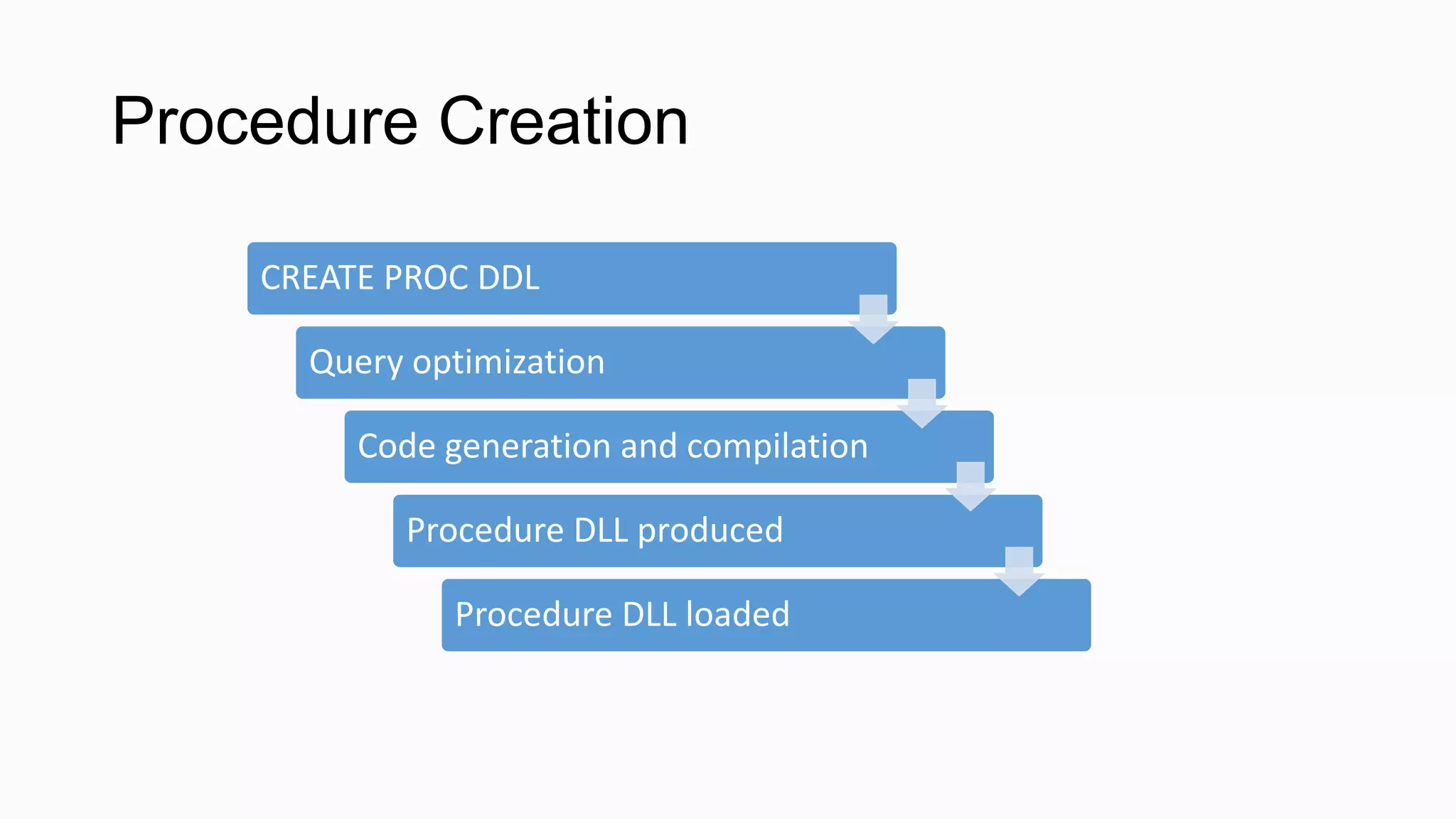

Procedure Creation CREATE PROC DDL Query optimization Code generation and compilation Procedure DLL produced Procedure DLL loaded

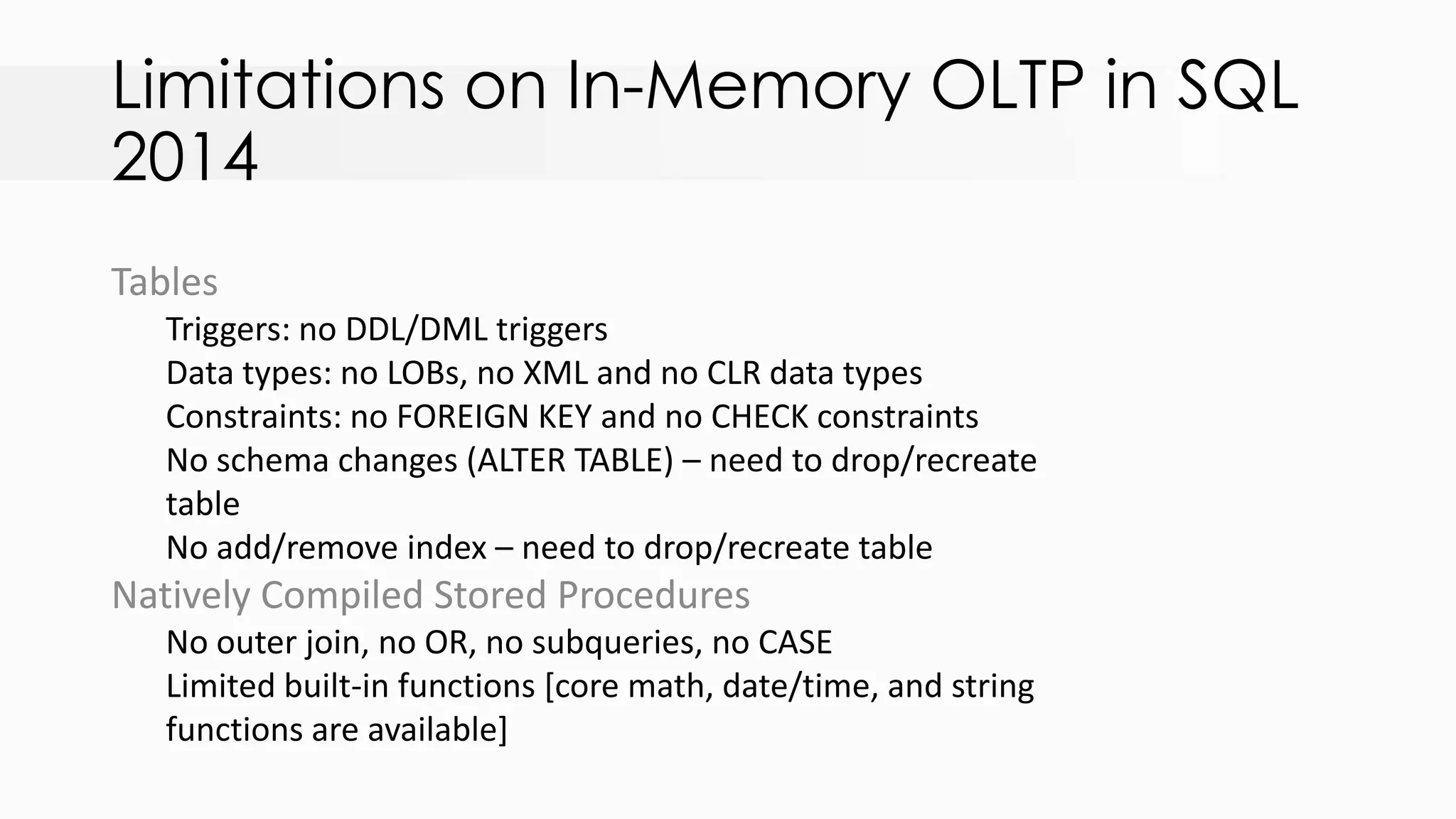

Limitations on In-Memory OLTP in SQL 2014 Tables Triggers: no DDL/DML triggers Data types: no LOBs, no XML and no CLR data types Constraints: no FOREIGN KEY and no CHECK constraints No schema changes (ALTER TABLE) – need to drop/recreate table No add/remove index – need to drop/recreate table Natively Compiled Stored Procedures No outer join, no OR, no subqueries, no CASE Limited built-in functions [core math, date/time, and string functions are available]
