Introduction  Cleve molar in 1984, Mathworks inc  Introduced as a simulation tool  Supports Graphical Programming  Can be interfaced with other High Level languages Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

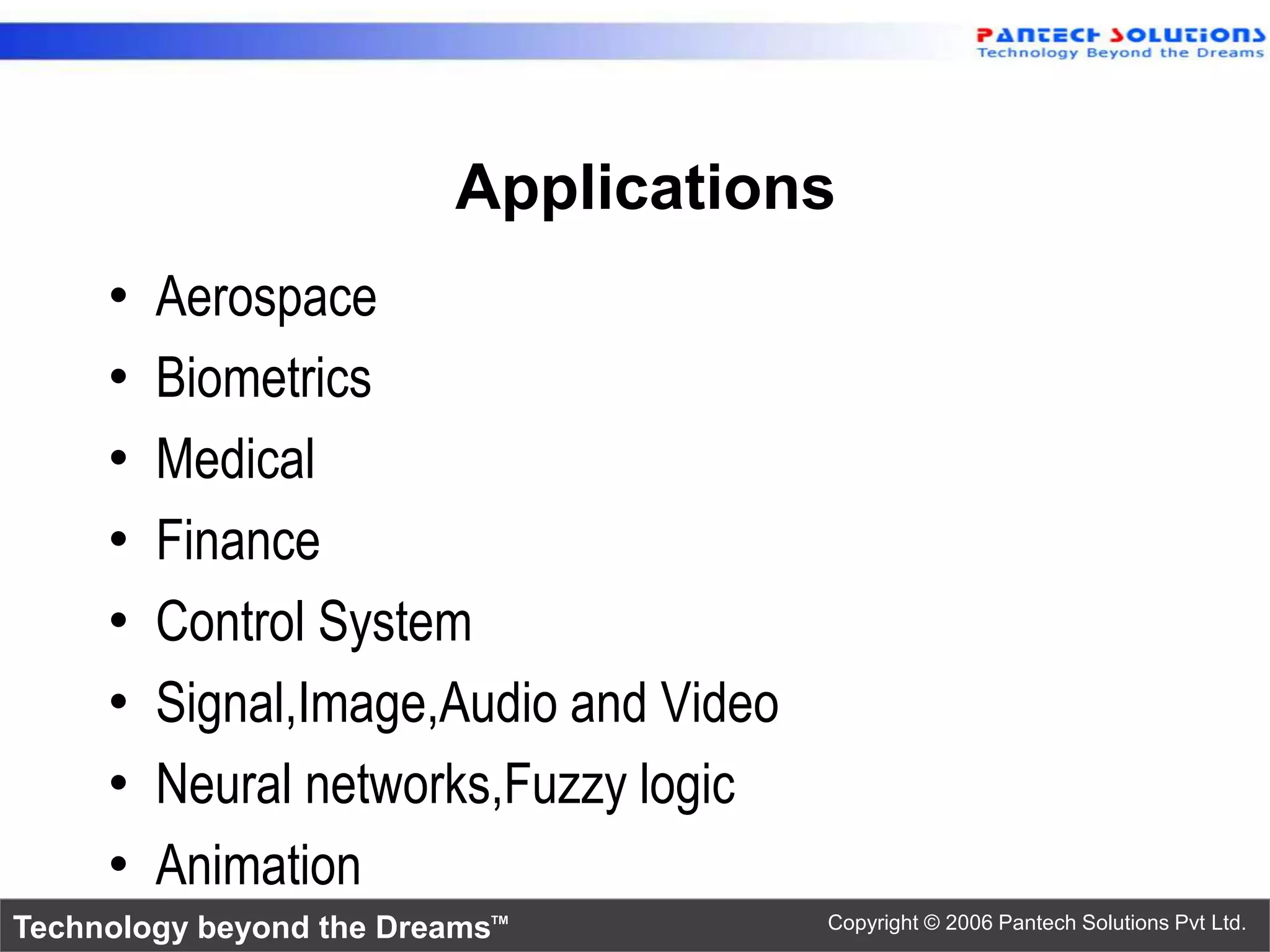

Applications • Aerospace • Biometrics • Medical • Finance • Control System • Signal,Image,Audio and Video • Neural networks,Fuzzy logic • Animation Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

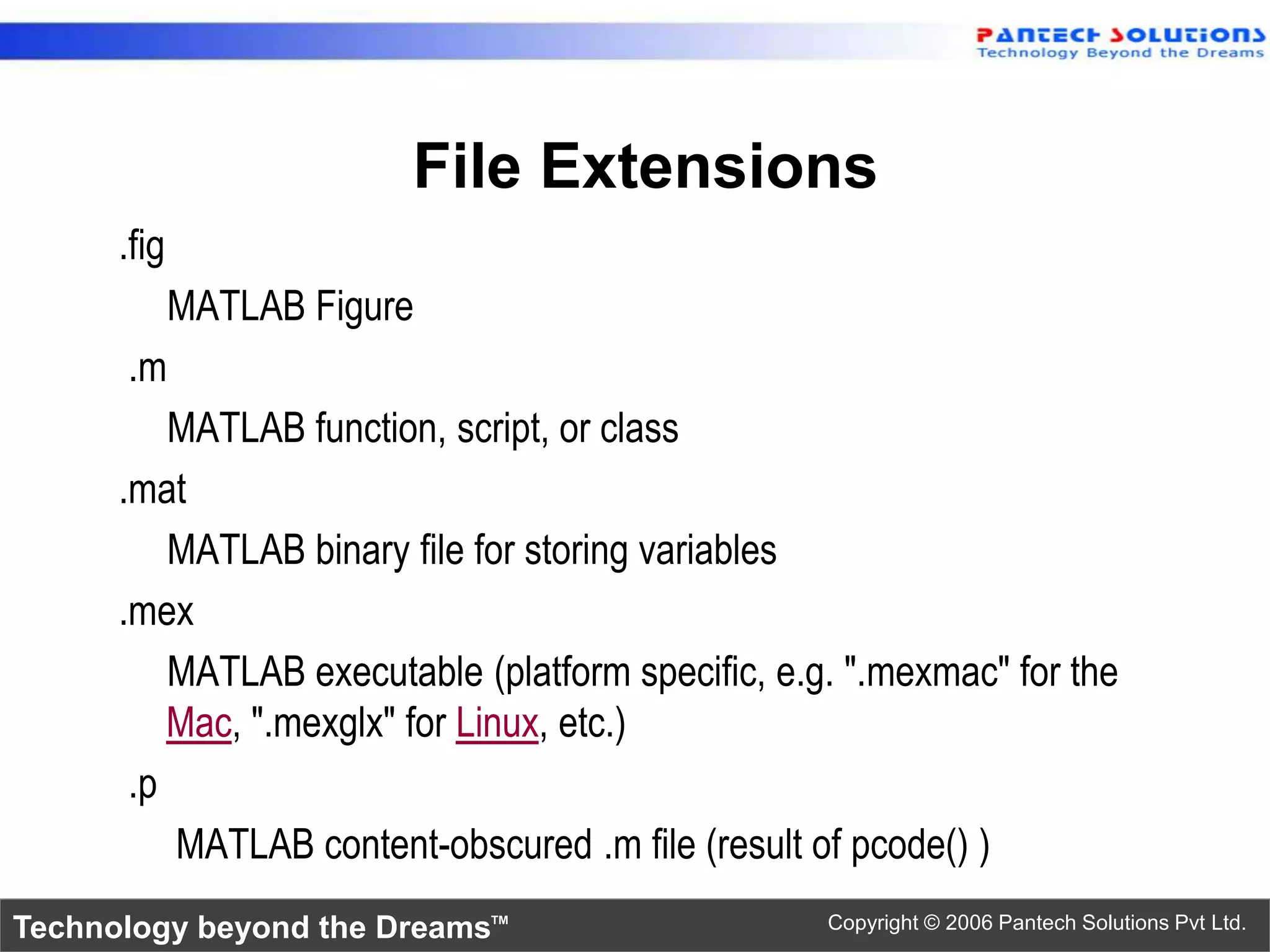

File Extensions .fig MATLAB Figure .m MATLAB function, script, or class .mat MATLAB binary file for storing variables .mex MATLAB executable (platform specific, e.g. ".mexmac" for the Mac, ".mexglx" for Linux, etc.) .p MATLAB content-obscured .m file (result of pcode() ) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

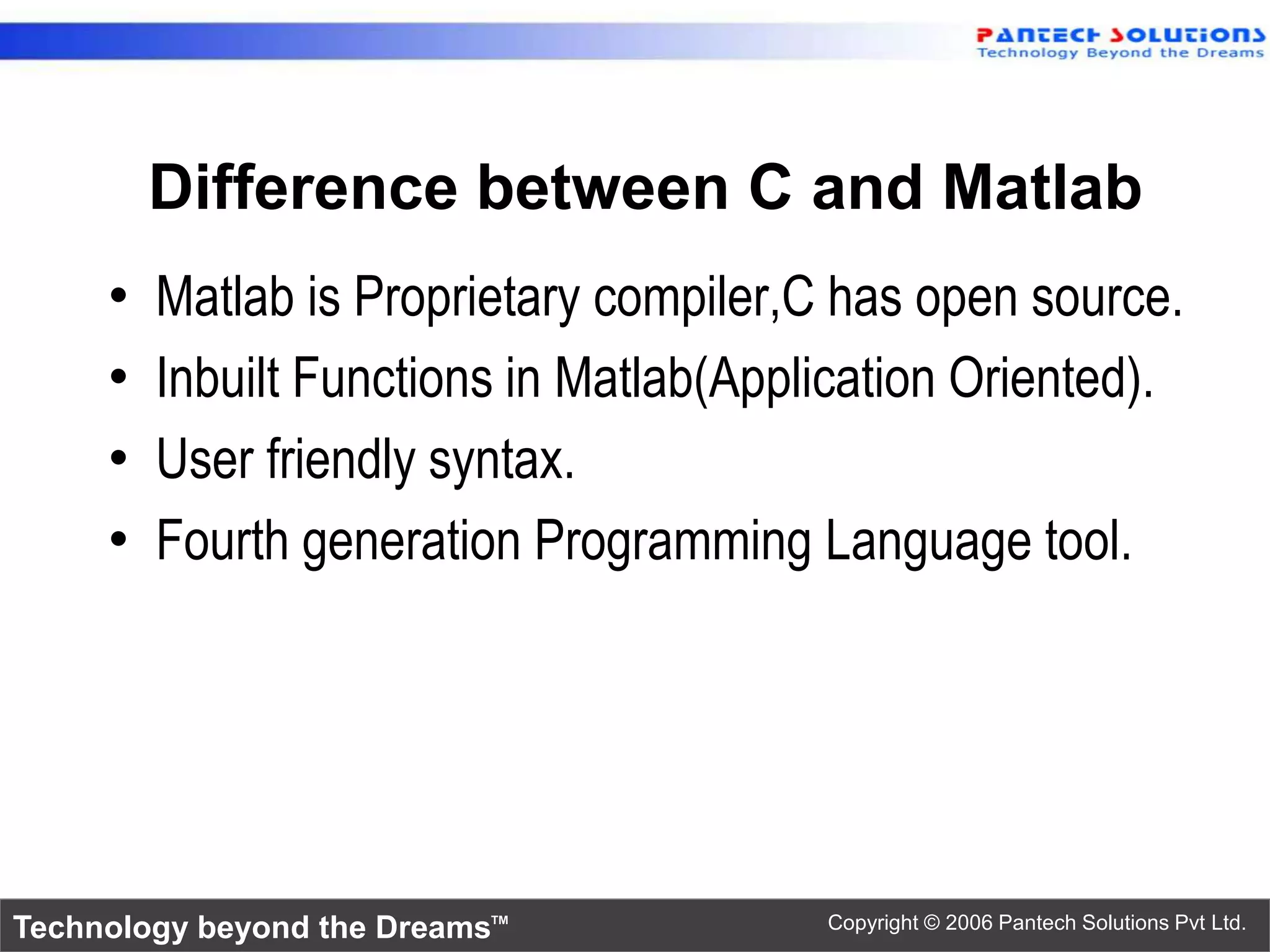

Difference between C and Matlab • Matlab is Proprietary compiler,C has open source. • Inbuilt Functions in Matlab(Application Oriented). • User friendly syntax. • Fourth generation Programming Language tool. Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

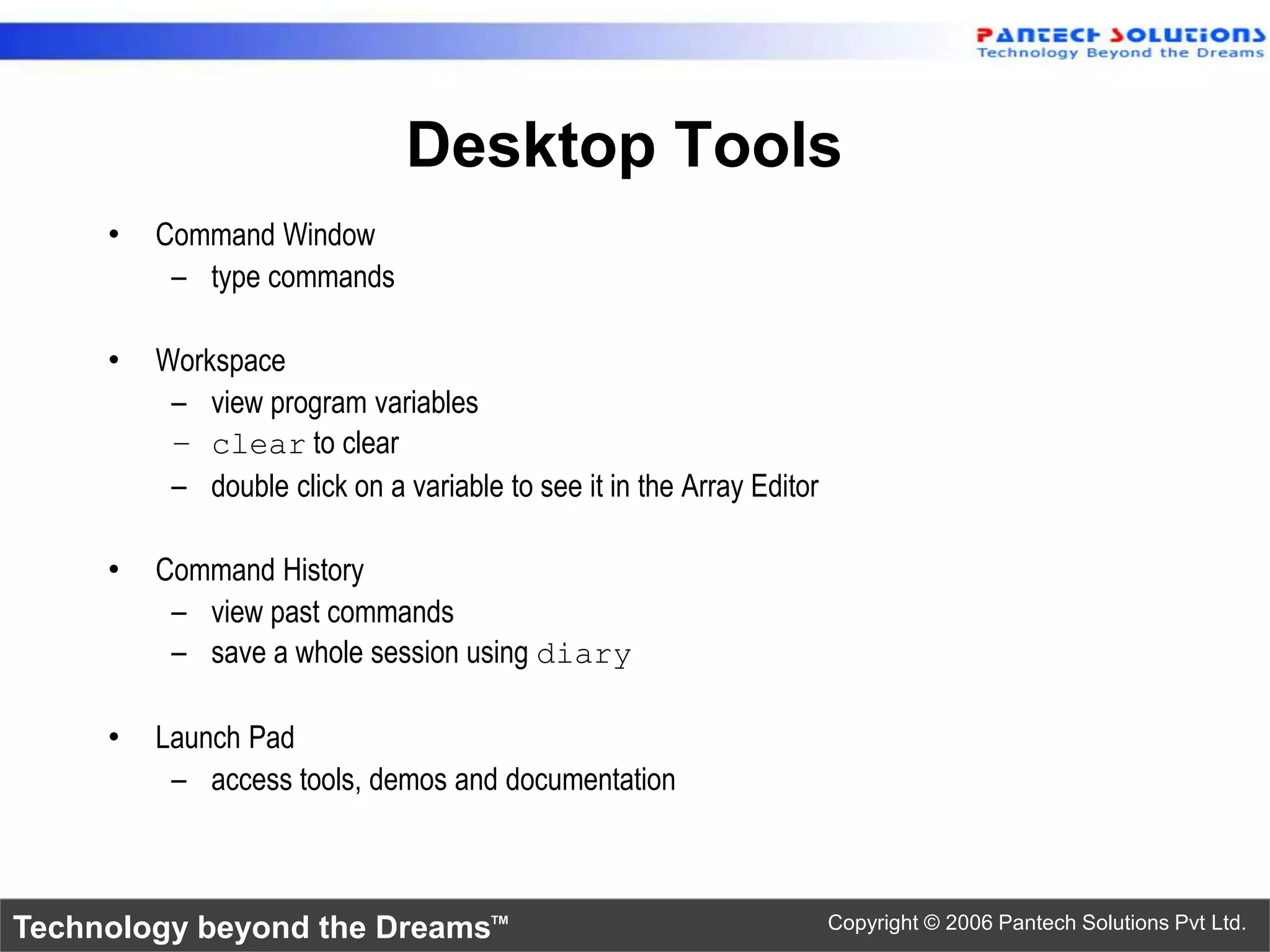

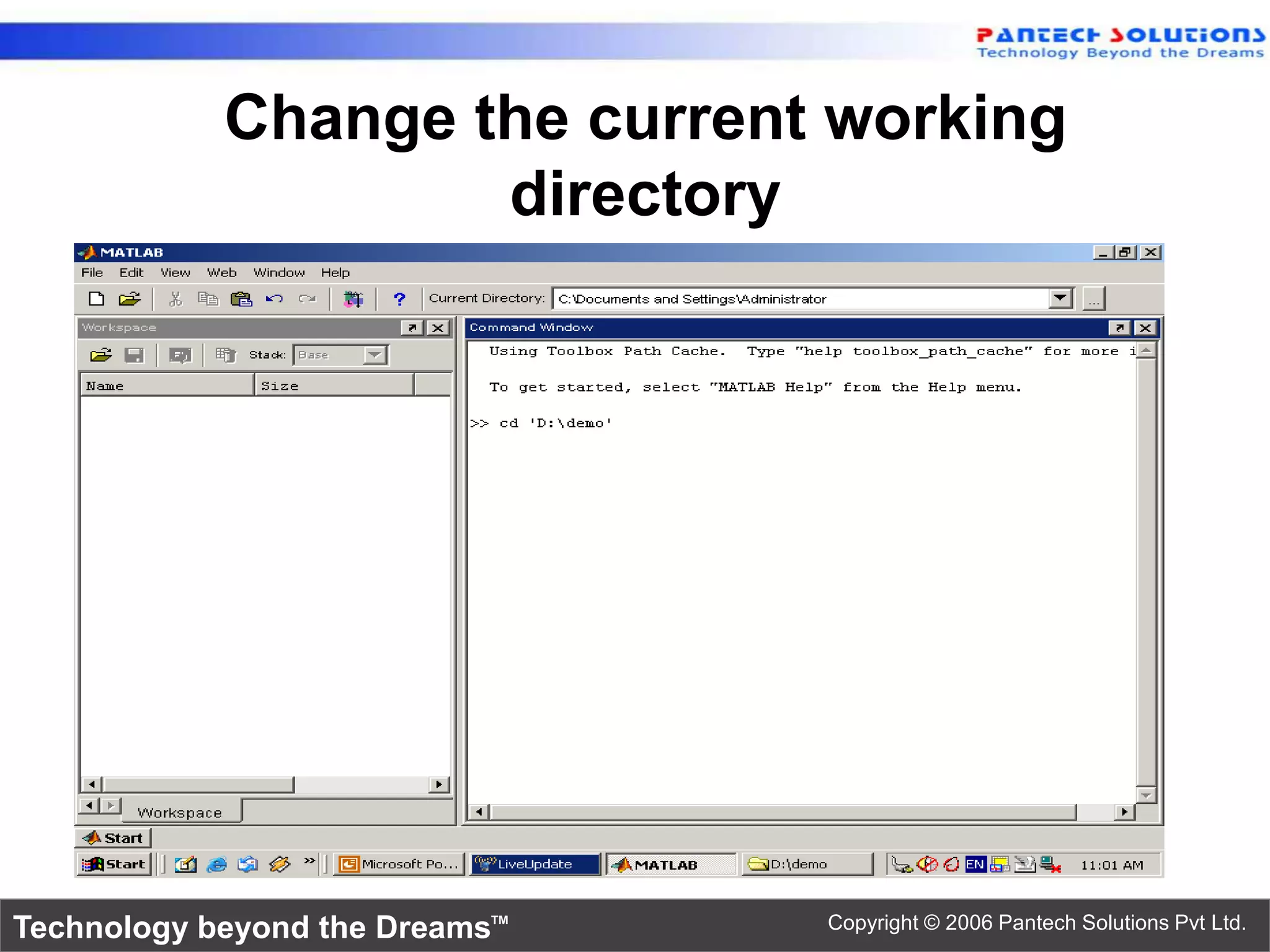

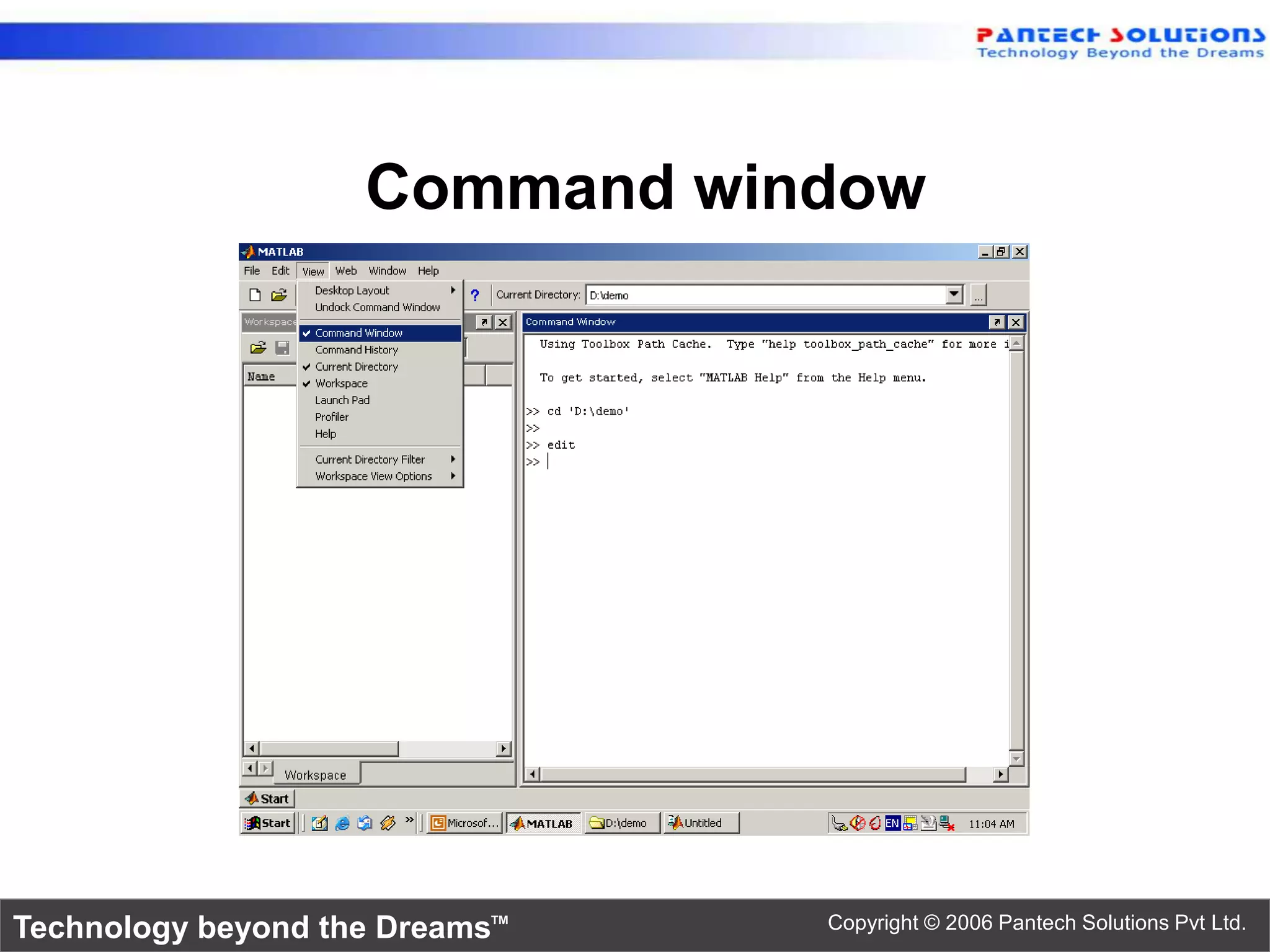

Desktop Tools • Command Window – type commands • Workspace – view program variables – clear to clear – double click on a variable to see it in the Array Editor • Command History – view past commands – save a whole session using diary • Launch Pad – access tools, demos and documentation Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

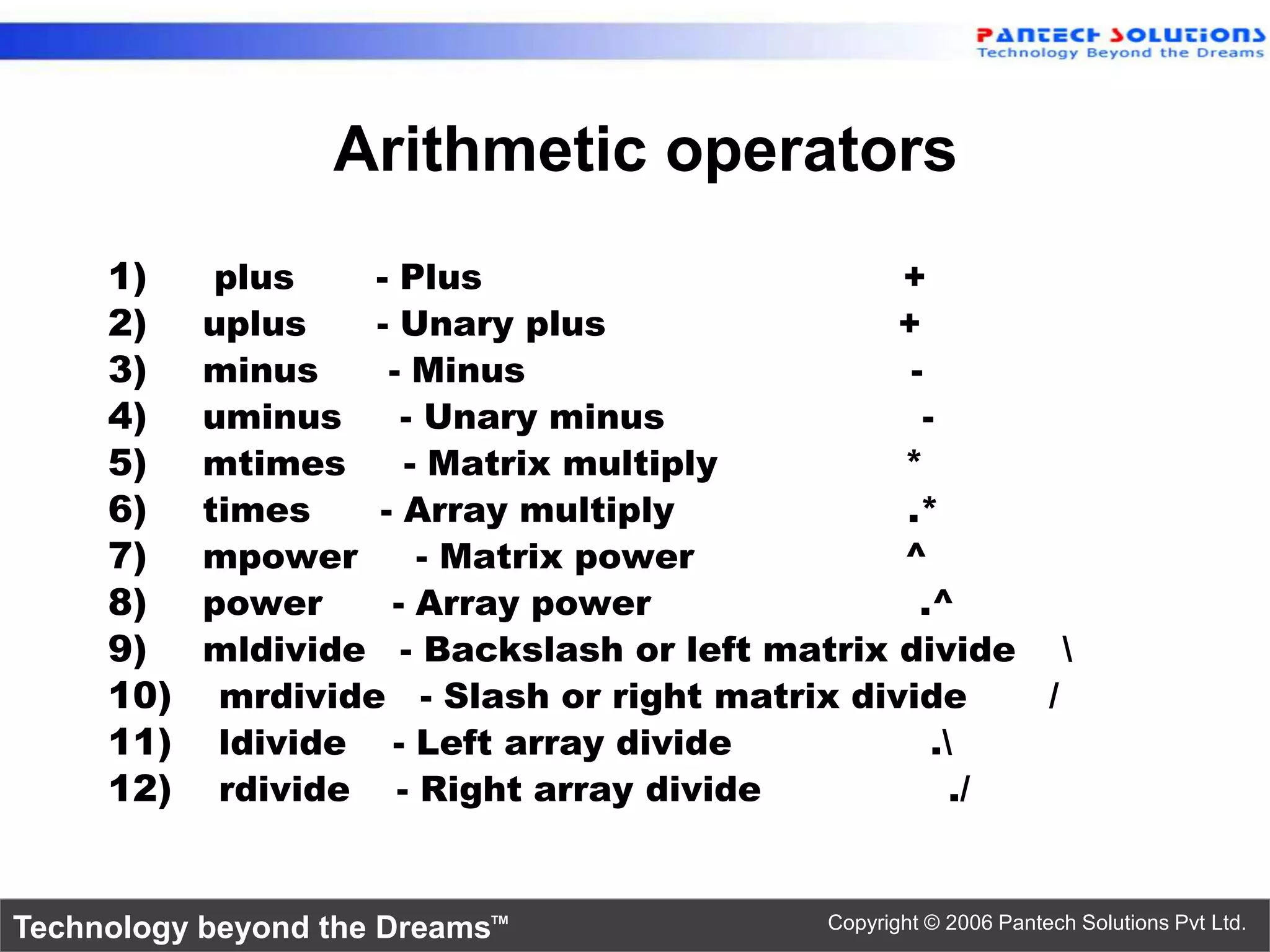

Arithmetic operators 1) plus - Plus + 2) uplus - Unary plus + 3) minus - Minus - 4) uminus - Unary minus - 5) mtimes - Matrix multiply * 6) times - Array multiply .* 7) mpower - Matrix power ^ 8) power - Array power .^ 9) mldivide - Backslash or left matrix divide 10) mrdivide - Slash or right matrix divide / 11) ldivide - Left array divide . 12) rdivide - Right array divide ./ Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

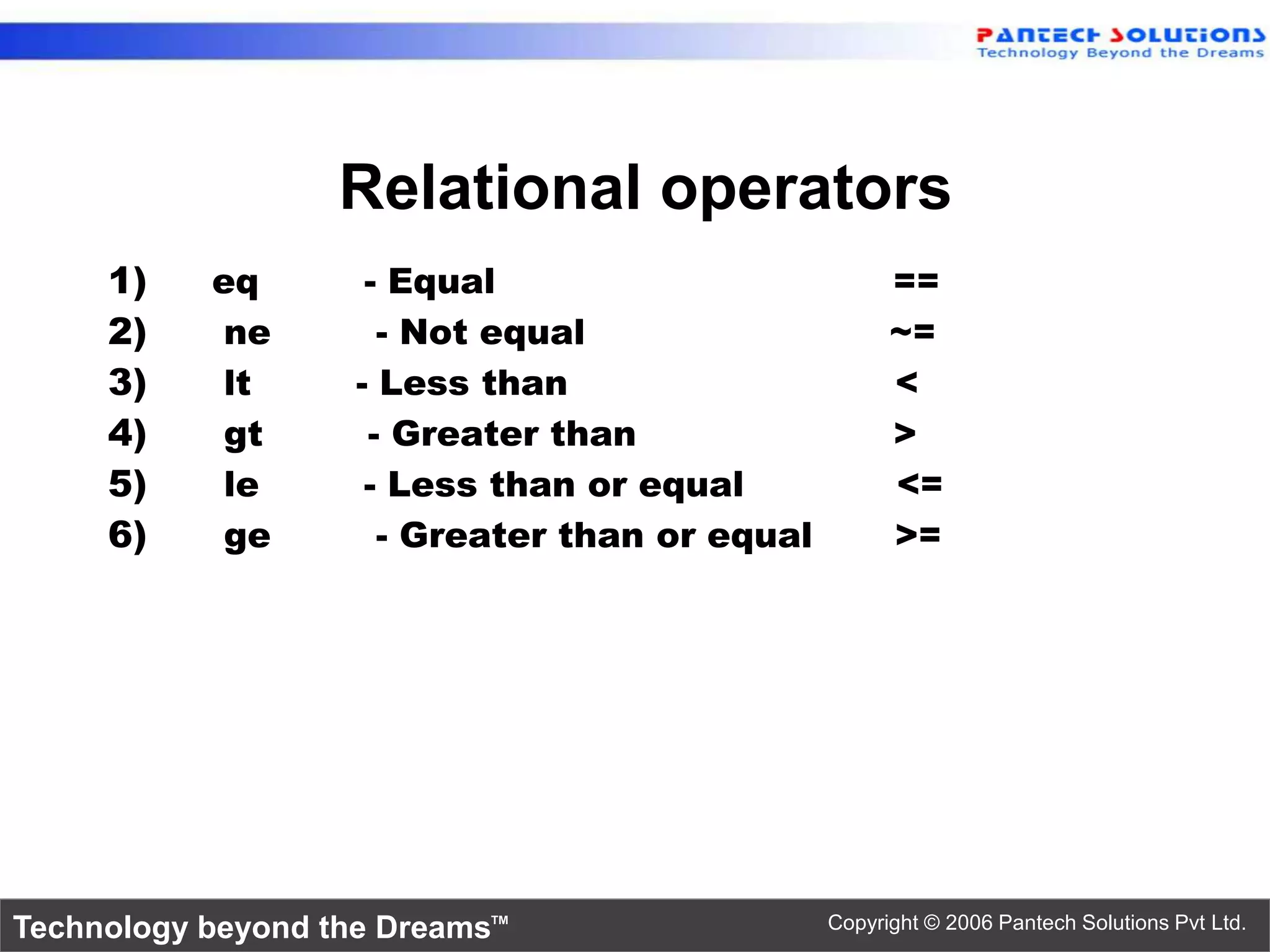

Relational operators 1) eq - Equal == 2) ne - Not equal ~= 3) lt - Less than < 4) gt - Greater than > 5) le - Less than or equal <= 6) ge - Greater than or equal >= Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

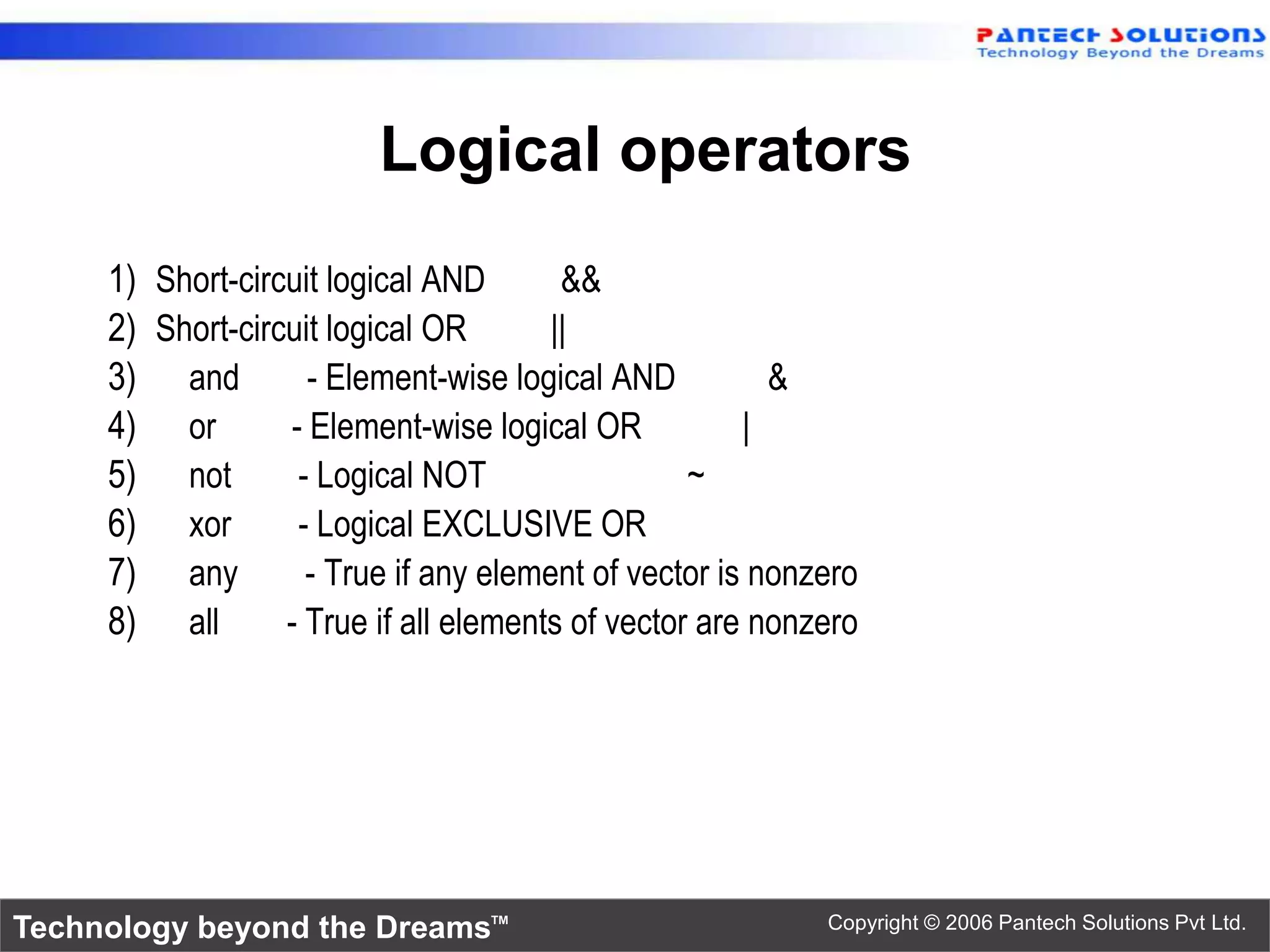

Logical operators 1) Short-circuit logical AND && 2) Short-circuit logical OR || 3) and - Element-wise logical AND & 4) or - Element-wise logical OR | 5) not - Logical NOT ~ 6) xor - Logical EXCLUSIVE OR 7) any - True if any element of vector is nonzero 8) all - True if all elements of vector are nonzero Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

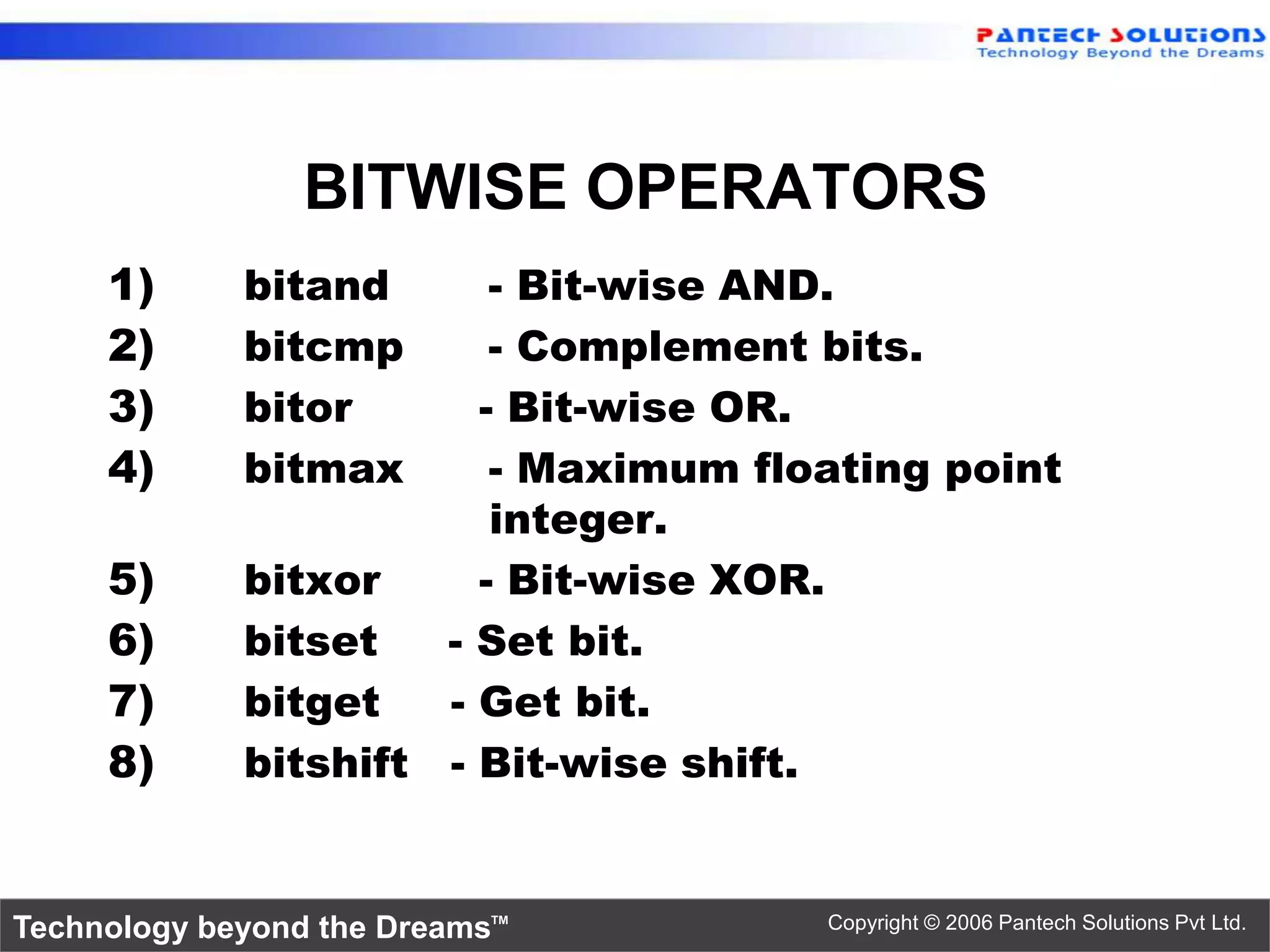

BITWISE OPERATORS 1) bitand - Bit-wise AND. 2) bitcmp - Complement bits. 3) bitor - Bit-wise OR. 4) bitmax - Maximum floating point integer. 5) bitxor - Bit-wise XOR. 6) bitset - Set bit. 7) bitget - Get bit. 8) bitshift - Bit-wise shift. Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

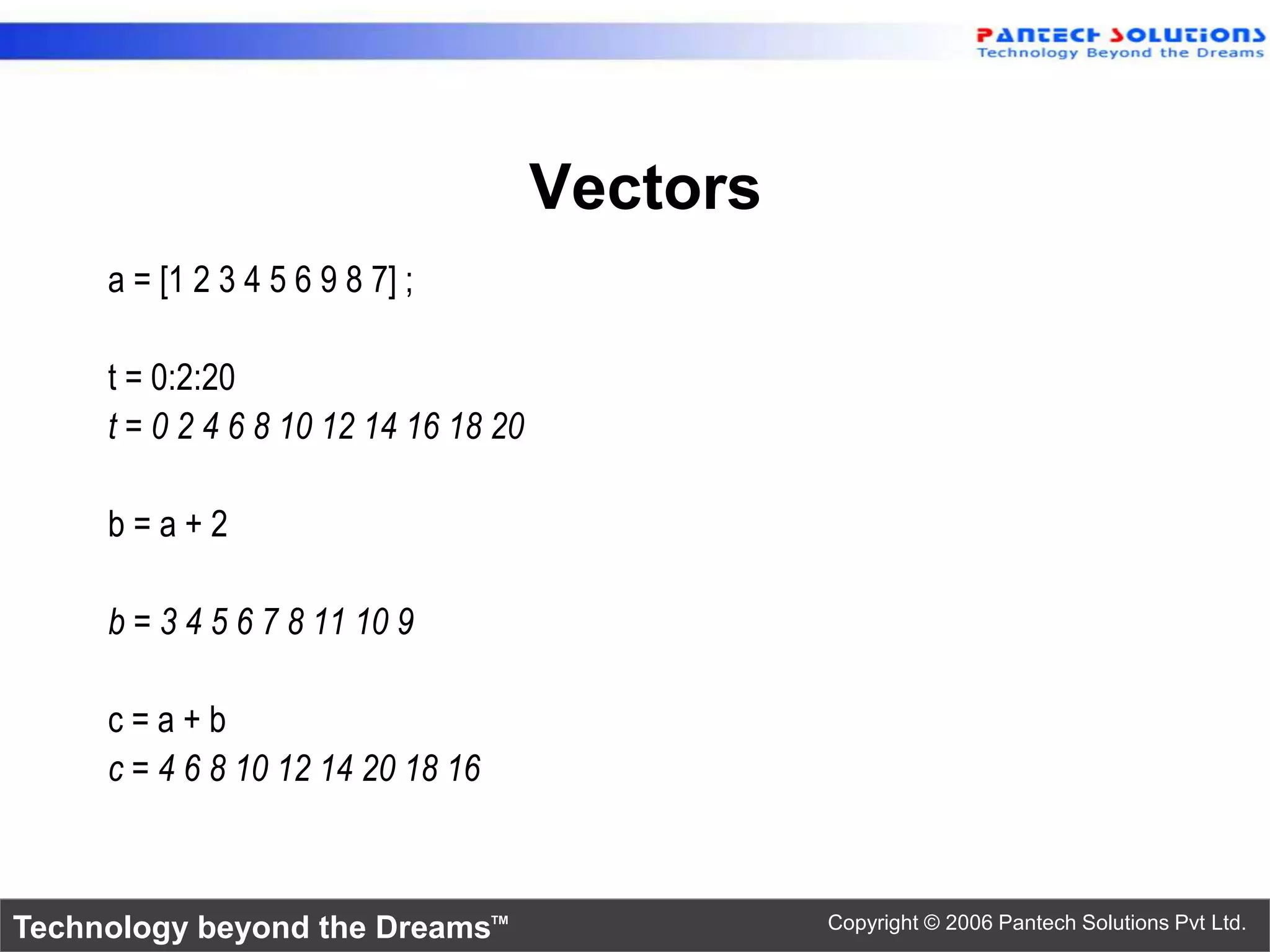

Vectors a = [1 2 3 4 5 6 9 8 7] ; t = 0:2:20 t = 0 2 4 6 8 10 12 14 16 18 20 b = a + 2 b = 3 4 5 6 7 8 11 10 9 c = a + b c = 4 6 8 10 12 14 20 18 16 Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

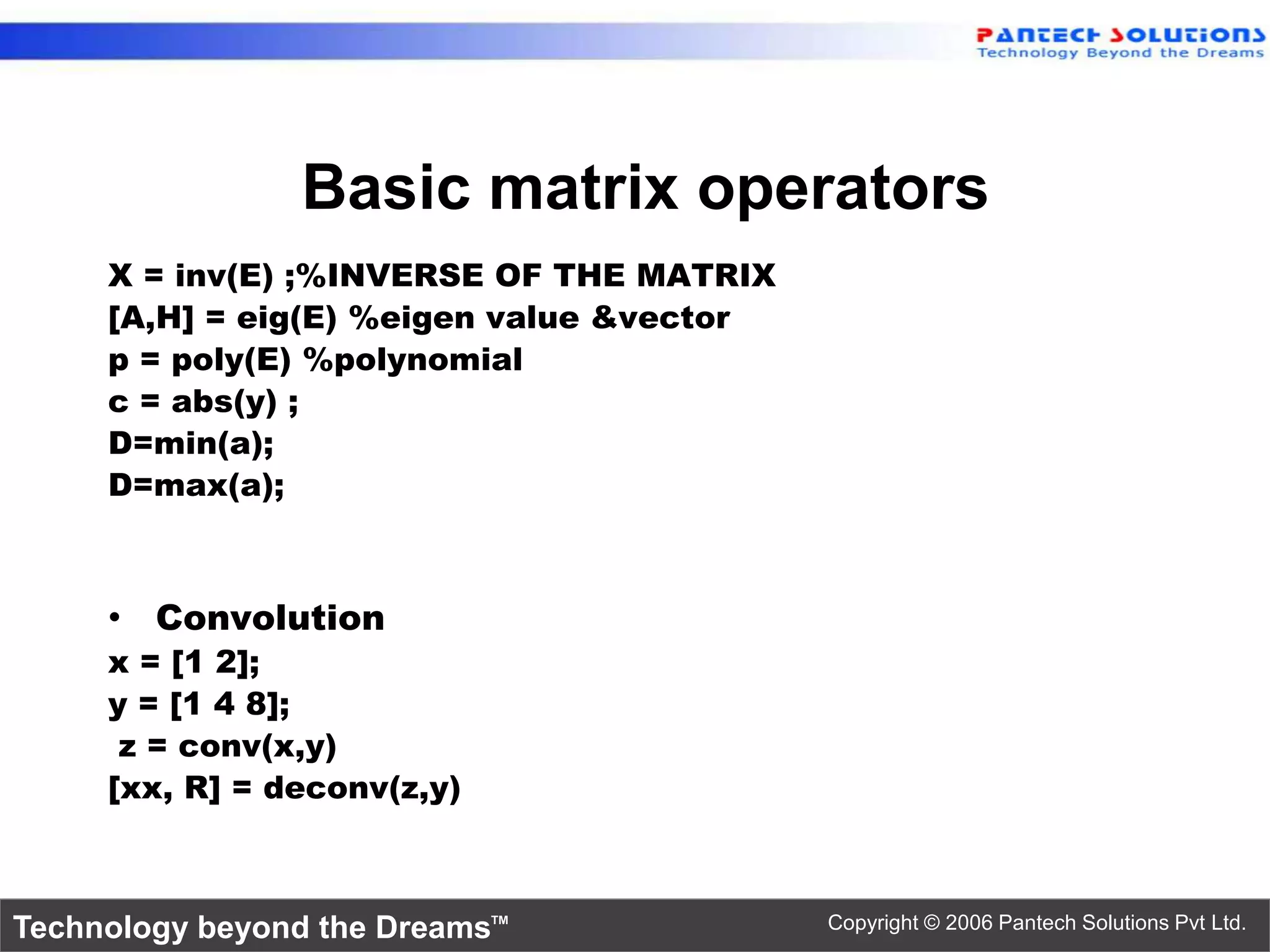

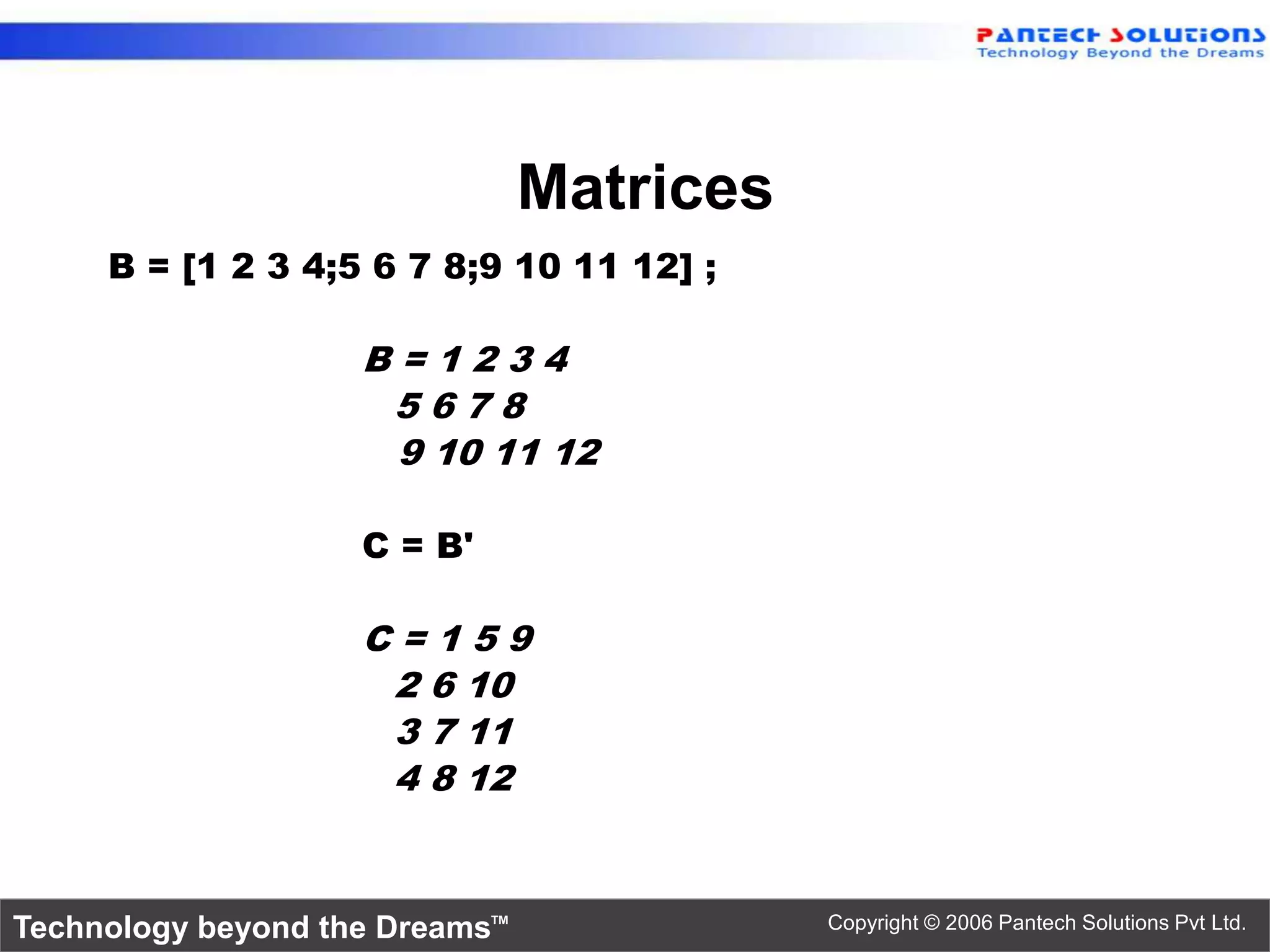

Basic matrix operators X = inv(E) ;%INVERSE OF THE MATRIX [A,H] = eig(E) %eigen value &vector p = poly(E) %polynomial c = abs(y) ; D=min(a); D=max(a); • Convolution x = [1 2]; y = [1 4 8]; z = conv(x,y) [xx, R] = deconv(z,y) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

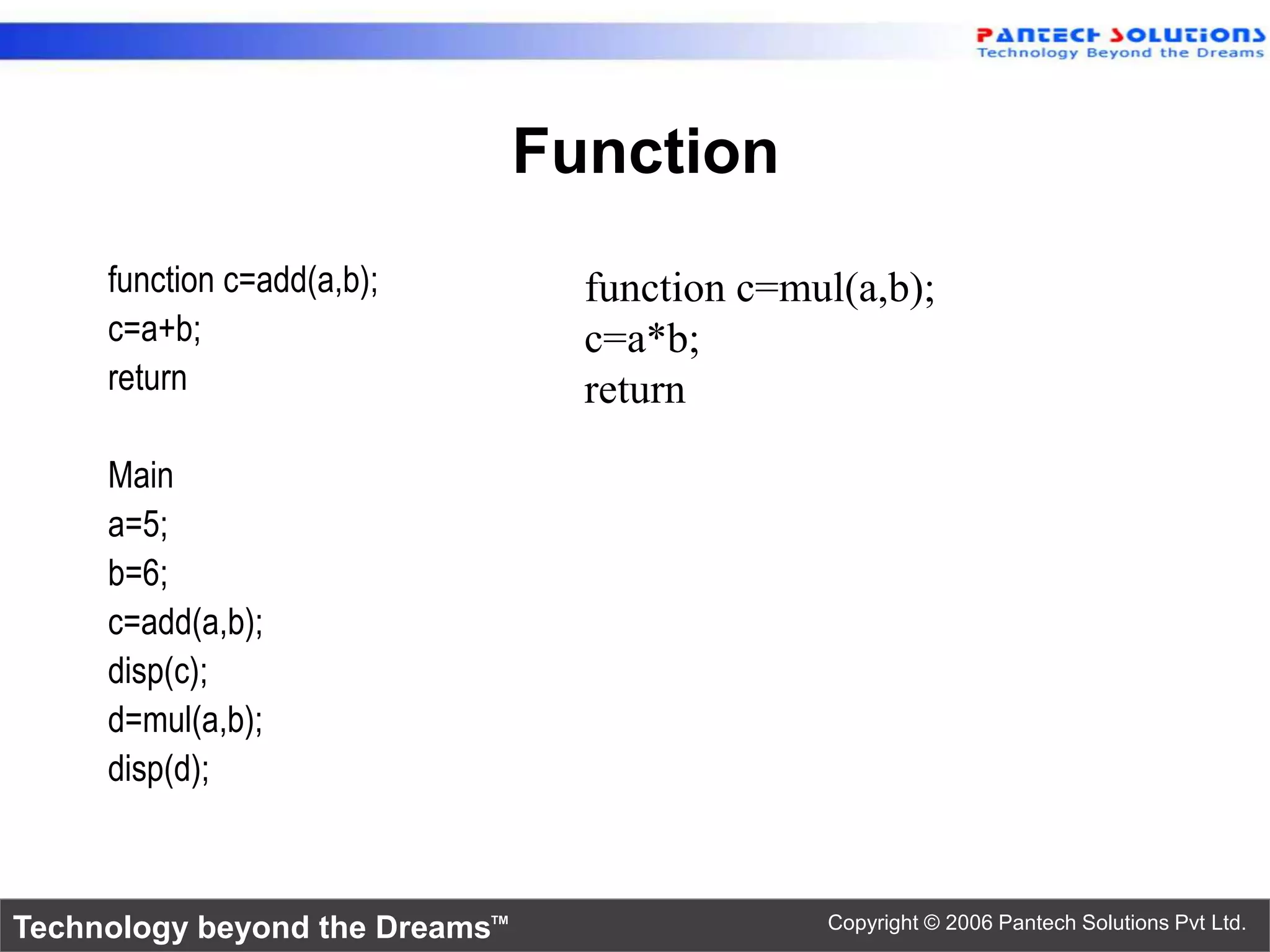

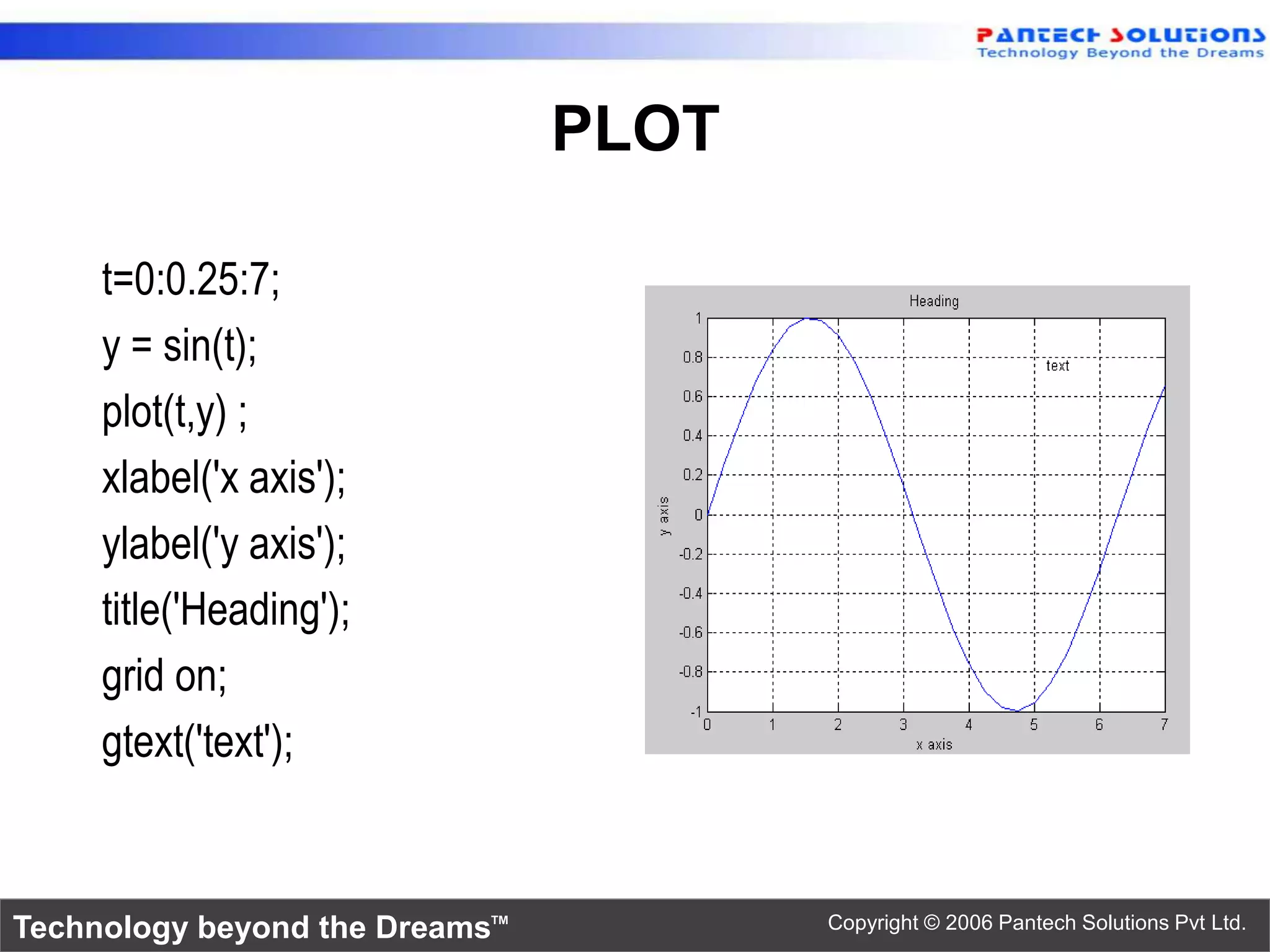

Function function c=add(a,b); c=a+b; return Main a=5; b=6; c=add(a,b); disp(c); d=mul(a,b); disp(d); function c=mul(a,b); c=a*b; return Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

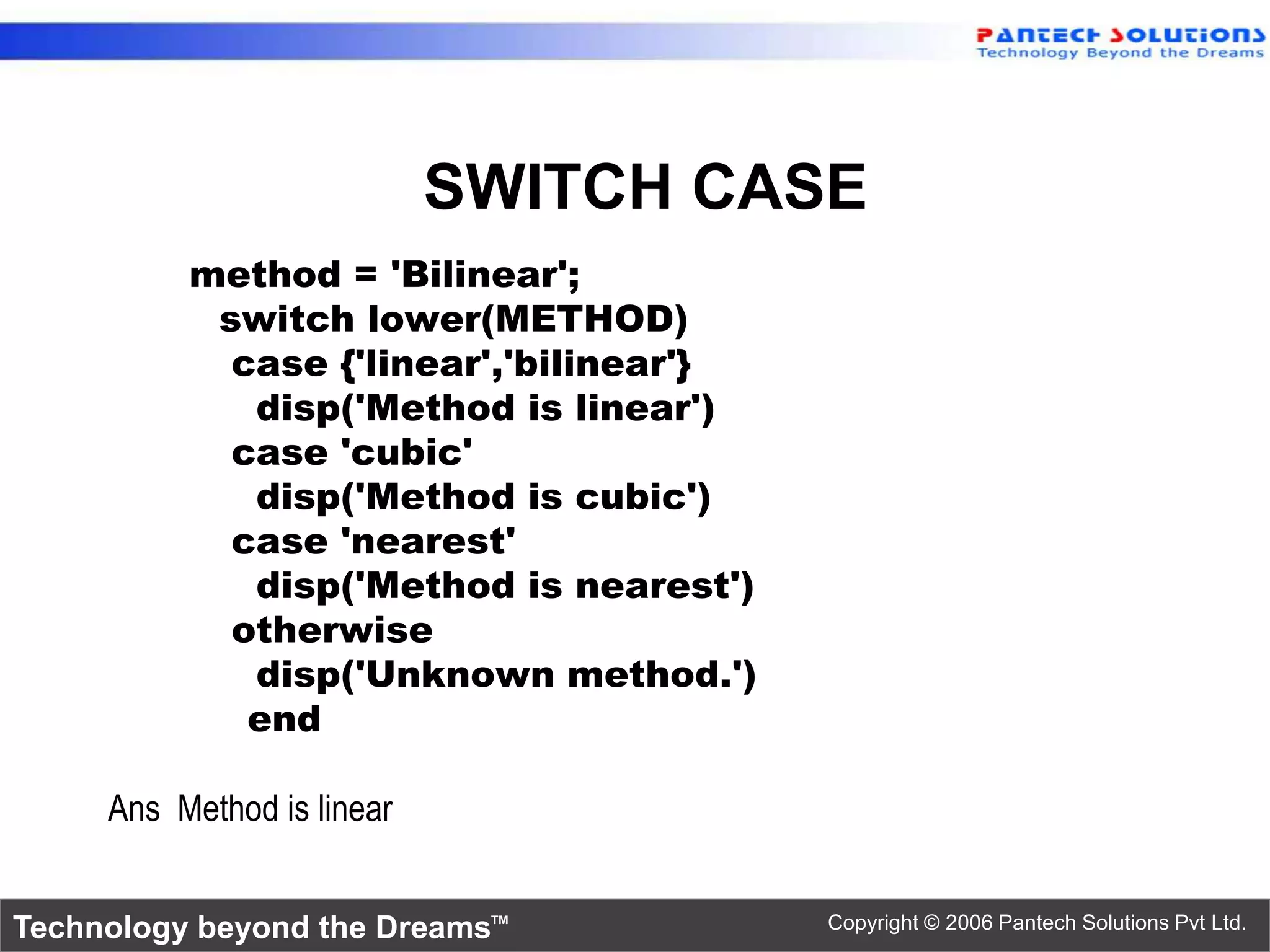

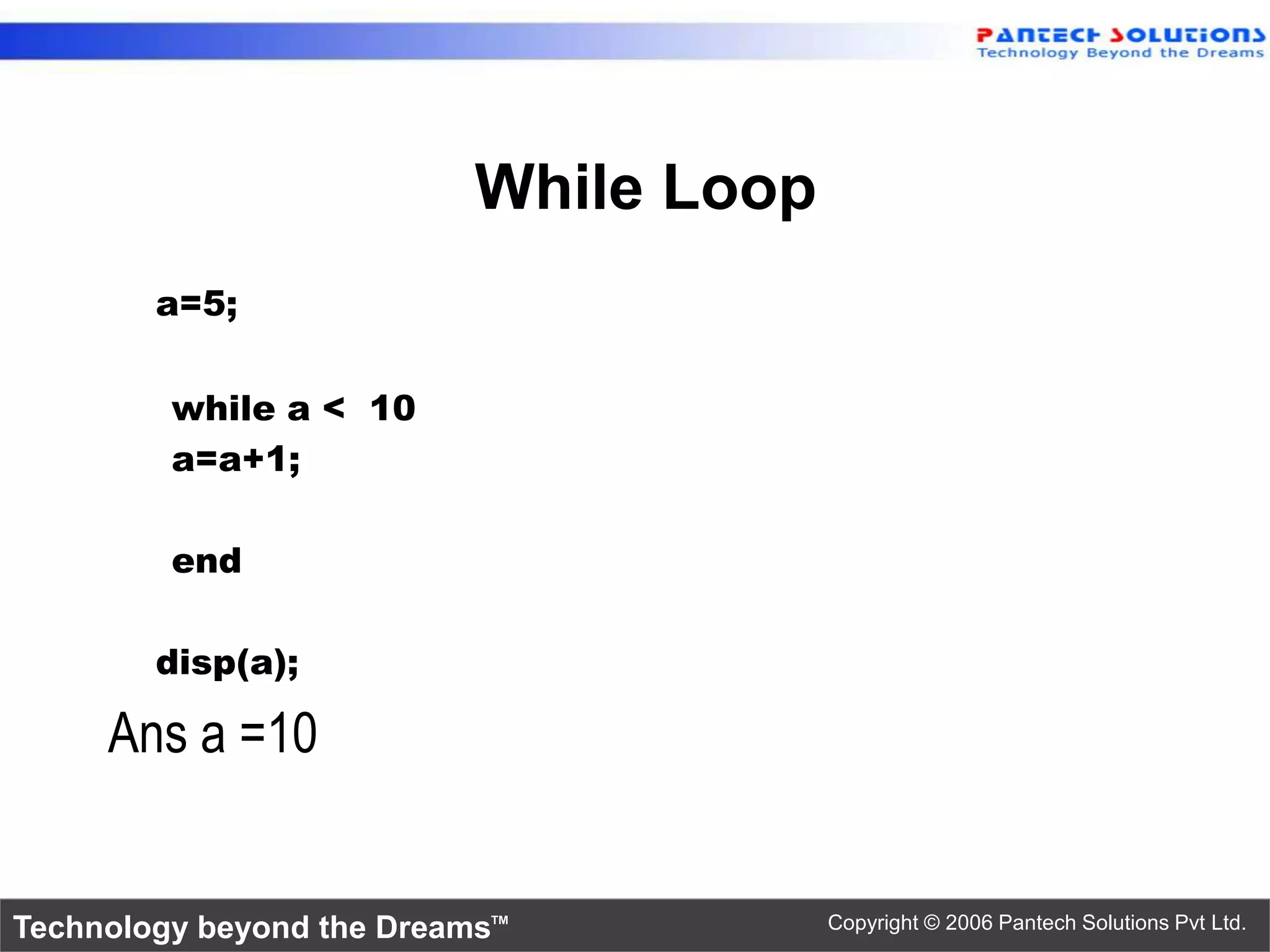

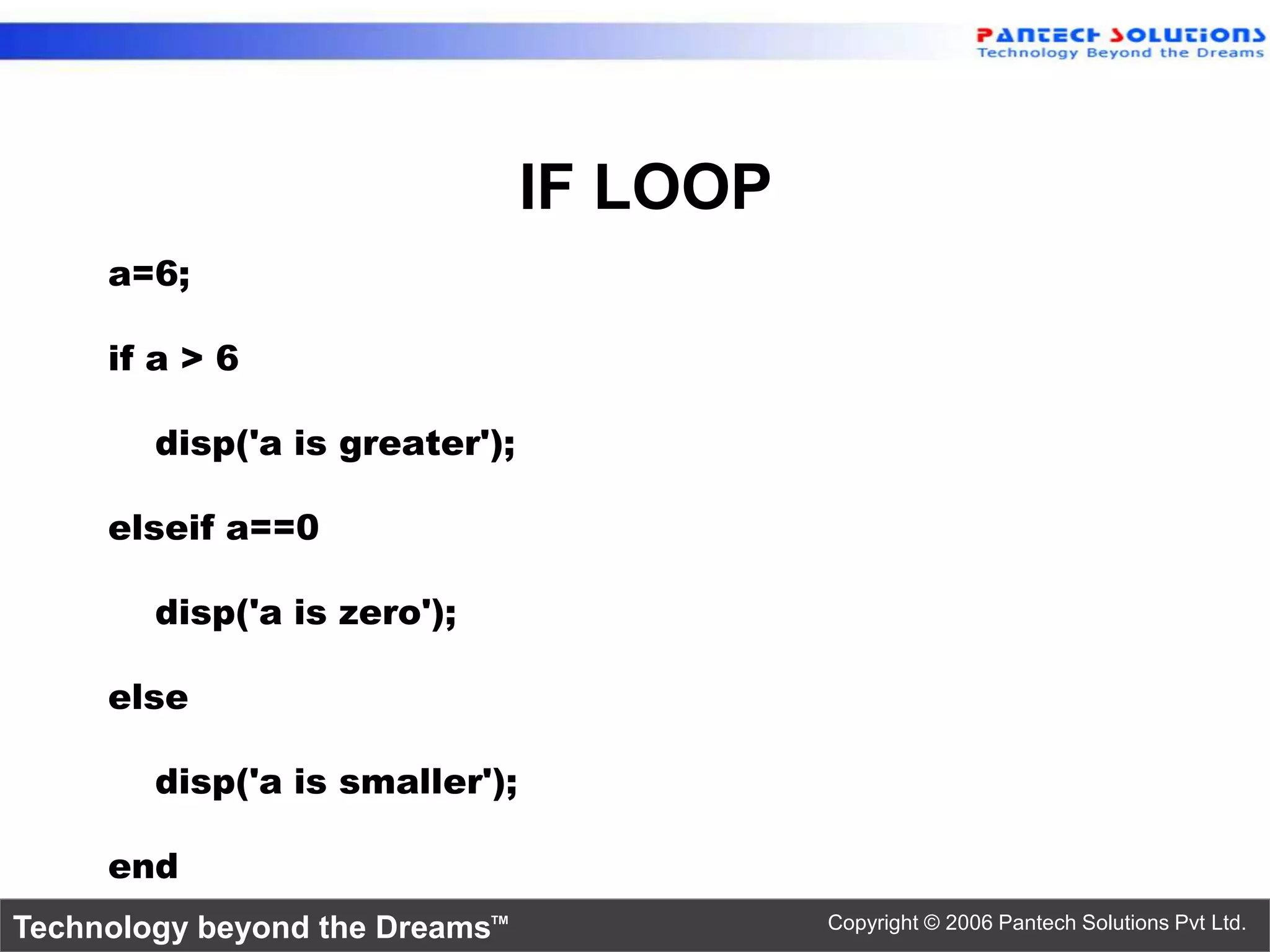

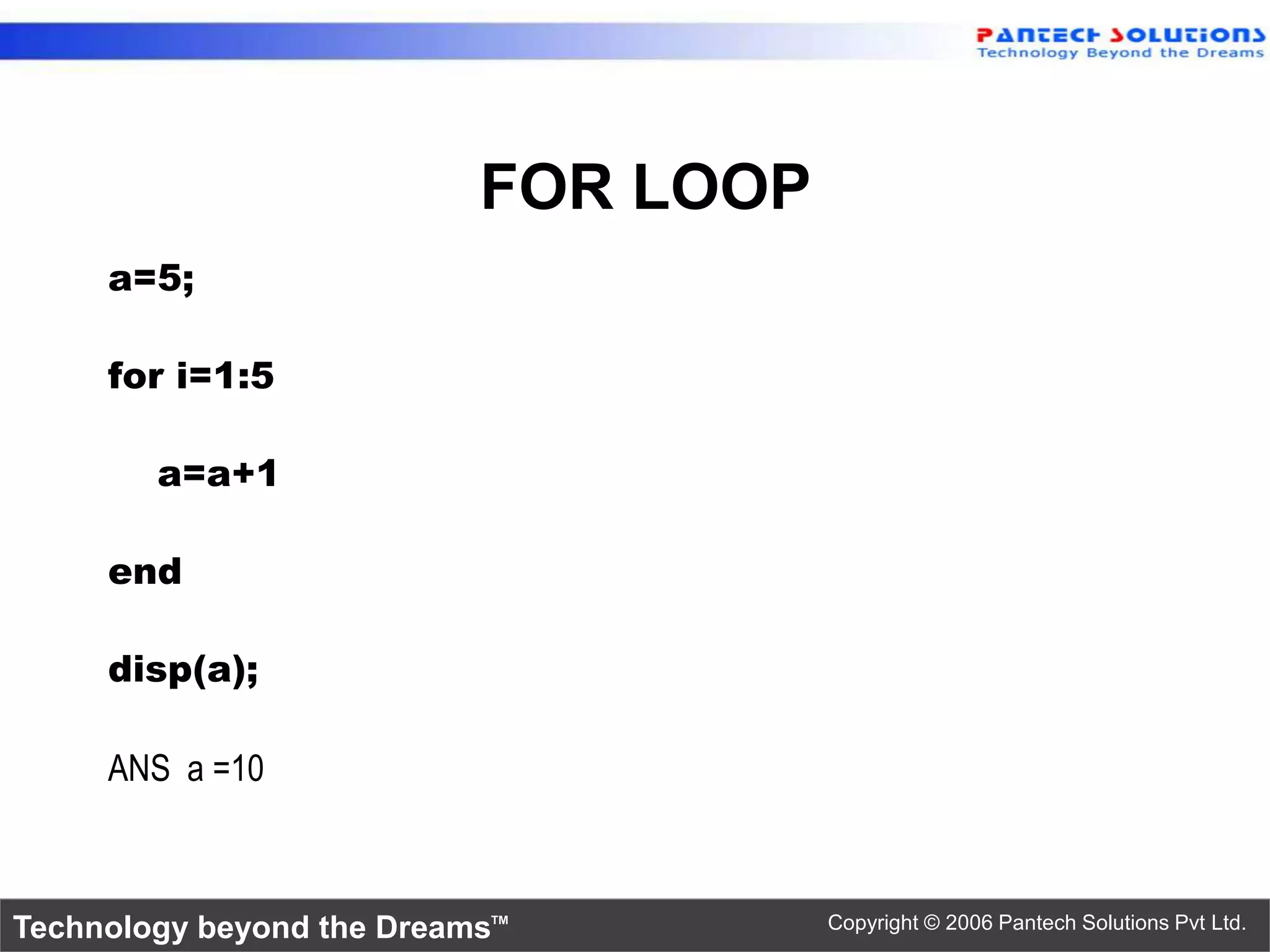

SWITCH CASE method = 'Bilinear'; switch lower(METHOD) case {'linear','bilinear'} disp('Method is linear') case 'cubic' disp('Method is cubic') case 'nearest' disp('Method is nearest') otherwise disp('Unknown method.') end Ans Method is linear Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

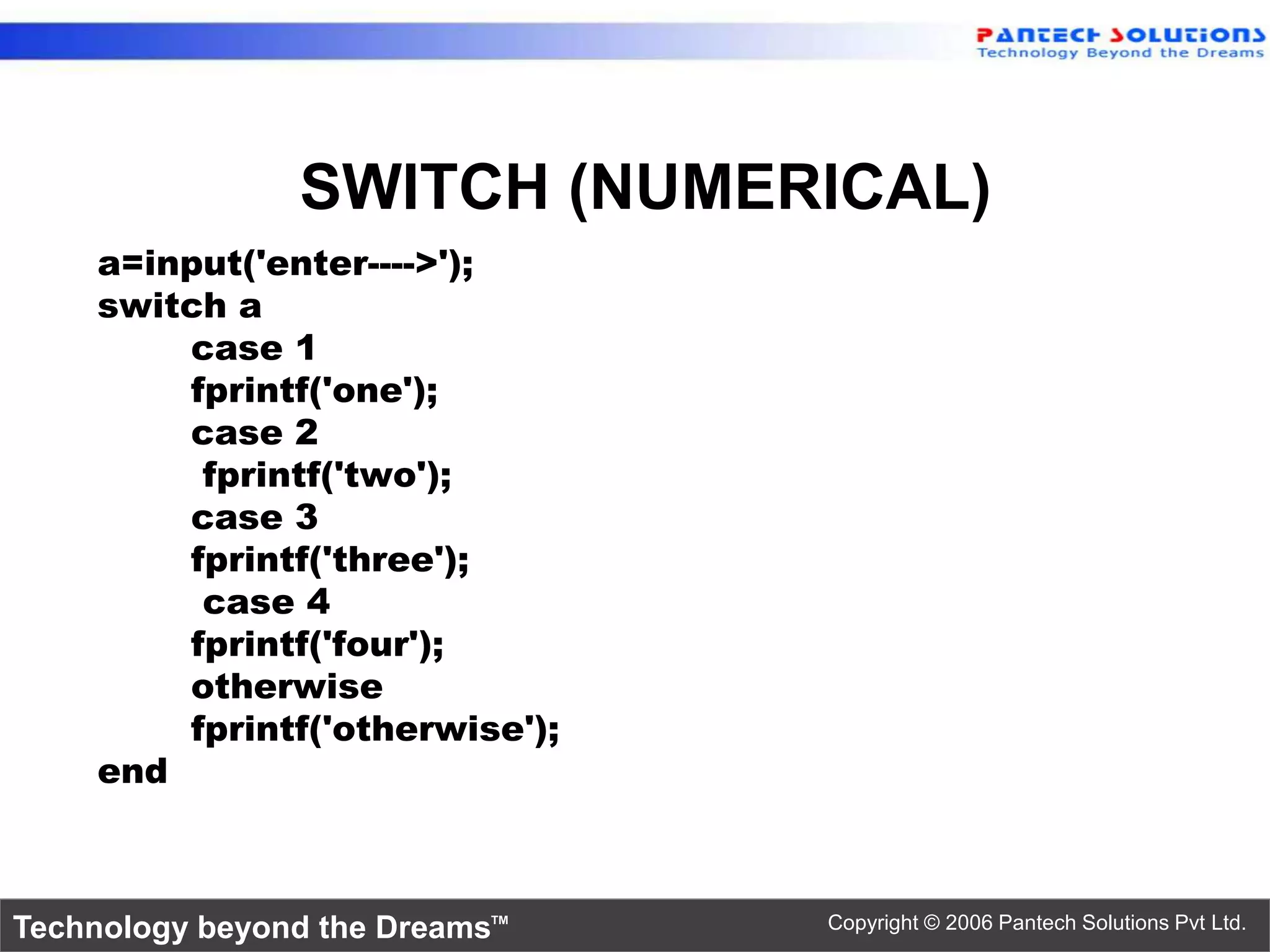

SWITCH (NUMERICAL) a=input('enter---->'); switch a case 1 fprintf('one'); case 2 fprintf('two'); case 3 fprintf('three'); case 4 fprintf('four'); otherwise fprintf('otherwise'); end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

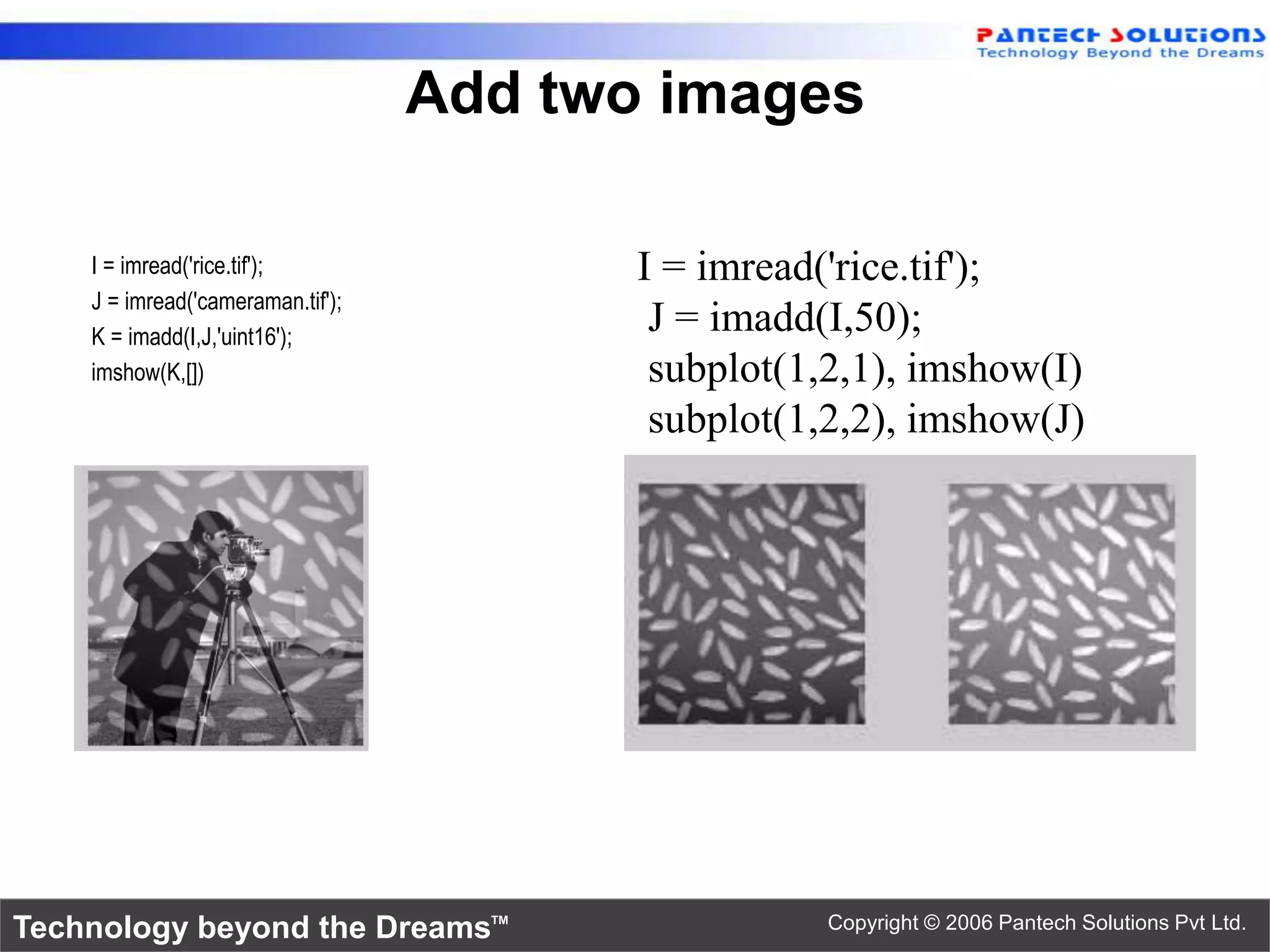

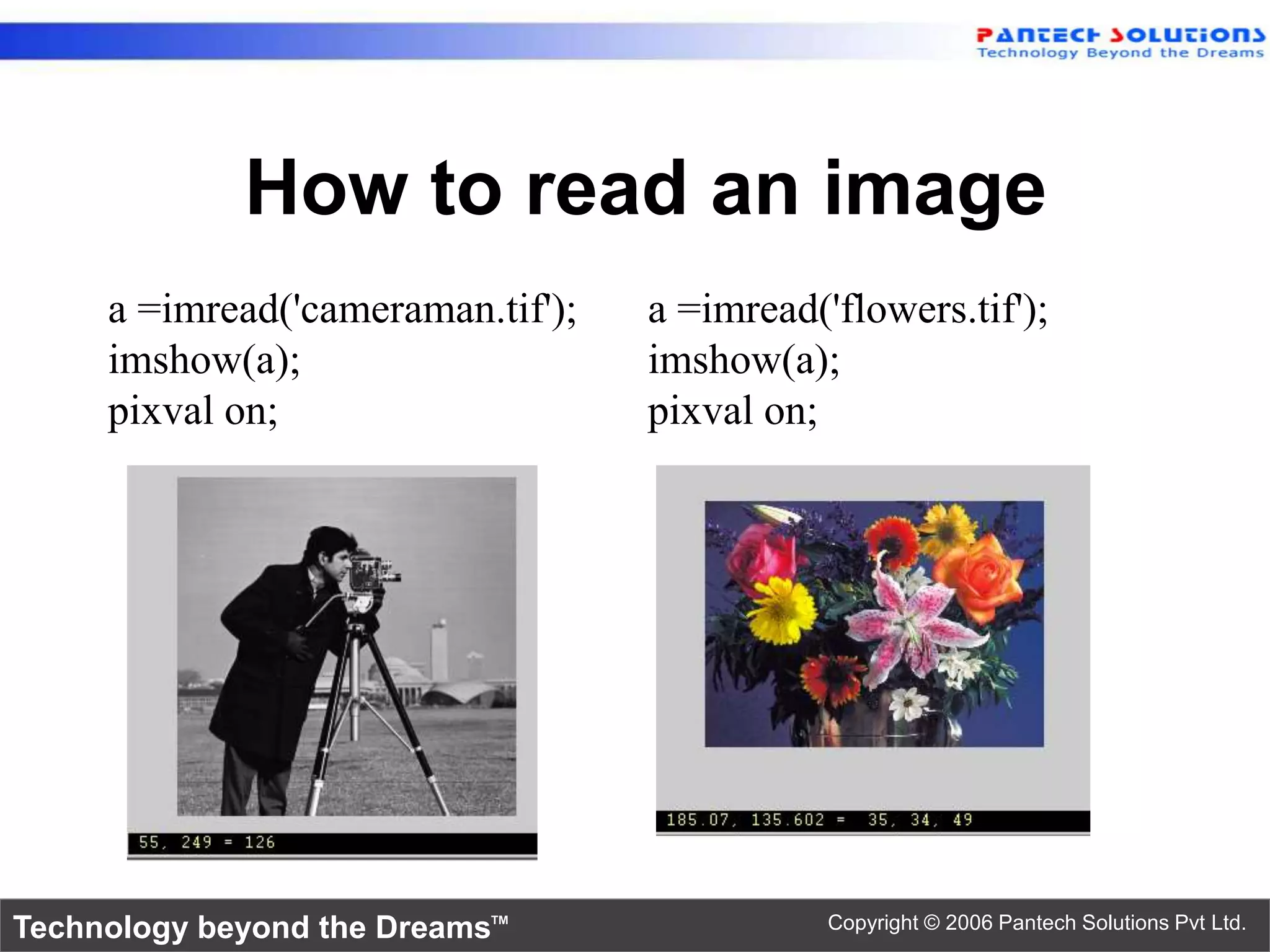

Add two images I = imread('rice.tif'); J = imread('cameraman.tif'); K = imadd(I,J,'uint16'); imshow(K,[]) I = imread('rice.tif'); J = imadd(I,50); subplot(1,2,1), imshow(I) subplot(1,2,2), imshow(J) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

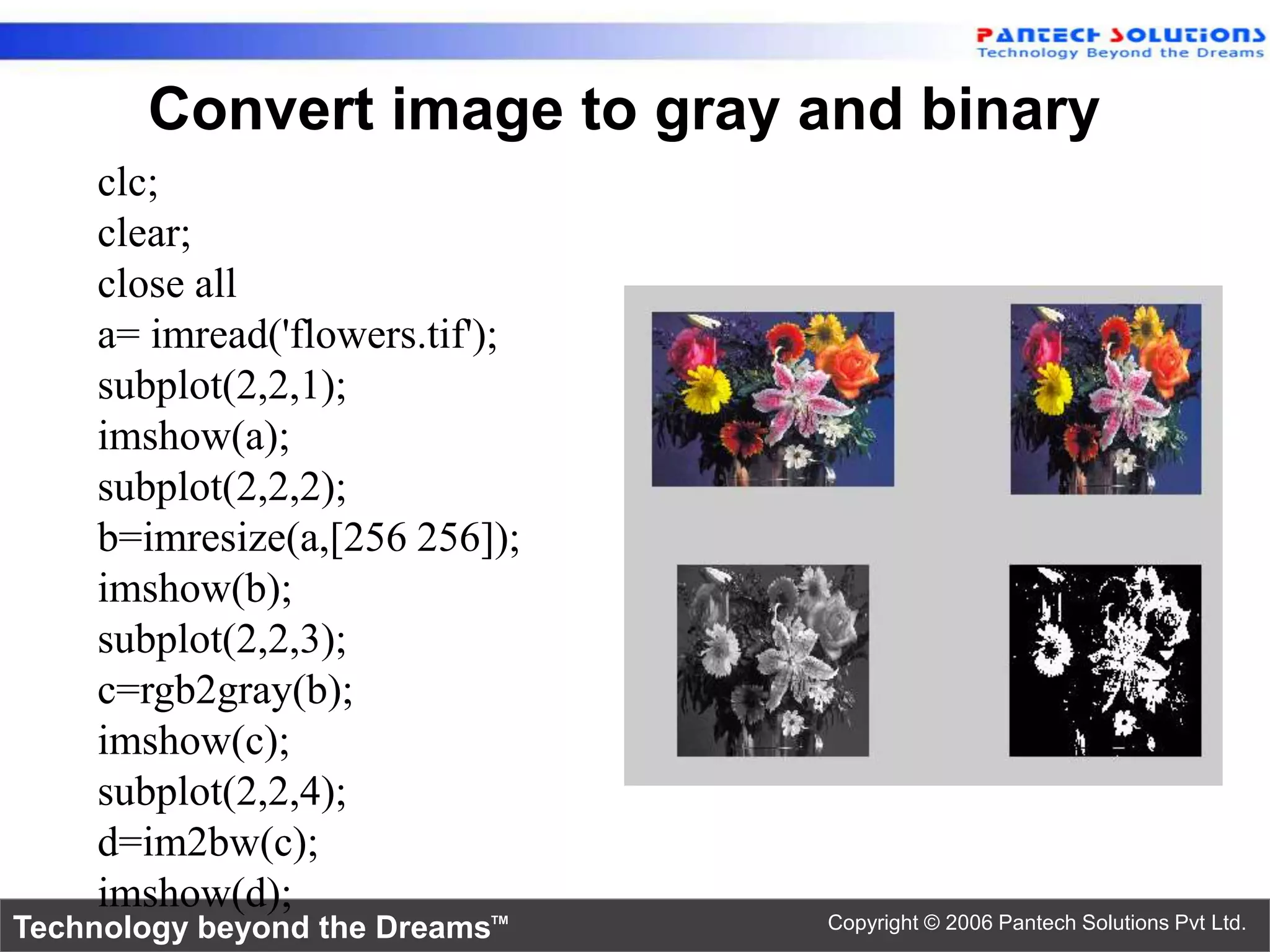

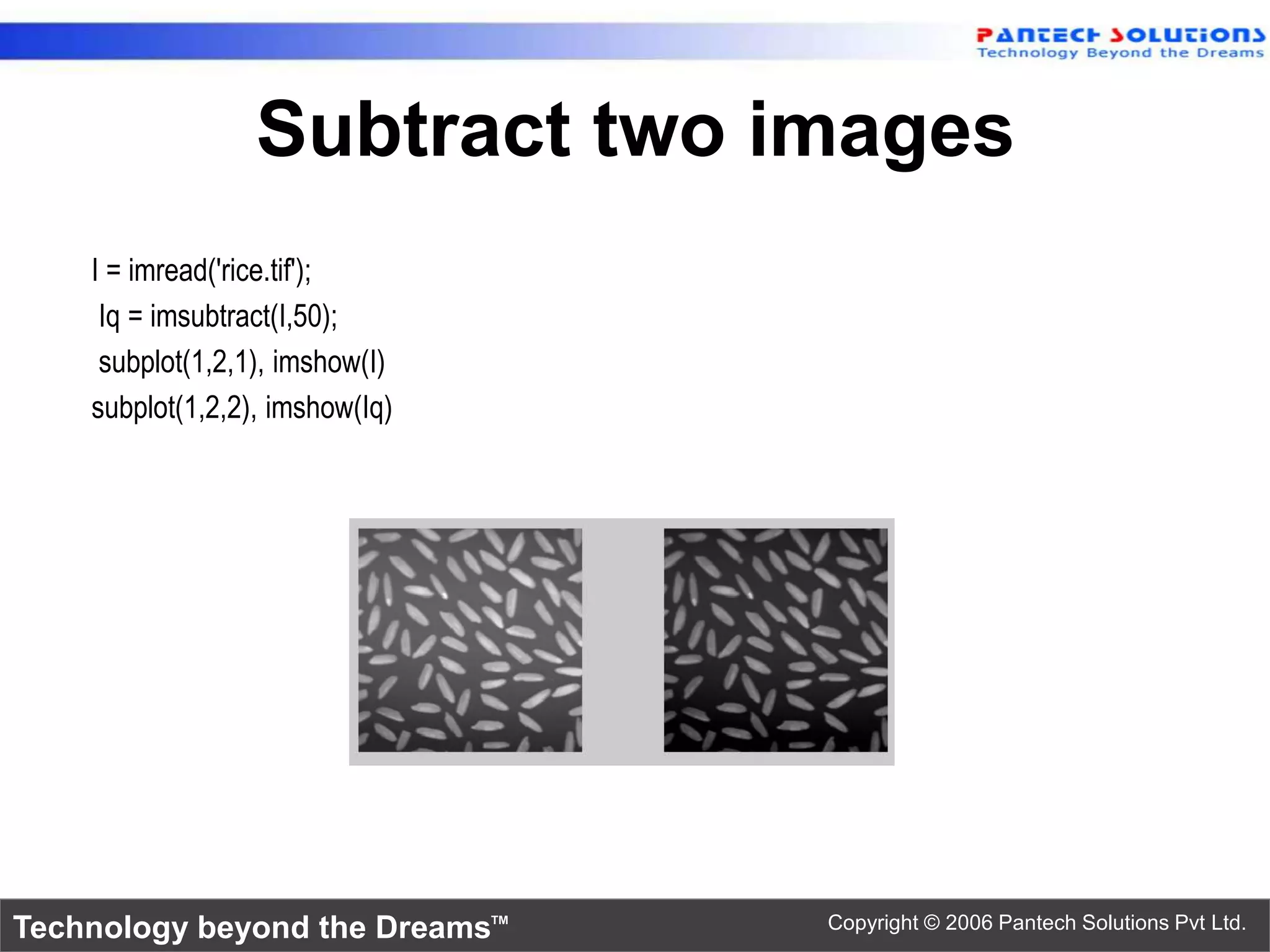

Convert image to gray and binary clc; clear; close all a= imread('flowers.tif'); subplot(2,2,1); imshow(a); subplot(2,2,2); b=imresize(a,[256 256]); imshow(b); subplot(2,2,3); c=rgb2gray(b); imshow(c); subplot(2,2,4); d=im2bw(c); imshow(d); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

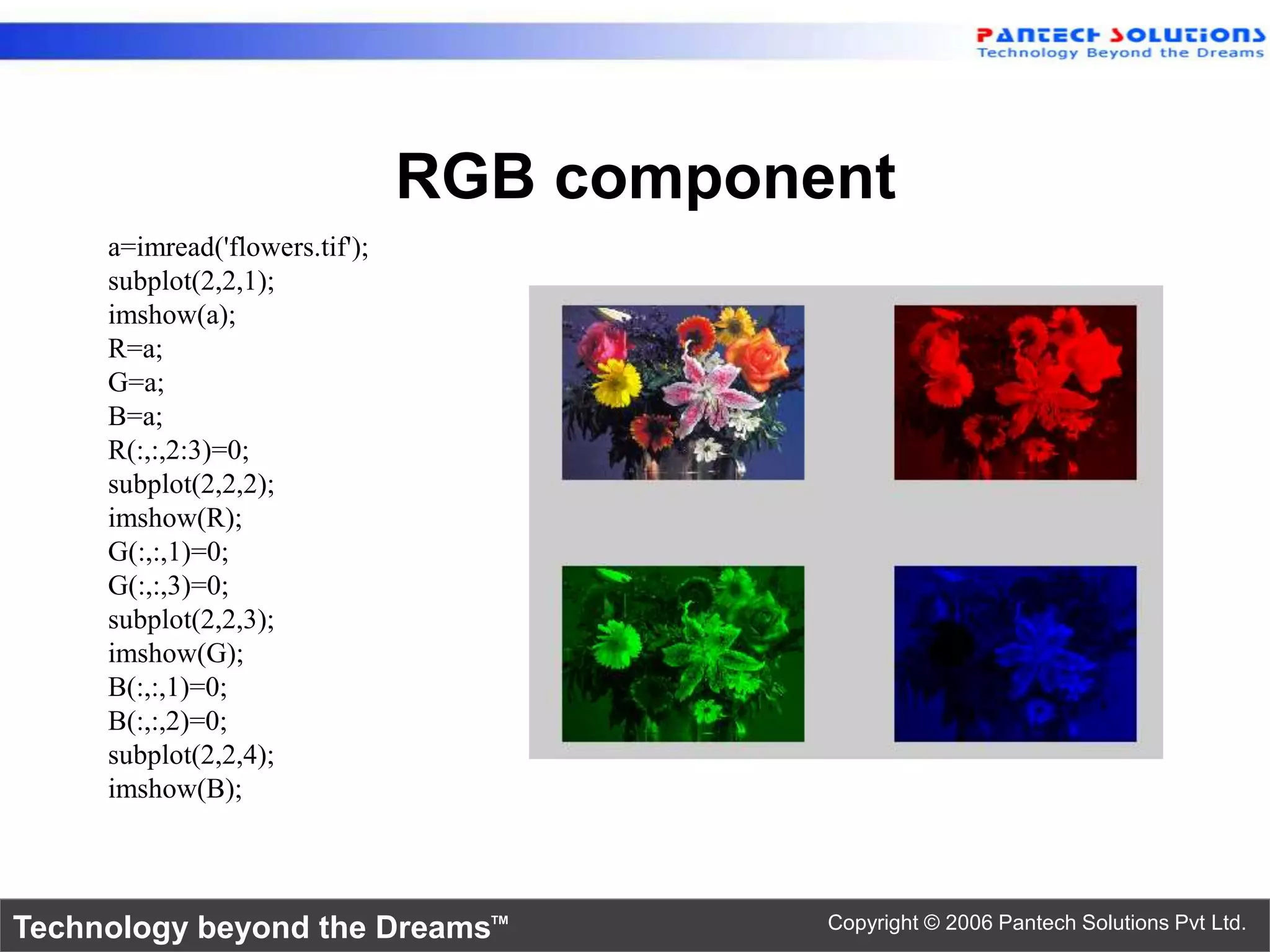

RGB component a=imread('flowers.tif'); subplot(2,2,1); imshow(a); R=a; G=a; B=a; R(:,:,2:3)=0; subplot(2,2,2); imshow(R); G(:,:,1)=0; G(:,:,3)=0; subplot(2,2,3); imshow(G); B(:,:,1)=0; B(:,:,2)=0; subplot(2,2,4); imshow(B); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

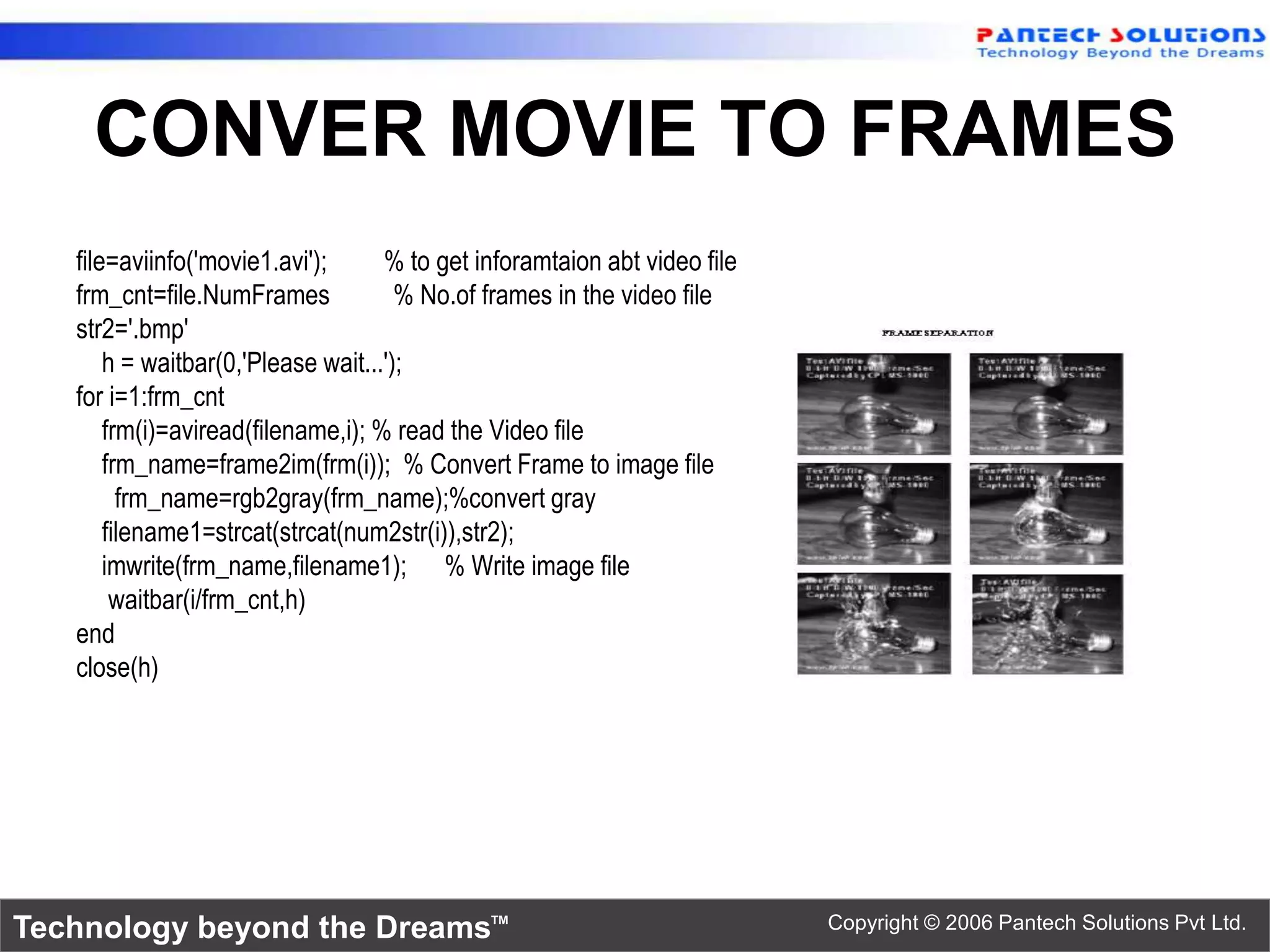

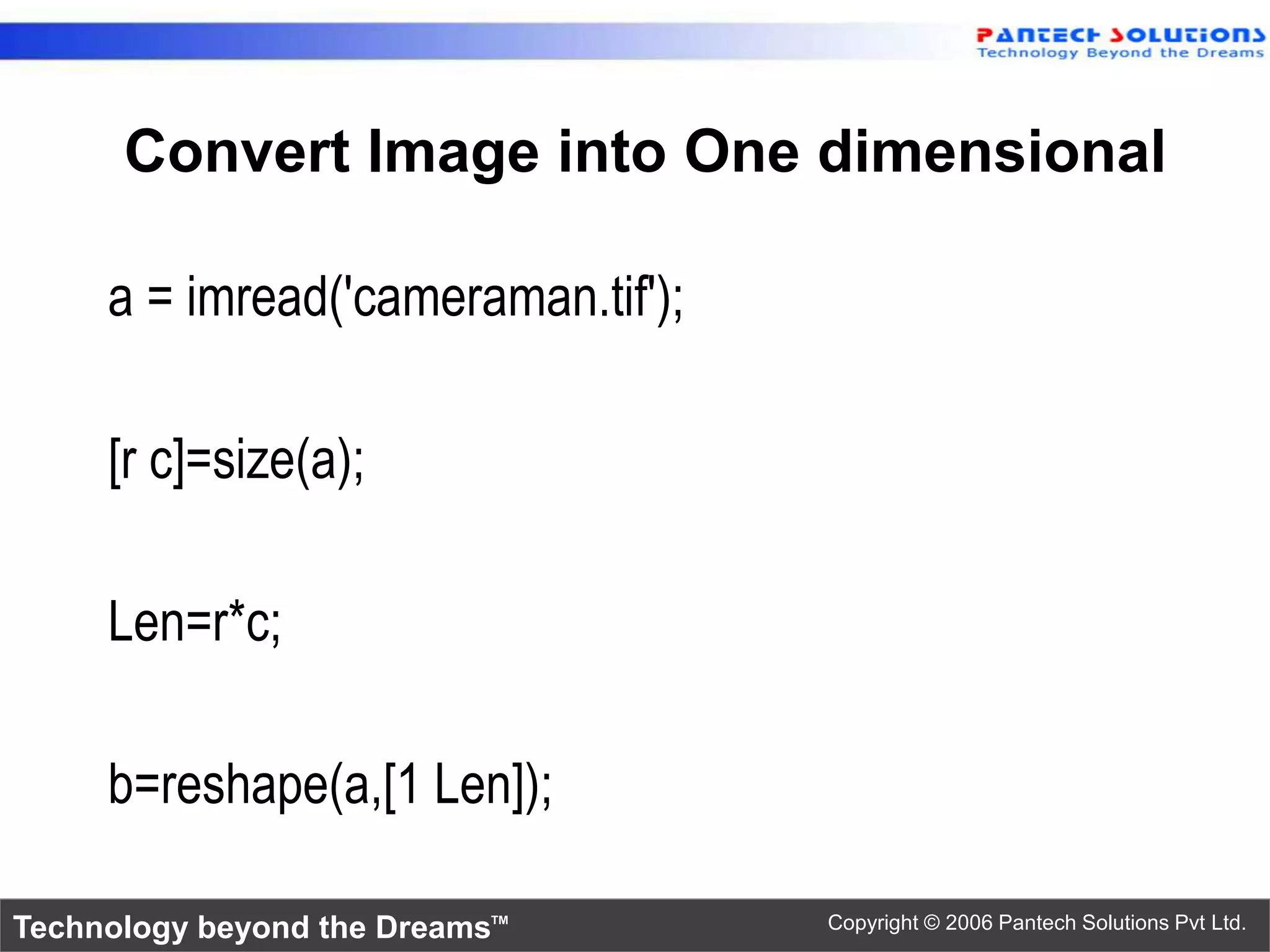

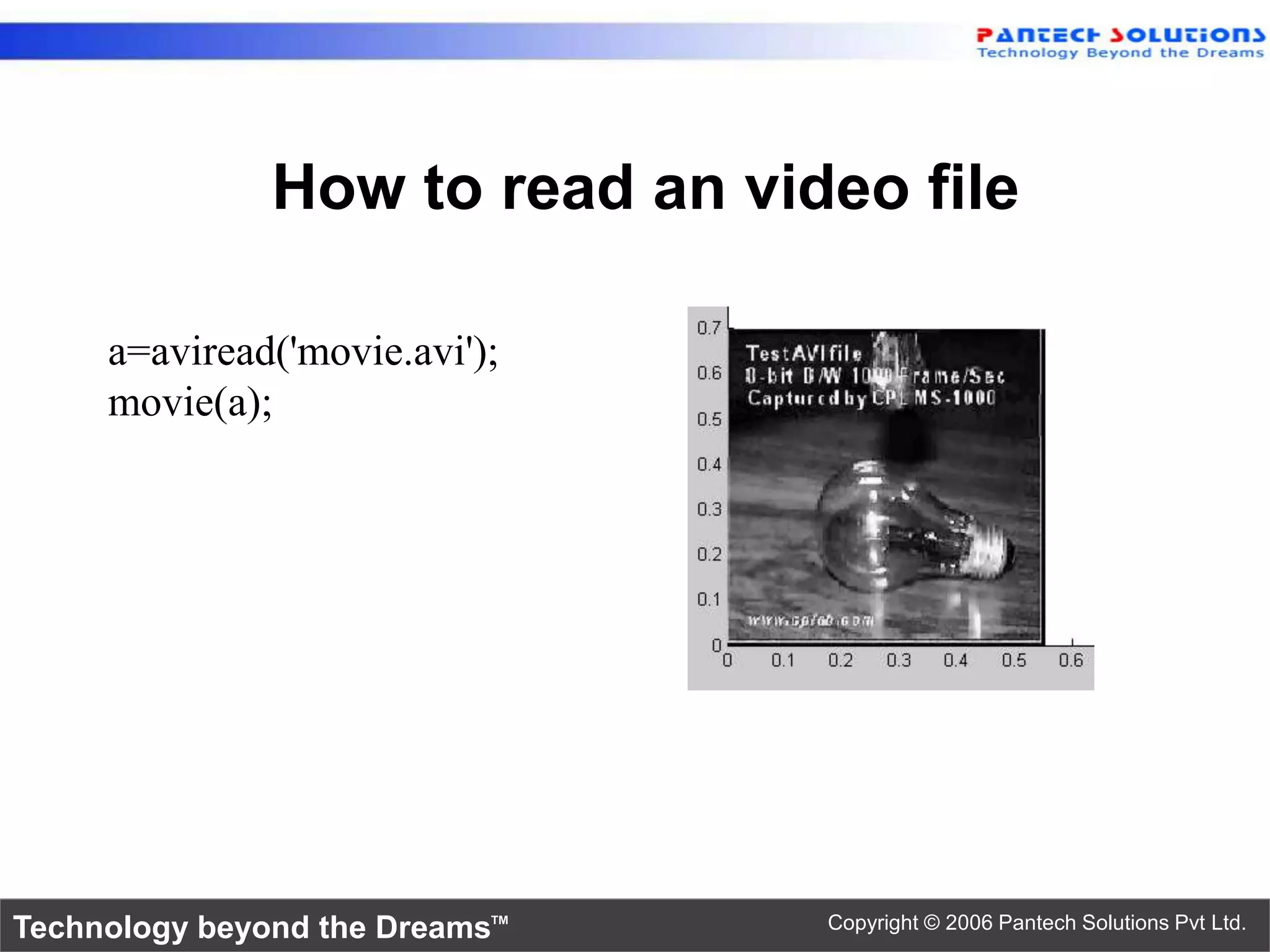

CONVER MOVIE TO FRAMES file=aviinfo('movie1.avi'); % to get inforamtaion abt video file frm_cnt=file.NumFrames % No.of frames in the video file str2='.bmp' h = waitbar(0,'Please wait...'); for i=1:frm_cnt frm(i)=aviread(filename,i); % read the Video file frm_name=frame2im(frm(i)); % Convert Frame to image file frm_name=rgb2gray(frm_name);%convert gray filename1=strcat(strcat(num2str(i)),str2); imwrite(frm_name,filename1); % Write image file waitbar(i/frm_cnt,h) end close(h) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

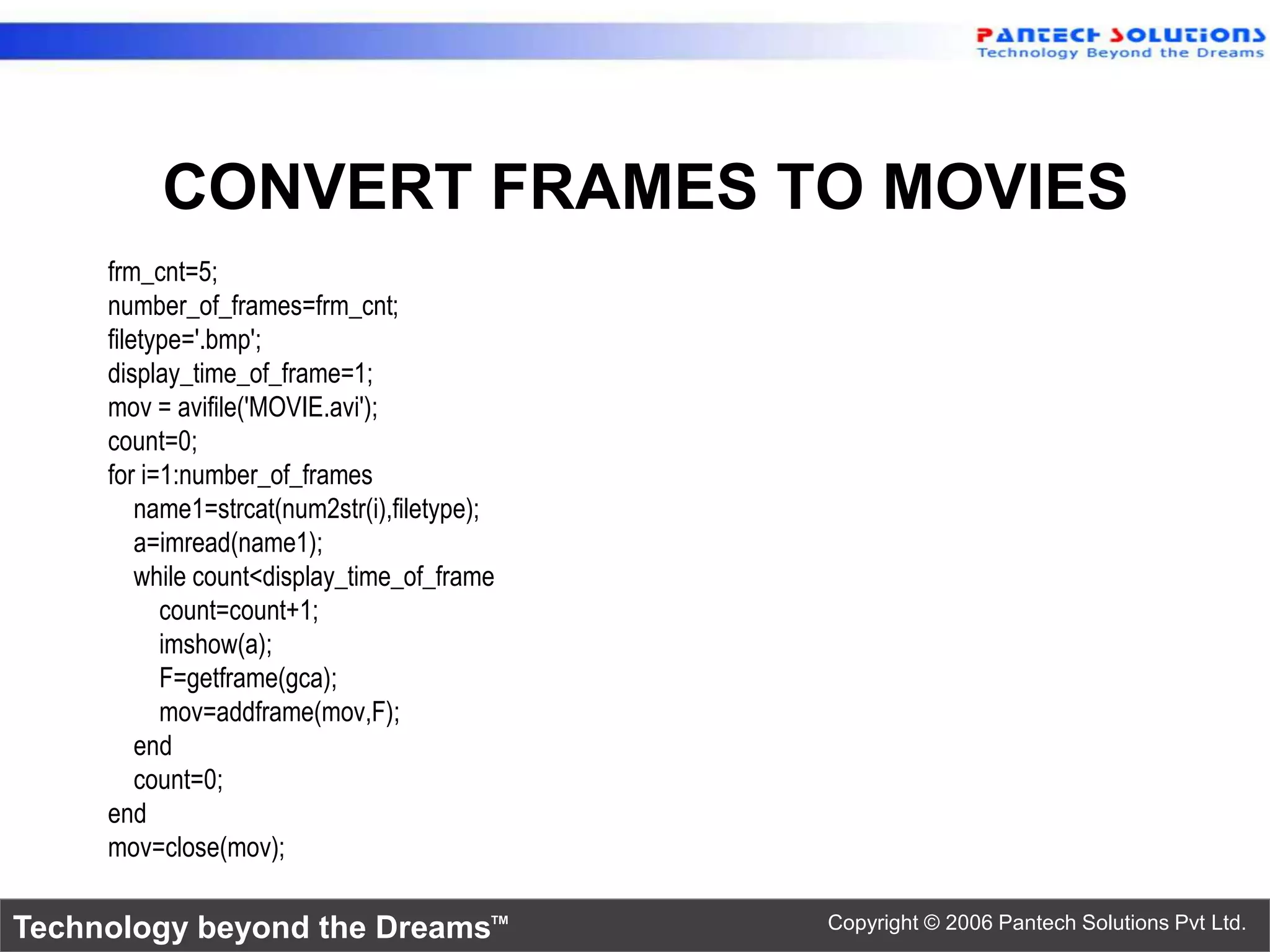

CONVERT FRAMES TO MOVIES frm_cnt=5; number_of_frames=frm_cnt; filetype='.bmp'; display_time_of_frame=1; mov = avifile('MOVIE.avi'); count=0; for i=1:number_of_frames name1=strcat(num2str(i),filetype); a=imread(name1); while count<display_time_of_frame count=count+1; imshow(a); F=getframe(gca); mov=addframe(mov,F); end count=0; end mov=close(mov); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

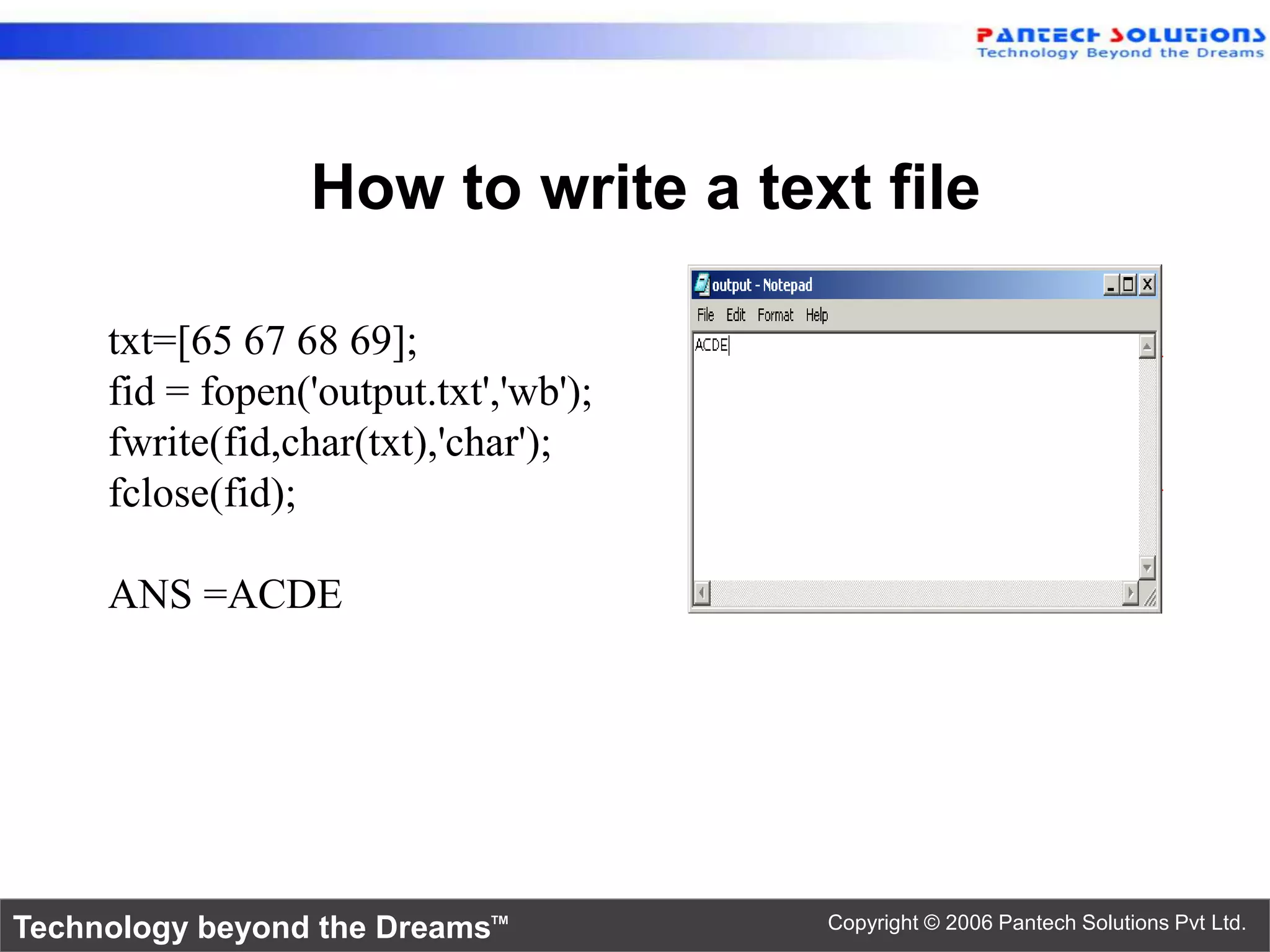

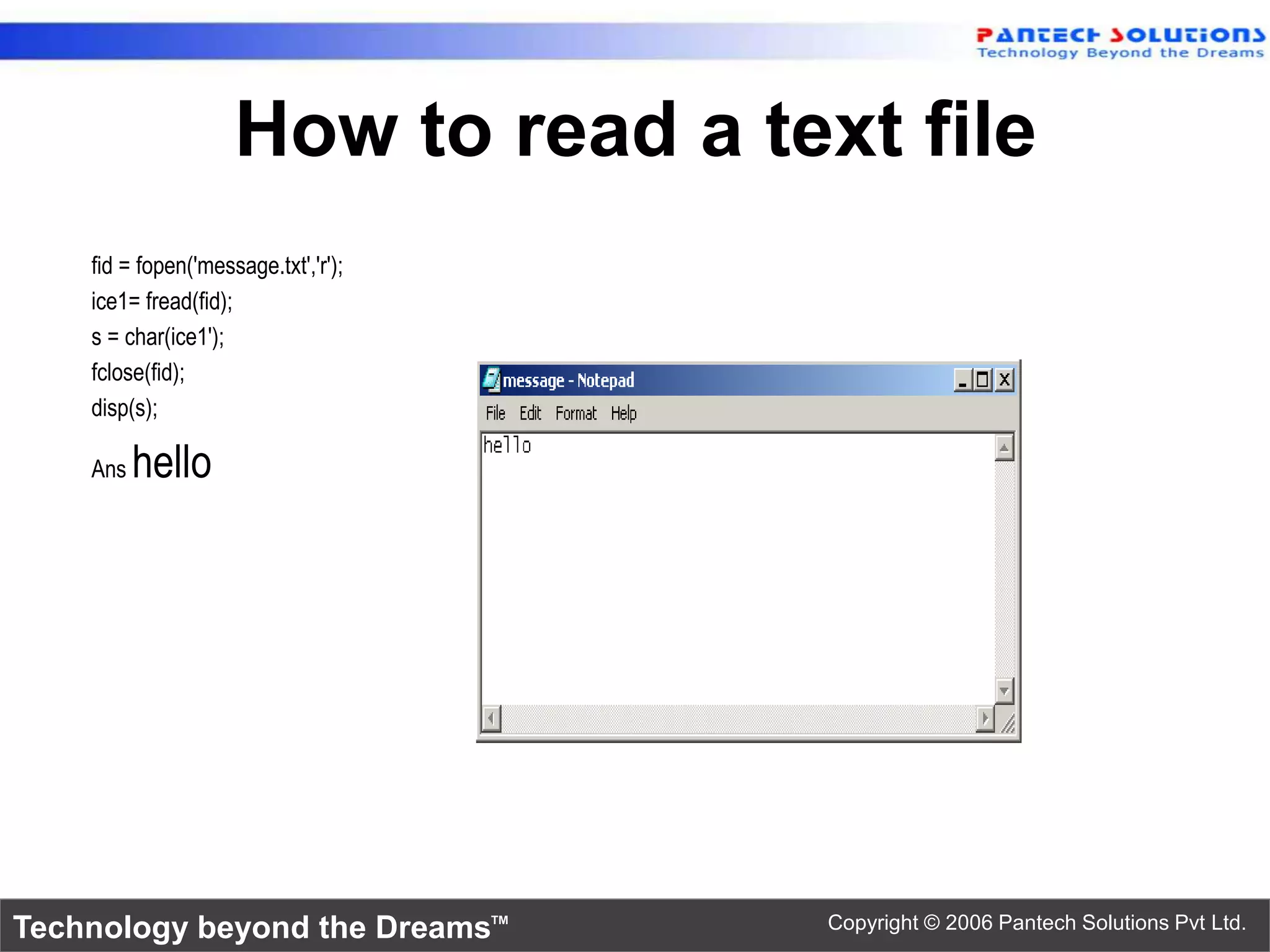

How to write a text file txt=[65 67 68 69]; fid = fopen('output.txt','wb'); fwrite(fid,char(txt),'char'); fclose(fid); ANS =ACDE Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

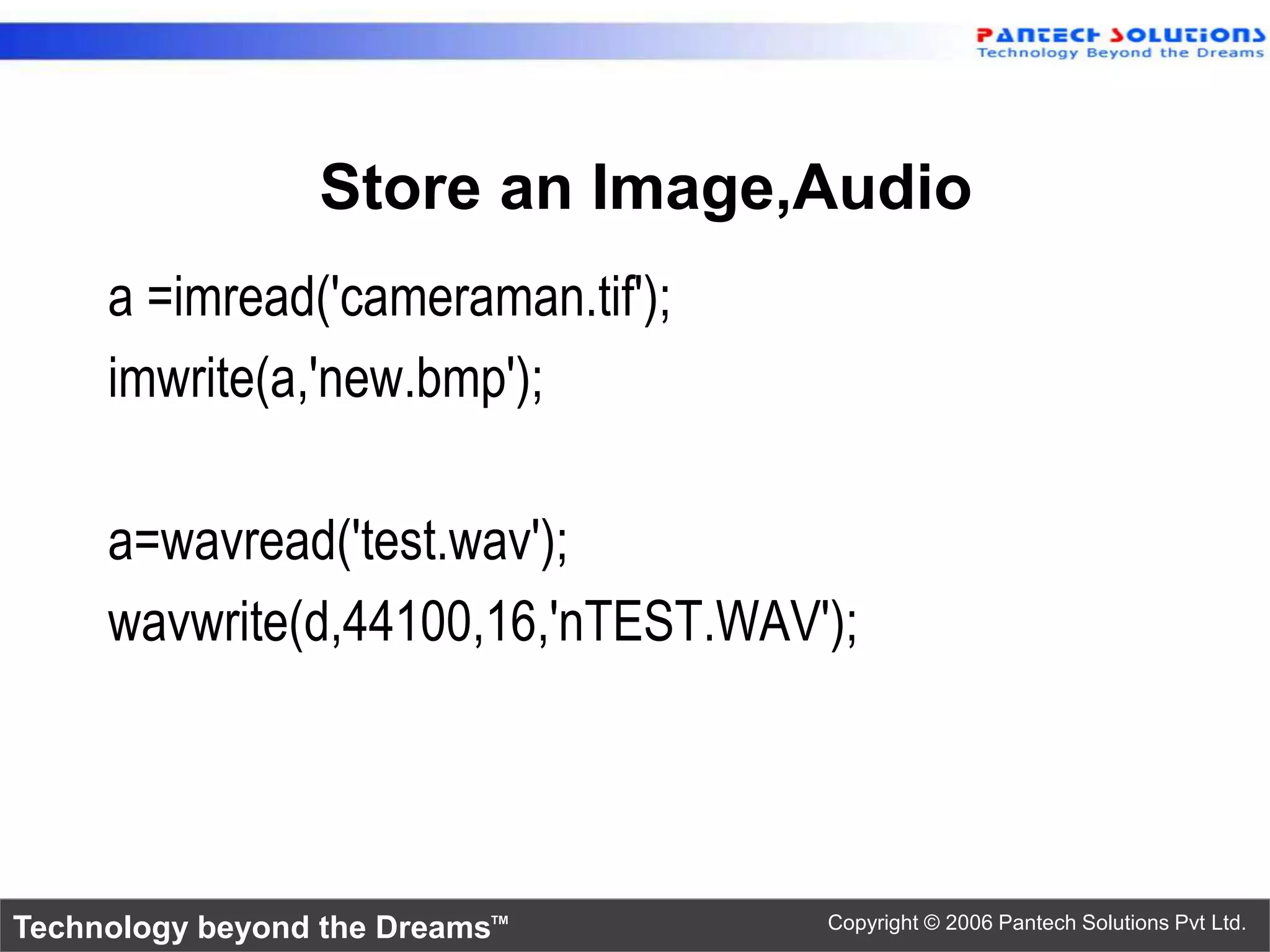

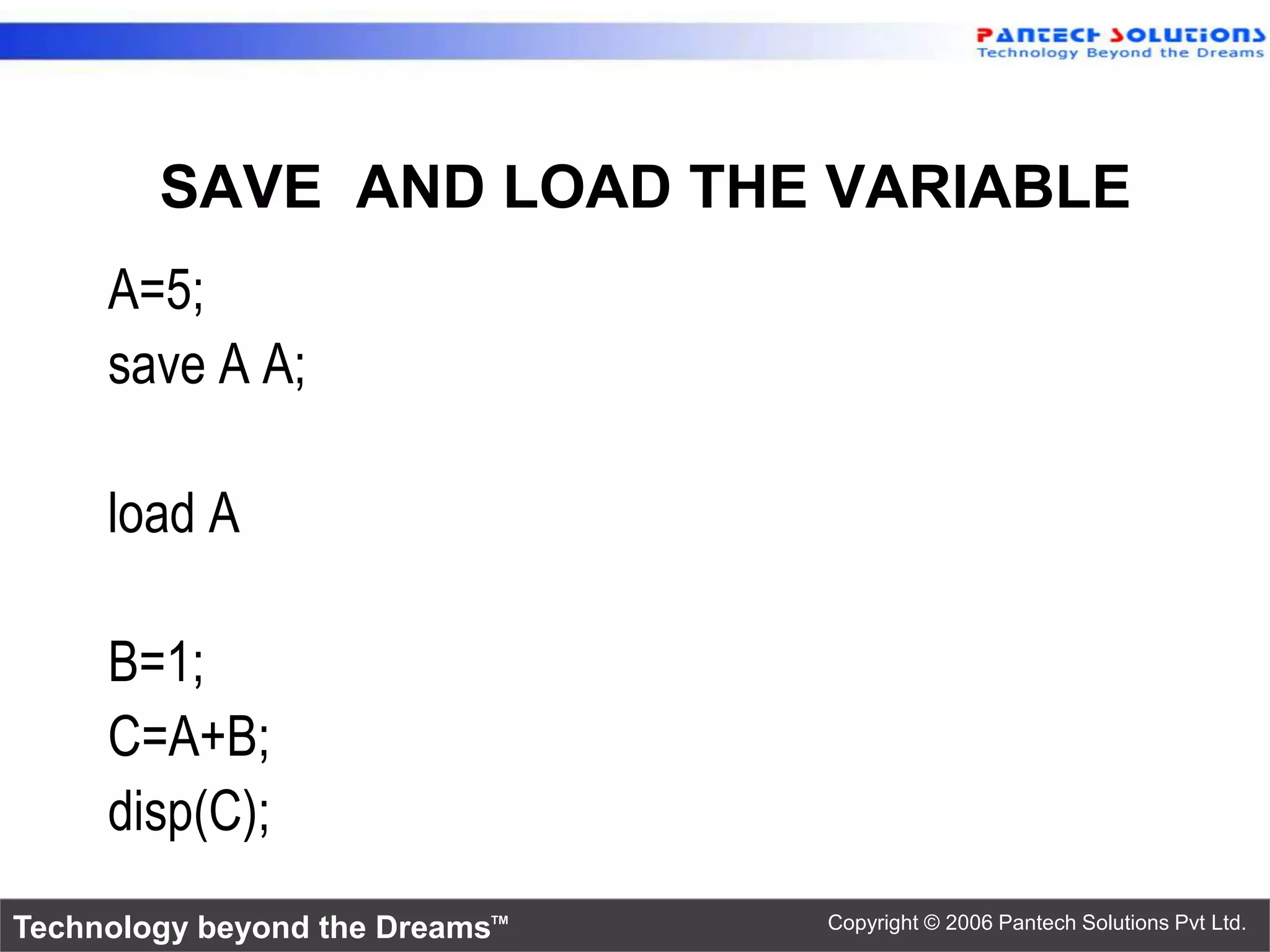

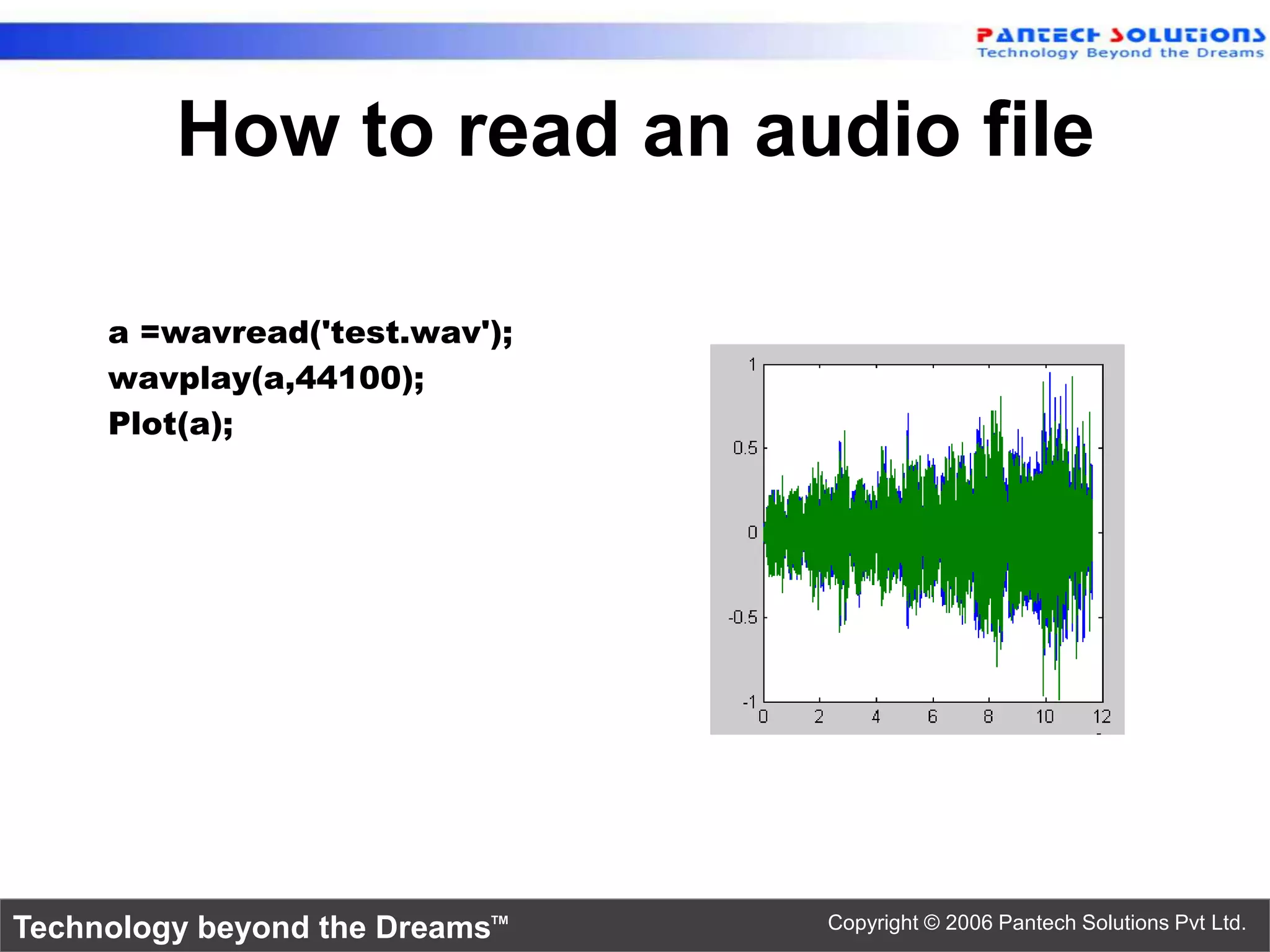

Store an Image,Audio a =imread('cameraman.tif'); imwrite(a,'new.bmp'); a=wavread('test.wav'); wavwrite(d,44100,16,'nTEST.WAV'); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

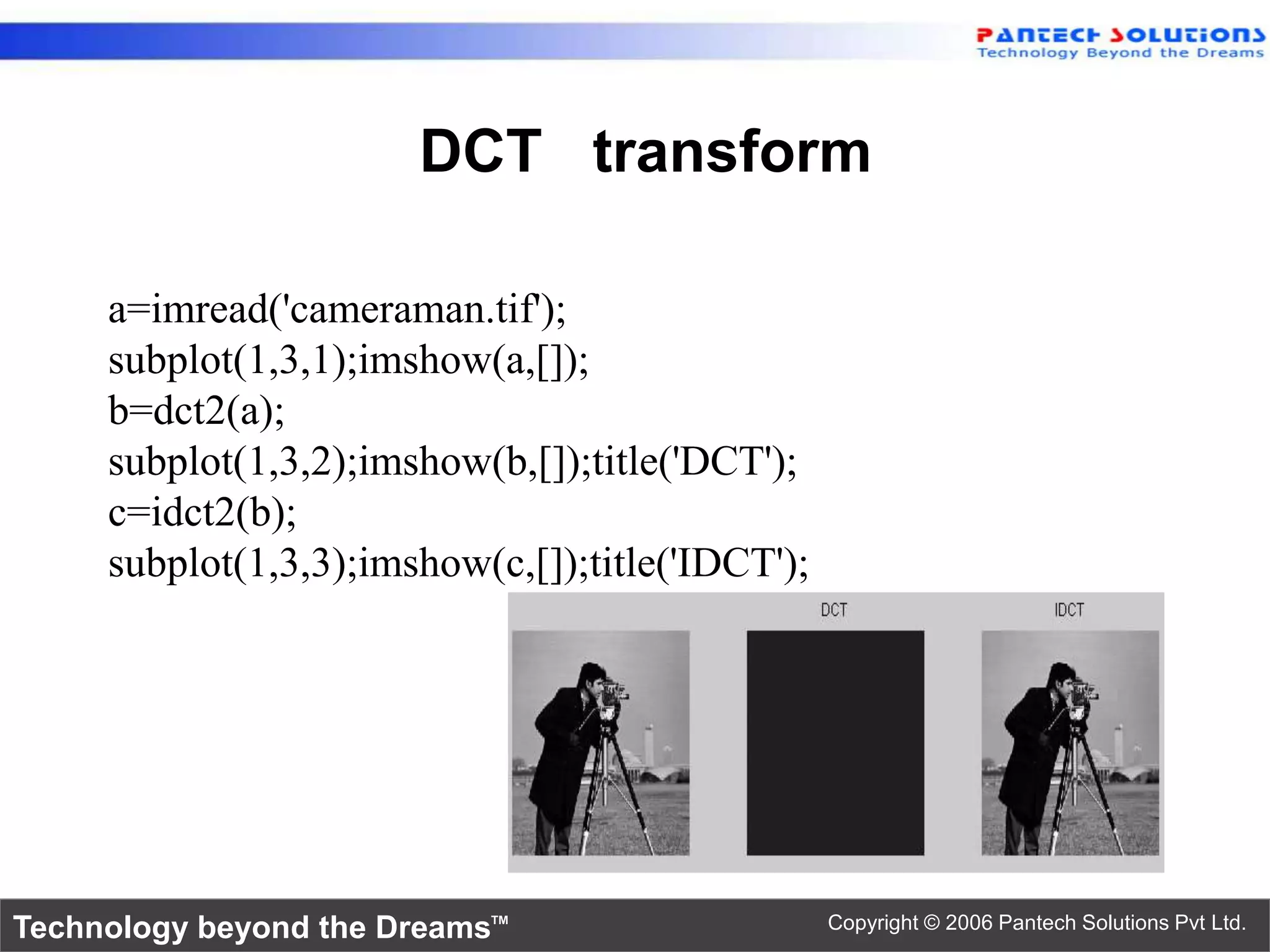

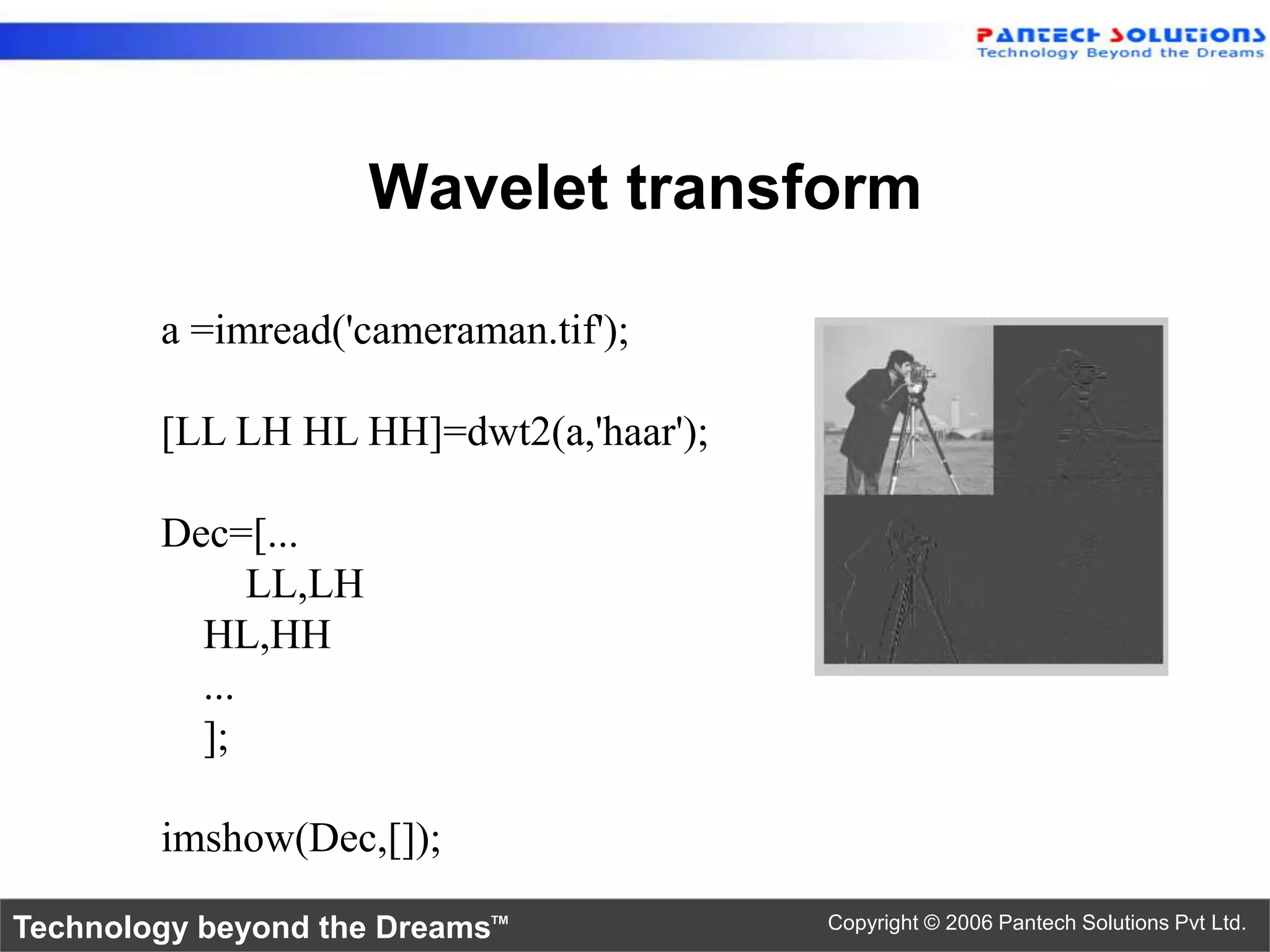

DCT transform a=imread('cameraman.tif'); subplot(1,3,1);imshow(a,[]); b=dct2(a); subplot(1,3,2);imshow(b,[]);title('DCT'); c=idct2(b); subplot(1,3,3);imshow(c,[]);title('IDCT'); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

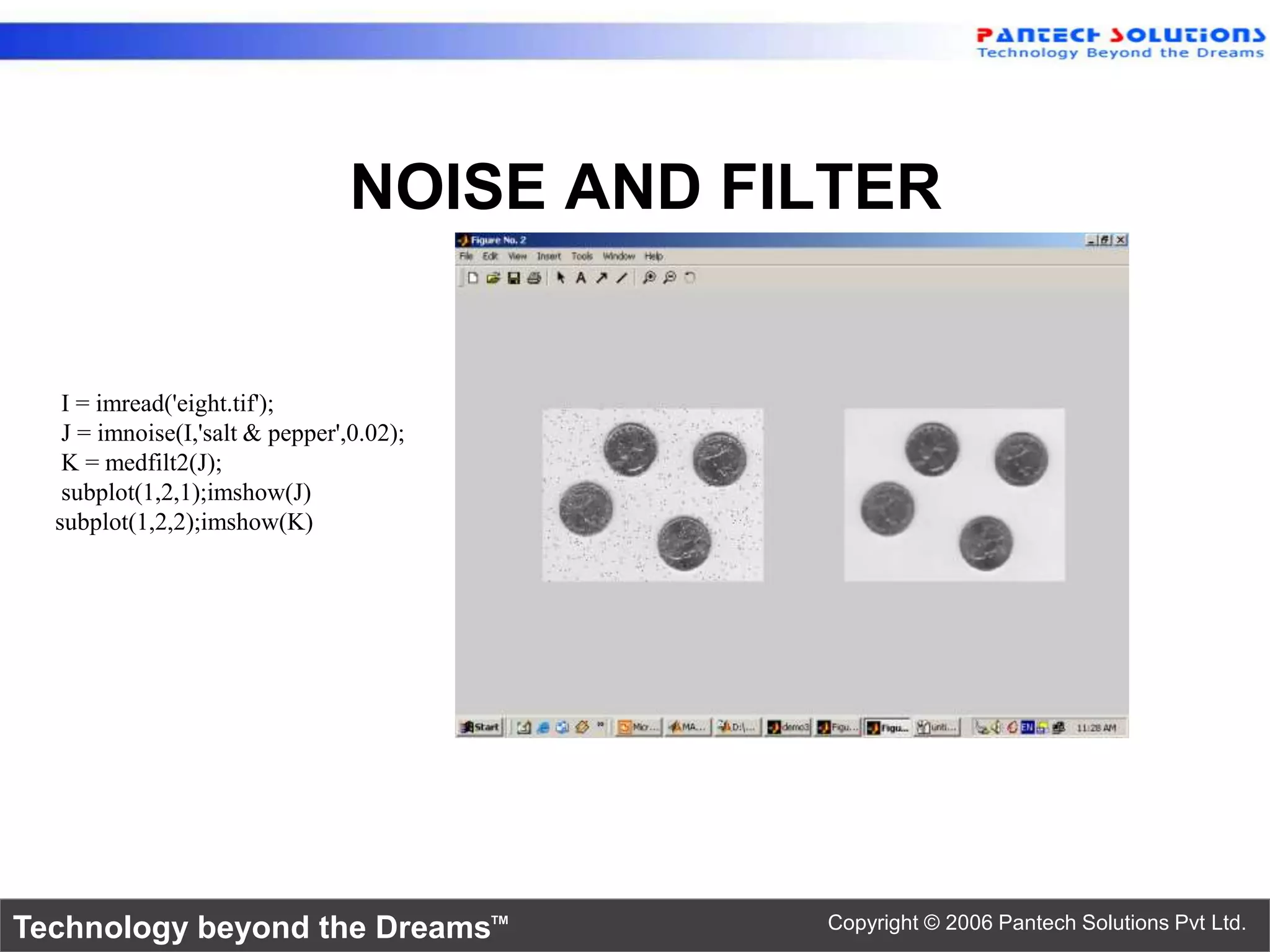

NOISE AND FILTER I = imread('eight.tif'); J = imnoise(I,'salt & pepper',0.02); K = medfilt2(J); subplot(1,2,1);imshow(J) subplot(1,2,2);imshow(K) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

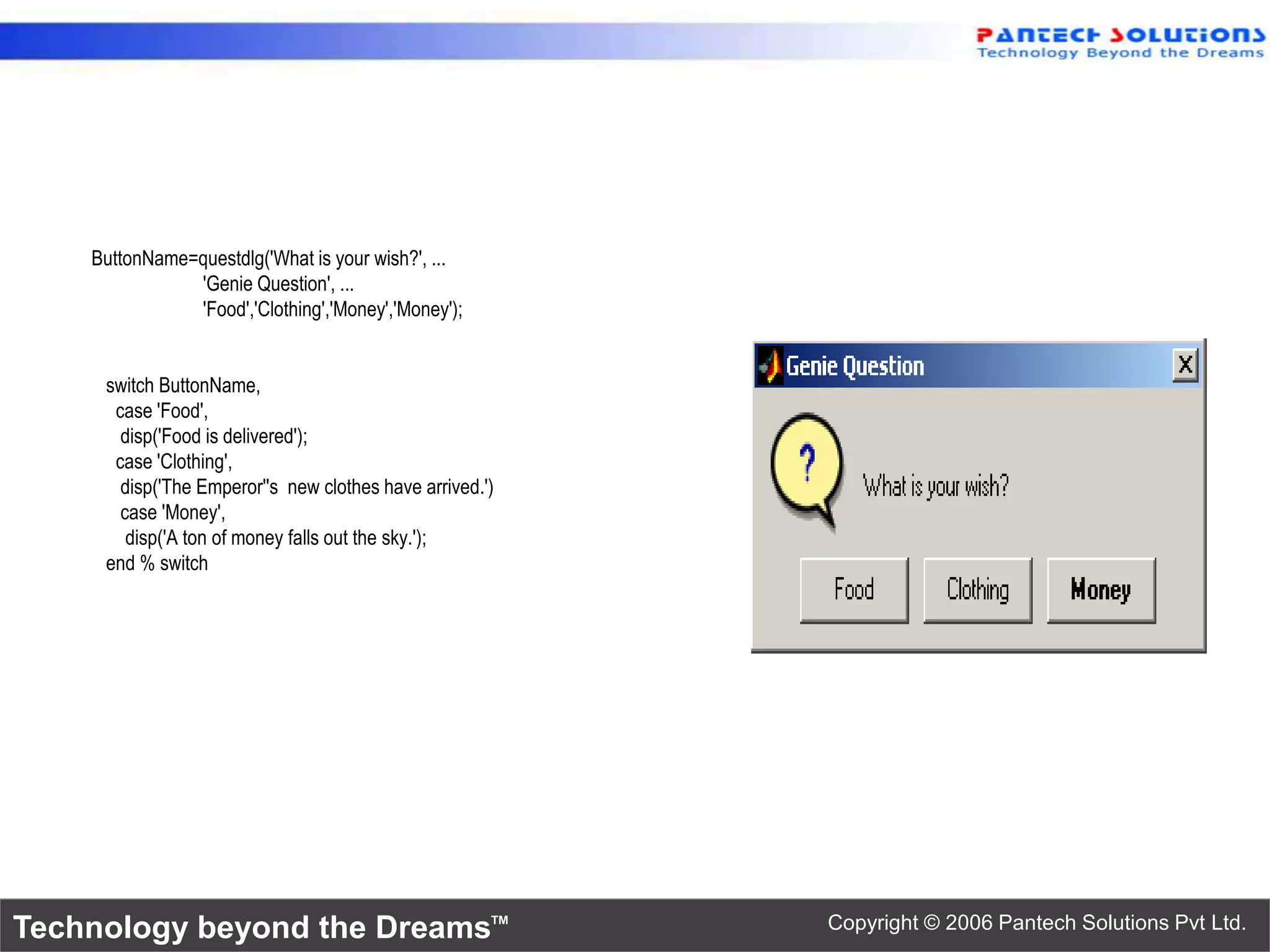

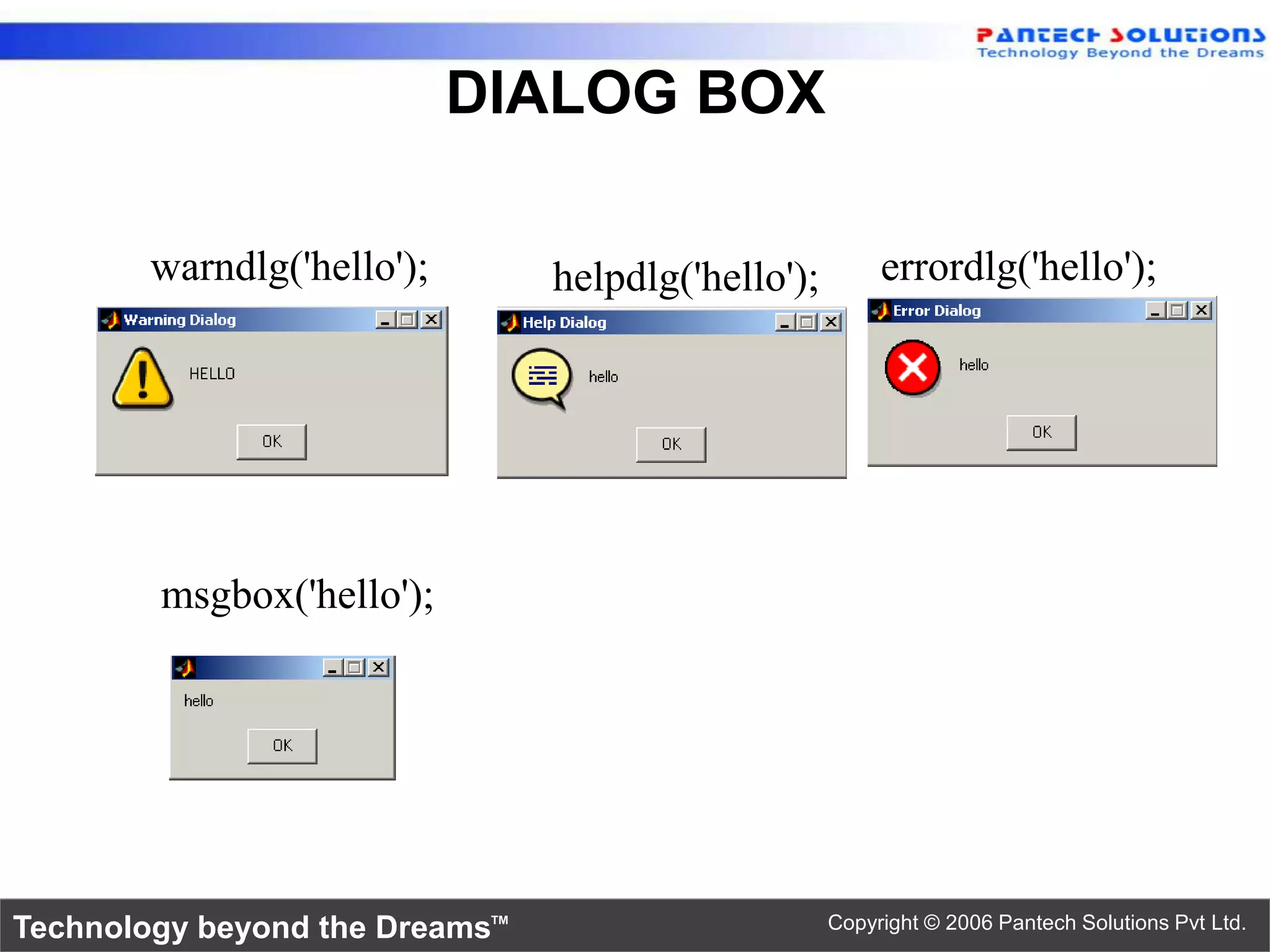

ButtonName=questdlg('What is your wish?', ... 'Genie Question', ... 'Food','Clothing','Money','Money'); switch ButtonName, case 'Food', disp('Food is delivered'); case 'Clothing', disp('The Emperor''s new clothes have arrived.') case 'Money', disp('A ton of money falls out the sky.'); end % switch Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

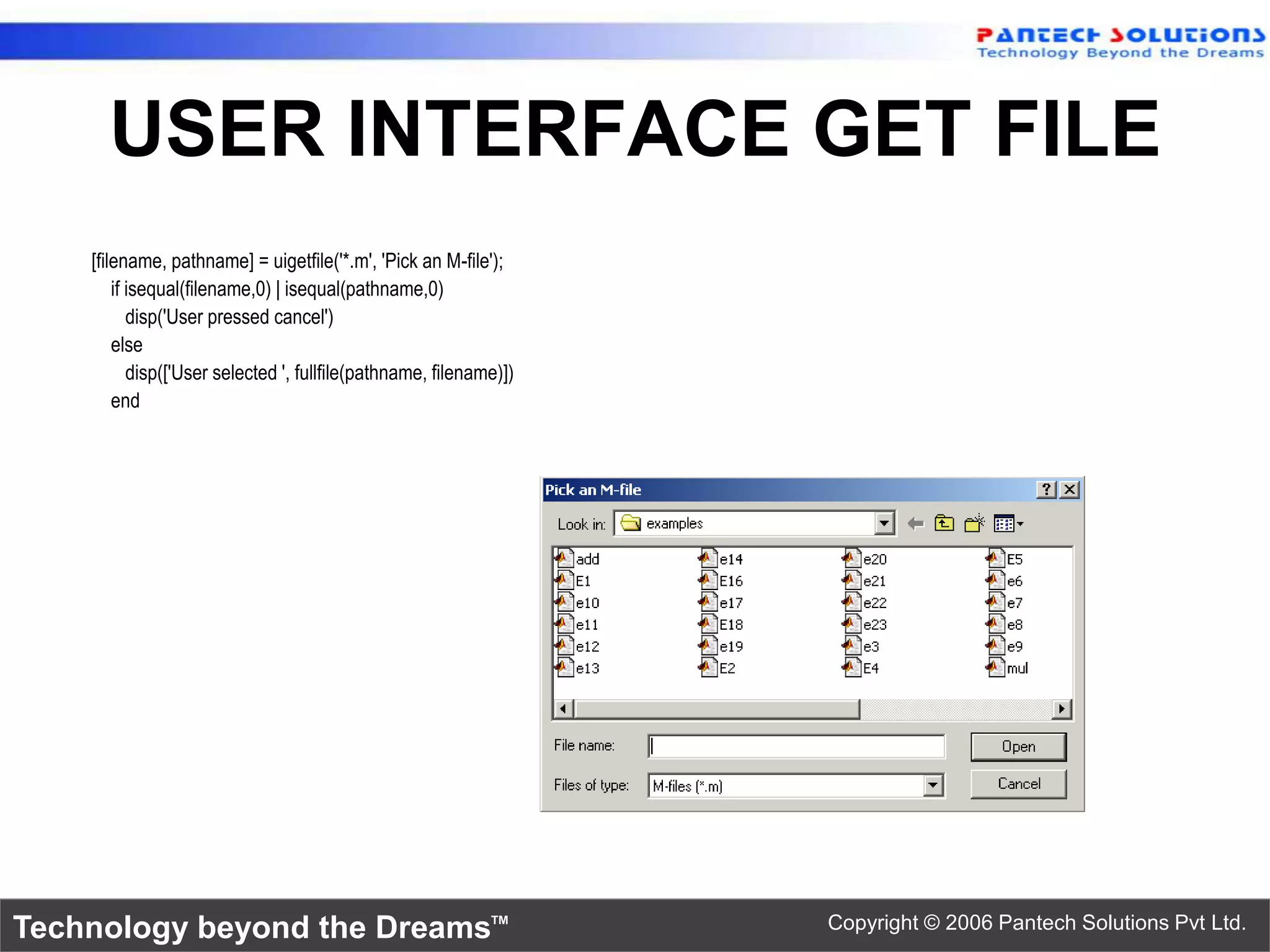

USER INTERFACE GET FILE [filename, pathname] = uigetfile('*.m', 'Pick an M-file'); if isequal(filename,0) | isequal(pathname,0) disp('User pressed cancel') else disp(['User selected ', fullfile(pathname, filename)]) end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

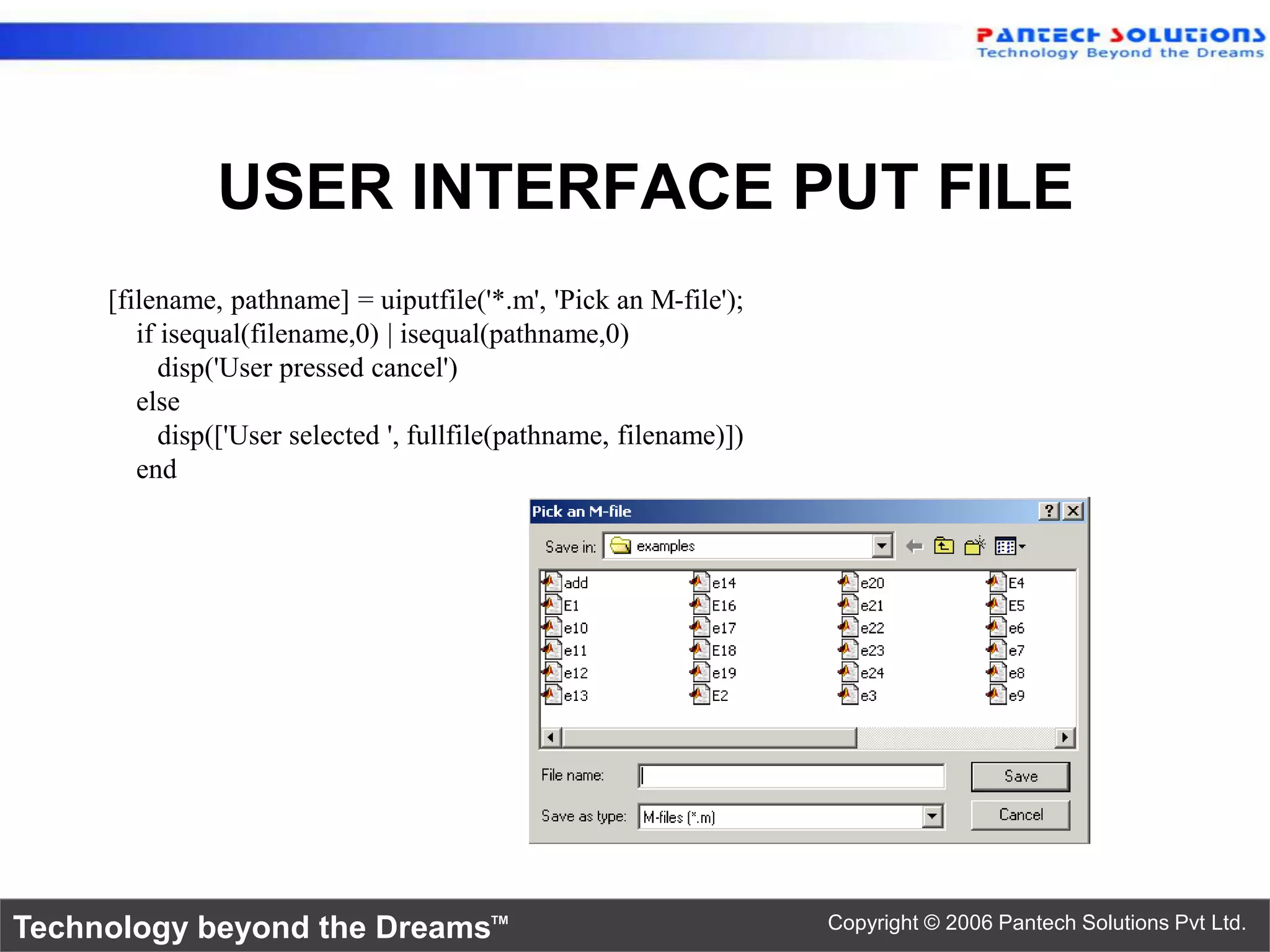

USER INTERFACE PUT FILE [filename, pathname] = uiputfile('*.m', 'Pick an M-file'); if isequal(filename,0) | isequal(pathname,0) disp('User pressed cancel') else disp(['User selected ', fullfile(pathname, filename)]) end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

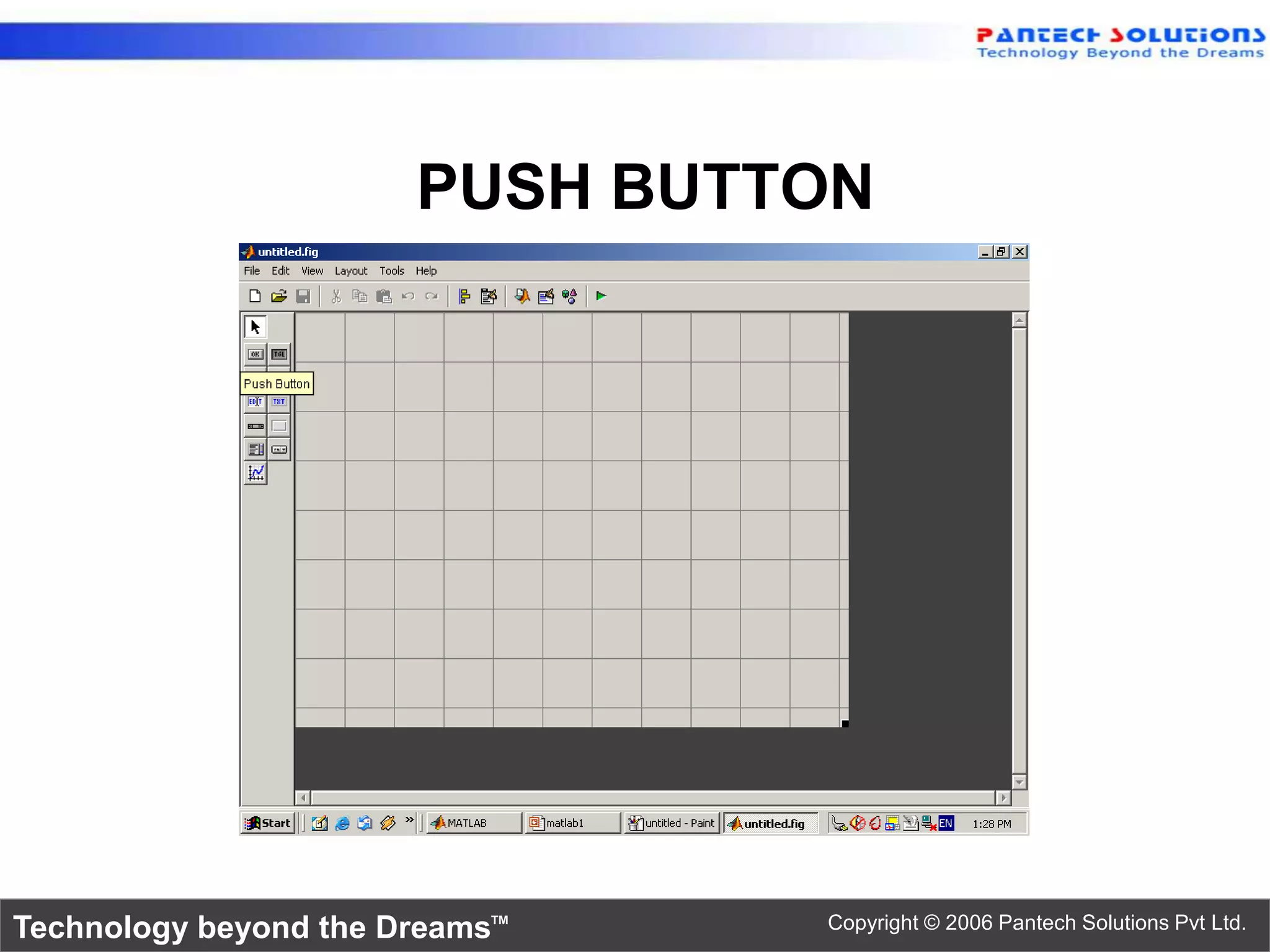

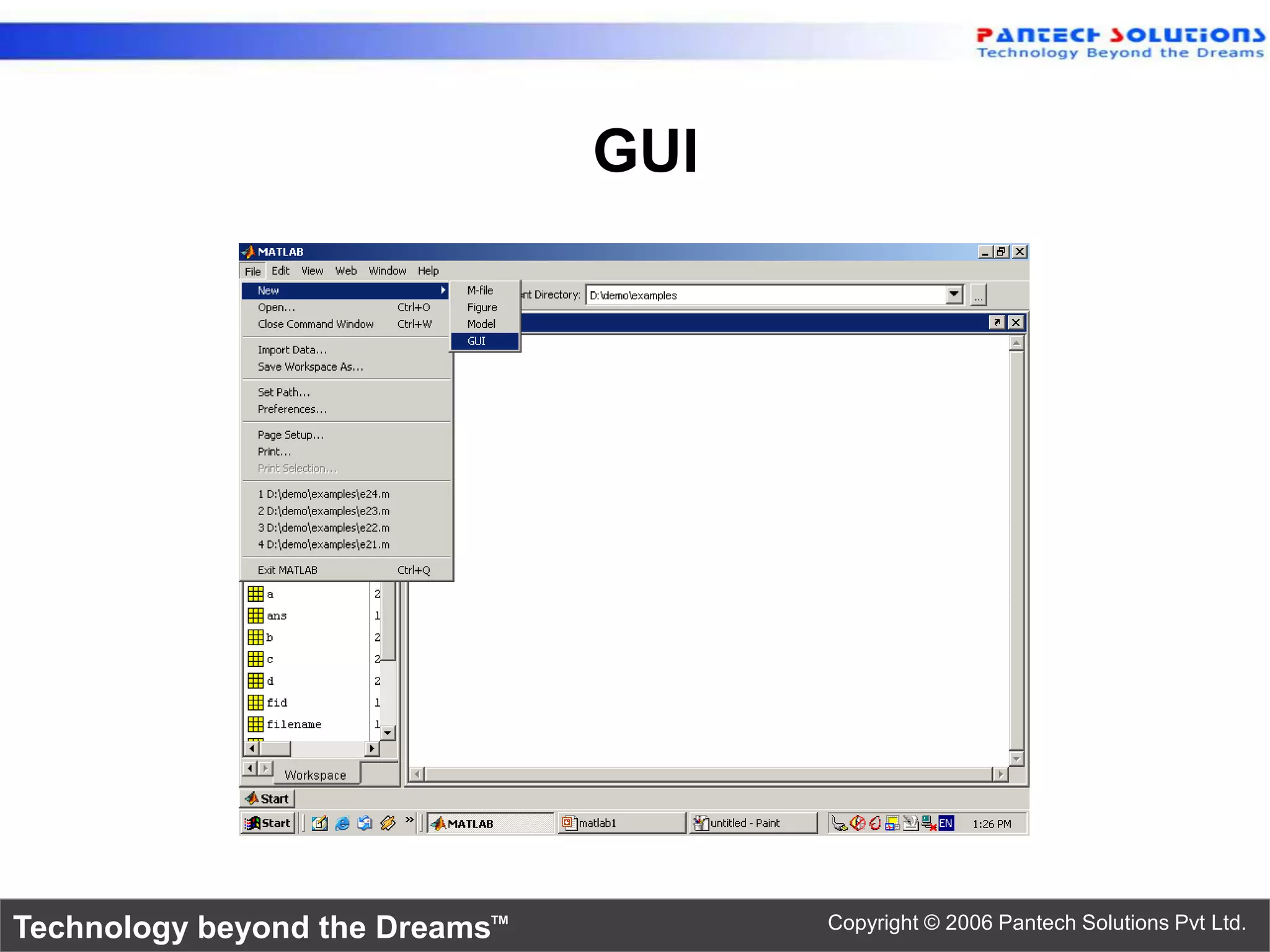

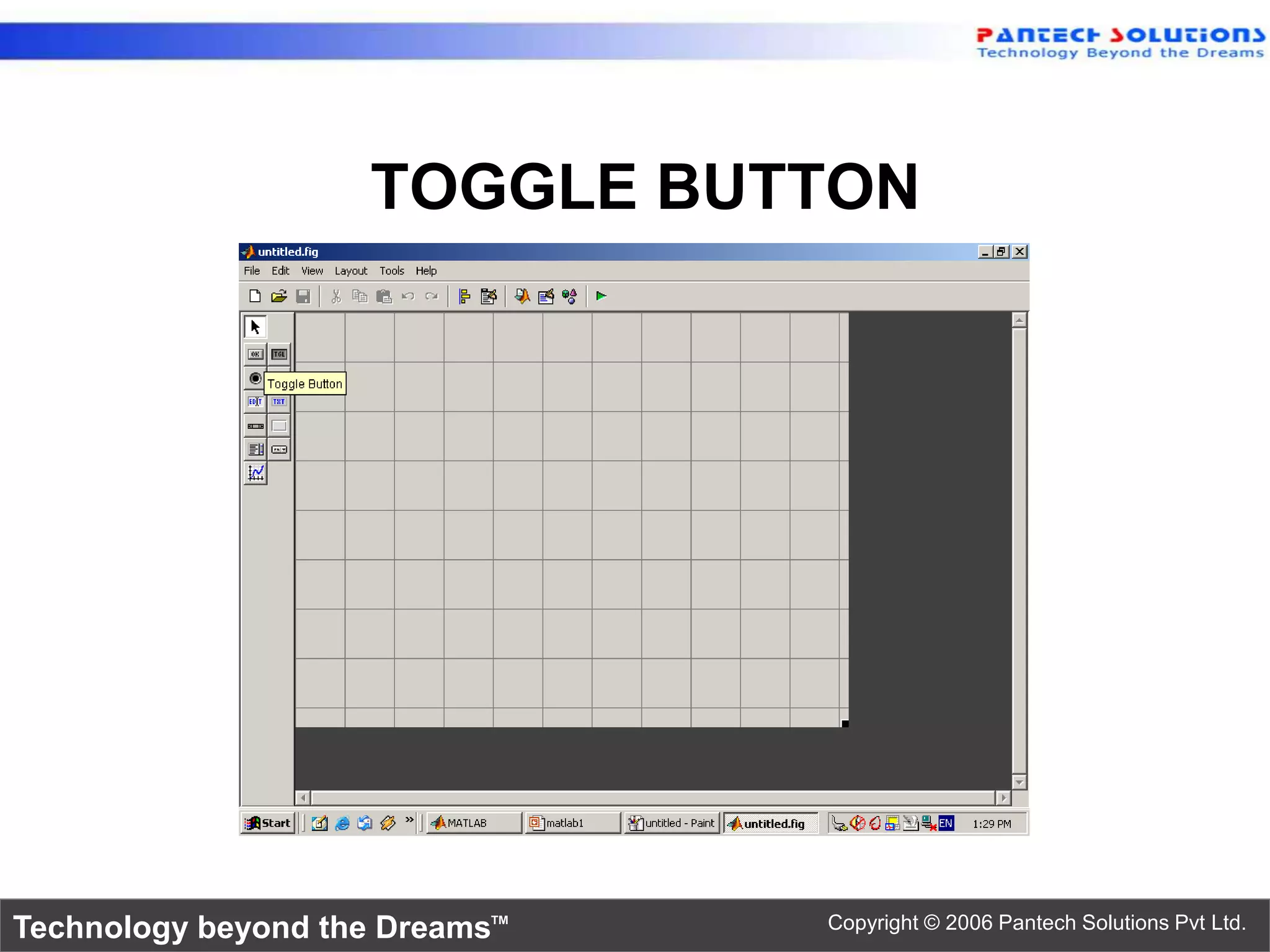

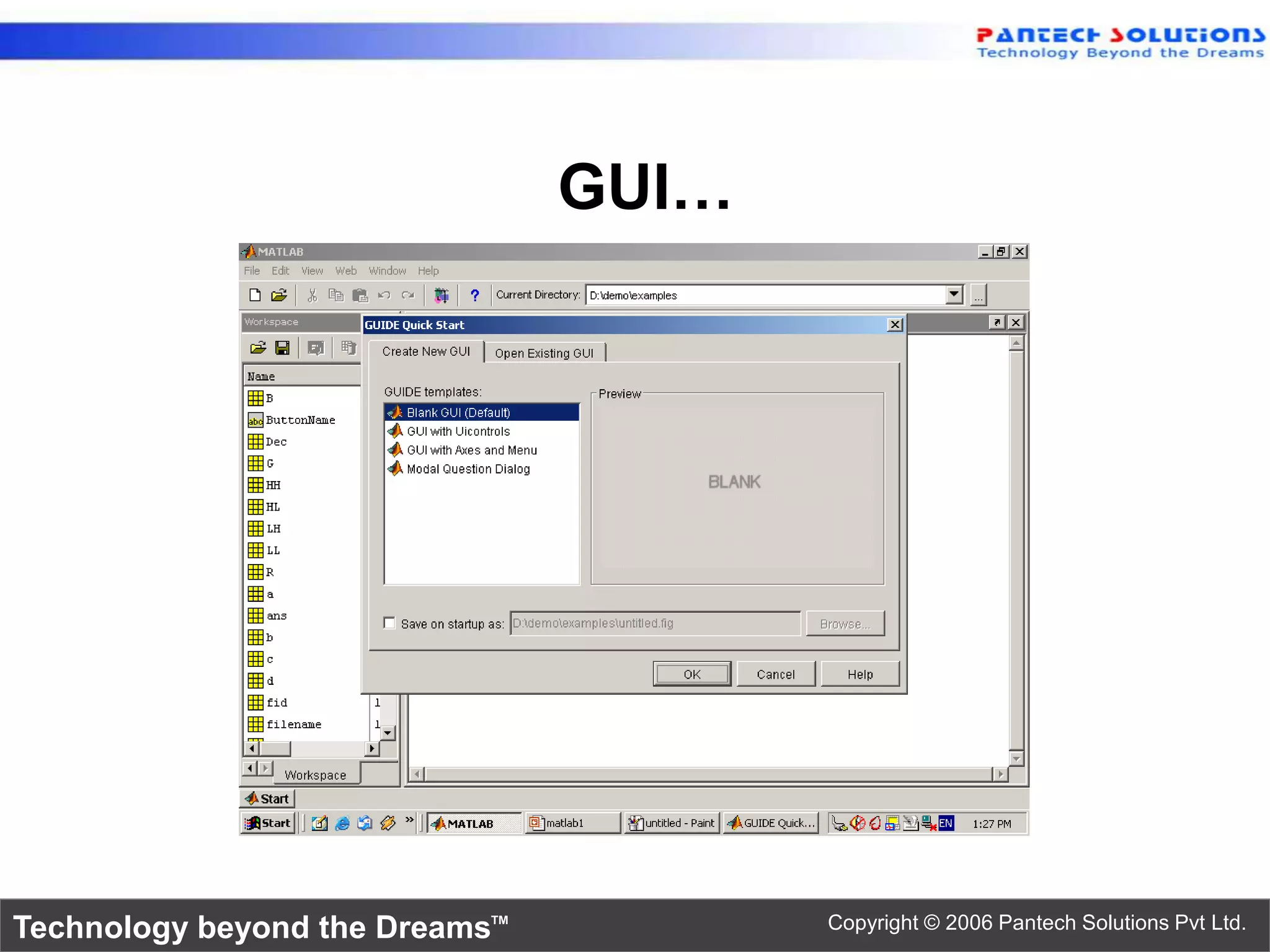

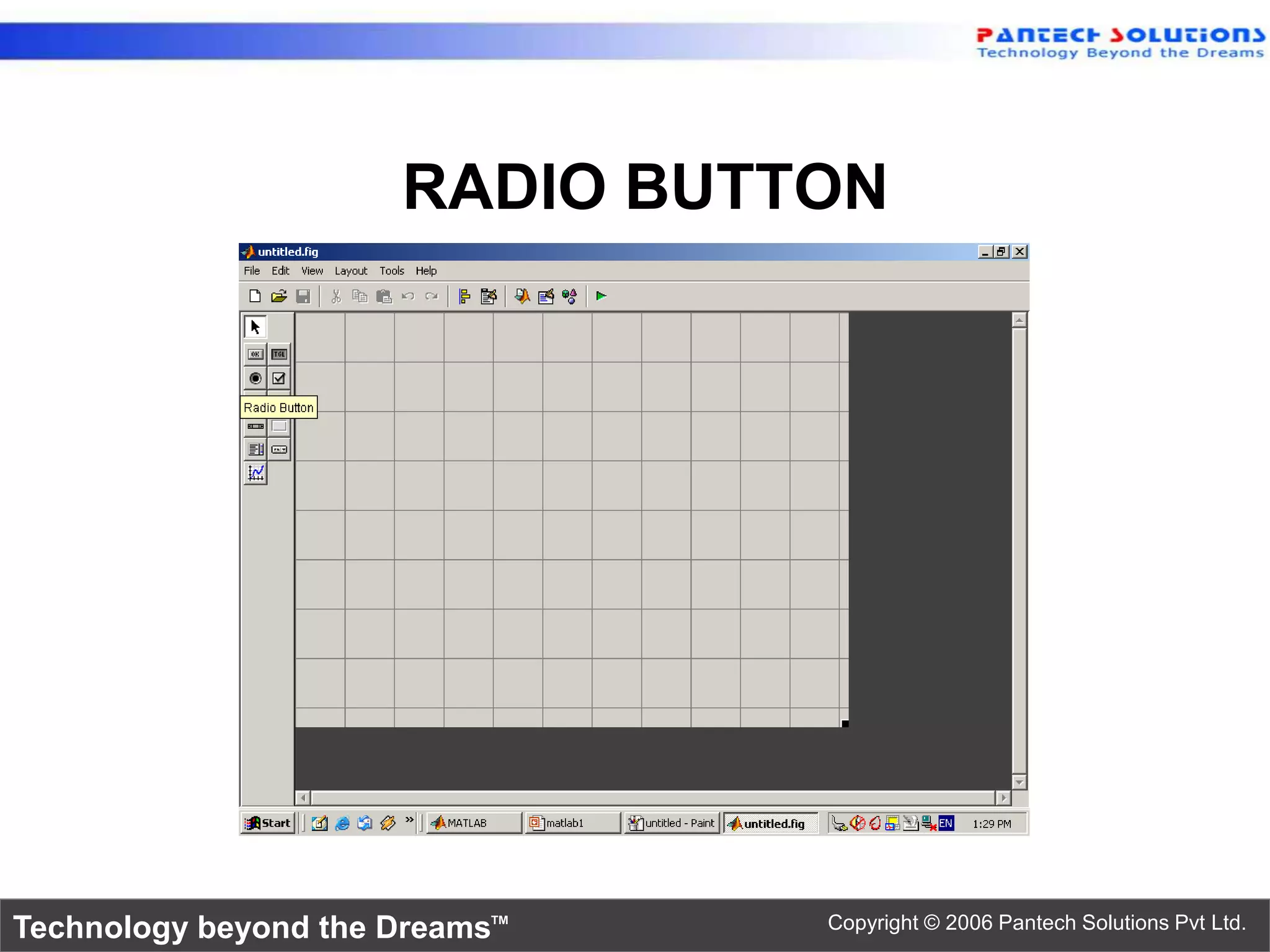

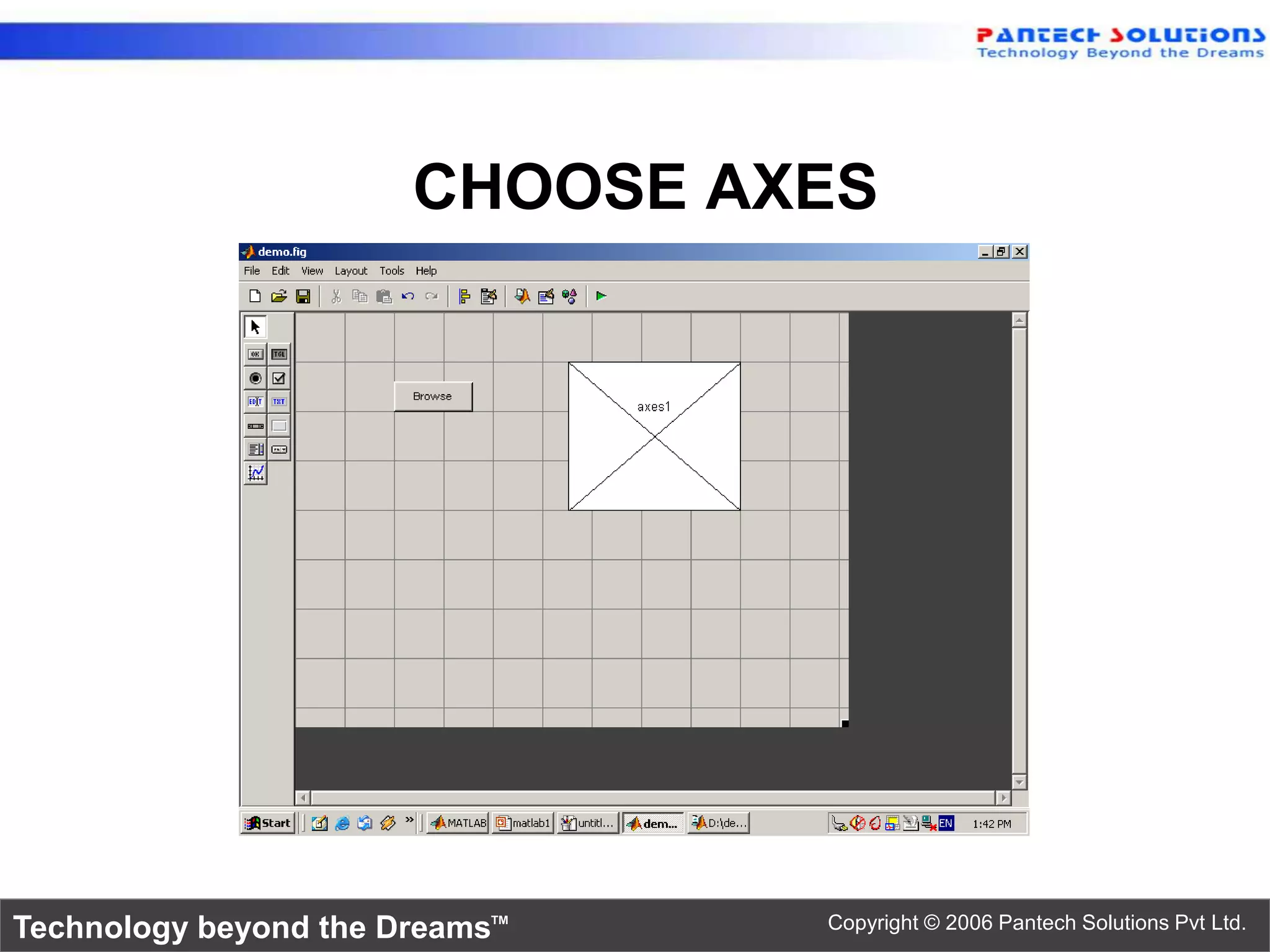

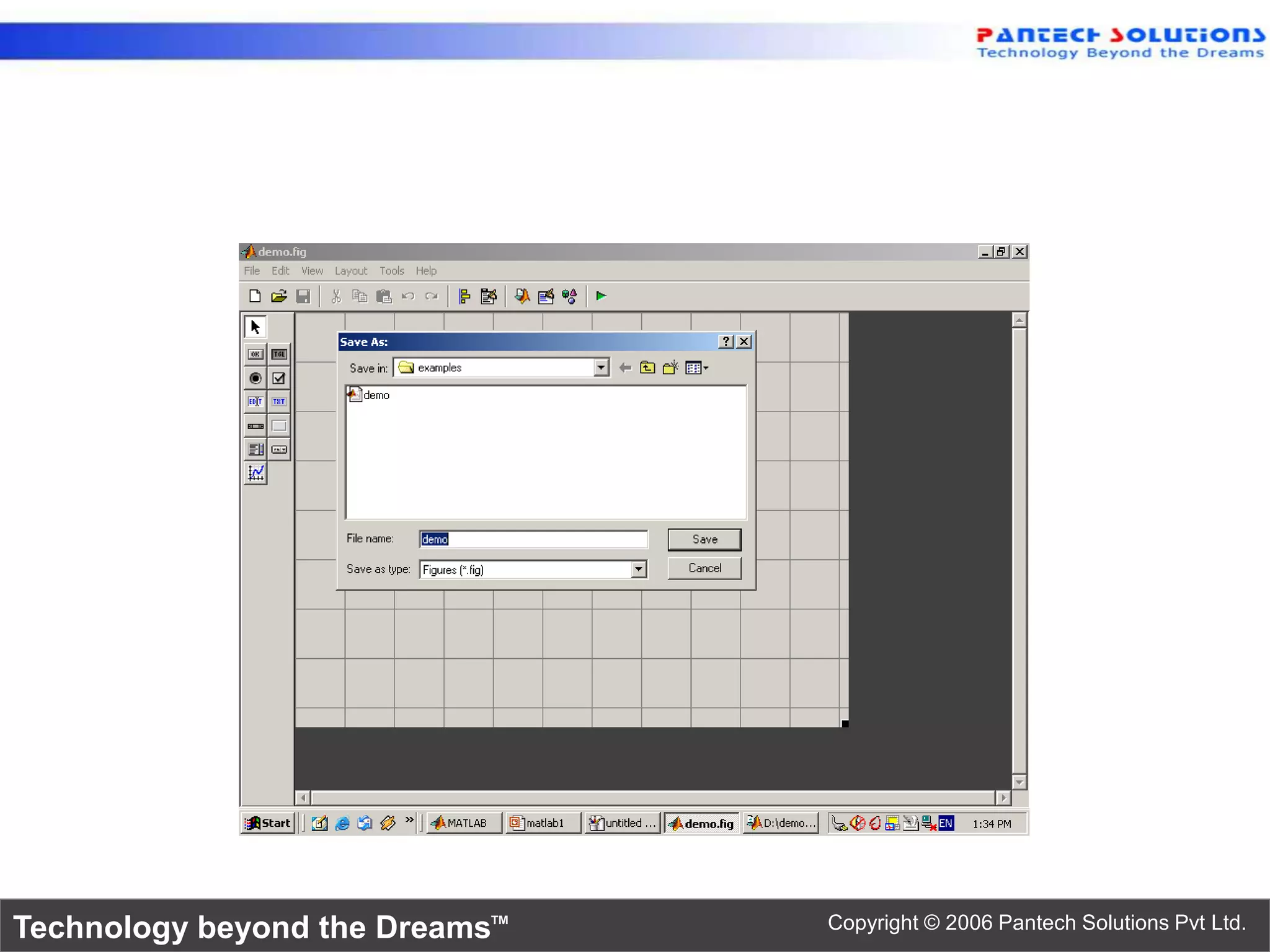

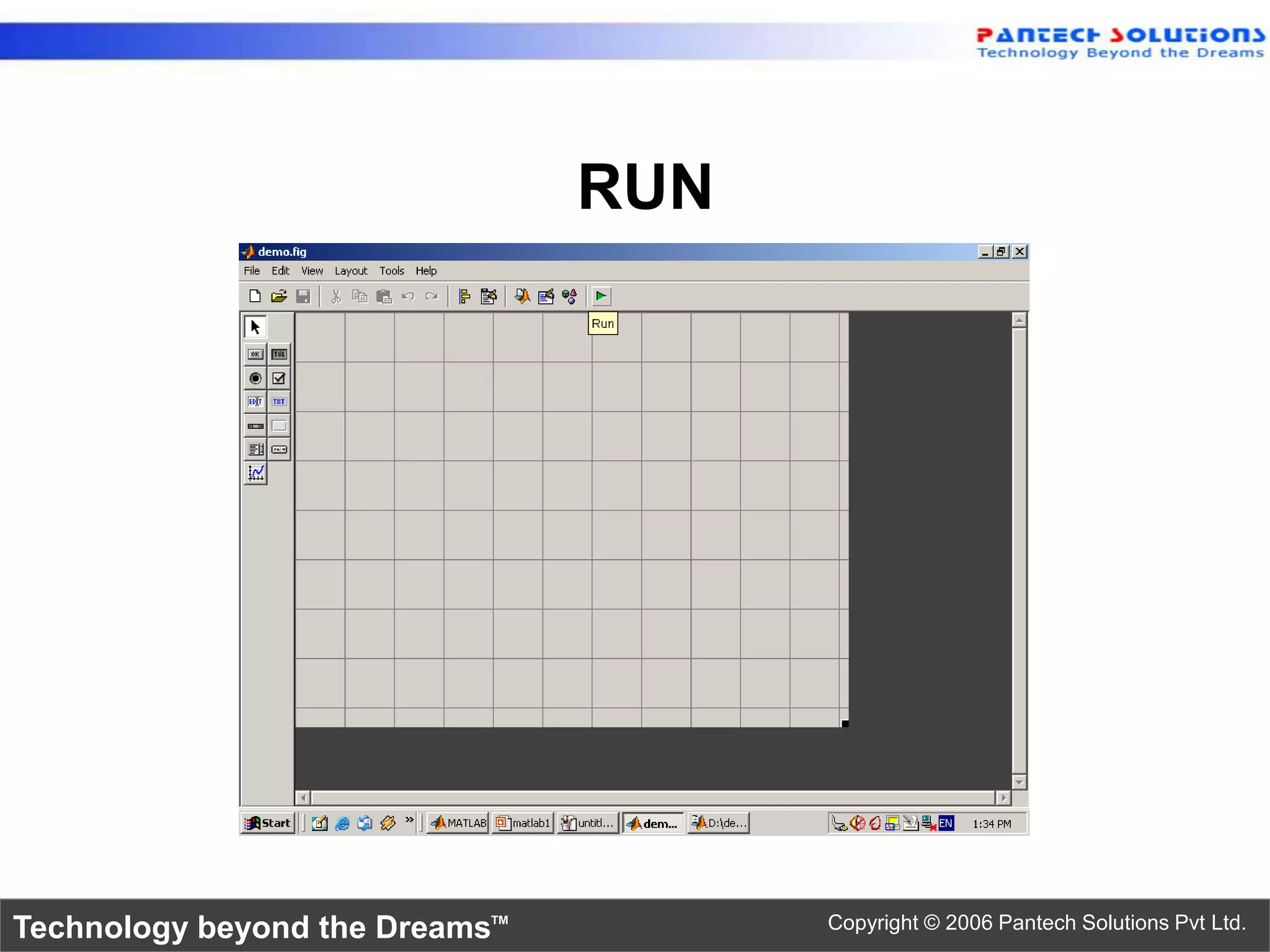

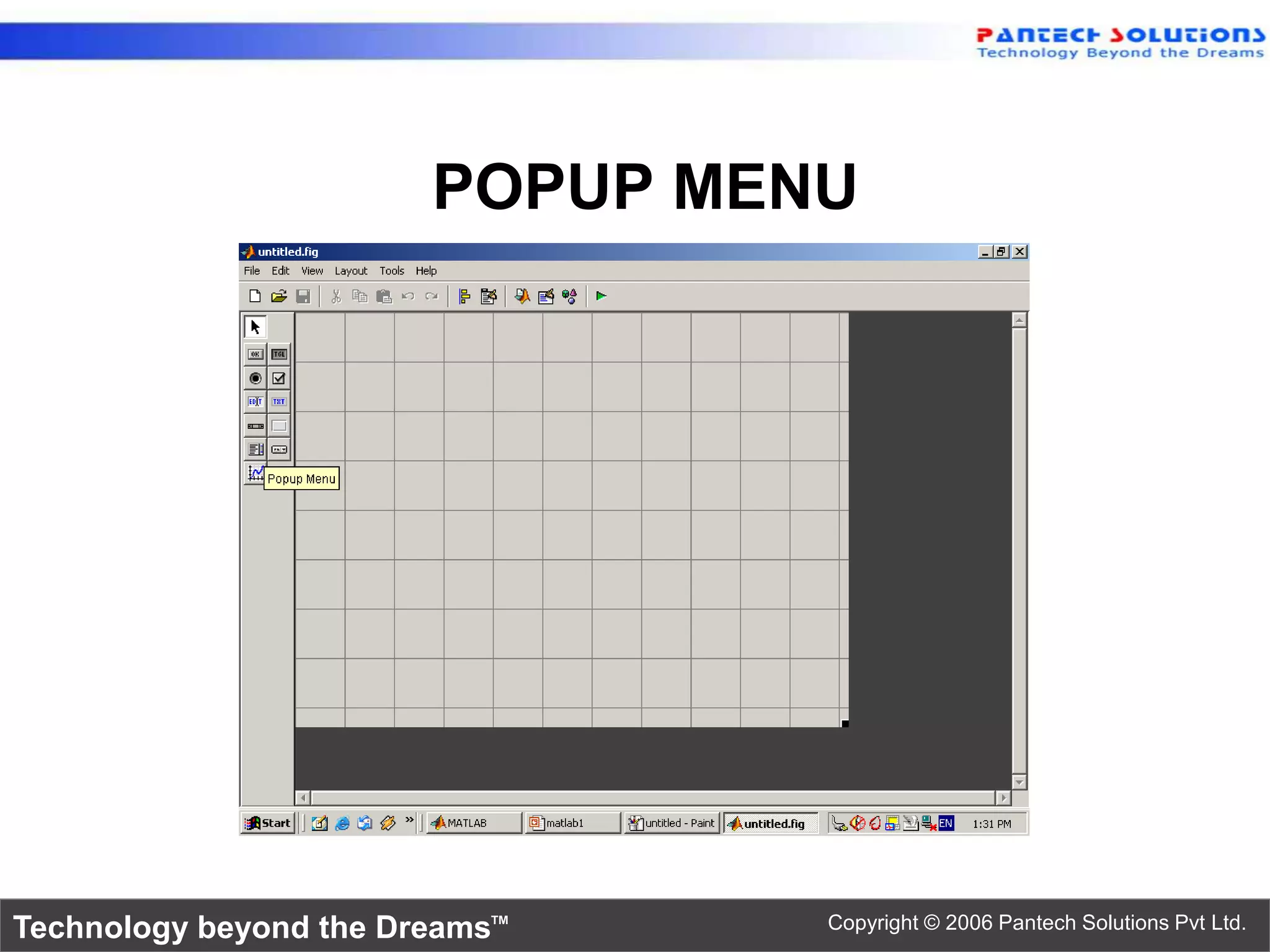

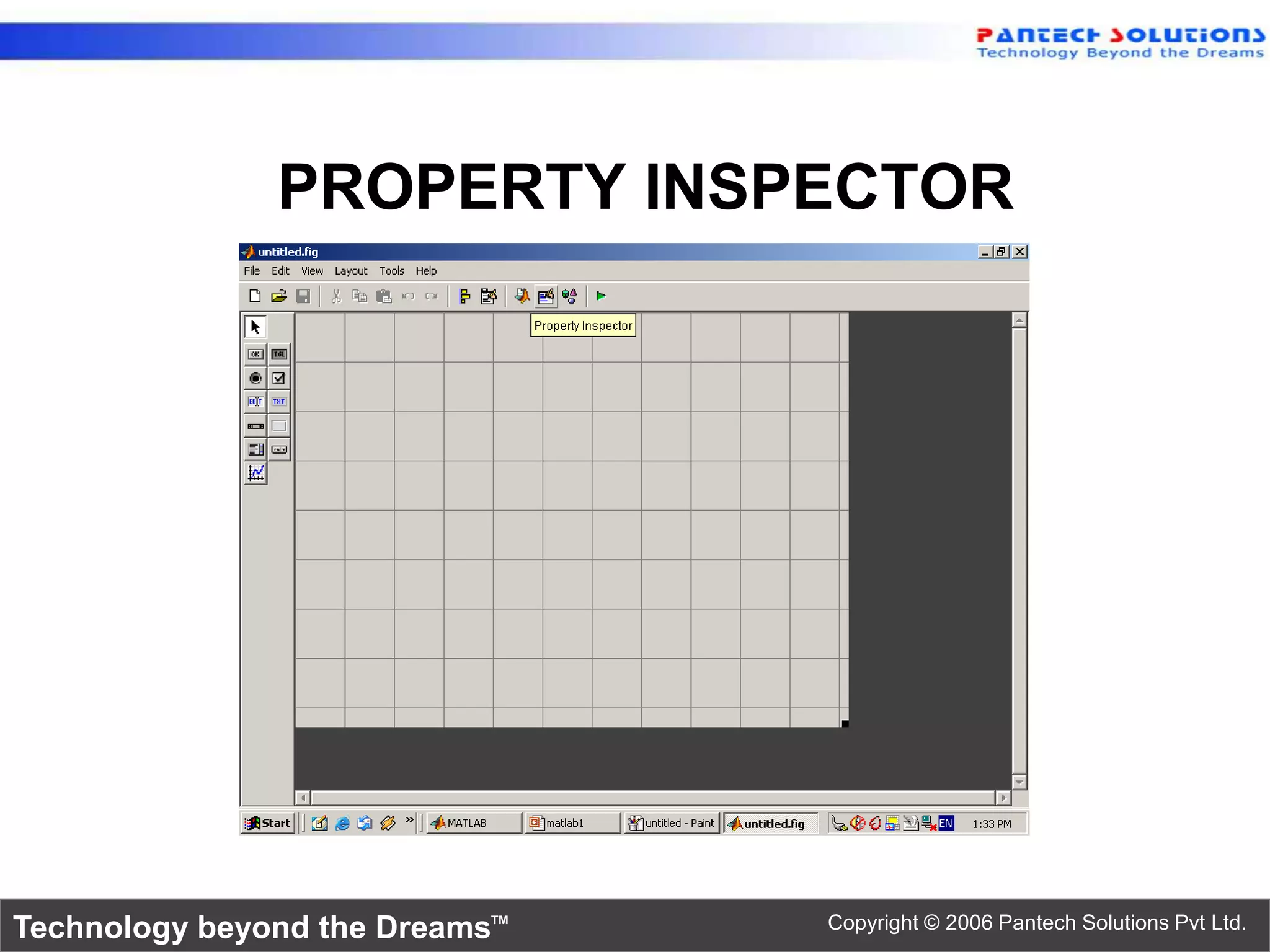

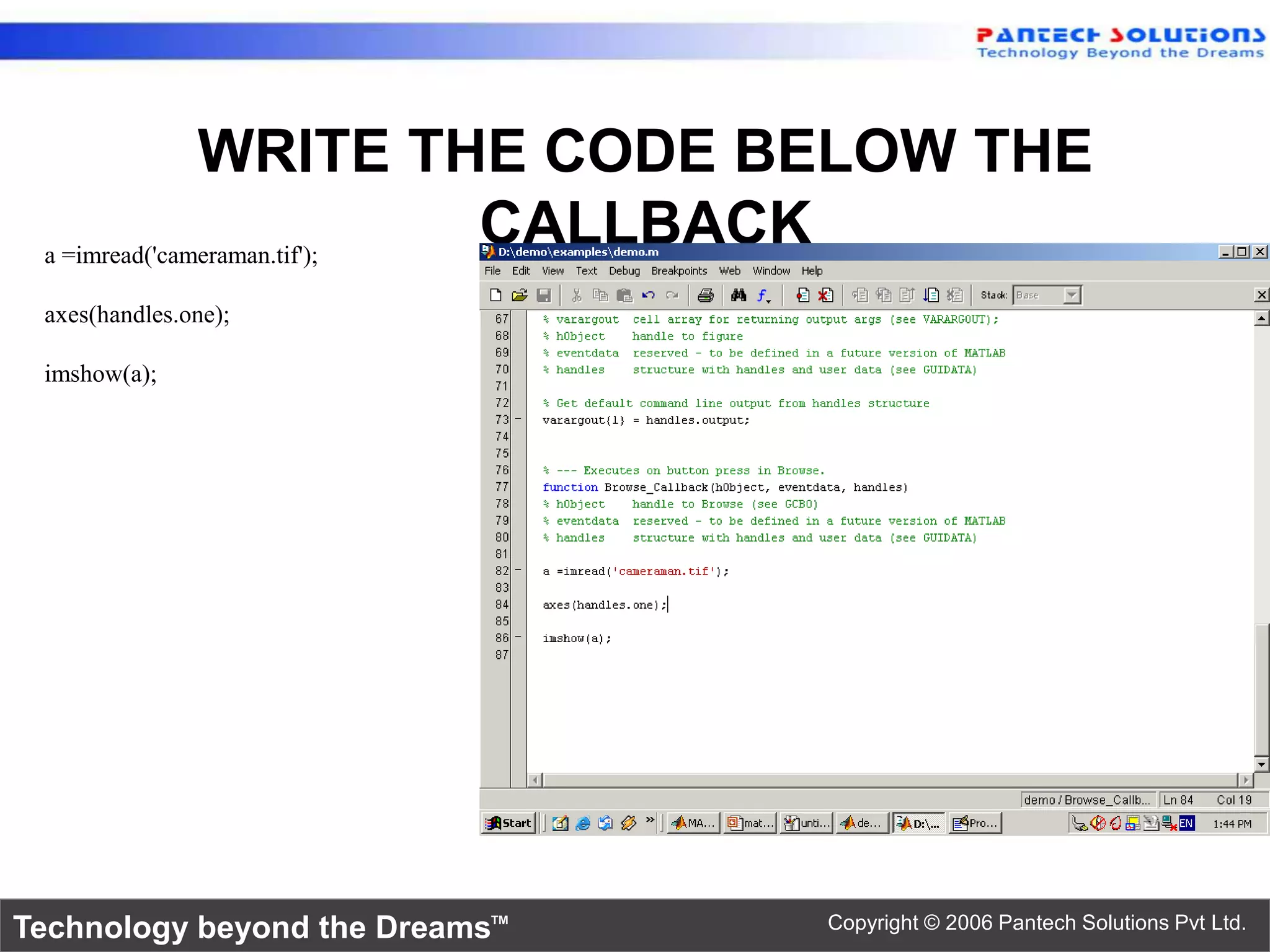

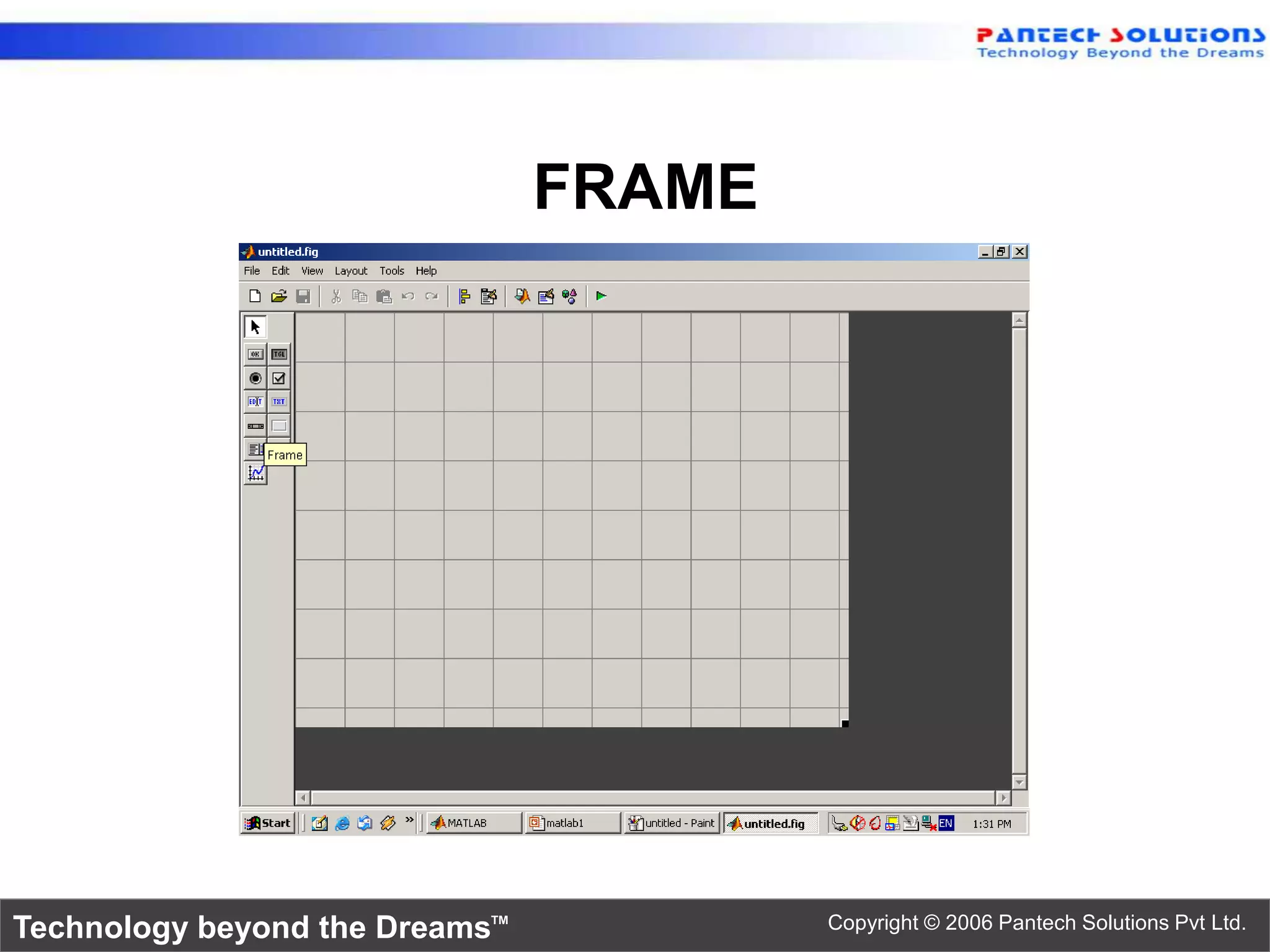

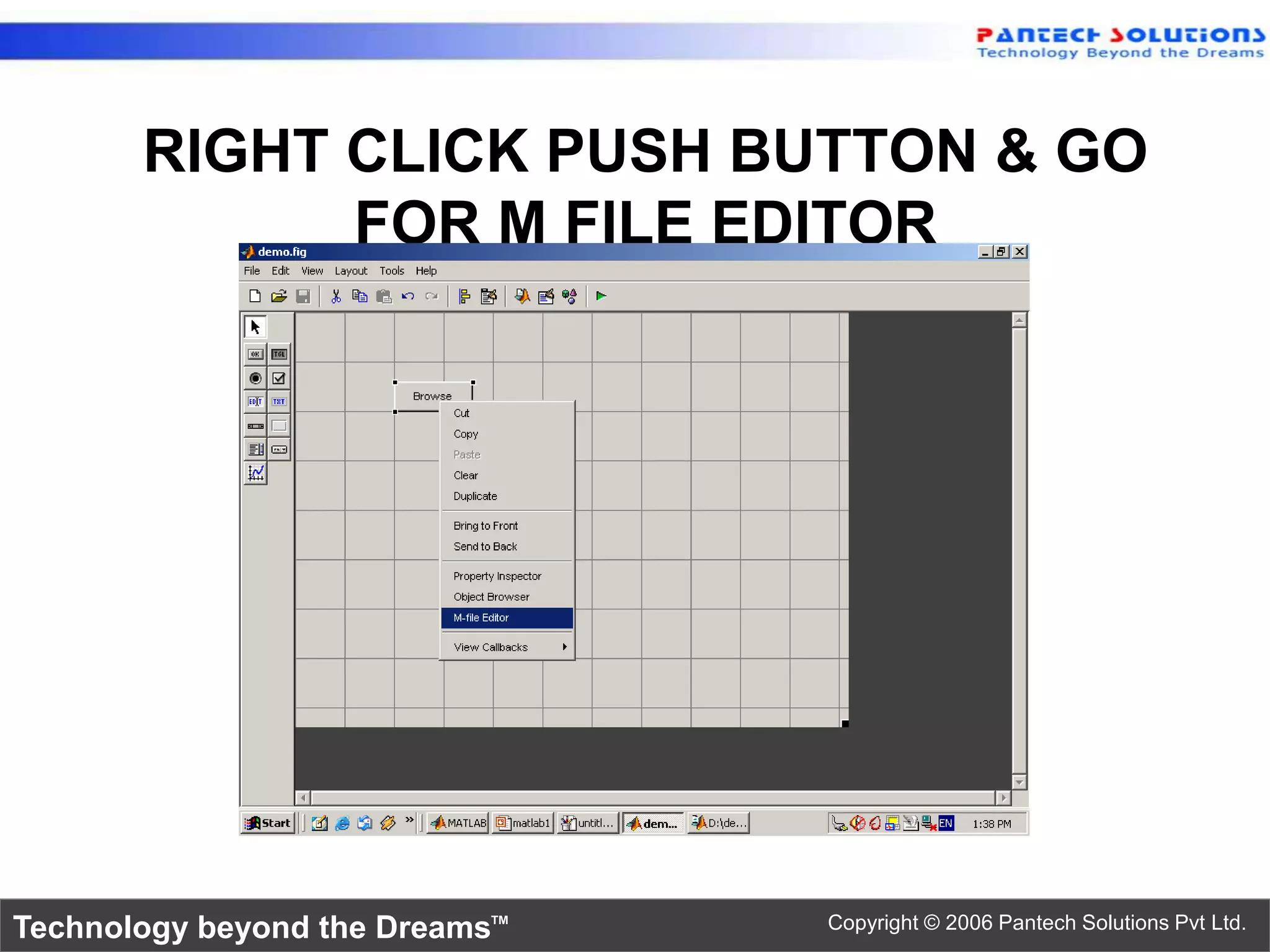

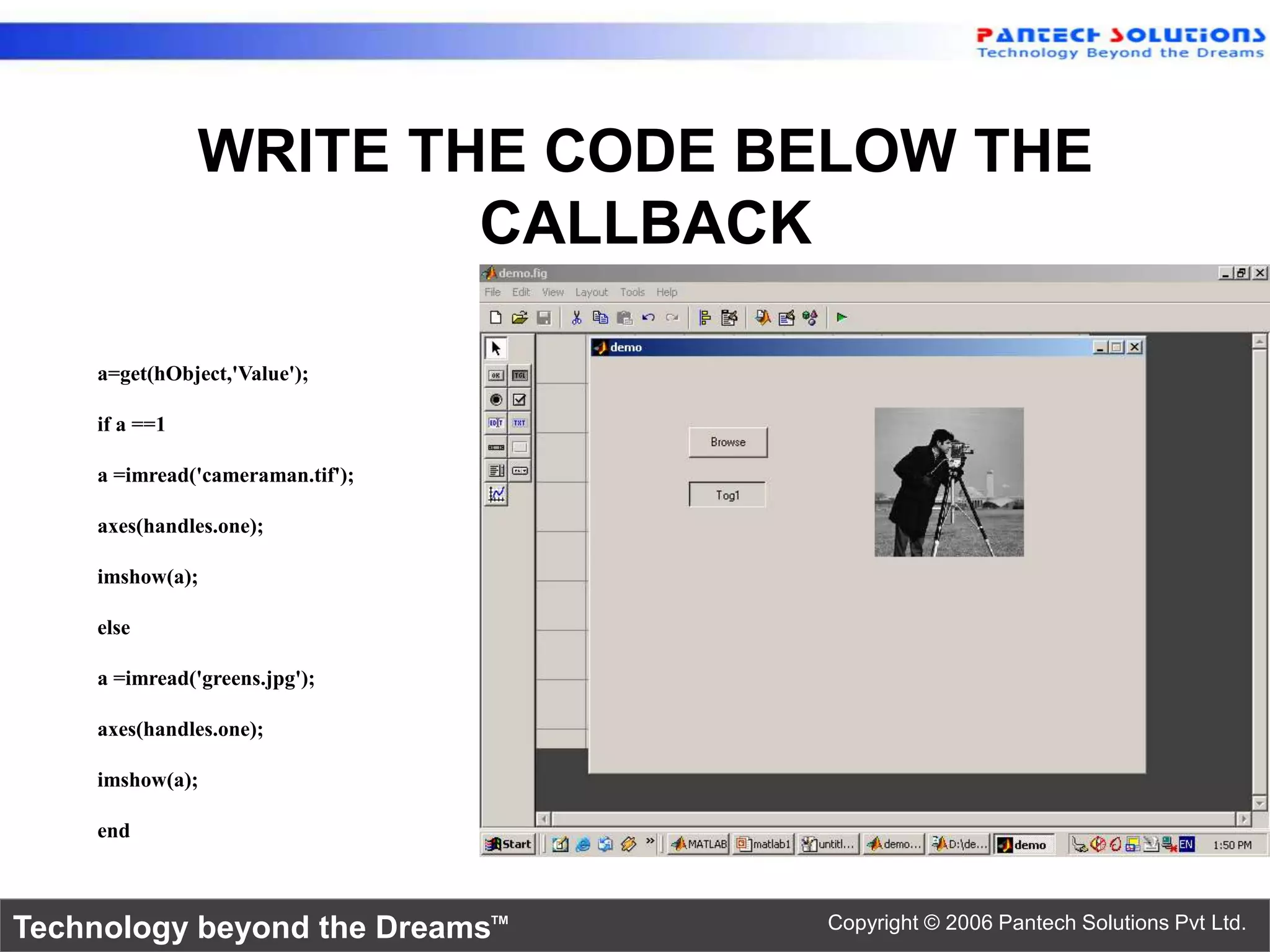

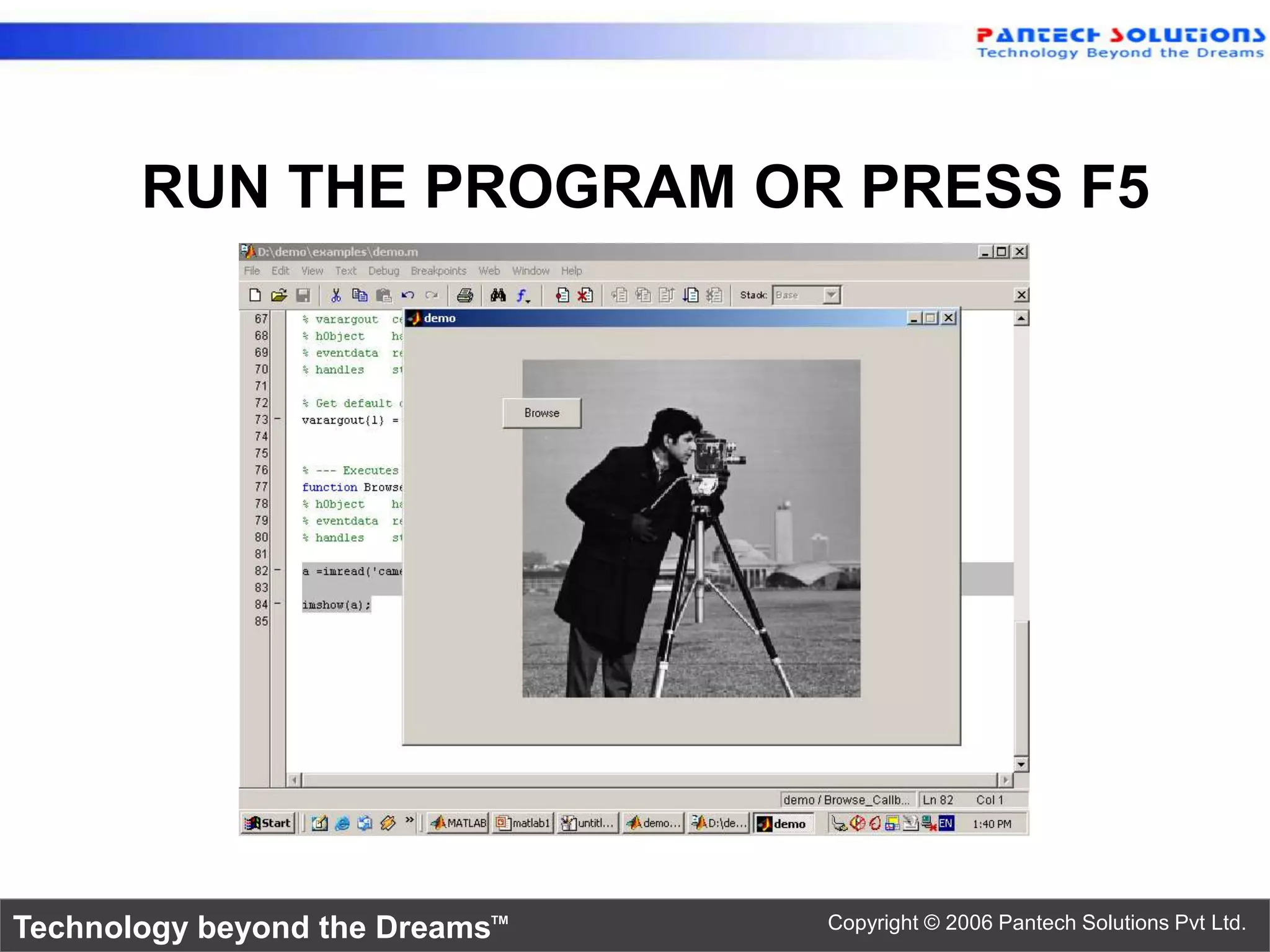

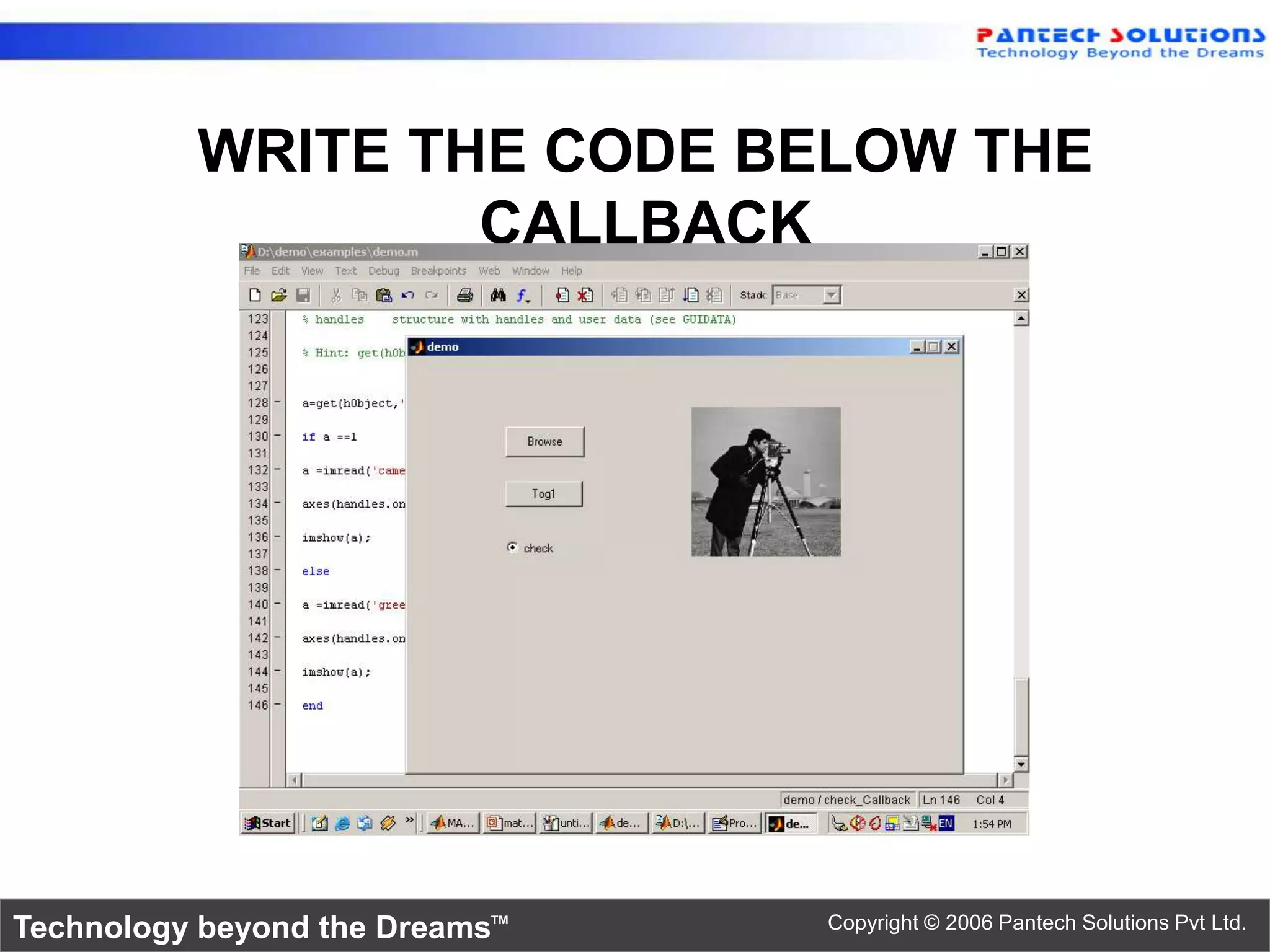

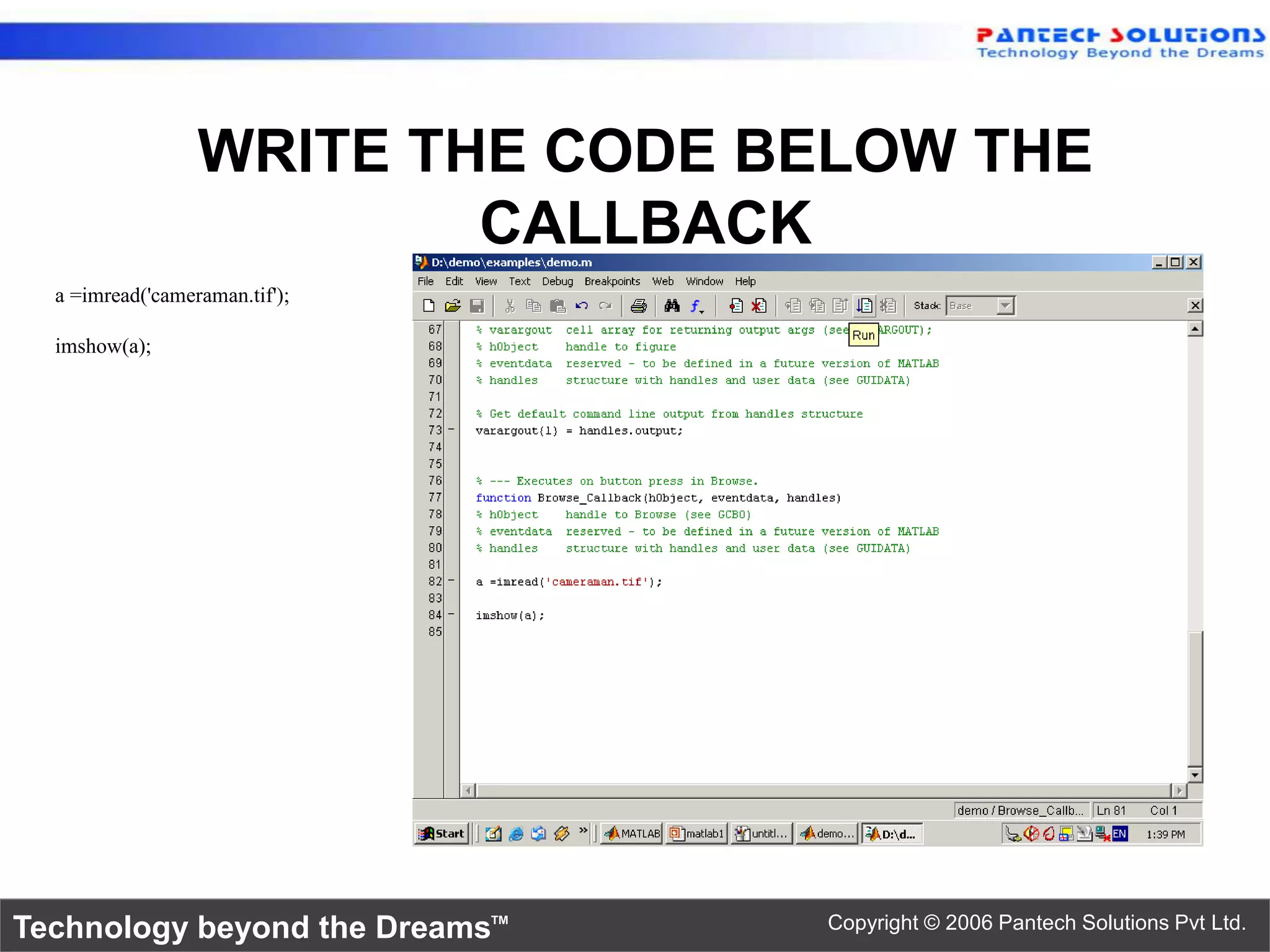

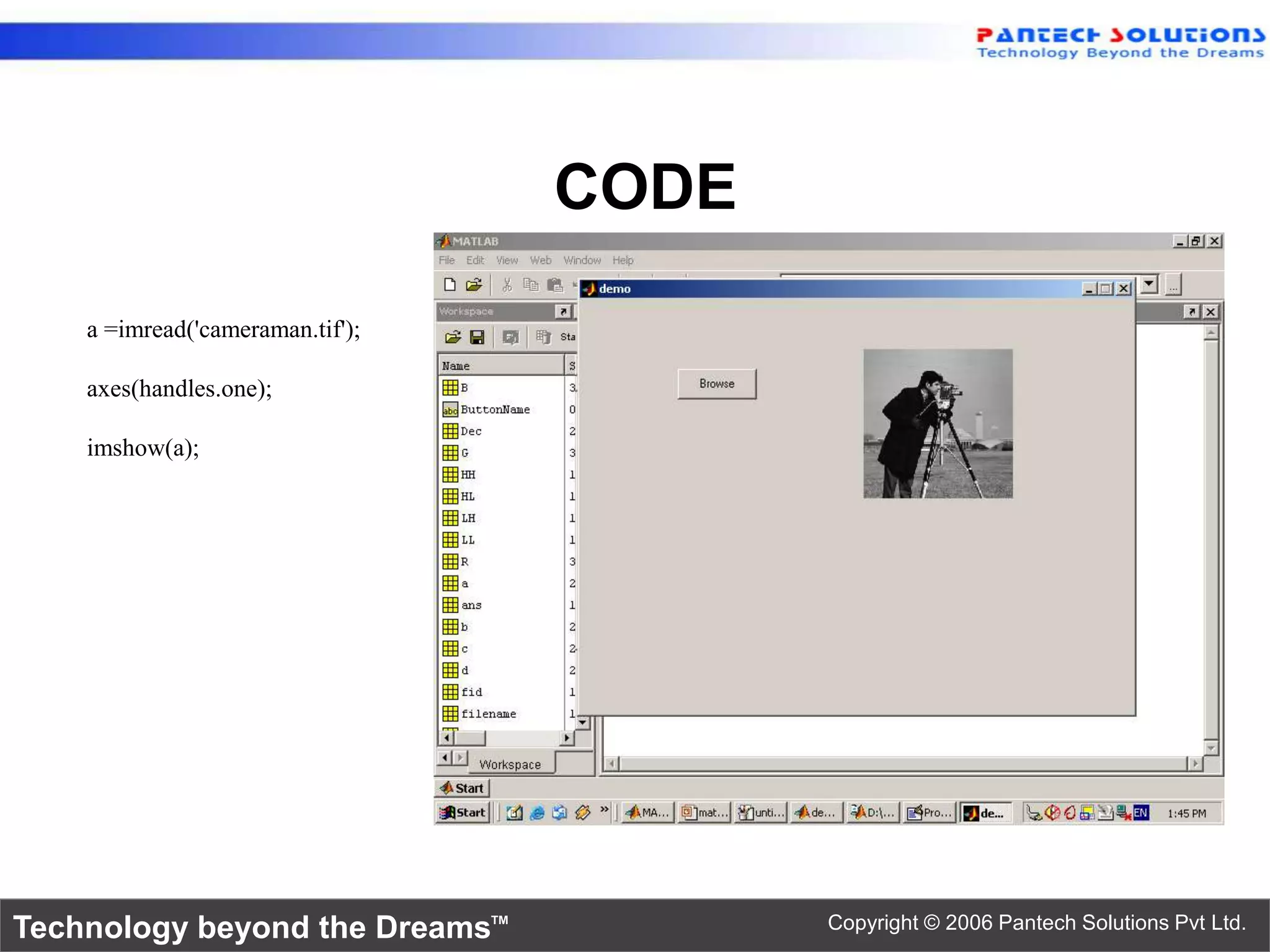

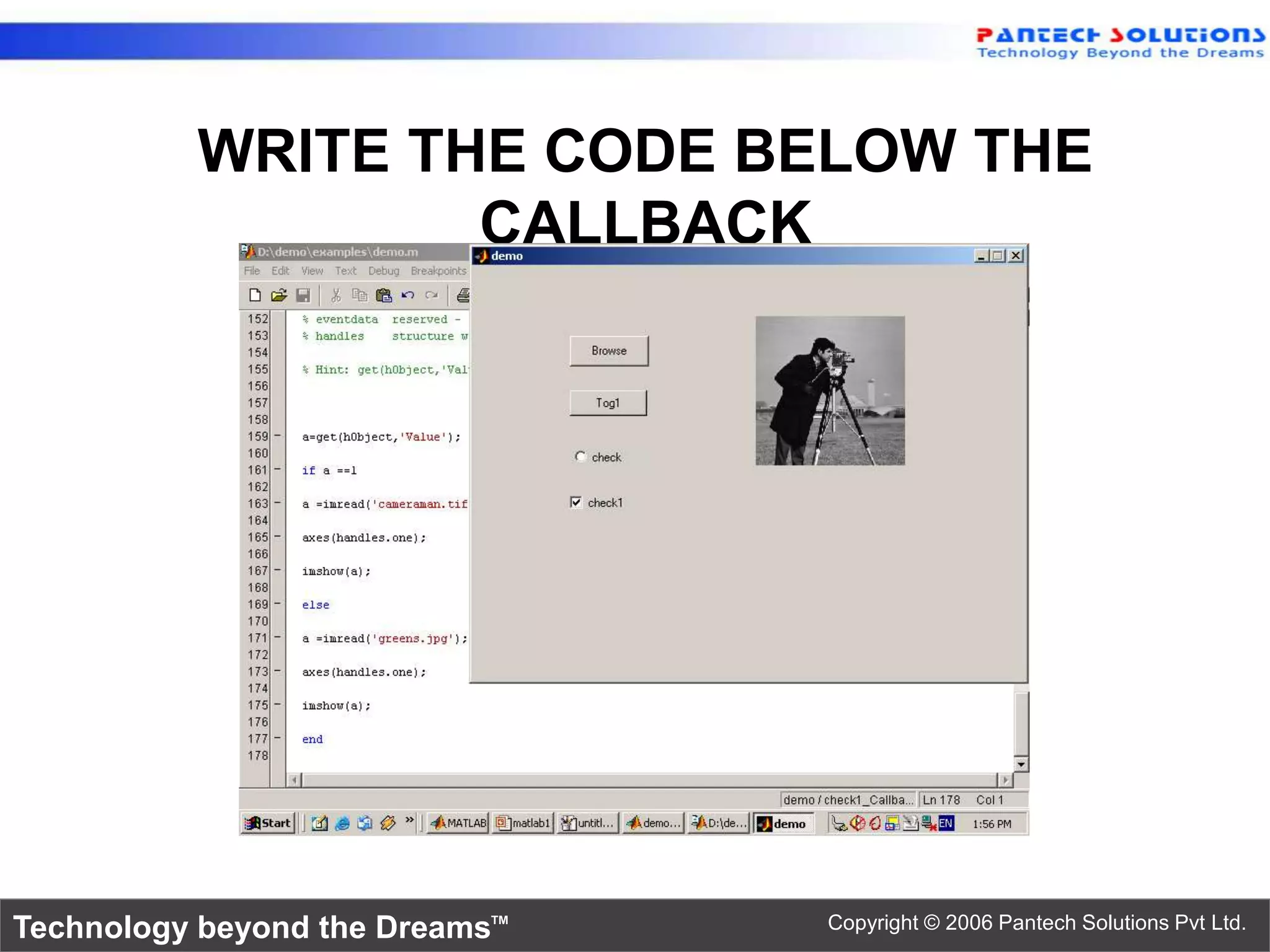

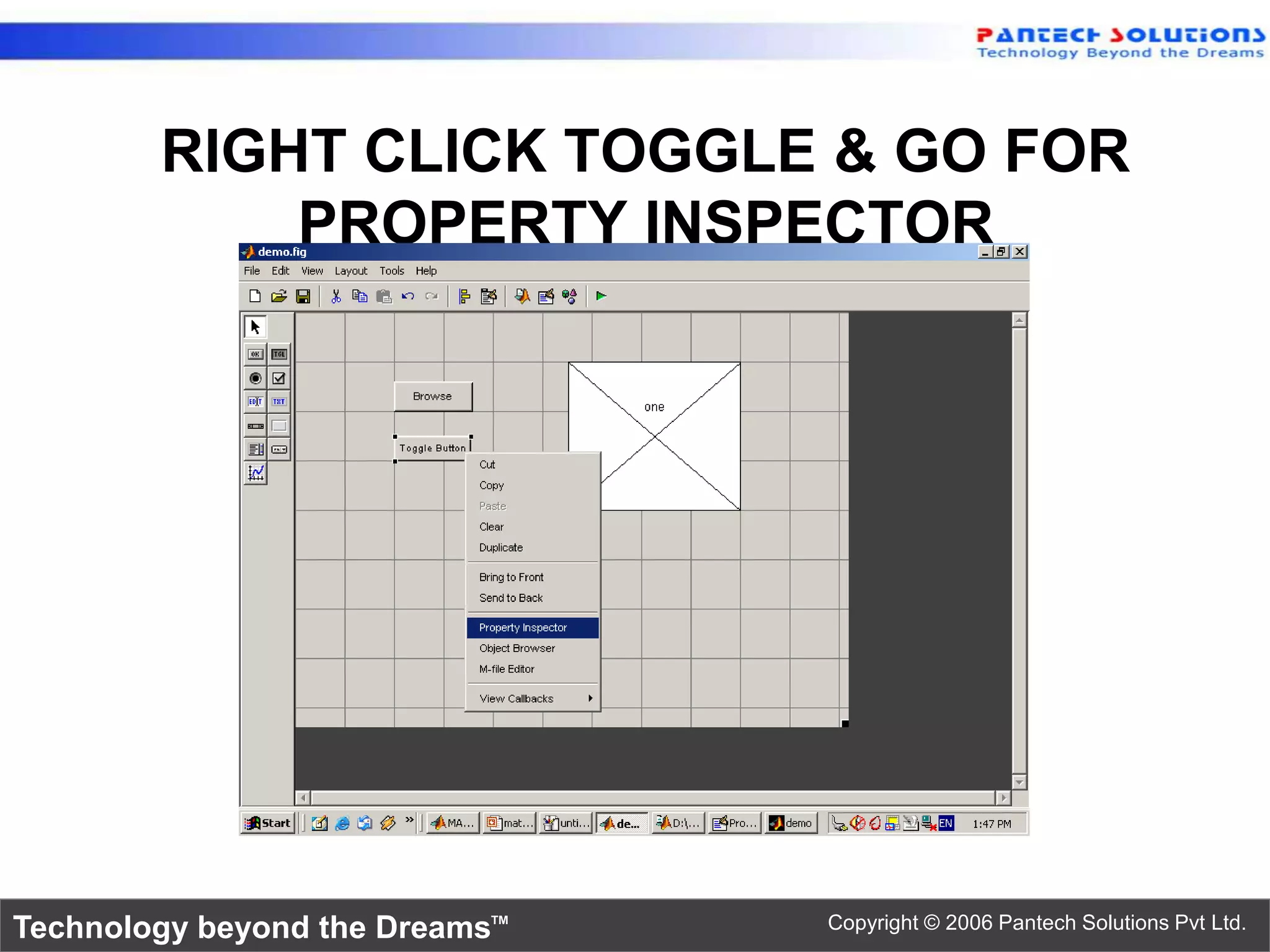

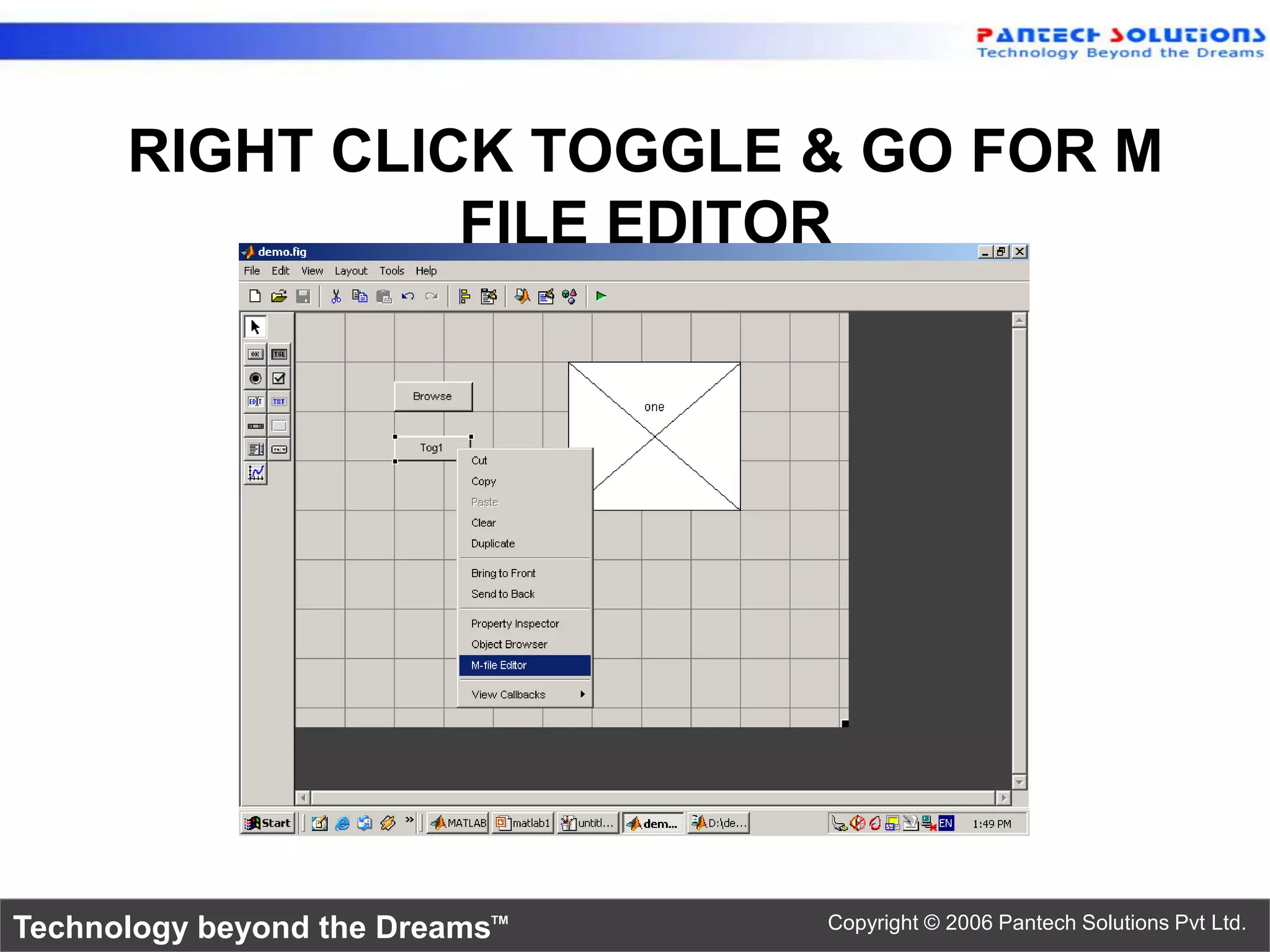

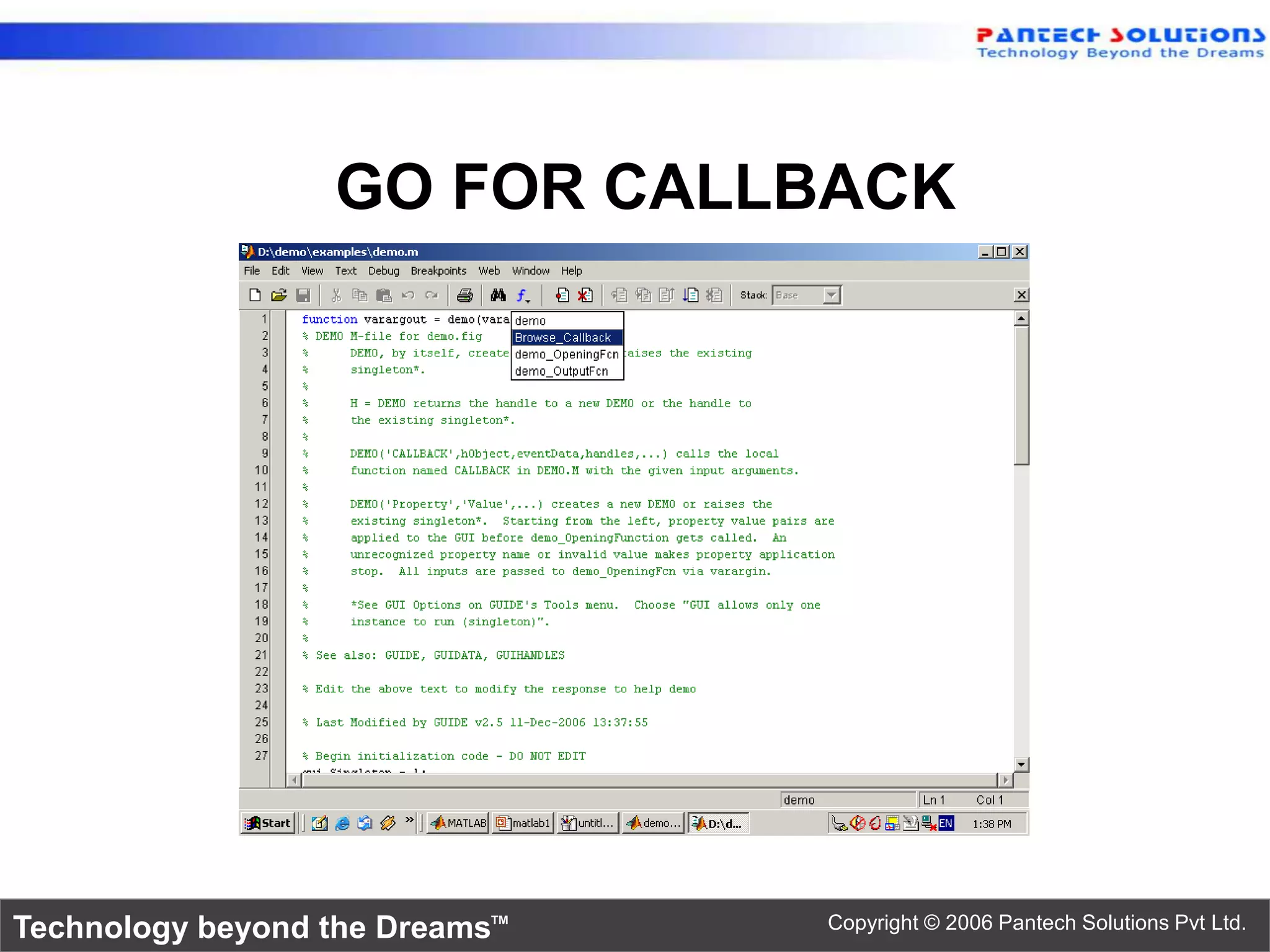

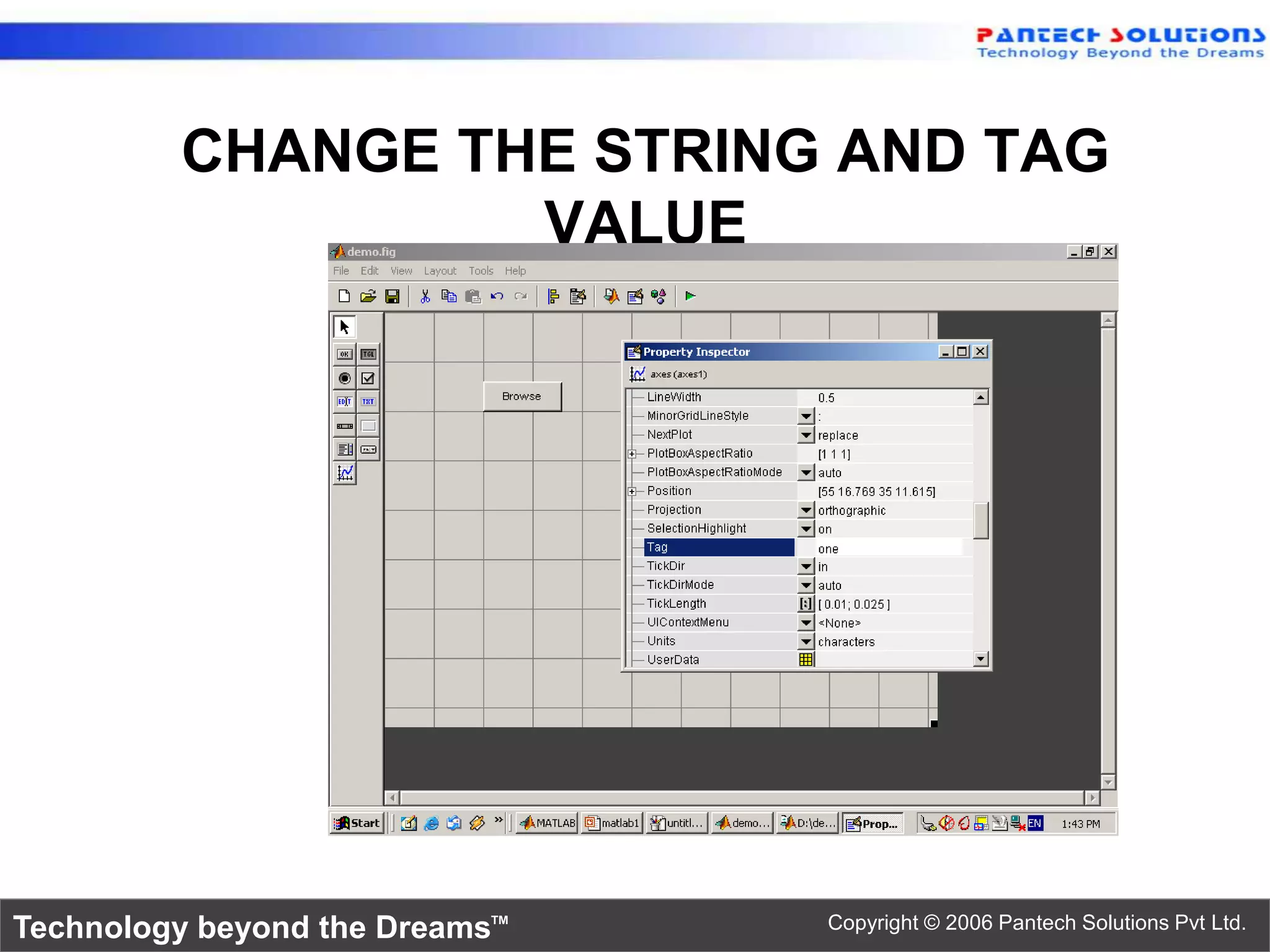

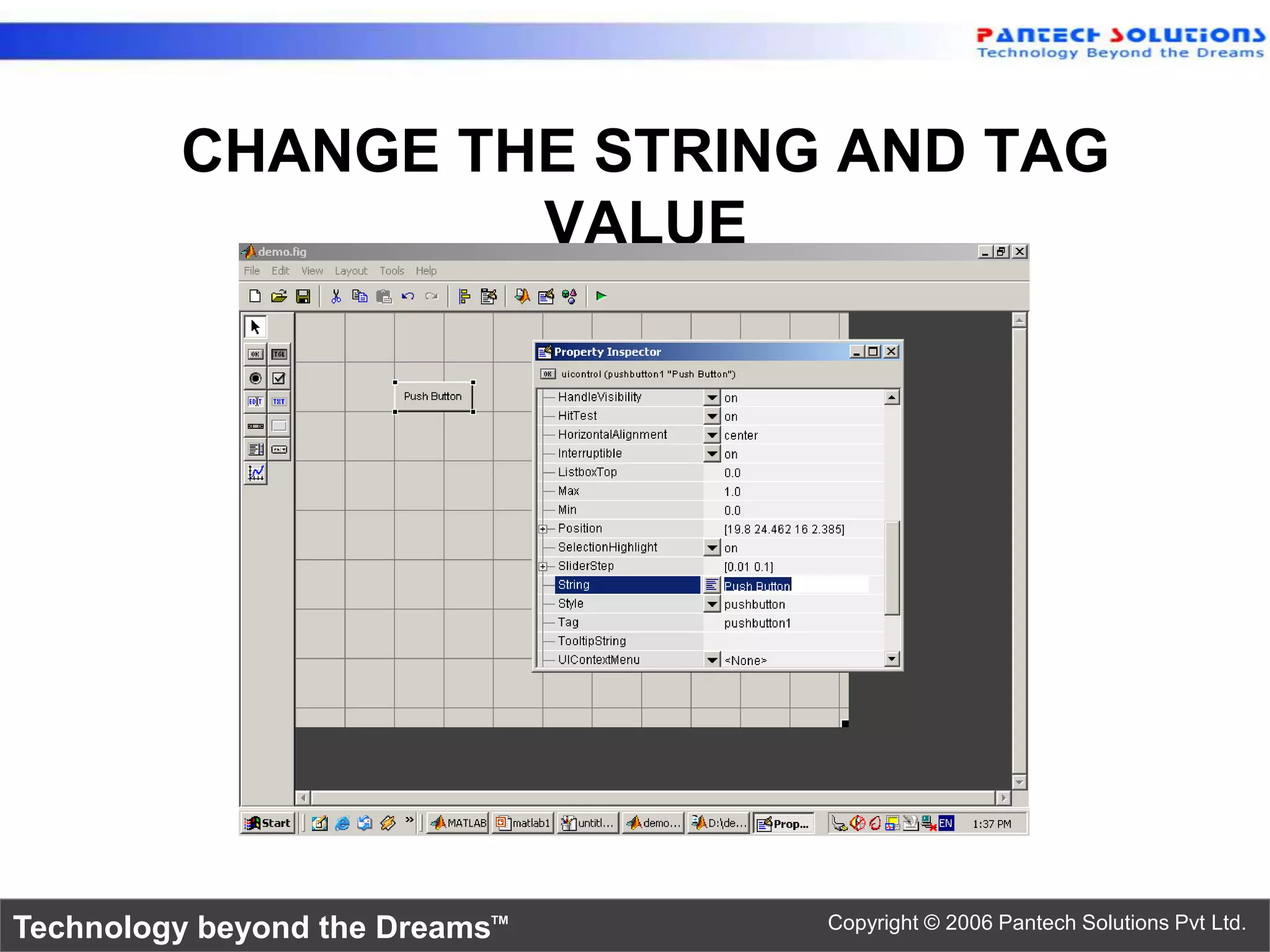

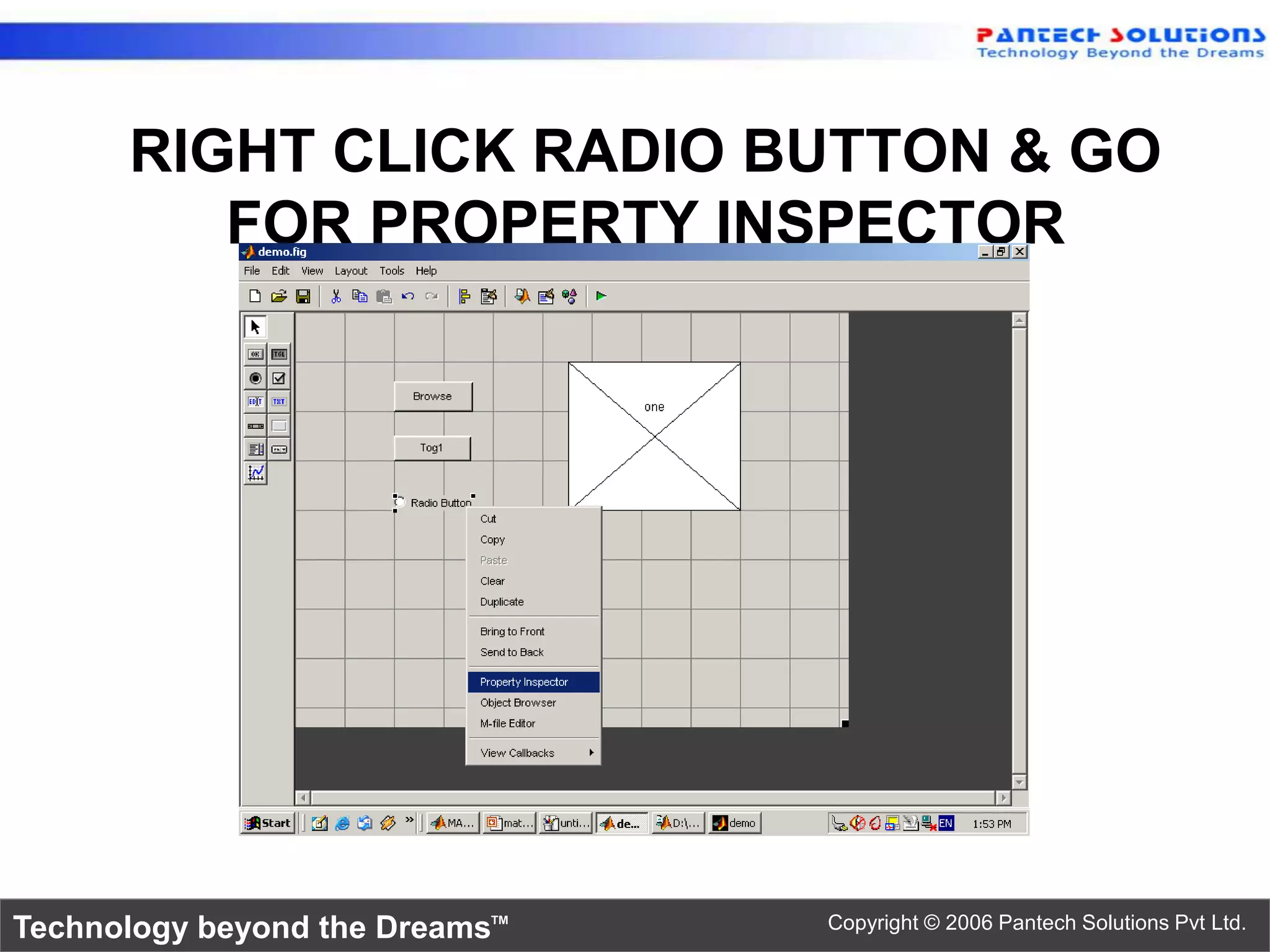

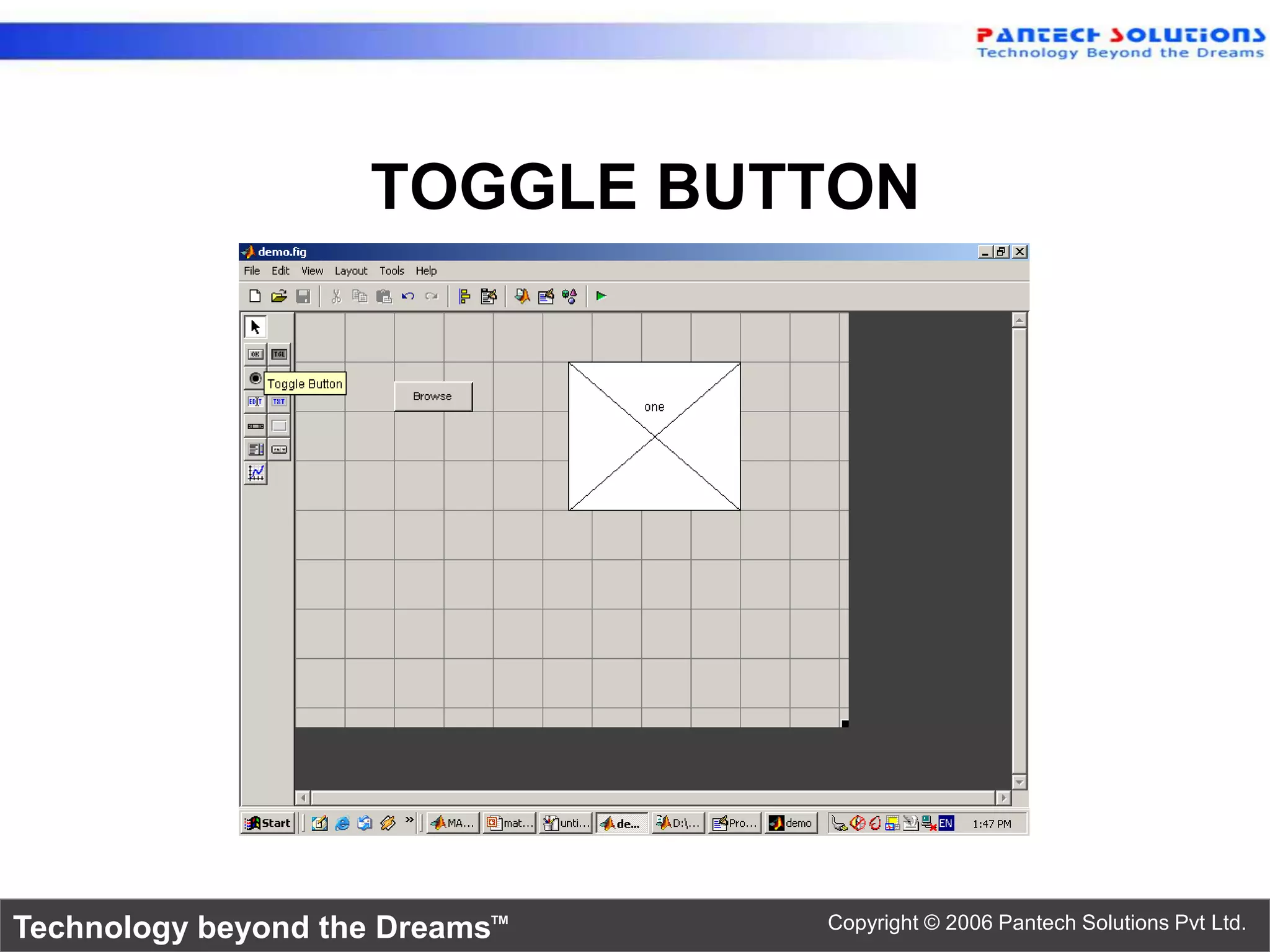

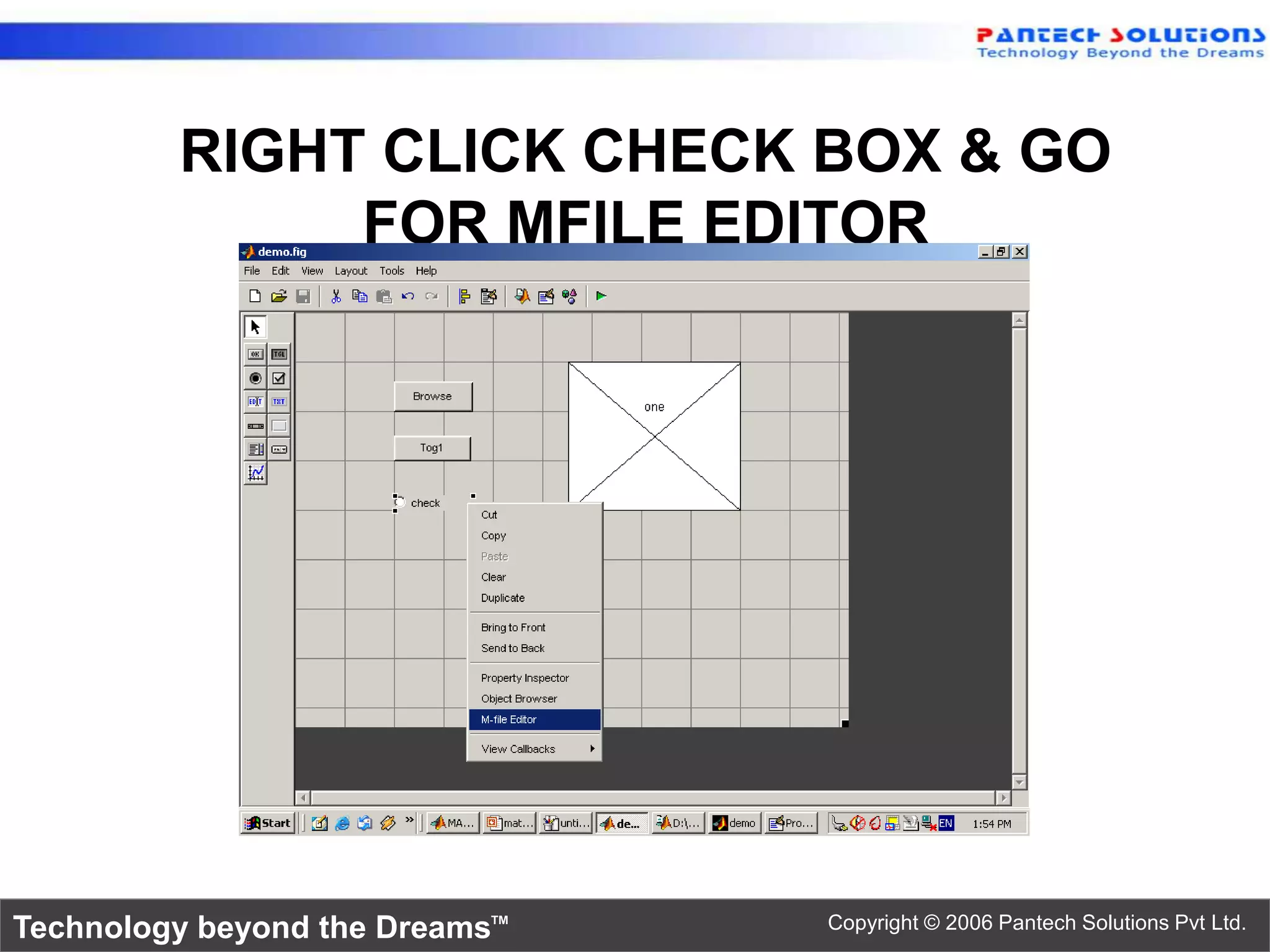

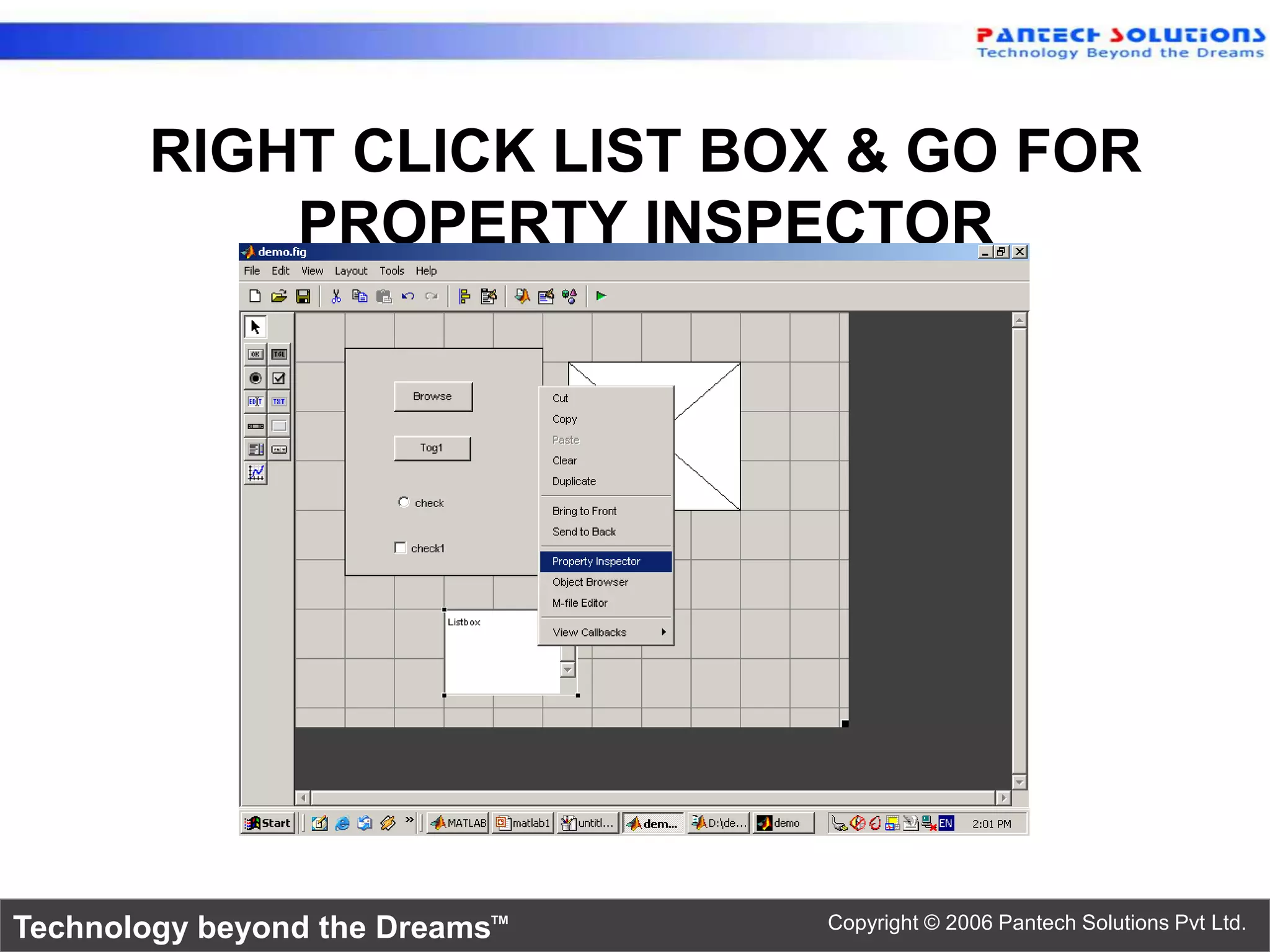

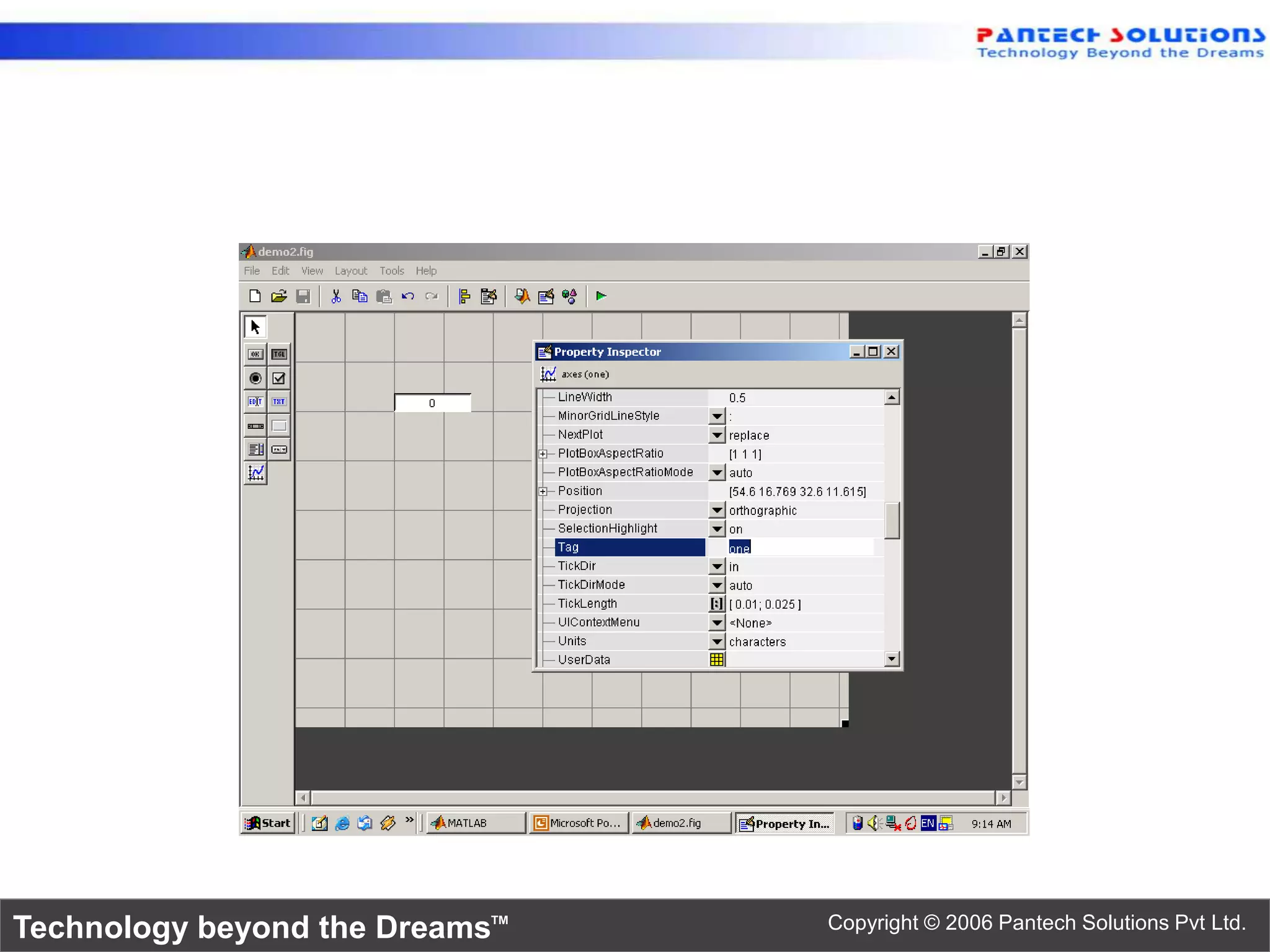

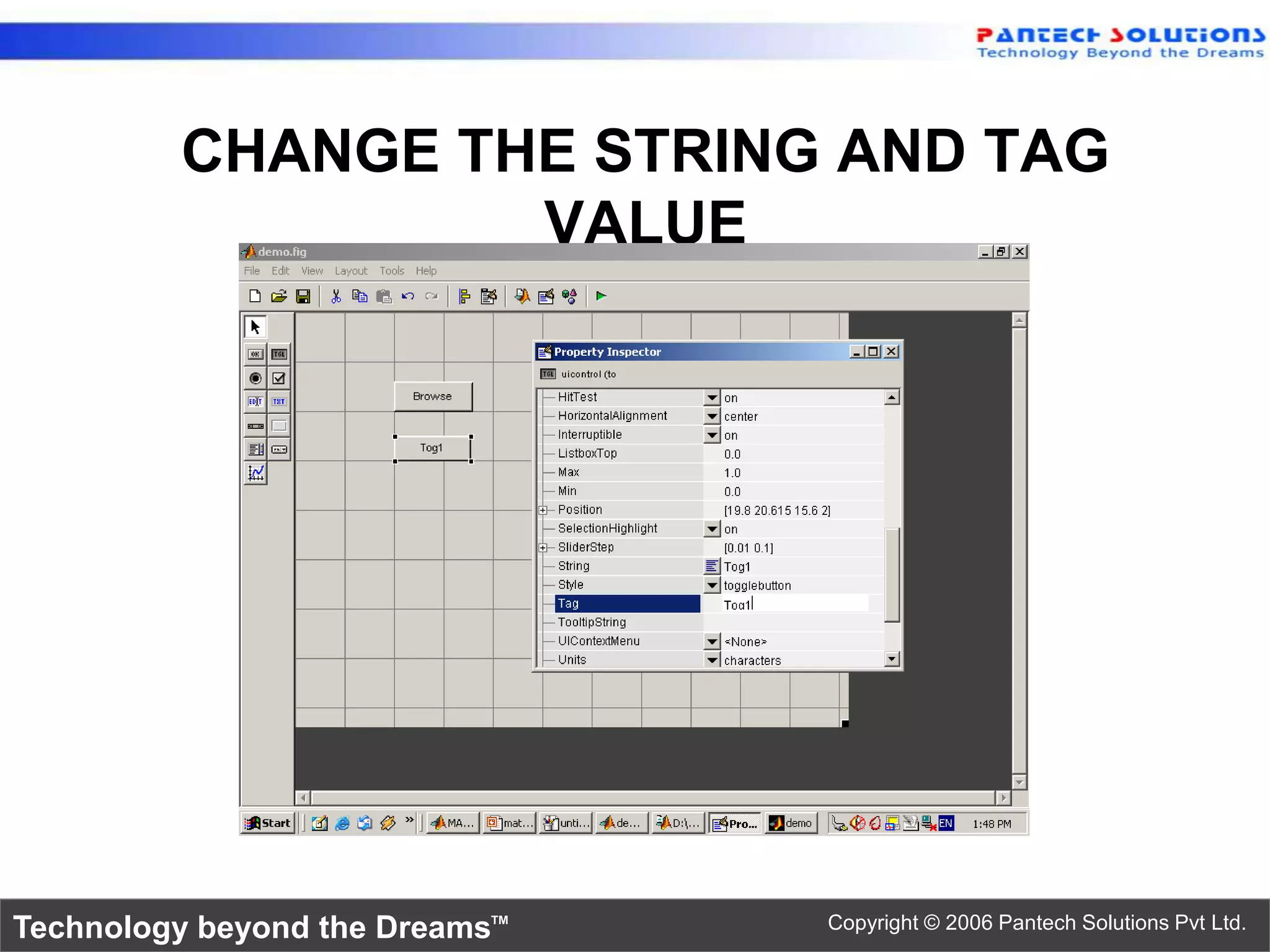

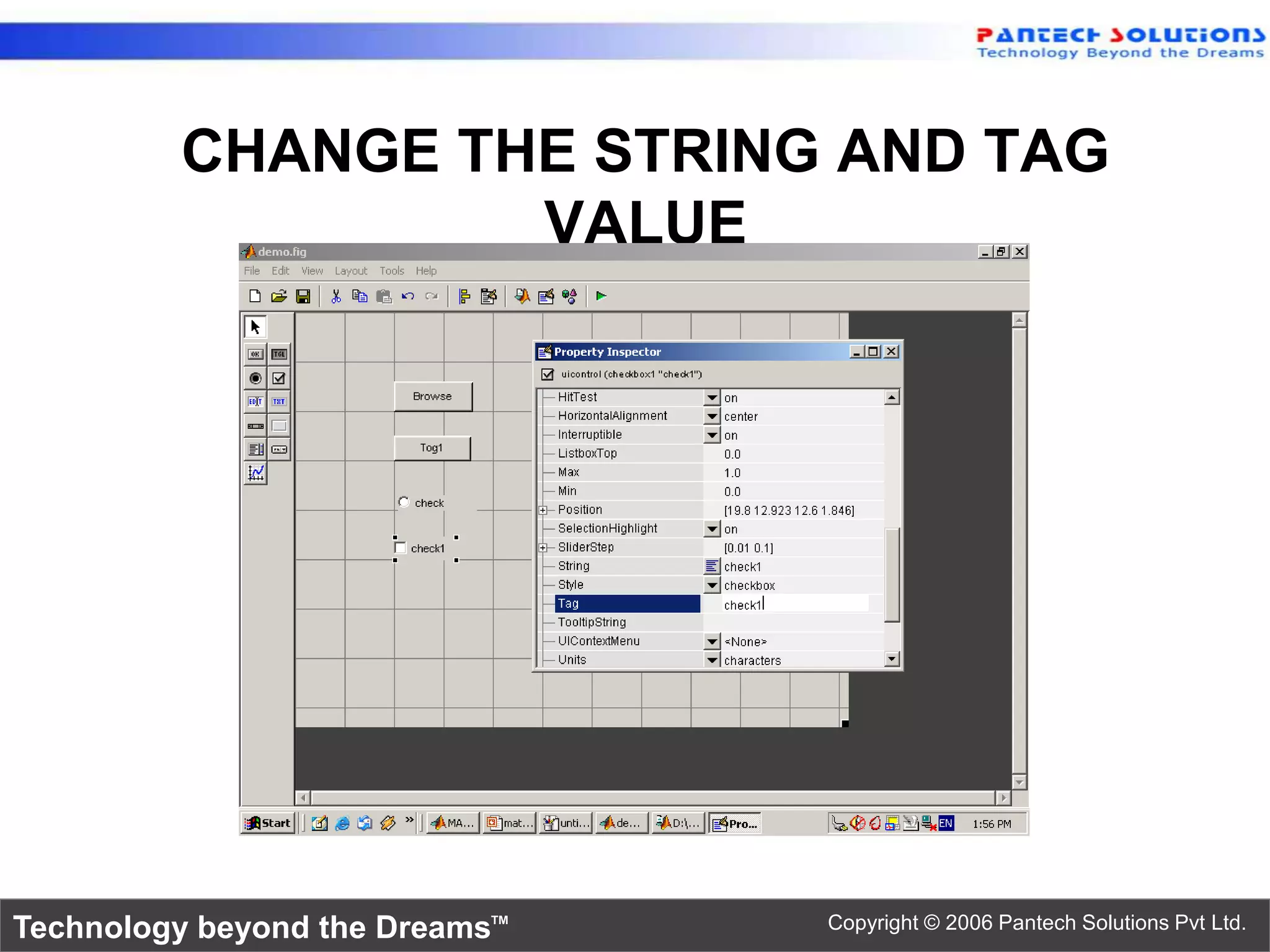

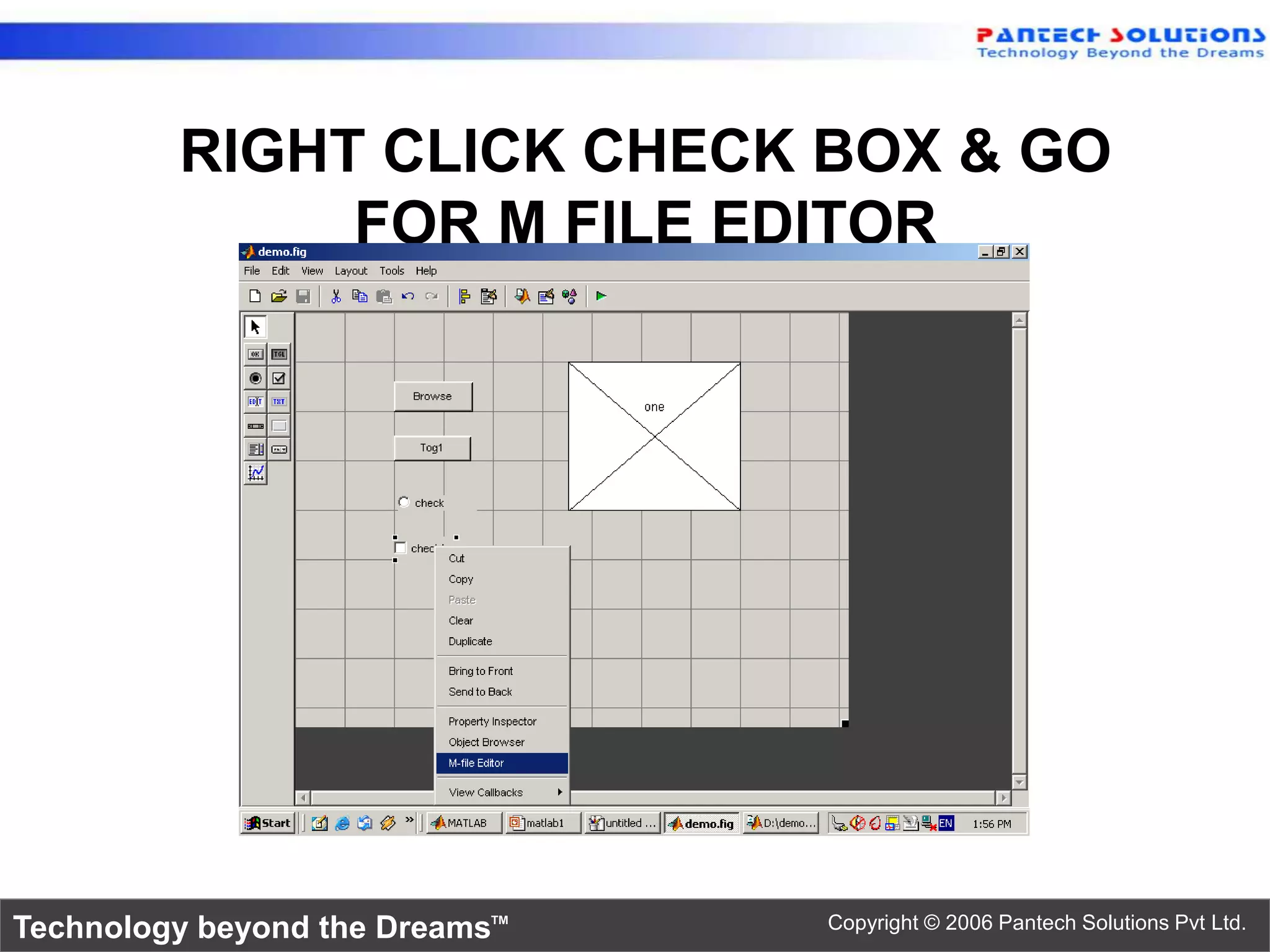

WRITE THE CODE BELOW THE CALLBACK a=get(hObject,'Value'); if a ==1 a =imread('cameraman.tif'); axes(handles.one); imshow(a); else a =imread('greens.jpg'); axes(handles.one); imshow(a); end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

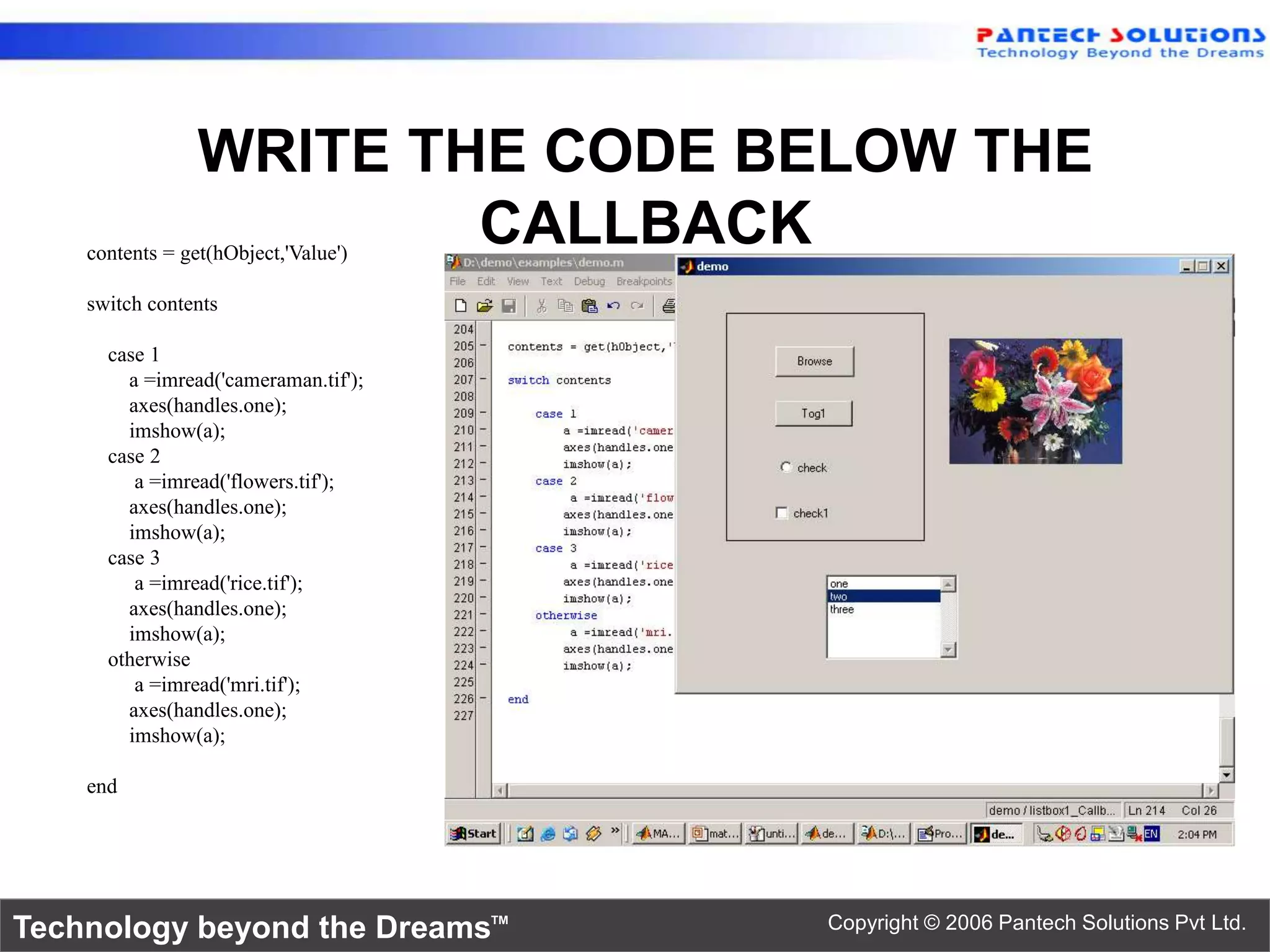

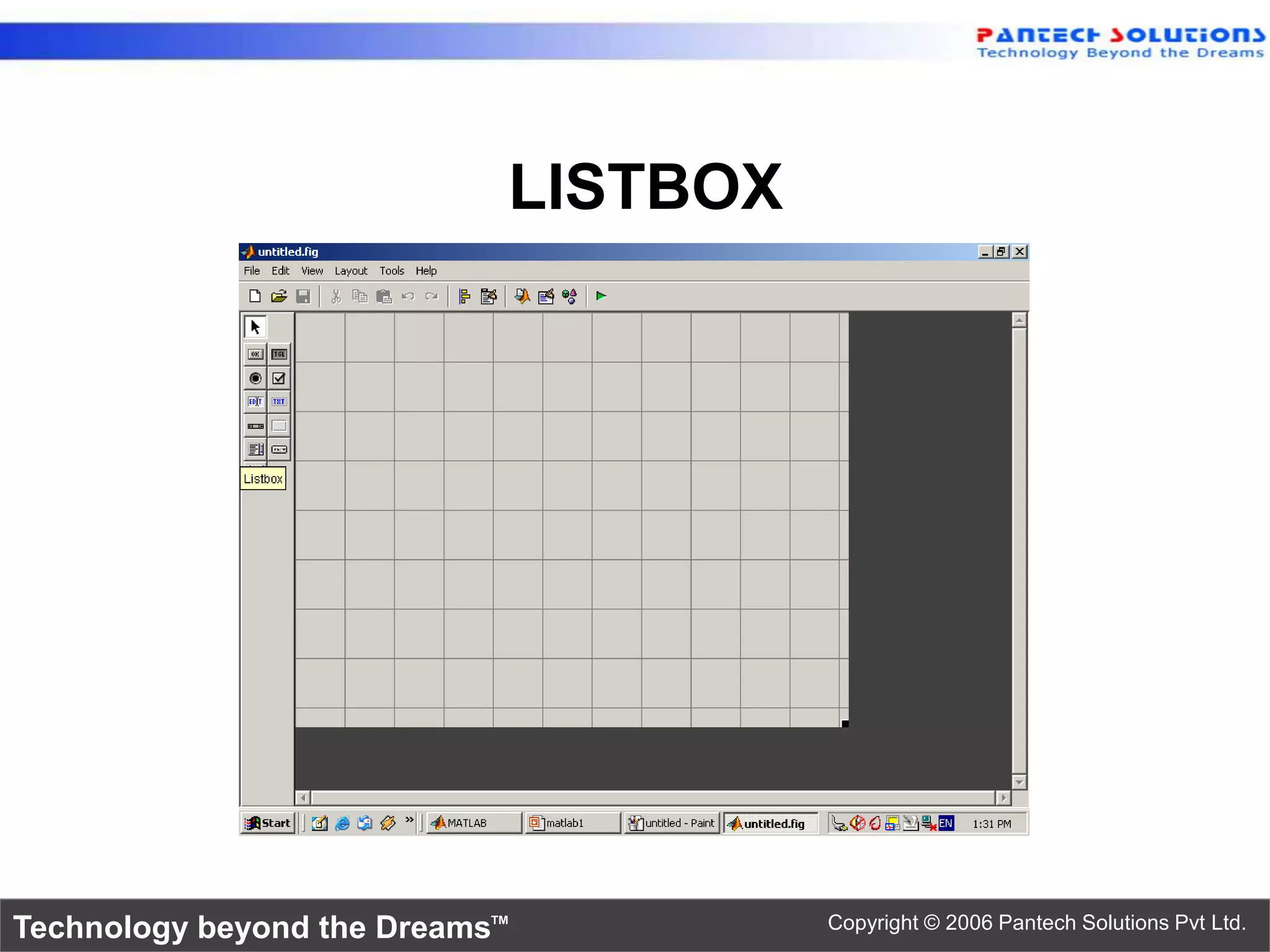

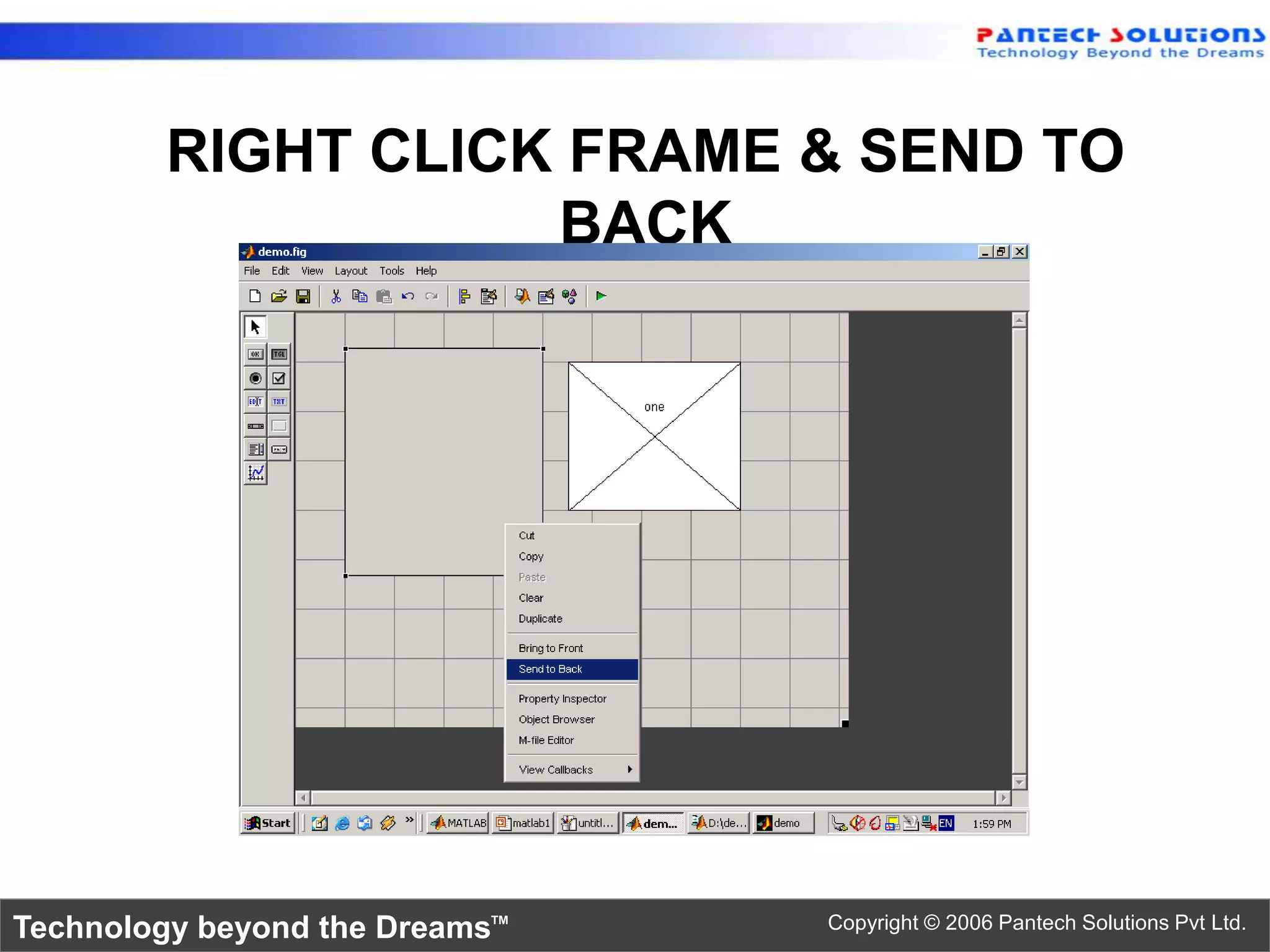

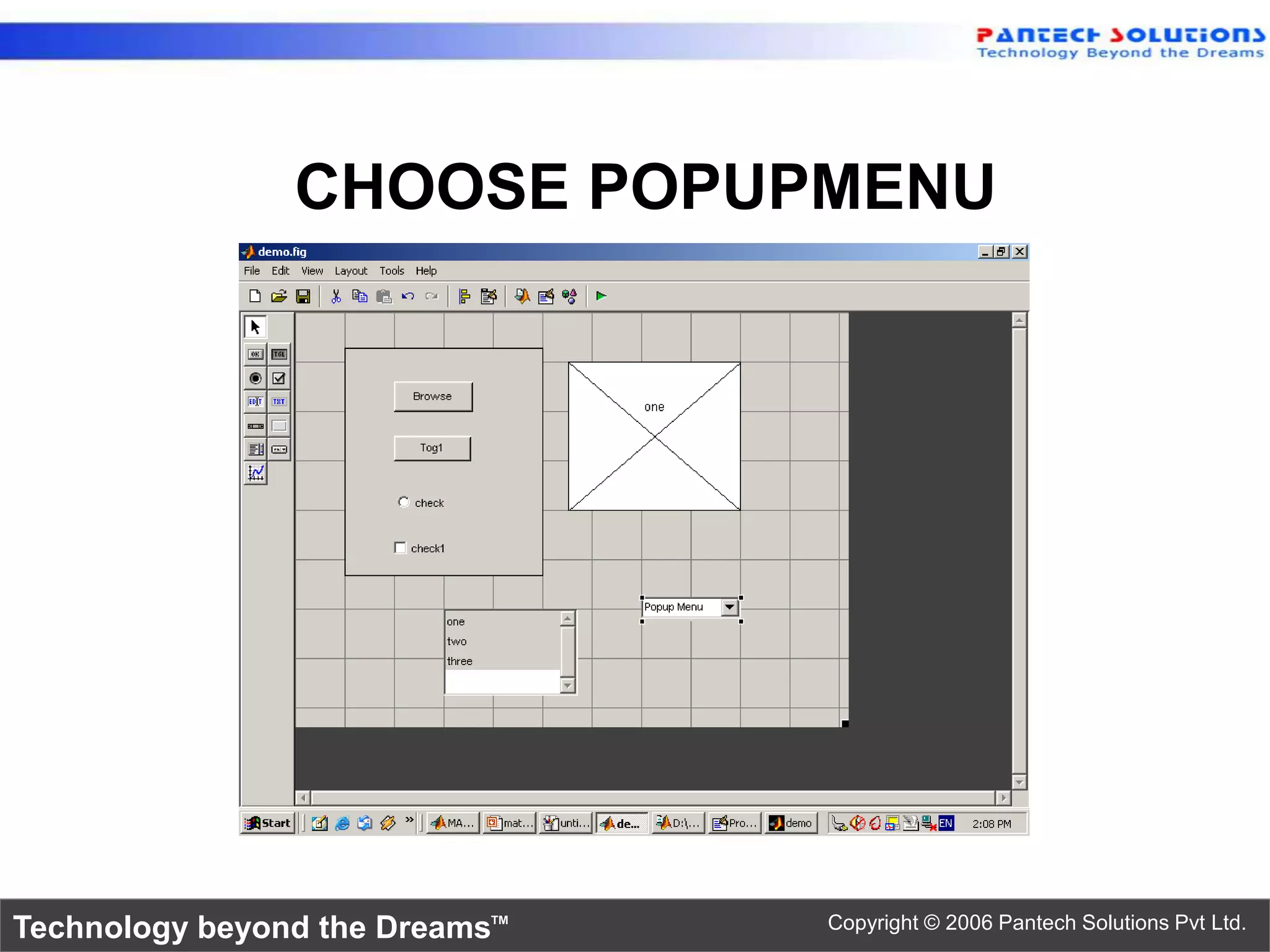

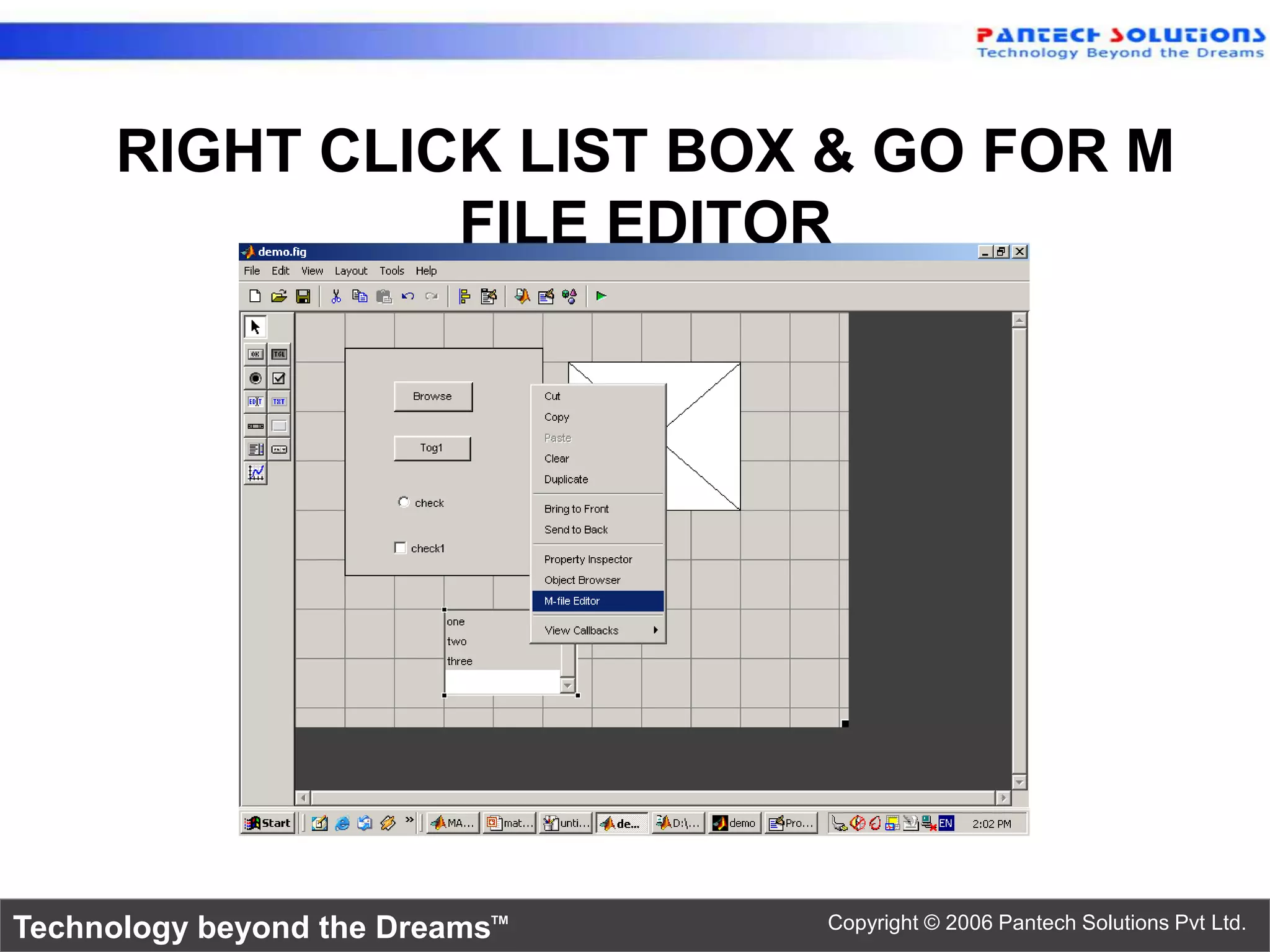

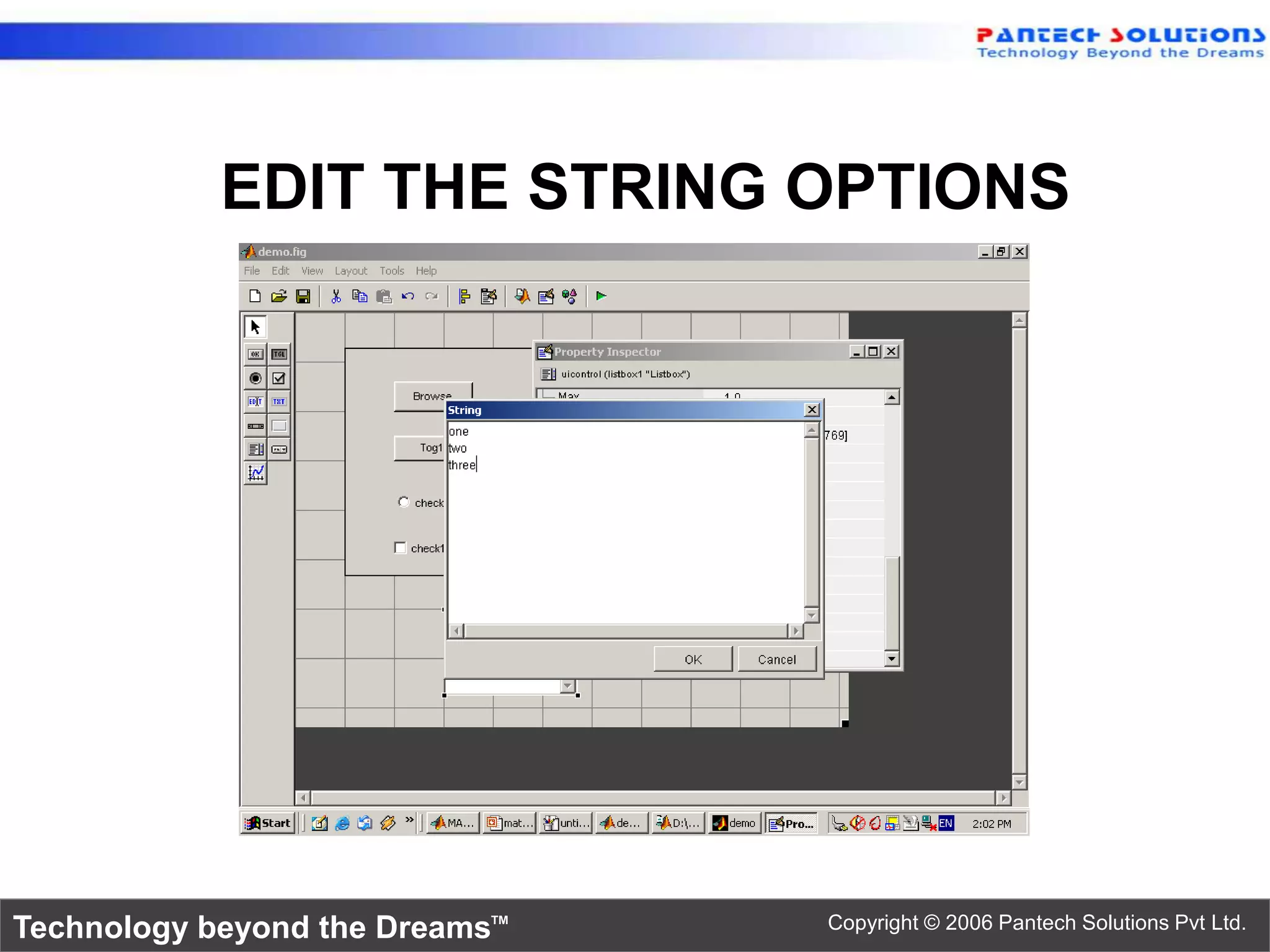

WRITE THE CODE BELOW THE CALLBACK contents = get(hObject,'Value') switch contents case 1 a =imread('cameraman.tif'); axes(handles.one); imshow(a); case 2 a =imread('flowers.tif'); axes(handles.one); imshow(a); case 3 a =imread('rice.tif'); axes(handles.one); imshow(a); otherwise a =imread('mri.tif'); axes(handles.one); imshow(a); end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

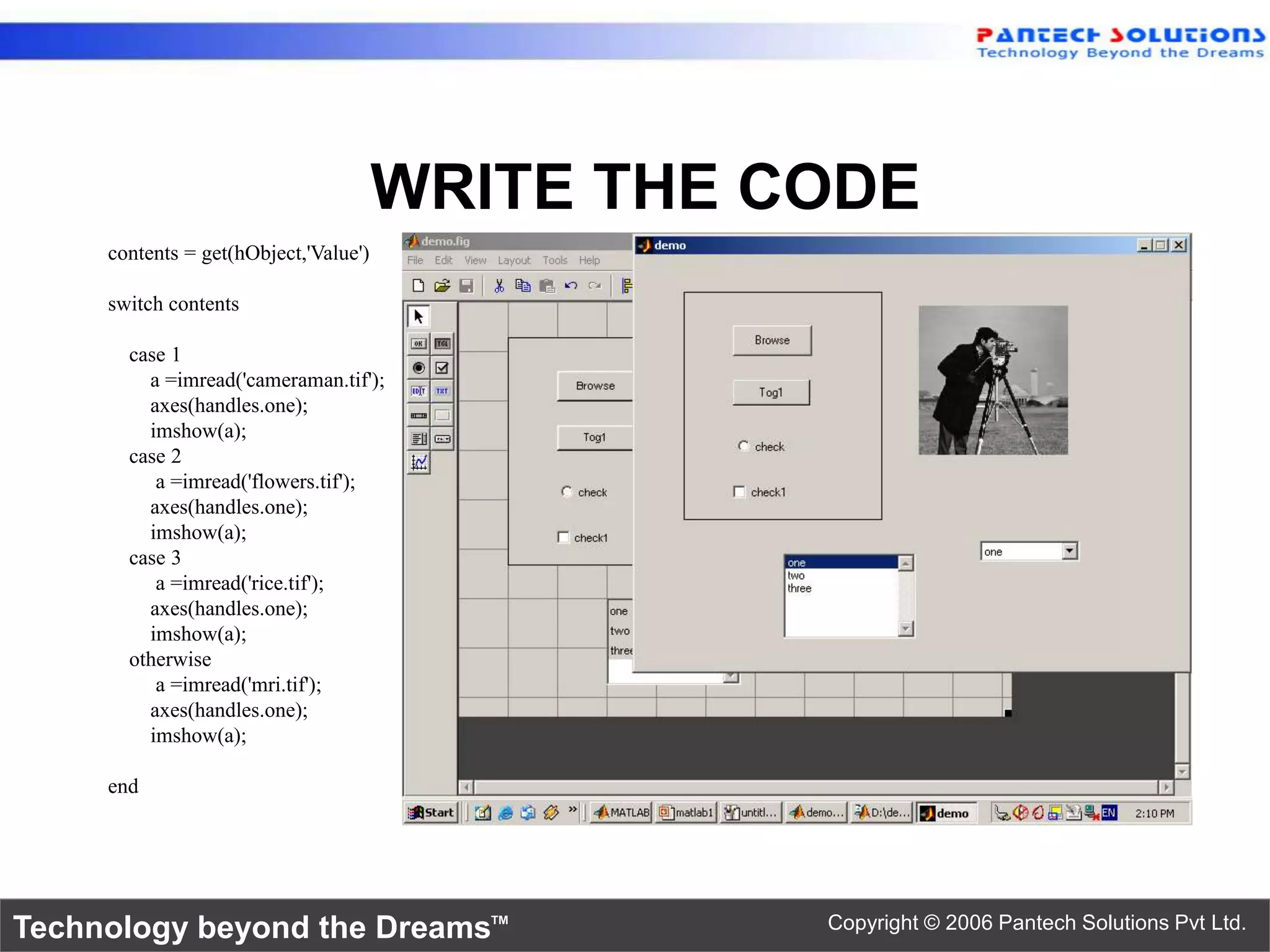

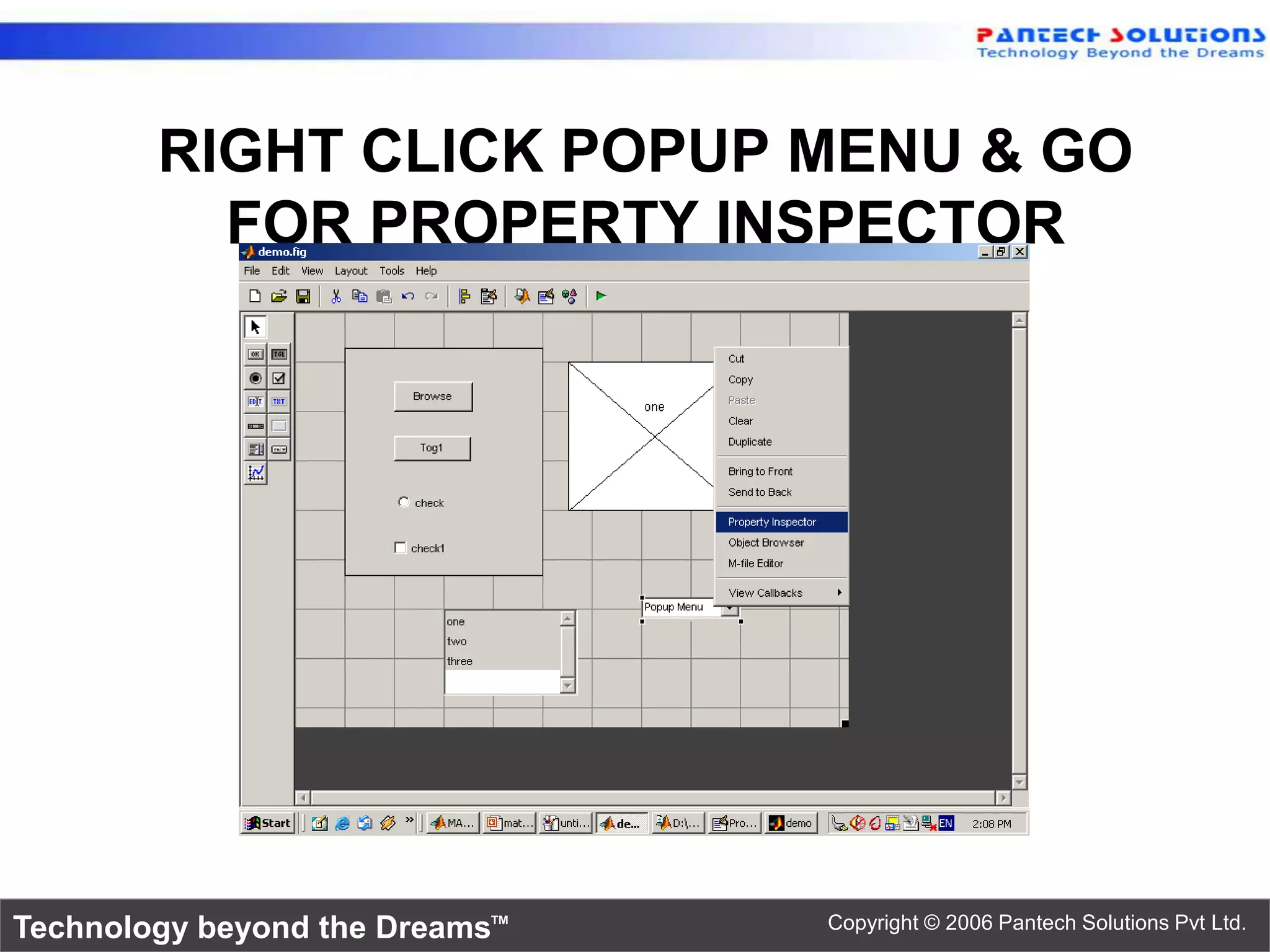

WRITE THE CODE contents = get(hObject,'Value') switch contents case 1 a =imread('cameraman.tif'); axes(handles.one); imshow(a); case 2 a =imread('flowers.tif'); axes(handles.one); imshow(a); case 3 a =imread('rice.tif'); axes(handles.one); imshow(a); otherwise a =imread('mri.tif'); axes(handles.one); imshow(a); end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

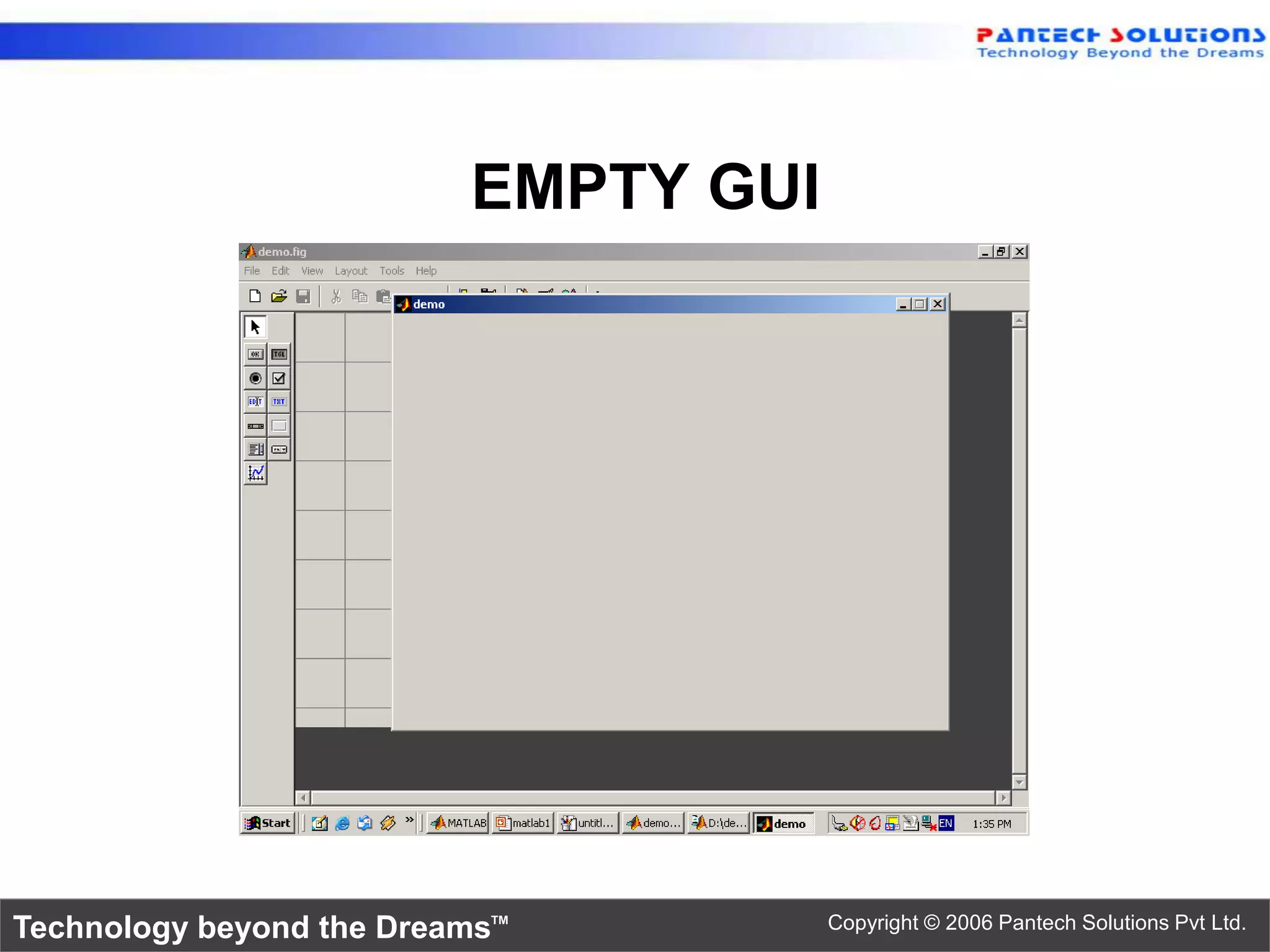

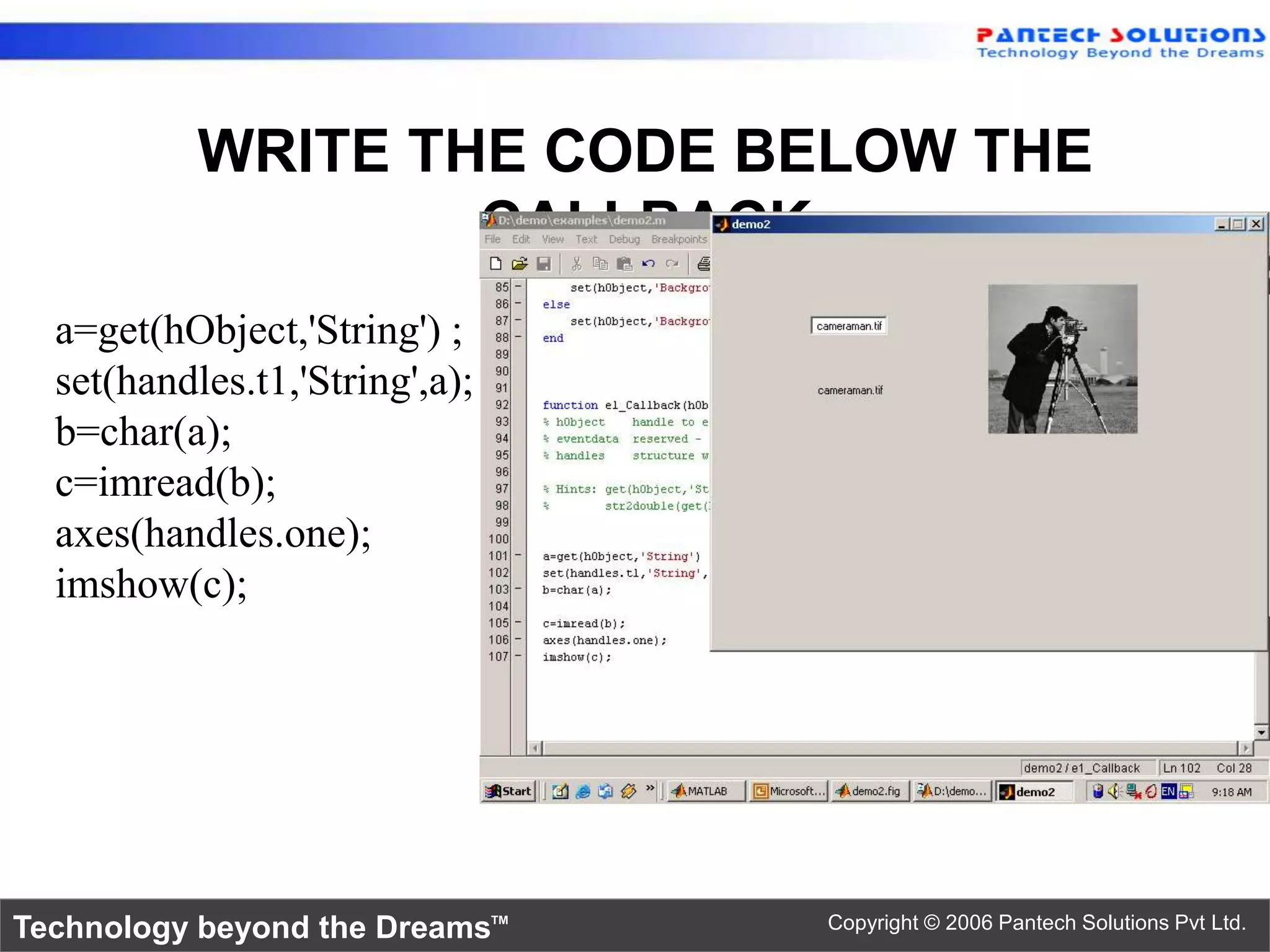

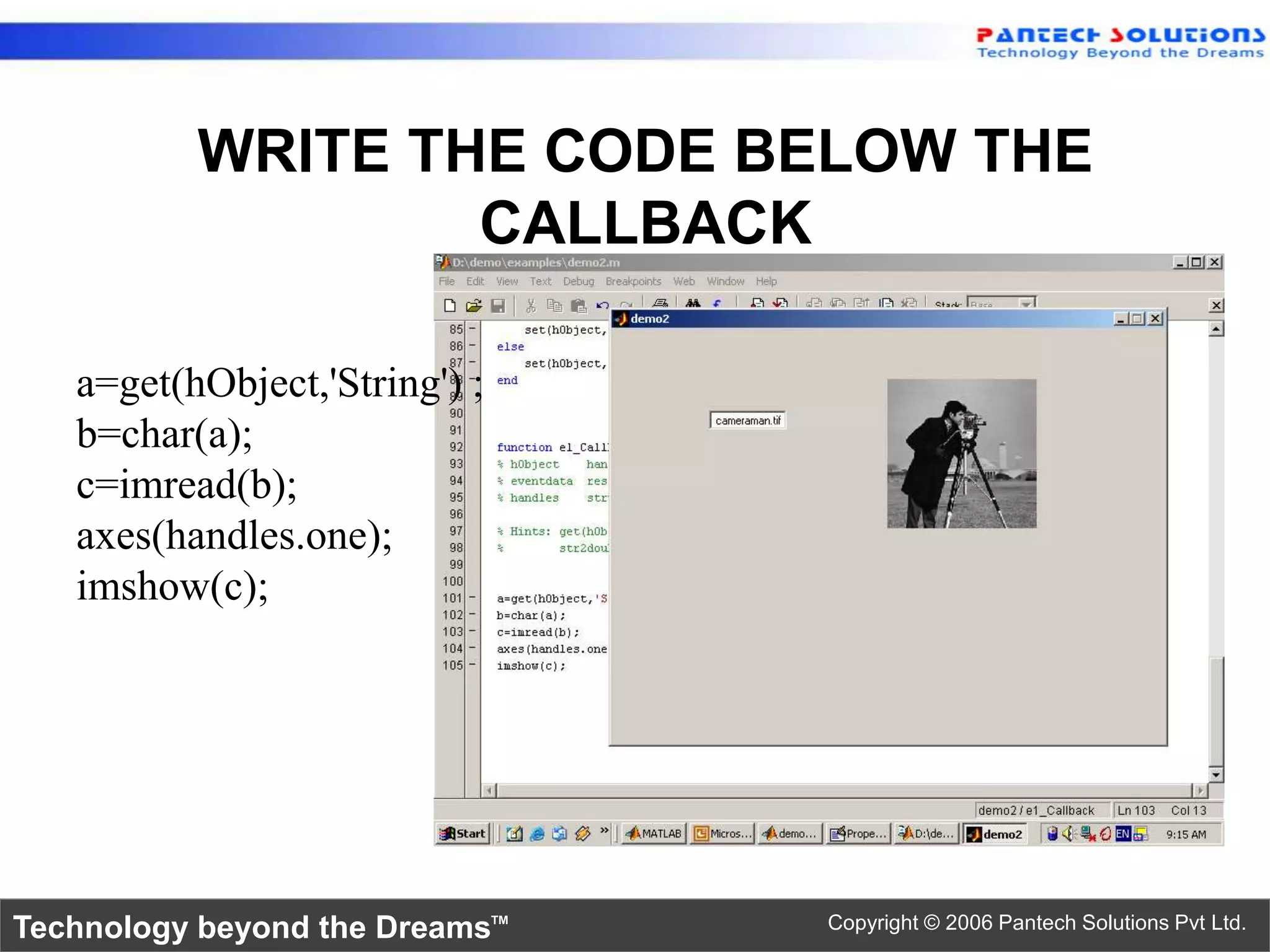

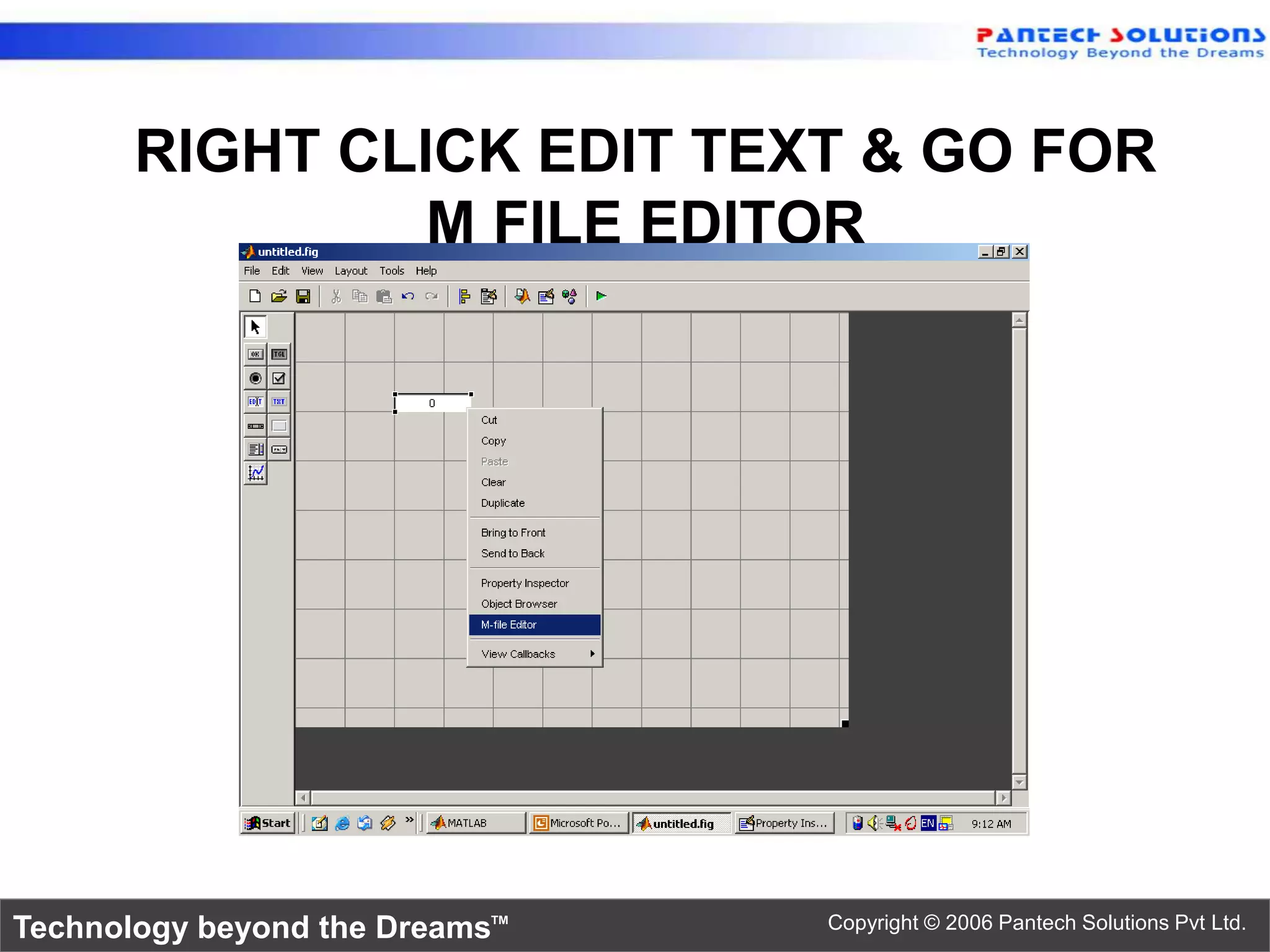

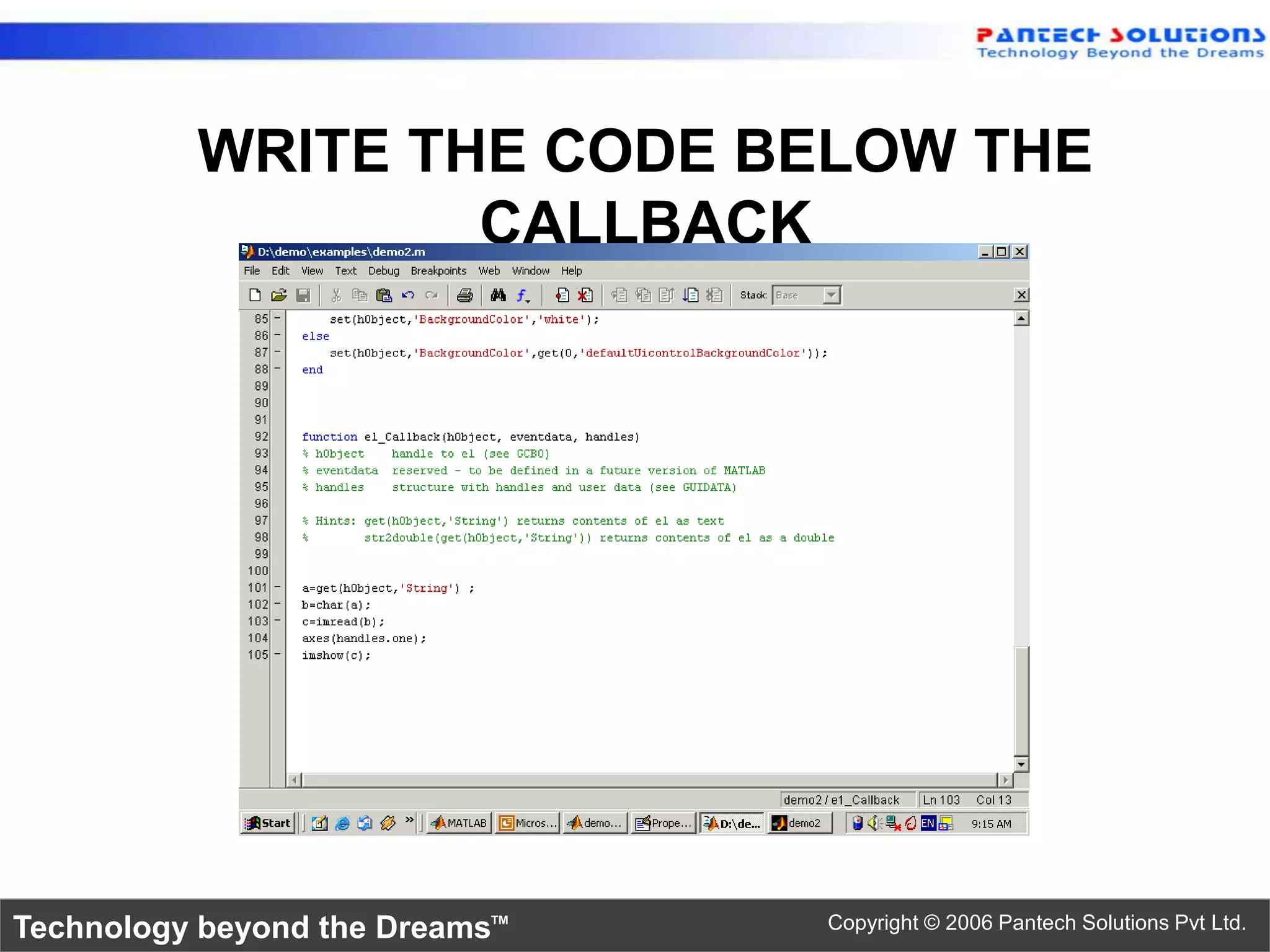

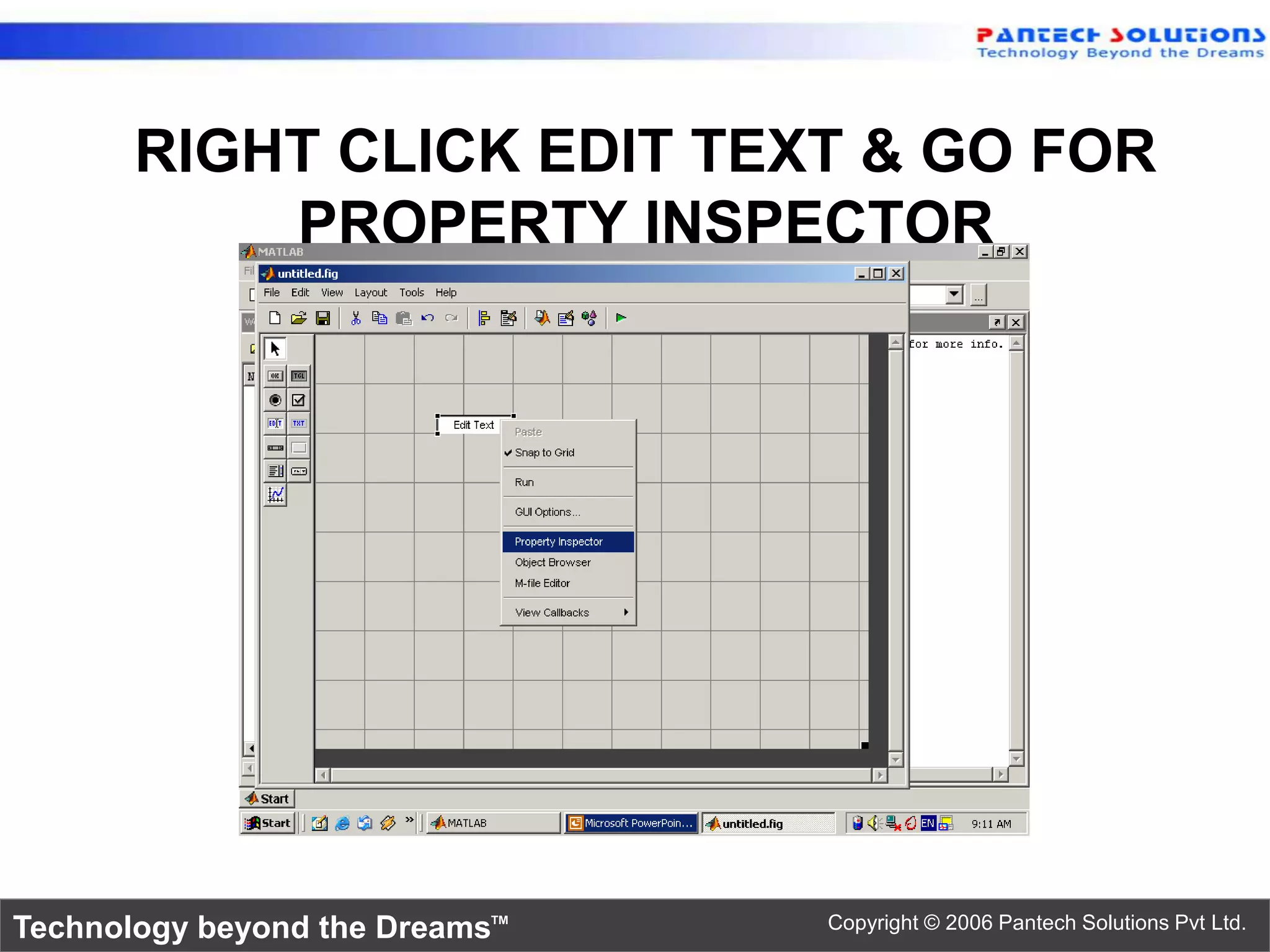

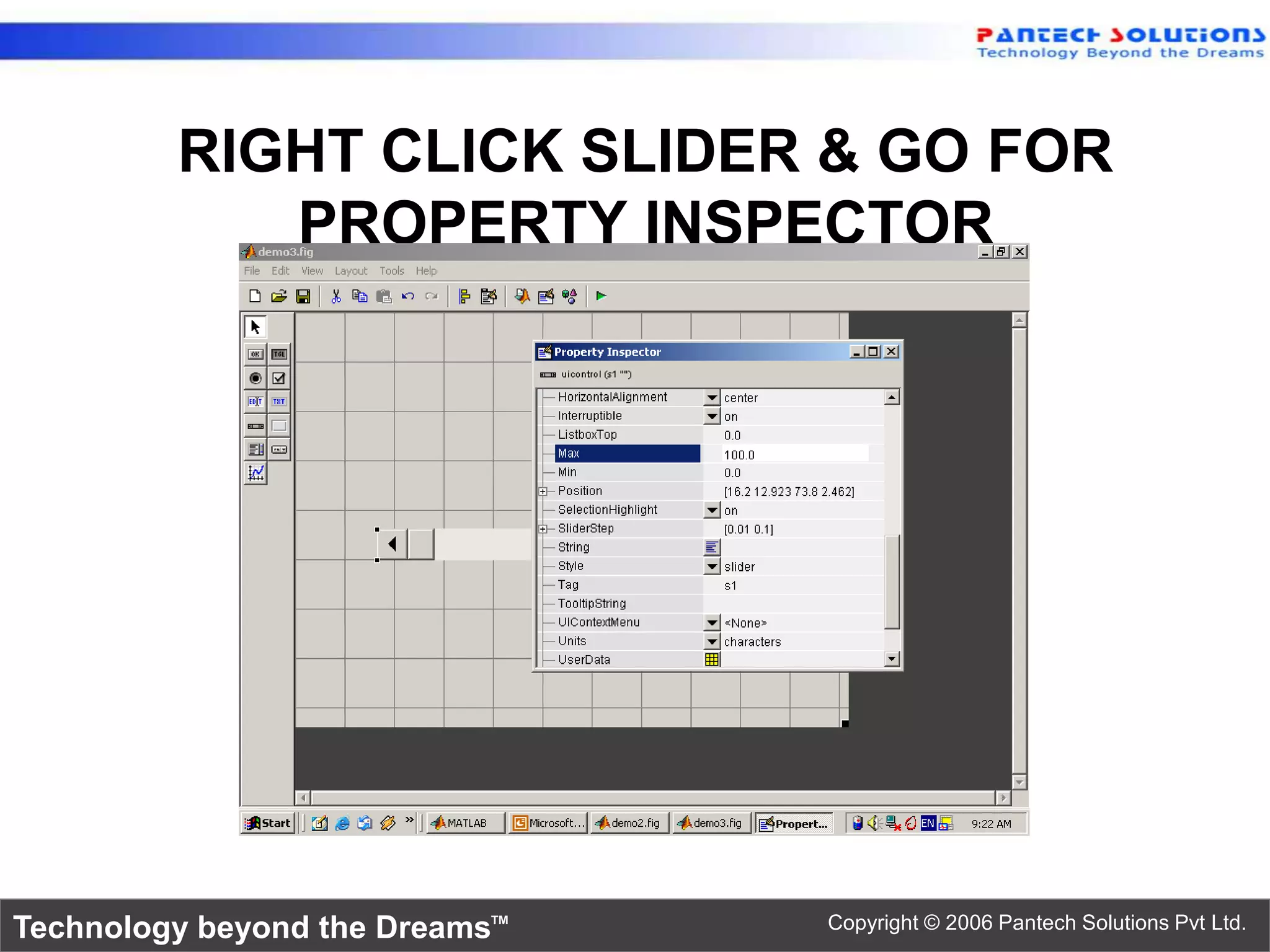

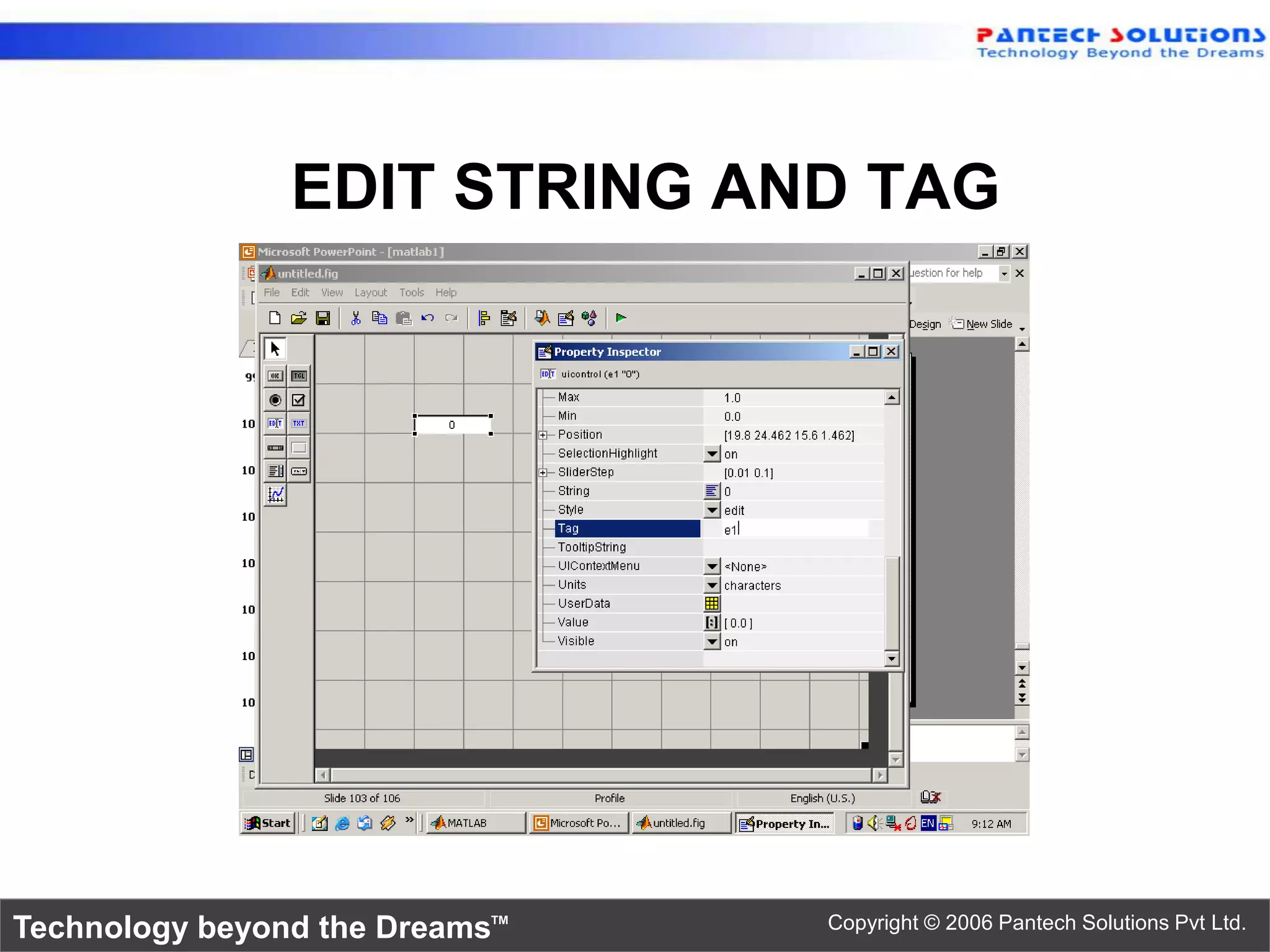

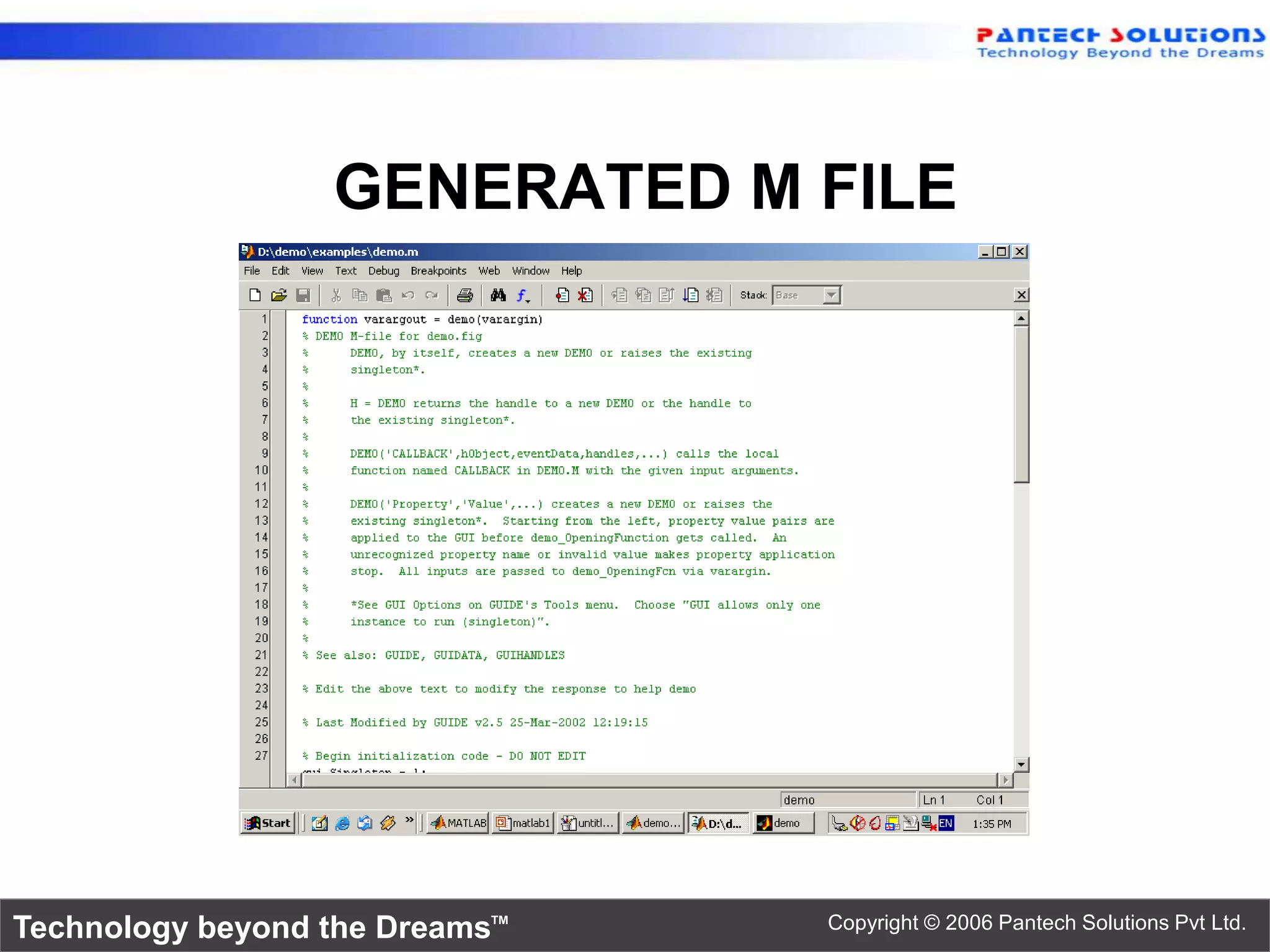

WRITE THE CODE BELOW THE CALLBACK a=get(hObject,'String') ; set(handles.t1,'String',a); b=char(a); c=imread(b); axes(handles.one); imshow(c); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

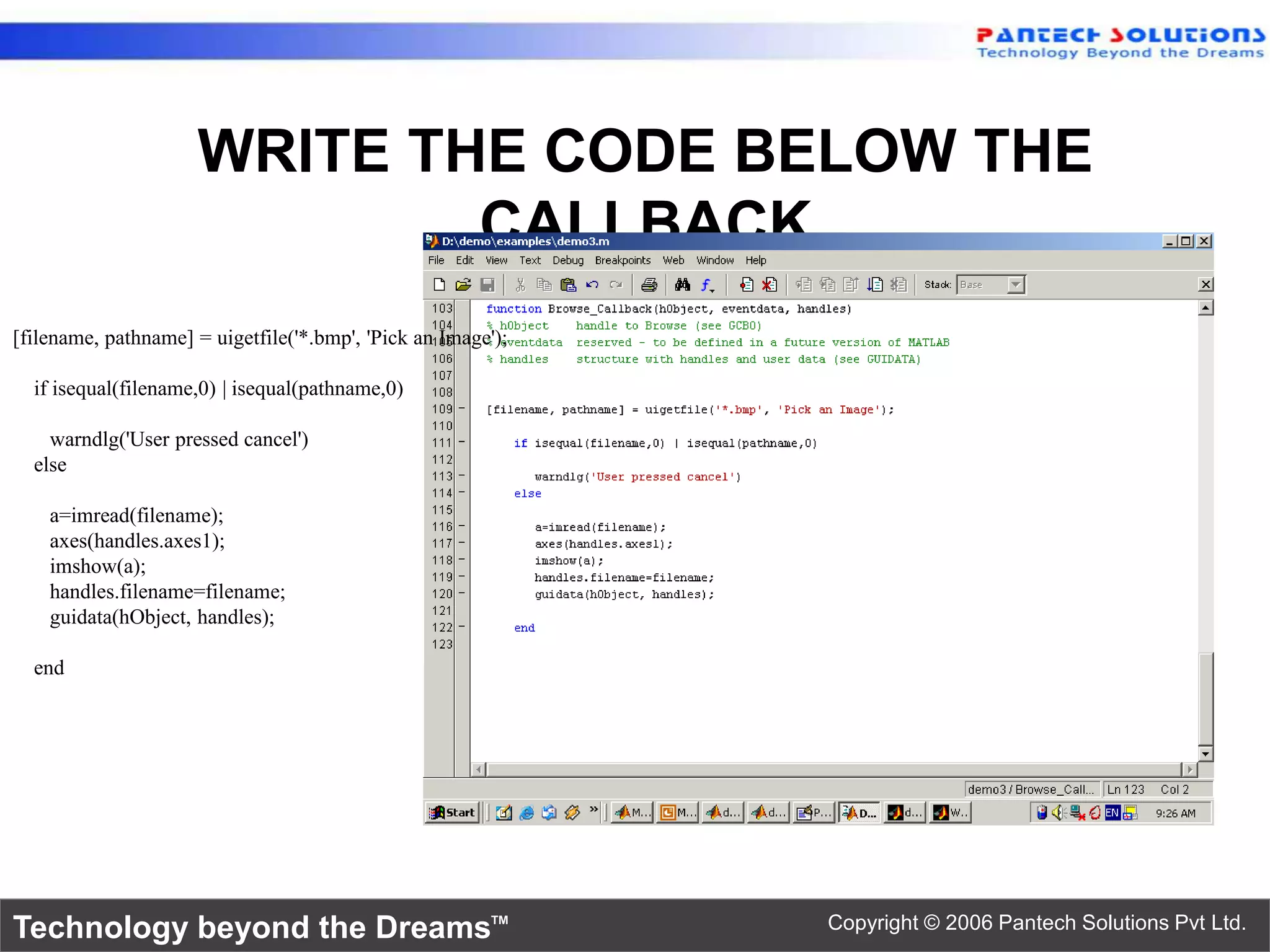

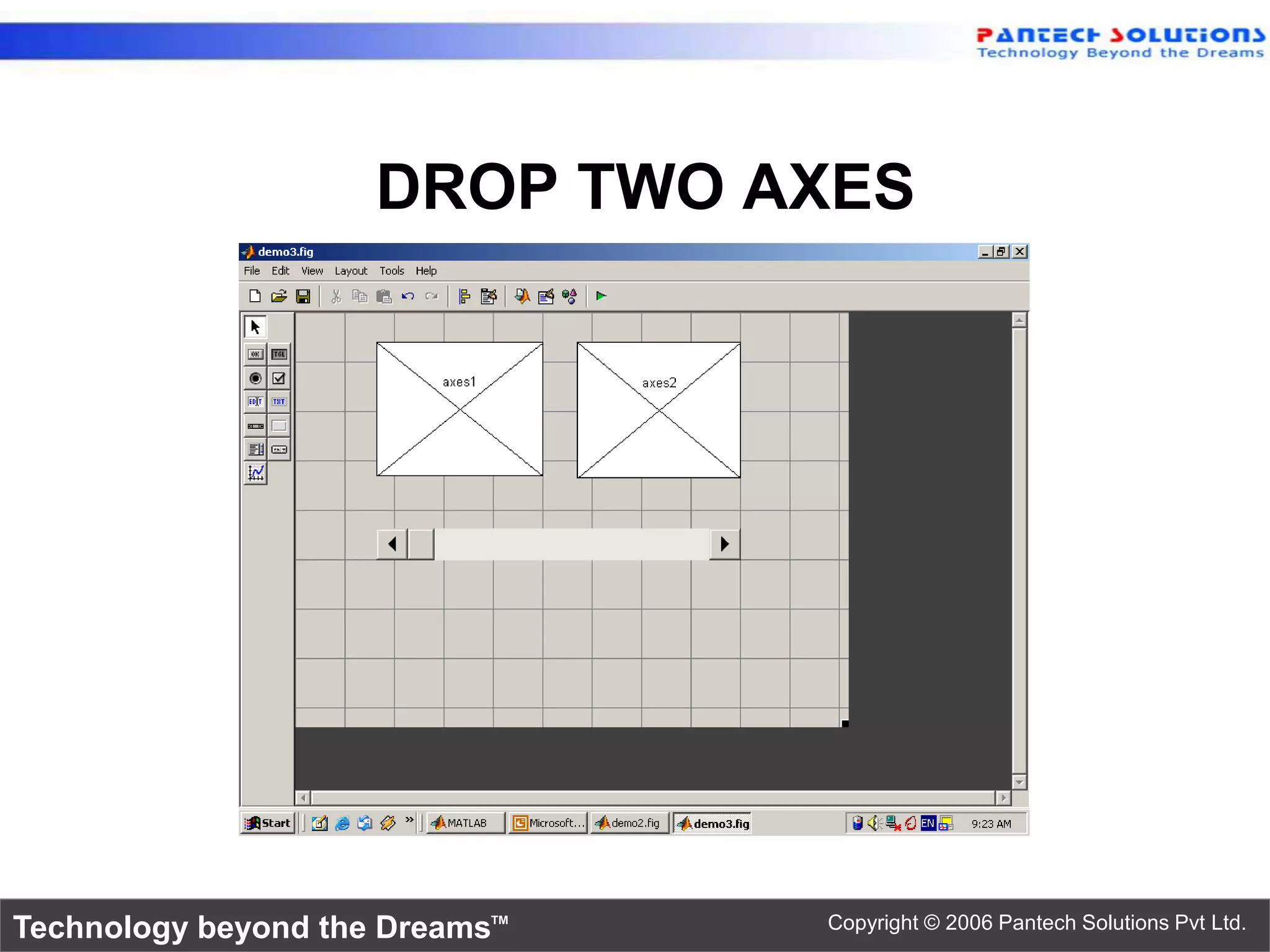

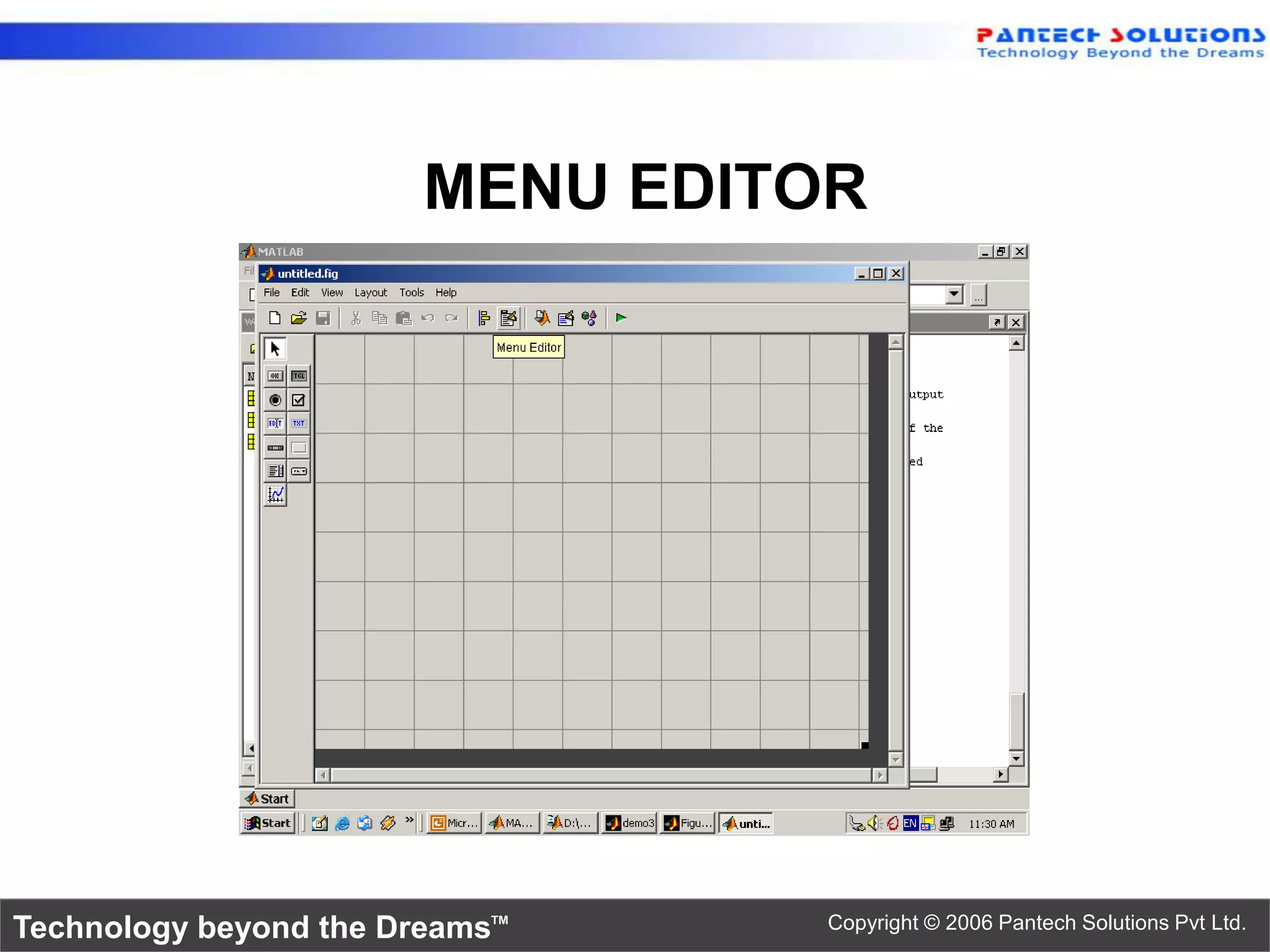

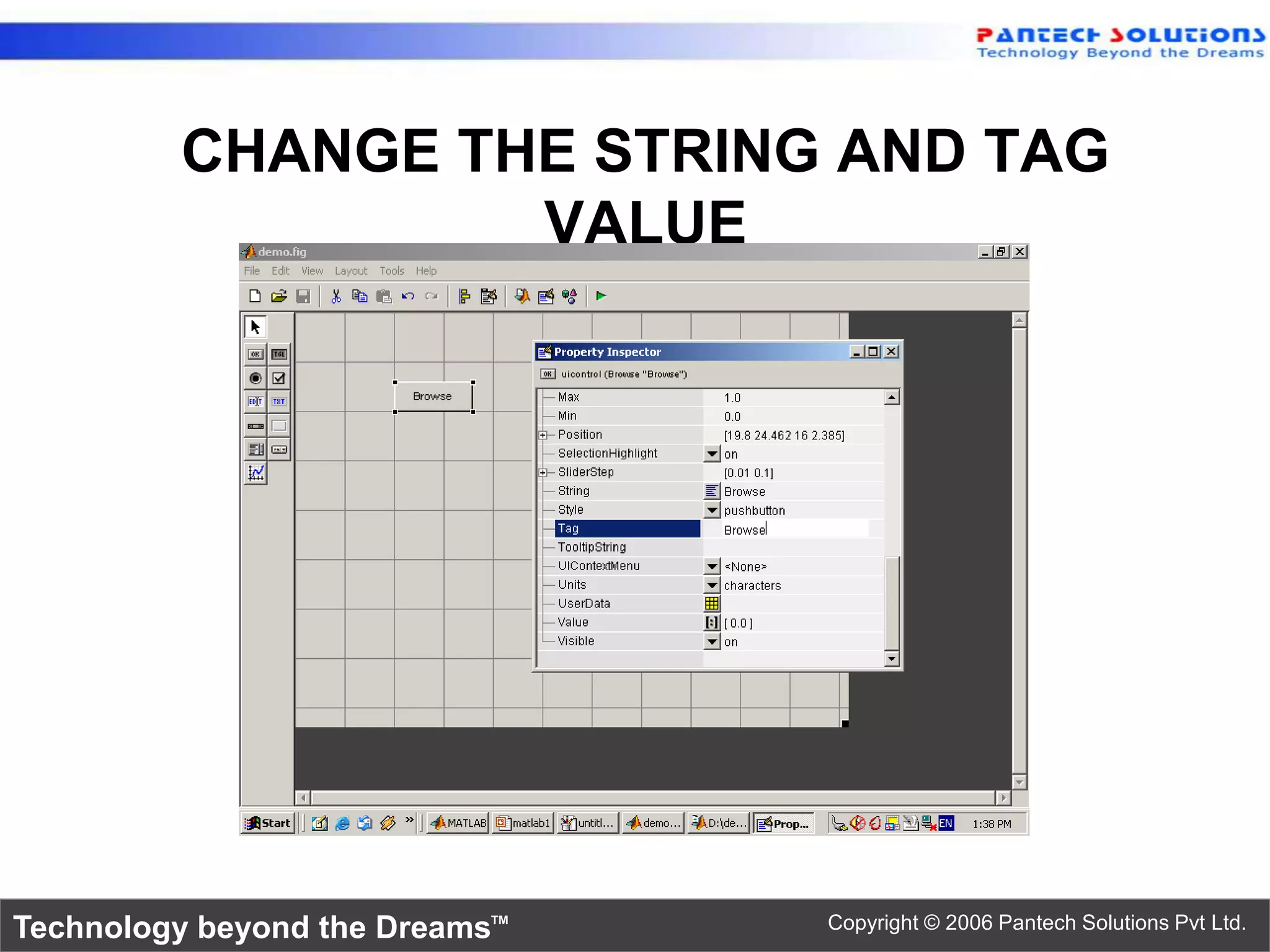

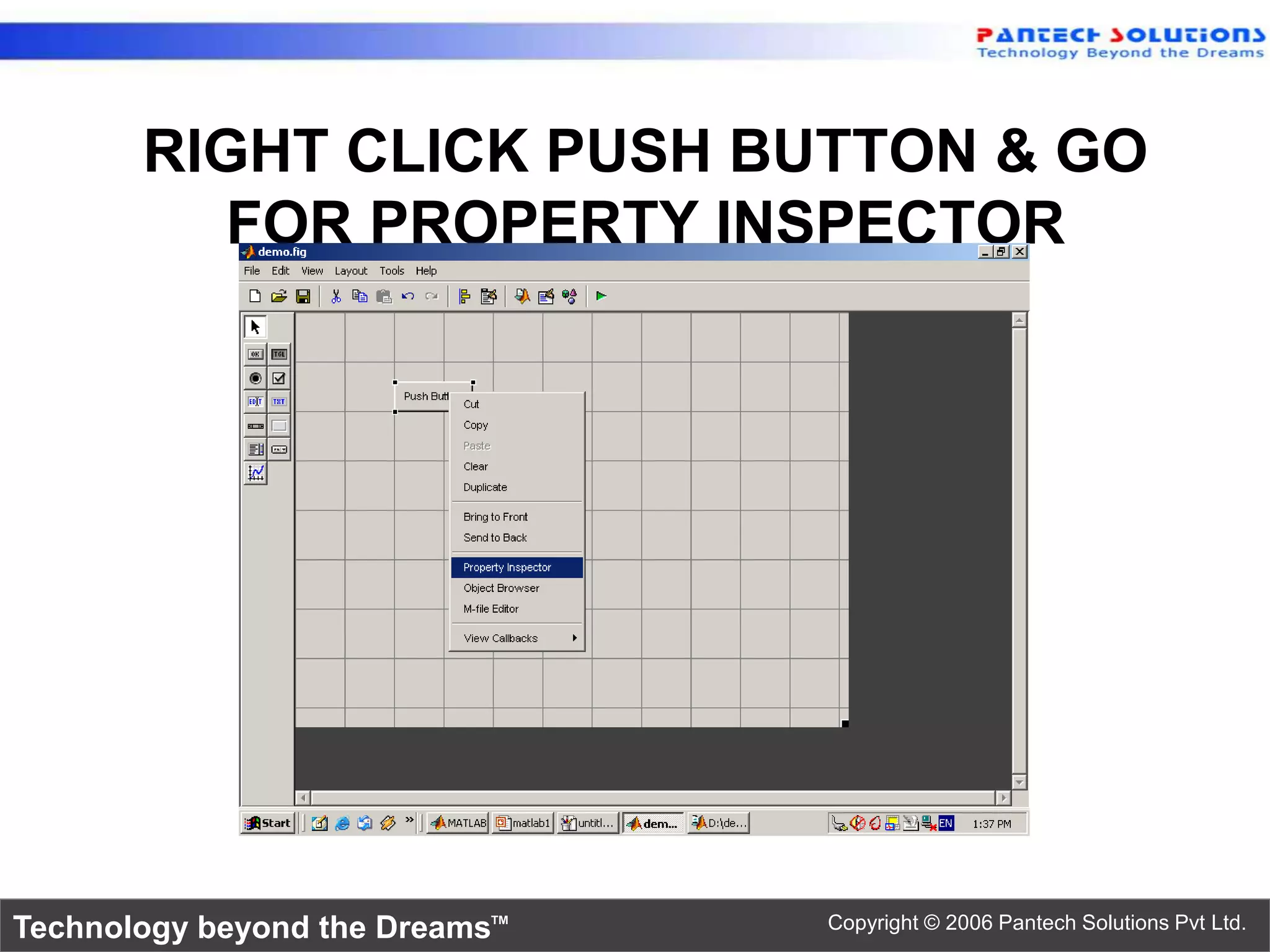

WRITE THE CODE BELOW THE CALLBACK [filename, pathname] = uigetfile('*.bmp', 'Pick an Image'); if isequal(filename,0) | isequal(pathname,0) warndlg('User pressed cancel') else a=imread(filename); axes(handles.axes1); imshow(a); handles.filename=filename; guidata(hObject, handles); end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

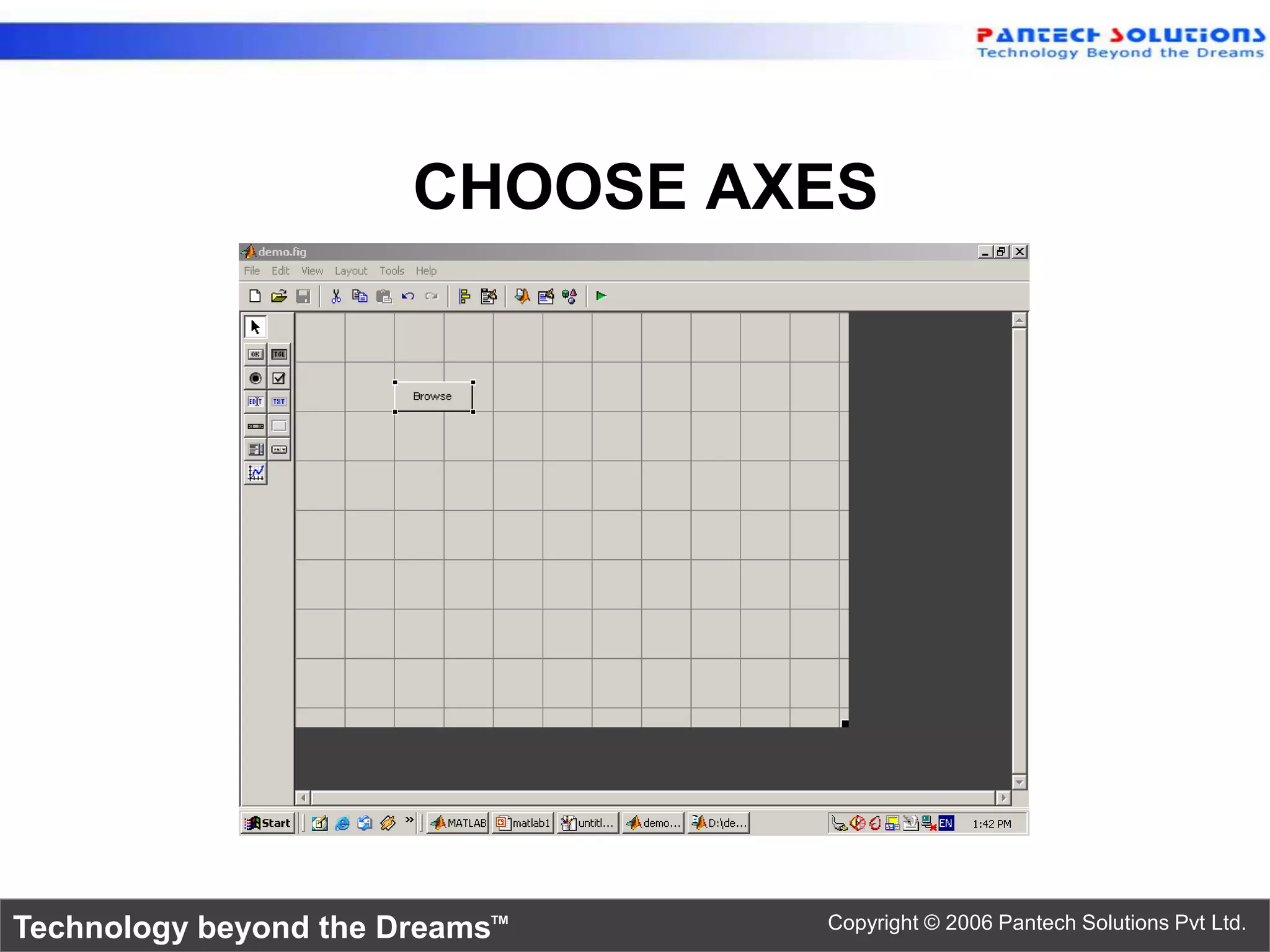

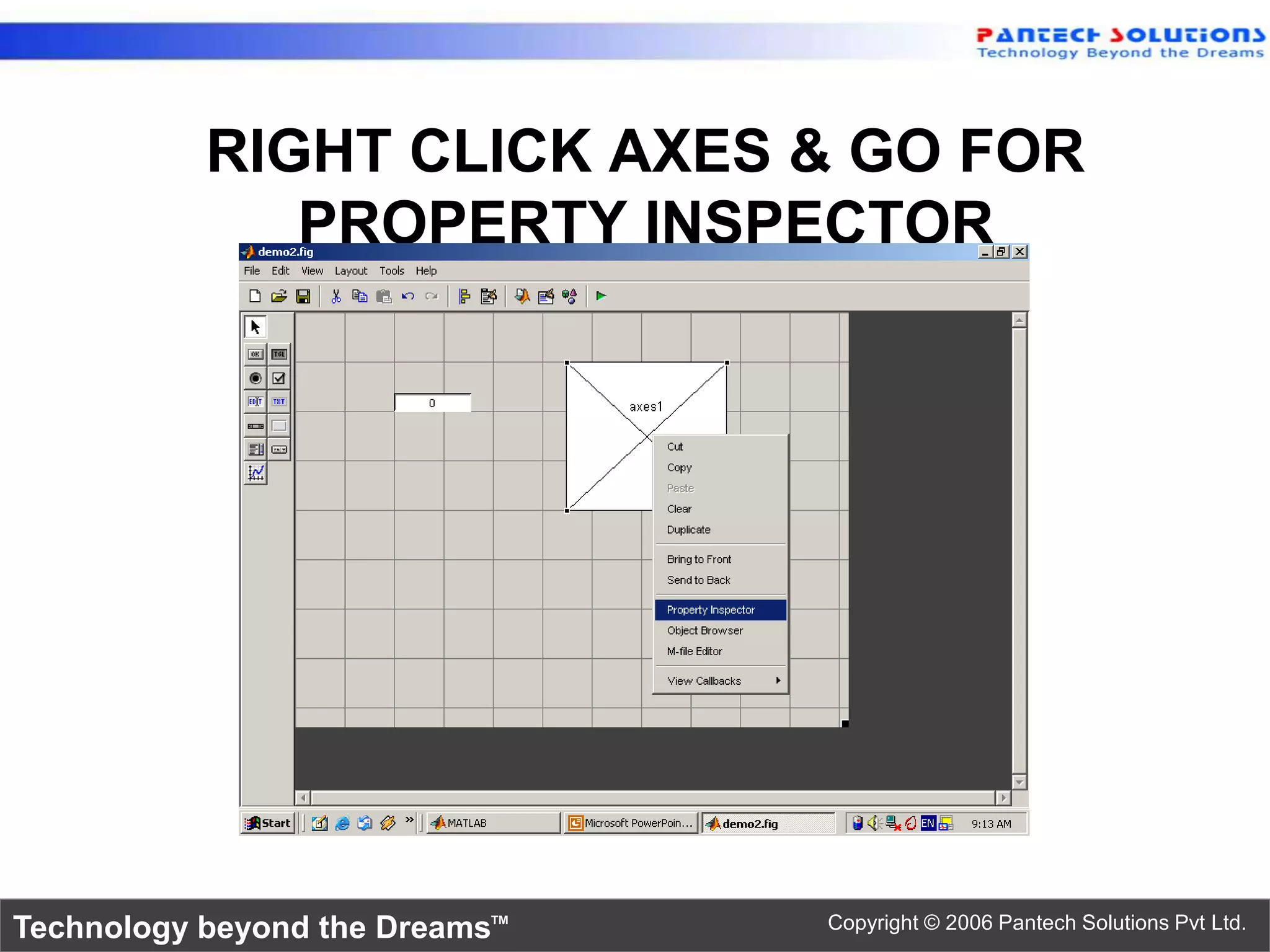

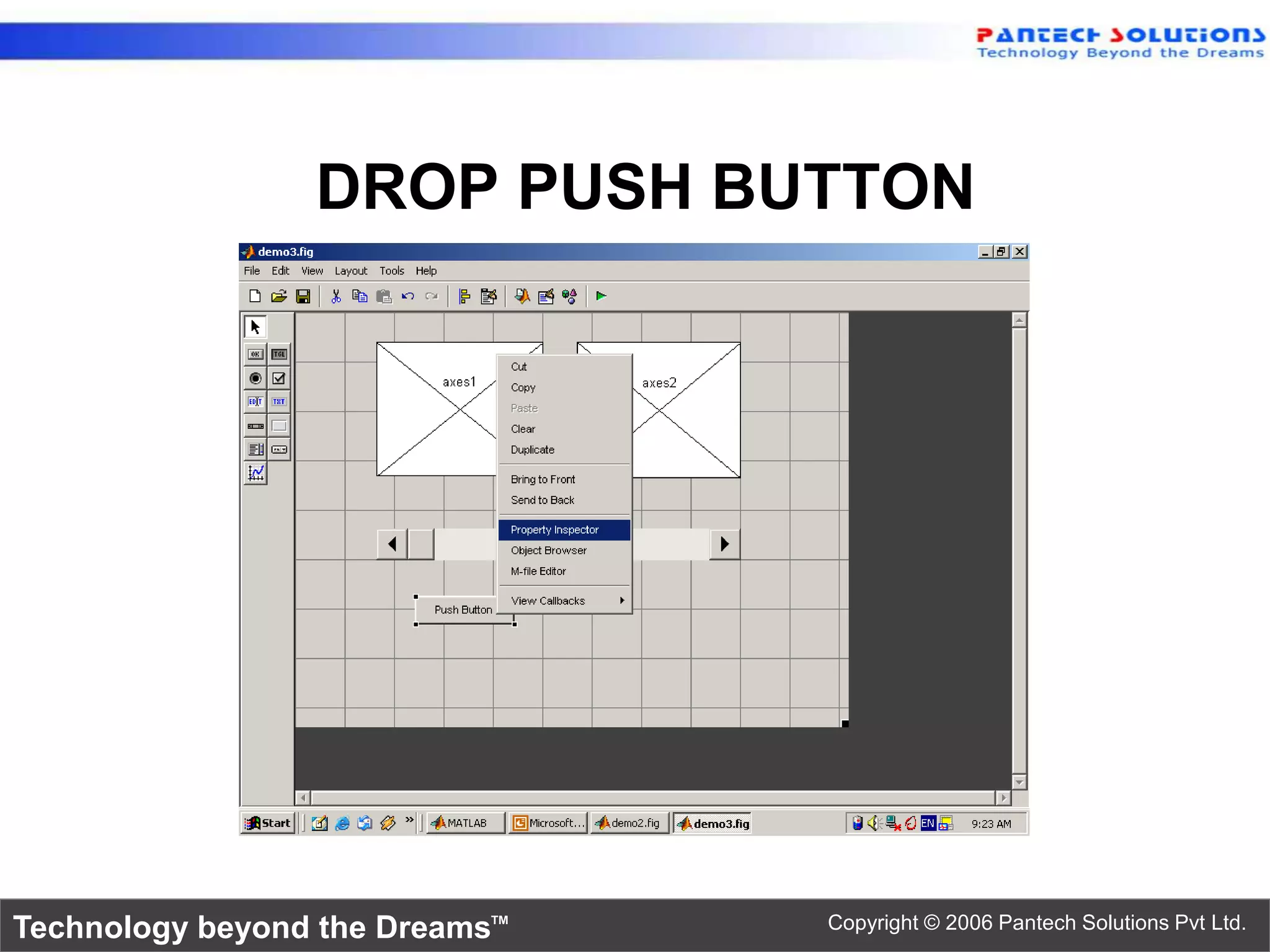

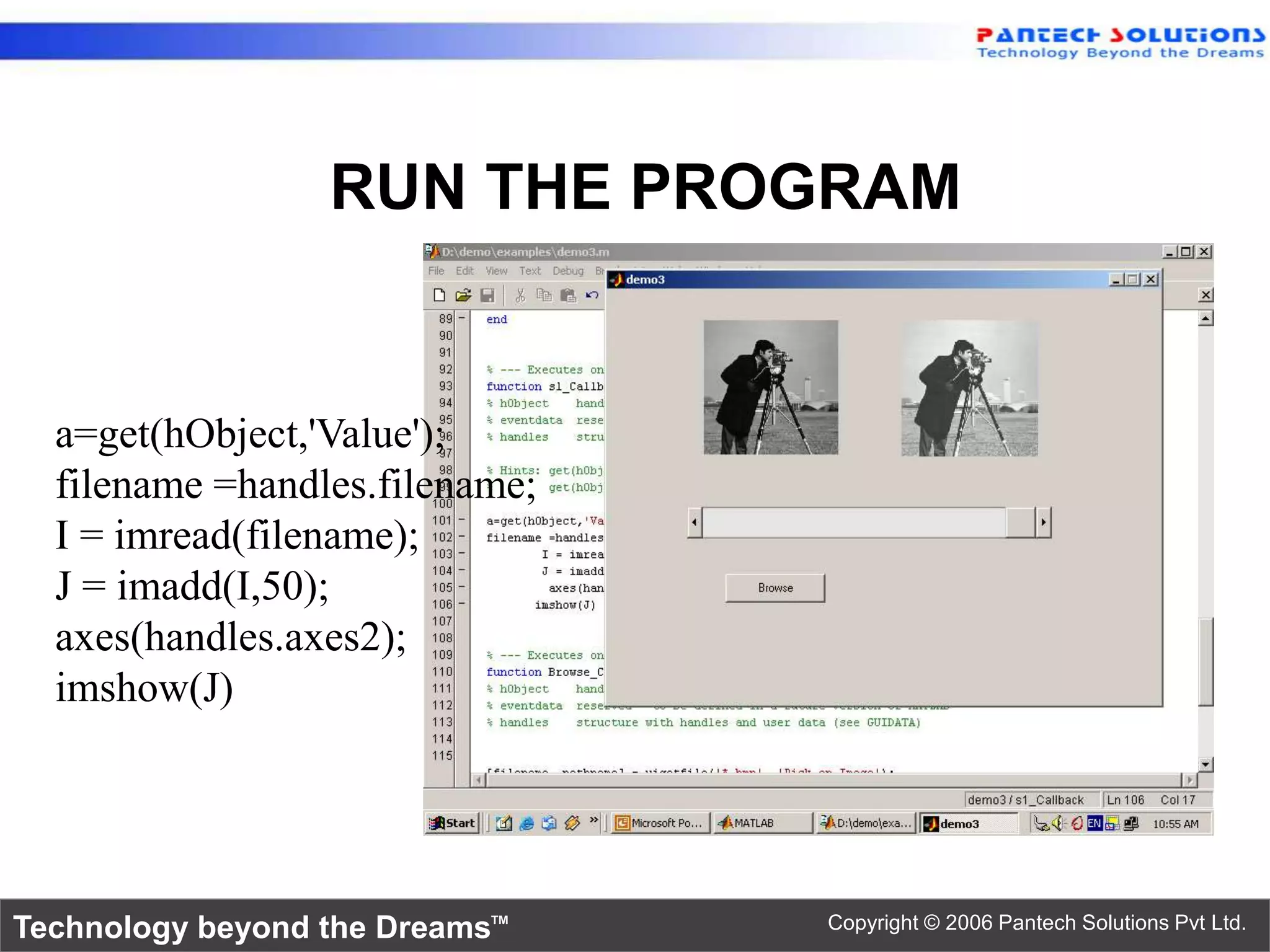

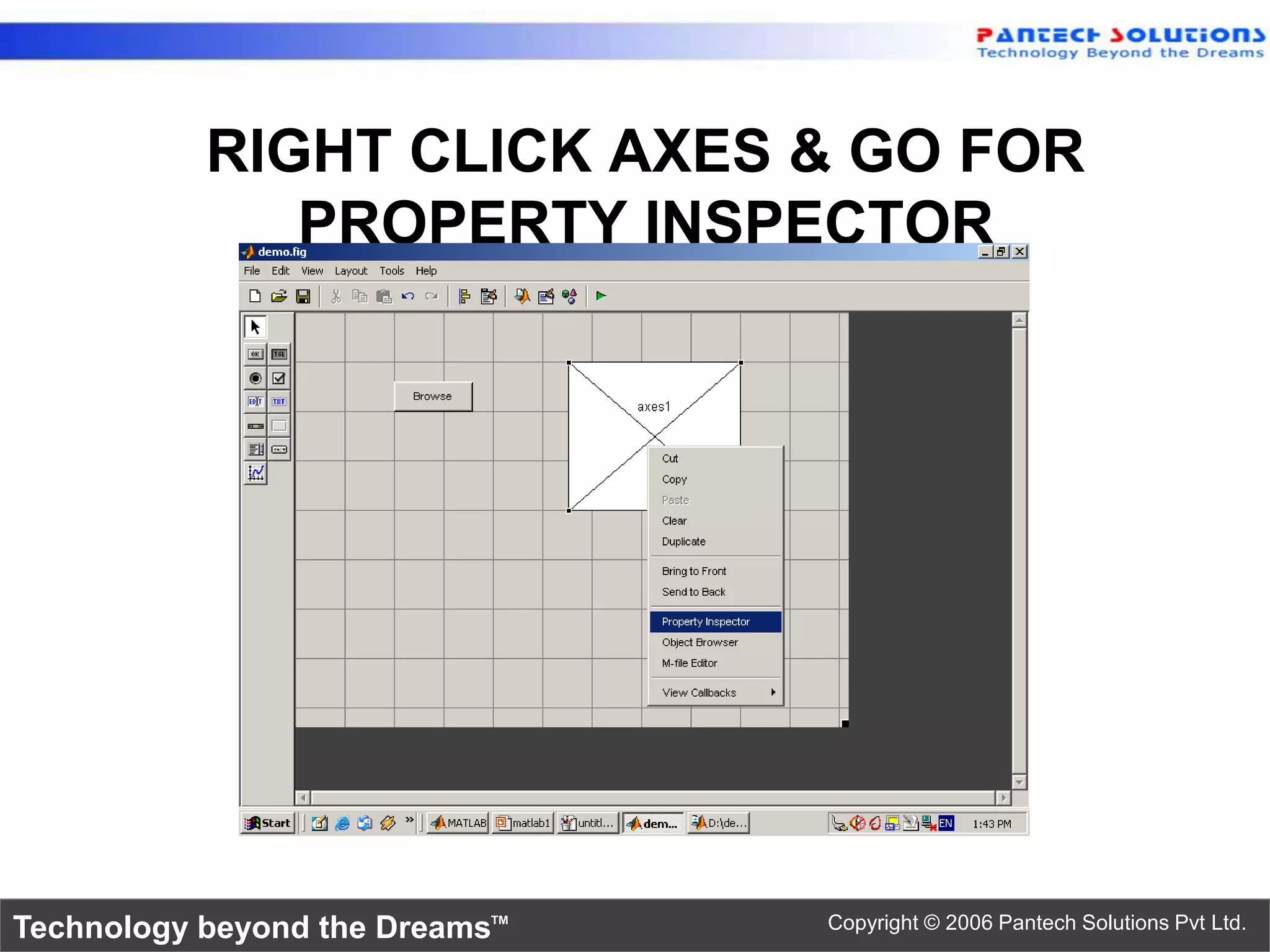

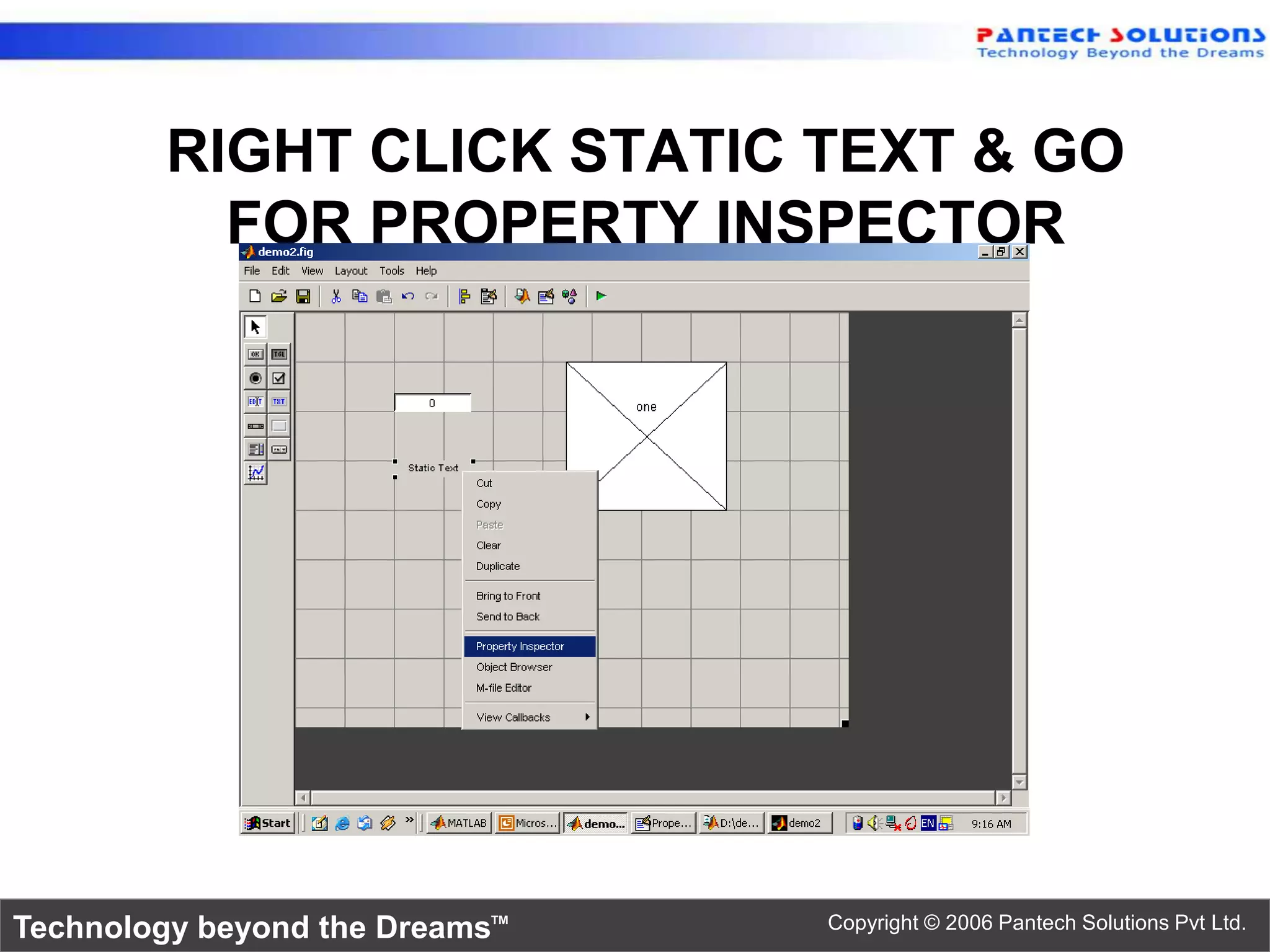

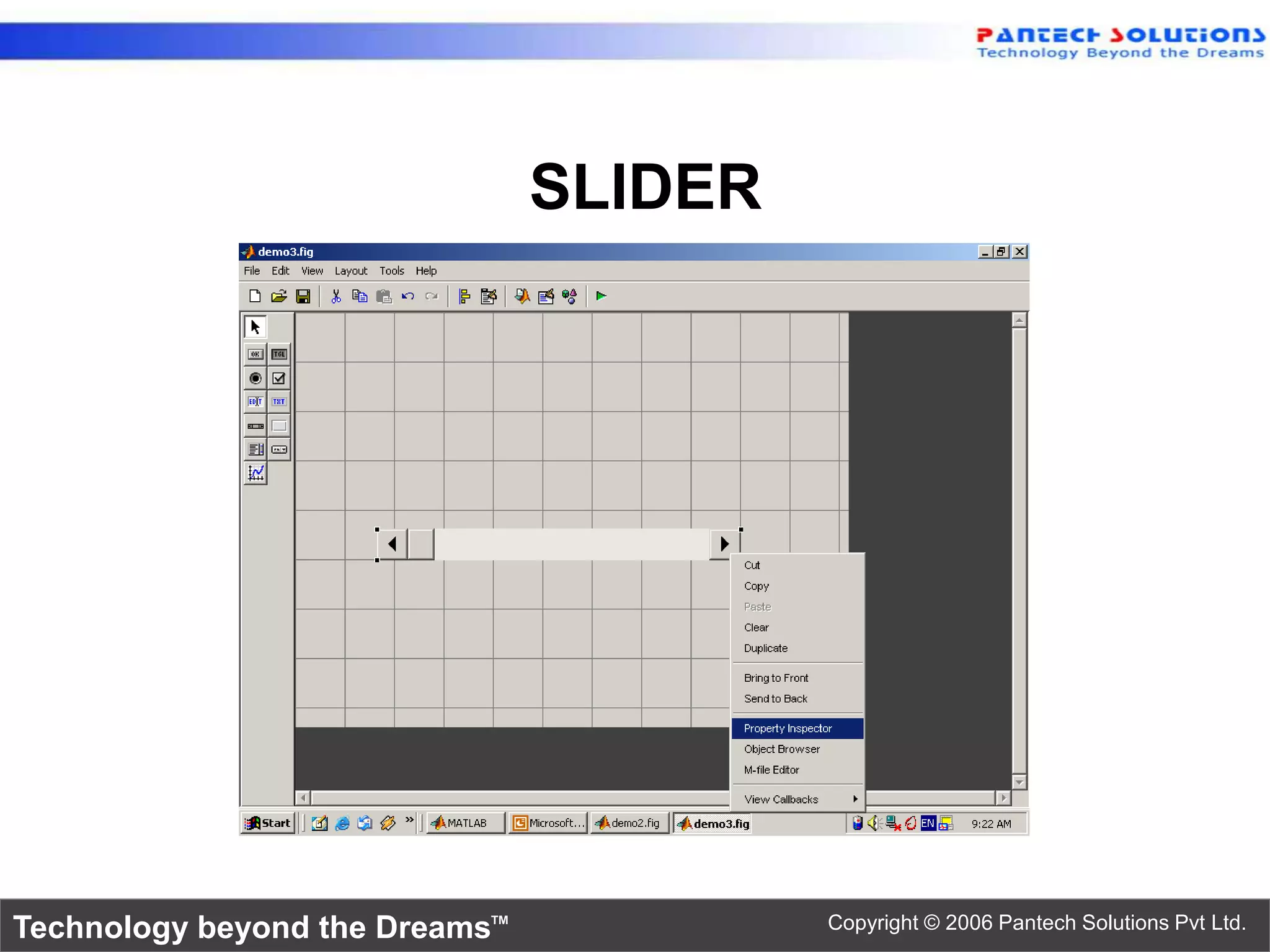

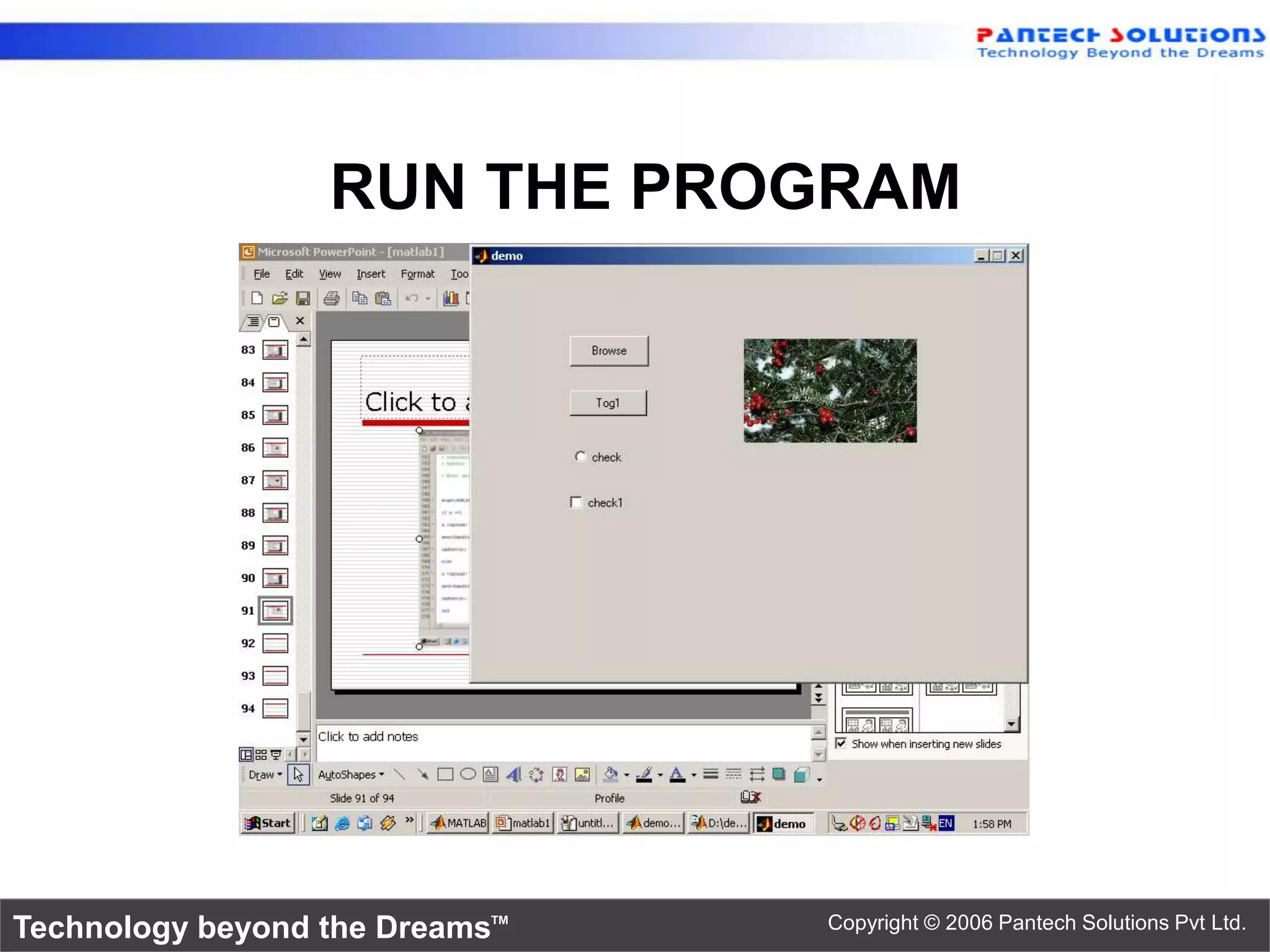

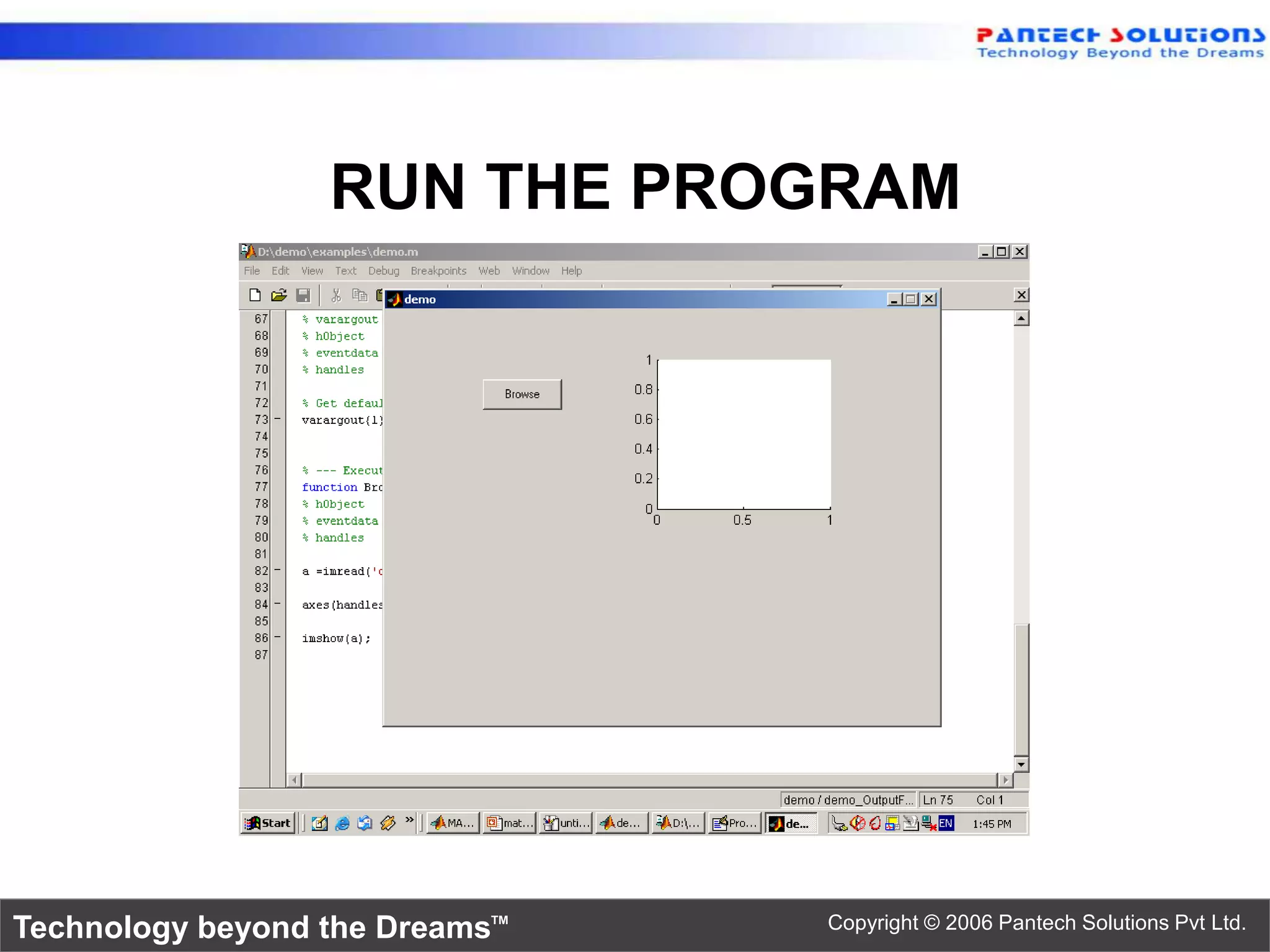

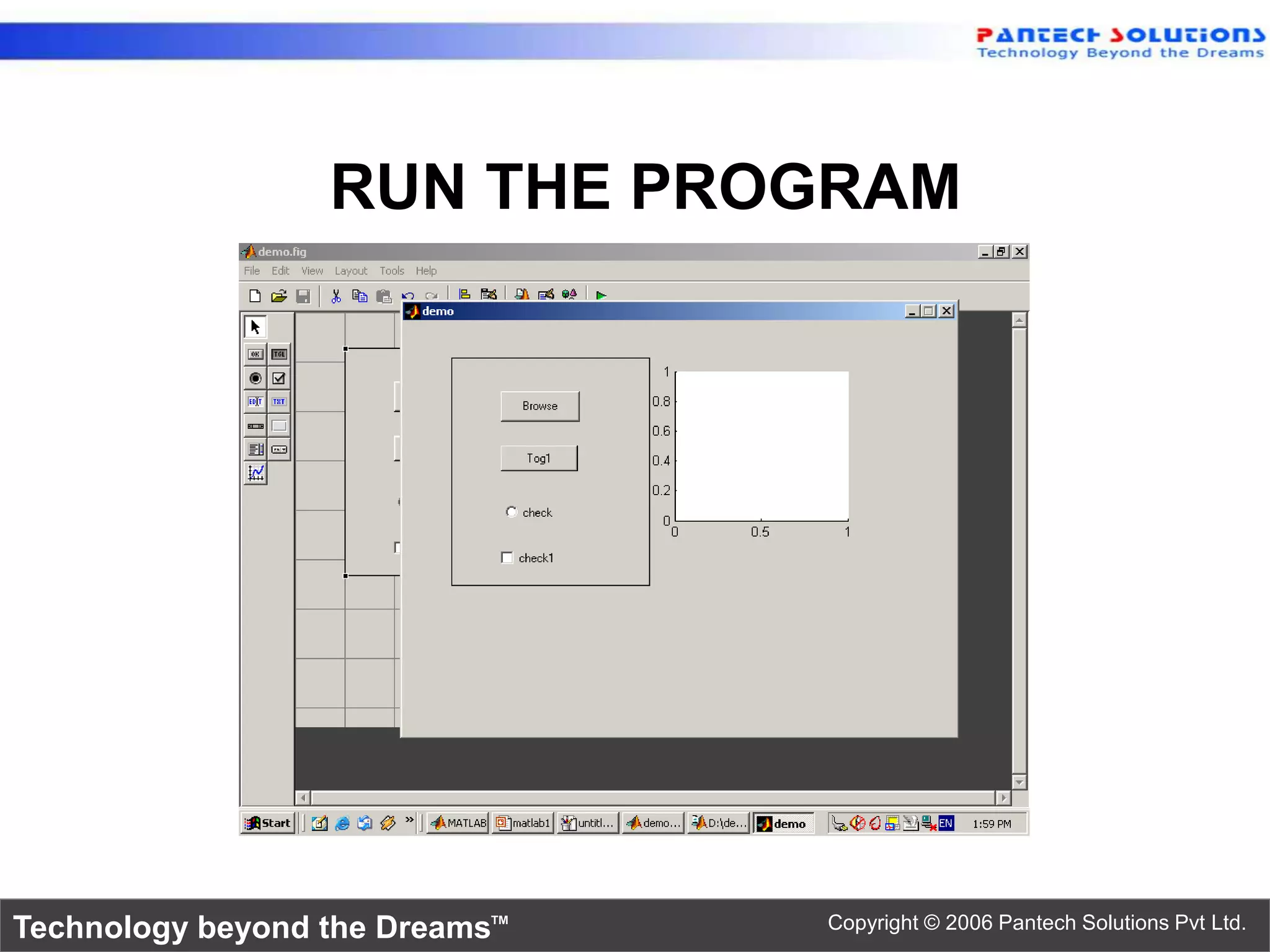

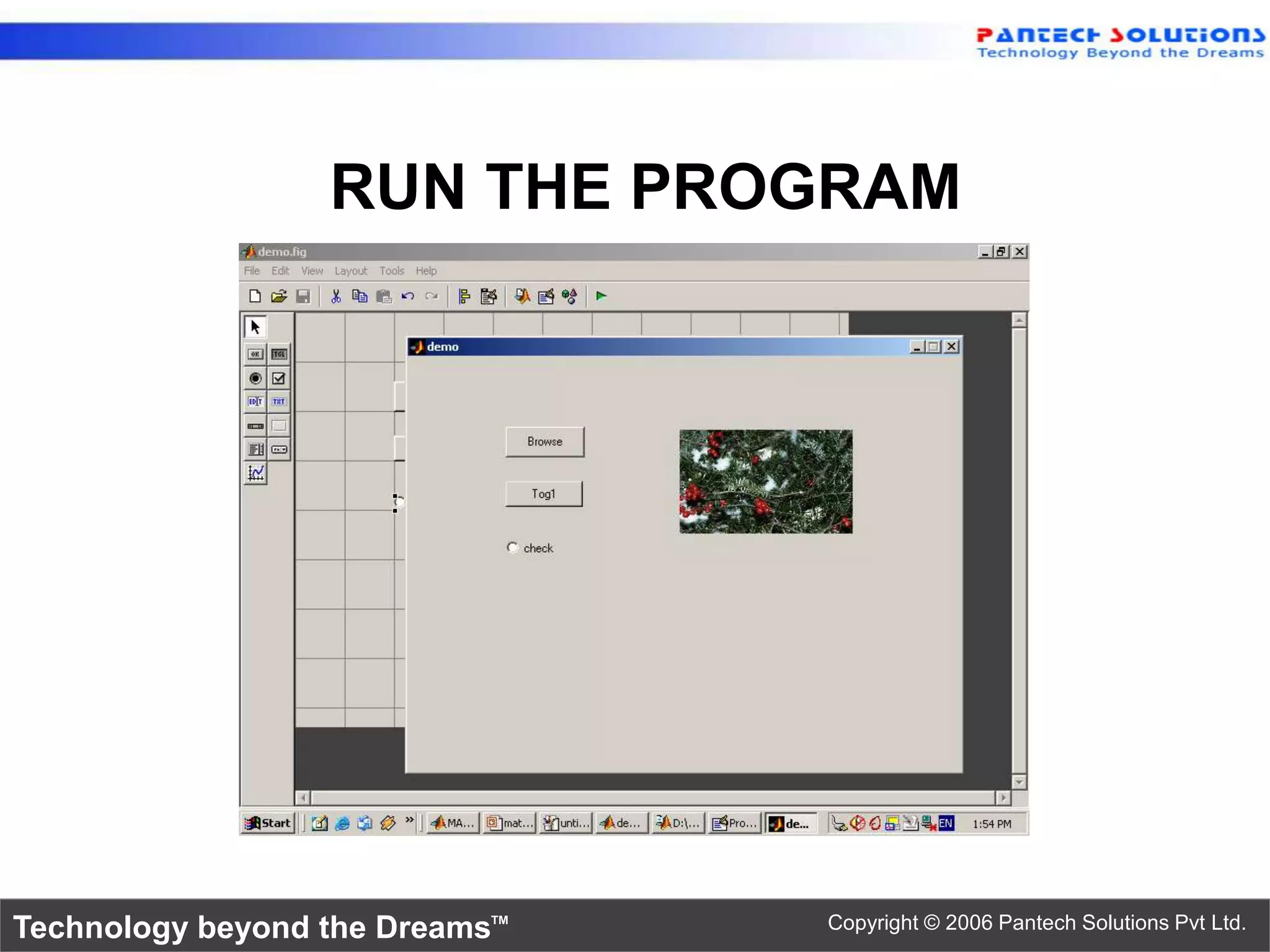

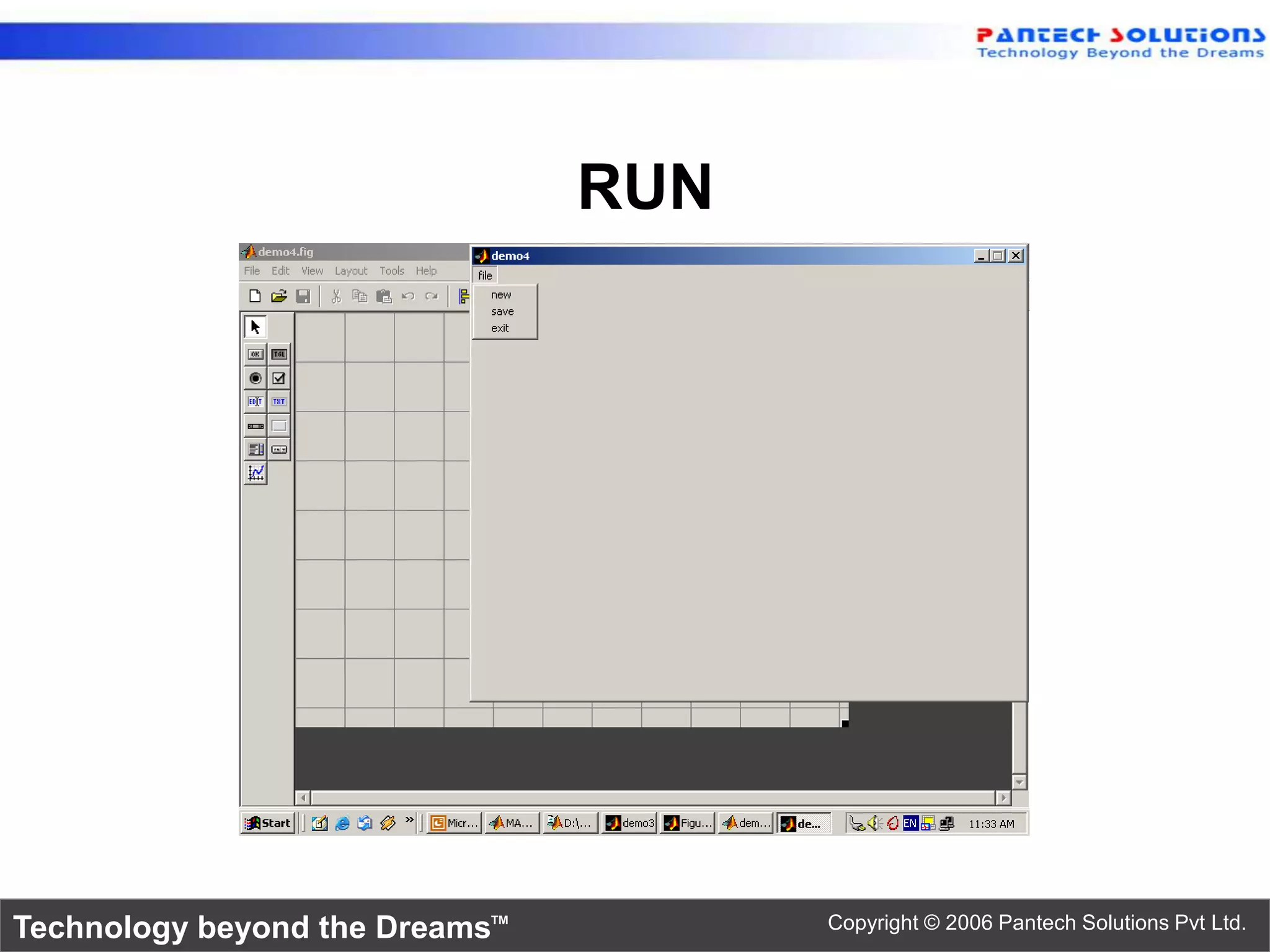

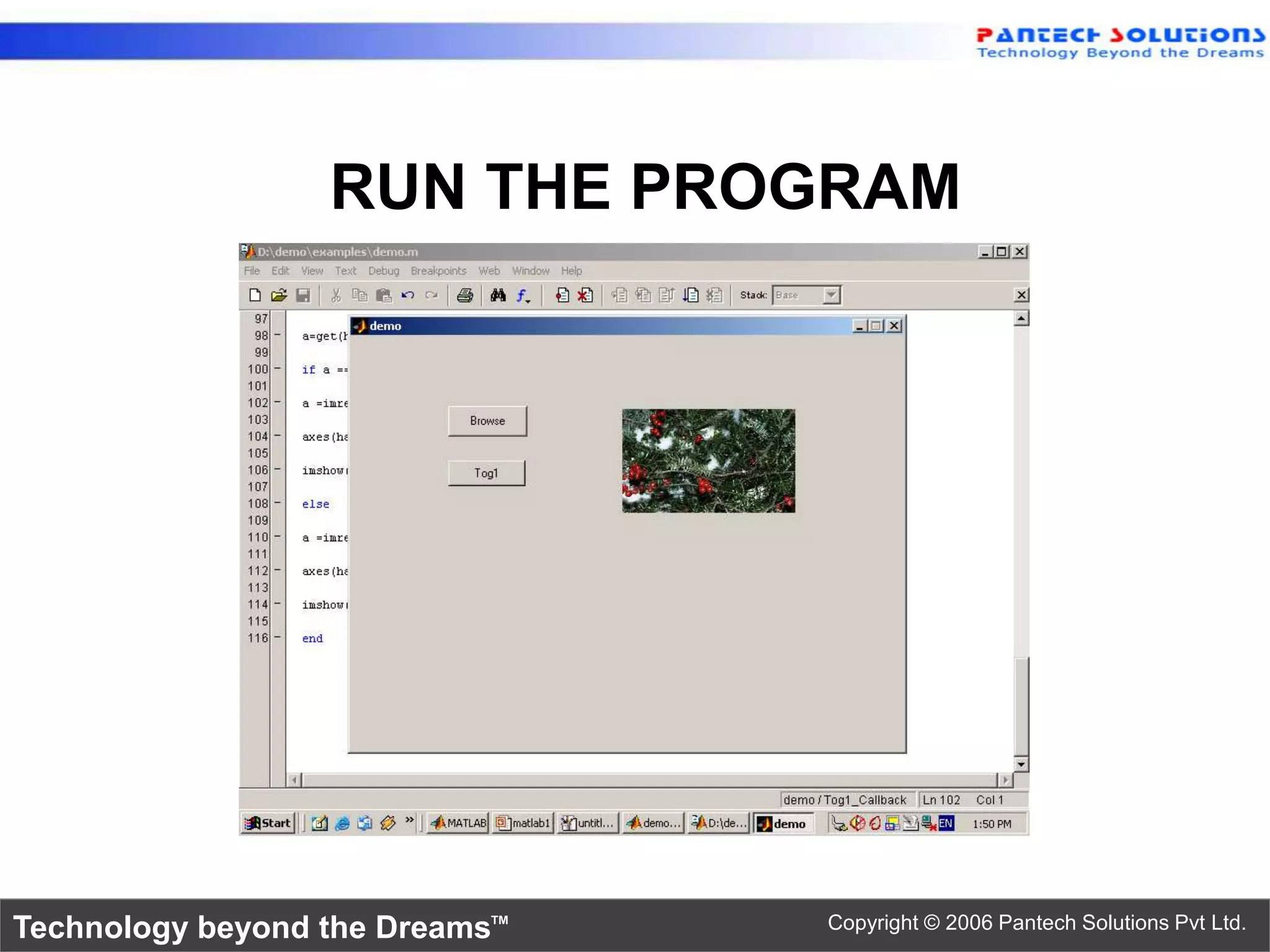

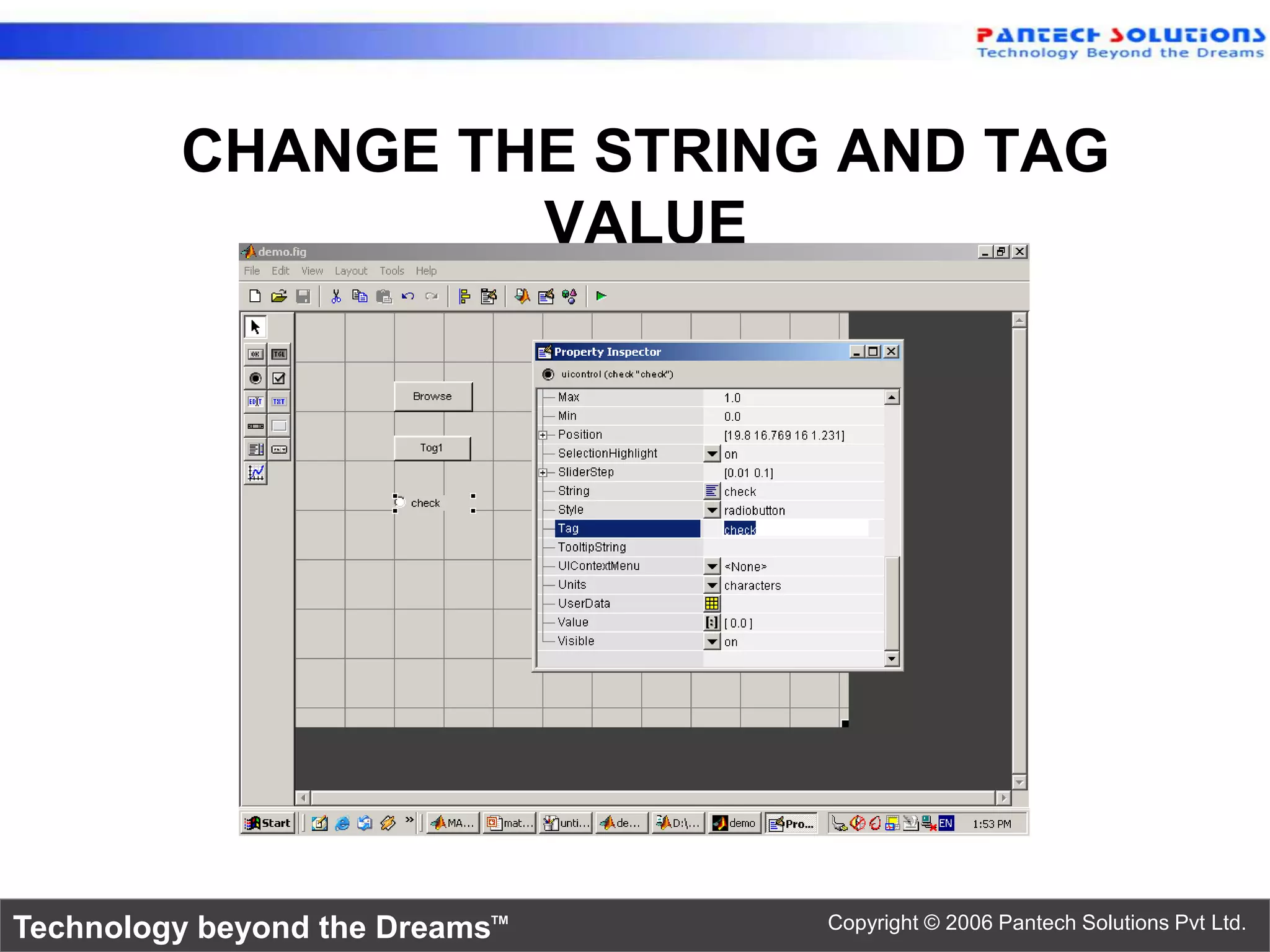

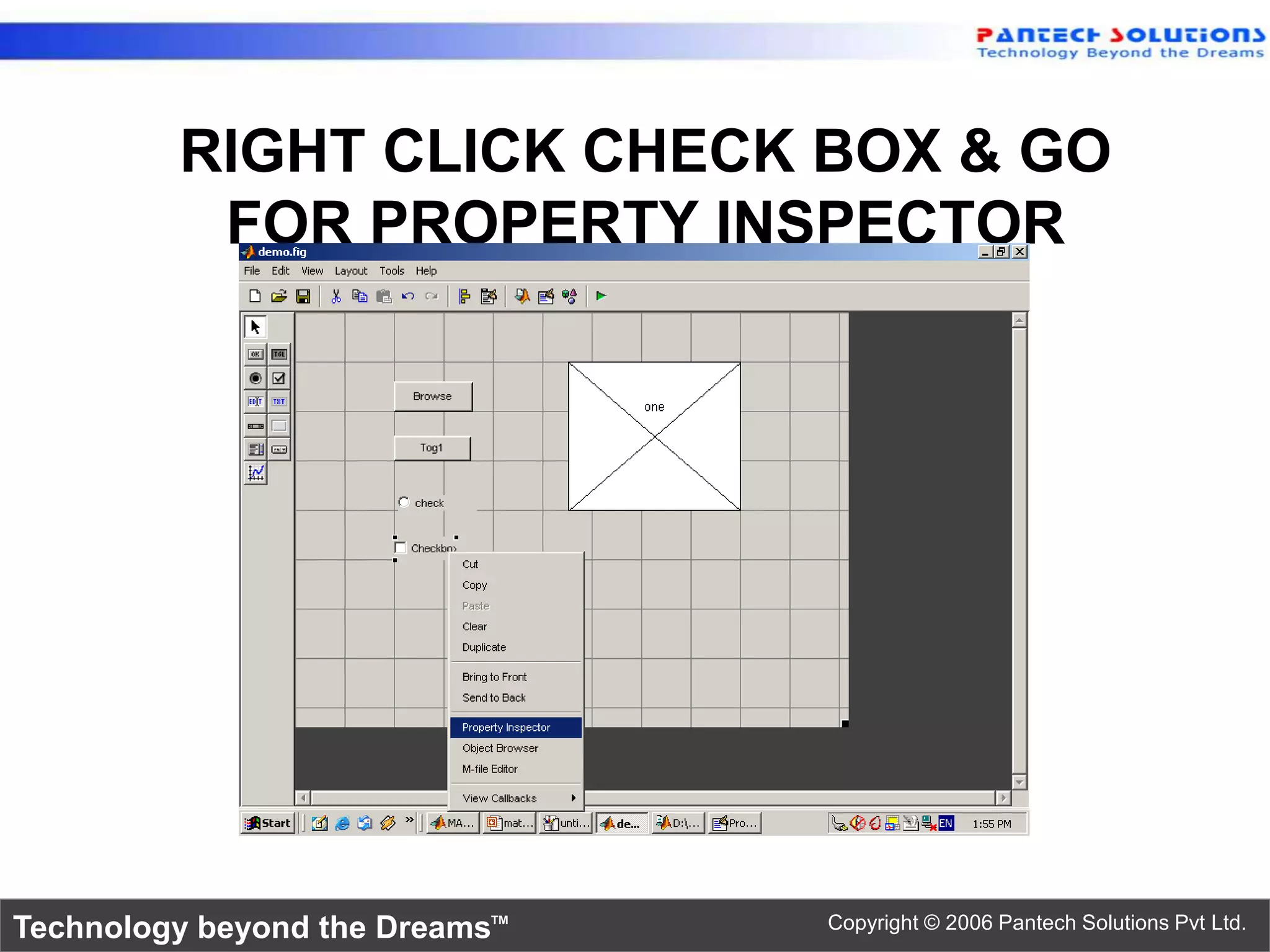

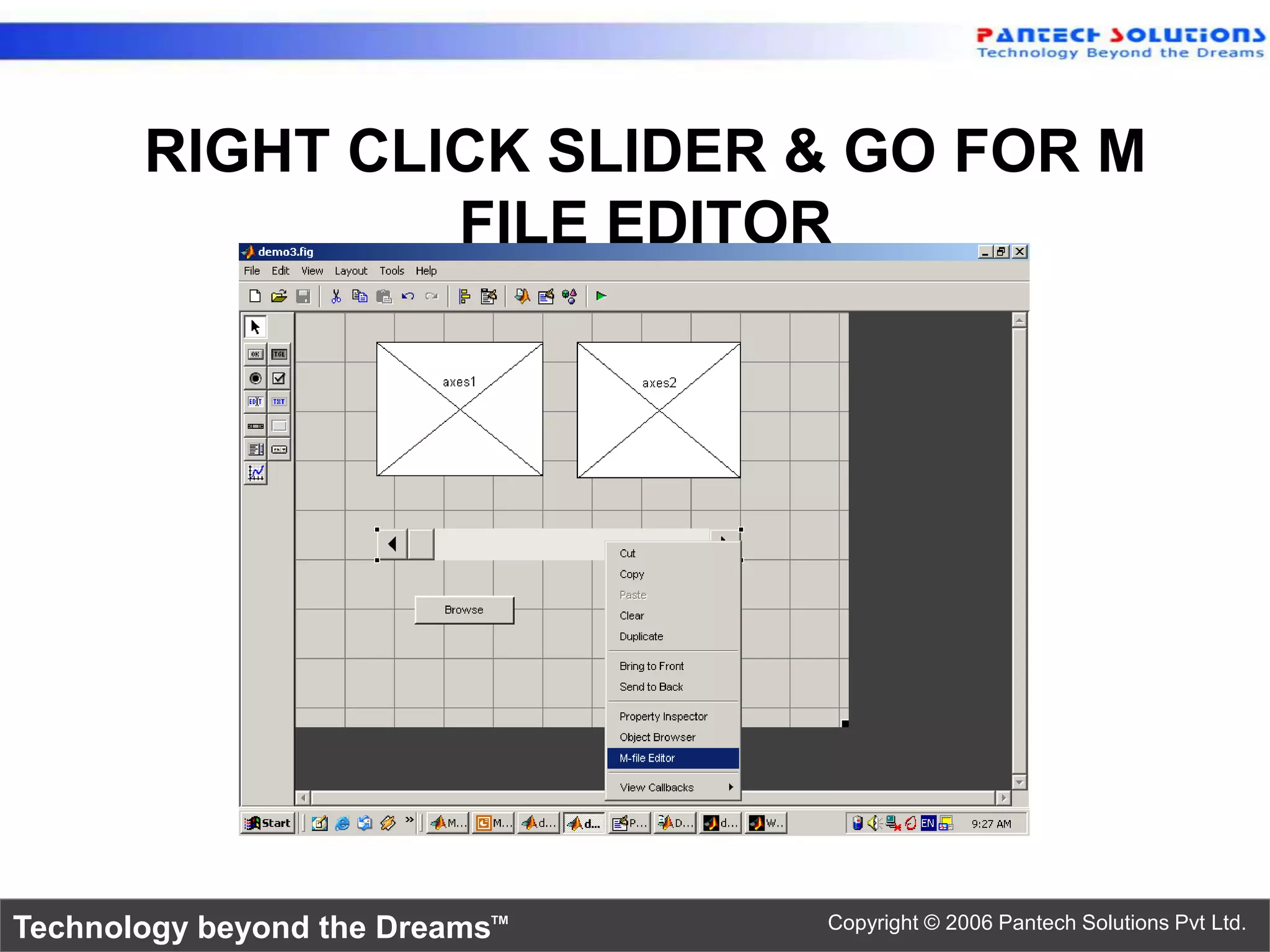

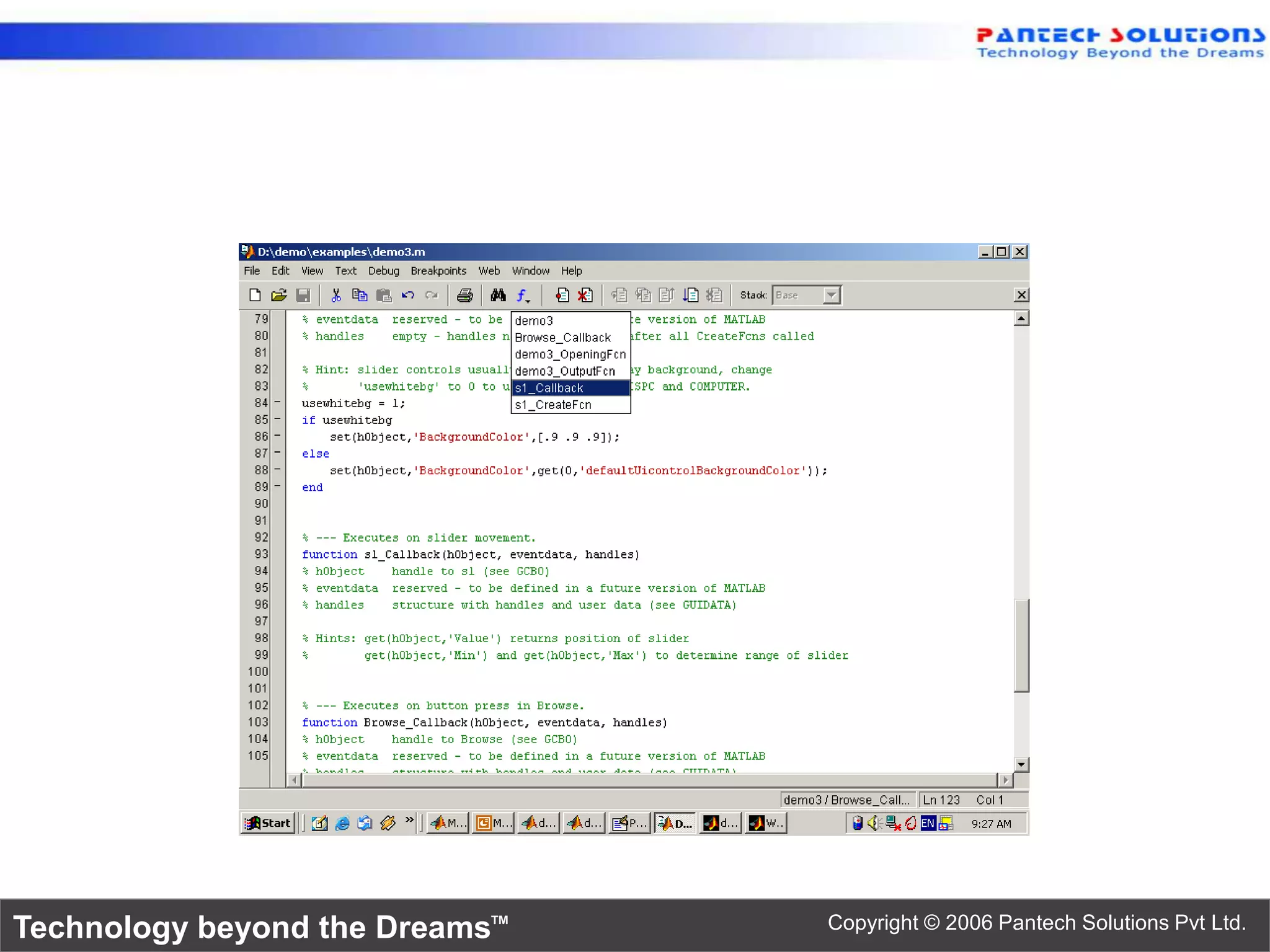

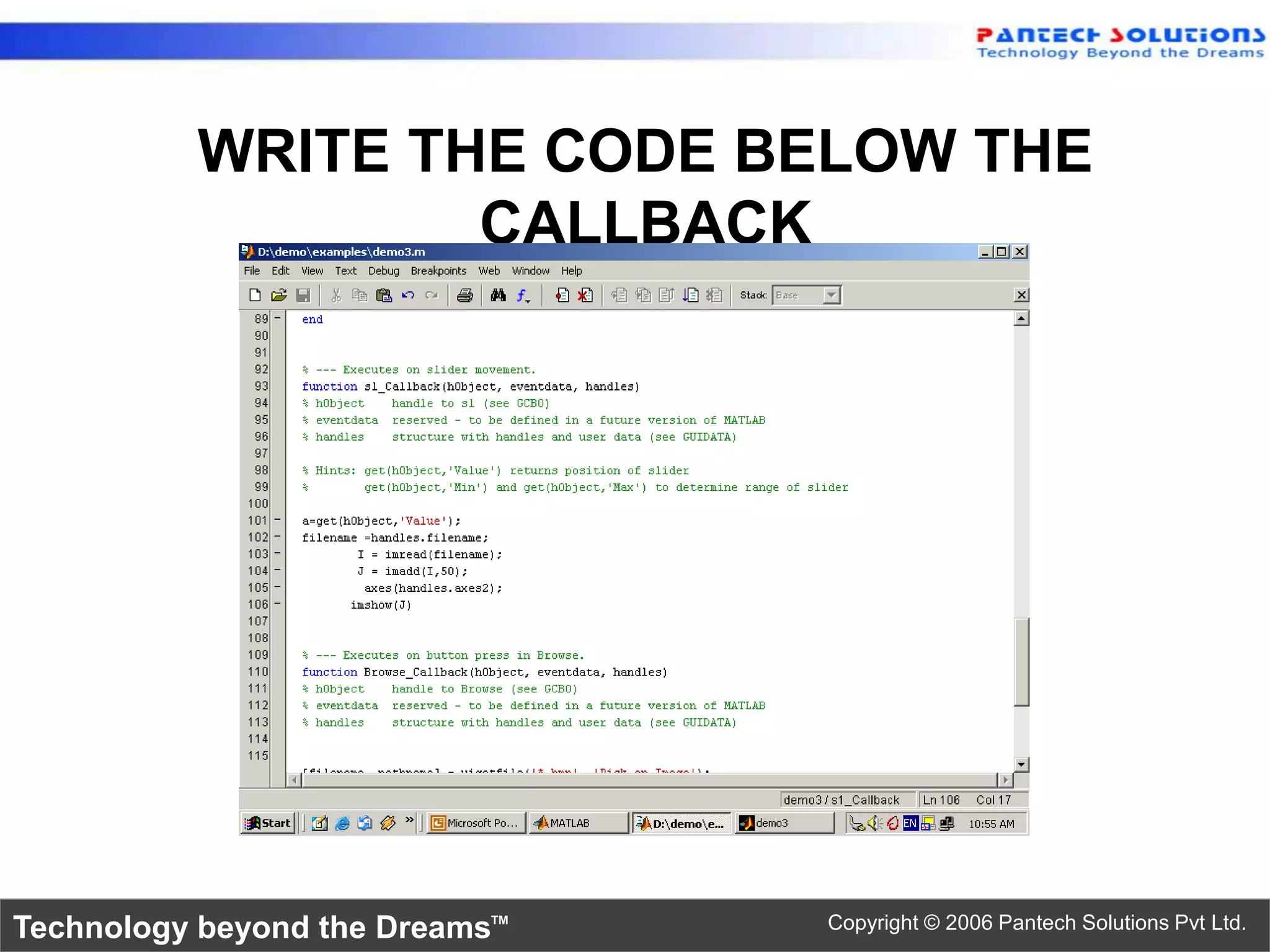

RUN THE PROGRAM a=get(hObject,'Value'); filename =handles.filename; I = imread(filename); J = imadd(I,50); axes(handles.axes2); imshow(J) Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

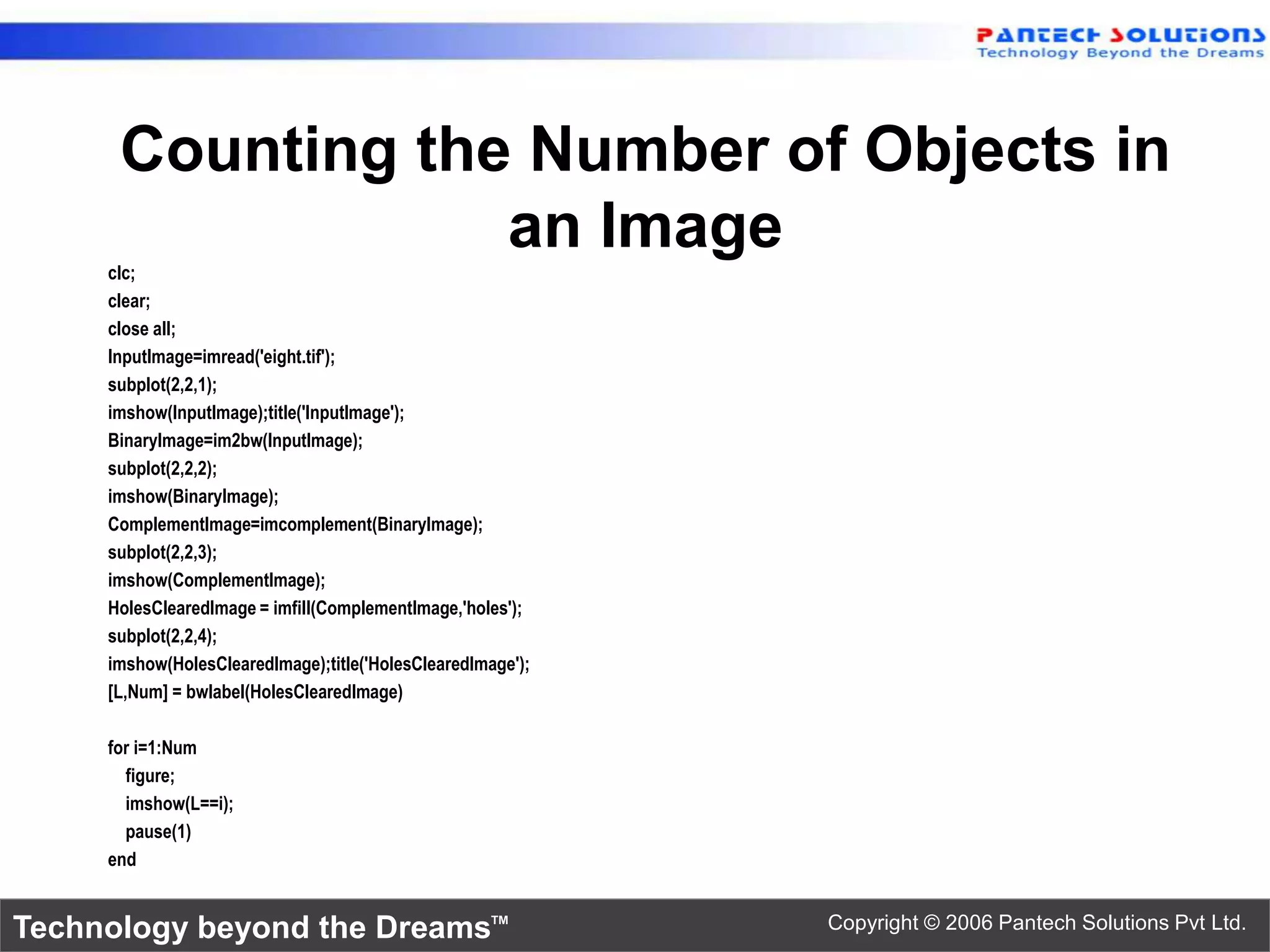

Counting the Number of Objects in an Image clc; clear; close all; InputImage=imread('eight.tif'); subplot(2,2,1); imshow(InputImage);title('InputImage'); BinaryImage=im2bw(InputImage); subplot(2,2,2); imshow(BinaryImage); ComplementImage=imcomplement(BinaryImage); subplot(2,2,3); imshow(ComplementImage); HolesClearedImage = imfill(ComplementImage,'holes'); subplot(2,2,4); imshow(HolesClearedImage);title('HolesClearedImage'); [L,Num] = bwlabel(HolesClearedImage) for i=1:Num figure; imshow(L==i); pause(1) end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

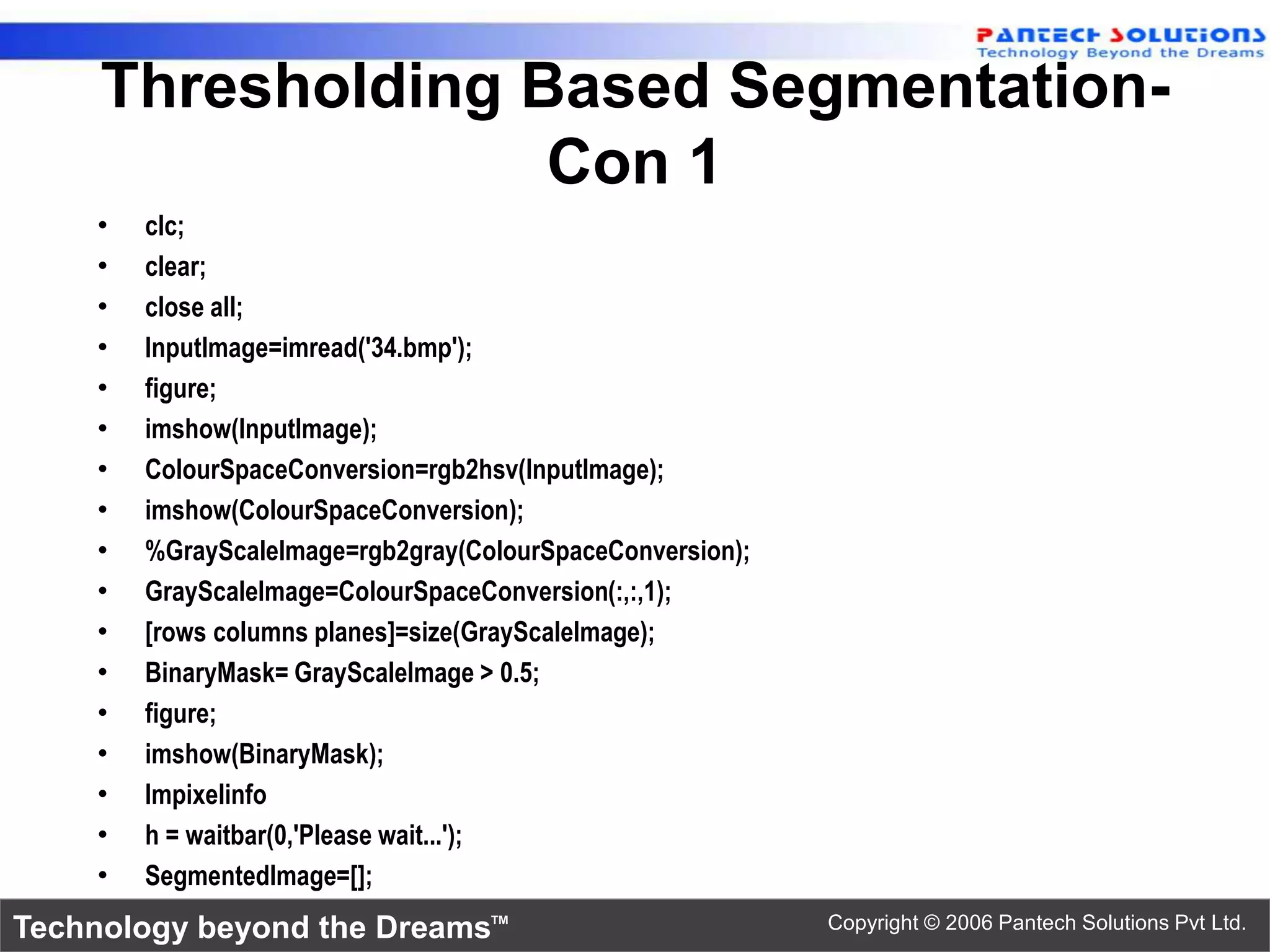

Thresholding Based Segmentation- Con 1 • clc; • clear; • close all; • InputImage=imread('34.bmp'); • figure; • imshow(InputImage); • ColourSpaceConversion=rgb2hsv(InputImage); • imshow(ColourSpaceConversion); • %GrayScaleImage=rgb2gray(ColourSpaceConversion); • GrayScaleImage=ColourSpaceConversion(:,:,1); • [rows columns planes]=size(GrayScaleImage); • BinaryMask= GrayScaleImage > 0.5; • figure; • imshow(BinaryMask); • Impixelinfo • h = waitbar(0,'Please wait...'); • SegmentedImage=[]; Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

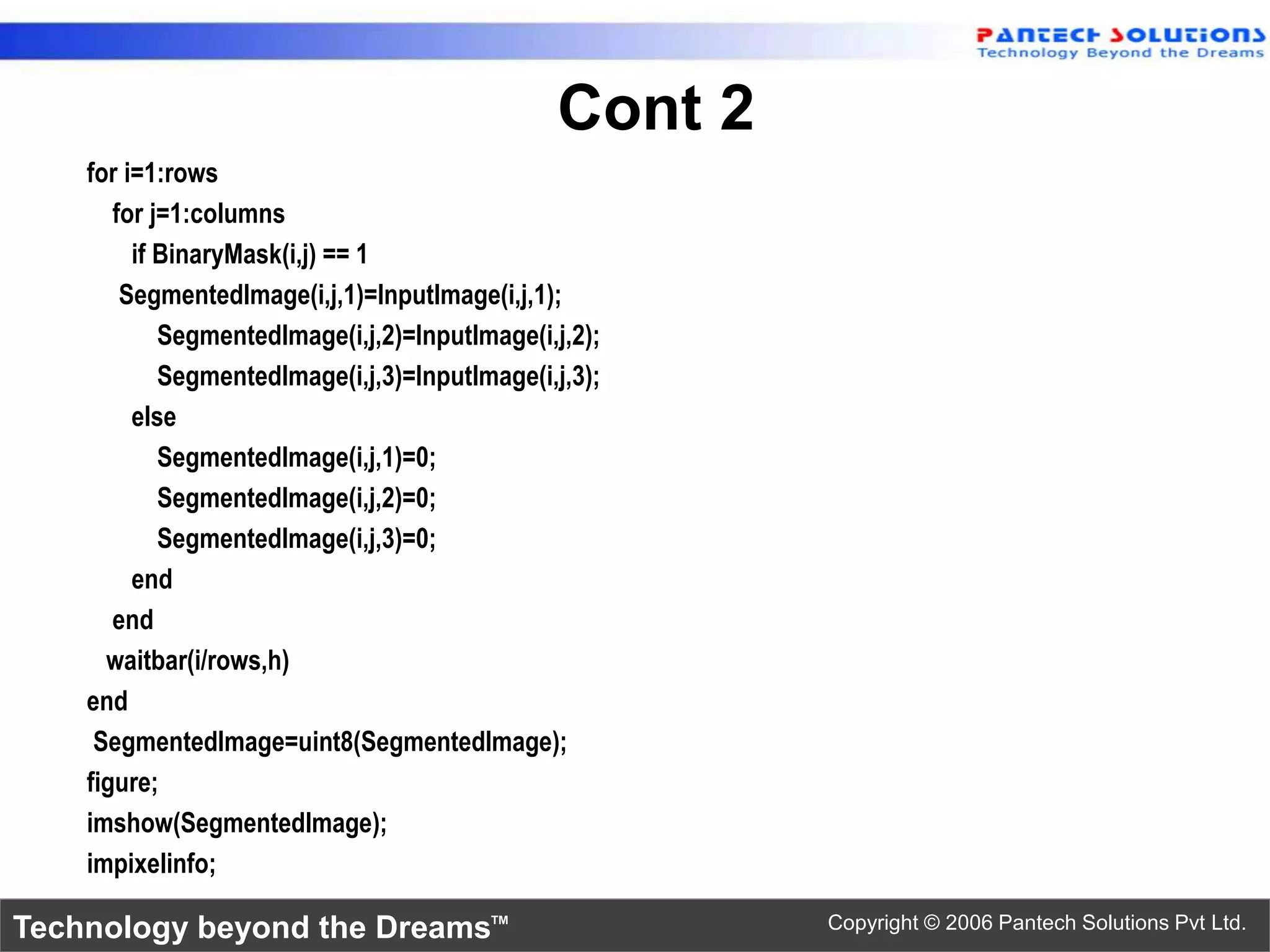

Cont 2 for i=1:rows for j=1:columns if BinaryMask(i,j) == 1 SegmentedImage(i,j,1)=InputImage(i,j,1); SegmentedImage(i,j,2)=InputImage(i,j,2); SegmentedImage(i,j,3)=InputImage(i,j,3); else SegmentedImage(i,j,1)=0; SegmentedImage(i,j,2)=0; SegmentedImage(i,j,3)=0; end end waitbar(i/rows,h) end SegmentedImage=uint8(SegmentedImage); figure; imshow(SegmentedImage); impixelinfo; Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

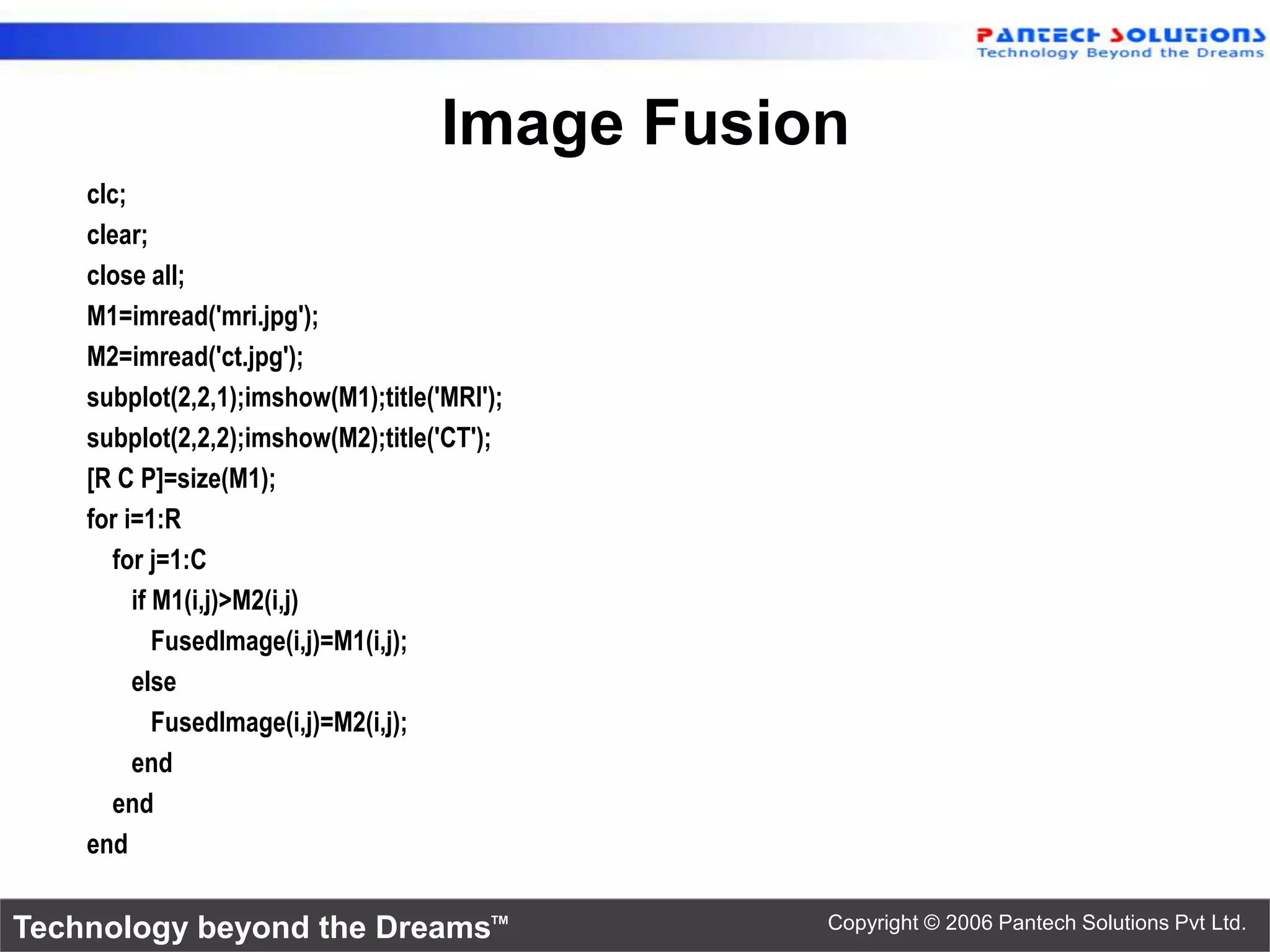

Image Fusion clc; clear; close all; M1=imread('mri.jpg'); M2=imread('ct.jpg'); subplot(2,2,1);imshow(M1);title('MRI'); subplot(2,2,2);imshow(M2);title('CT'); [R C P]=size(M1); for i=1:R for j=1:C if M1(i,j)>M2(i,j) FusedImage(i,j)=M1(i,j); else FusedImage(i,j)=M2(i,j); end end end Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

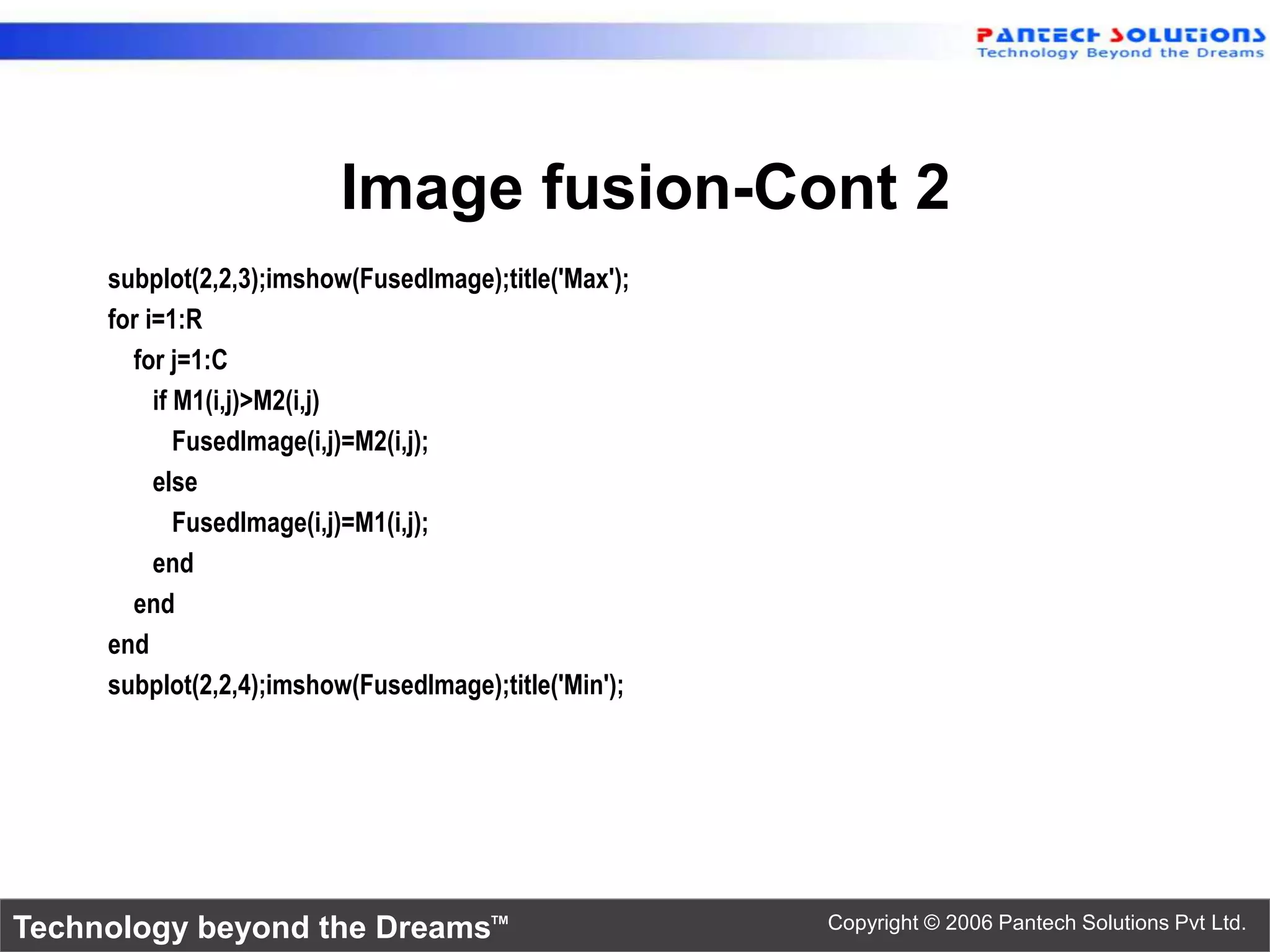

Image fusion-Cont 2 subplot(2,2,3);imshow(FusedImage);title('Max'); for i=1:R for j=1:C if M1(i,j)>M2(i,j) FusedImage(i,j)=M2(i,j); else FusedImage(i,j)=M1(i,j); end end end subplot(2,2,4);imshow(FusedImage);title('Min'); Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

For more details – www.pantechsolutions.net – http://www.slideshare.net/pantechsolutions – http://www.scribd.com/pantechsolutions – http://www.youtube.com/pantechsolutions Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.
