Getting Started with Spring for GraphQL
The document provides an overview of the SpringOne tour in June 2022, focusing on GraphQL's advantages over REST APIs, its architecture, and implementation in Java. It details GraphQL as a query language for APIs, its schema definition, and the Spring for GraphQL project that facilitates its use in Spring applications. Additionally, the document outlines available server transports, testing workflows, and provides a link to a demo project.
Getting Started with Spring for GraphQL
- 1. SpringOne Tour June, 2022- Toronto Spring for GraphQL Copyright © 2022 VMware, Inc. or its affiliates.

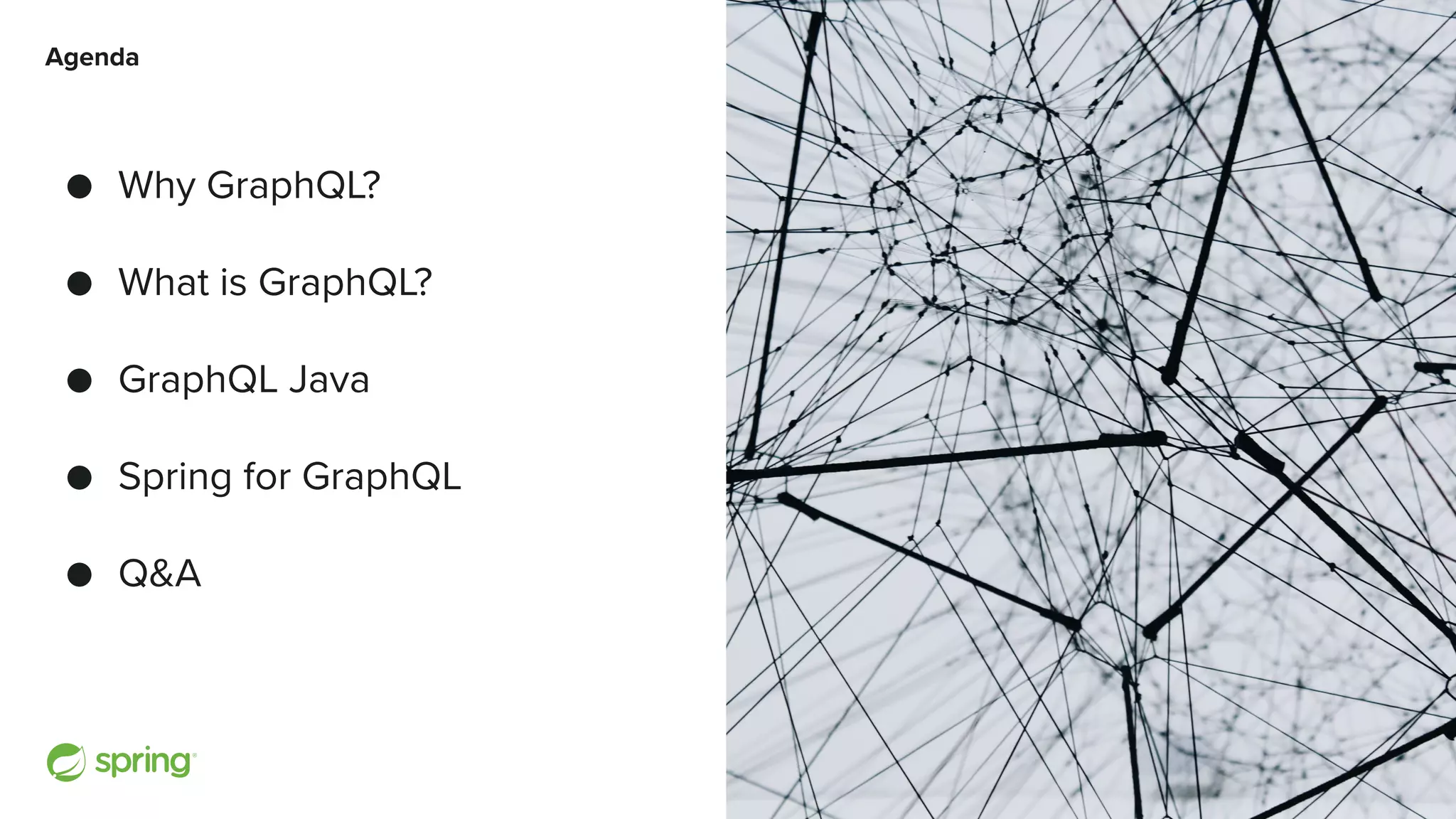

- 2. Cover w/ Image Agenda ●Why GraphQL? ● What is GraphQL? ● GraphQL Java ● Spring for GraphQL ● Q&A
- 3. Cover w/ Image WaffleCorp ●WaffleCorp Products ● Direct to Consumer ● Strategic Partnerships ● WaffleCorp e-commerce service ● Monolithic Spring Boot MVC ● REST API ● Vue Front End ● Open up our REST APIs ● Partner Microservices ● iOS and Android applications ● IoT Applications (Smart Toaster)
- 4.
- 5.
- 6.
- 7.
- 8.

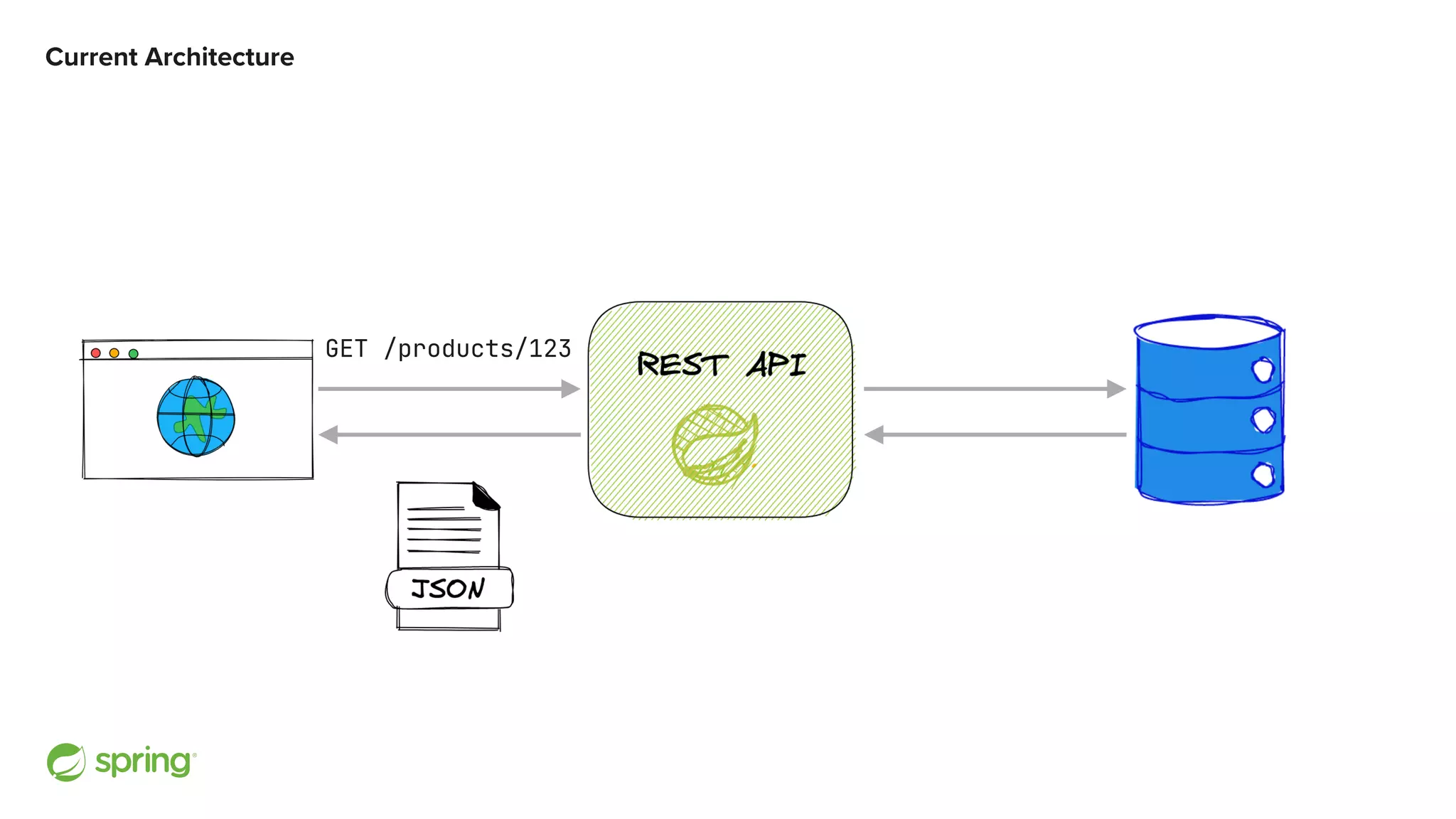

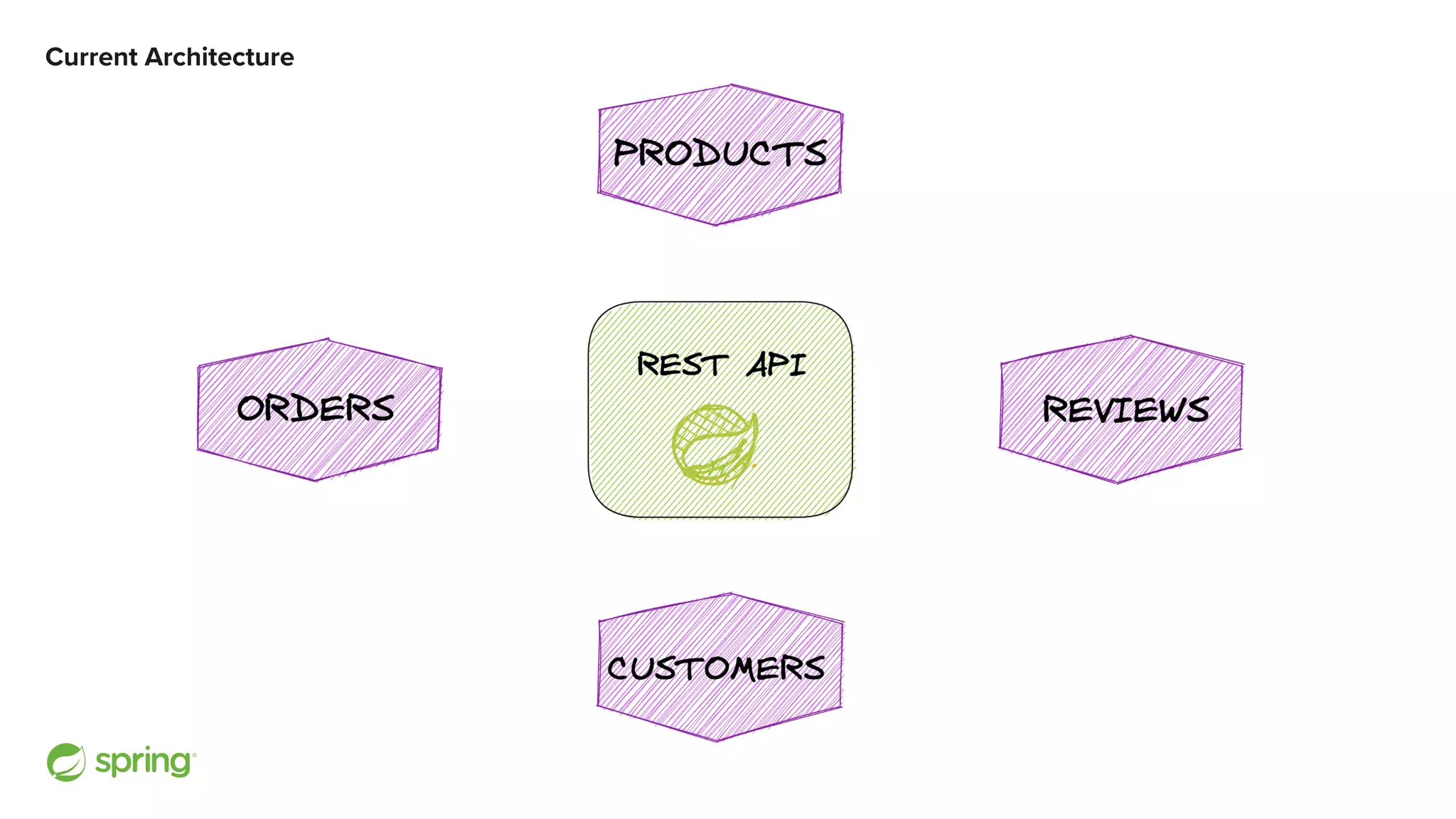

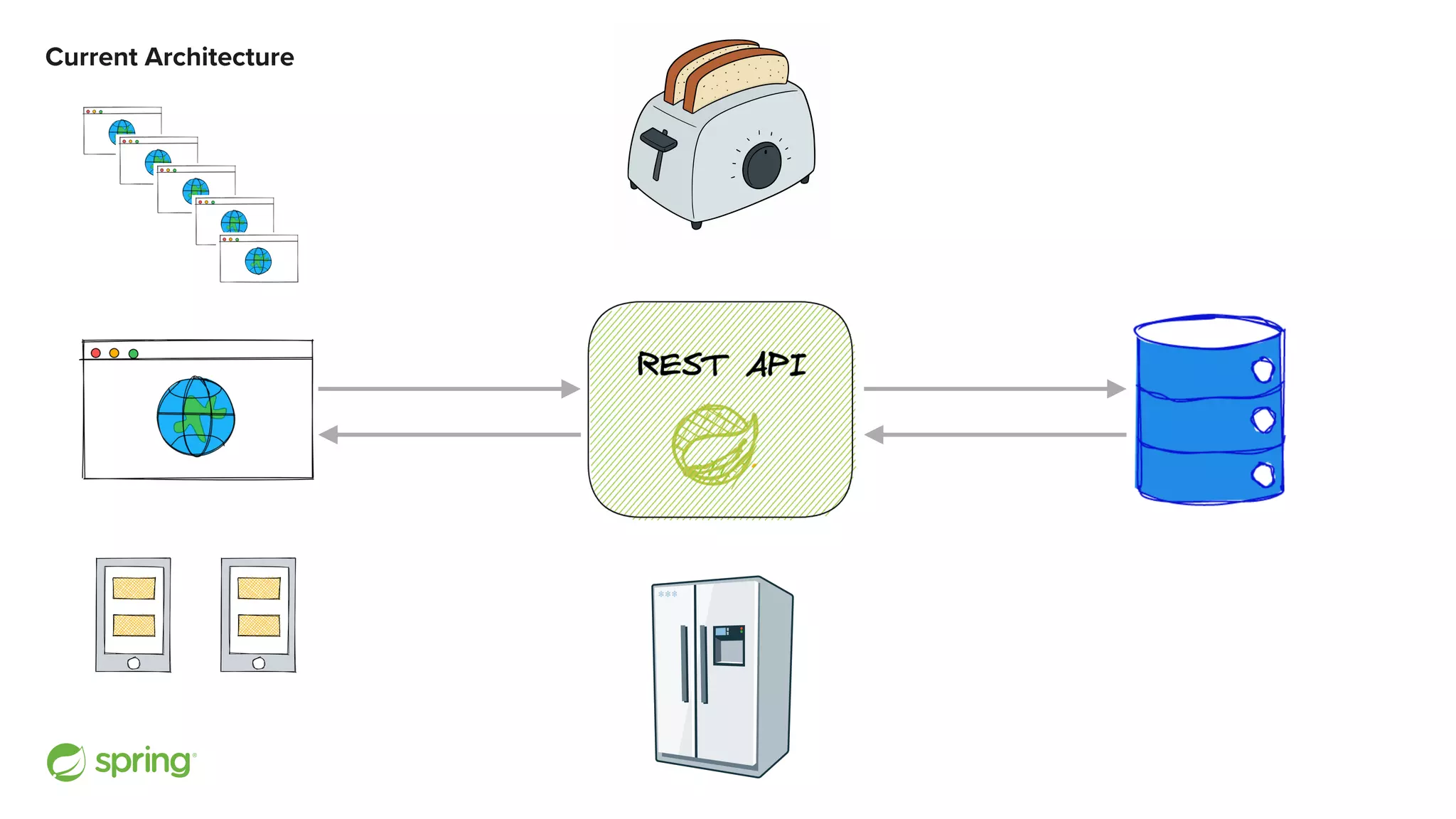

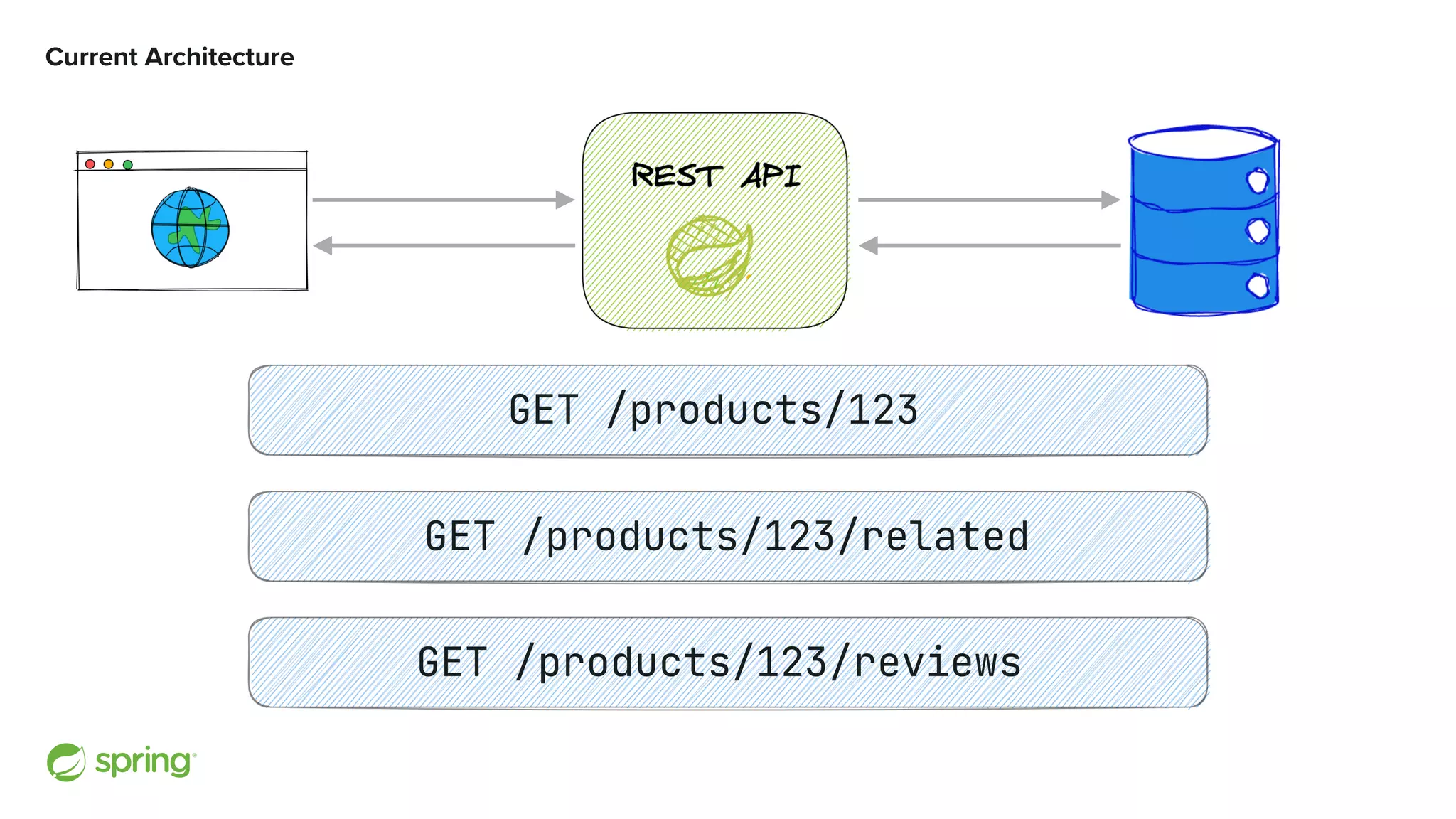

- 9. Current Architecture GET /products/123 GET/products/123/related GET /products/123/reviews
- 10.
- 11.

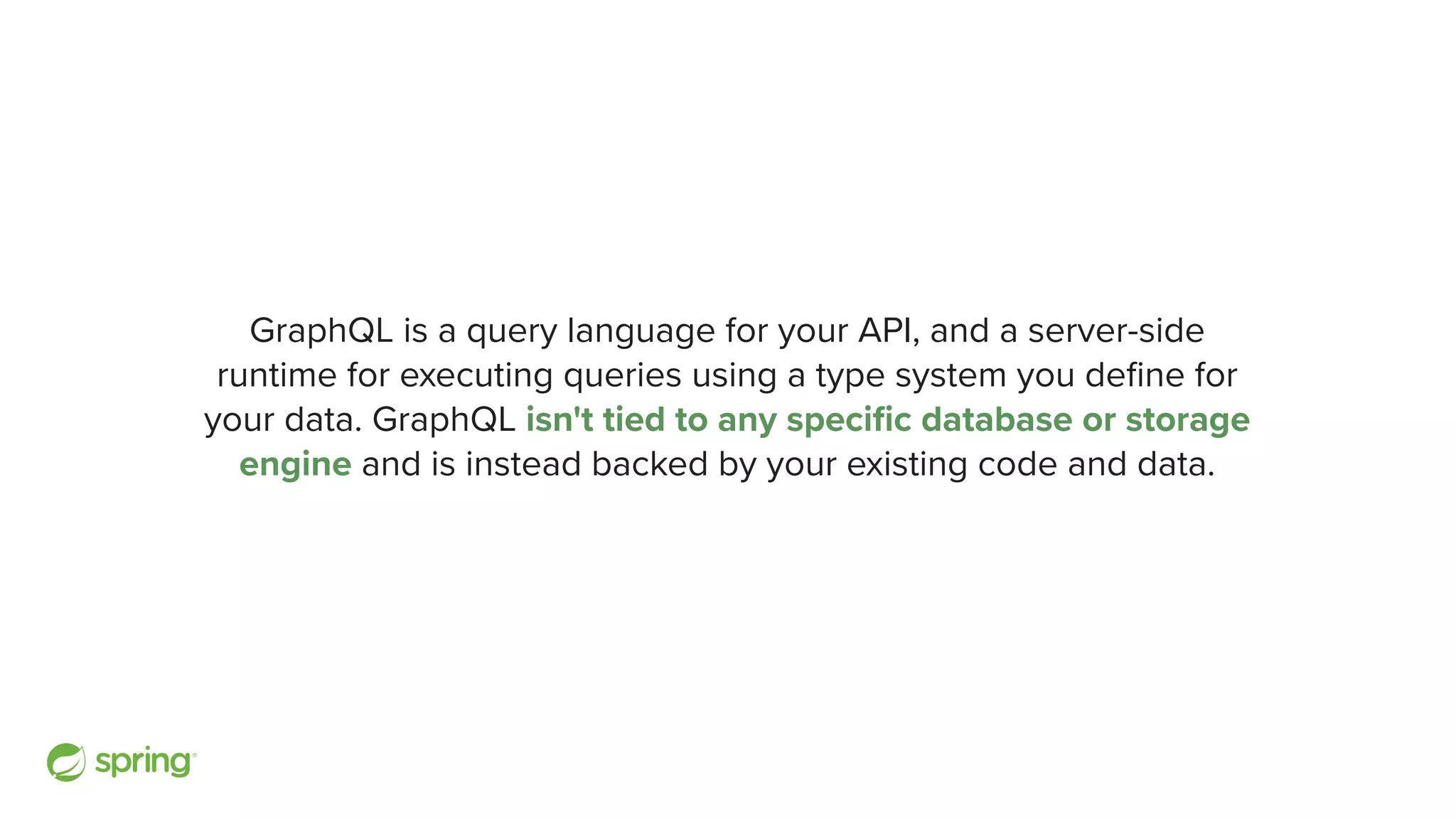

- 12. GraphQL is aquery language for your API, and a server-side runtime for executing queries using a type system you de fi ne for your data. GraphQL isn't tied to any speci fi c database or storage engine and is instead backed by your existing code and data.

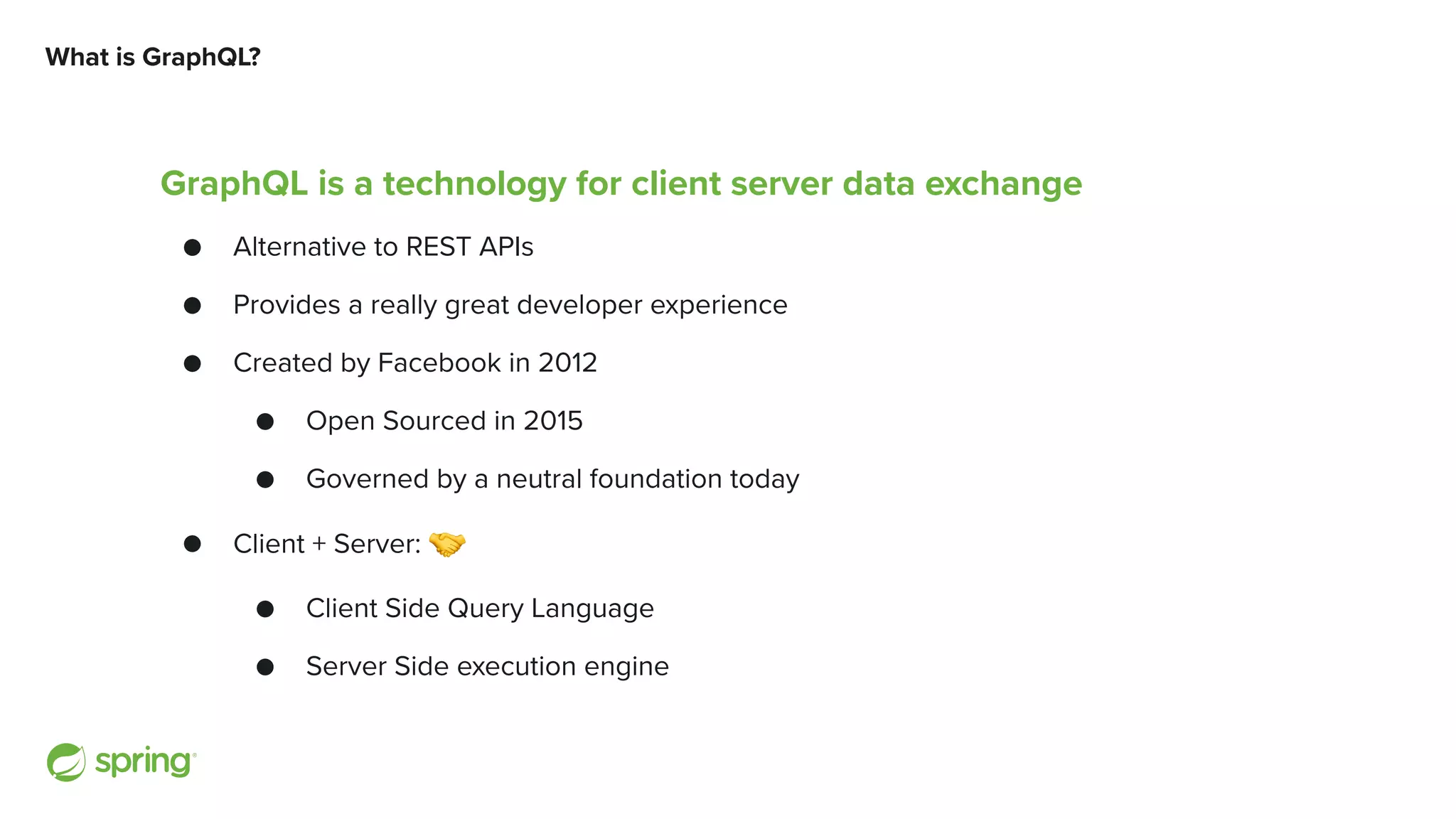

- 13. What is GraphQL? GraphQLis a technology for client server data exchange ● Alternative to REST APIs ● Provides a really great developer experience ● Created by Facebook in 2012 ● Open Sourced in 2015 ● Governed by a neutral foundation today ● Client + Server: 🤝 ● Client Side Query Language ● Server Side execution engine

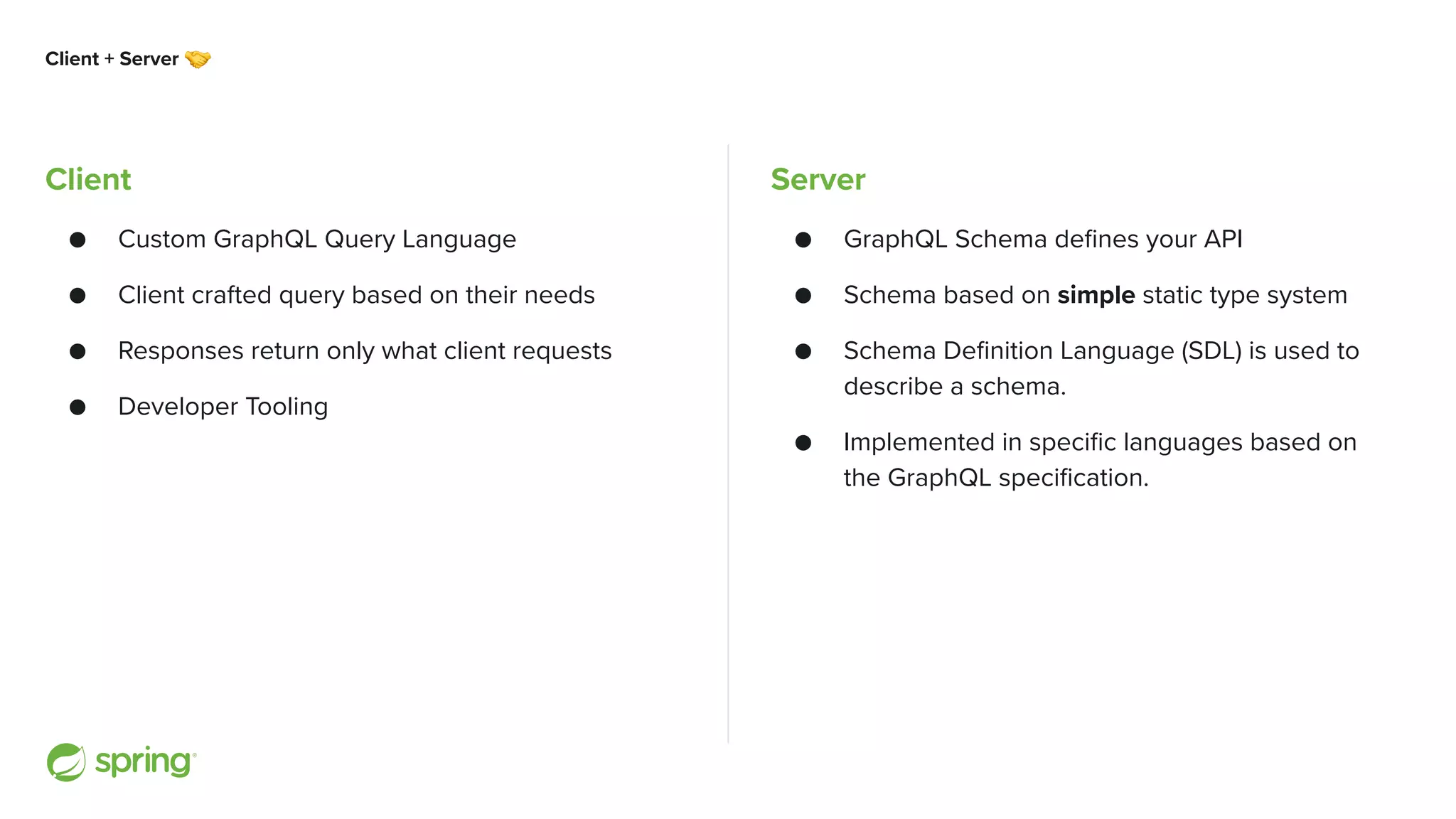

- 14. Client + Server🤝 Client ● Custom GraphQL Query Language ● Client crafted query based on their needs ● Responses return only what client requests ● Developer Tooling Server ● GraphQL Schema defines your API ● Schema based on simple static type system ● Schema Definition Language (SDL) is used to describe a schema. ● Implemented in specific languages based on the GraphQL specification.
- 15.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.

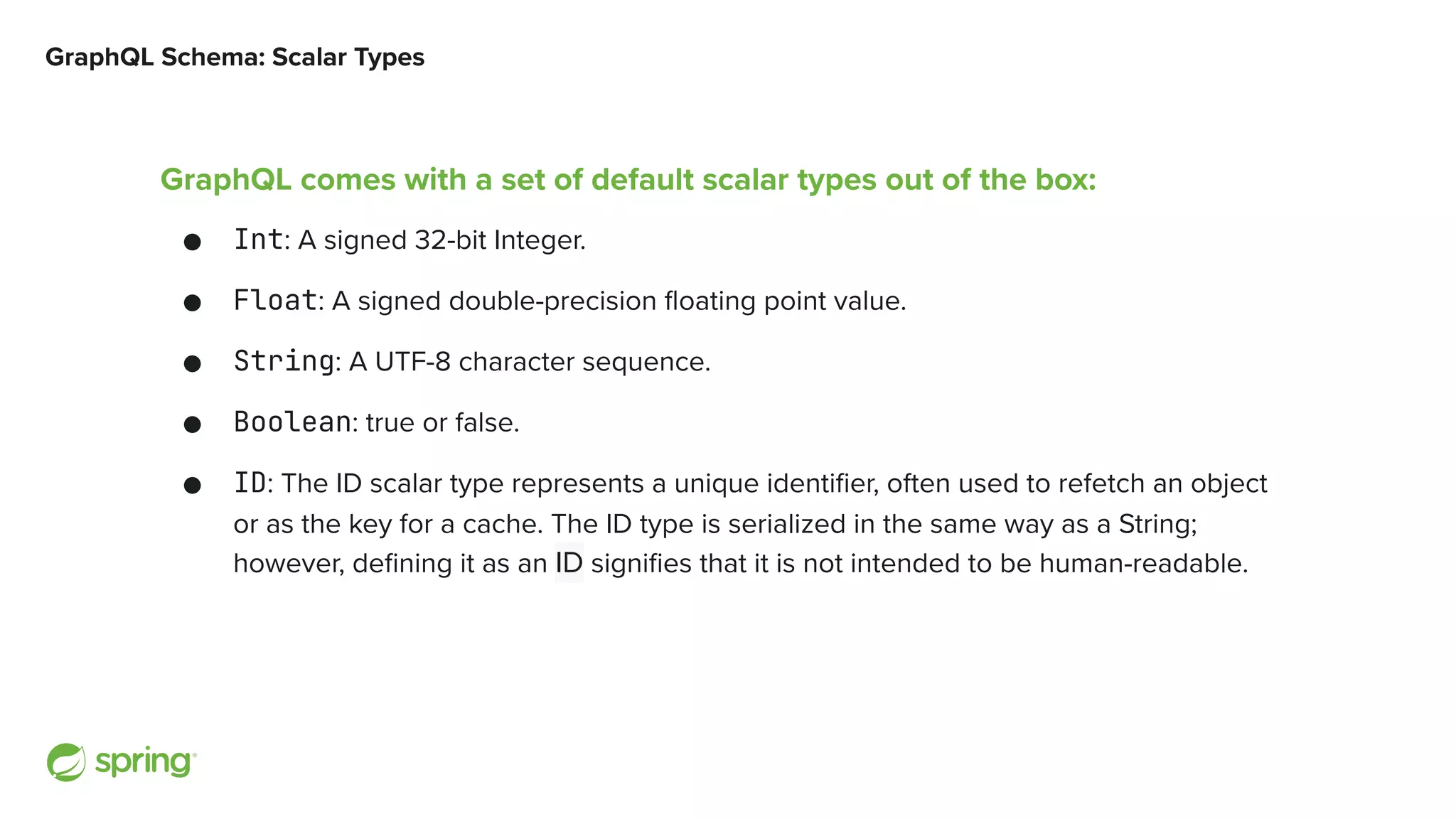

- 24. GraphQL Schema: ScalarTypes GraphQL comes with a set of default scalar types out of the box: ● Int: A signed 32-bit Integer. ● Float: A signed double-precision floating point value. ● String: A UTF-8 character sequence. ● Boolean: true or false. ● ID: The ID scalar type represents a unique identifier, often used to refetch an object or as the key for a cache. The ID type is serialized in the same way as a String; however, defining it as an ID signifies that it is not intended to be human ‐ readable.

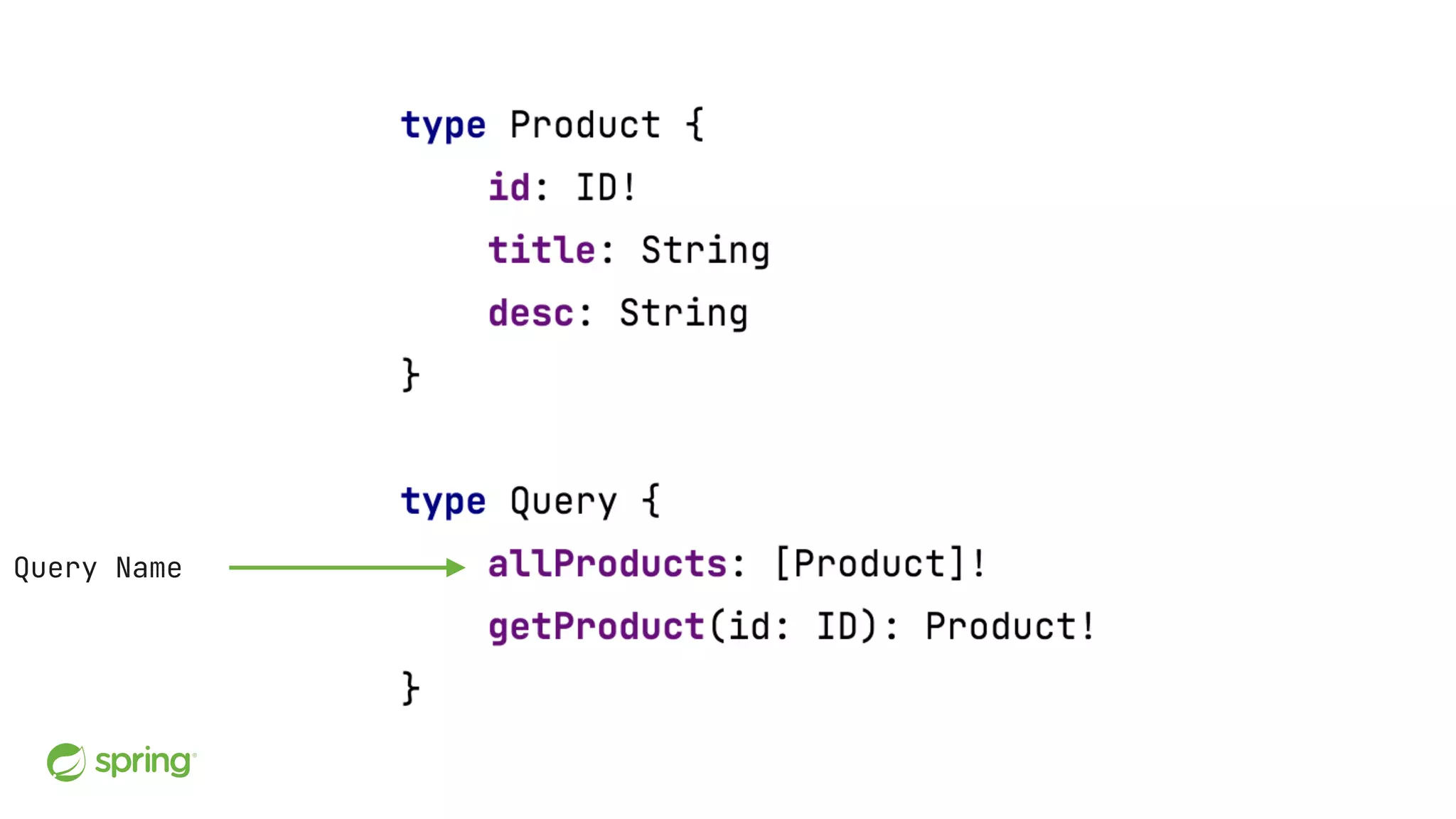

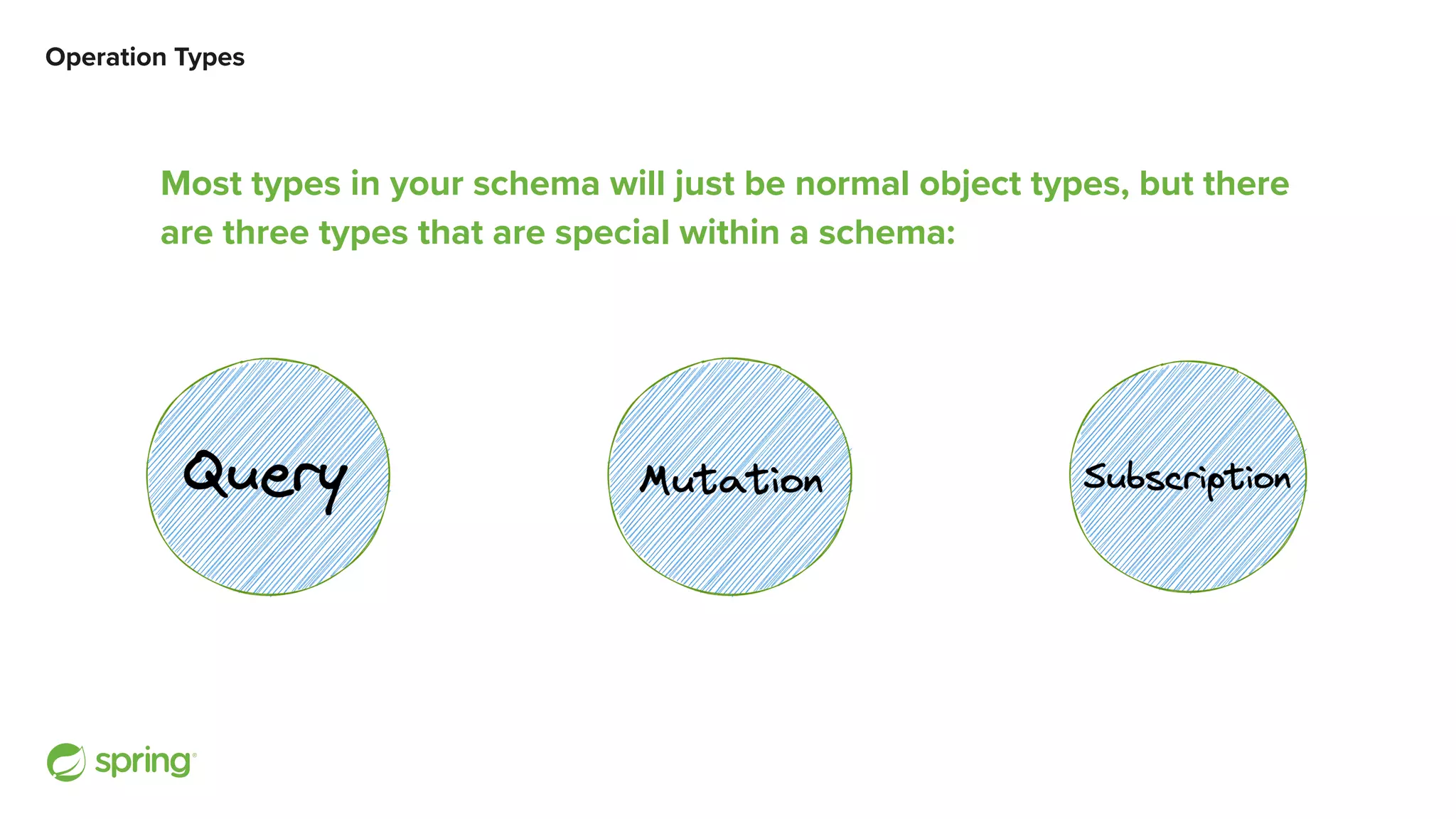

- 25. Operation Types Most typesin your schema will just be normal object types, but there are three types that are special within a schema:
- 27.
- 28.
- 29.
- 30.

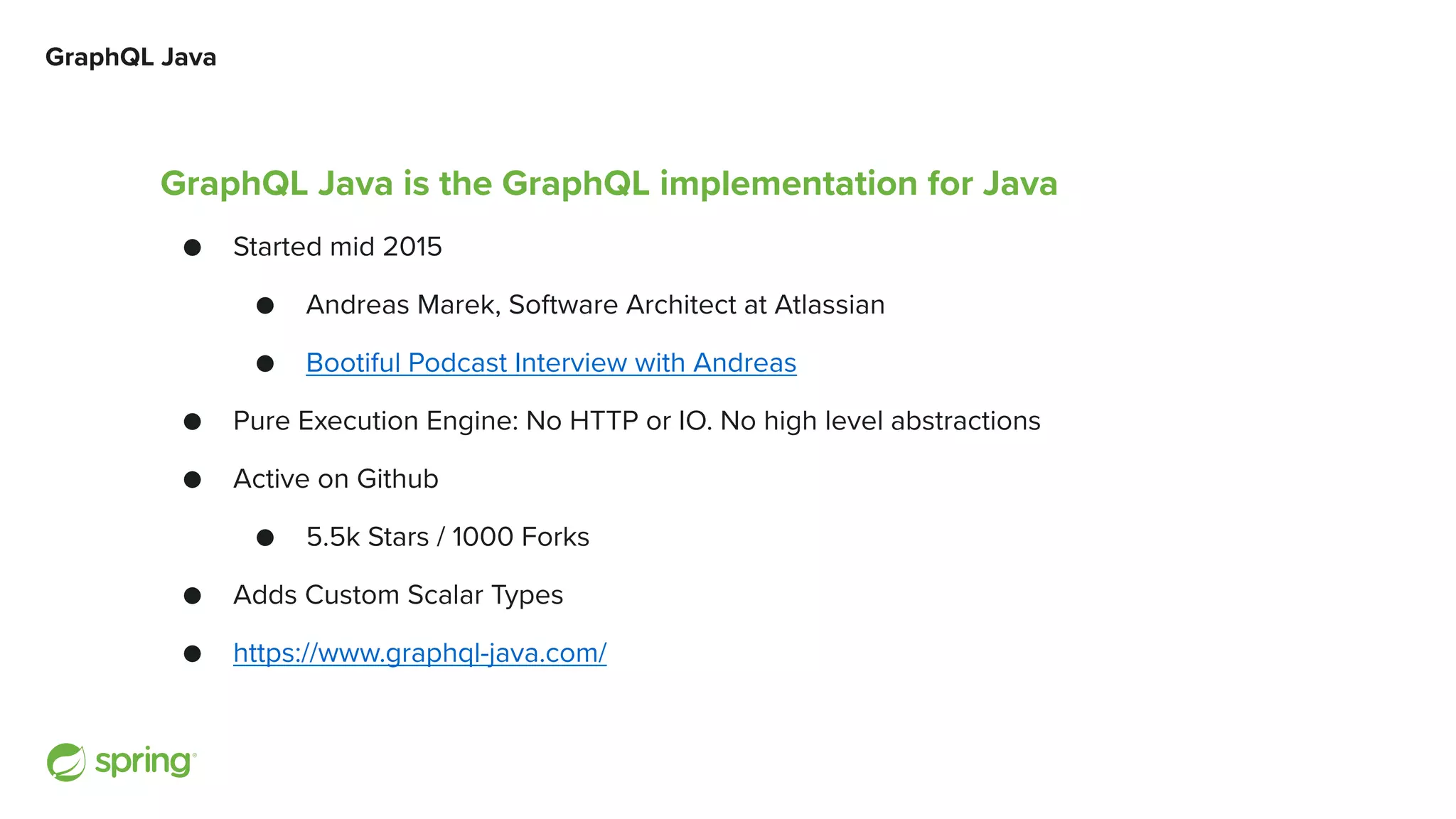

- 31. GraphQL Java GraphQL Javais the GraphQL implementation for Java ● Started mid 2015 ● Andreas Marek, Software Architect at Atlassian ● Bootiful Podcast Interview with Andreas ● Pure Execution Engine: No HTTP or IO. No high level abstractions ● Active on Github ● 5.5k Stars / 1000 Forks ● Adds Custom Scalar Types ● https://www.graphql-java.com/
- 33.

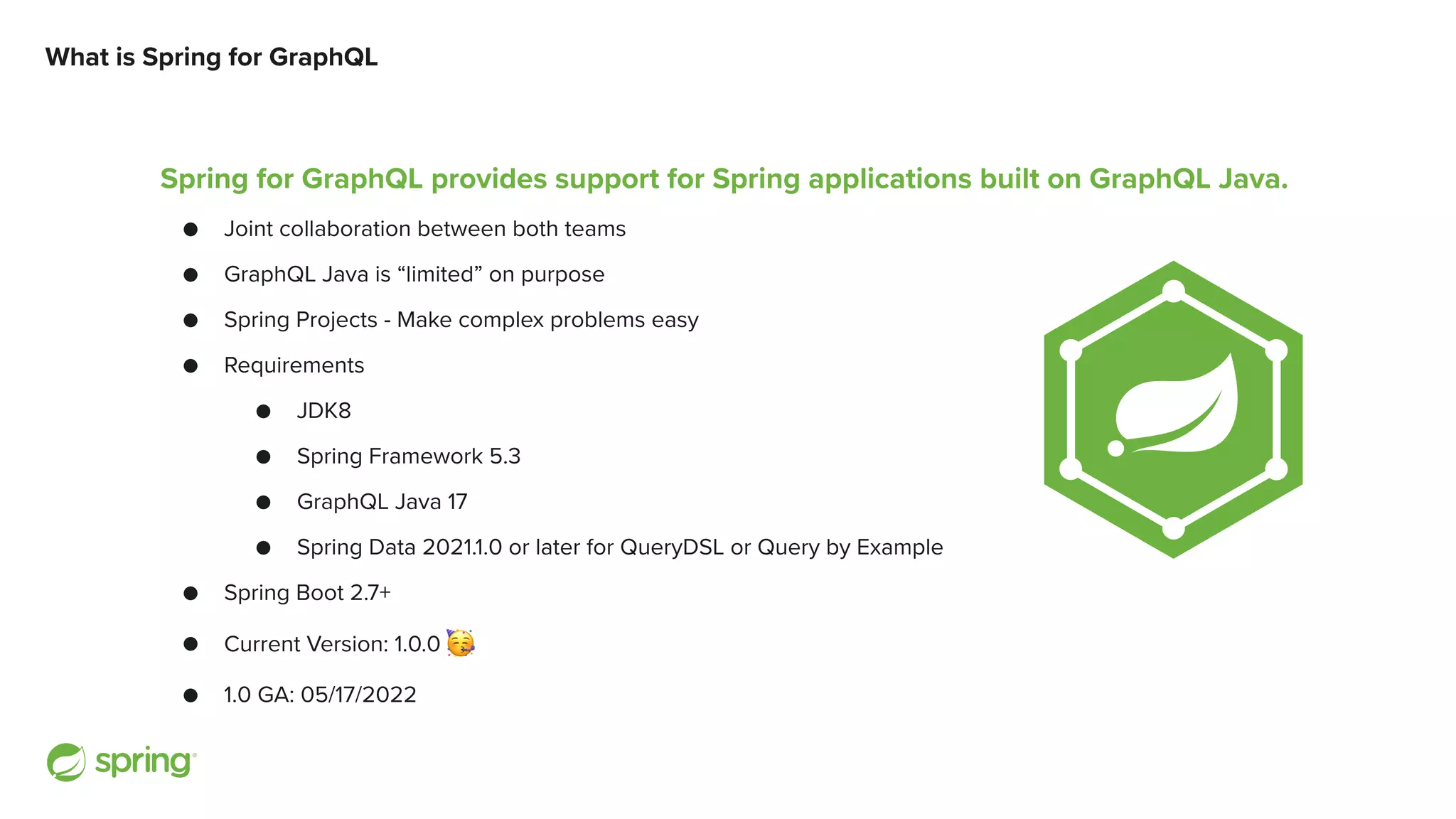

- 34. What is Springfor GraphQL Spring for GraphQL provides support for Spring applications built on GraphQL Java. ● Joint collaboration between both teams ● GraphQL Java is “limited” on purpose ● Spring Projects - Make complex problems easy ● Requirements ● JDK8 ● Spring Framework 5.3 ● GraphQL Java 17 ● Spring Data 2021.1.0 or later for QueryDSL or Query by Example ● Spring Boot 2.7+ ● Current Version: 1.0.0 🥳 ● 1.0 GA: 05/17/2022

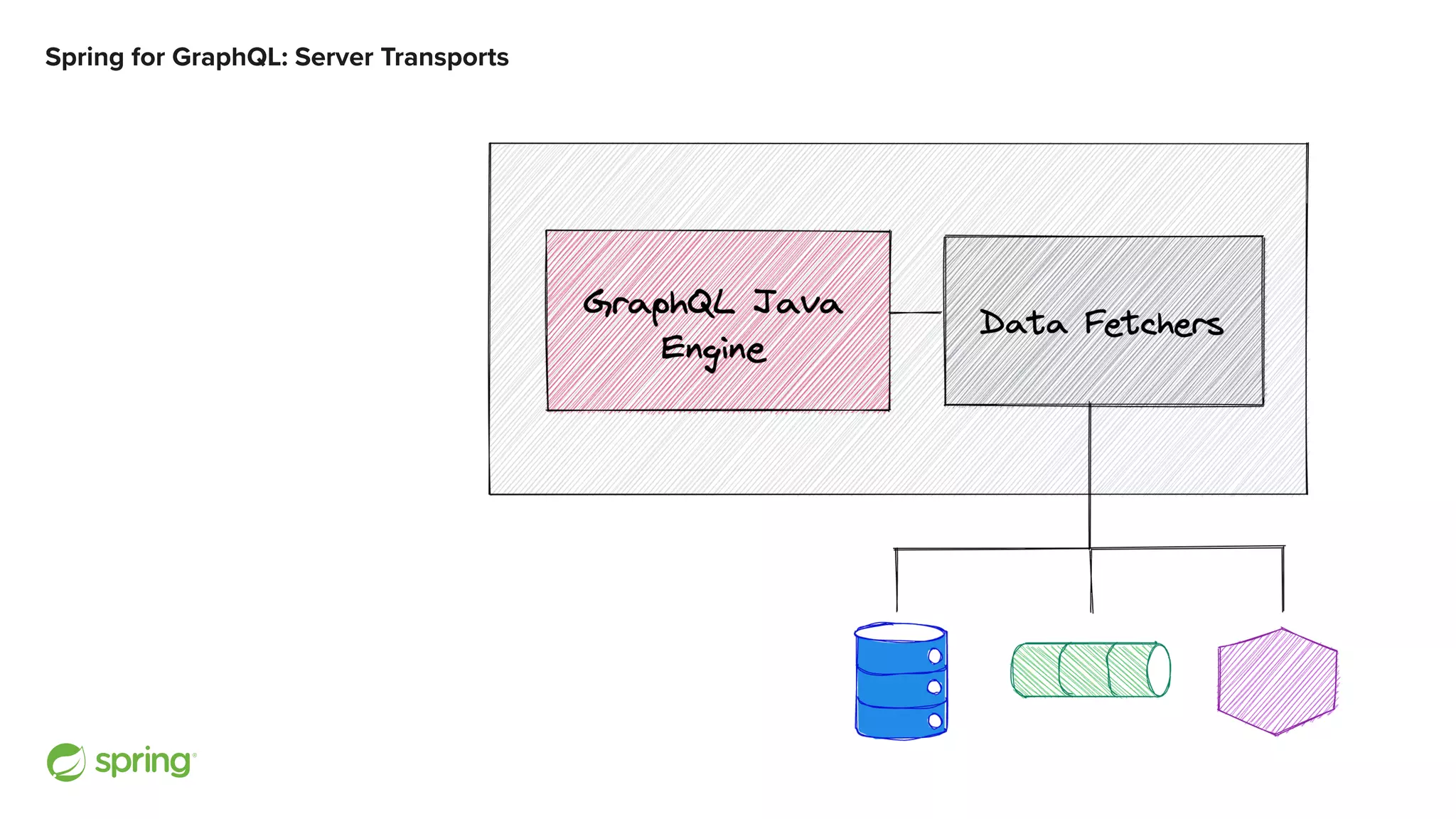

- 35. Spring for GraphQL:Server Transports

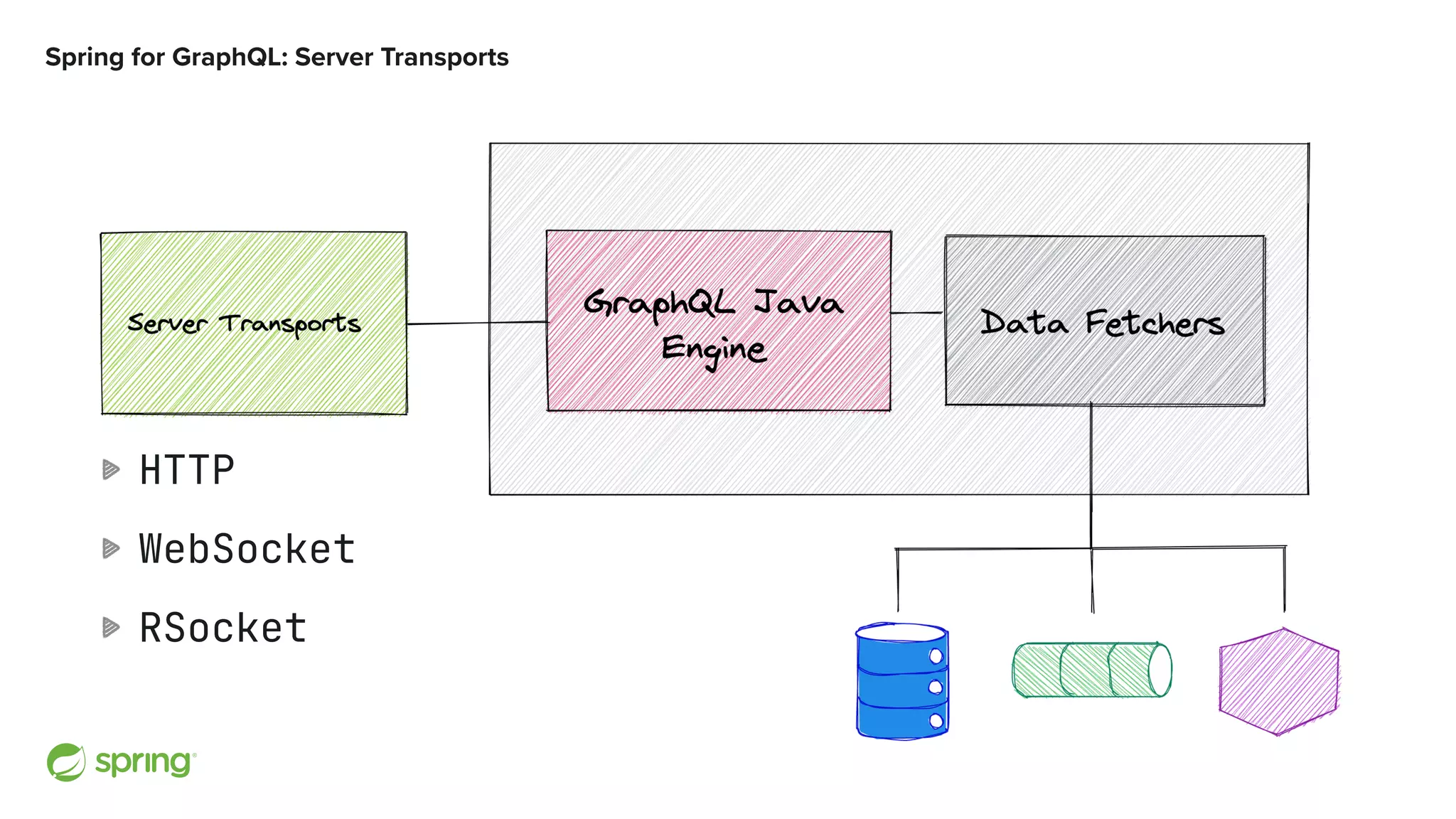

- 36. Spring for GraphQL:Server Transports HTTP WebSocket RSocket

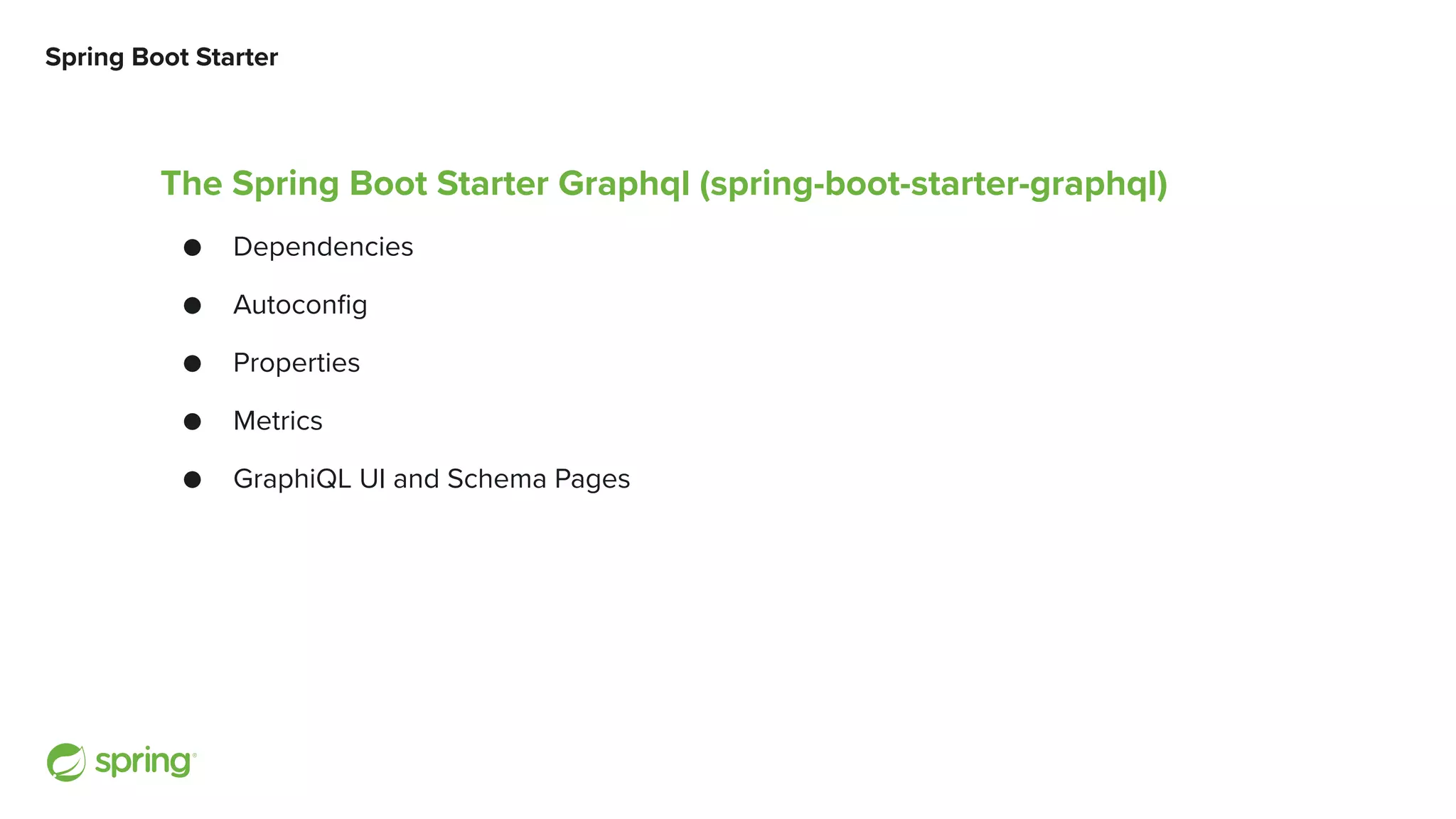

- 38. Spring Boot Starter TheSpring Boot Starter Graphql (spring-boot-starter-graphql) ● Dependencies ● Autoconfig ● Properties ● Metrics ● GraphiQL UI and Schema Pages
- 39.

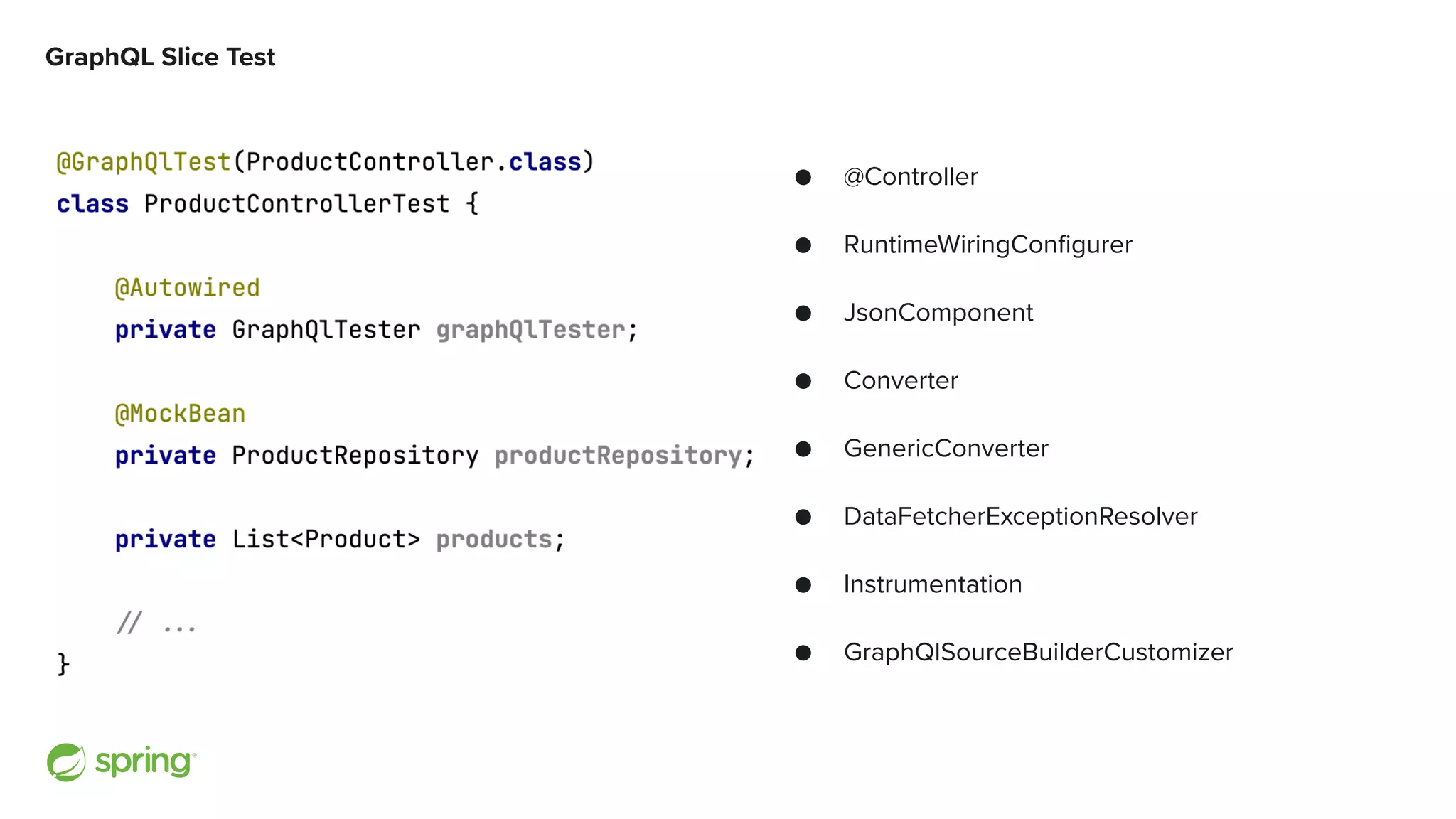

- 40. GraphQL Slice Test ●@Controller ● RuntimeWiringConfigurer ● JsonComponent ● Converter ● GenericConverter ● DataFetcherExceptionResolver ● Instrumentation ● GraphQlSourceBuilderCustomizer

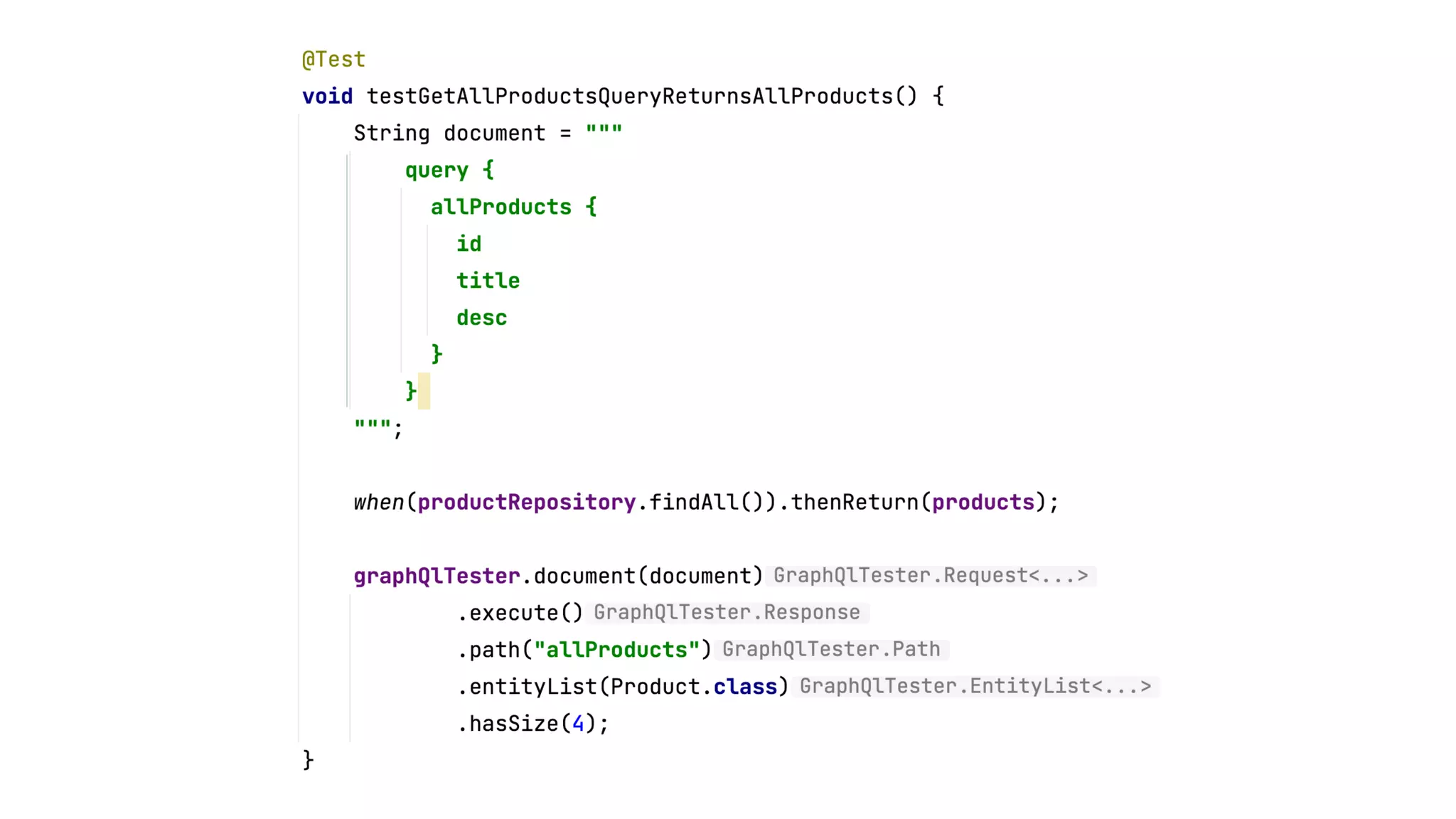

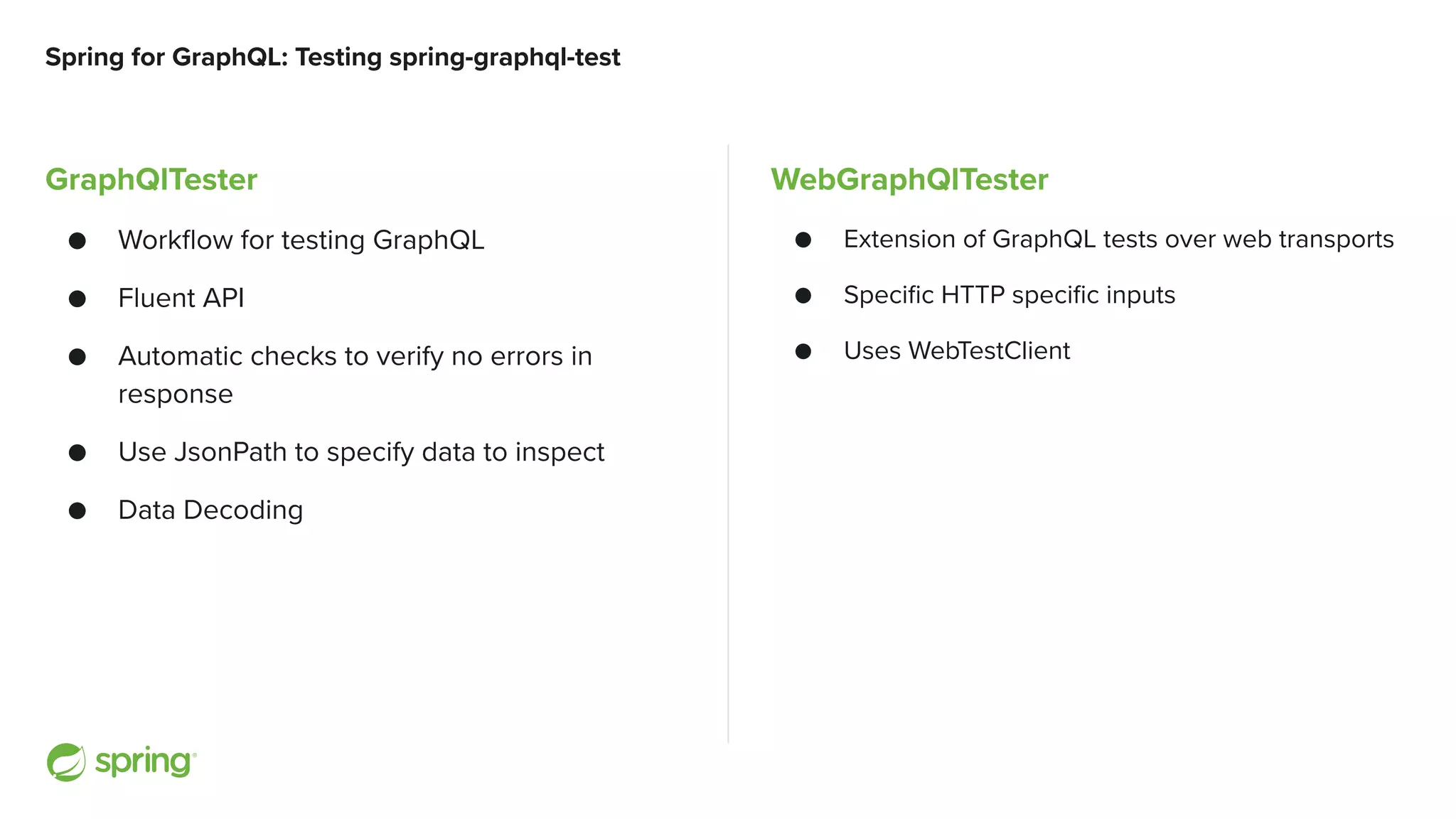

- 41. Spring for GraphQL:Testing spring-graphql-test GraphQlTester ● Workflow for testing GraphQL ● Fluent API ● Automatic checks to verify no errors in response ● Use JsonPath to specify data to inspect ● Data Decoding WebGraphQlTester ● Extension of GraphQL tests over web transports ● Specific HTTP specific inputs ● Uses WebTestClient
- 43. Spring for GraphQLDemo https: / / github.com/danvega/graphql-store
- 44. Thank you Contact meat dvega@vmware.com @therealdanvega © 2020 Spring. A VMware-backed project.
