PLAT-14 Forms Config, Customization, and Extension
- 1. Forms Config, Customization,& Extension! Gavin Cornwell, Development Manager, Services Team, Alfresco!

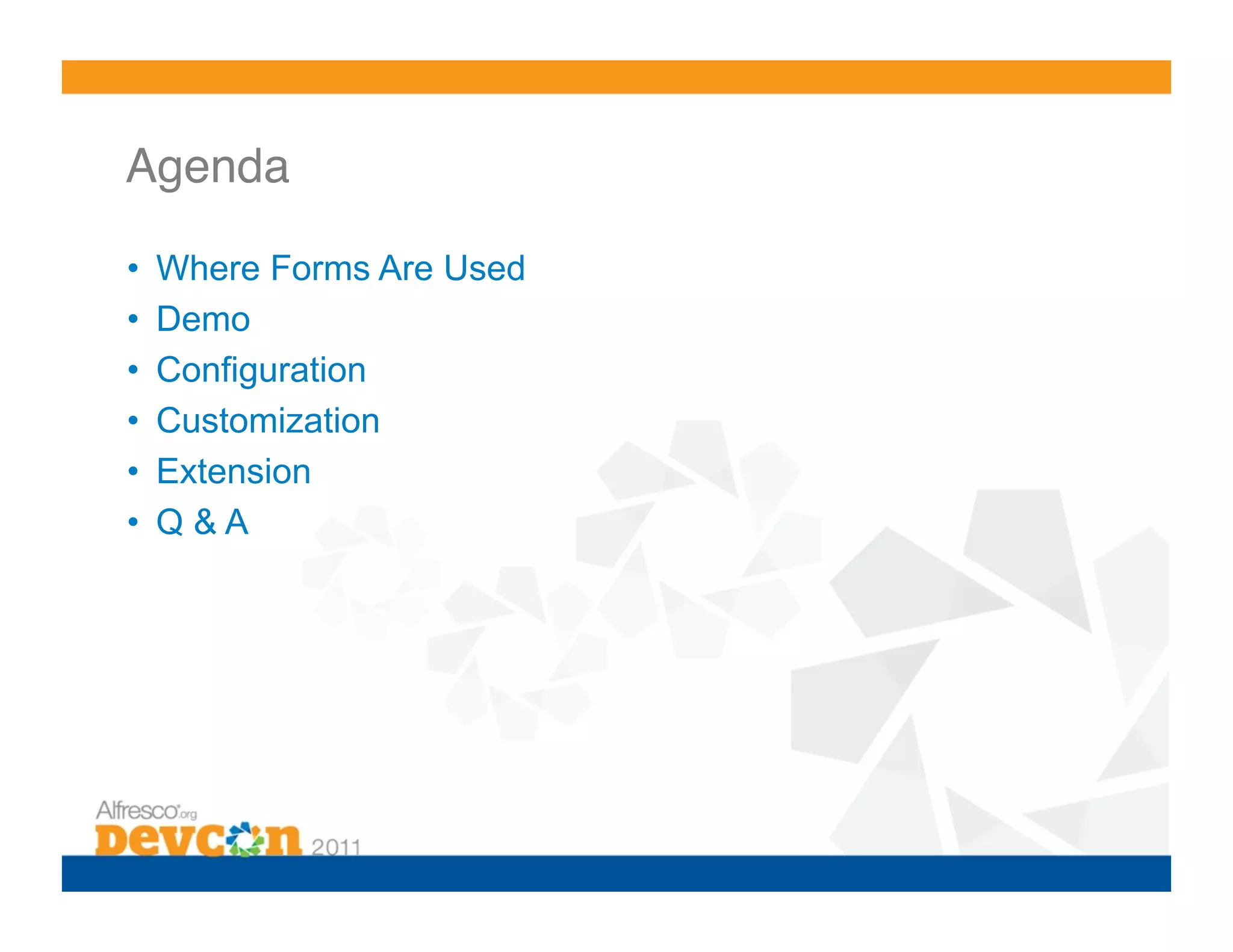

- 2. Agenda! • Where Forms Are Used • Demo • Configuration • Customization • Extension • Q&A
- 3. Where Forms AreUsed!
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.

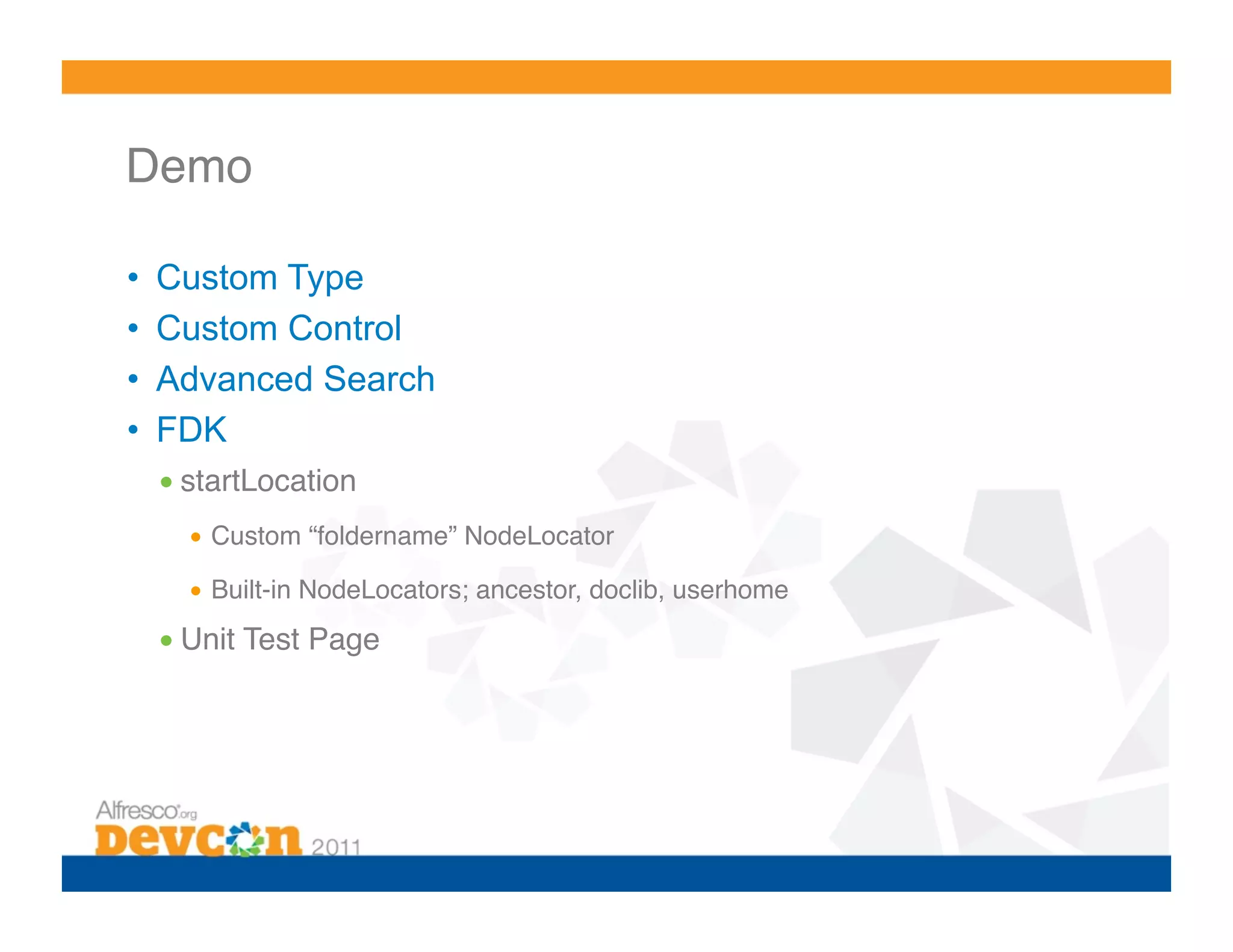

- 10. Demo! • Custom Type • Custom Control • Advanced Search • FDK • startLocation! • Custom “foldername” NodeLocator! • Built-in NodeLocators; ancestor, doclib, userhome! • Unit Test Page!
- 11.

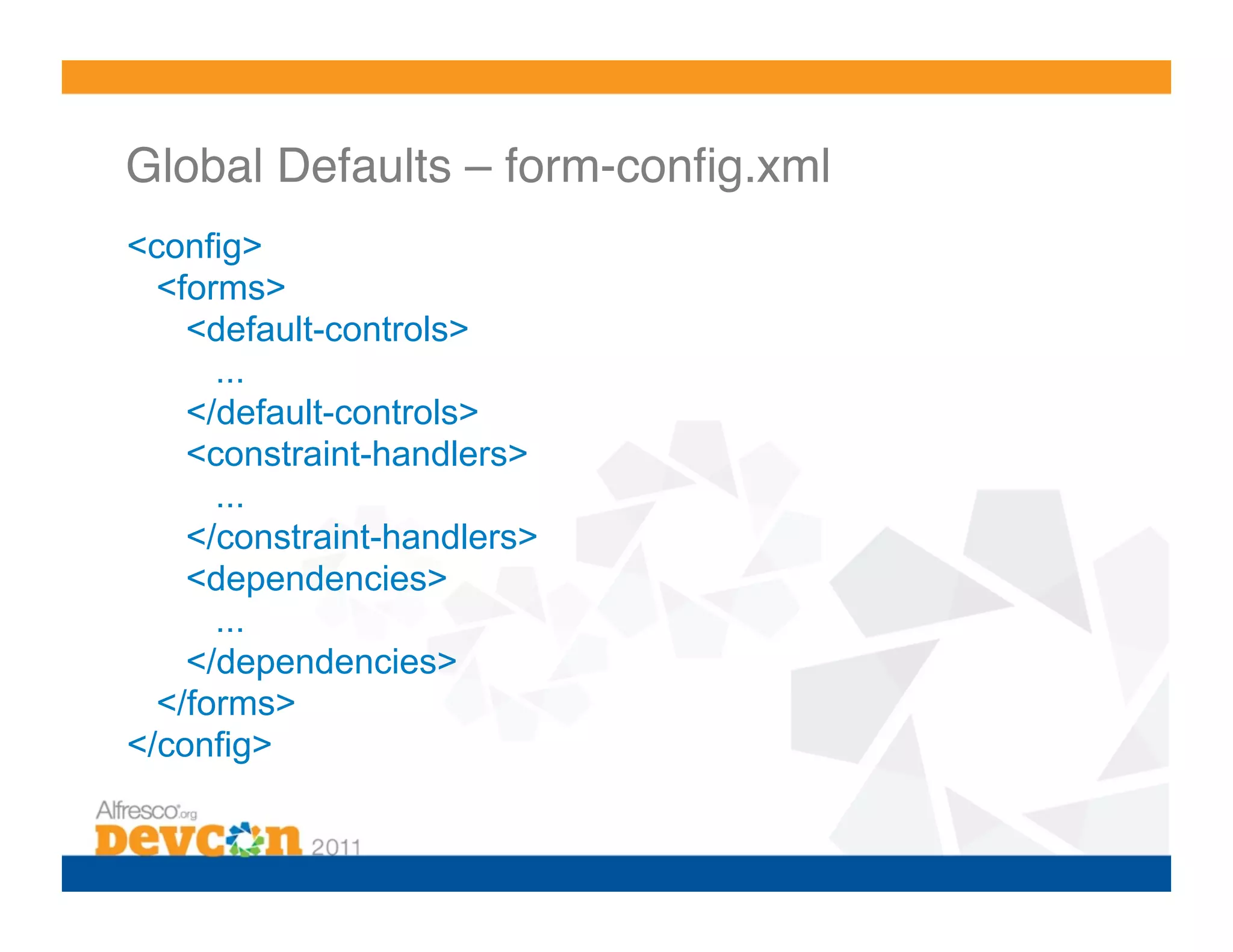

- 12. Global Defaults –form-config.xml <config> <forms> <default-controls> ... </default-controls> <constraint-handlers> ... </constraint-handlers> <dependencies> ... </dependencies> </forms> </config>

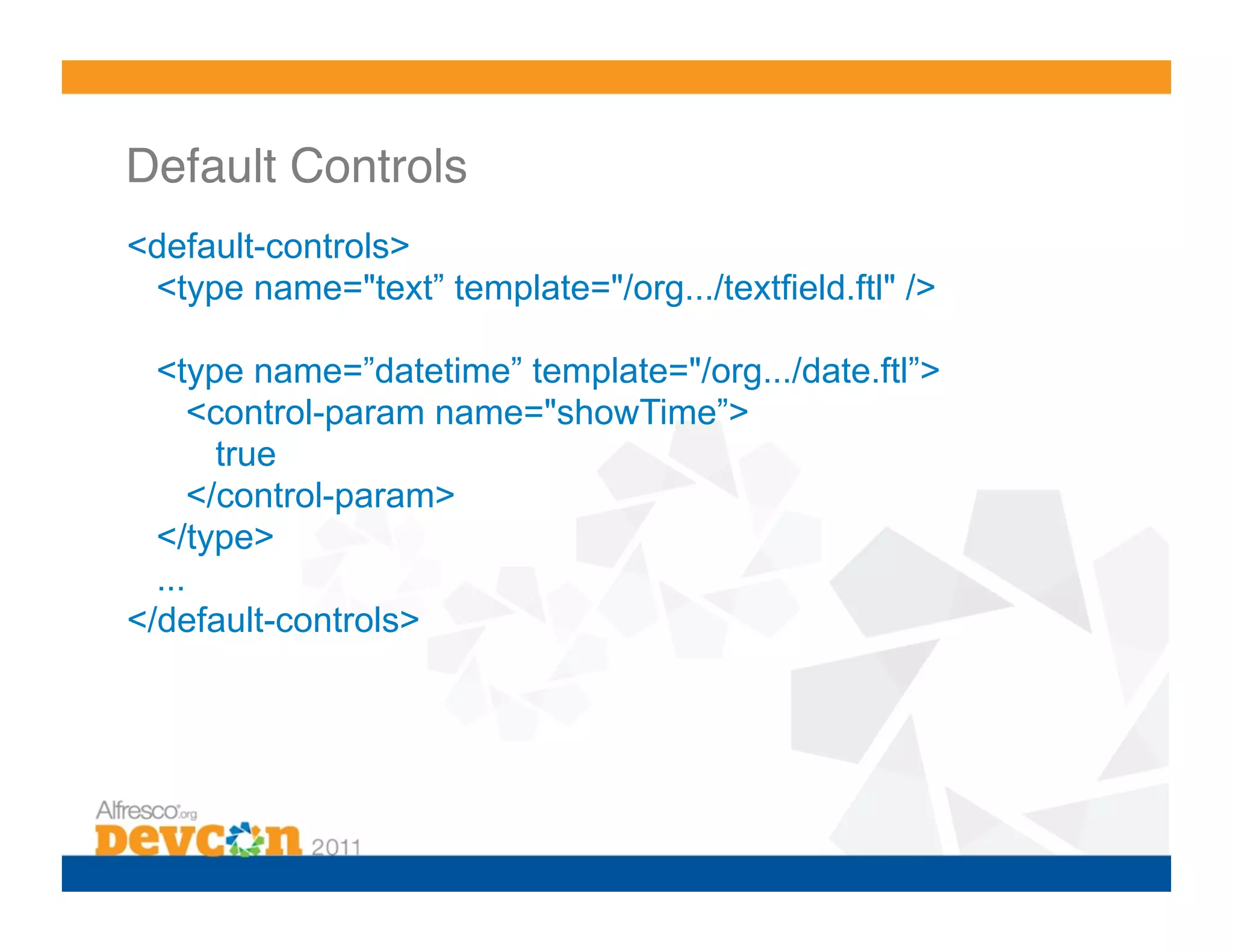

- 13. Default Controls! <default-controls> <typename="text” template="/org.../textfield.ftl" /> <type name=”datetime” template="/org.../date.ftl”> <control-param name="showTime”> true </control-param> </type> ... </default-controls>

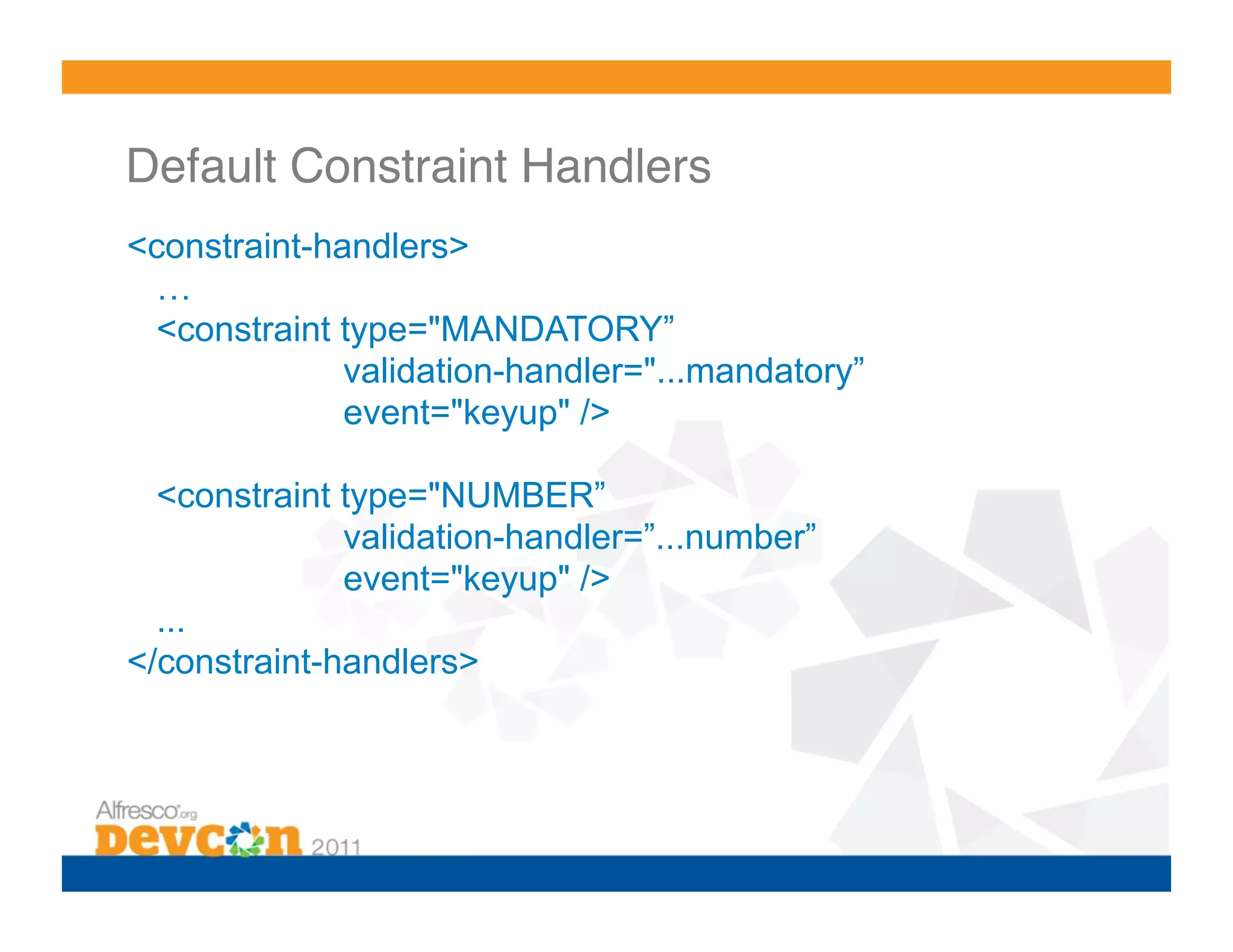

- 14. Default Constraint Handlers! <constraint-handlers> … <constraint type="MANDATORY” validation-handler="...mandatory” event="keyup" /> <constraint type="NUMBER” validation-handler=”...number” event="keyup" /> ... </constraint-handlers>

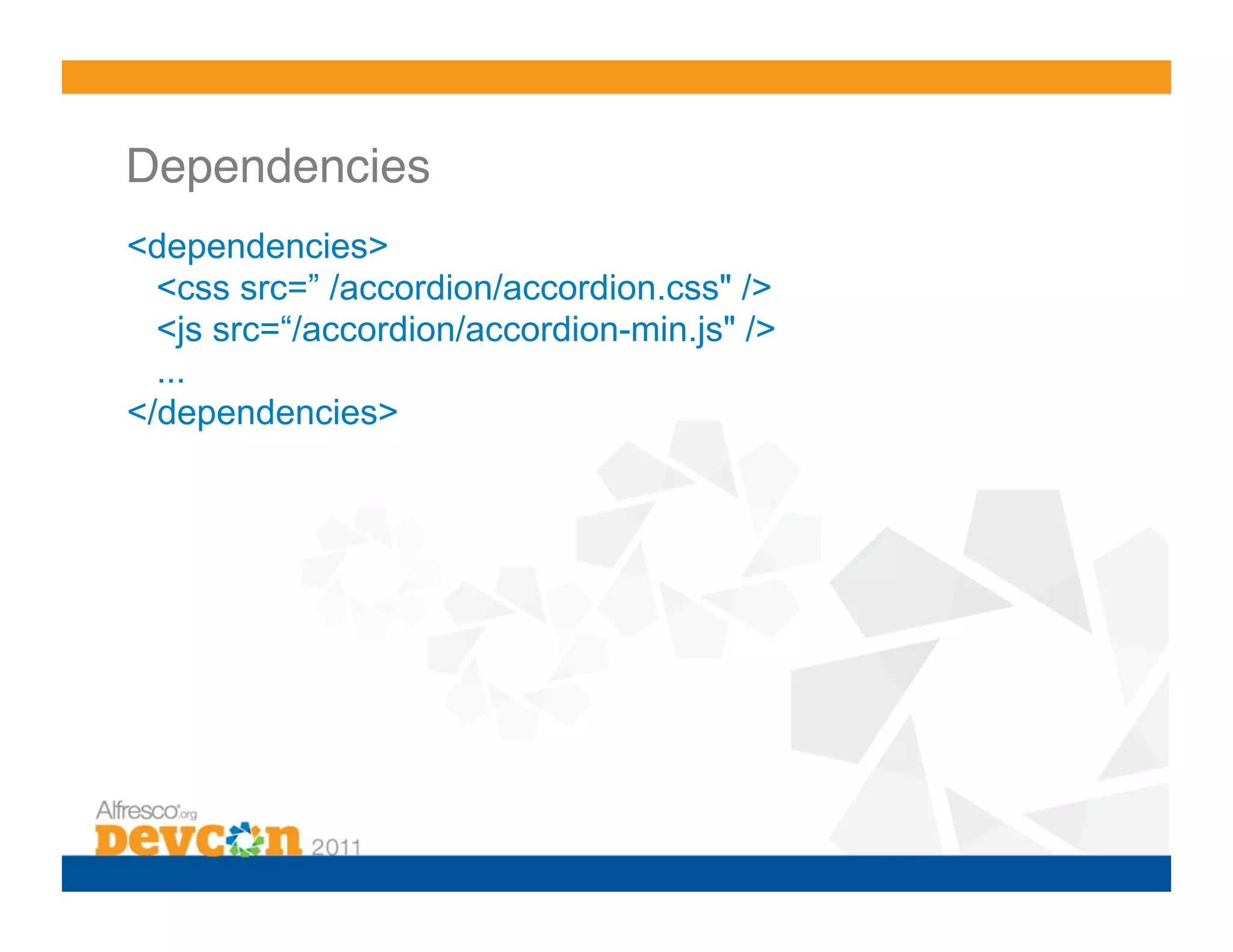

- 15. Dependencies! <dependencies> <csssrc=” /accordion/accordion.css" /> <js src=“/accordion/accordion-min.js" /> ... </dependencies>

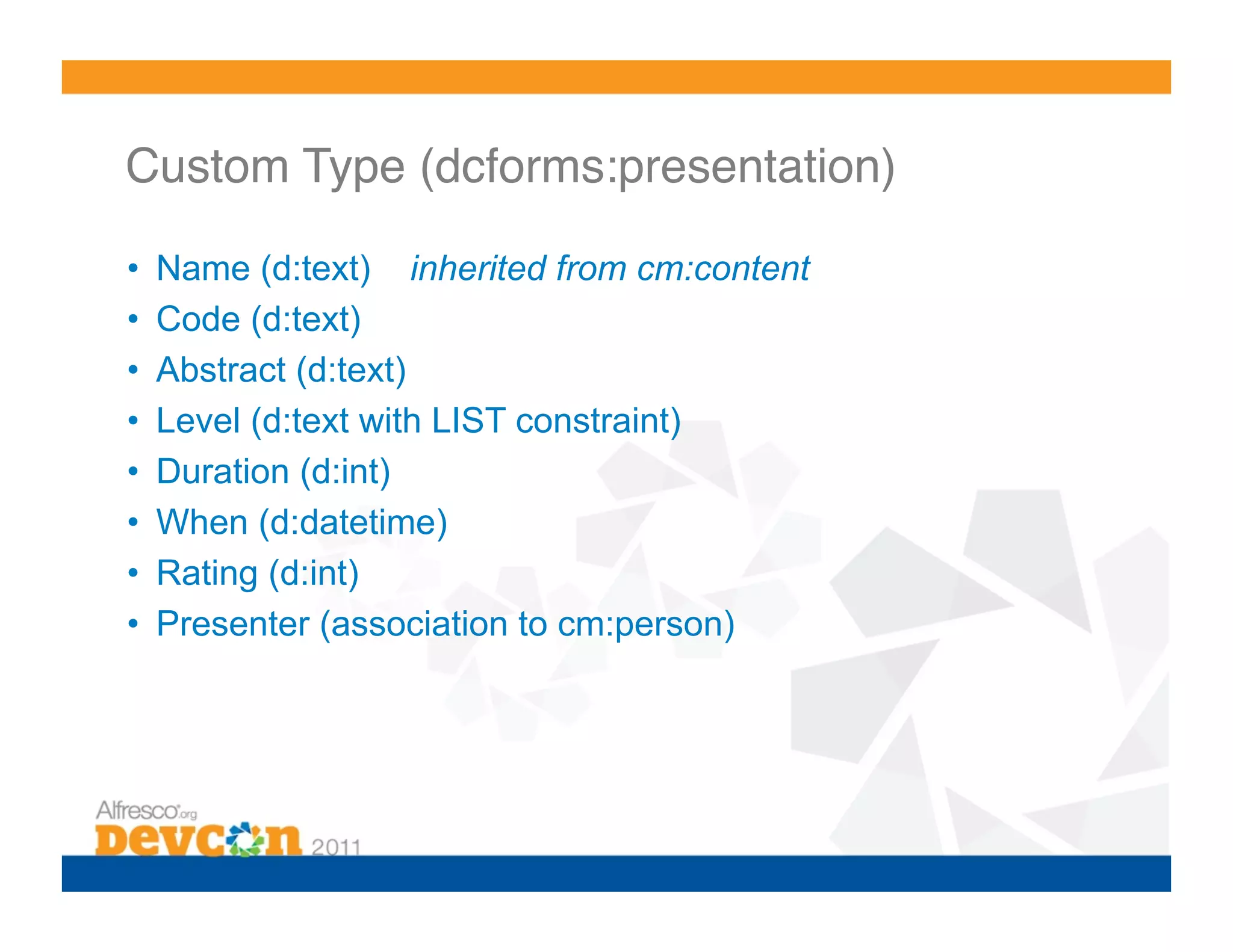

- 16. Custom Type (dcforms:presentation)! • Name (d:text) inherited from cm:content • Code (d:text) • Abstract (d:text) • Level (d:text with LIST constraint) • Duration (d:int) • When (d:datetime) • Rating (d:int) • Presenter (association to cm:person)

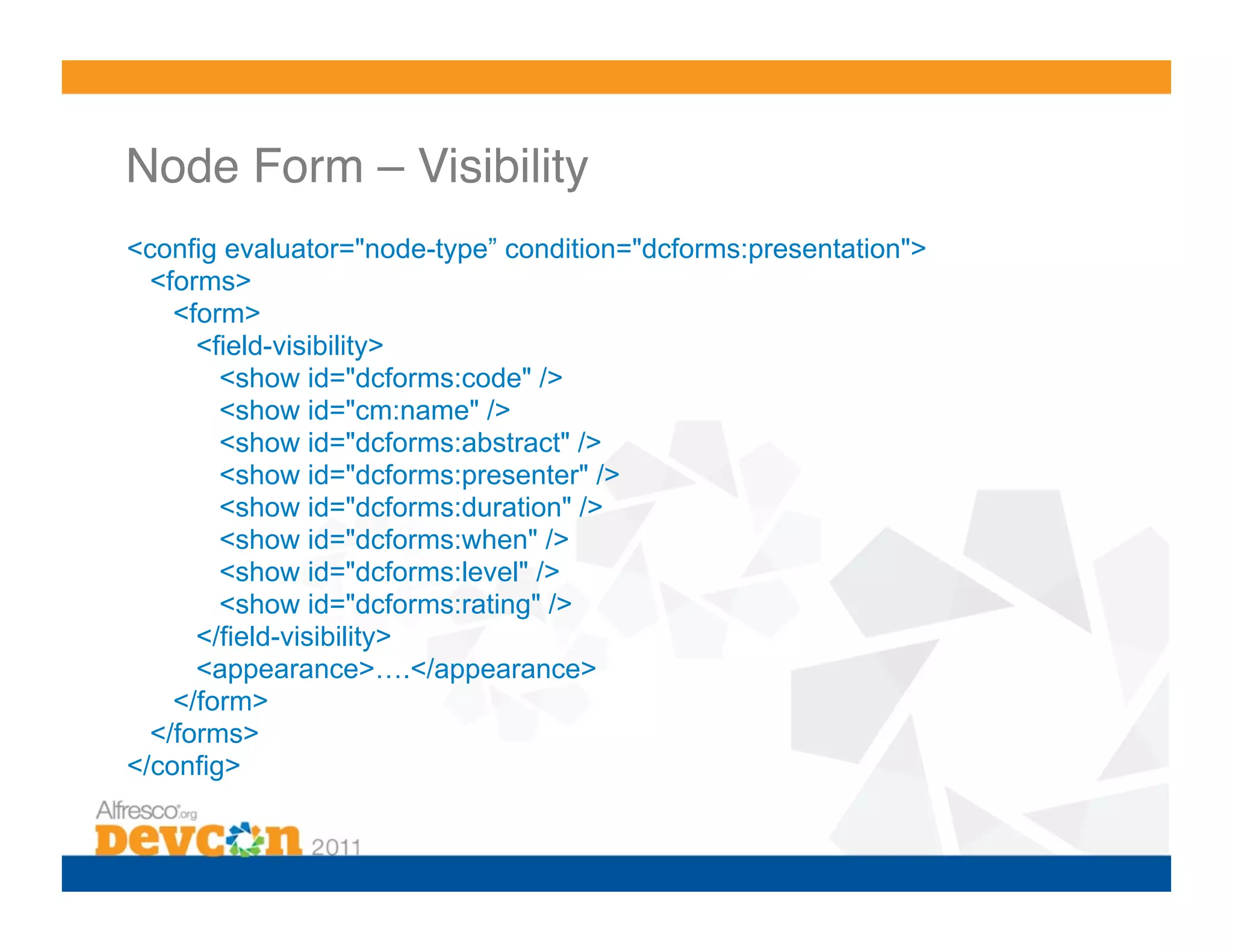

- 17. Node Form –Visibility ! <config evaluator="node-type” condition="dcforms:presentation"> <forms> <form> <field-visibility> <show id="dcforms:code" /> <show id="cm:name" /> <show id="dcforms:abstract" /> <show id="dcforms:presenter" /> <show id="dcforms:duration" /> <show id="dcforms:when" /> <show id="dcforms:level" /> <show id="dcforms:rating" /> </field-visibility> <appearance>….</appearance> </form> </forms> </config>

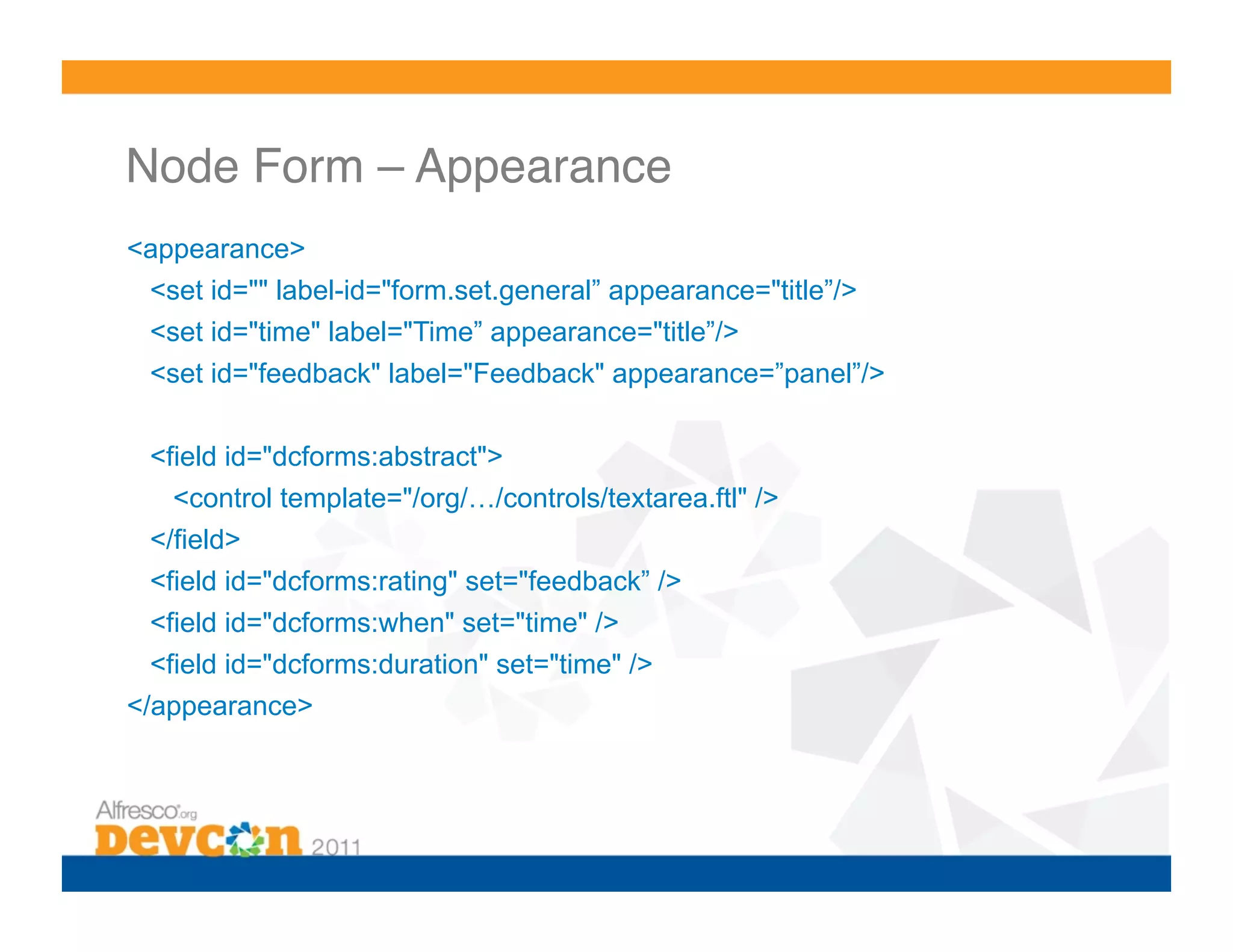

- 18. Node Form –Appearance ! <appearance> <set id="" label-id="form.set.general” appearance="title”/> <set id="time" label="Time” appearance="title”/> <set id="feedback" label="Feedback" appearance=”panel”/> <field id="dcforms:abstract"> <control template="/org/…/controls/textarea.ftl" /> </field> <field id="dcforms:rating" set="feedback” /> <field id="dcforms:when" set="time" /> <field id="dcforms:duration" set="time" /> </appearance>

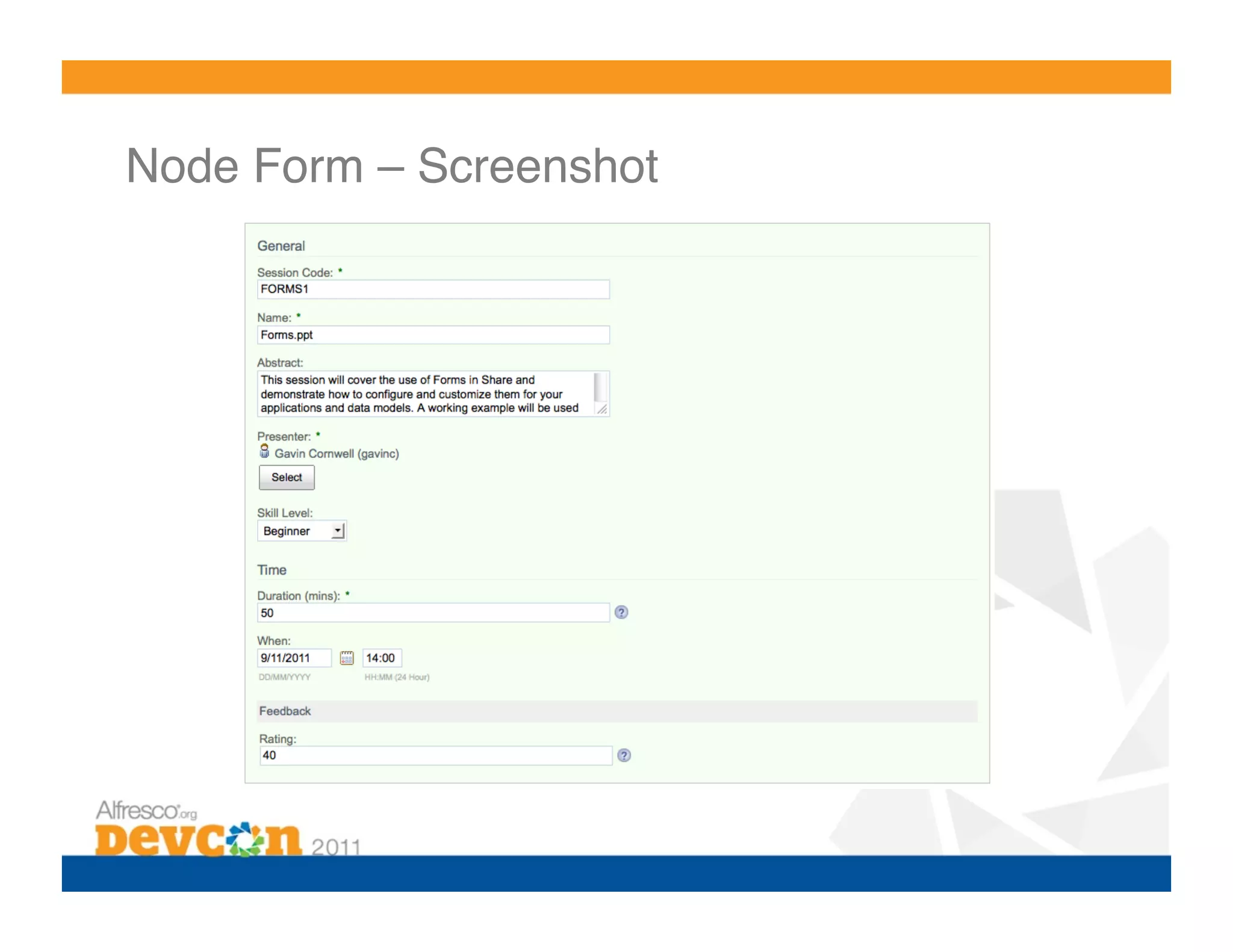

- 19. Node Form –Screenshot !

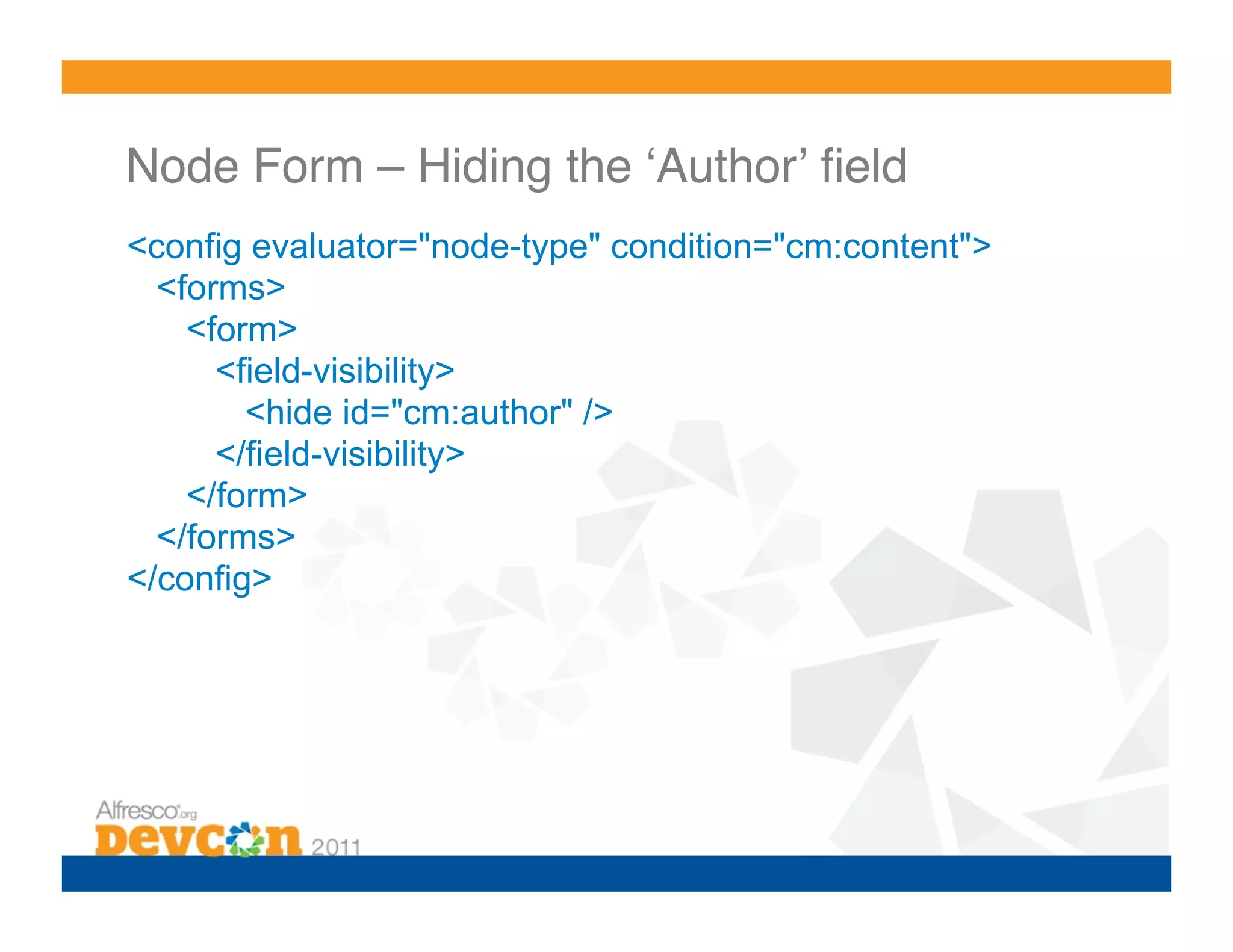

- 20. Node Form –Hiding the ʻAuthorʼ field! <config evaluator="node-type" condition="cm:content"> <forms> <form> <field-visibility> <hide id="cm:author" /> </field-visibility> </form> </forms> </config>

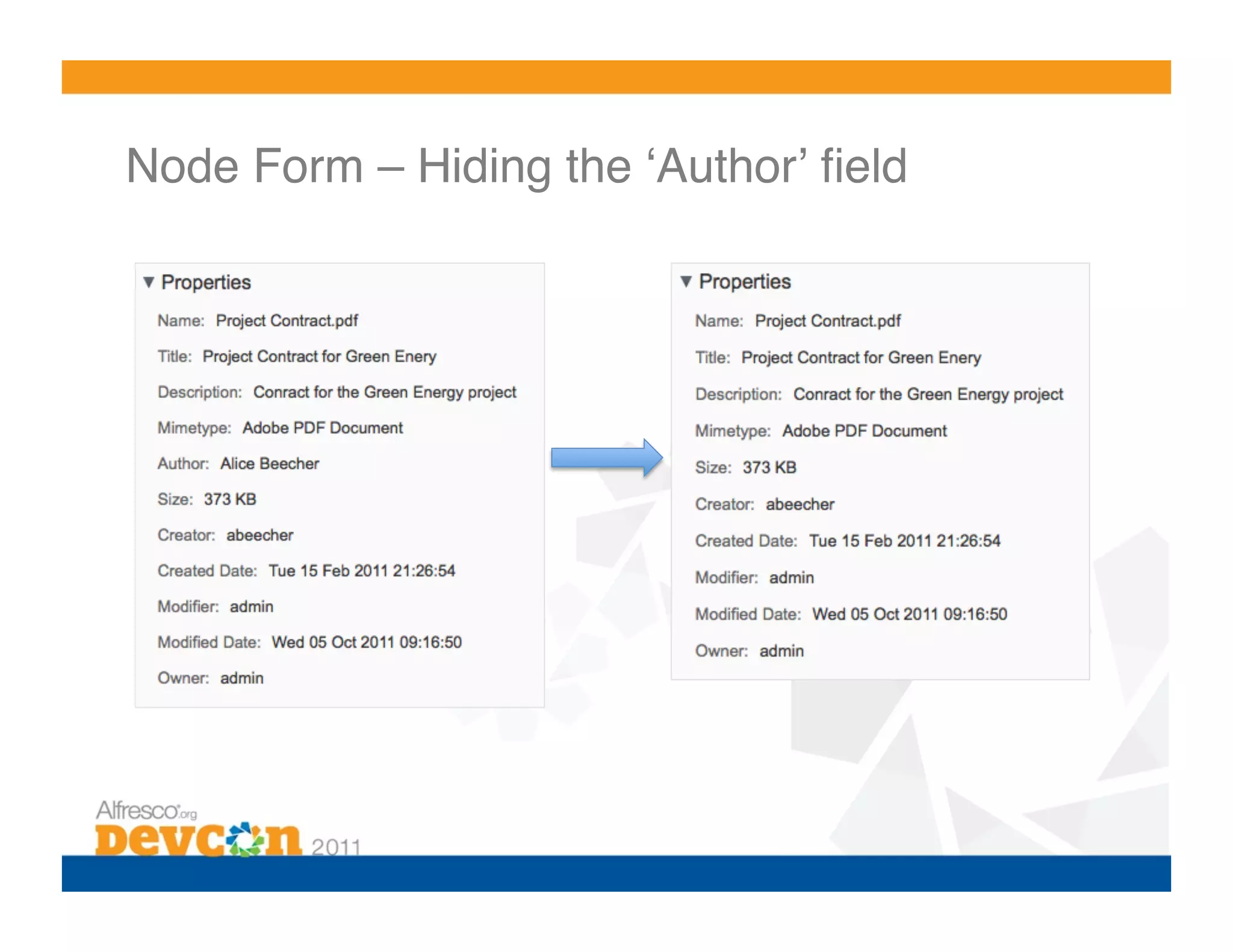

- 21. Node Form –Hiding the ʻAuthorʼ field!

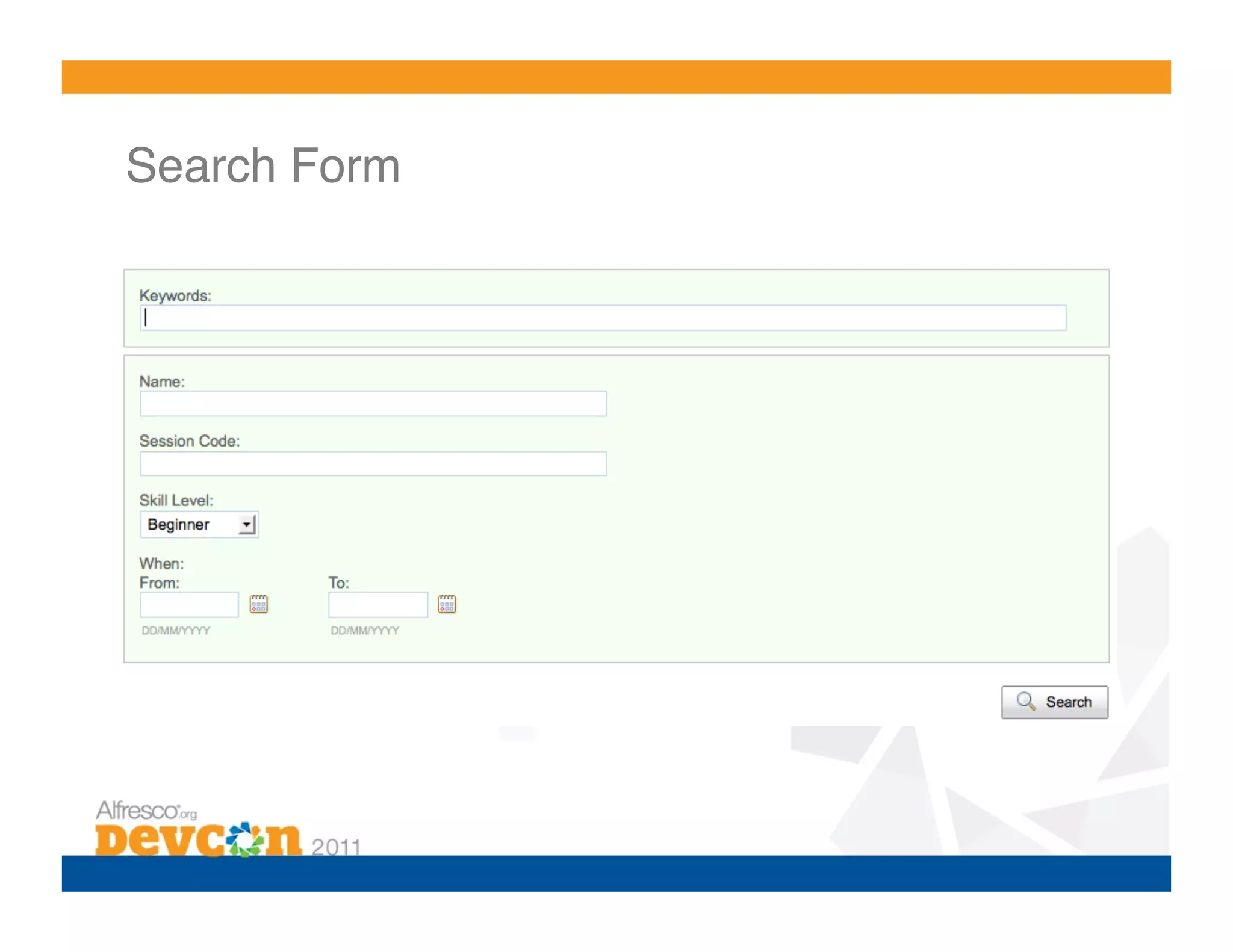

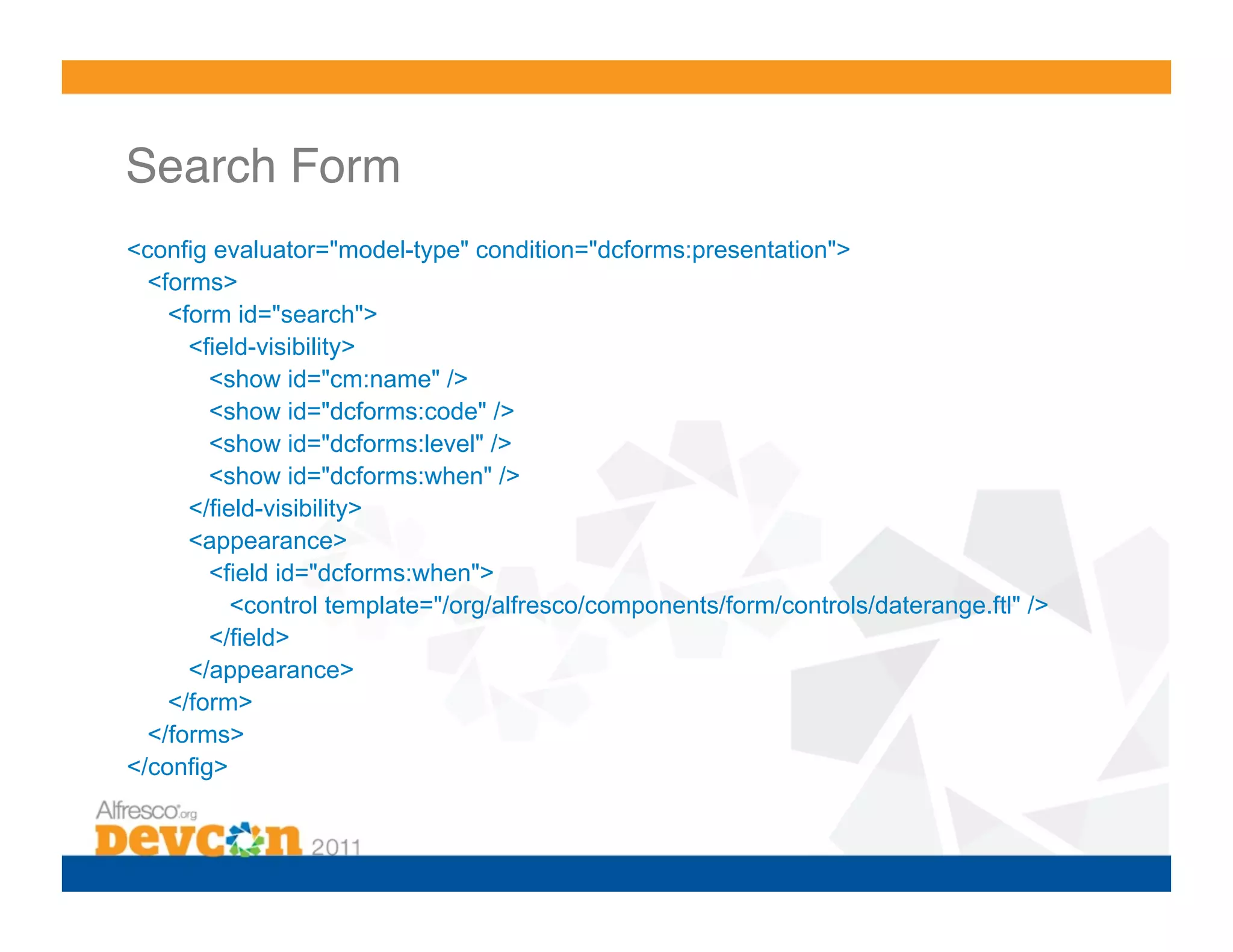

- 22. Search Form! <config evaluator="model-type"condition="dcforms:presentation"> <forms> <form id="search"> <field-visibility> <show id="cm:name" /> <show id="dcforms:code" /> <show id="dcforms:level" /> <show id="dcforms:when" /> </field-visibility> <appearance> <field id="dcforms:when"> <control template="/org/alfresco/components/form/controls/daterange.ftl" /> </field> </appearance> </form> </forms> </config>
- 23.
- 24.

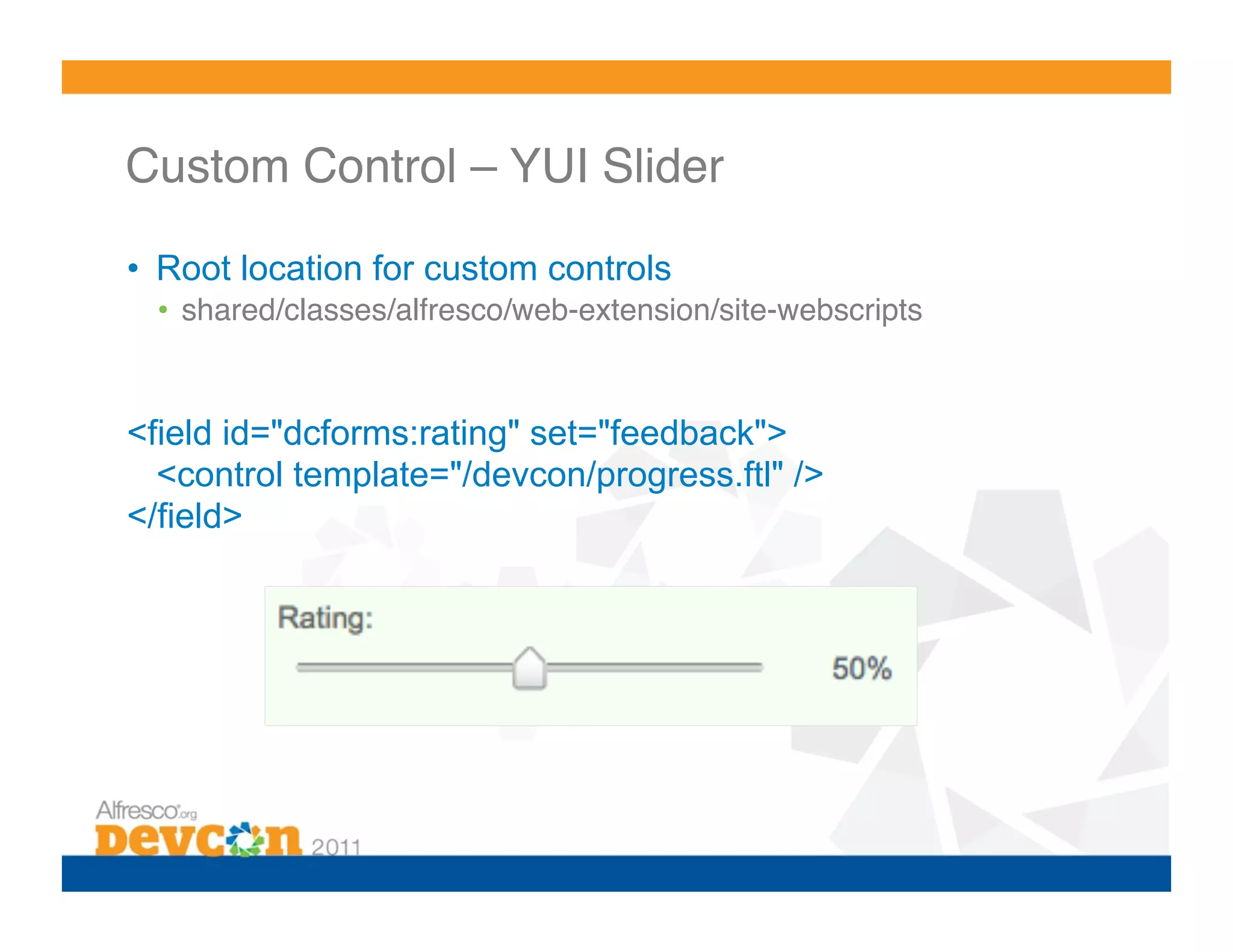

- 25. Custom Control –YUI Slider! • Root location for custom controls • shared/classes/alfresco/web-extension/site-webscripts! <field id="dcforms:rating" set="feedback"> <control template="/devcon/progress.ftl" /> </field>

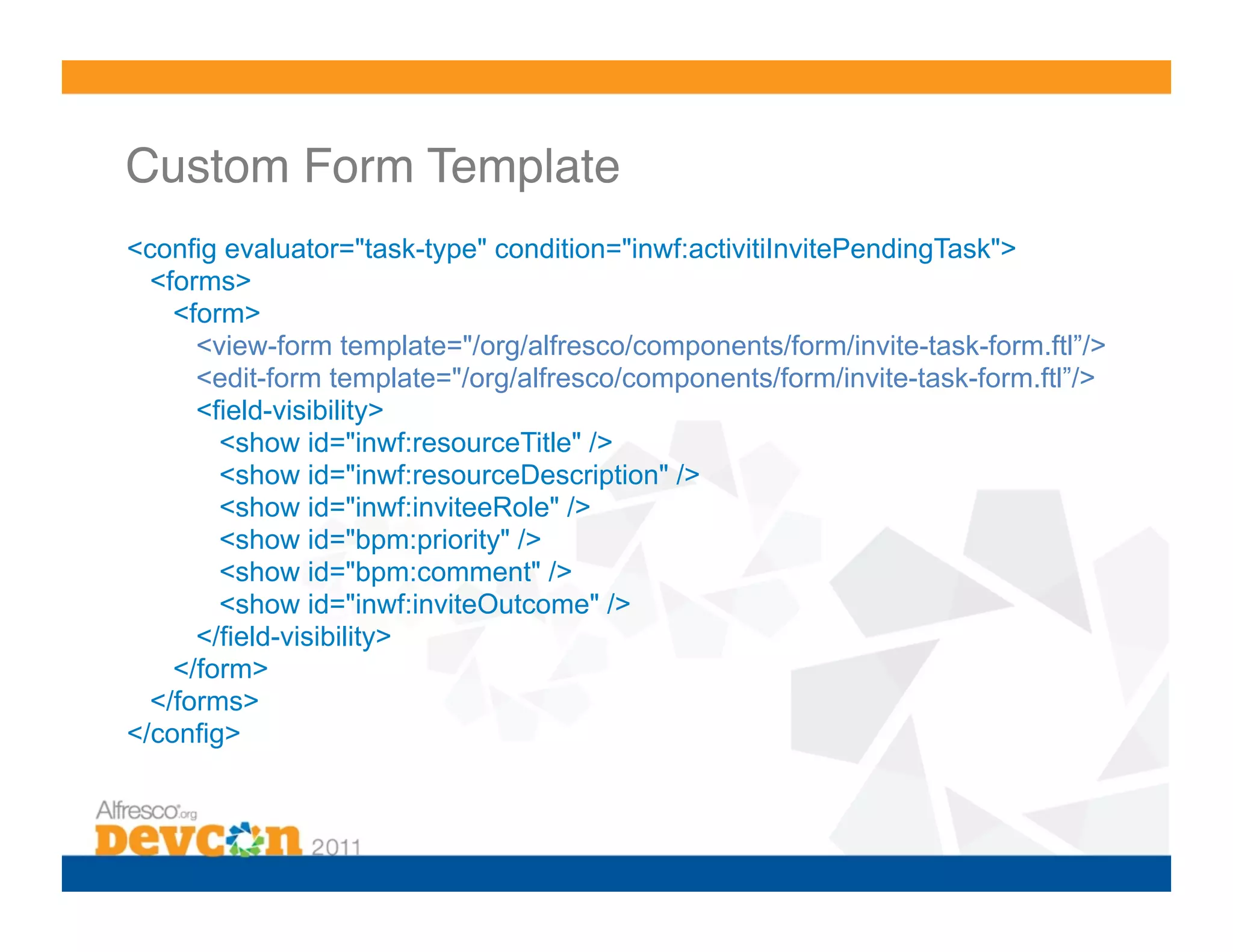

- 26. Custom Form Template! <configevaluator="task-type" condition="inwf:activitiInvitePendingTask"> <forms> <form> <view-form template="/org/alfresco/components/form/invite-task-form.ftl”/> <edit-form template="/org/alfresco/components/form/invite-task-form.ftl”/> <field-visibility> <show id="inwf:resourceTitle" /> <show id="inwf:resourceDescription" /> <show id="inwf:inviteeRole" /> <show id="bpm:priority" /> <show id="bpm:comment" /> <show id="inwf:inviteOutcome" /> </field-visibility> </form> </forms> </config>!

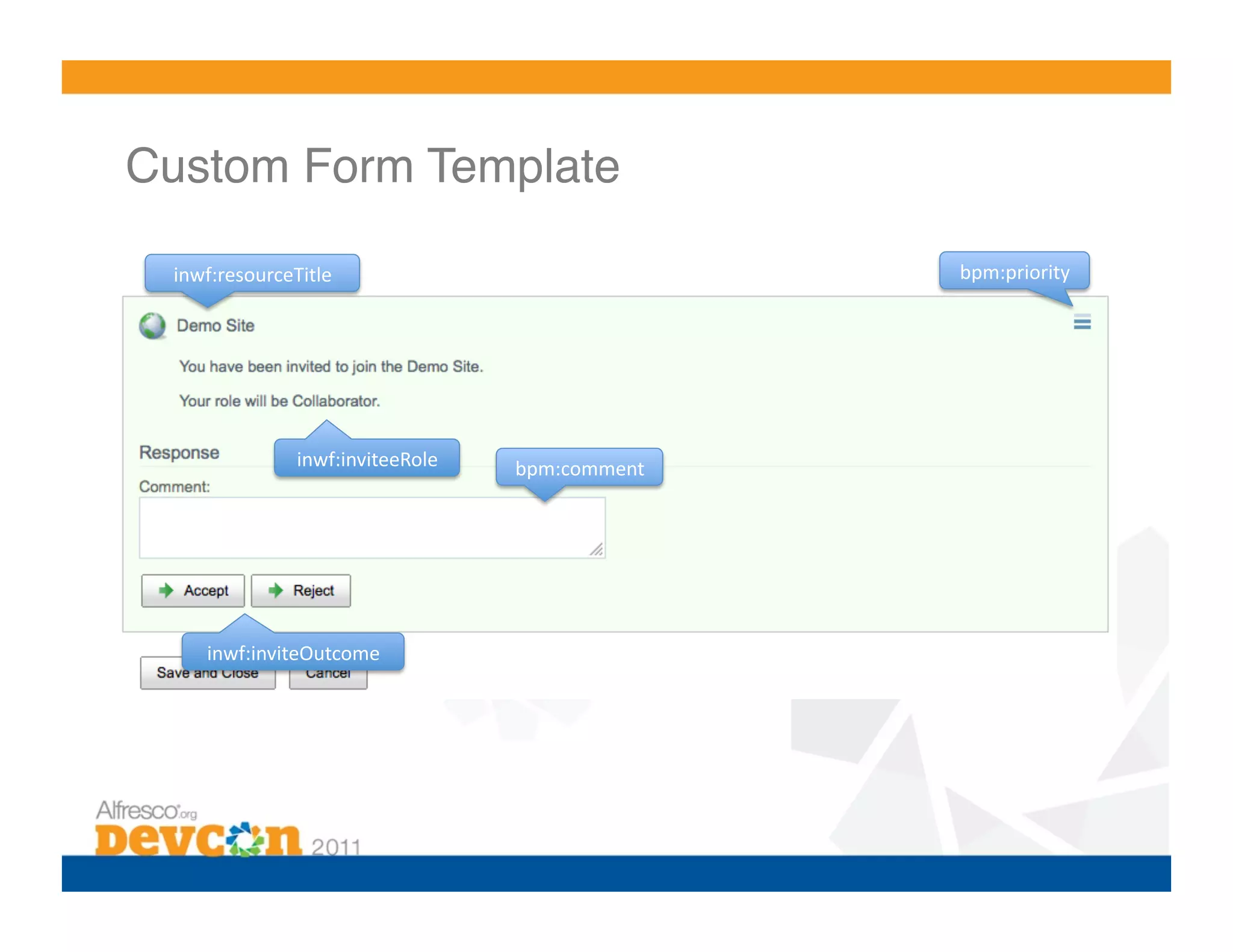

- 27. Custom Form Template! inwf:resourceTitle bpm:priority inwf:inviteeRole bpm:comment inwf:inviteOutcome
- 28.

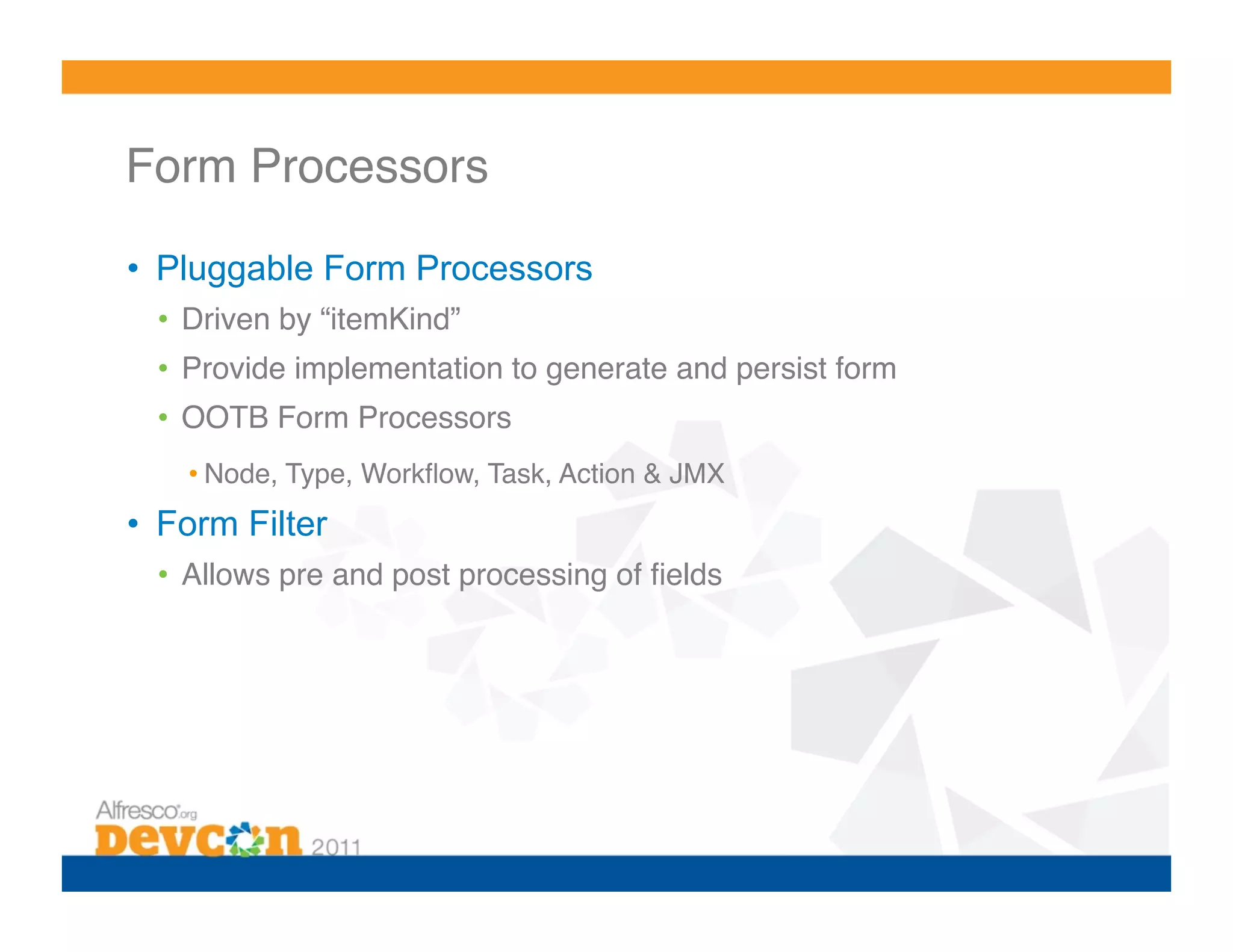

- 29. Form Processors! • PluggableForm Processors • Driven by “itemKind”! • Provide implementation to generate and persist form! • OOTB Form Processors! • Node, Type, Workflow, Task, Action & JMX! • Form Filter • Allows pre and post processing of fields!

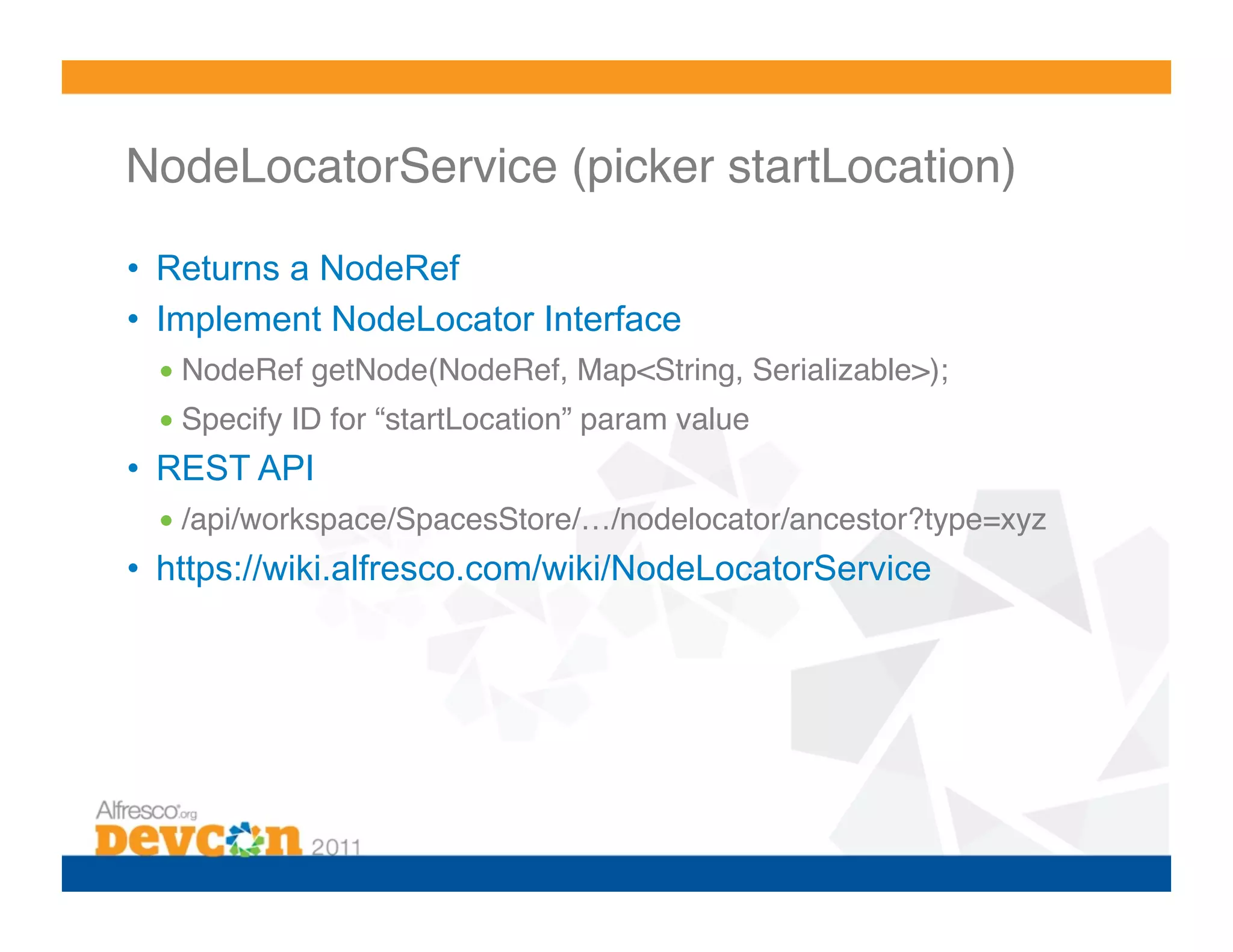

- 30. NodeLocatorService (picker startLocation)! • Returns a NodeRef • Implement NodeLocator Interface • NodeRef getNode(NodeRef, Map<String, Serializable>);! • Specify ID for “startLocation” param value! • REST API • /api/workspace/SpacesStore/…/nodelocator/ancestor?type=xyz ! • https://wiki.alfresco.com/wiki/NodeLocatorService
- 31. Whatʼs New &Tips !

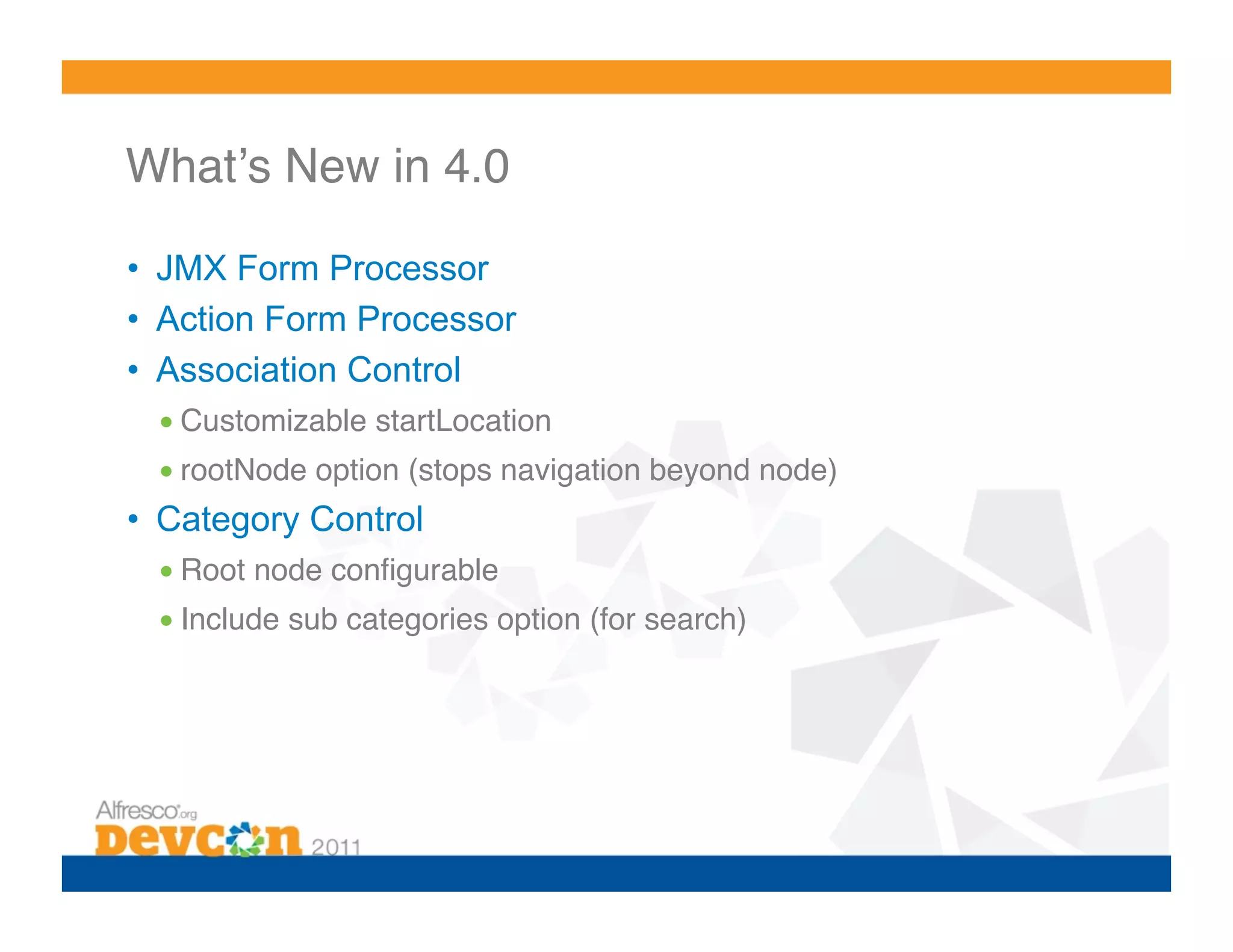

- 32. Whatʼs New in4.0! • JMX Form Processor • Action Form Processor • Association Control • Customizable startLocation ! • rootNode option (stops navigation beyond node)! • Category Control • Root node configurable! • Include sub categories option (for search)!

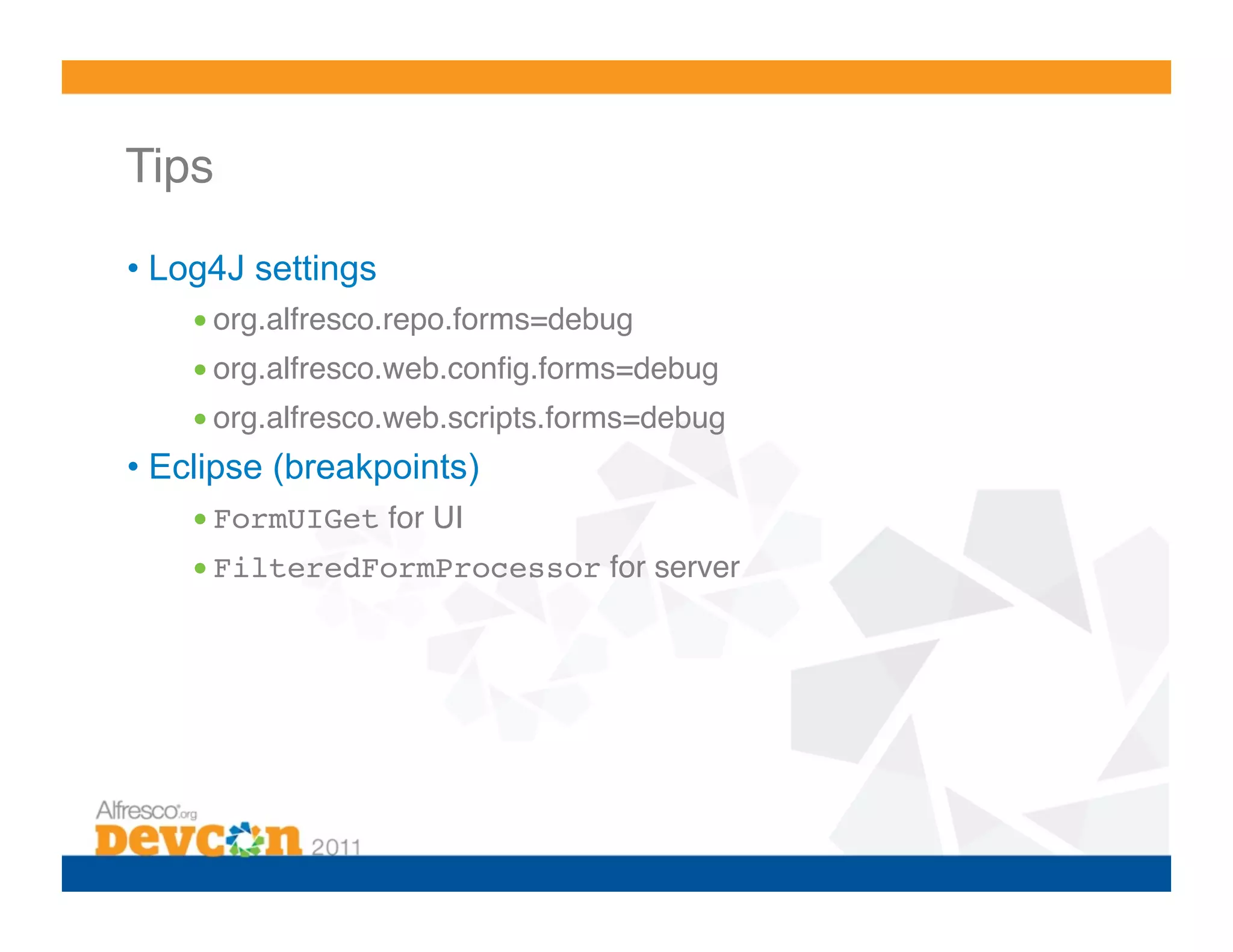

- 33. Tips! • Log4J settings • org.alfresco.repo.forms=debug! • org.alfresco.web.config.forms=debug! • org.alfresco.web.scripts.forms=debug! • Eclipse (breakpoints) • FormUIGet for UI! • FilteredFormProcessor for server!

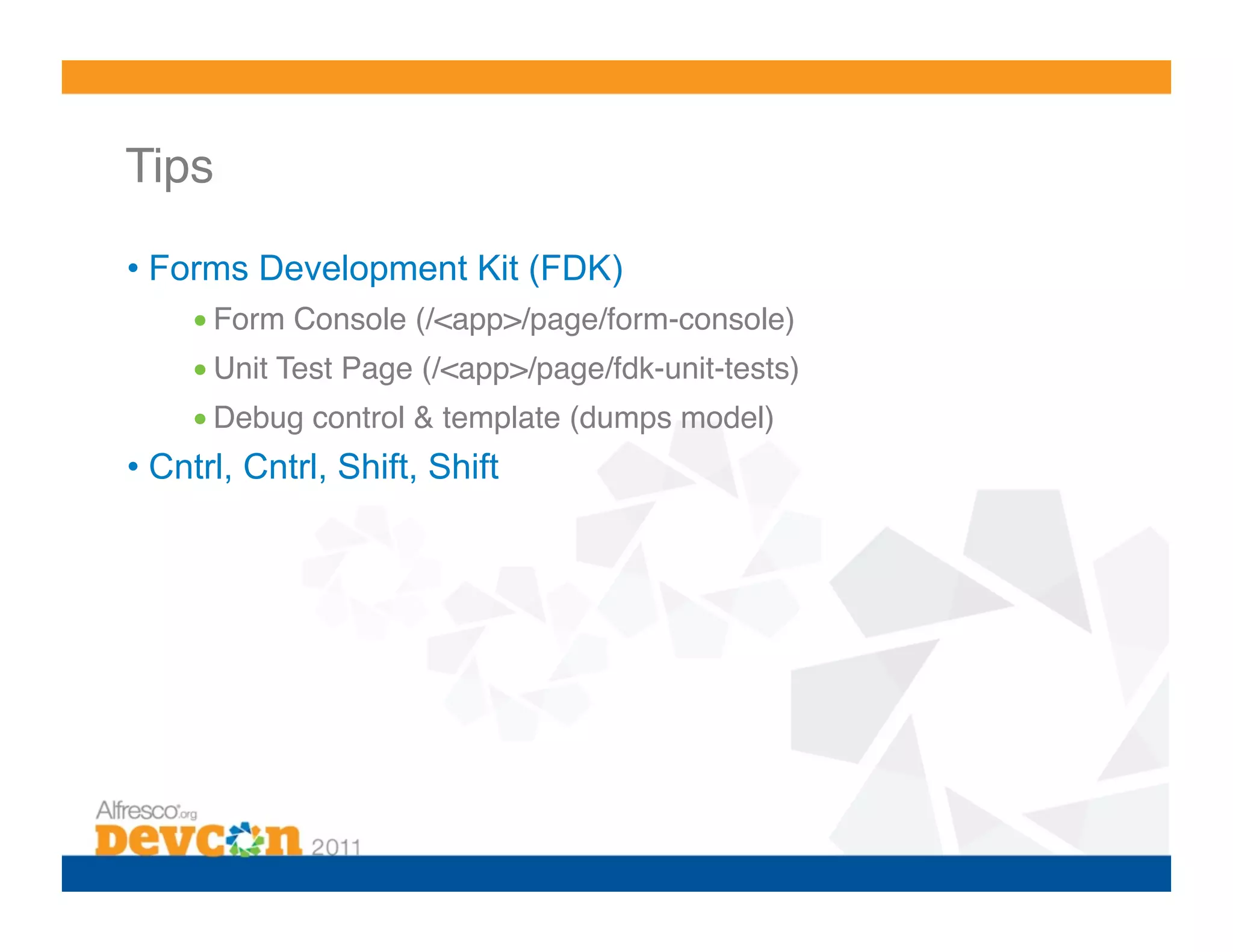

- 34. Tips! • Forms DevelopmentKit (FDK) • Form Console (/<app>/page/form-console)! • Unit Test Page (/<app>/page/fdk-unit-tests)! • Debug control & template (dumps model)! • Cntrl, Cntrl, Shift, Shift
- 35.
- 36.
