Design Patterns and Usage

Design Patterns Usage and Application By Manas Ranjan Sahoo

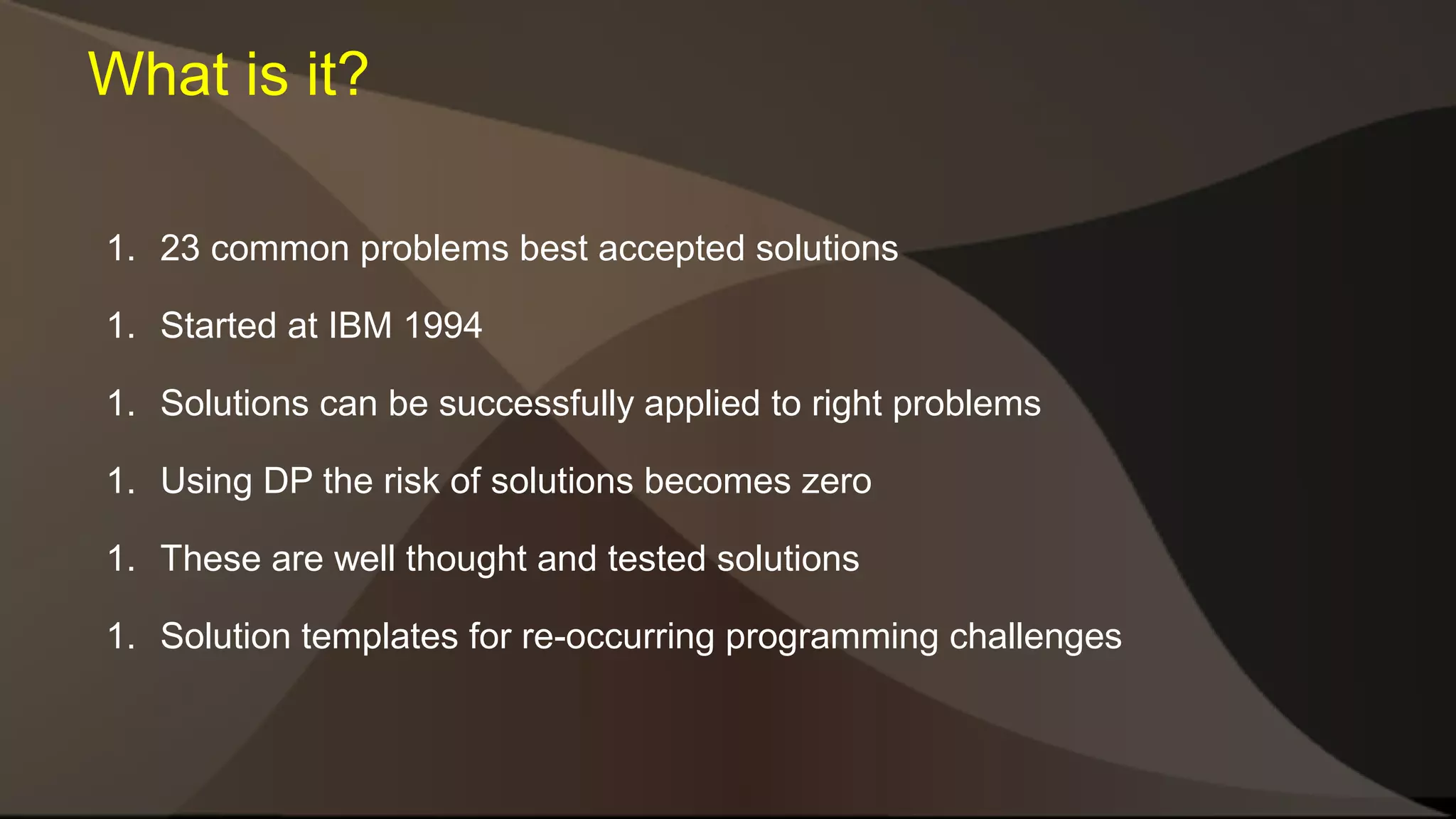

What is it? 1. 23 common problems best accepted solutions 1. Started at IBM 1994 1. Solutions can be successfully applied to right problems 1. Using DP the risk of solutions becomes zero 1. These are well thought and tested solutions 1. Solution templates for re-occurring programming challenges

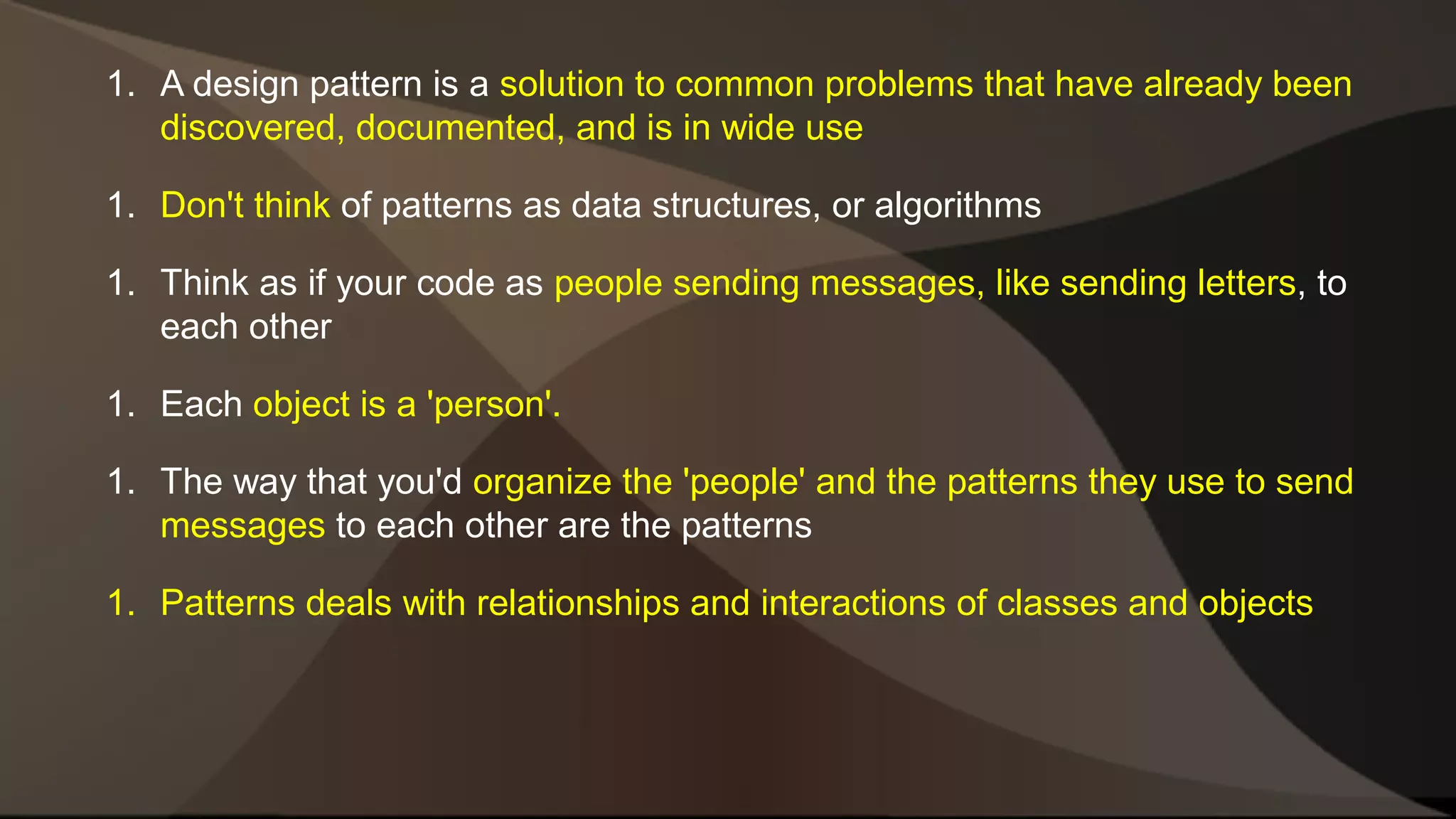

1. A design pattern is a solution to common problems that have already been discovered, documented, and is in wide use 1. Don't think of patterns as data structures, or algorithms 1. Think as if your code as people sending messages, like sending letters, to each other 1. Each object is a 'person'. 1. The way that you'd organize the 'people' and the patterns they use to send messages to each other are the patterns 1. Patterns deals with relationships and interactions of classes and objects

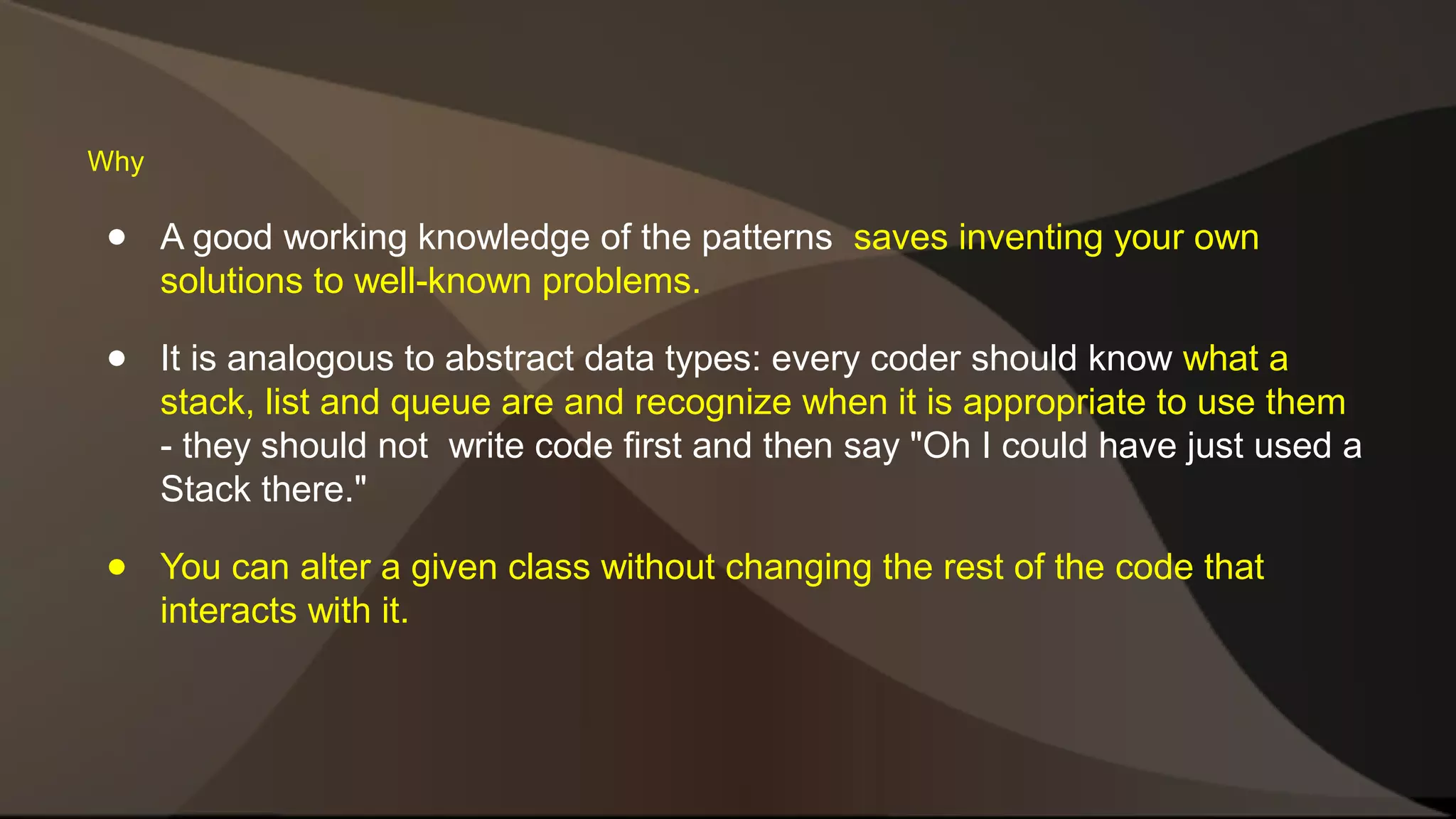

● A good working knowledge of the patterns saves inventing your own solutions to well-known problems. ● It is analogous to abstract data types: every coder should know what a stack, list and queue are and recognize when it is appropriate to use them - they should not write code first and then say "Oh I could have just used a Stack there." ● You can alter a given class without changing the rest of the code that interacts with it. Why

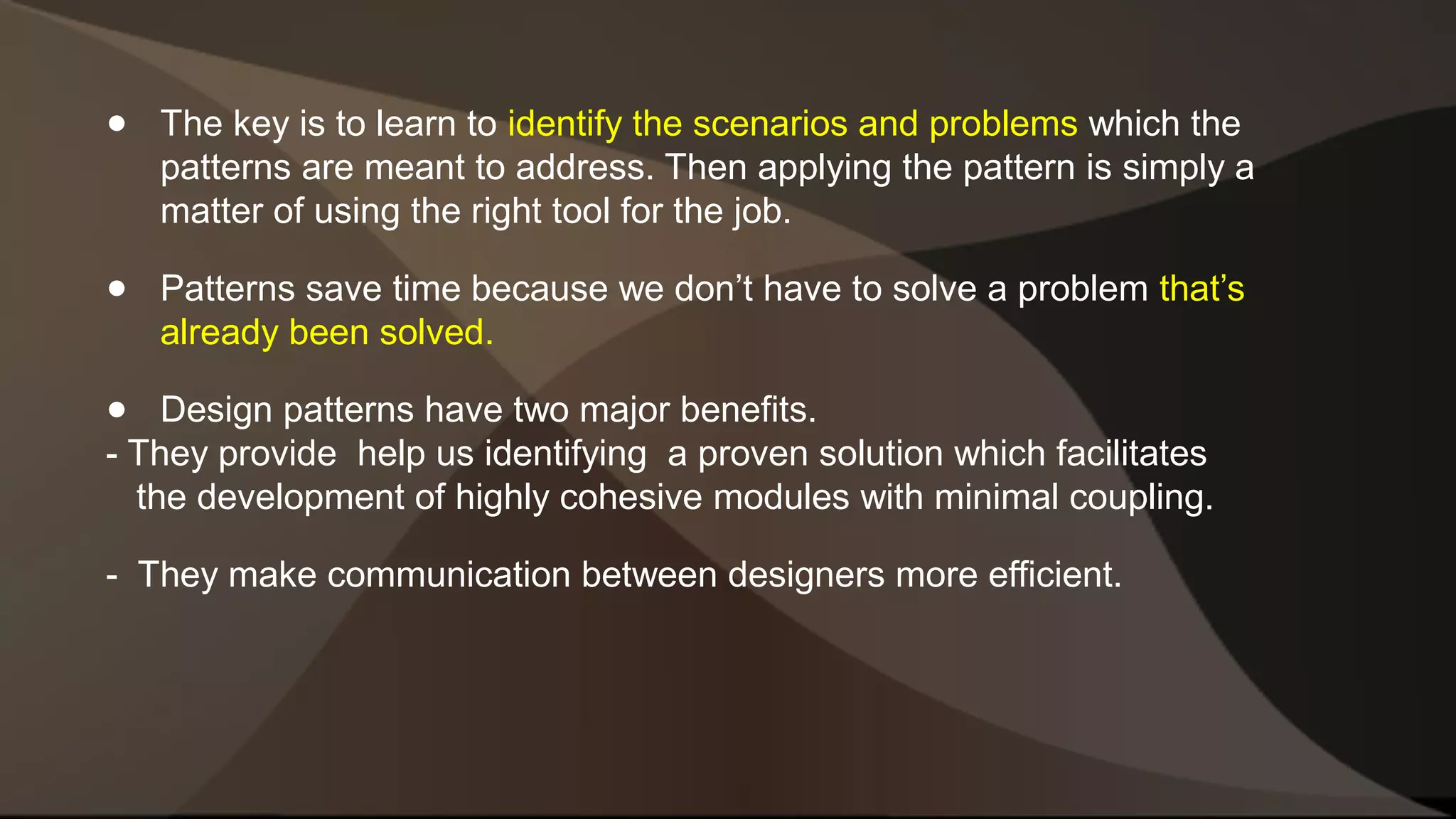

● The key is to learn to identify the scenarios and problems which the patterns are meant to address. Then applying the pattern is simply a matter of using the right tool for the job. ● Patterns save time because we don’t have to solve a problem that’s already been solved. ● Design patterns have two major benefits. - They provide help us identifying a proven solution which facilitates the development of highly cohesive modules with minimal coupling. - They make communication between designers more efficient.

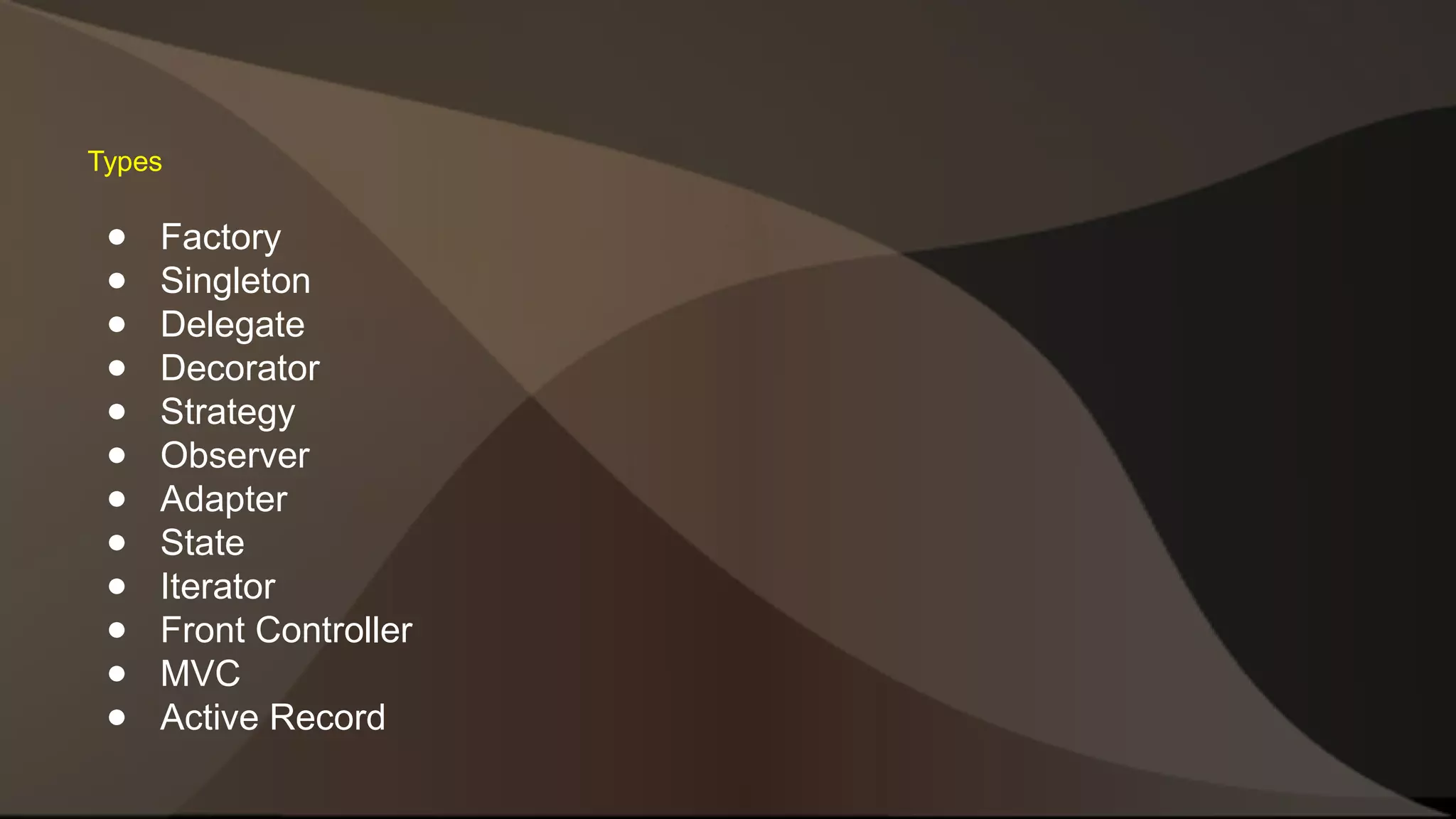

Types ● Factory ● Singleton ● Delegate ● Decorator ● Strategy ● Observer ● Adapter ● State ● Iterator ● Front Controller ● MVC ● Active Record

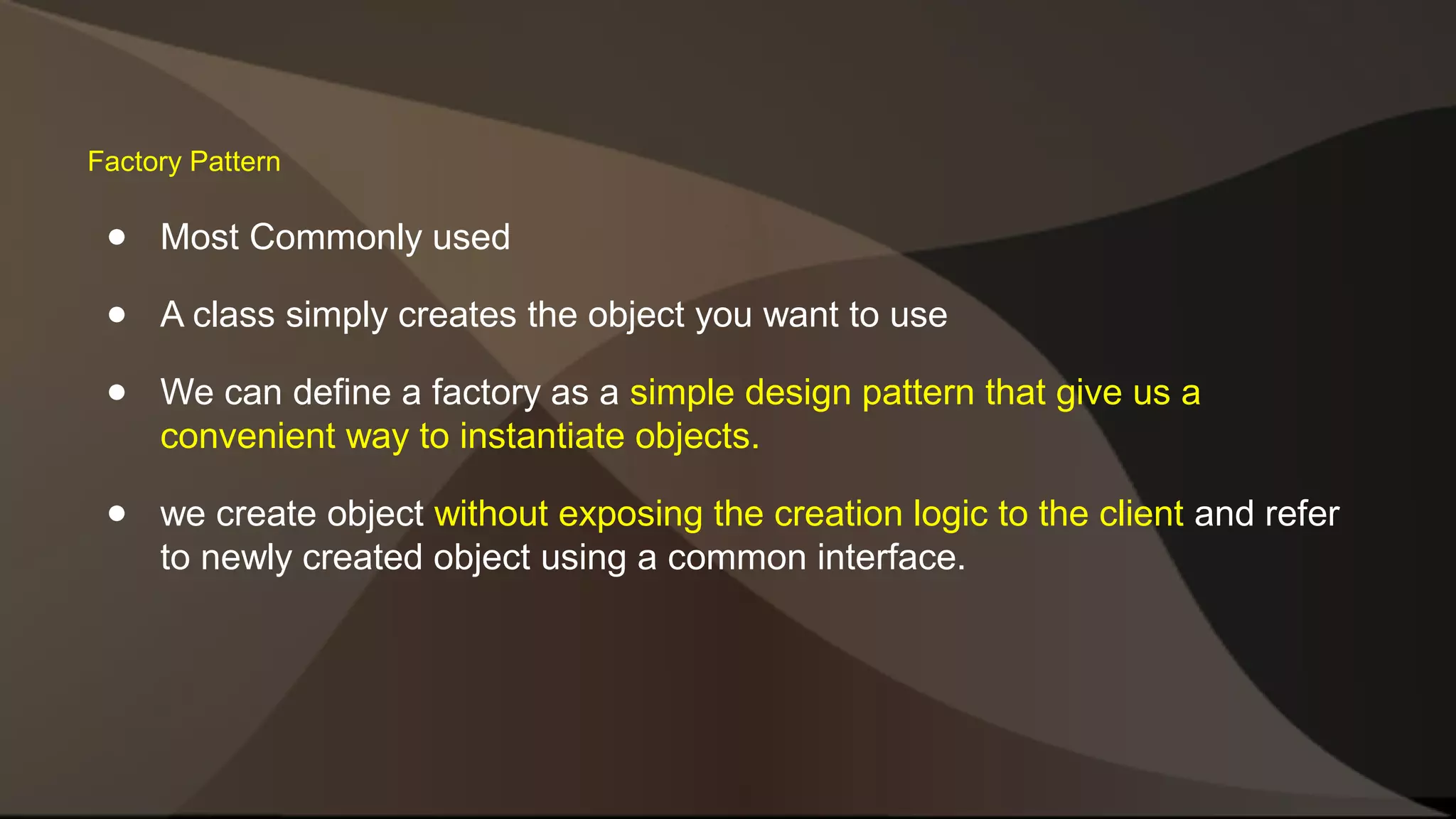

Factory Pattern ● Most Commonly used ● A class simply creates the object you want to use ● We can define a factory as a simple design pattern that give us a convenient way to instantiate objects. ● we create object without exposing the creation logic to the client and refer to newly created object using a common interface.

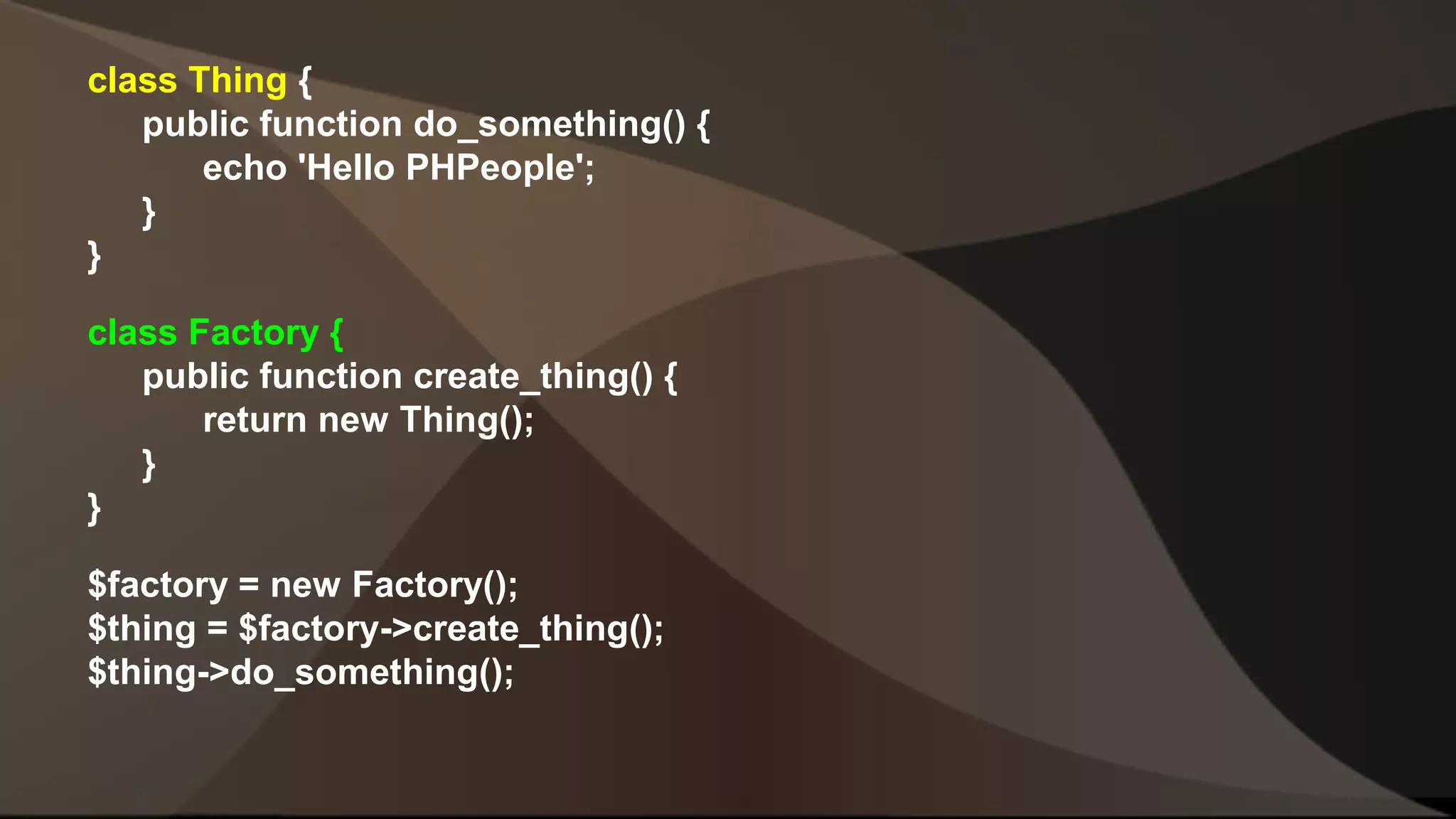

class Thing { public function do_something() { echo 'Hello PHPeople'; } } class Factory { public function create_thing() { return new Thing(); } } $factory = new Factory(); $thing = $factory->create_thing(); $thing->do_something();

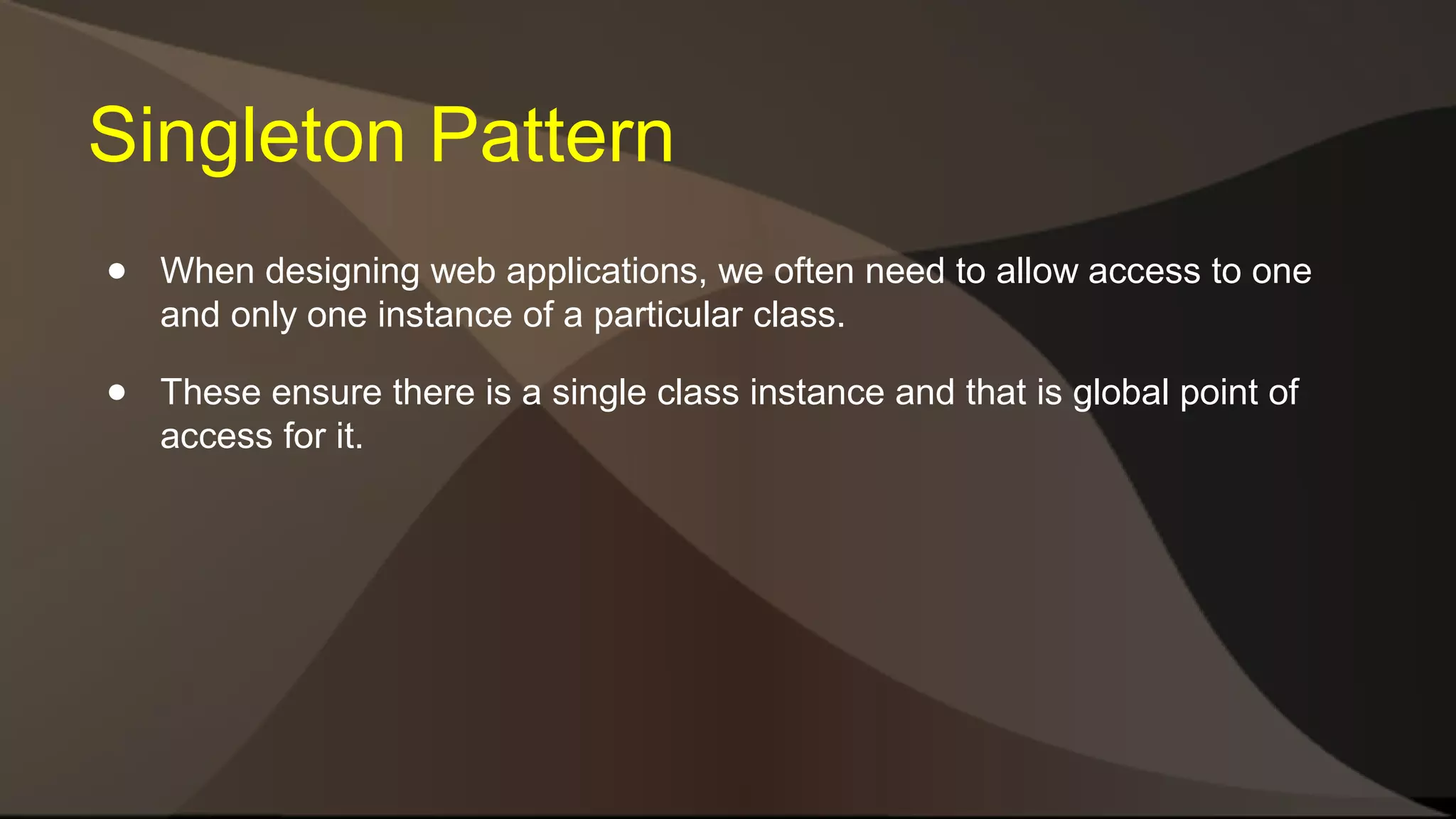

Singleton Pattern ● When designing web applications, we often need to allow access to one and only one instance of a particular class. ● These ensure there is a single class instance and that is global point of access for it.

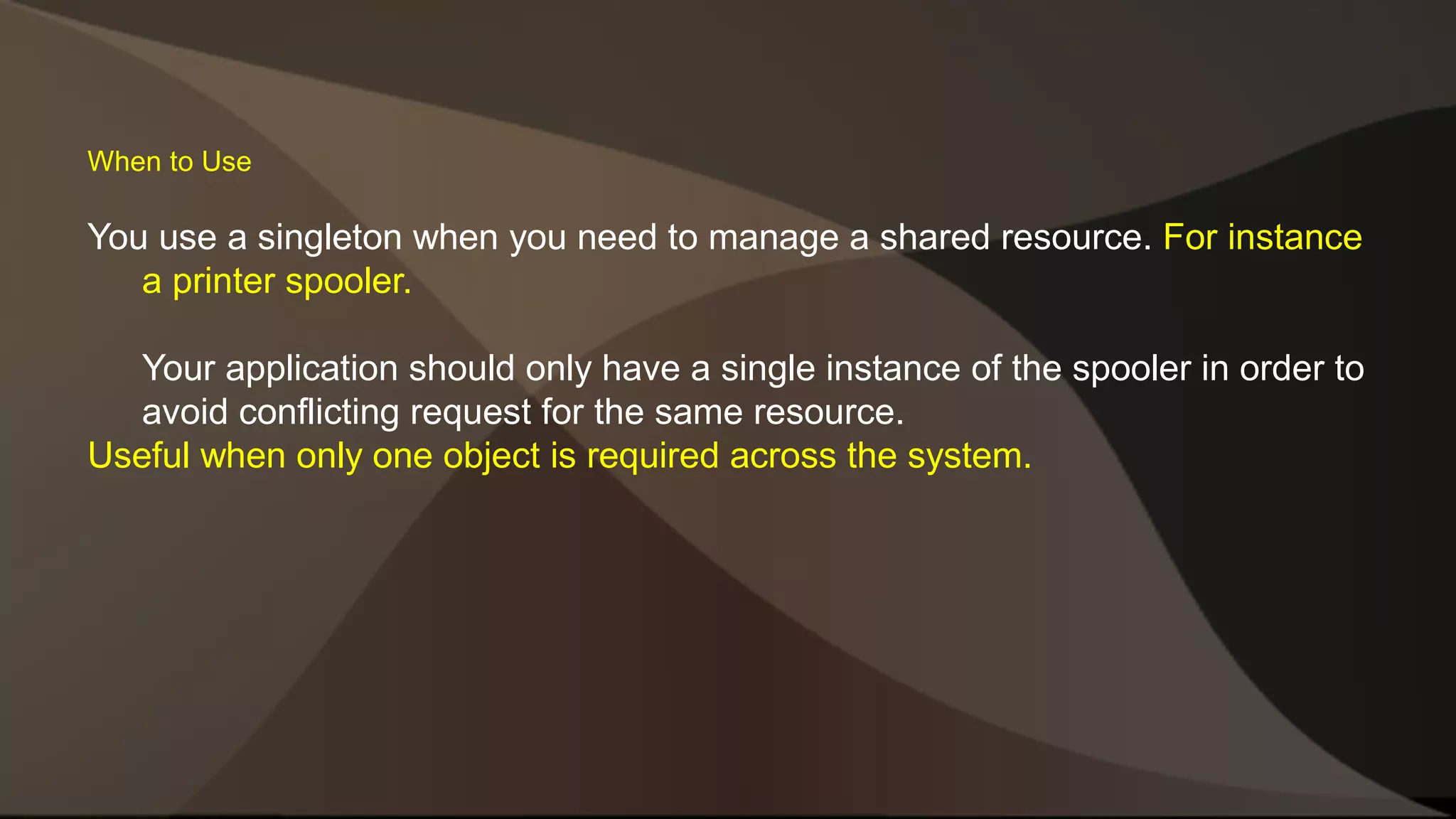

When to Use You use a singleton when you need to manage a shared resource. For instance a printer spooler. Your application should only have a single instance of the spooler in order to avoid conflicting request for the same resource. Useful when only one object is required across the system.

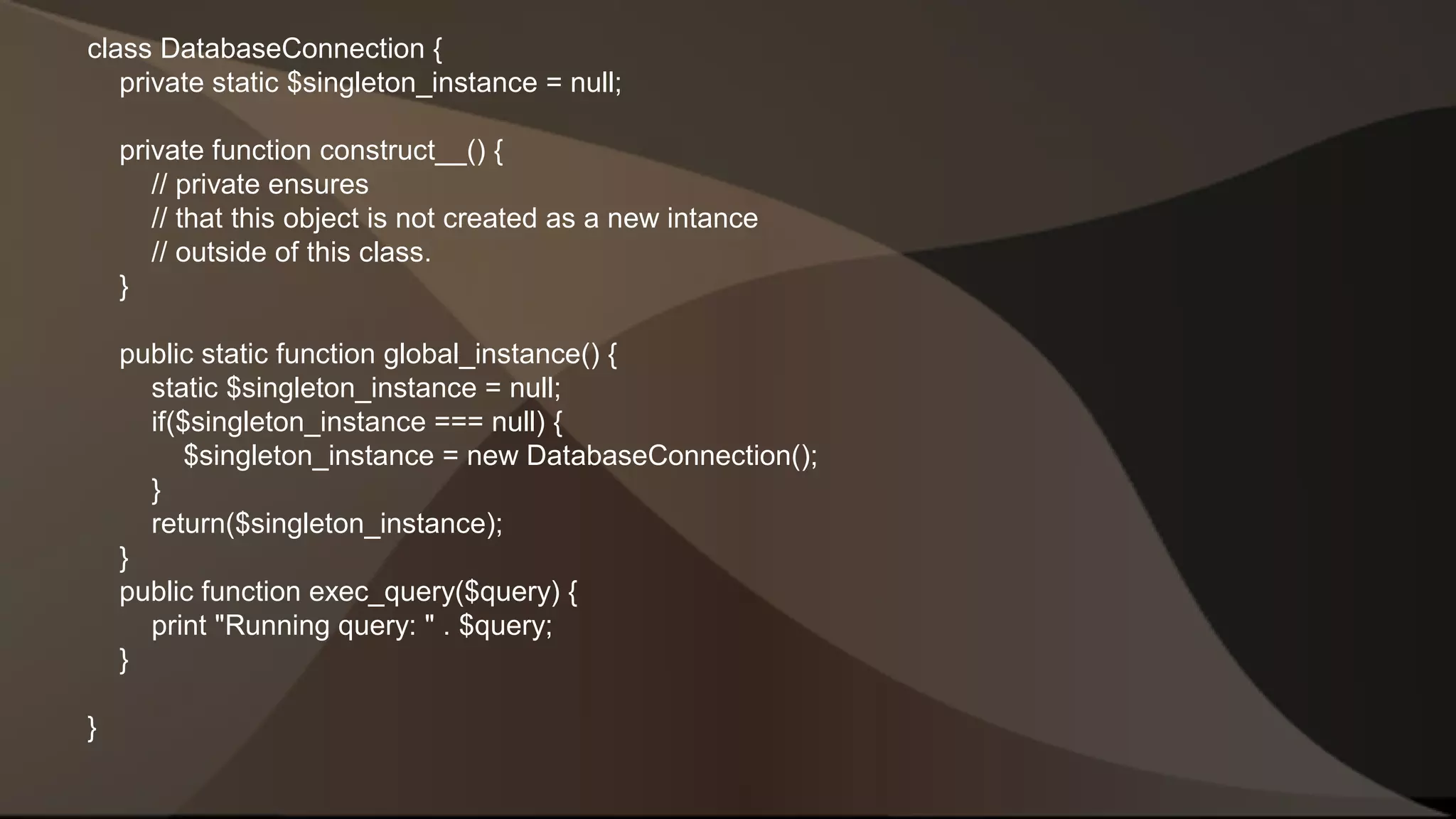

class DatabaseConnection { private static $singleton_instance = null; private function construct__() { // private ensures // that this object is not created as a new intance // outside of this class. } public static function global_instance() { static $singleton_instance = null; if($singleton_instance === null) { $singleton_instance = new DatabaseConnection(); } return($singleton_instance); } public function exec_query($query) { print "Running query: " . $query; } }

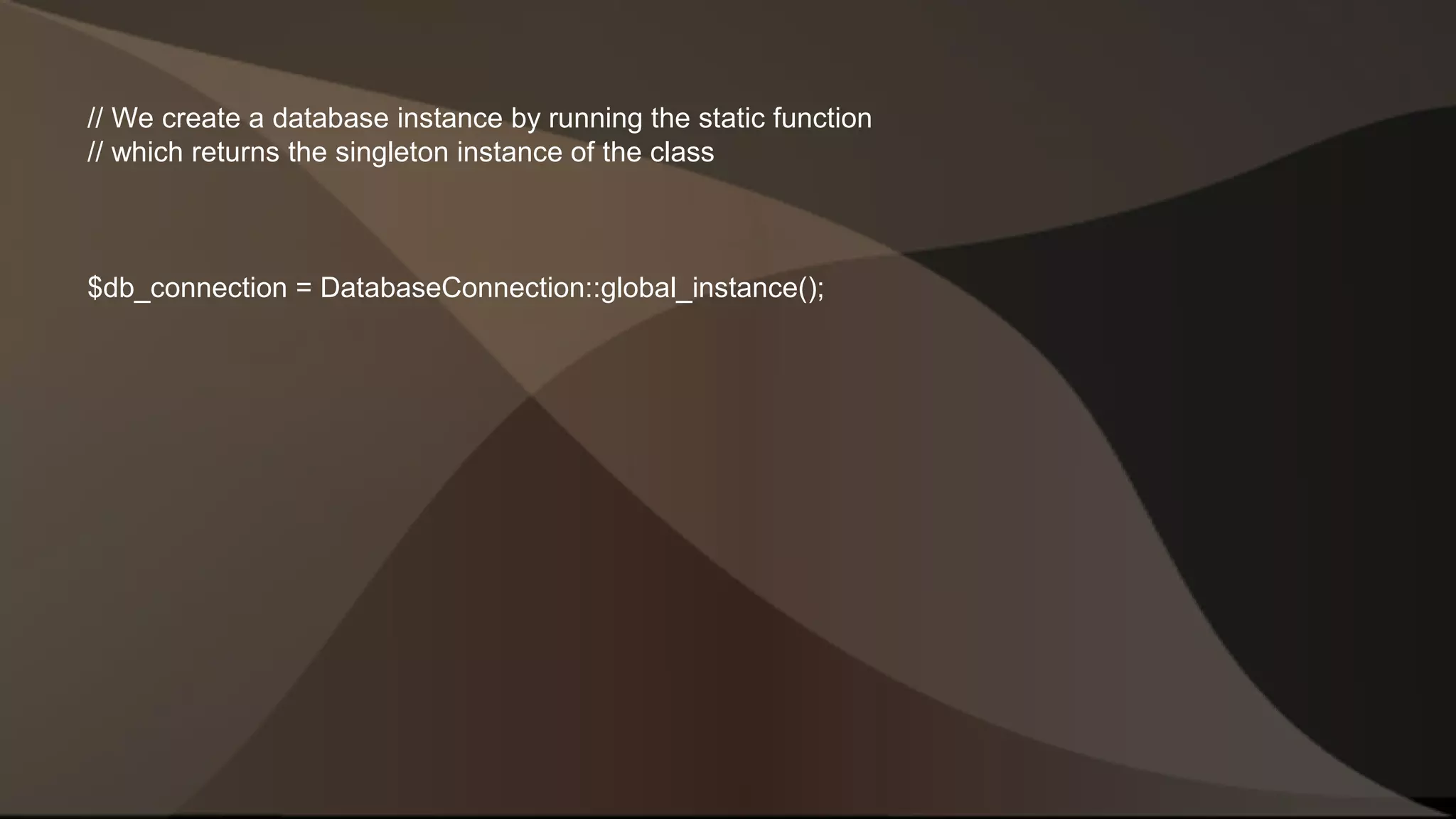

// We create a database instance by running the static function // which returns the singleton instance of the class $db_connection = DatabaseConnection::global_instance();

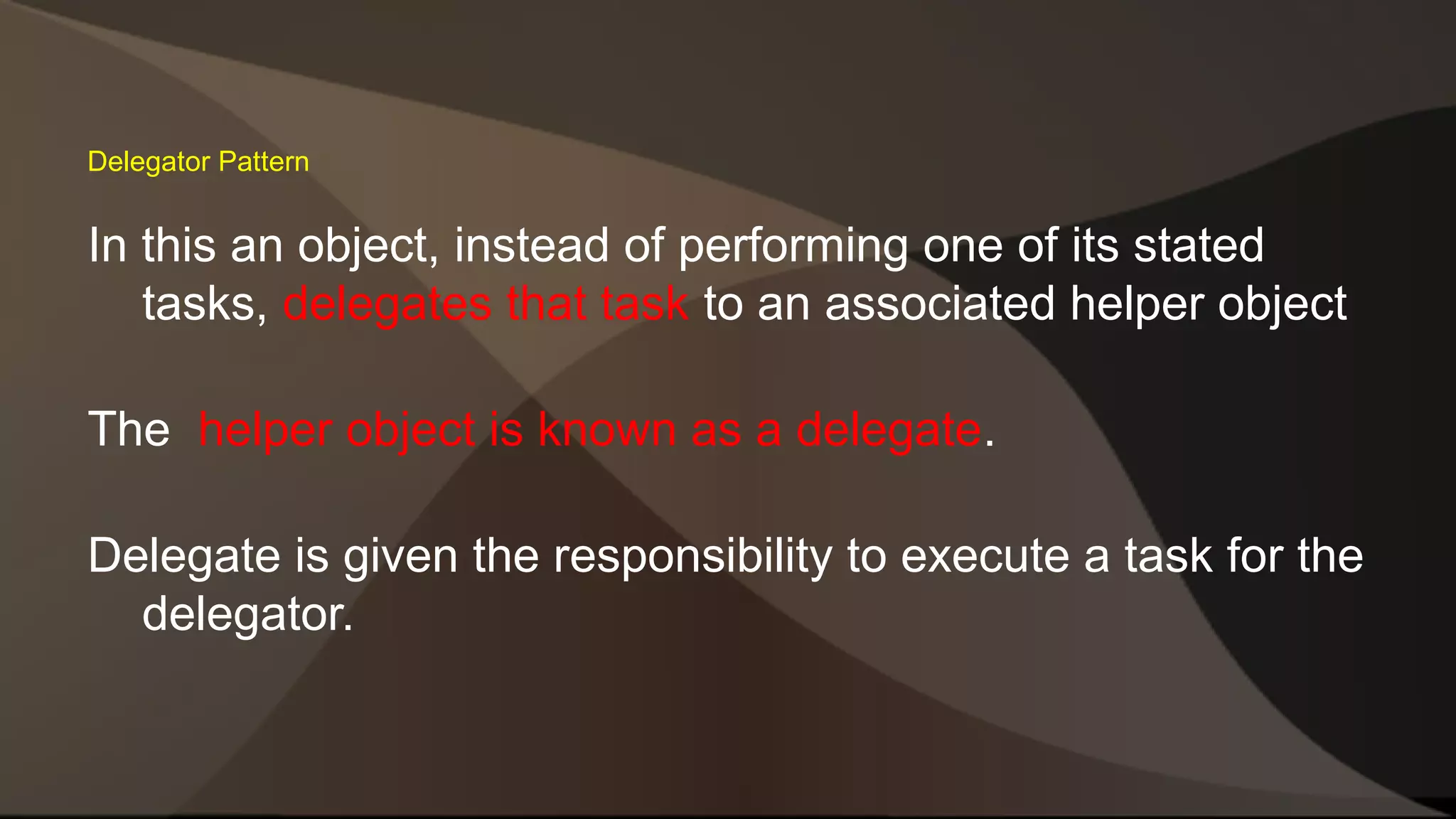

Delegator Pattern In this an object, instead of performing one of its stated tasks, delegates that task to an associated helper object The helper object is known as a delegate. Delegate is given the responsibility to execute a task for the delegator.

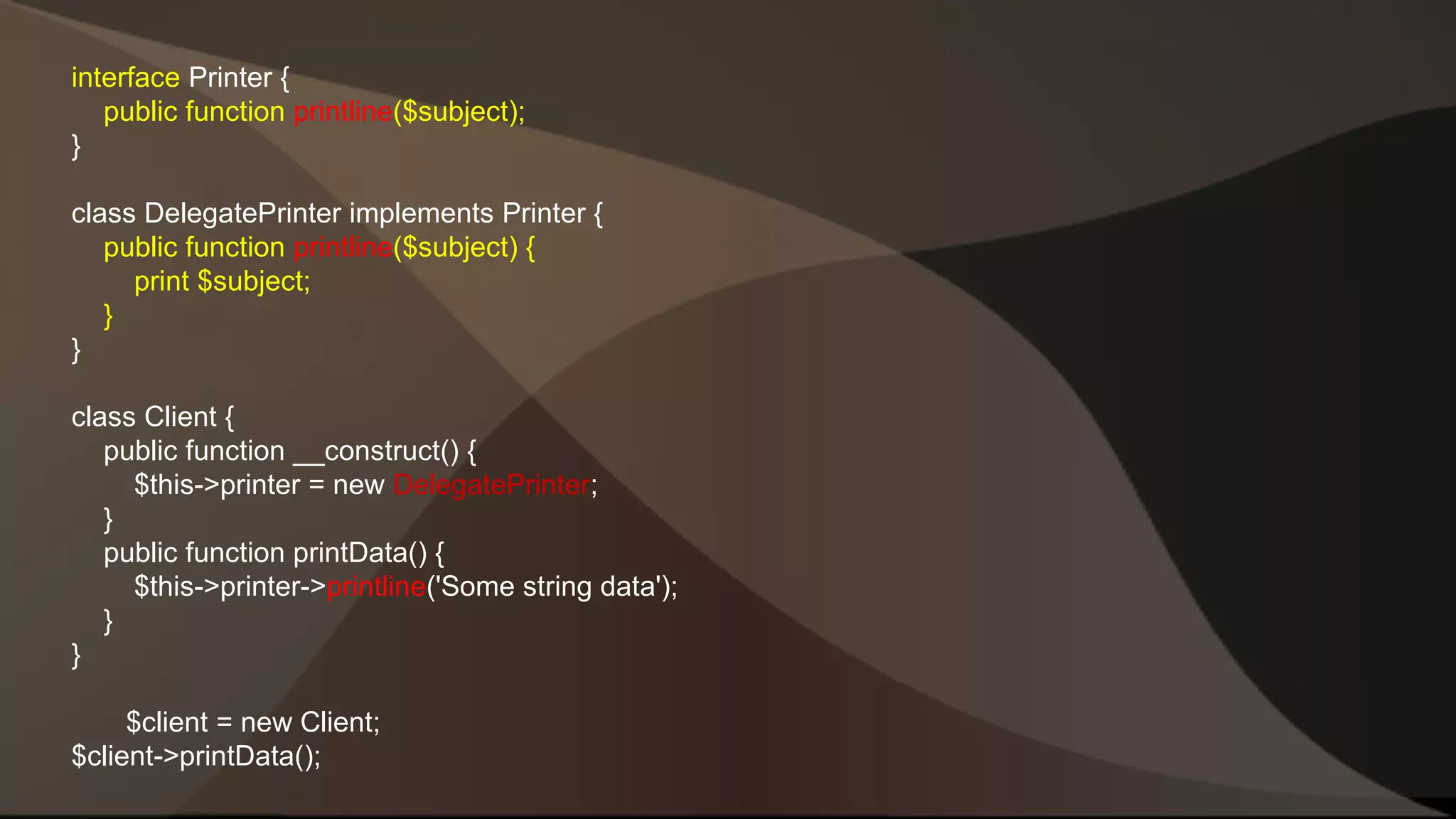

interface Printer { public function printline($subject); } class DelegatePrinter implements Printer { public function printline($subject) { print $subject; } } class Client { public function __construct() { $this->printer = new DelegatePrinter; } public function printData() { $this->printer->printline('Some string data'); } } $client = new Client; $client->printData();

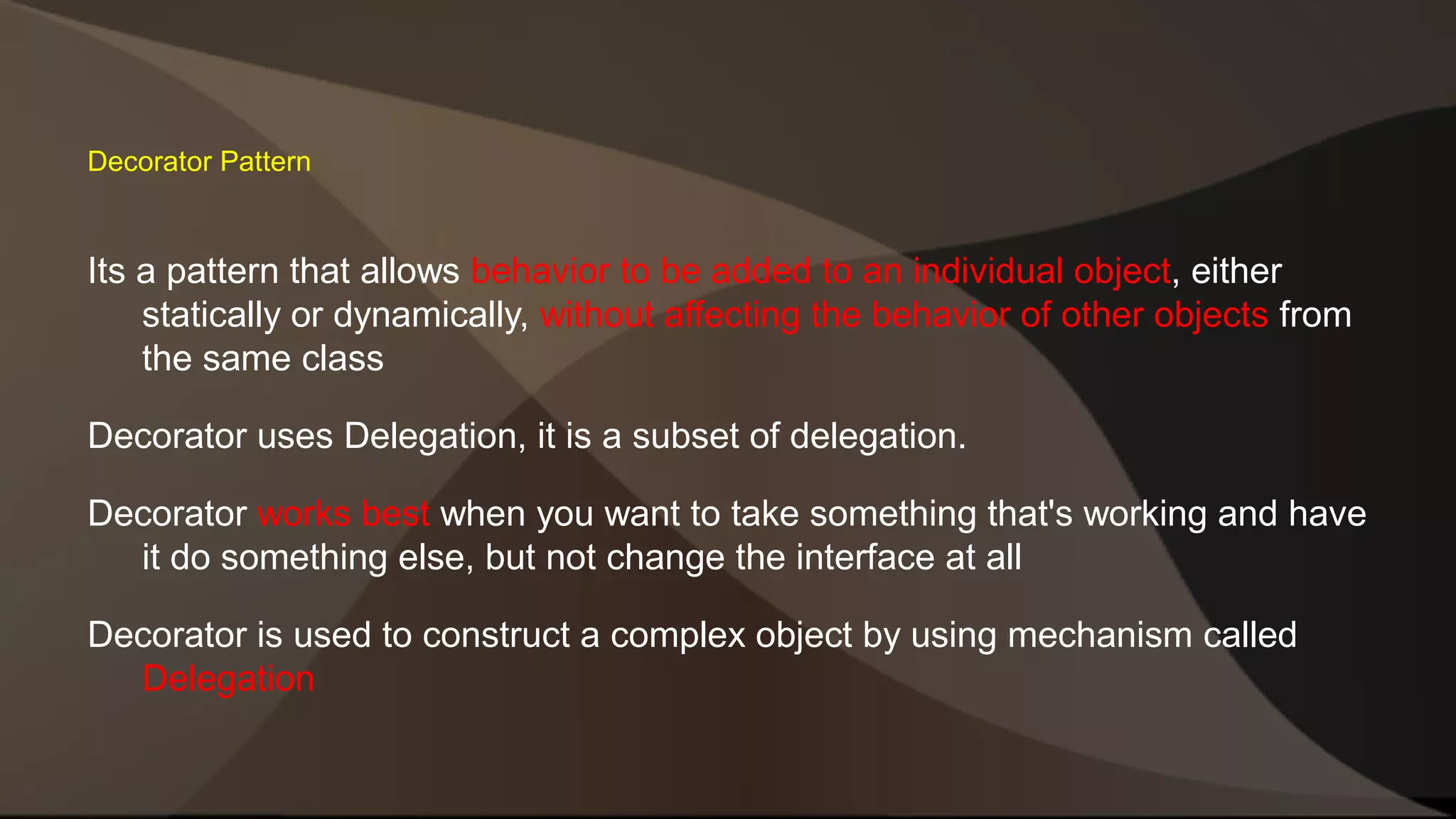

Decorator Pattern Its a pattern that allows behavior to be added to an individual object, either statically or dynamically, without affecting the behavior of other objects from the same class Decorator uses Delegation, it is a subset of delegation. Decorator works best when you want to take something that's working and have it do something else, but not change the interface at all Decorator is used to construct a complex object by using mechanism called Delegation

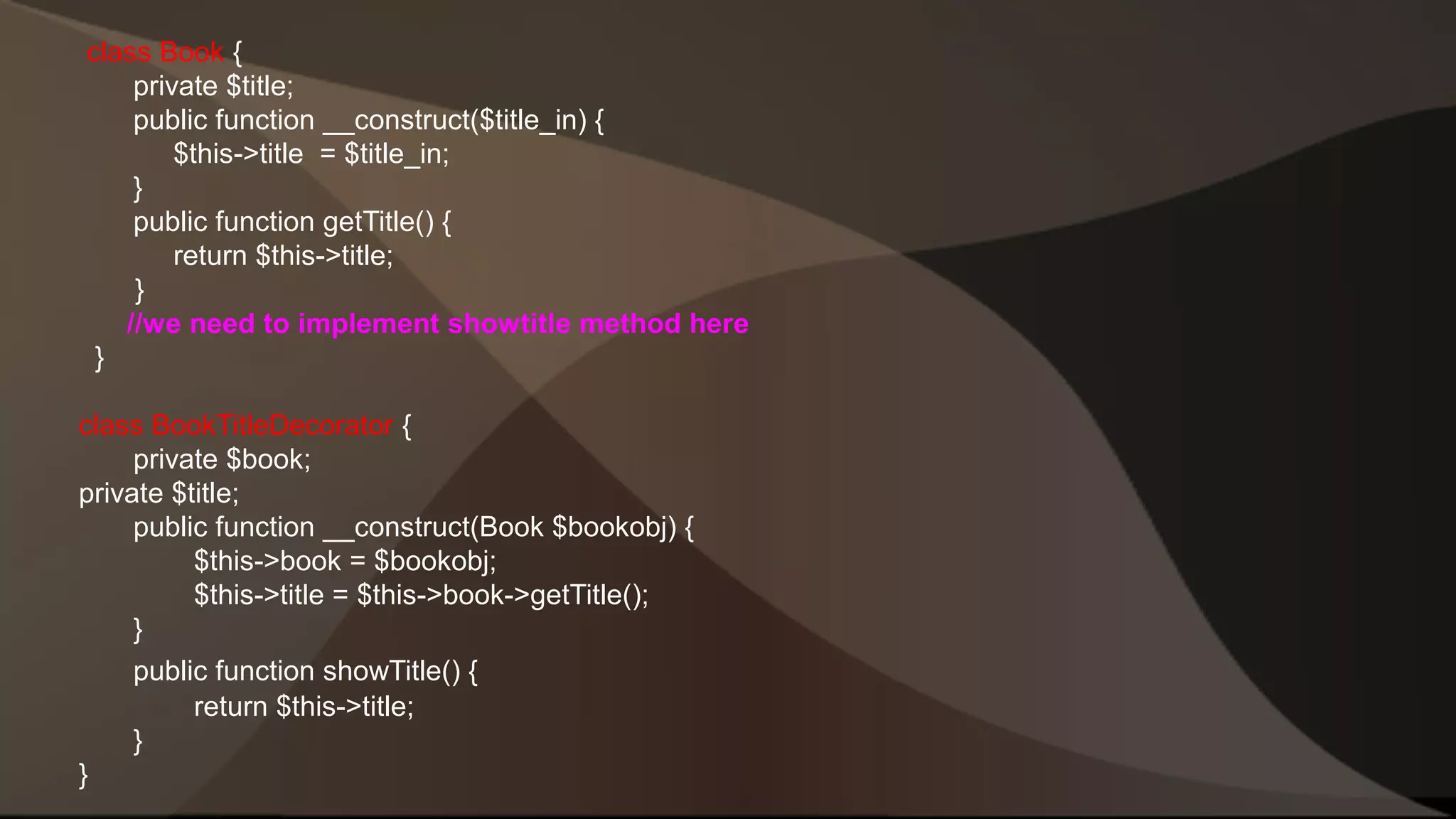

class Book { private $title; public function __construct($title_in) { $this->title = $title_in; } public function getTitle() { return $this->title; } //we need to implement showtitle method here } class BookTitleDecorator { private $book; private $title; public function __construct(Book $bookobj) { $this->book = $bookobj; $this->title = $this->book->getTitle(); } public function showTitle() { return $this->title; } }

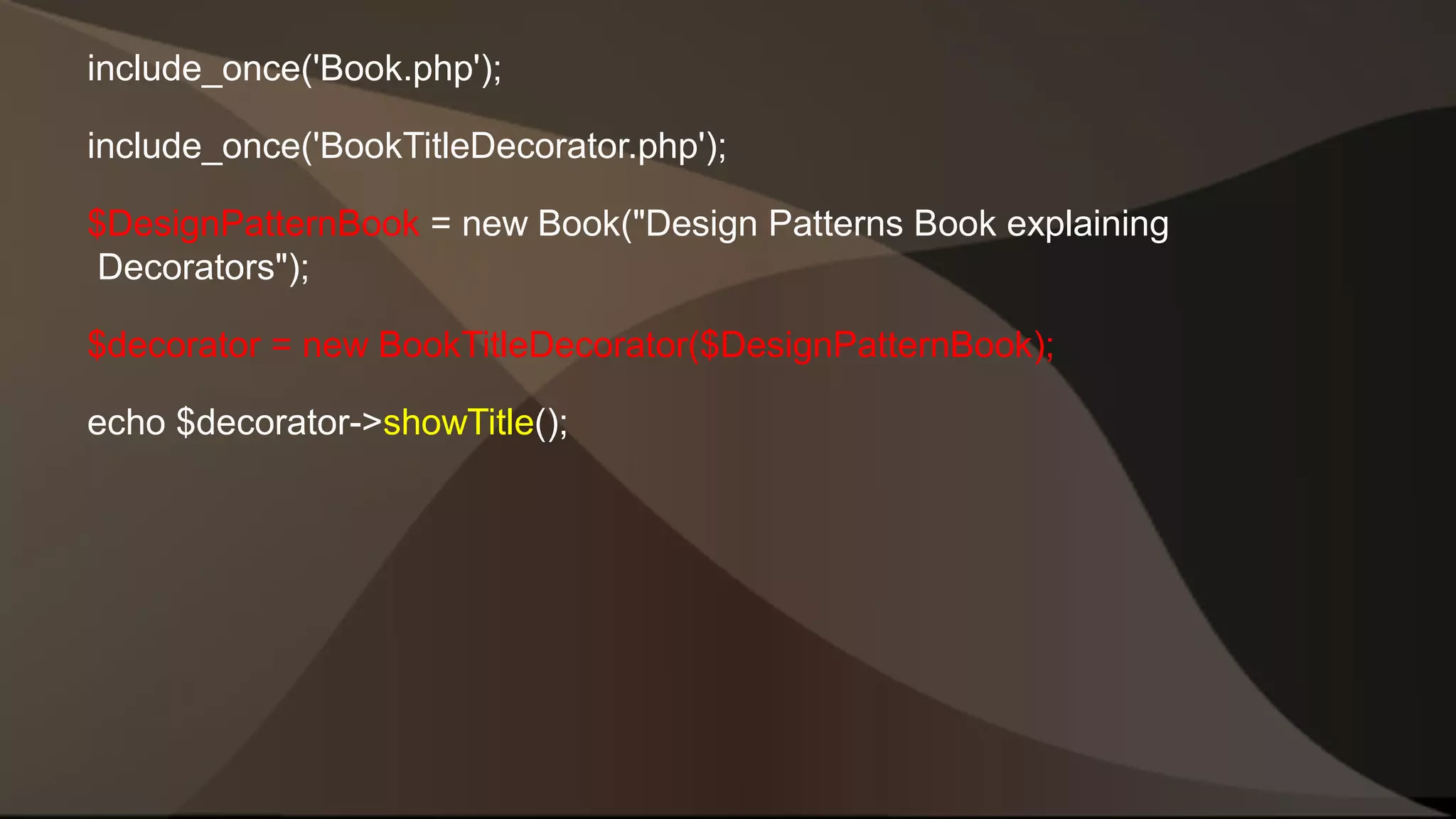

include_once('Book.php'); include_once('BookTitleDecorator.php'); $DesignPatternBook = new Book("Design Patterns Book explaining Decorators"); $decorator = new BookTitleDecorator($DesignPatternBook); echo $decorator->showTitle();

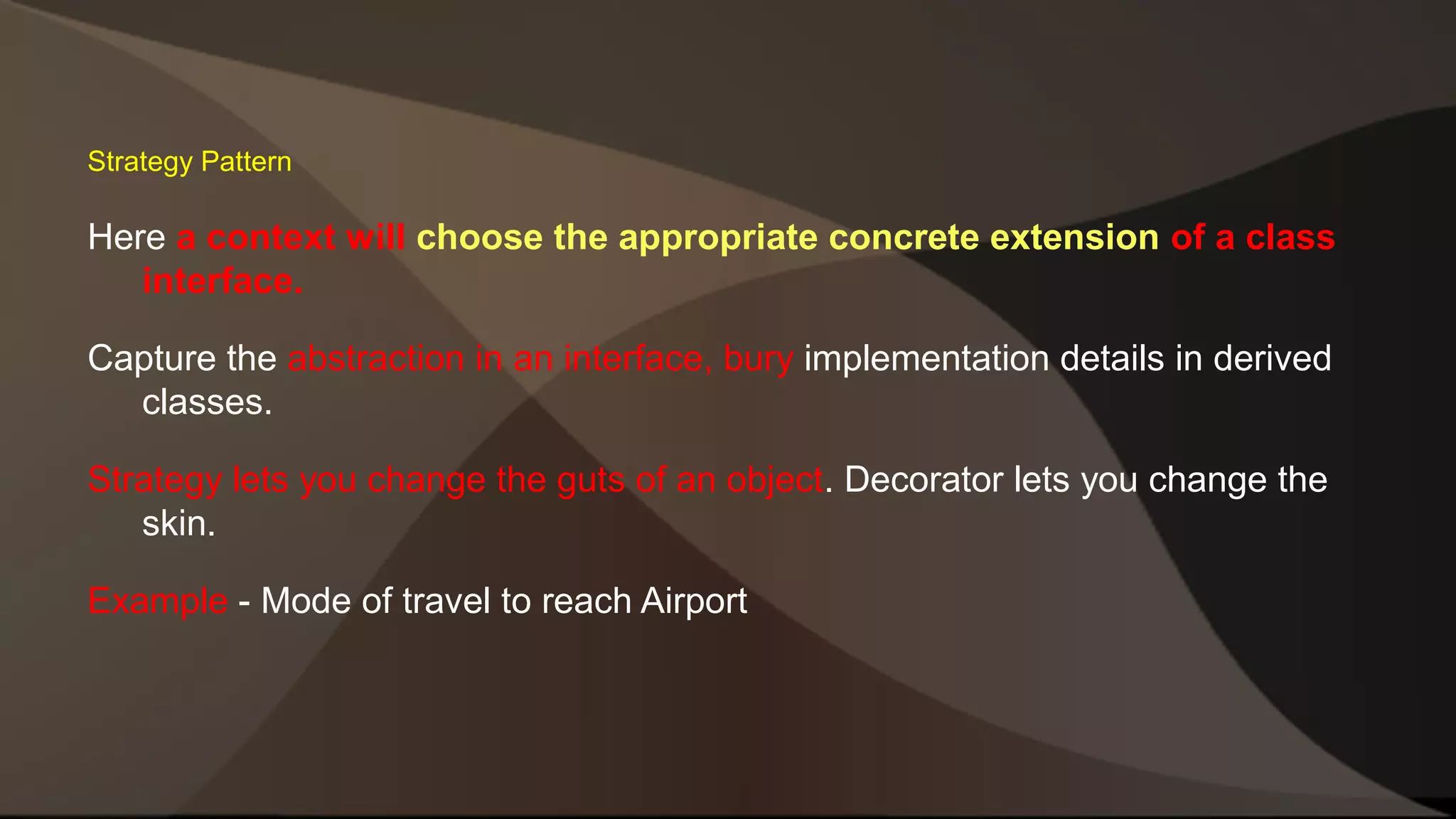

Strategy Pattern Here a context will choose the appropriate concrete extension of a class interface. Capture the abstraction in an interface, bury implementation details in derived classes. Strategy lets you change the guts of an object. Decorator lets you change the skin. Example - Mode of travel to reach Airport

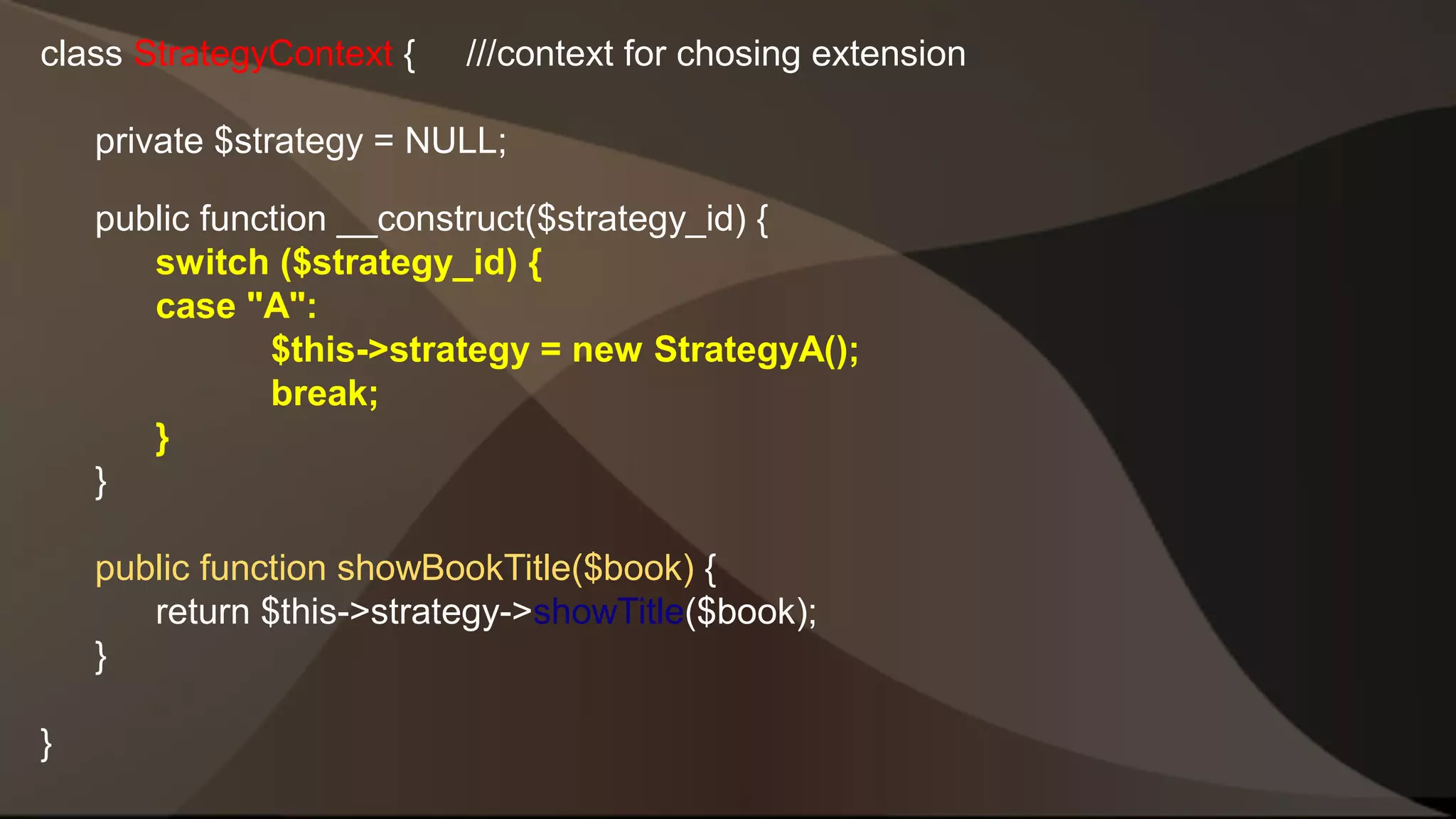

class StrategyContext { ///context for chosing extension private $strategy = NULL; public function __construct($strategy_id) { switch ($strategy_id) { case "A": $this->strategy = new StrategyA(); break; } } public function showBookTitle($book) { return $this->strategy->showTitle($book); } }

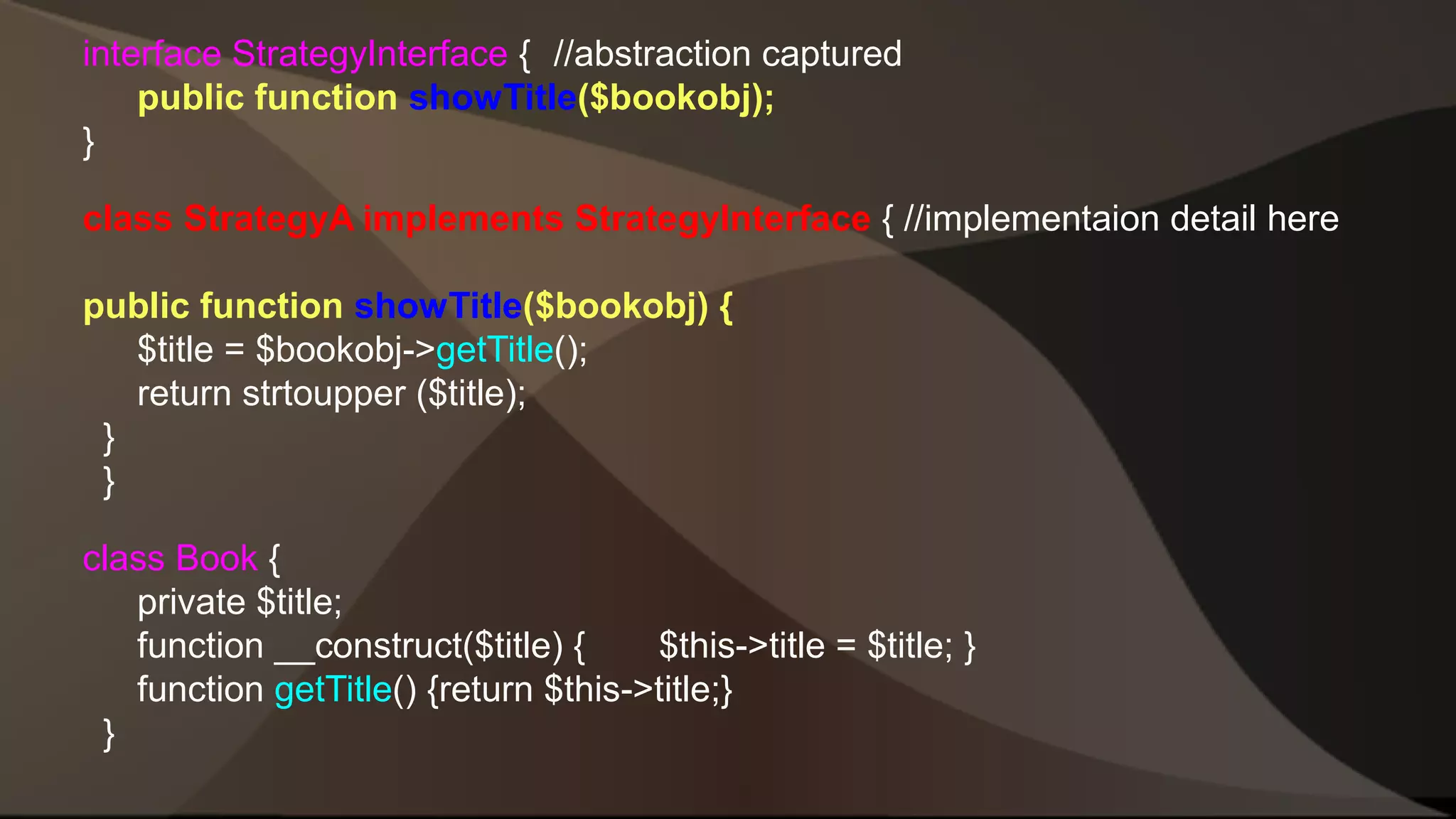

interface StrategyInterface { //abstraction captured public function showTitle($bookobj); } class StrategyA implements StrategyInterface { //implementaion detail here public function showTitle($bookobj) { $title = $bookobj->getTitle(); return strtoupper ($title); } } class Book { private $title; function __construct($title) { $this->title = $title; } function getTitle() {return $this->title;} }

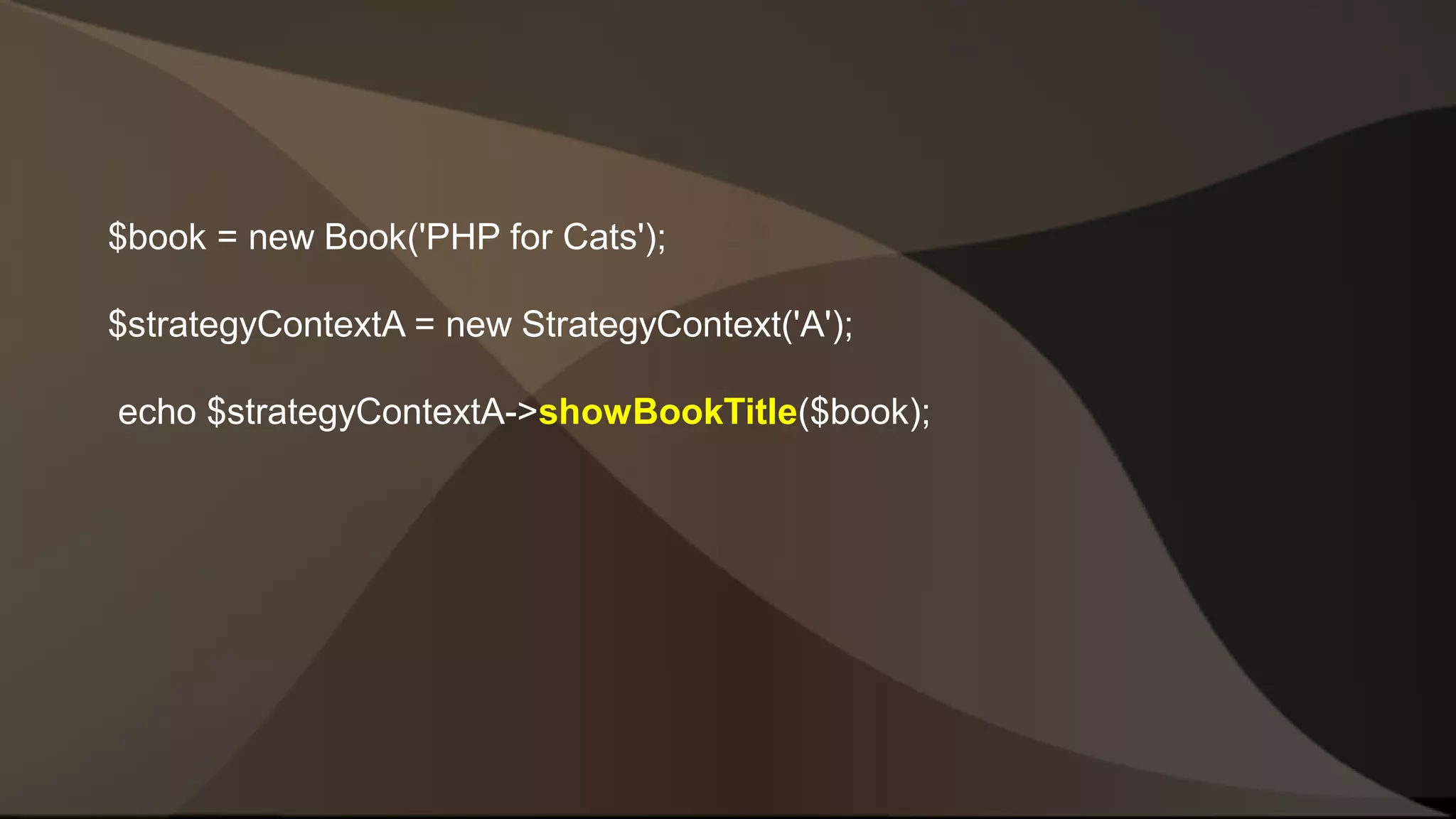

$book = new Book('PHP for Cats'); $strategyContextA = new StrategyContext('A'); echo $strategyContextA->showBookTitle($book);

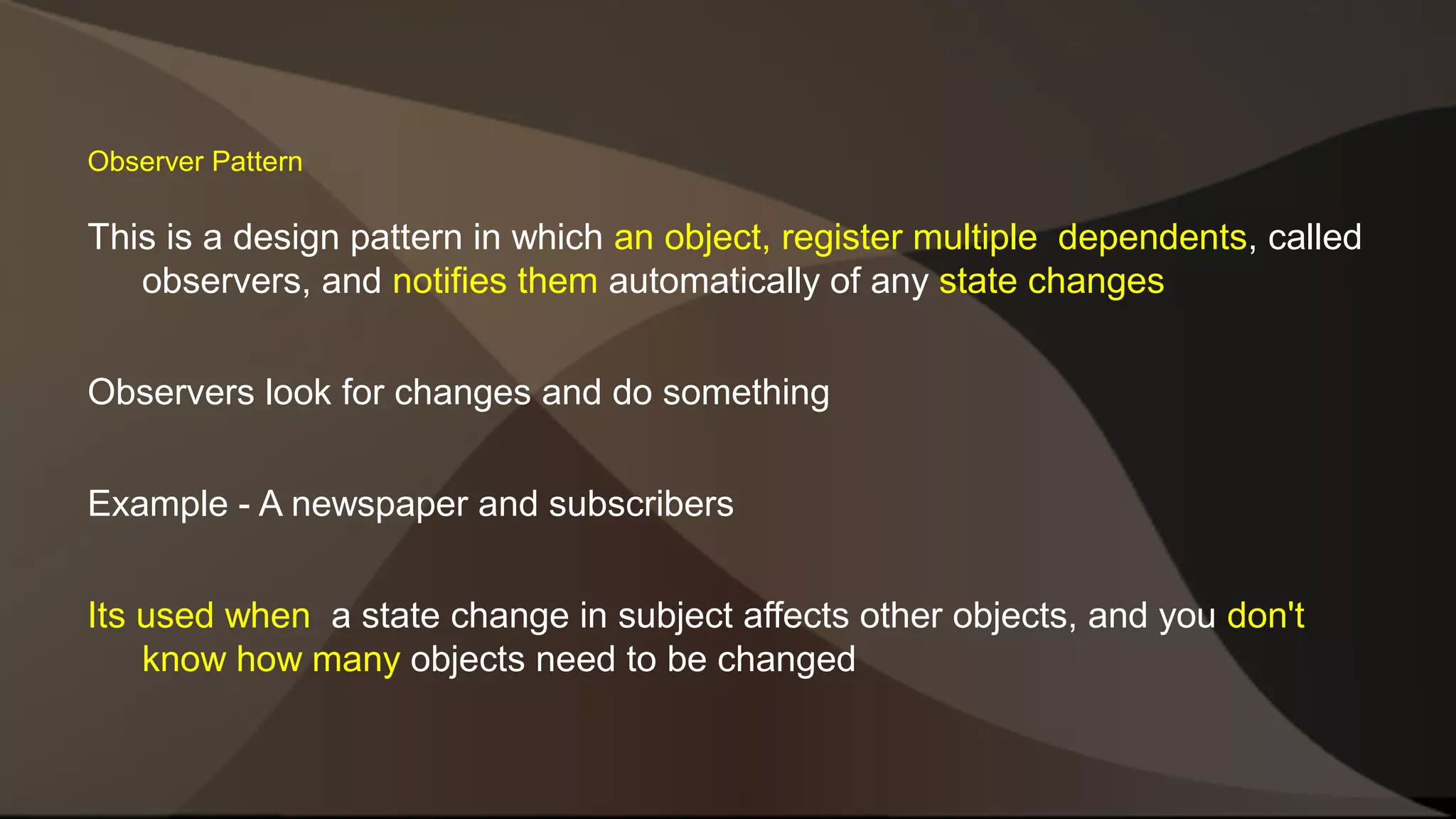

Observer Pattern This is a design pattern in which an object, register multiple dependents, called observers, and notifies them automatically of any state changes Observers look for changes and do something Example - A newspaper and subscribers Its used when a state change in subject affects other objects, and you don't know how many objects need to be changed

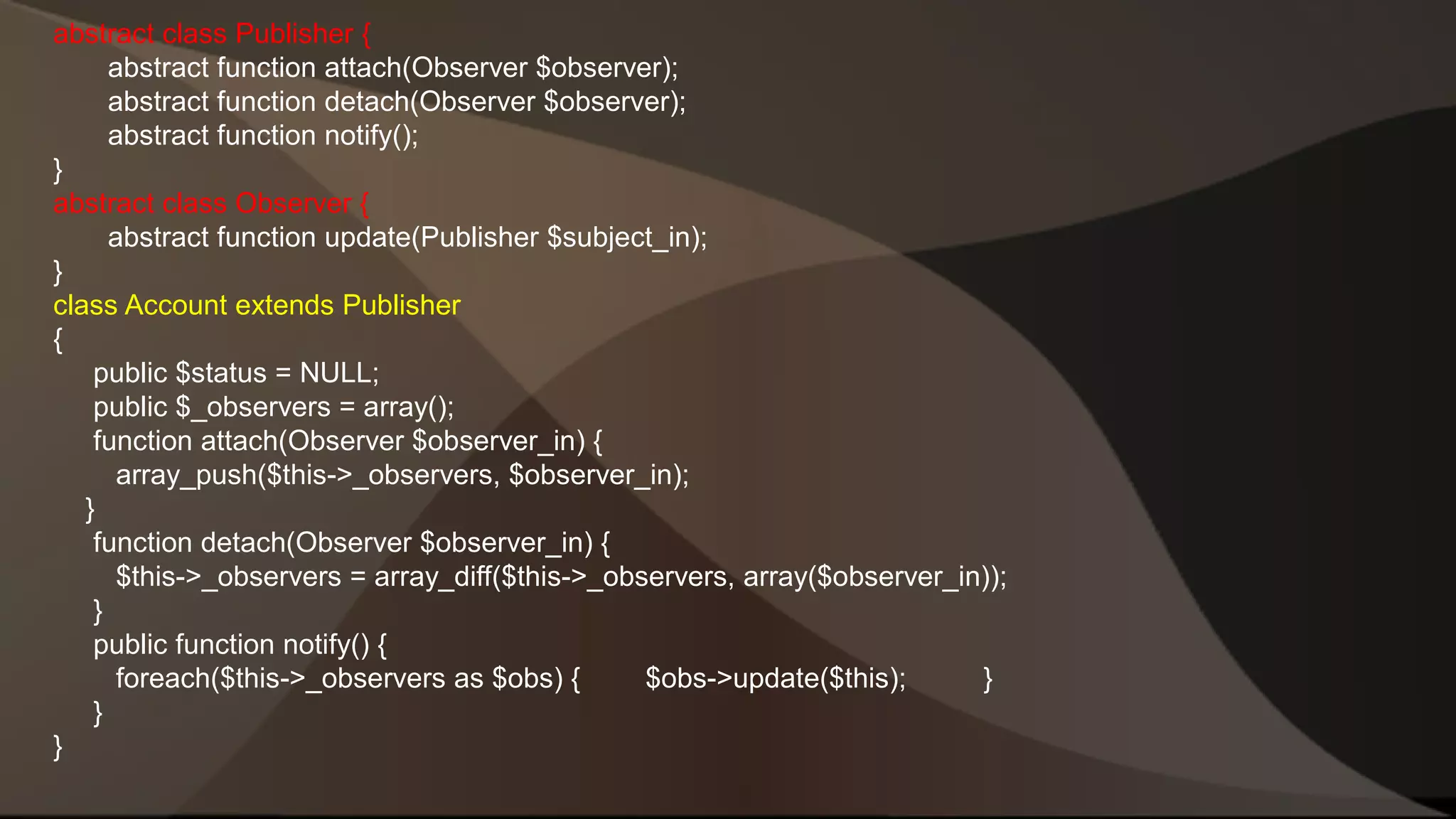

abstract class Publisher { abstract function attach(Observer $observer); abstract function detach(Observer $observer); abstract function notify(); } abstract class Observer { abstract function update(Publisher $subject_in); } class Account extends Publisher { public $status = NULL; public $_observers = array(); function attach(Observer $observer_in) { array_push($this->_observers, $observer_in); } function detach(Observer $observer_in) { $this->_observers = array_diff($this->_observers, array($observer_in)); } public function notify() { foreach($this->_observers as $obs) { $obs->update($this); } } }

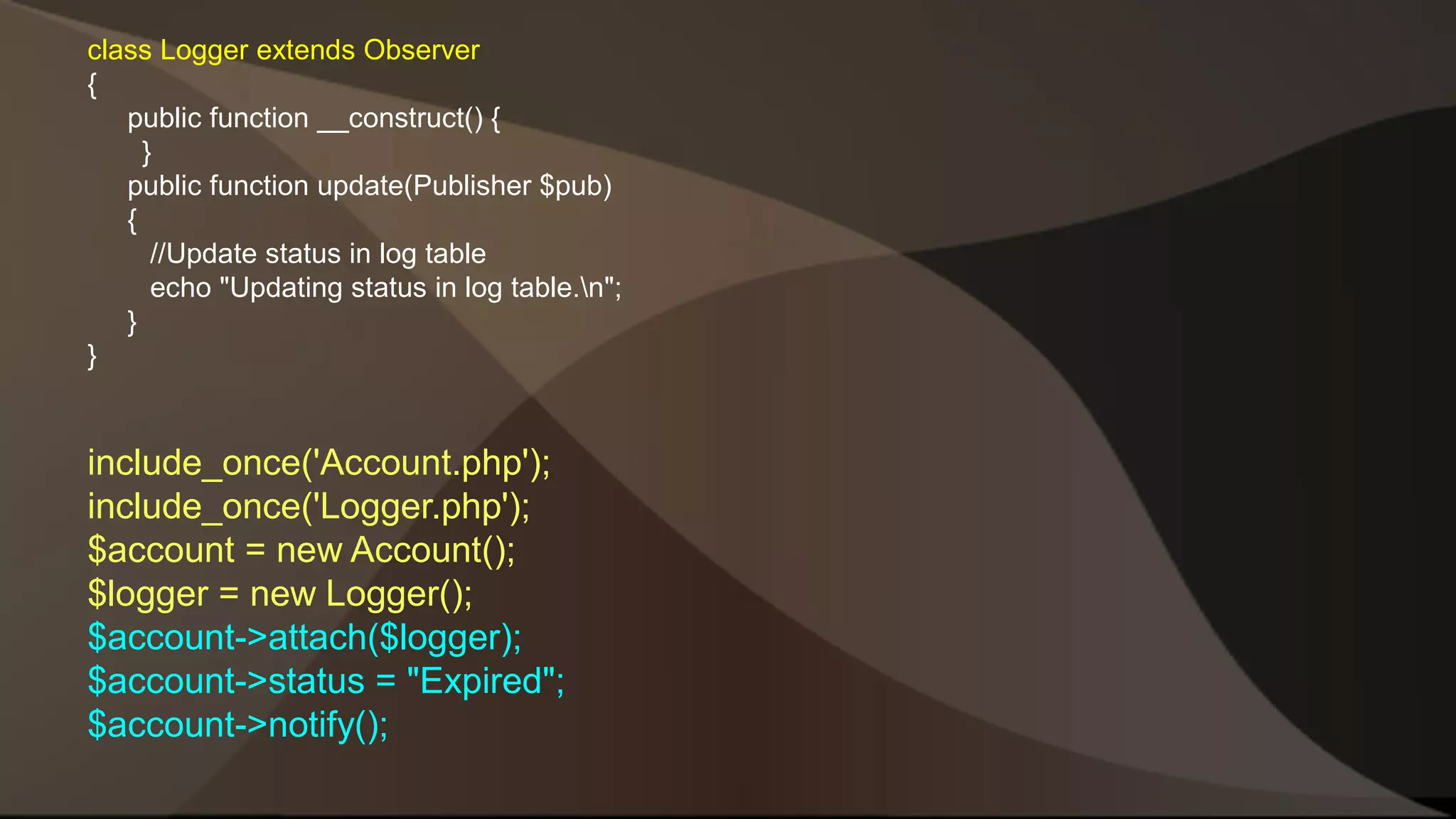

class Logger extends Observer { public function __construct() { } public function update(Publisher $pub) { //Update status in log table echo "Updating status in log table.n"; } } include_once('Account.php'); include_once('Logger.php'); $account = new Account(); $logger = new Logger(); $account->attach($logger); $account->status = "Expired"; $account->notify();

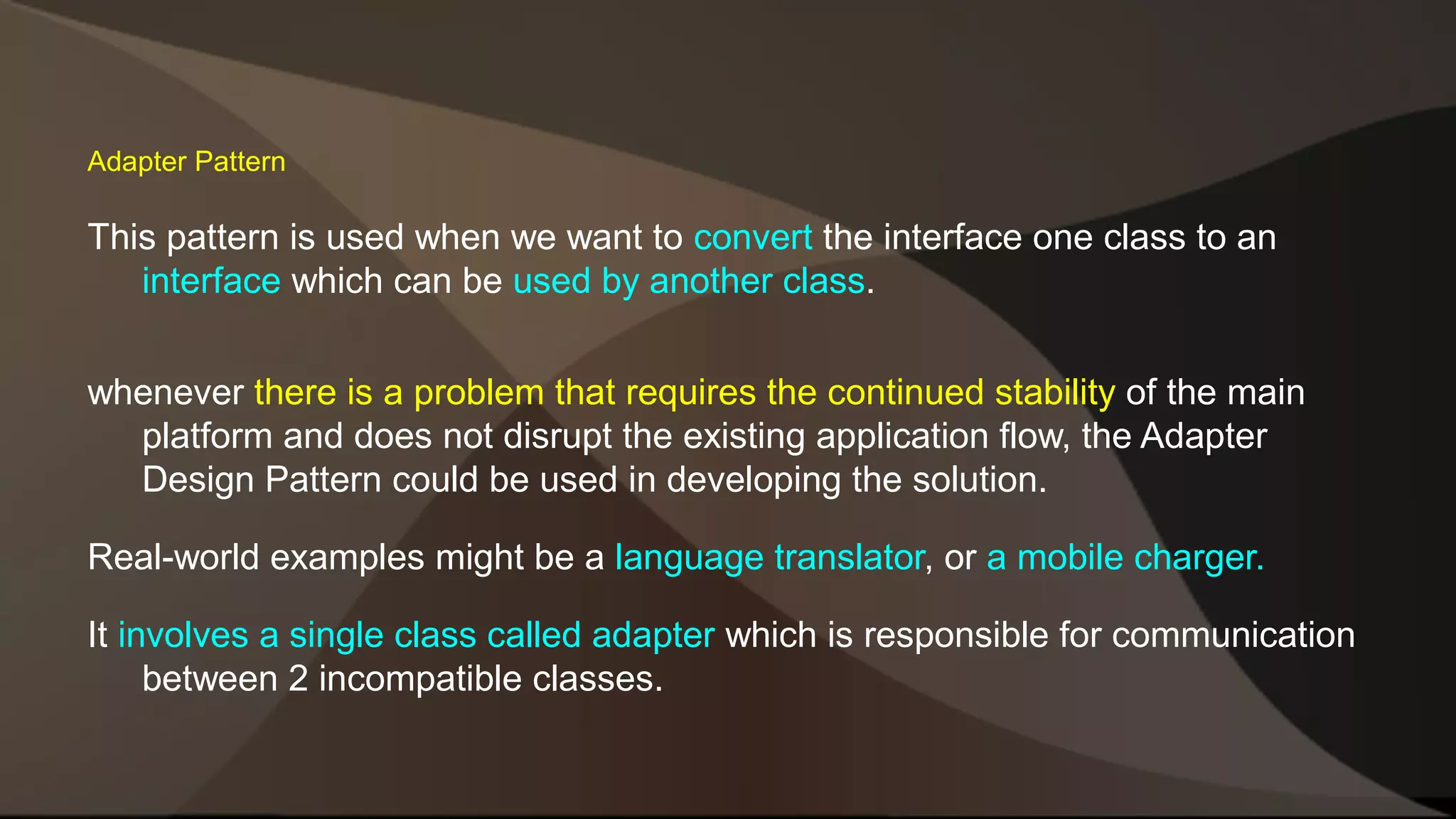

Adapter Pattern This pattern is used when we want to convert the interface one class to an interface which can be used by another class. whenever there is a problem that requires the continued stability of the main platform and does not disrupt the existing application flow, the Adapter Design Pattern could be used in developing the solution. Real-world examples might be a language translator, or a mobile charger. It involves a single class called adapter which is responsible for communication between 2 incompatible classes.

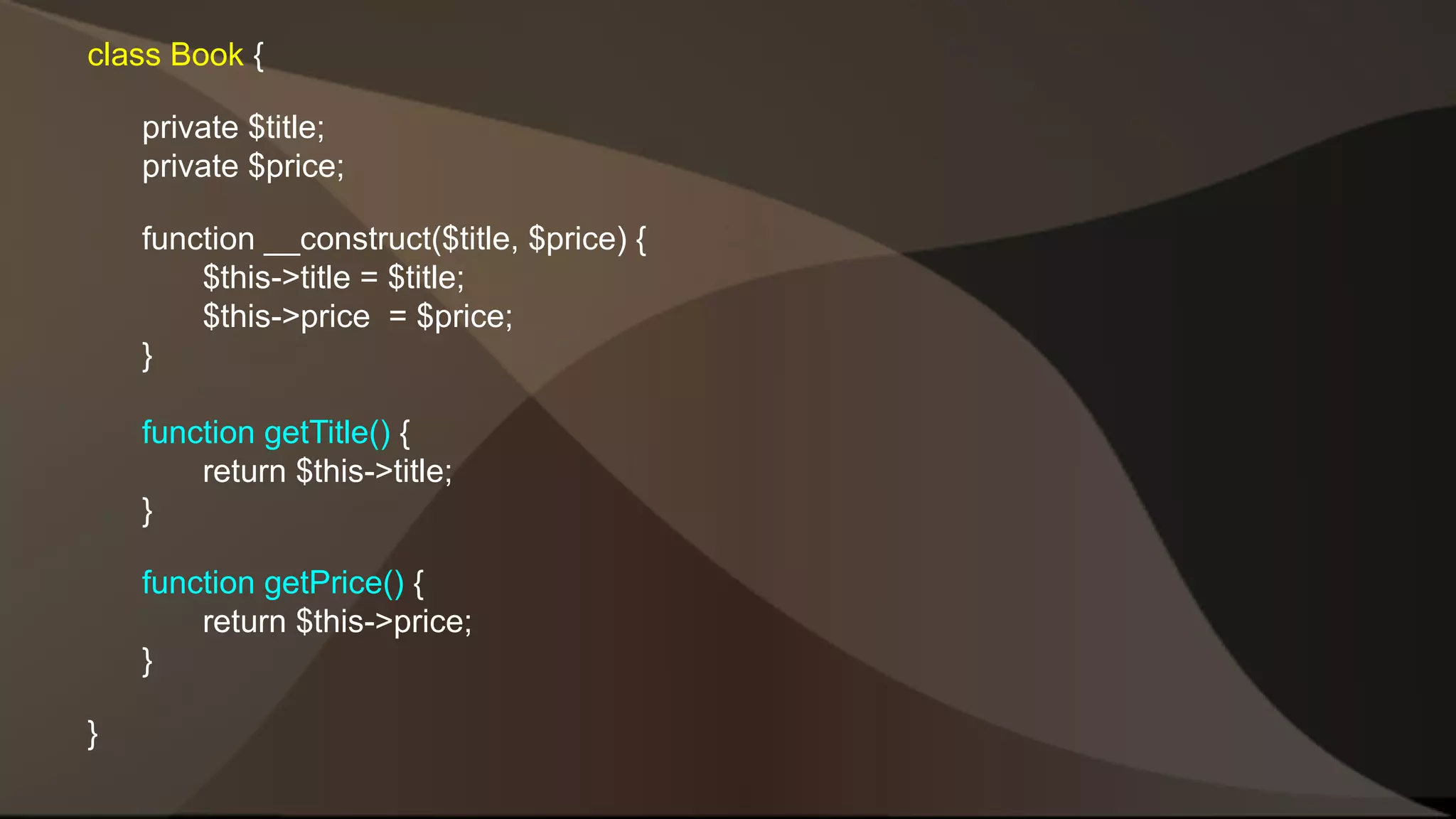

class Book { private $title; private $price; function __construct($title, $price) { $this->title = $title; $this->price = $price; } function getTitle() { return $this->title; } function getPrice() { return $this->price; } }

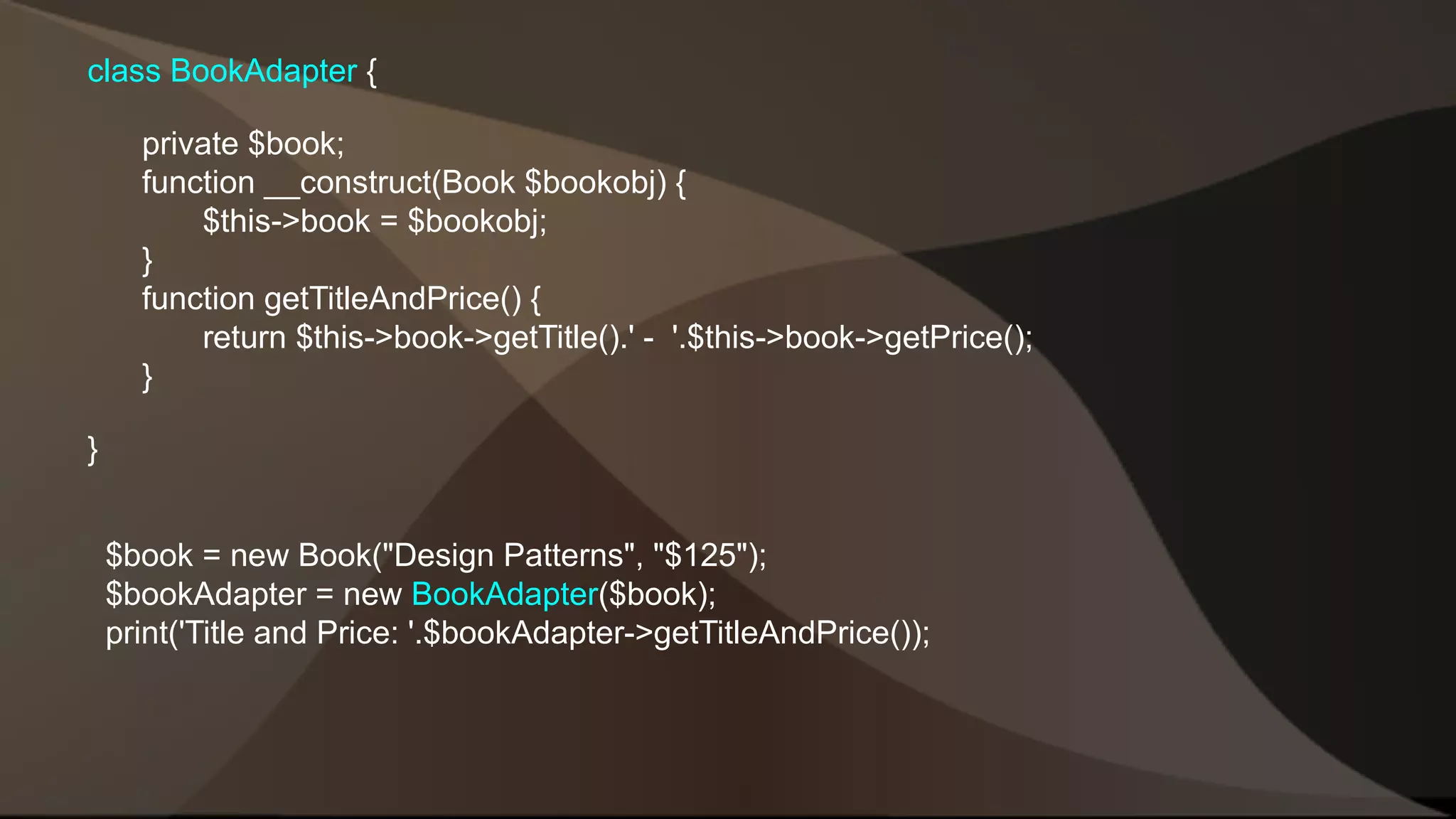

class BookAdapter { private $book; function __construct(Book $bookobj) { $this->book = $bookobj; } function getTitleAndPrice() { return $this->book->getTitle().' - '.$this->book->getPrice(); } } $book = new Book("Design Patterns", "$125"); $bookAdapter = new BookAdapter($book); print('Title and Price: '.$bookAdapter->getTitleAndPrice());

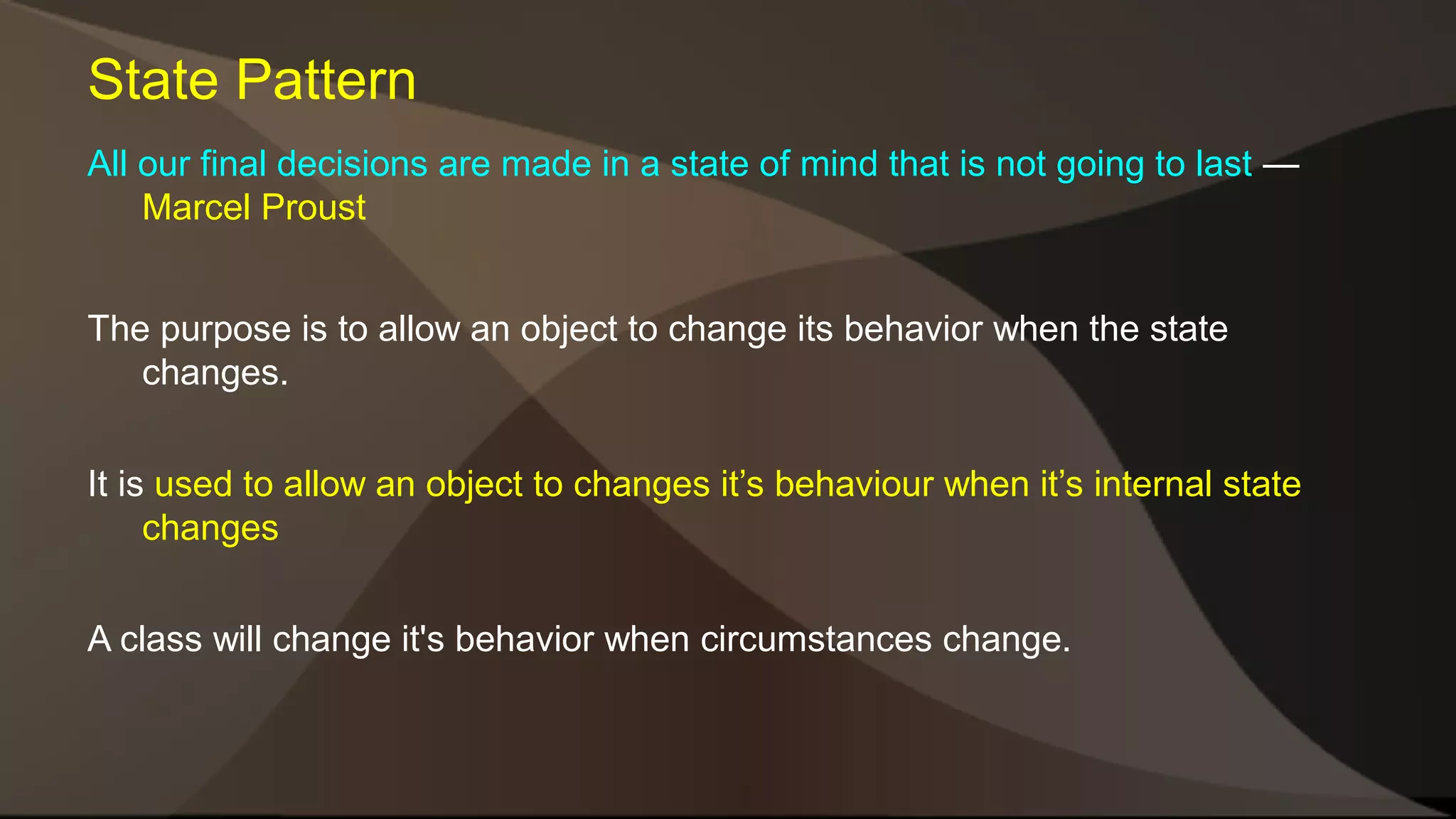

State Pattern All our final decisions are made in a state of mind that is not going to last — Marcel Proust The purpose is to allow an object to change its behavior when the state changes. It is used to allow an object to changes it’s behaviour when it’s internal state changes A class will change it's behavior when circumstances change.

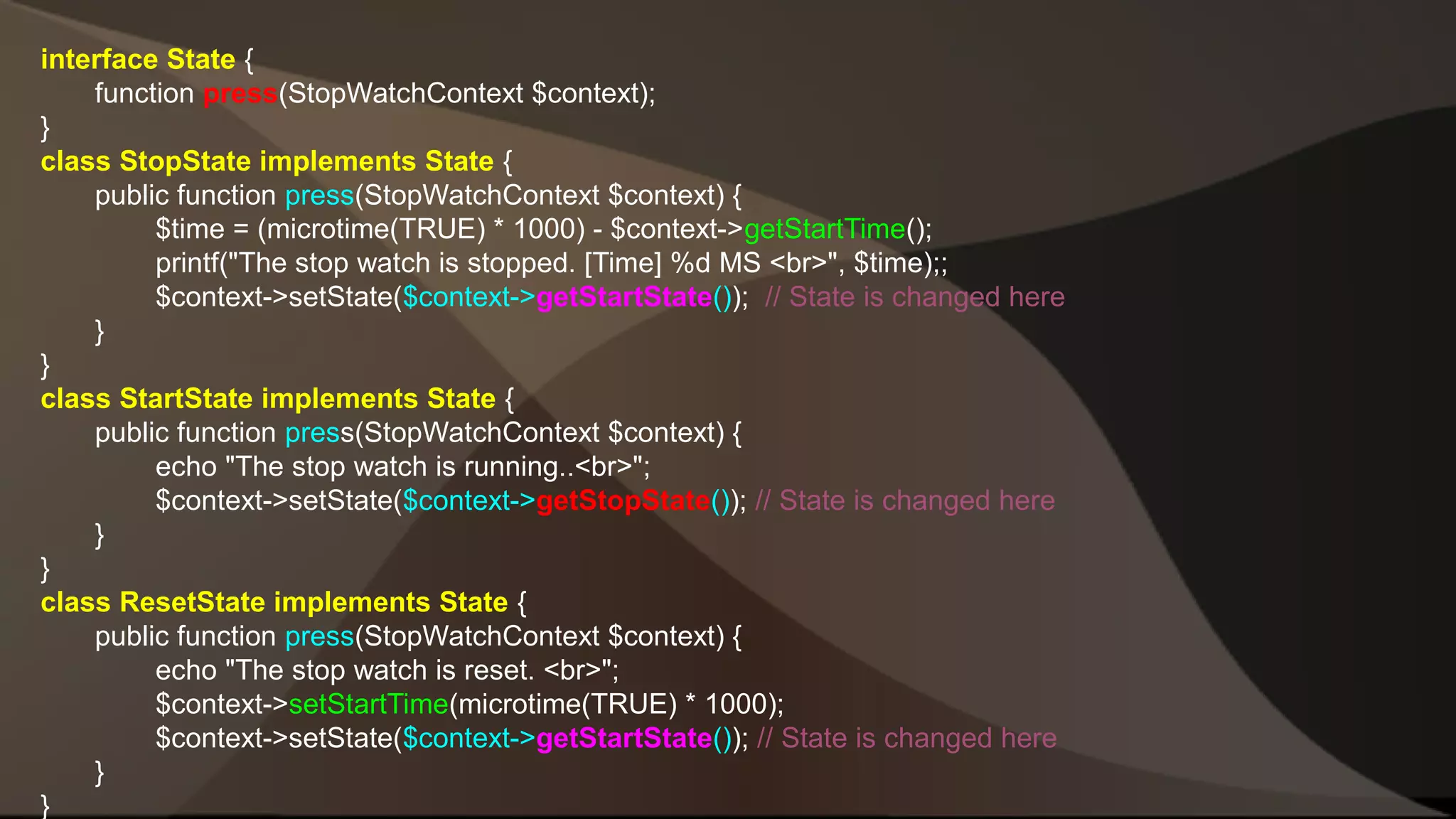

interface State { function press(StopWatchContext $context); } class StopState implements State { public function press(StopWatchContext $context) { $time = (microtime(TRUE) * 1000) - $context->getStartTime(); printf("The stop watch is stopped. [Time] %d MS <br>", $time);; $context->setState($context->getStartState()); // State is changed here } } class StartState implements State { public function press(StopWatchContext $context) { echo "The stop watch is running..<br>"; $context->setState($context->getStopState()); // State is changed here } } class ResetState implements State { public function press(StopWatchContext $context) { echo "The stop watch is reset. <br>"; $context->setStartTime(microtime(TRUE) * 1000); $context->setState($context->getStartState()); // State is changed here } }

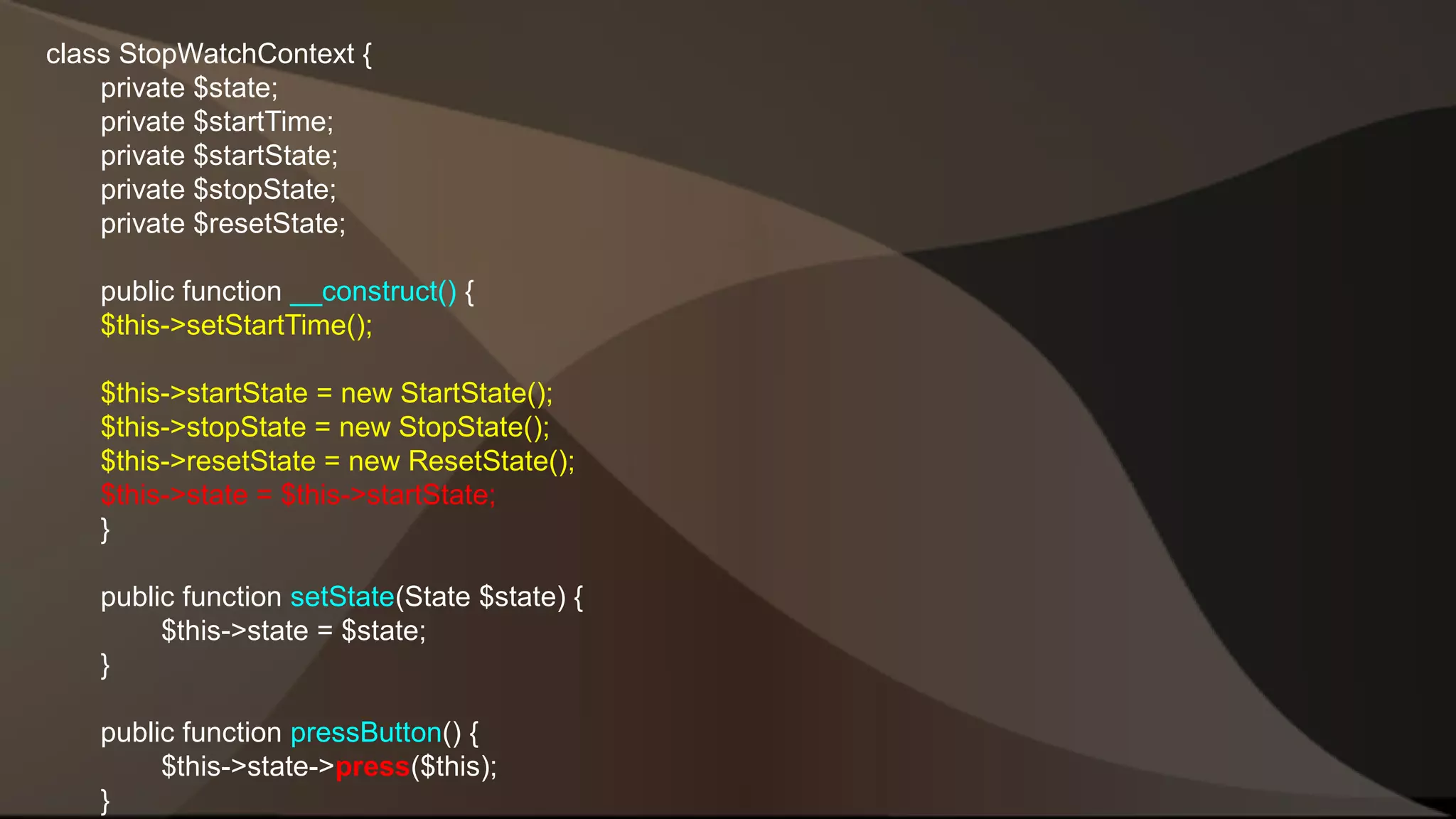

class StopWatchContext { private $state; private $startTime; private $startState; private $stopState; private $resetState; public function __construct() { $this->setStartTime(); $this->startState = new StartState(); $this->stopState = new StopState(); $this->resetState = new ResetState(); $this->state = $this->startState; } public function setState(State $state) { $this->state = $state; } public function pressButton() { $this->state->press($this); }

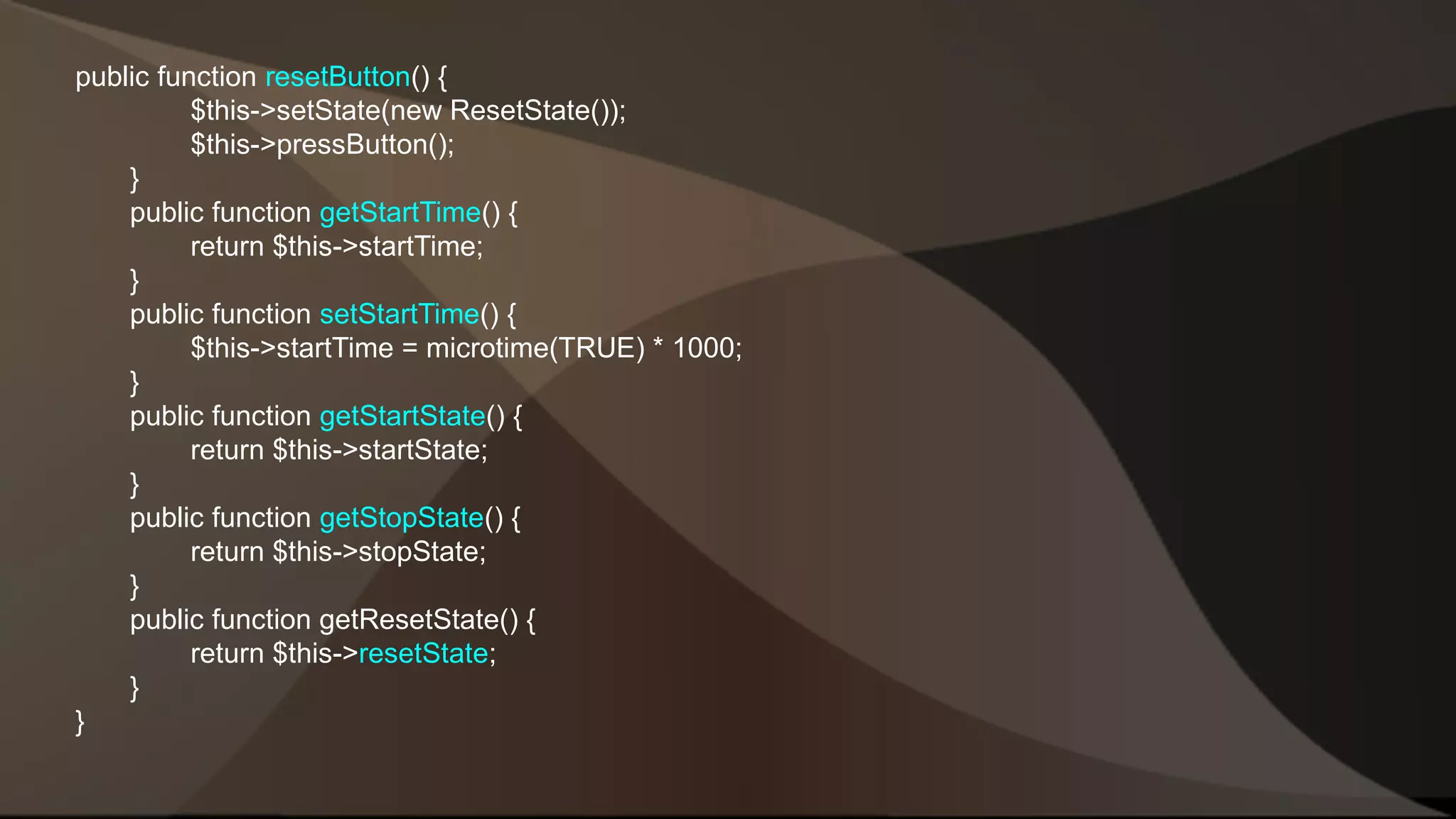

public function resetButton() { $this->setState(new ResetState()); $this->pressButton(); } public function getStartTime() { return $this->startTime; } public function setStartTime() { $this->startTime = microtime(TRUE) * 1000; } public function getStartState() { return $this->startState; } public function getStopState() { return $this->stopState; } public function getResetState() { return $this->resetState; } }

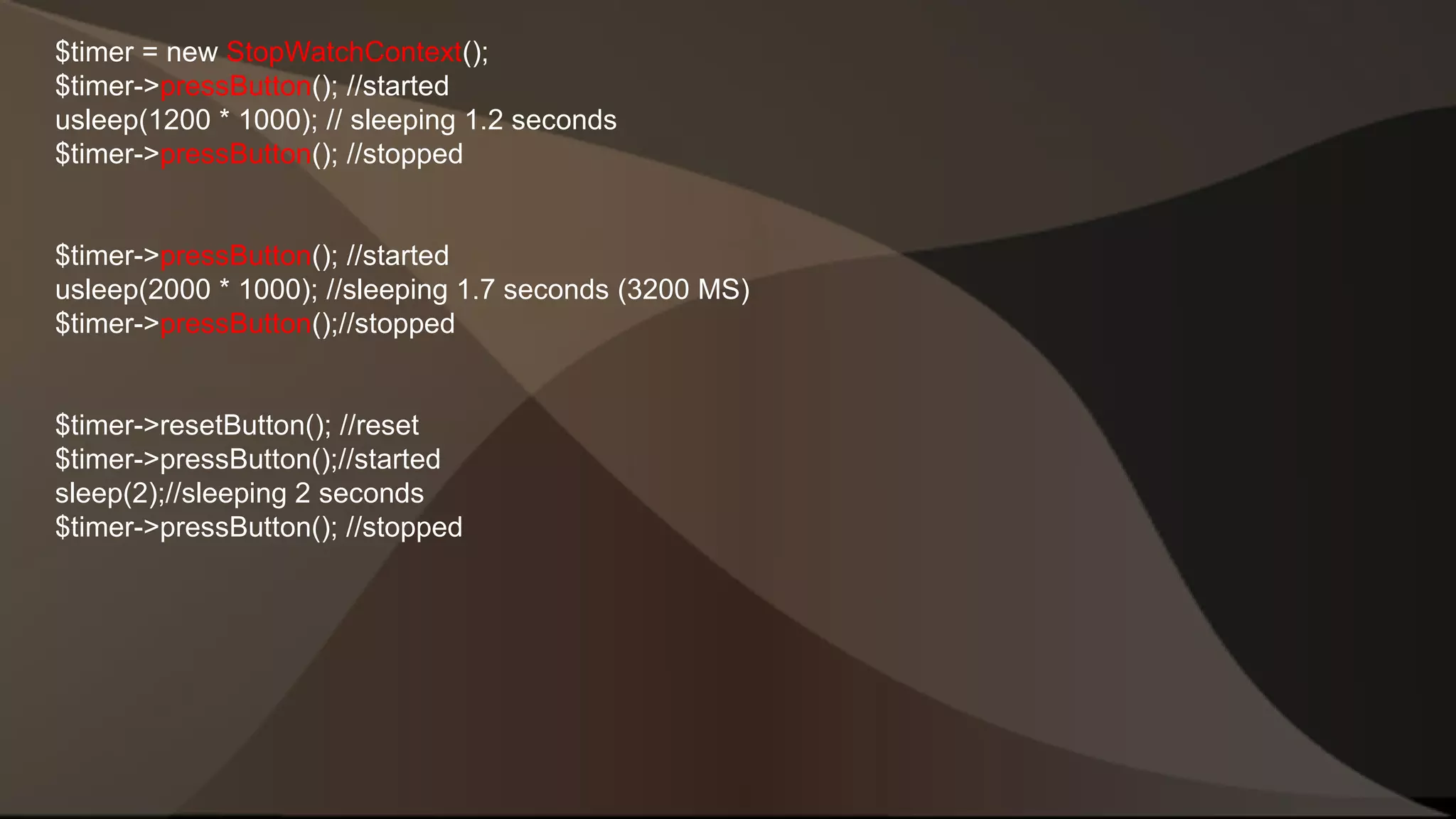

$timer = new StopWatchContext(); $timer->pressButton(); //started usleep(1200 * 1000); // sleeping 1.2 seconds $timer->pressButton(); //stopped $timer->pressButton(); //started usleep(2000 * 1000); //sleeping 1.7 seconds (3200 MS) $timer->pressButton();//stopped $timer->resetButton(); //reset $timer->pressButton();//started sleep(2);//sleeping 2 seconds $timer->pressButton(); //stopped

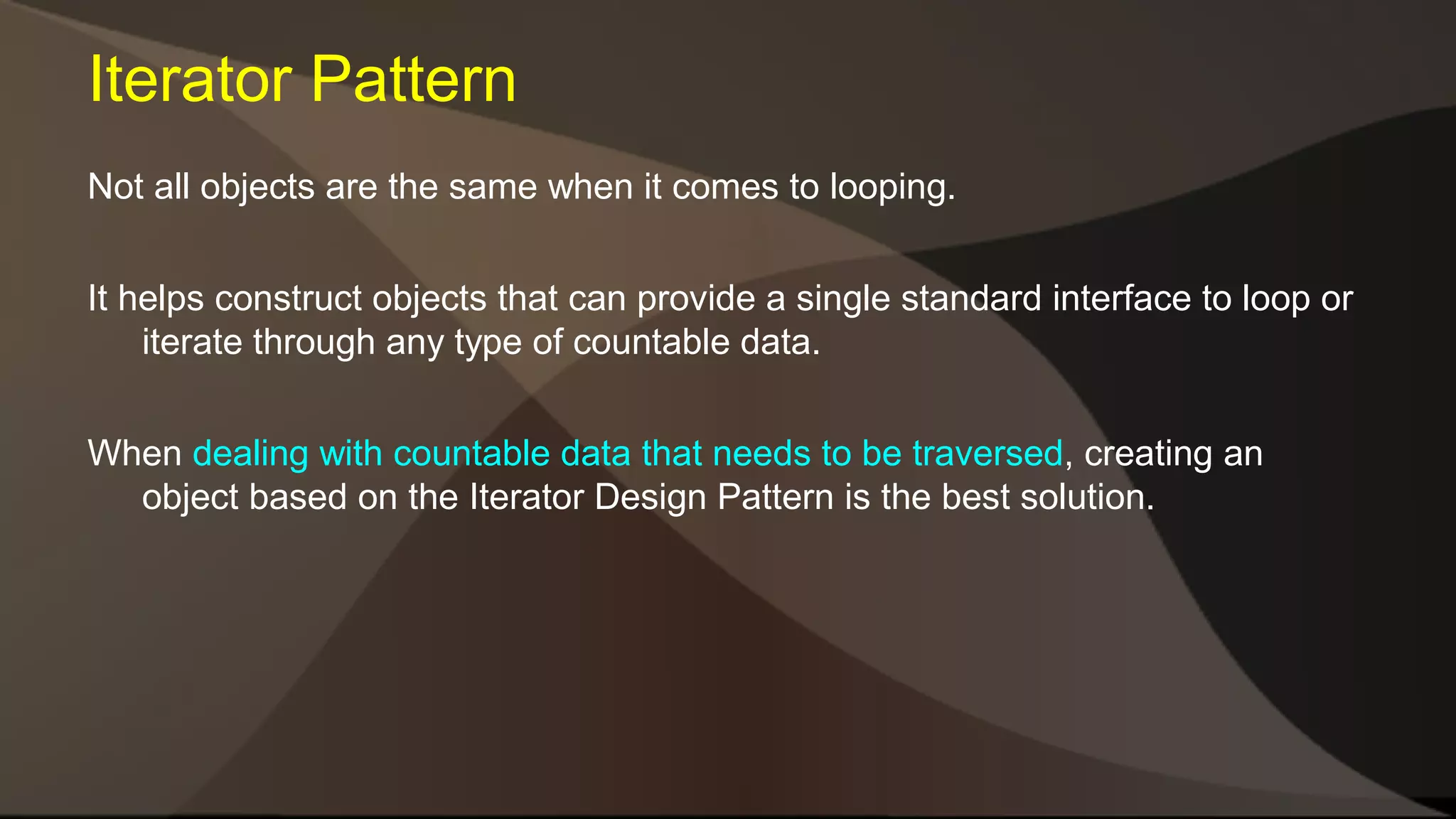

Iterator Pattern Not all objects are the same when it comes to looping. It helps construct objects that can provide a single standard interface to loop or iterate through any type of countable data. When dealing with countable data that needs to be traversed, creating an object based on the Iterator Design Pattern is the best solution.

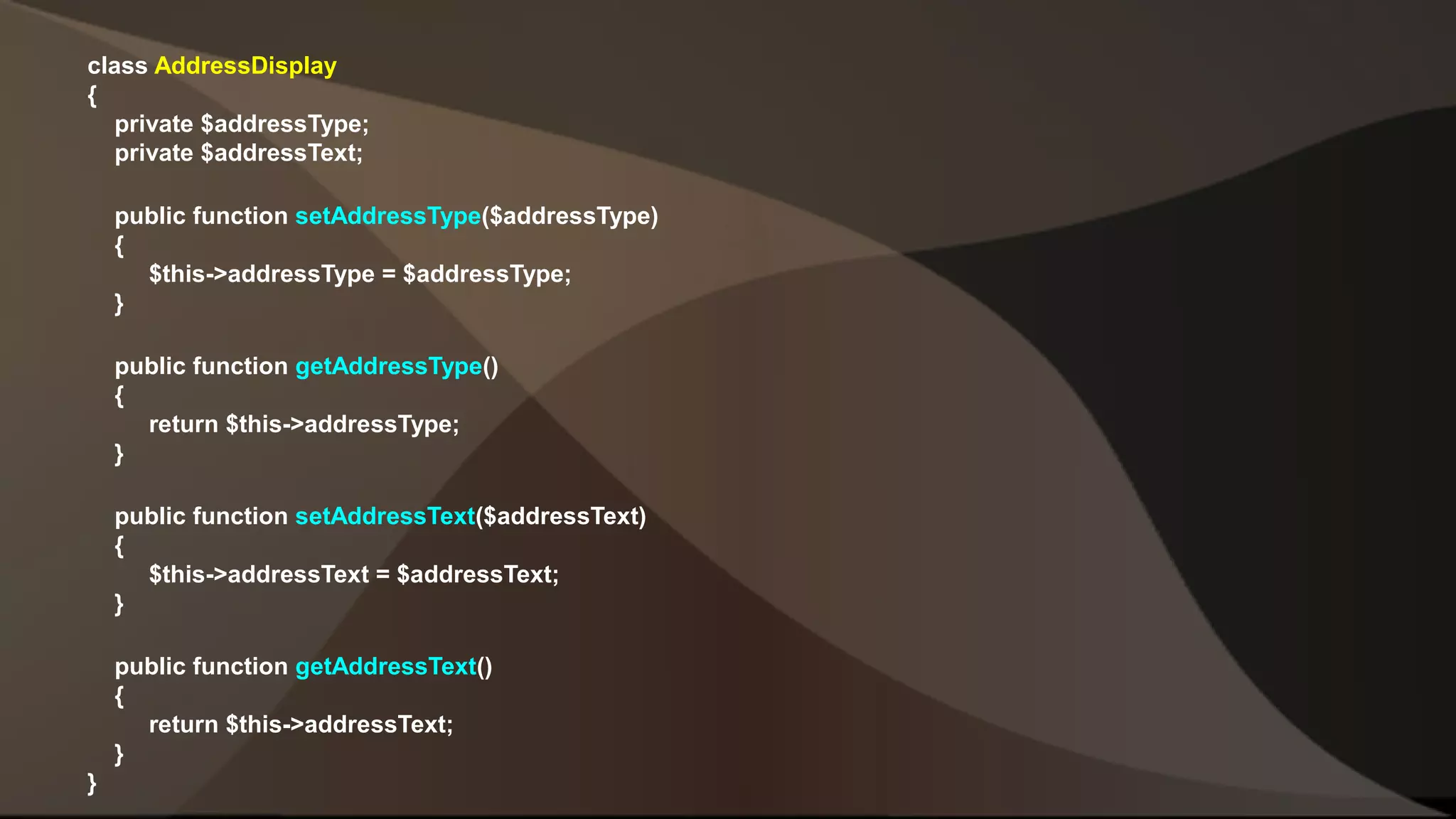

class AddressDisplay { private $addressType; private $addressText; public function setAddressType($addressType) { $this->addressType = $addressType; } public function getAddressType() { return $this->addressType; } public function setAddressText($addressText) { $this->addressText = $addressText; } public function getAddressText() { return $this->addressText; } }

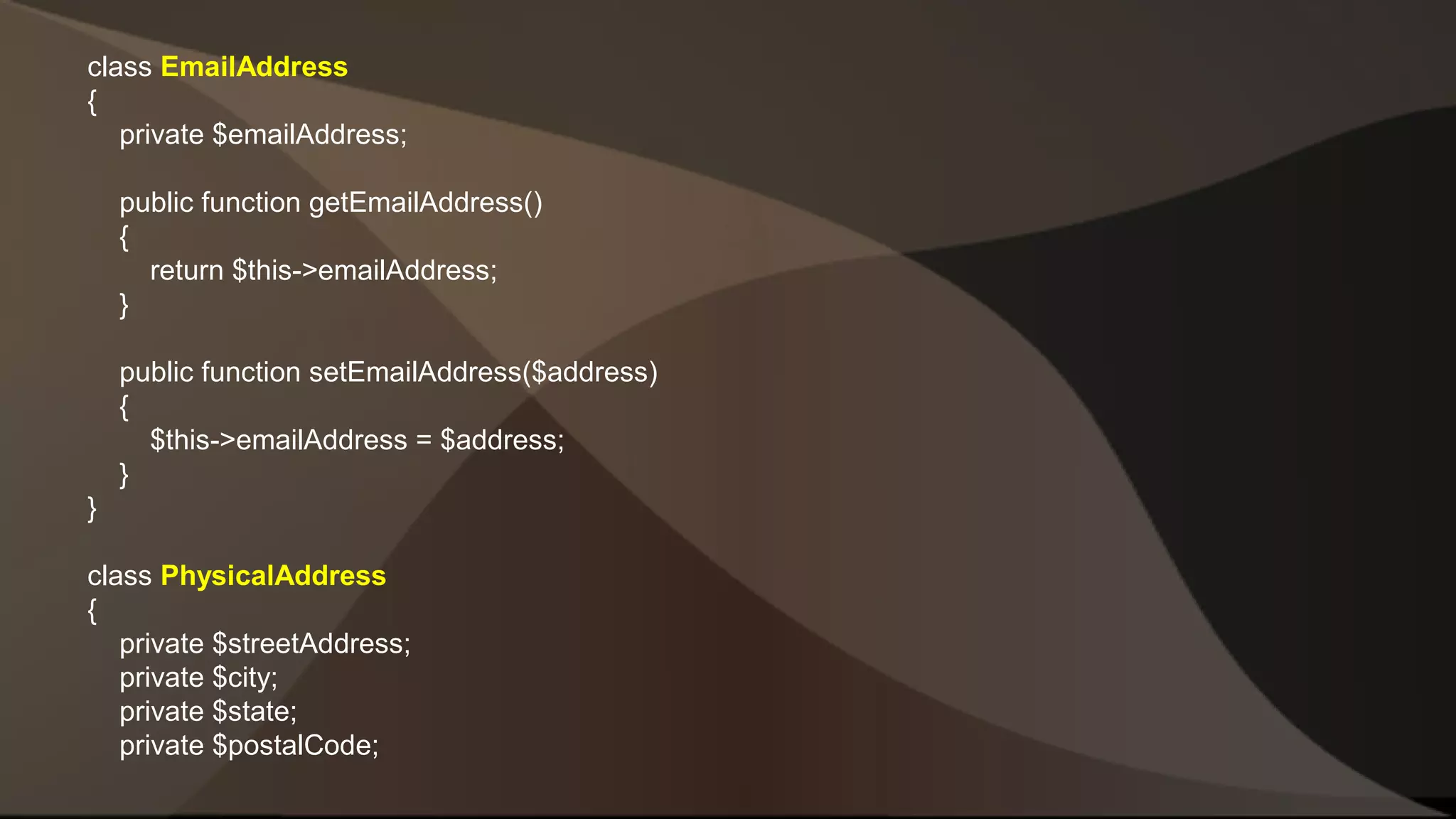

class EmailAddress { private $emailAddress; public function getEmailAddress() { return $this->emailAddress; } public function setEmailAddress($address) { $this->emailAddress = $address; } } class PhysicalAddress { private $streetAddress; private $city; private $state; private $postalCode;

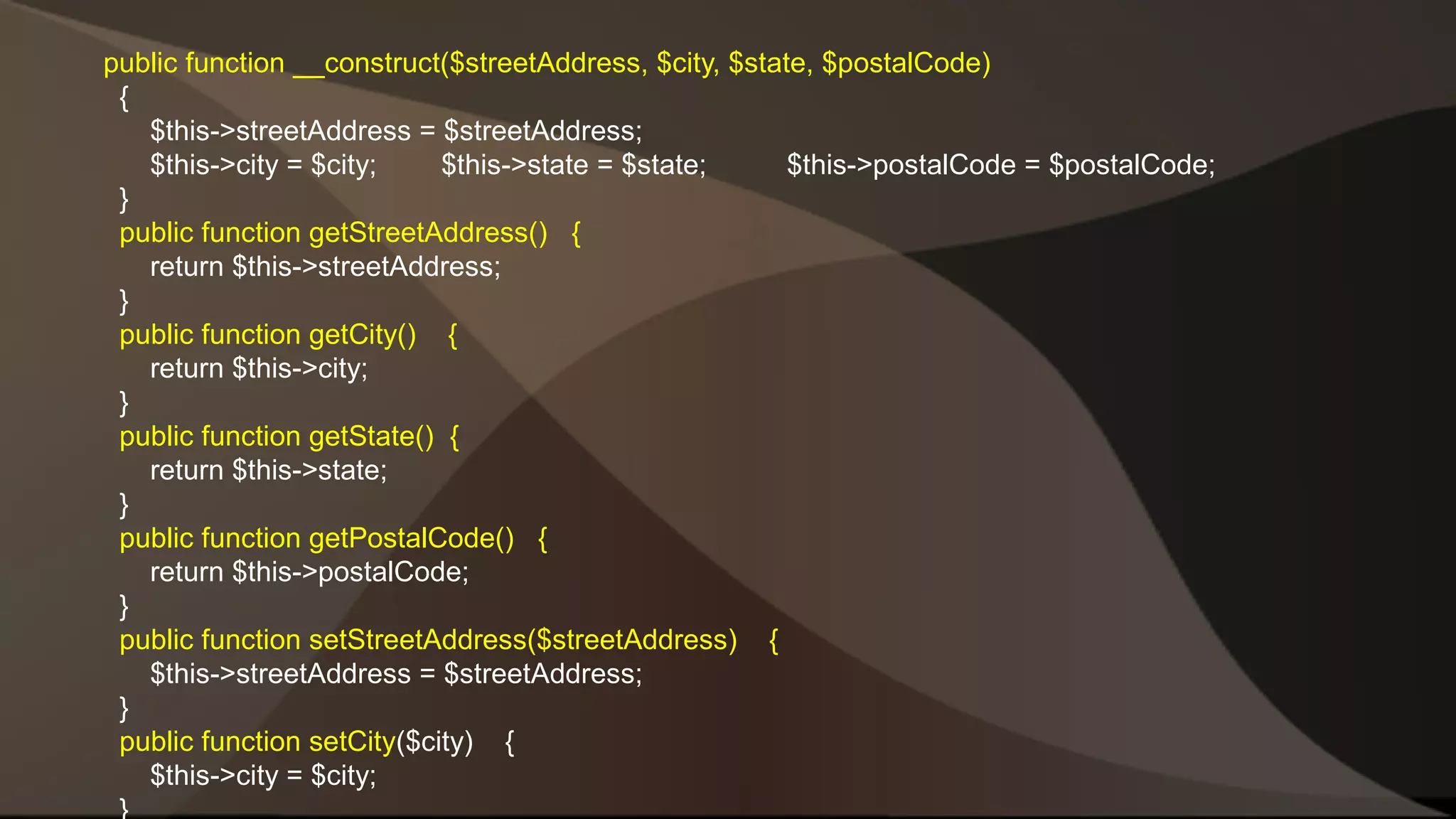

public function __construct($streetAddress, $city, $state, $postalCode) { $this->streetAddress = $streetAddress; $this->city = $city; $this->state = $state; $this->postalCode = $postalCode; } public function getStreetAddress() { return $this->streetAddress; } public function getCity() { return $this->city; } public function getState() { return $this->state; } public function getPostalCode() { return $this->postalCode; } public function setStreetAddress($streetAddress) { $this->streetAddress = $streetAddress; } public function setCity($city) { $this->city = $city; }

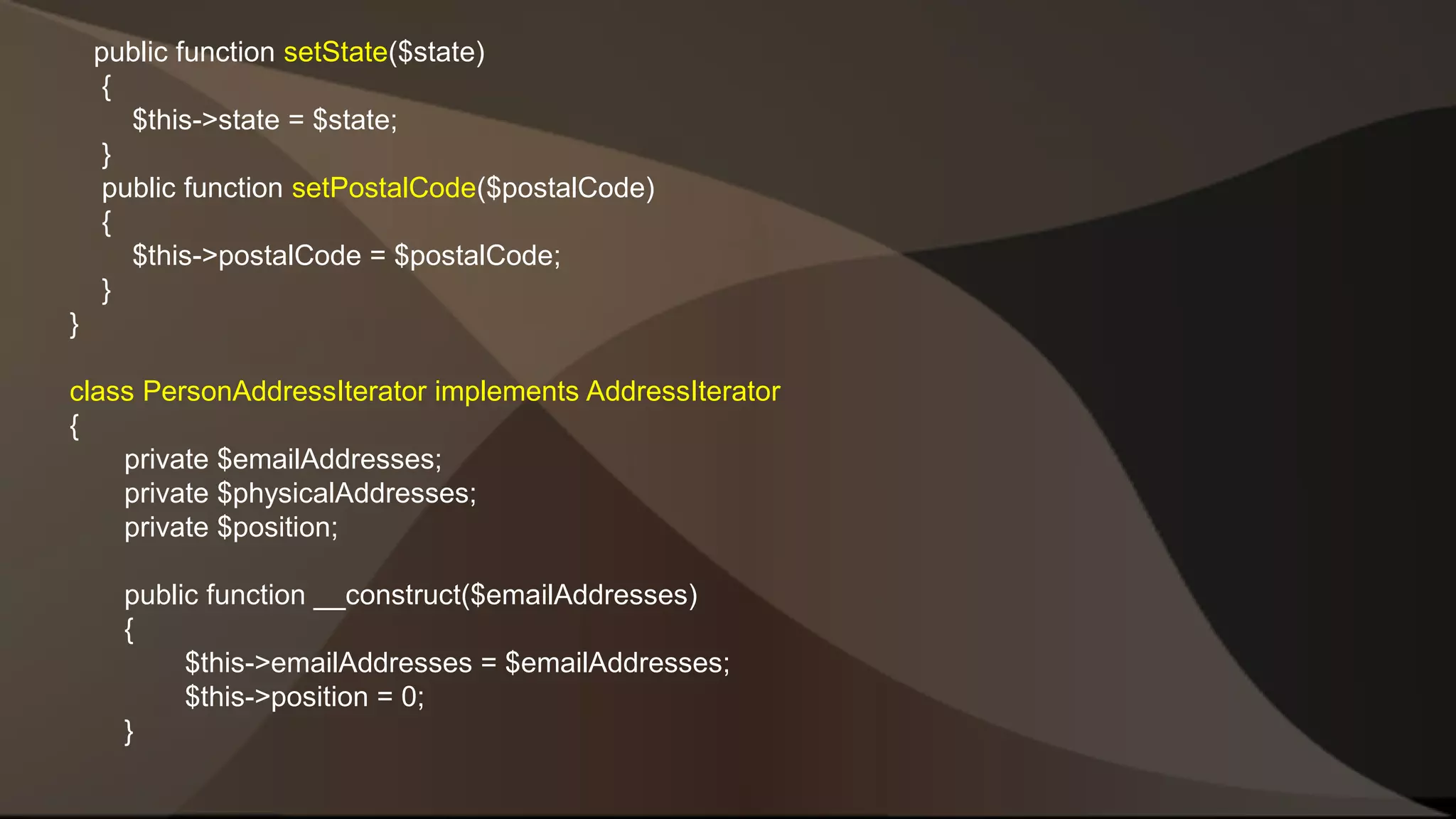

public function setState($state) { $this->state = $state; } public function setPostalCode($postalCode) { $this->postalCode = $postalCode; } } class PersonAddressIterator implements AddressIterator { private $emailAddresses; private $physicalAddresses; private $position; public function __construct($emailAddresses) { $this->emailAddresses = $emailAddresses; $this->position = 0; }

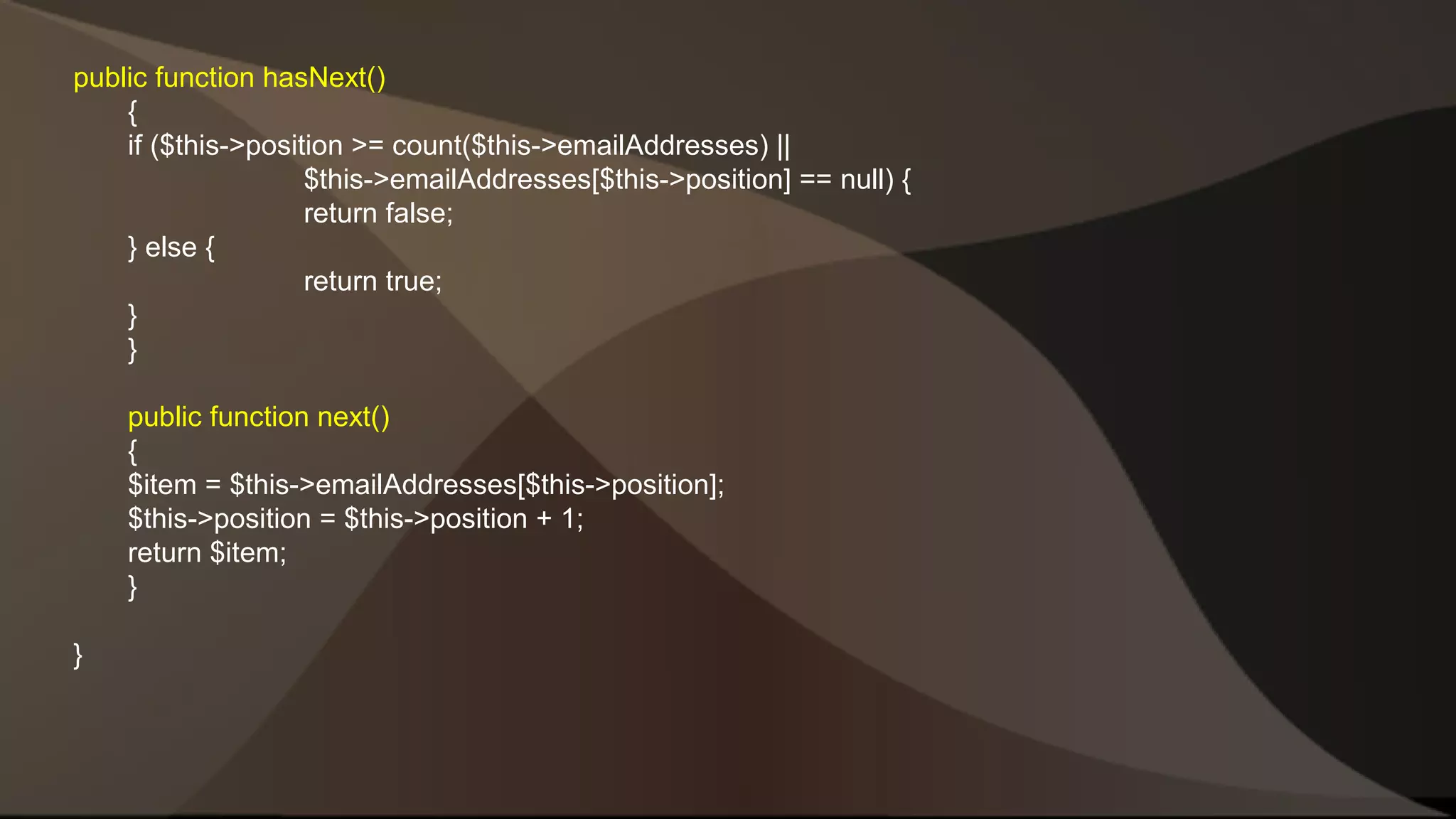

public function hasNext() { if ($this->position >= count($this->emailAddresses) || $this->emailAddresses[$this->position] == null) { return false; } else { return true; }} public function next() { $item = $this->emailAddresses[$this->position]; $this->position = $this->position + 1; return $item; } }

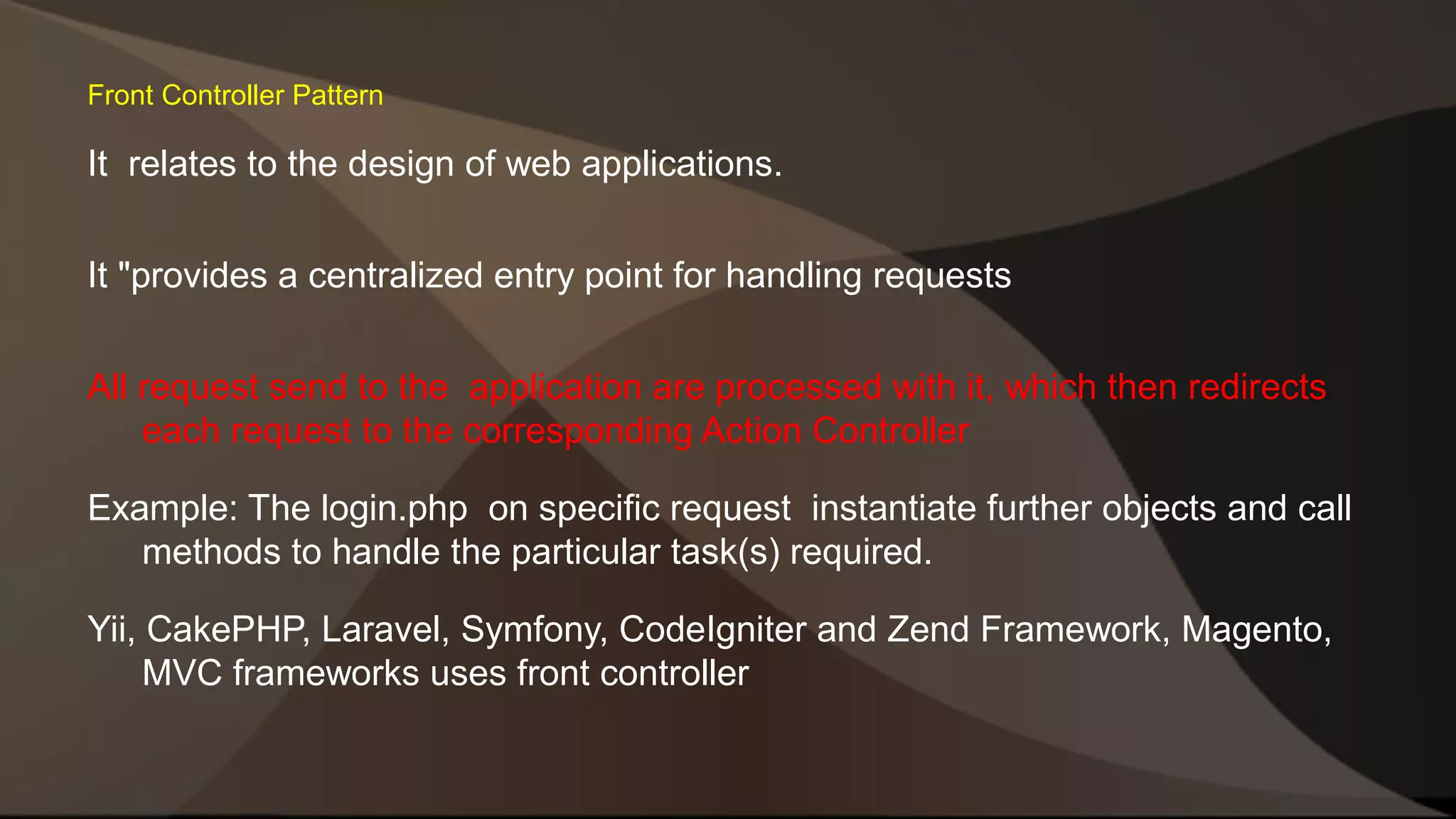

Front Controller Pattern It relates to the design of web applications. It "provides a centralized entry point for handling requests All request send to the application are processed with it, which then redirects each request to the corresponding Action Controller Example: The login.php on specific request instantiate further objects and call methods to handle the particular task(s) required. Yii, CakePHP, Laravel, Symfony, CodeIgniter and Zend Framework, Magento, MVC frameworks uses front controller

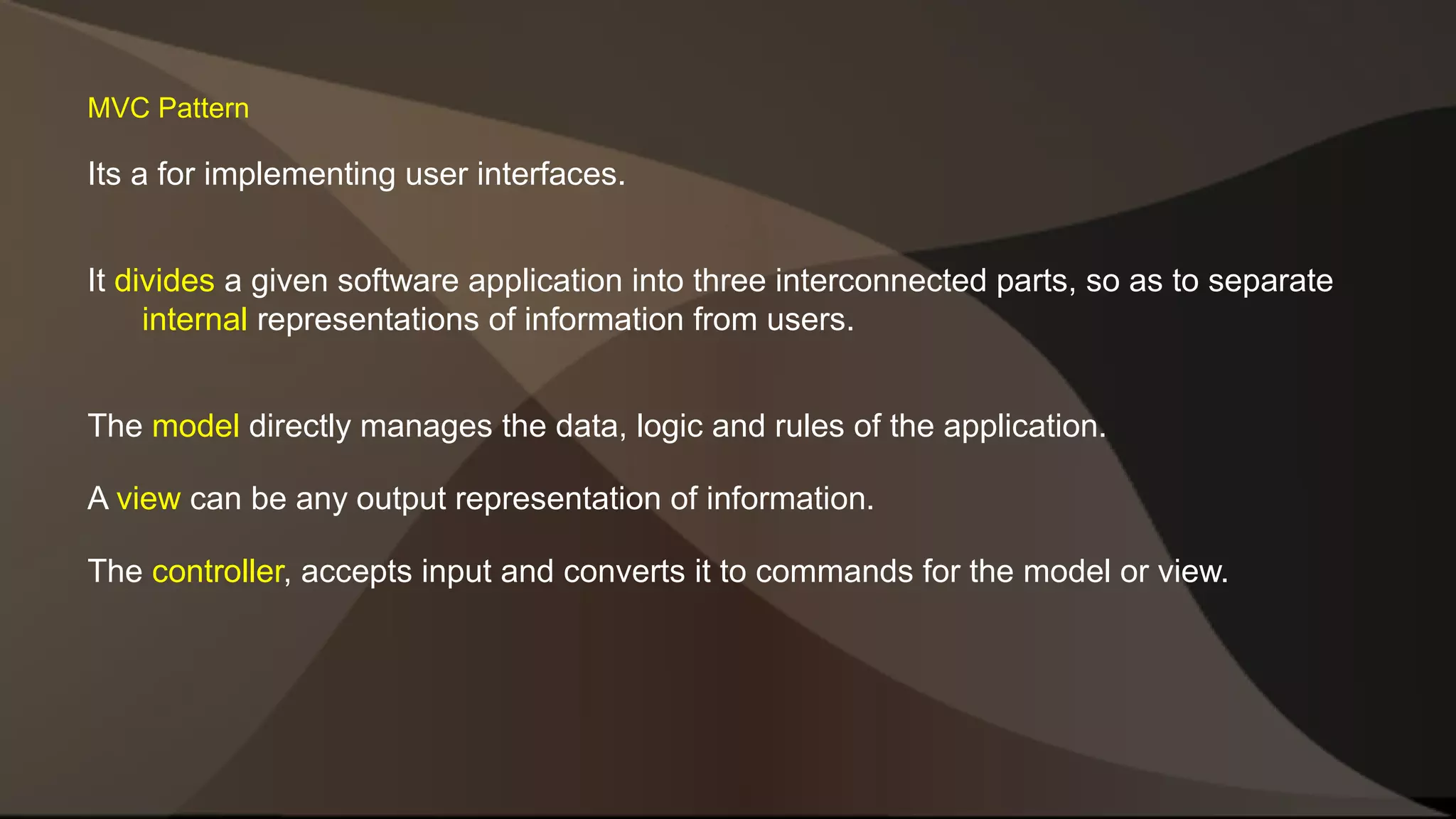

MVC Pattern Its a for implementing user interfaces. It divides a given software application into three interconnected parts, so as to separate internal representations of information from users. The model directly manages the data, logic and rules of the application. A view can be any output representation of information. The controller, accepts input and converts it to commands for the model or view.

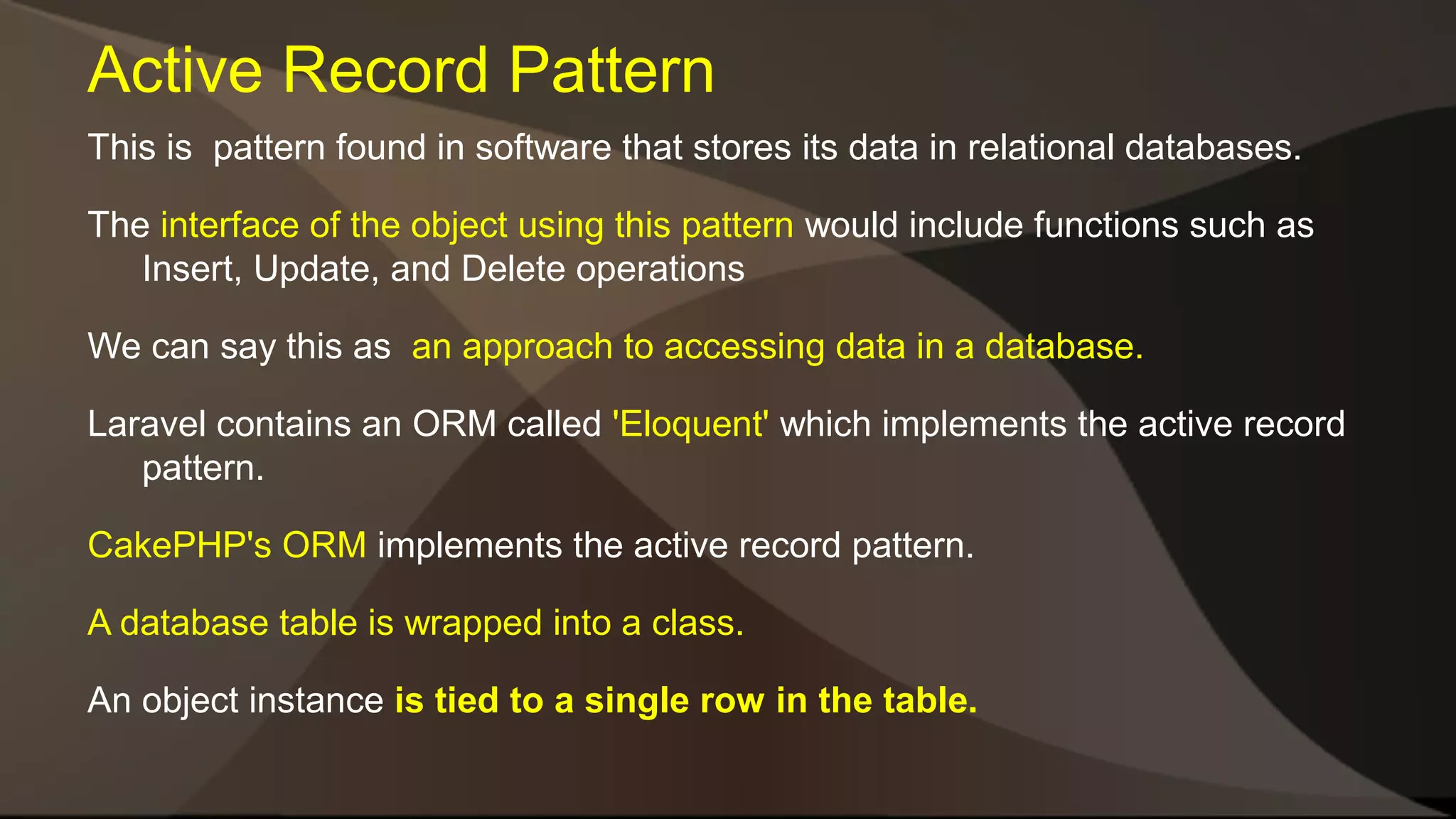

Active Record Pattern This is pattern found in software that stores its data in relational databases. The interface of the object using this pattern would include functions such as Insert, Update, and Delete operations We can say this as an approach to accessing data in a database. Laravel contains an ORM called 'Eloquent' which implements the active record pattern. CakePHP's ORM implements the active record pattern. A database table is wrapped into a class. An object instance is tied to a single row in the table.

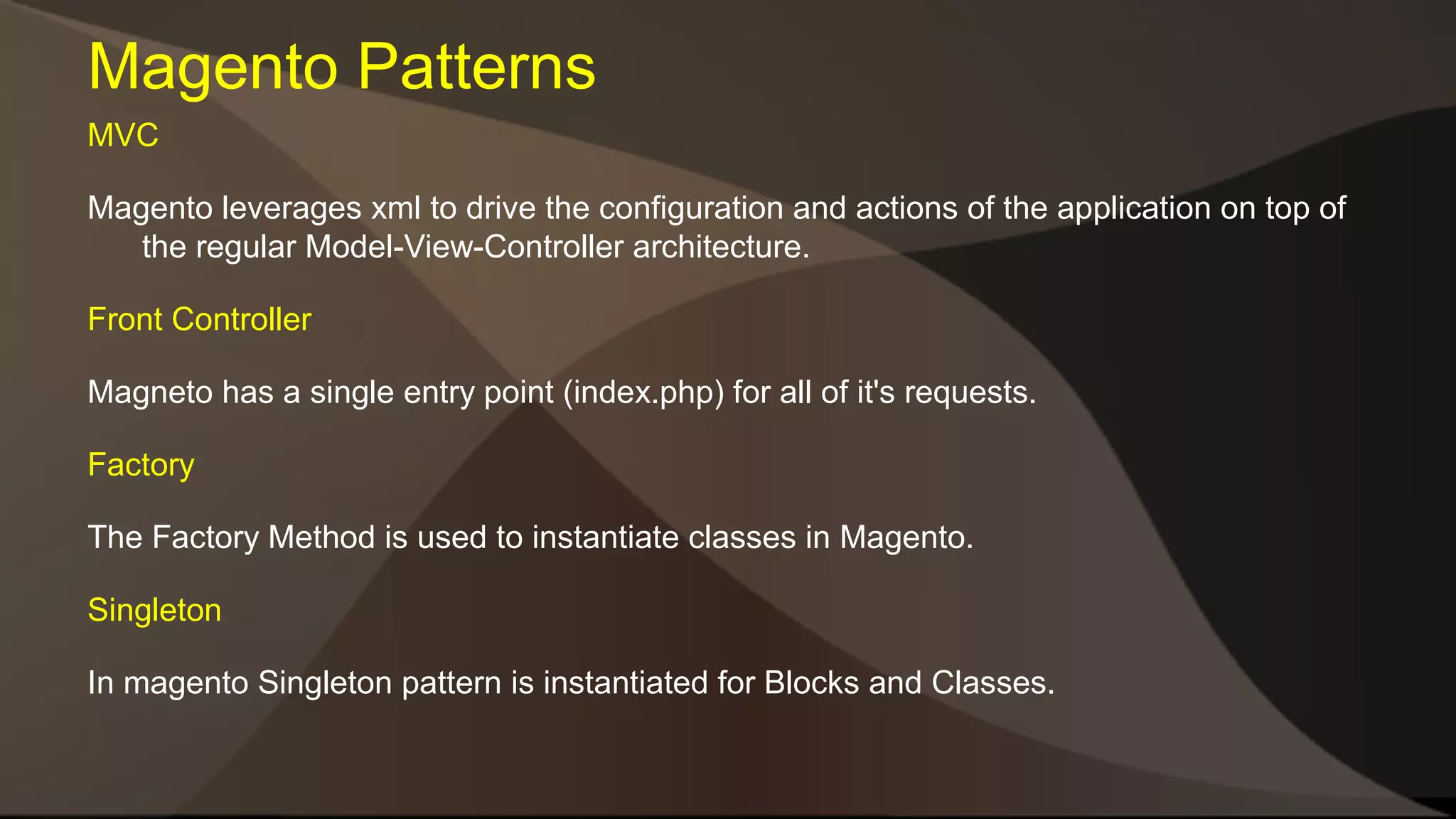

Magento Patterns MVC Magento leverages xml to drive the configuration and actions of the application on top of the regular Model-View-Controller architecture. Front Controller Magneto has a single entry point (index.php) for all of it's requests. Factory The Factory Method is used to instantiate classes in Magento. Singleton In magento Singleton pattern is instantiated for Blocks and Classes.

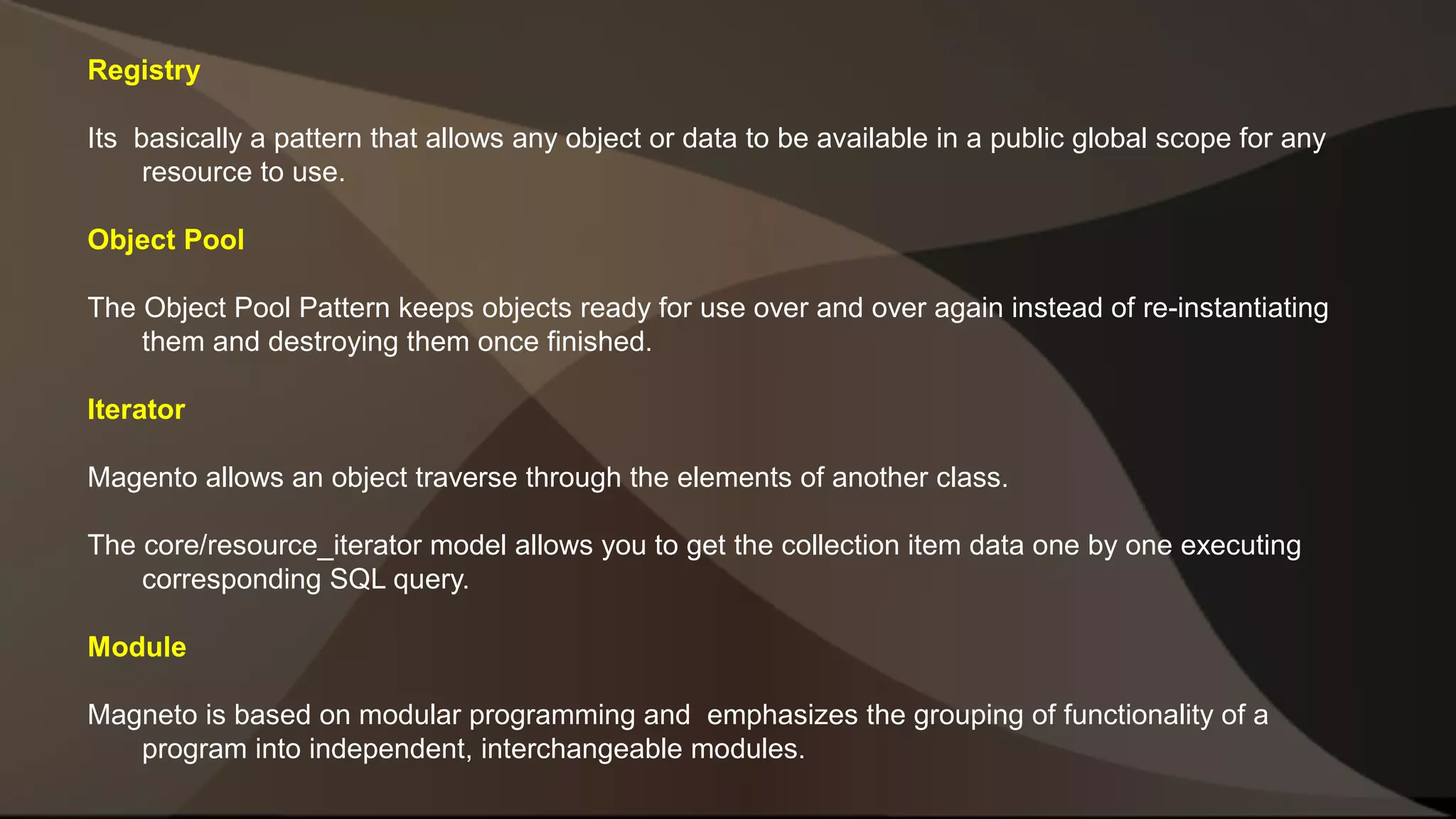

Registry Its basically a pattern that allows any object or data to be available in a public global scope for any resource to use. Object Pool The Object Pool Pattern keeps objects ready for use over and over again instead of re-instantiating them and destroying them once finished. Iterator Magento allows an object traverse through the elements of another class. The core/resource_iterator model allows you to get the collection item data one by one executing corresponding SQL query. Module Magneto is based on modular programming and emphasizes the grouping of functionality of a program into independent, interchangeable modules.

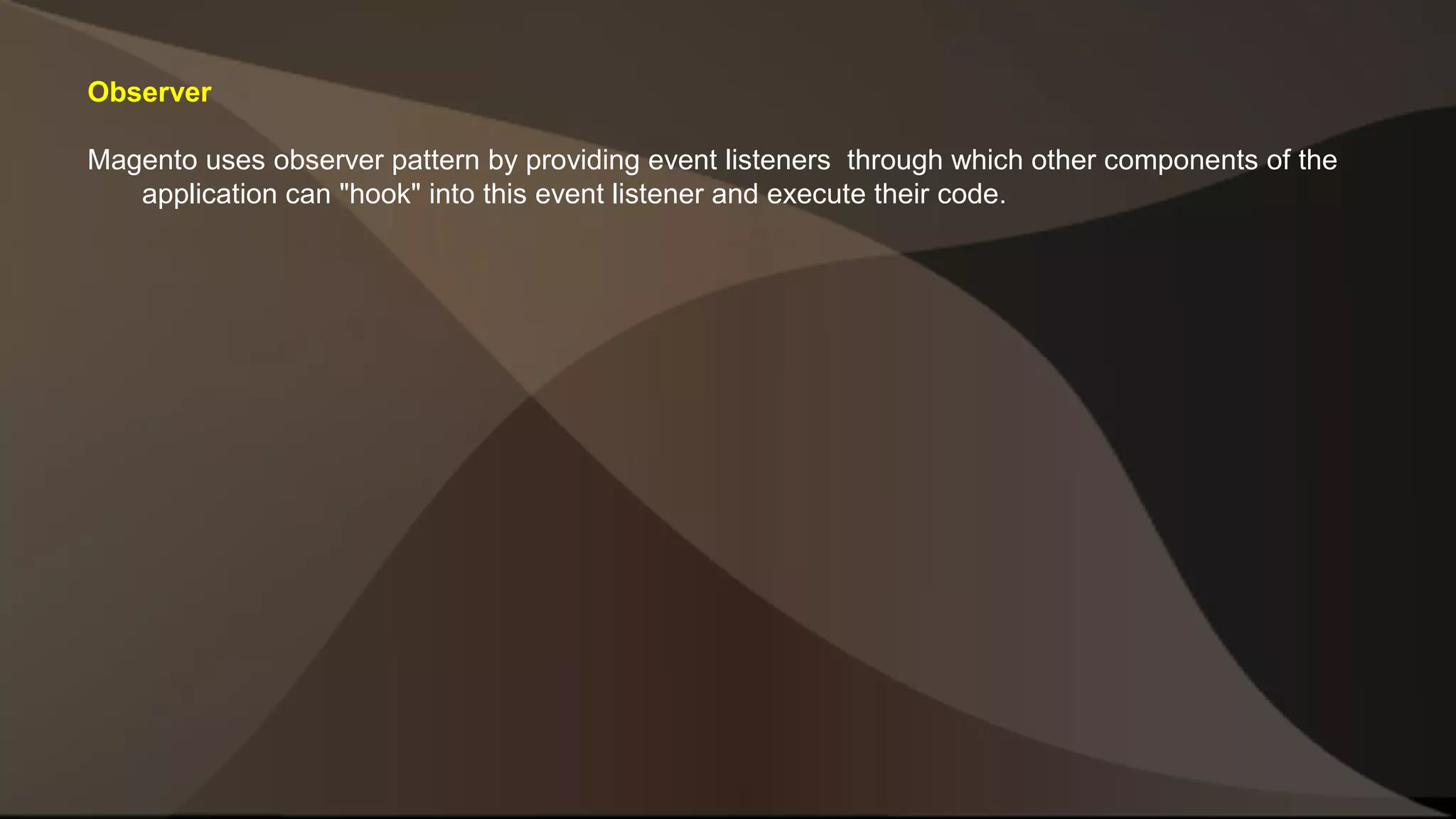

Observer Magento uses observer pattern by providing event listeners through which other components of the application can "hook" into this event listener and execute their code.

References http://www.wrox.com/WileyCDA/WroxTitle/Professional-PHP-Design- Patterns.productCd-0470496703.html http://www.phptherightway.com/pages/Design-Patterns.html http://www.fluffycat.com/PHP-Design-Patterns/ http://en.wikipedia.org/wiki/Design_Patterns http://www.oodesign.com http://sourcemaking.com/design_patterns
