Continuous Integration of Mobile Apps with Docker and Appium
Appium is an open source test automation framework for testing native, hybrid, and mobile web apps on iOS, Android, and Windows platforms. It uses the WebDriver protocol to drive apps similarly to how Selenium is used to test web apps. Docker can be used to run Appium and emulate devices for continuous integration of mobile tests without relying on physical devices or cloud services. Raspberry Pis with ZRAM modules allow running the Dockerized tests in parallel by emulating on the ARM-based Pis as Jenkins slaves.
Continuous Integration of Mobile Apps with Docker and Appium
- 1. Continuous Integration ofmobile apps with Appium and Docker @agomezmoron #opensouthcode
- 2. 2 of 66 Firstof all, let’s take a selfie! #opensouthcode @agomezmoron

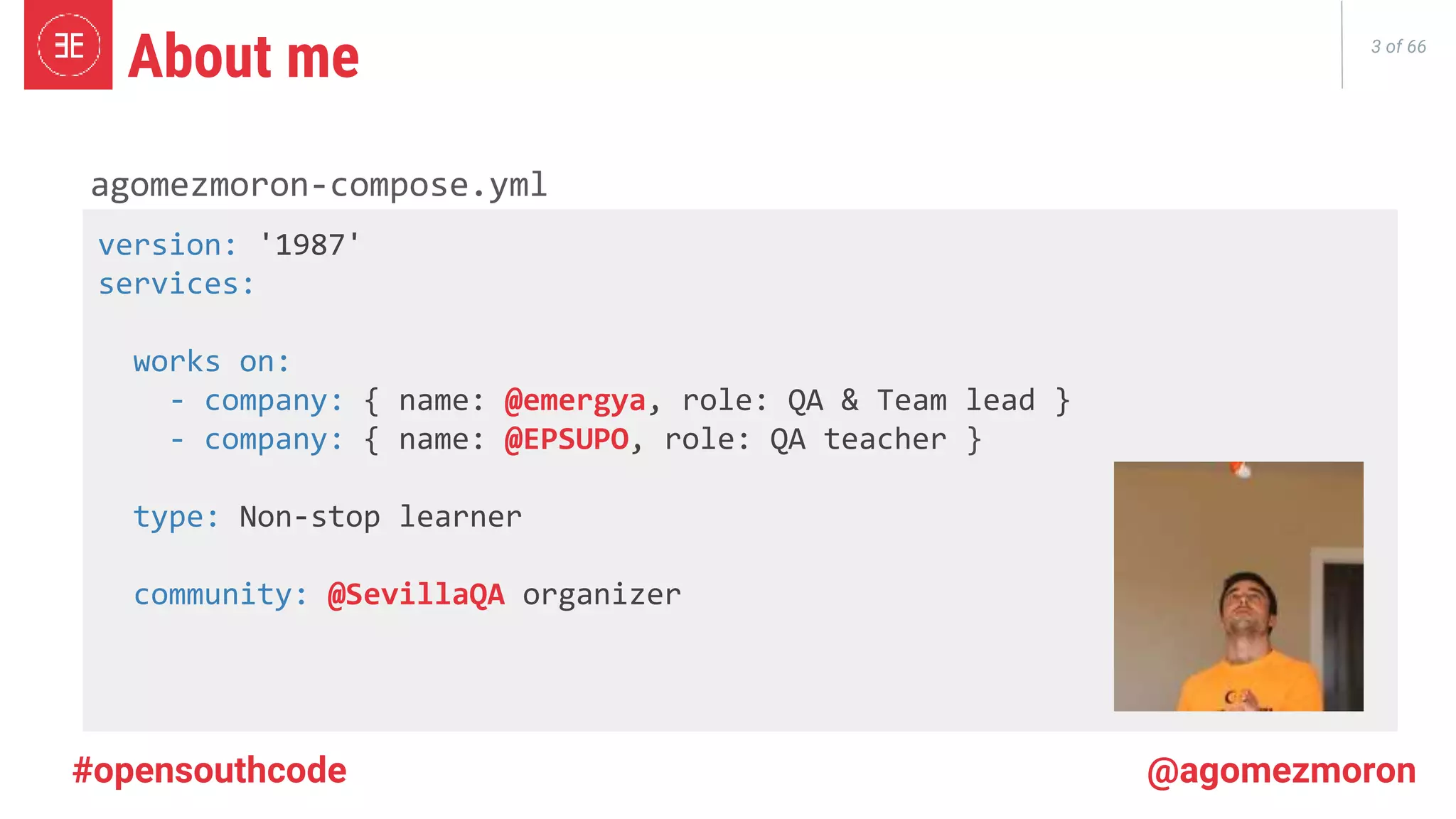

- 3. 3 of 66 Aboutme agomezmoron-compose.yml version: '1987' services: works on: - company: { name: @emergya, role: QA & Team lead } - company: { name: @EPSUPO, role: QA teacher } type: Non-stop learner community: @SevillaQA organizer #opensouthcode @agomezmoron

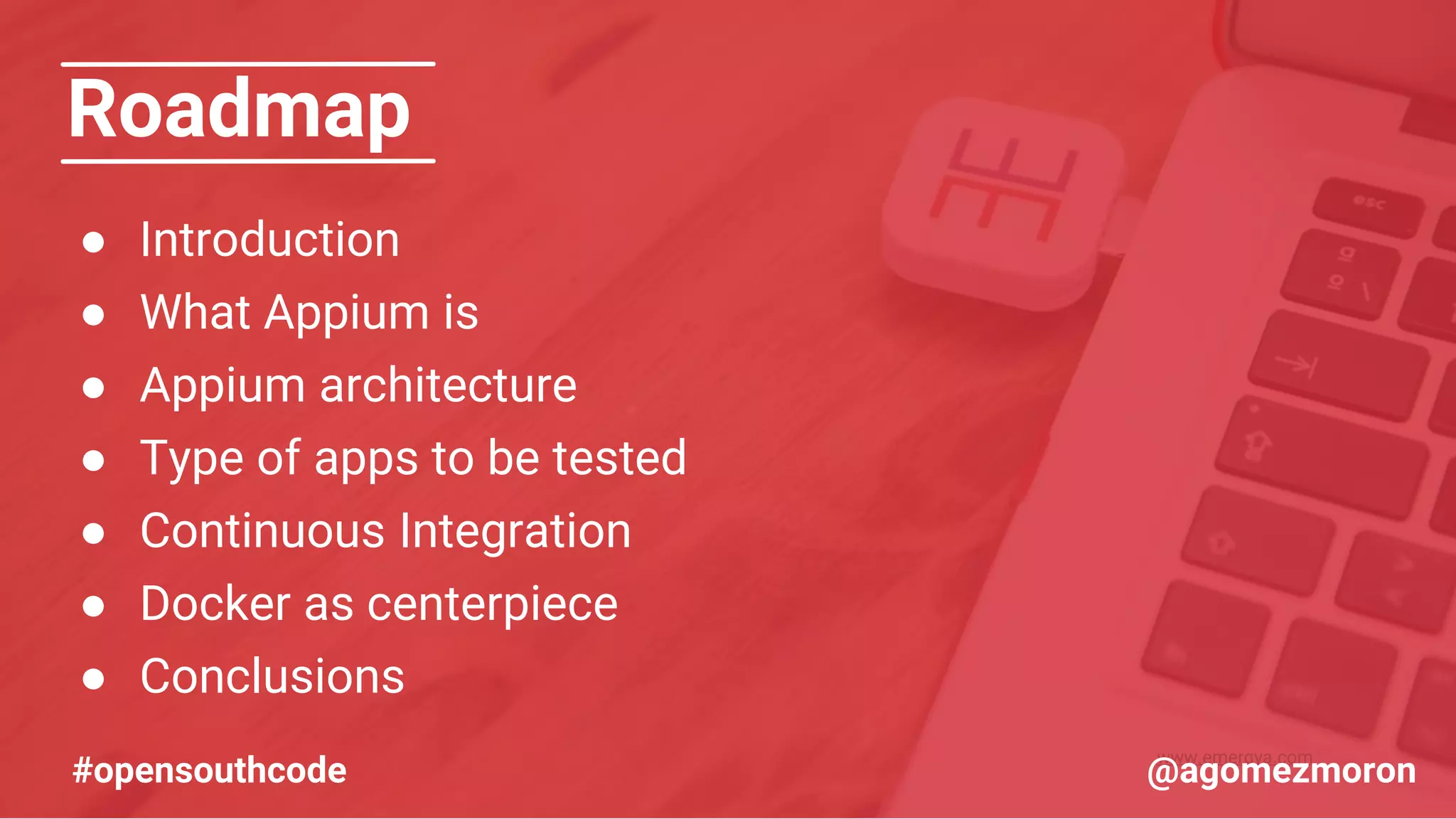

- 4. www.emergya.com Roadmap ● Introduction ● WhatAppium is ● Appium architecture ● Type of apps to be tested ● Continuous Integration ● Docker as centerpiece ● Conclusions #opensouthcode @agomezmoron
- 5.
- 6. 6 of 66 Introduction ●Why do we develop for mobile devices? ● Why do we have to test apps? #opensouthcode @agomezmoron

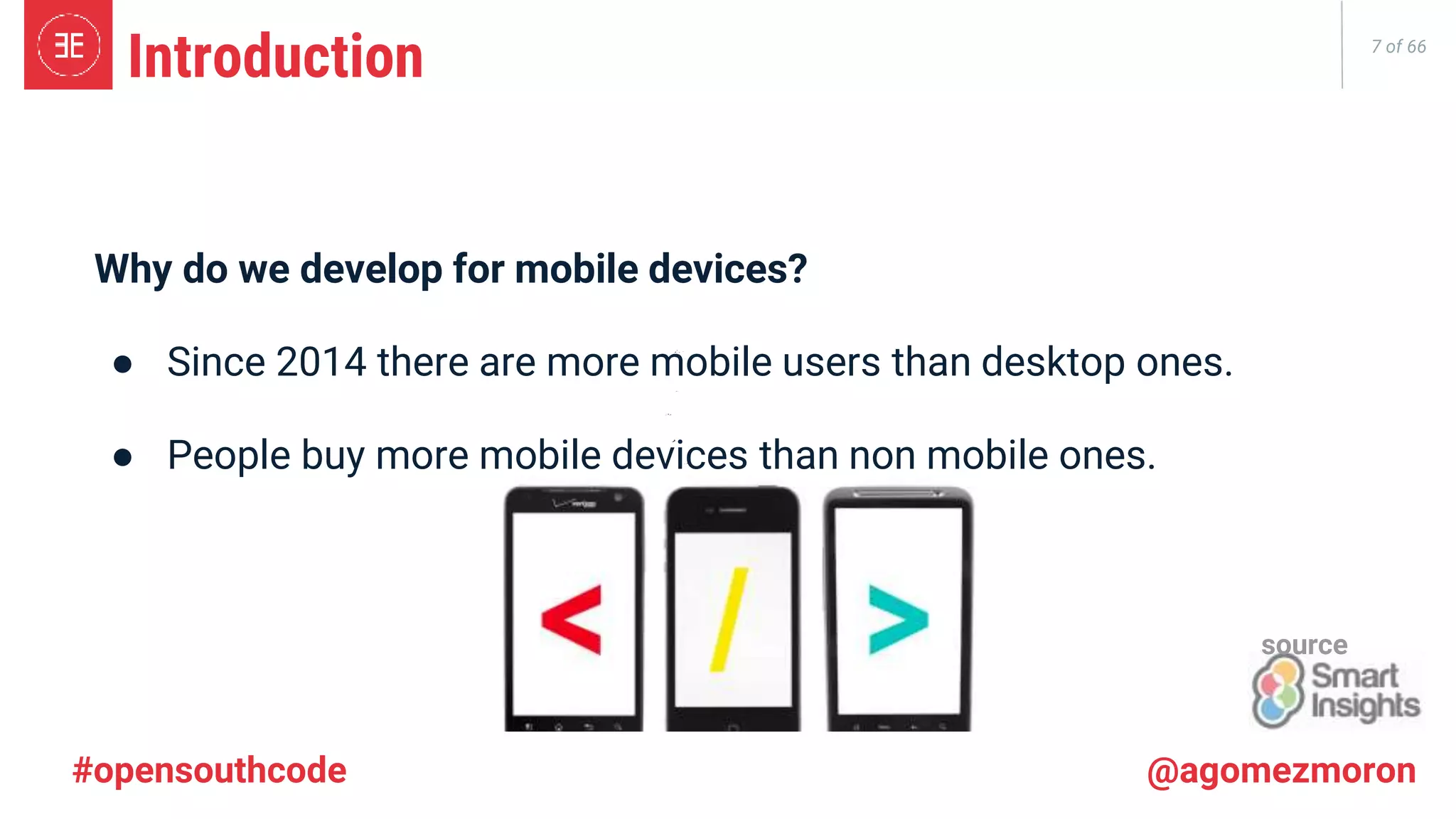

- 7. 7 of 66 Introduction Whydo we develop for mobile devices? ● Since 2014 there are more mobile users than desktop ones. ● People buy more mobile devices than non mobile ones. source #opensouthcode @agomezmoron

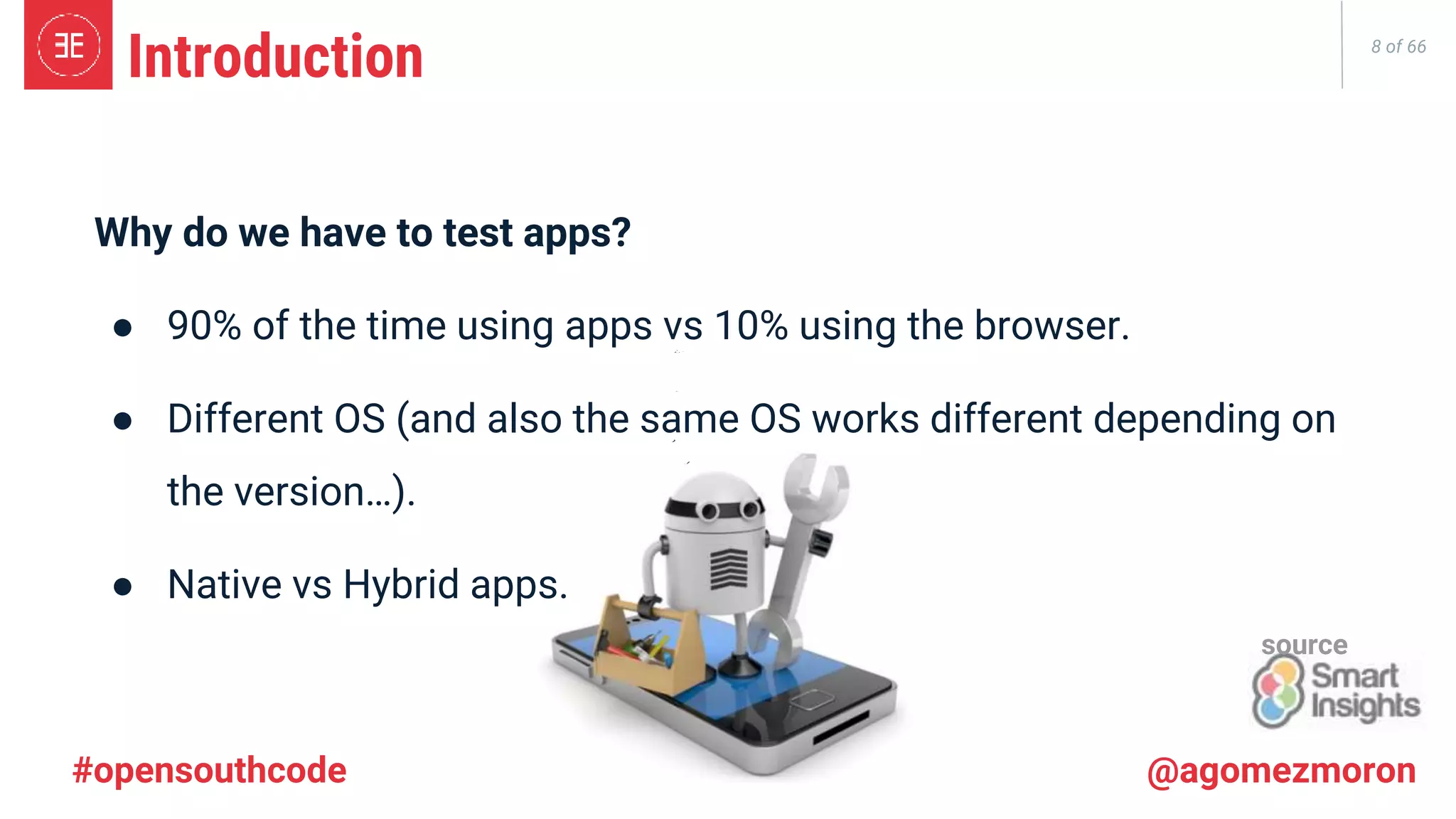

- 8. 8 of 66 #opensouthcode@agomezmoron Introduction Why do we have to test apps? ● 90% of the time using apps vs 10% using the browser. ● Different OS (and also the same OS works different depending on the version…). ● Native vs Hybrid apps. source
- 9. www.emergya.com What Appium is #opensouthcode@agomezmoron

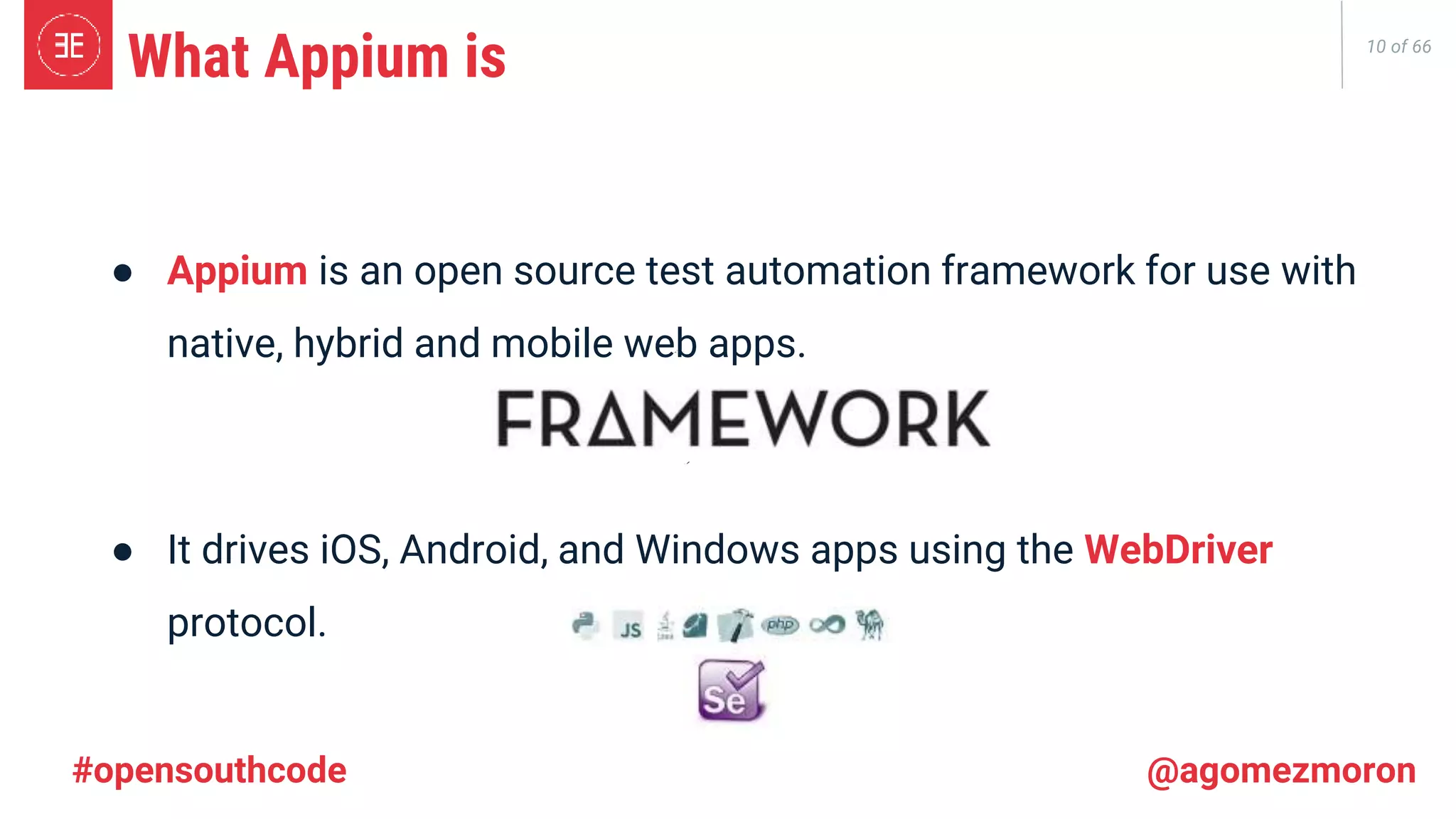

- 10. 10 of 66 WhatAppium is ● Appium is an open source test automation framework for use with native, hybrid and mobile web apps. ● It drives iOS, Android, and Windows apps using the WebDriver protocol. #opensouthcode @agomezmoron

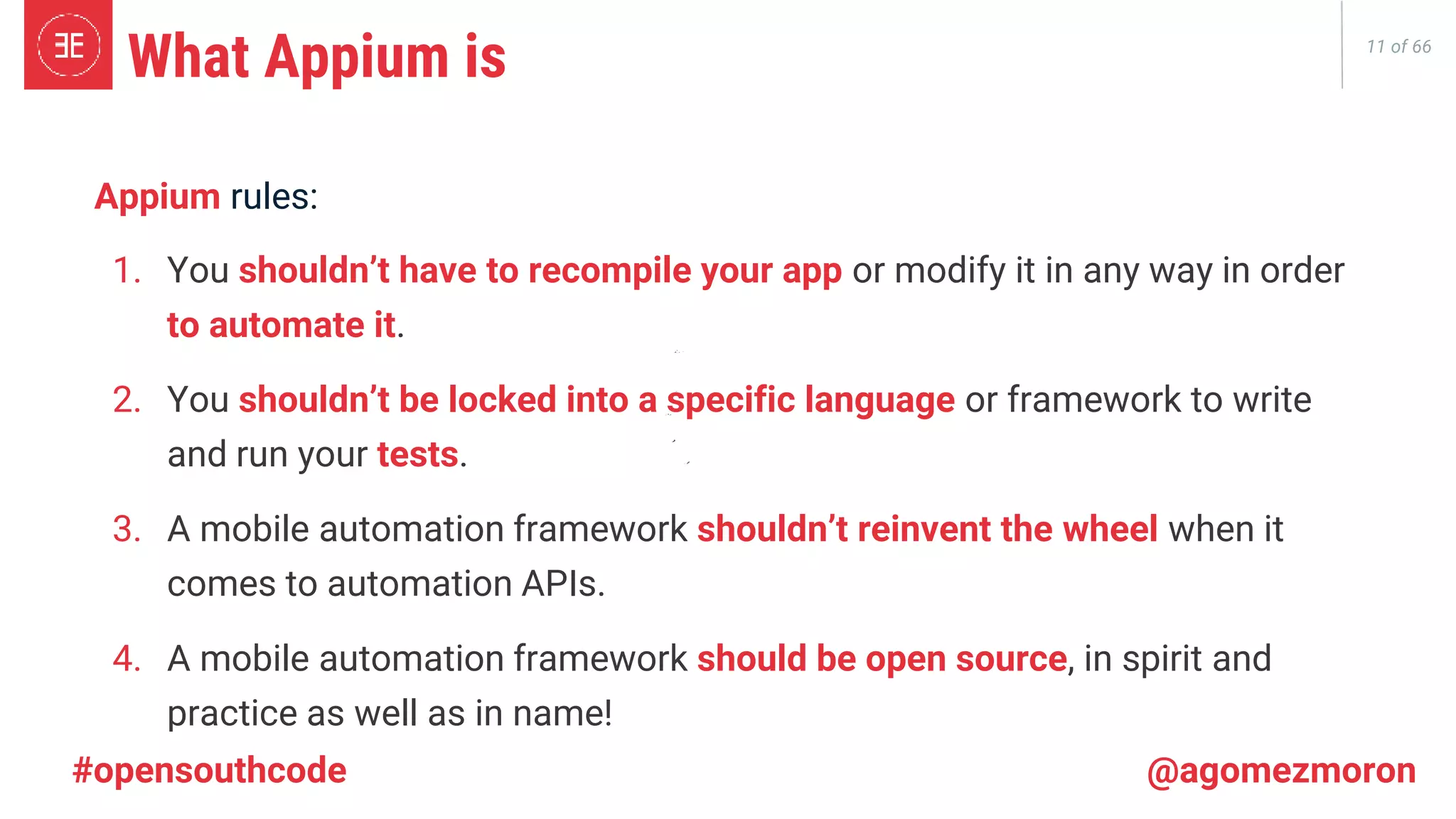

- 11. 11 of 66 WhatAppium is Appium rules: 1. You shouldn’t have to recompile your app or modify it in any way in order to automate it. 2. You shouldn’t be locked into a specific language or framework to write and run your tests. 3. A mobile automation framework shouldn’t reinvent the wheel when it comes to automation APIs. 4. A mobile automation framework should be open source, in spirit and practice as well as in name! #opensouthcode @agomezmoron
- 12.

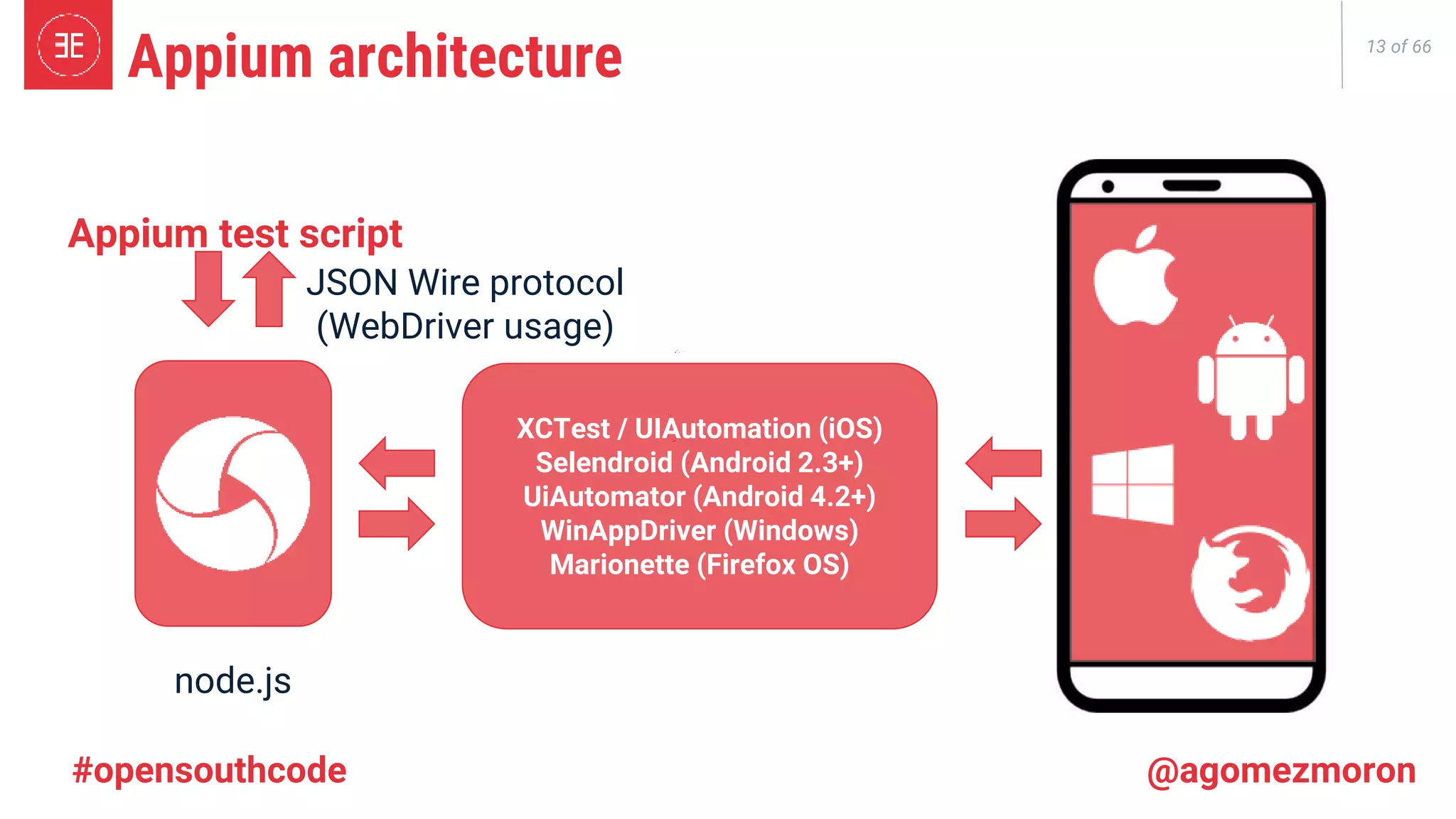

- 13. 13 of 66 Appiumarchitecture Appium test script JSON Wire protocol (WebDriver usage) node.js XCTest / UIAutomation (iOS) Selendroid (Android 2.3+) UiAutomator (Android 4.2+) WinAppDriver (Windows) Marionette (Firefox OS) #opensouthcode @agomezmoron
- 14. www.emergya.com Types of appsto be tested #opensouthcode @agomezmoron

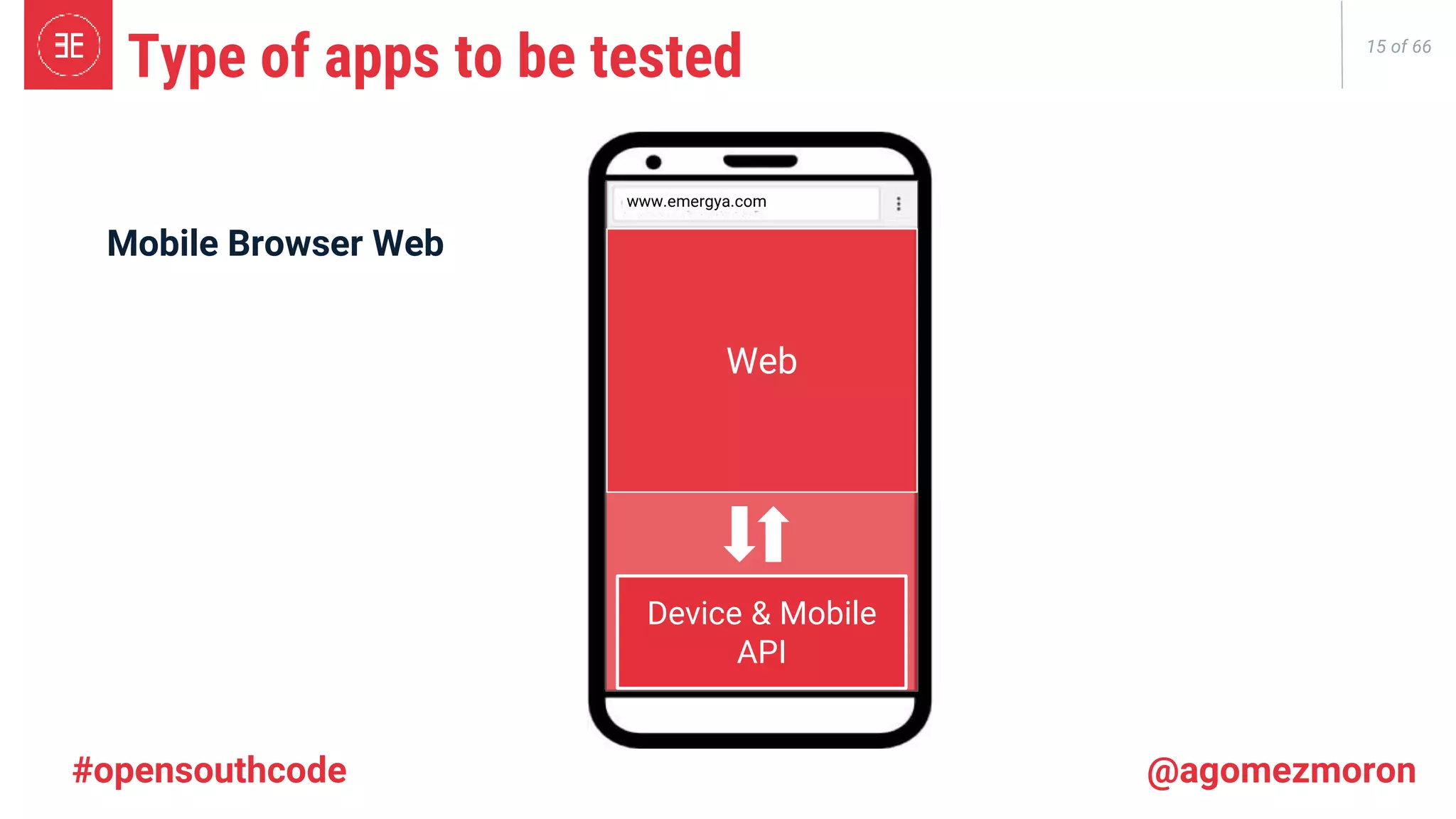

- 15. 15 of 66 #opensouthcode@agomezmoron Type of apps to be tested Device & Mobile API Web Mobile Browser Web www.emergya.com
- 16. 16 of 66 #opensouthcode@agomezmoron Type of apps to be tested Hybrid Apps Device API APP (WebView) HTML 5

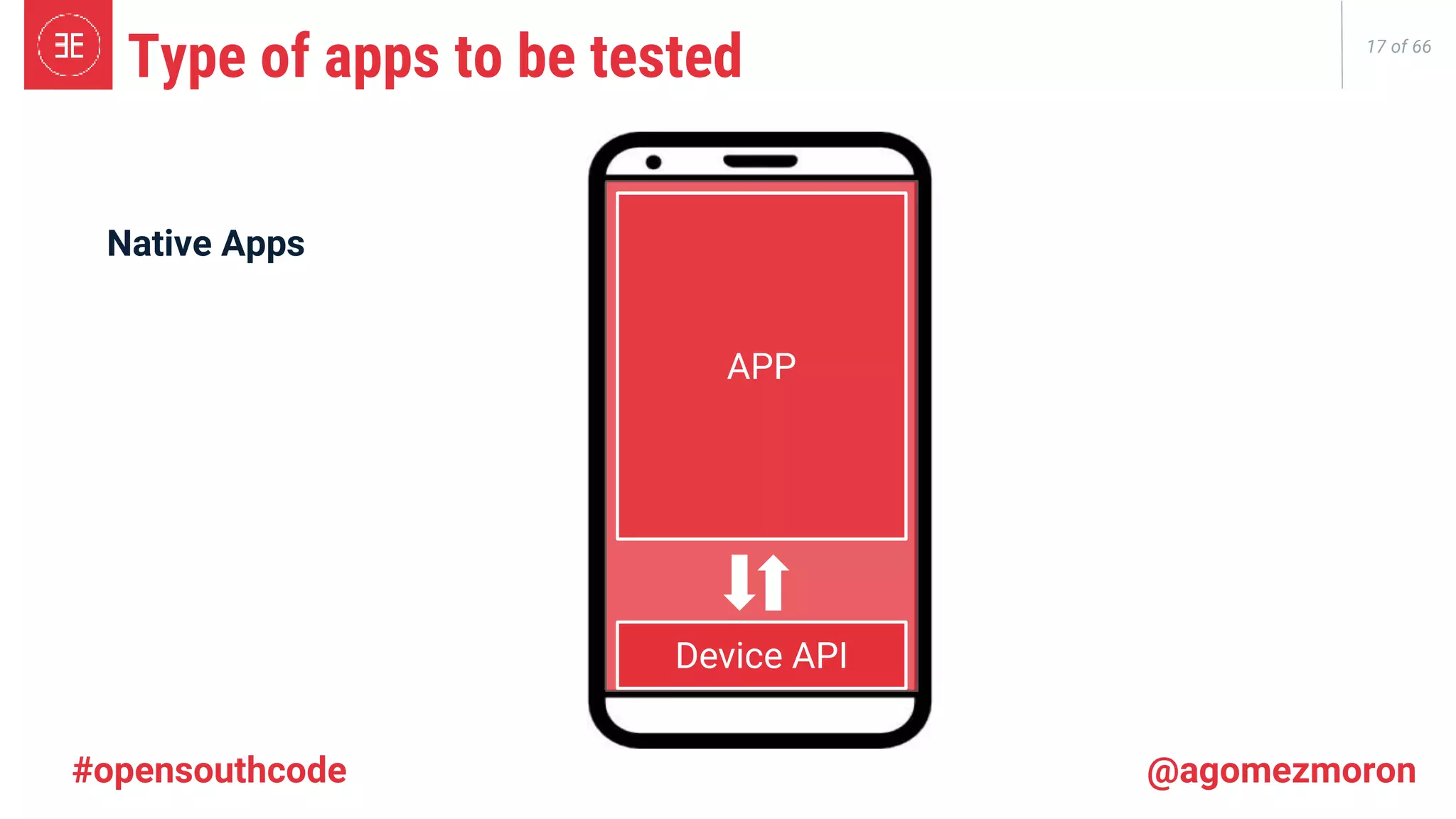

- 17. 17 of 66 #opensouthcode@agomezmoron Type of apps to be tested Native Apps Device API APP

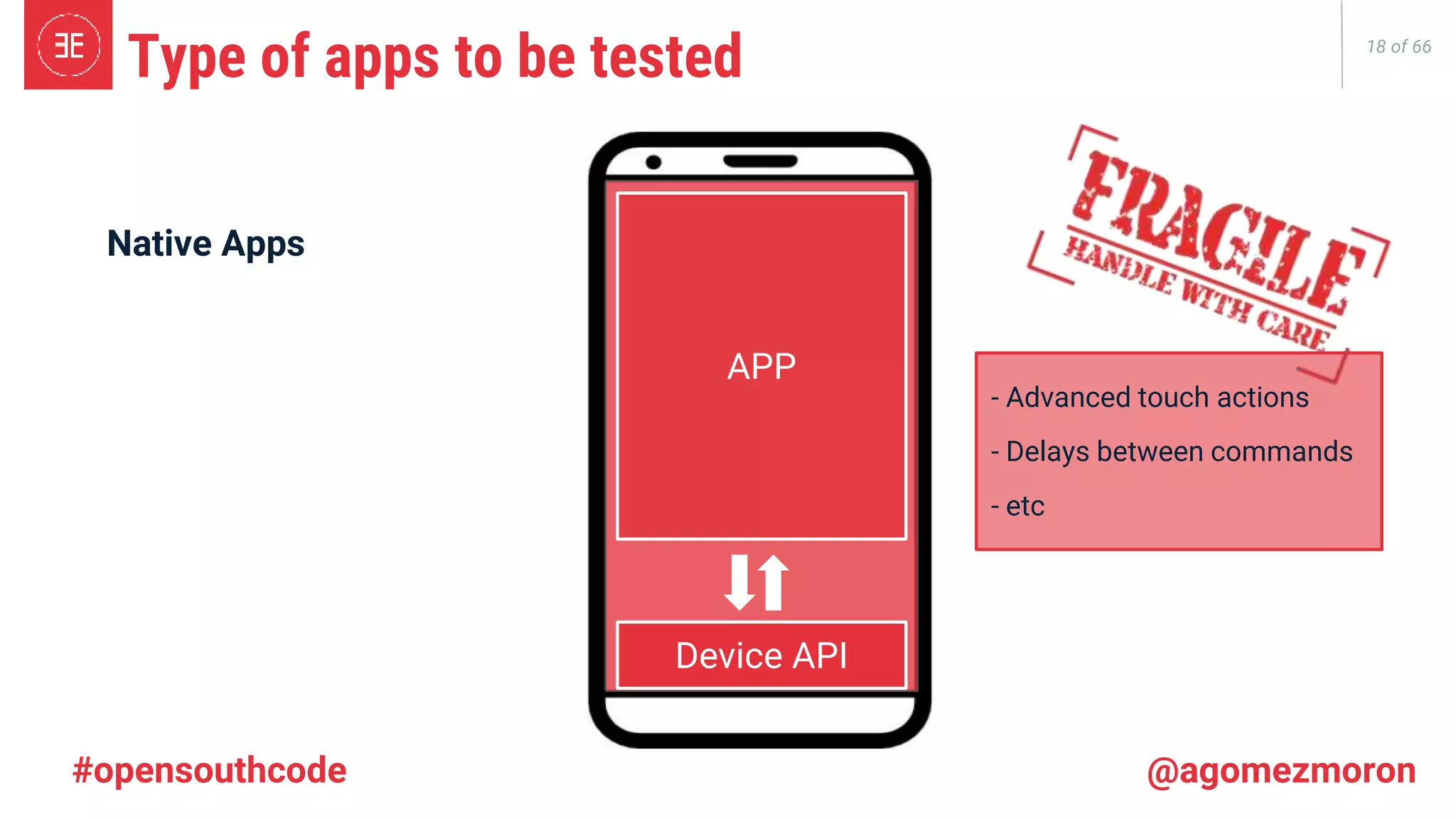

- 18. 18 of 66 #opensouthcode@agomezmoron Type of apps to be tested Native Apps Device API APP - Advanced touch actions - Delays between commands - etc
- 19.
- 20. 20 of 66 ContinuousIntegration #opensouthcode @agomezmoron

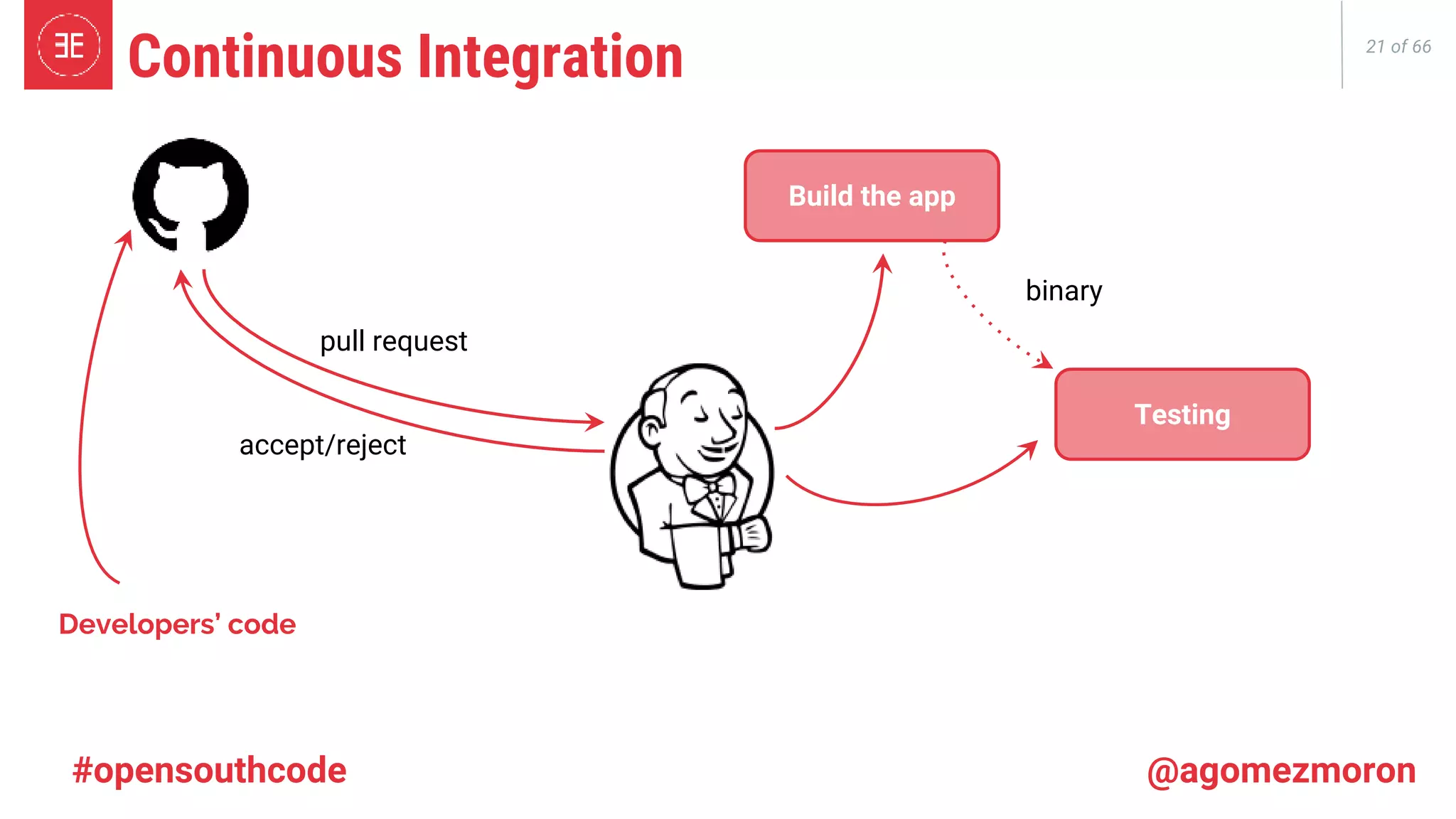

- 21. 21 of 66 ContinuousIntegration pull request accept/reject Developers’ code Build the app Testing binary #opensouthcode @agomezmoron

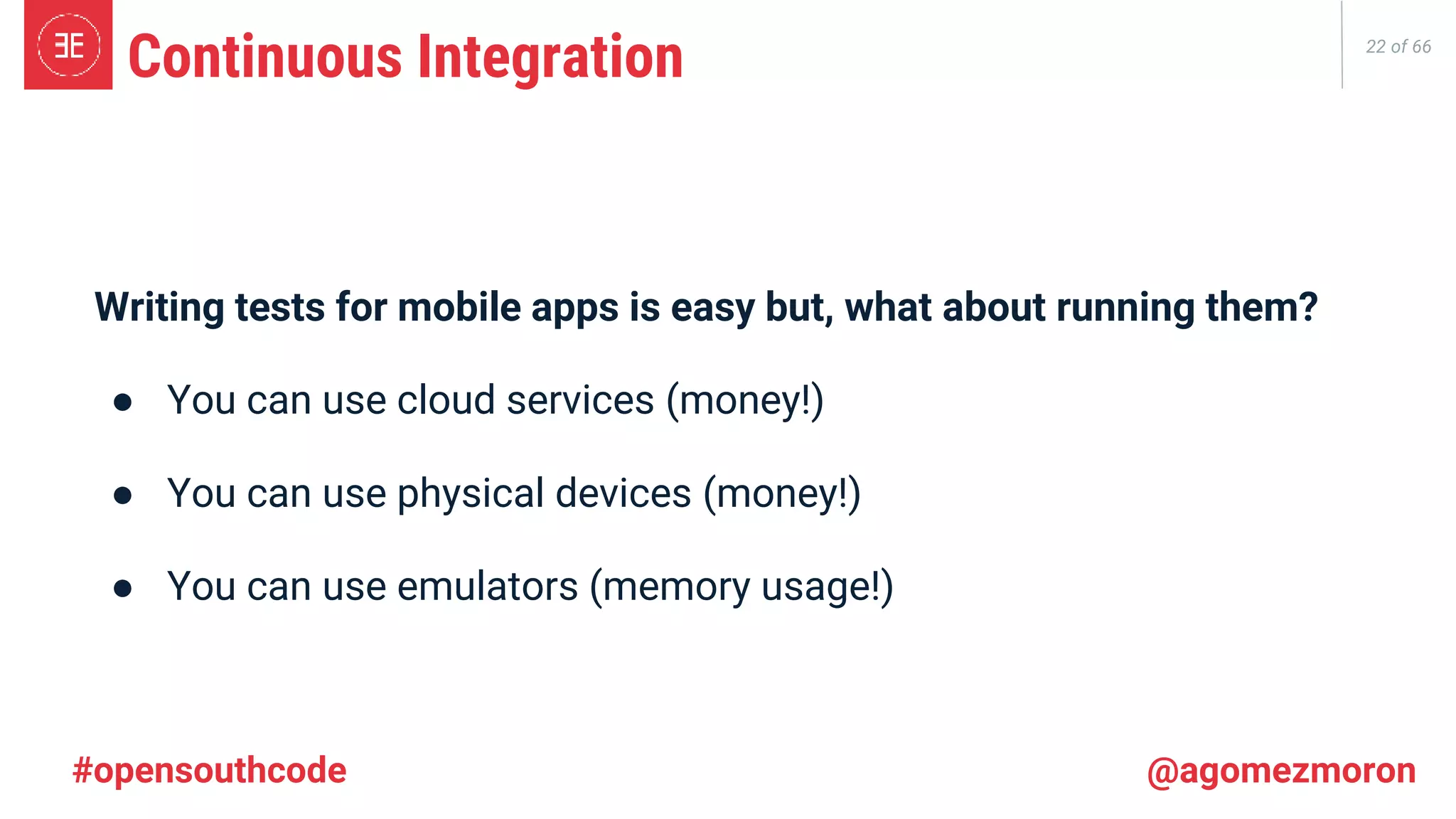

- 22. 22 of 66 ContinuousIntegration Writing tests for mobile apps is easy but, what about running them? ● You can use cloud services (money!) ● You can use physical devices (money!) ● You can use emulators (memory usage!) #opensouthcode @agomezmoron
- 23.

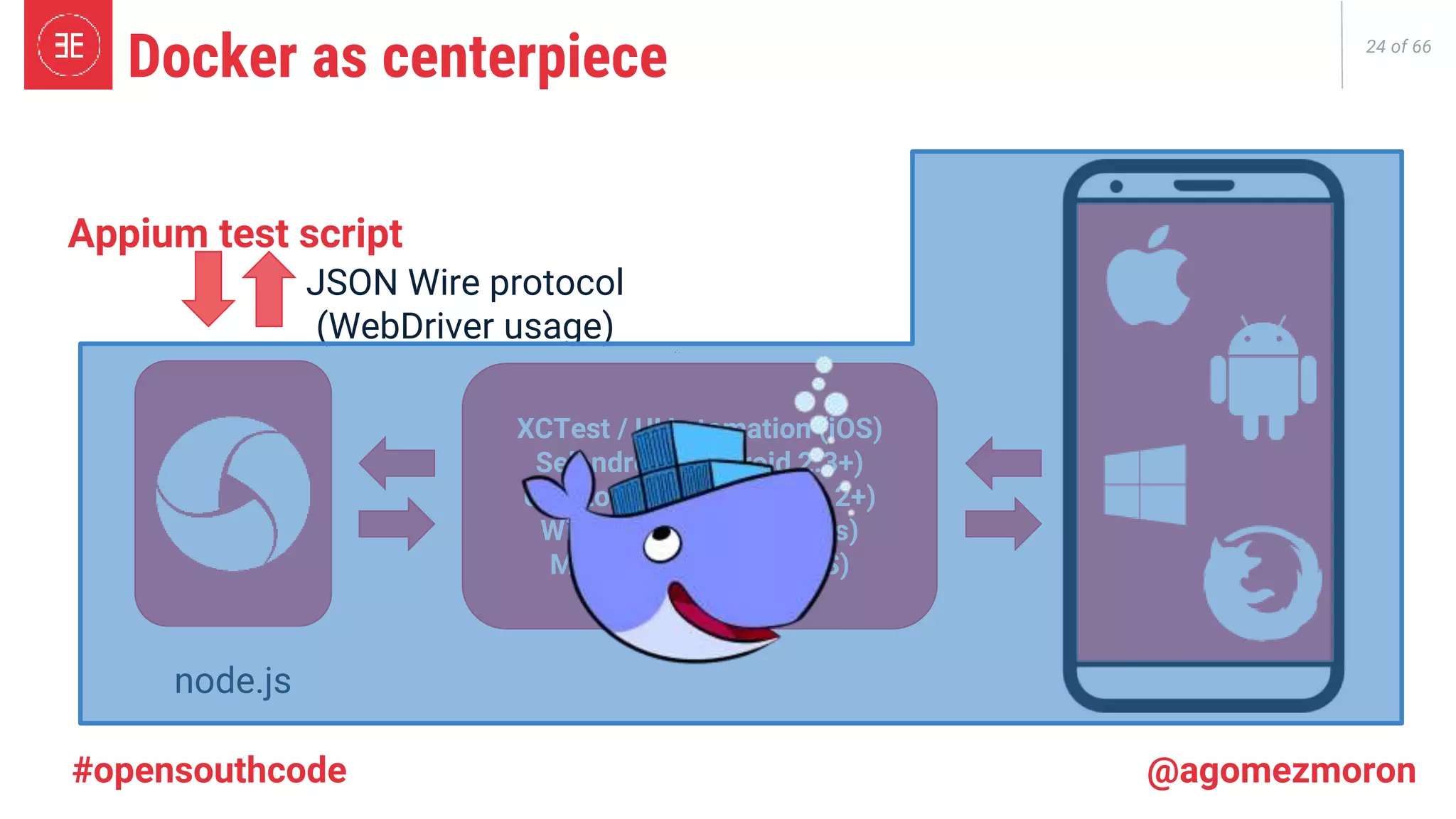

- 24. 24 of 66 Appiumtest script JSON Wire protocol (WebDriver usage) node.js XCTest / UIAutomation (iOS) Selendroid (Android 2.3+) UiAutomator (Android 4.2+) WinAppDriver (Windows) Marionette (Firefox OS) Docker as centerpiece #opensouthcode @agomezmoron

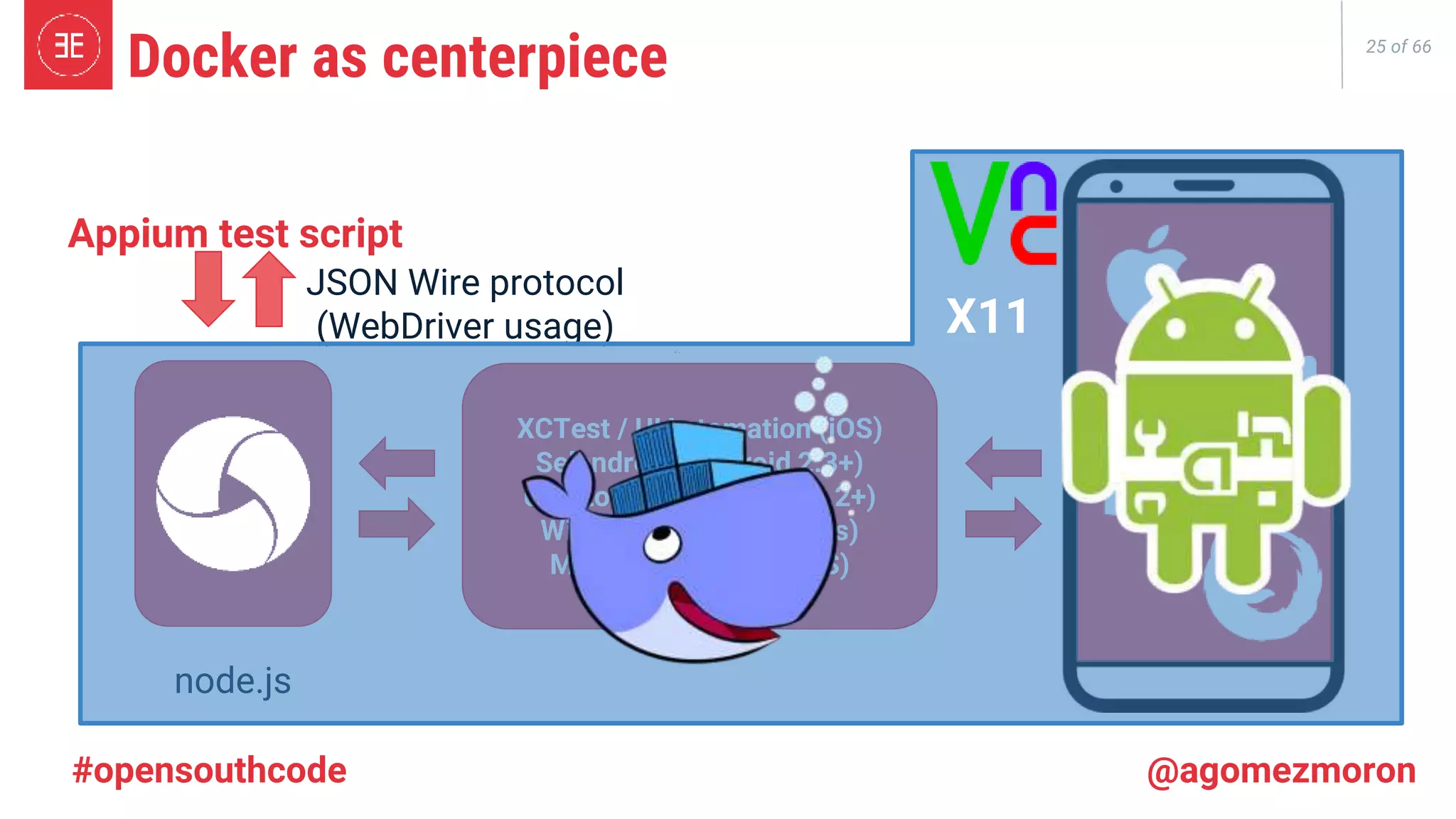

- 25. 25 of 66 Appiumtest script JSON Wire protocol (WebDriver usage) node.js XCTest / UIAutomation (iOS) Selendroid (Android 2.3+) UiAutomator (Android 4.2+) WinAppDriver (Windows) Marionette (Firefox OS) X11 Docker as centerpiece #opensouthcode @agomezmoron

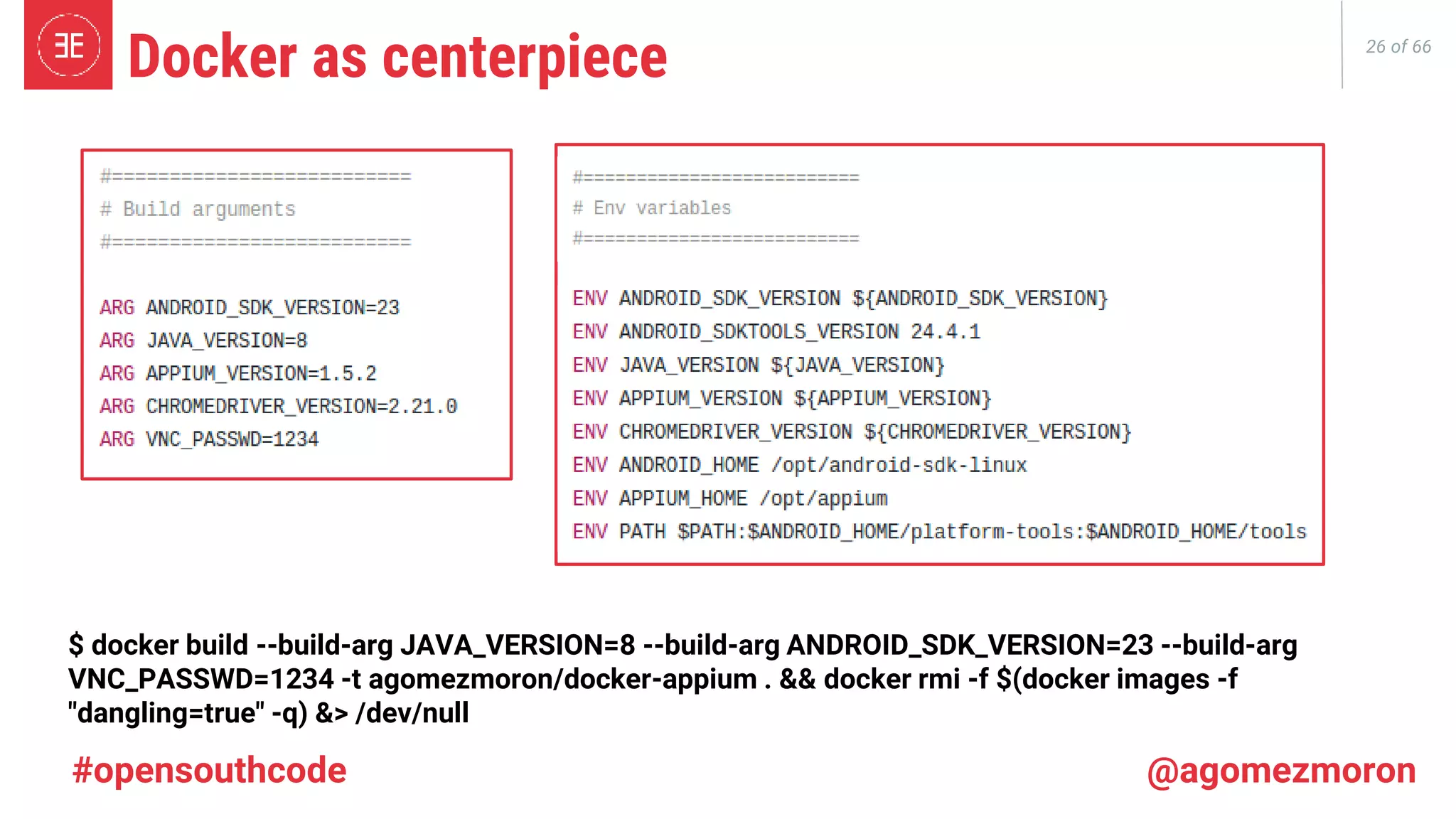

- 26. 26 of 66 Dockeras centerpiece #opensouthcode @agomezmoron $ docker build --build-arg JAVA_VERSION=8 --build-arg ANDROID_SDK_VERSION=23 --build-arg VNC_PASSWD=1234 -t agomezmoron/docker-appium . && docker rmi -f $(docker images -f "dangling=true" -q) &> /dev/null

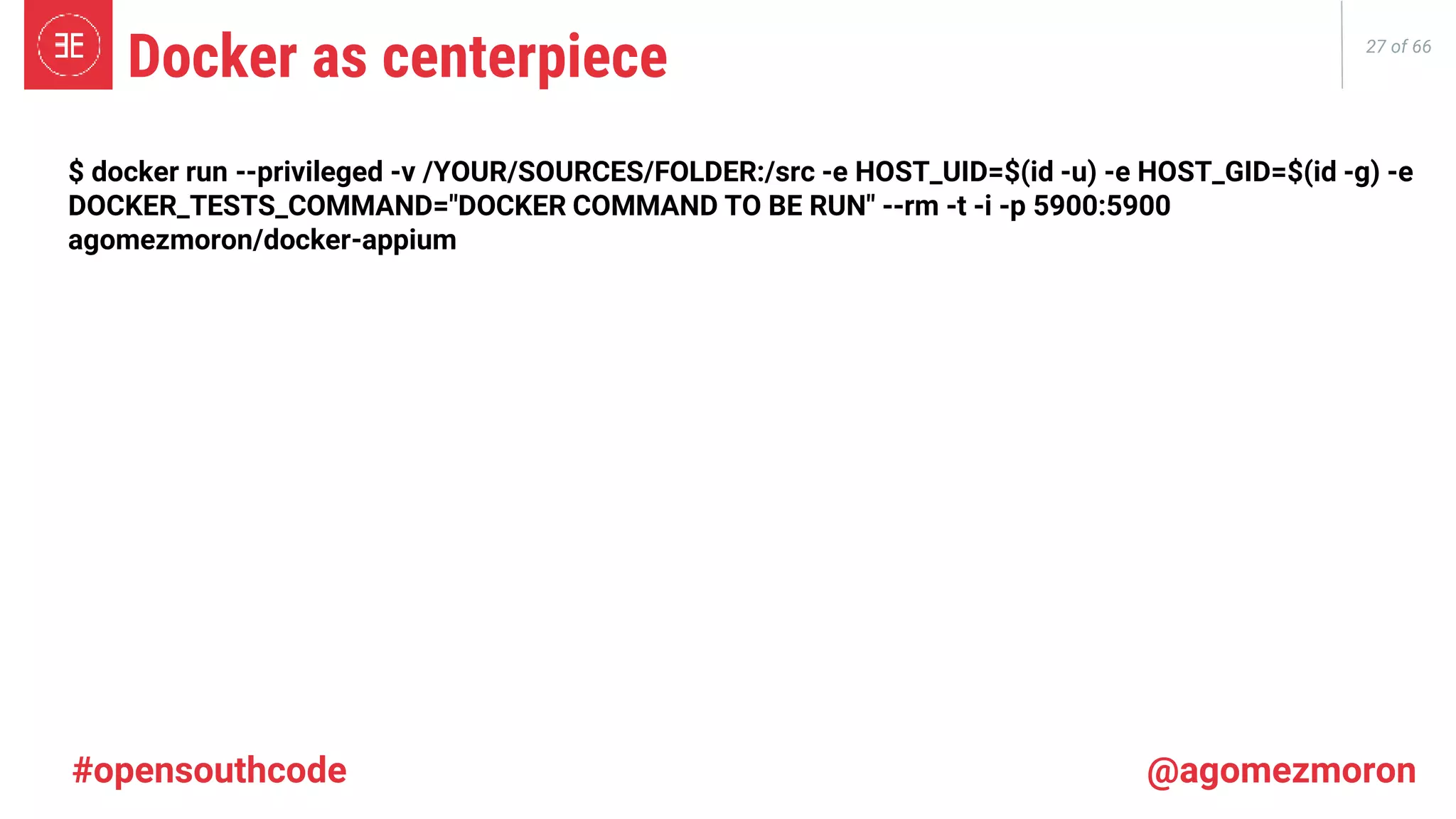

- 27. 27 of 66 Dockeras centerpiece #opensouthcode @agomezmoron $ docker run --privileged -v /YOUR/SOURCES/FOLDER:/src -e HOST_UID=$(id -u) -e HOST_GID=$(id -g) -e DOCKER_TESTS_COMMAND="DOCKER COMMAND TO BE RUN" --rm -t -i -p 5900:5900 agomezmoron/docker-appium

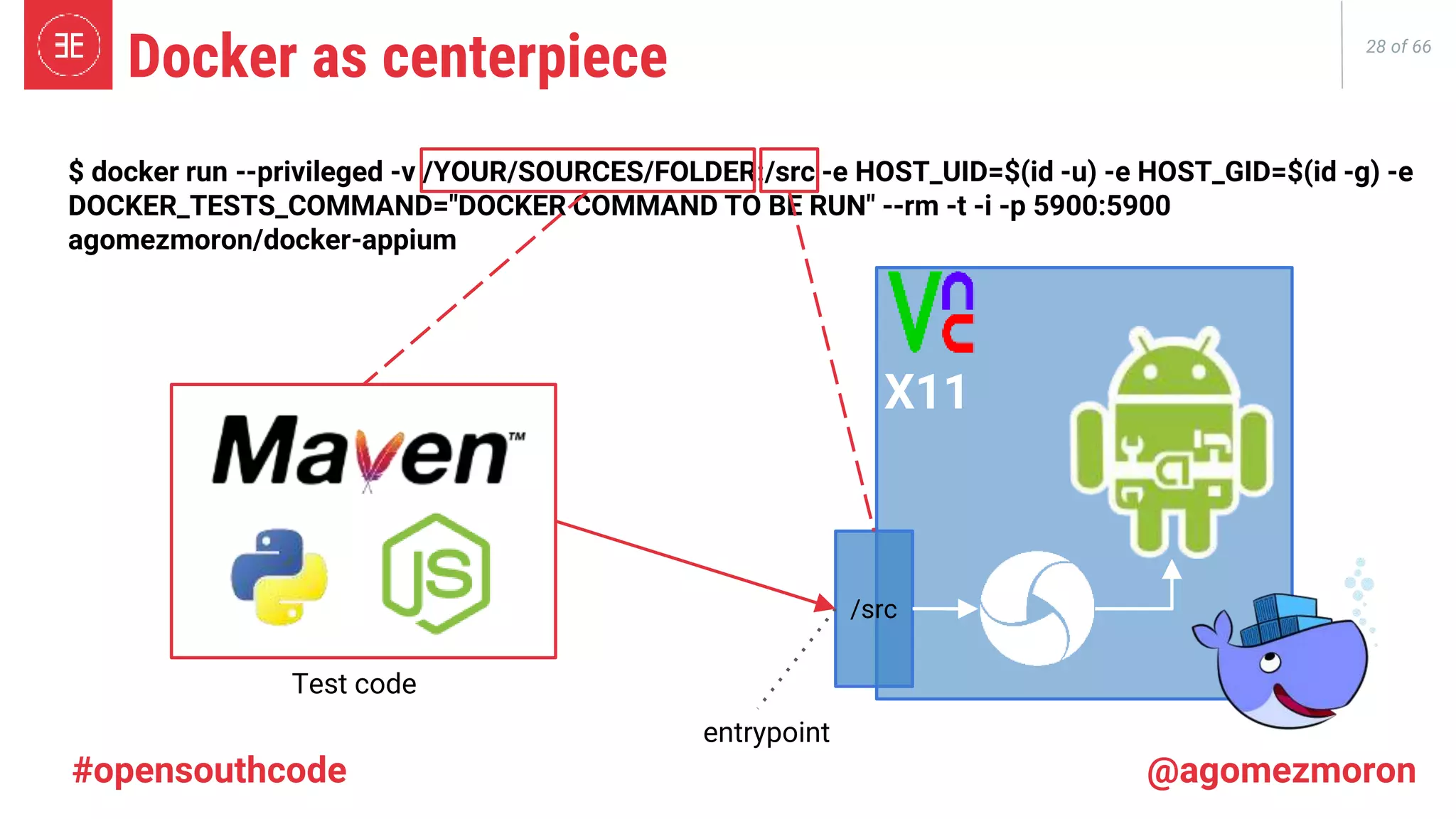

- 28. 28 of 66 Dockeras centerpiece #opensouthcode @agomezmoron $ docker run --privileged -v /YOUR/SOURCES/FOLDER:/src -e HOST_UID=$(id -u) -e HOST_GID=$(id -g) -e DOCKER_TESTS_COMMAND="DOCKER COMMAND TO BE RUN" --rm -t -i -p 5900:5900 agomezmoron/docker-appium X11 /src entrypoint Test code

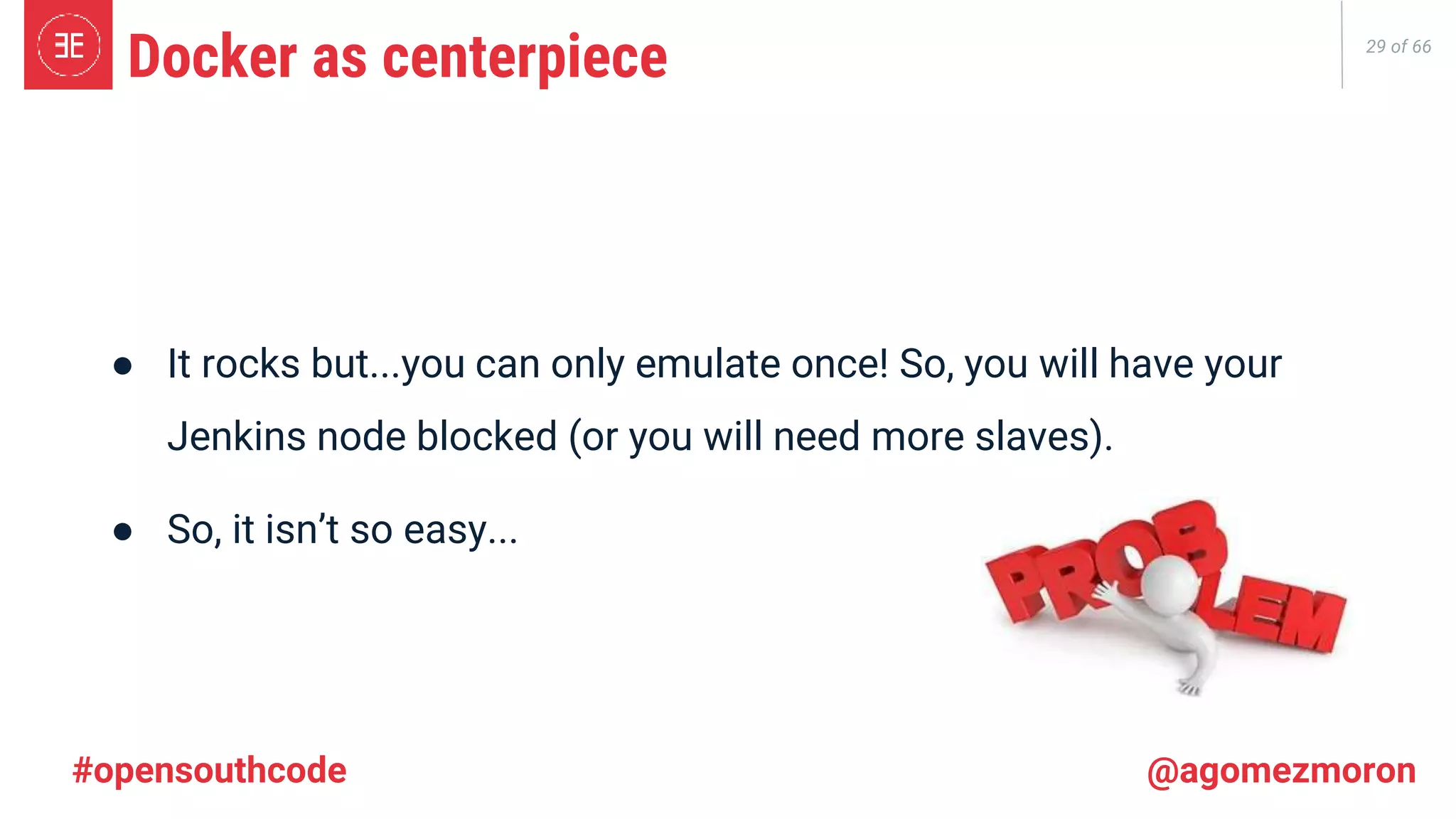

- 29. 29 of 66 ●It rocks but...you can only emulate once! So, you will have your Jenkins node blocked (or you will need more slaves). ● So, it isn’t so easy... Docker as centerpiece #opensouthcode @agomezmoron
- 30. 30 of 66 Dockeras centerpiece #opensouthcode @agomezmoron

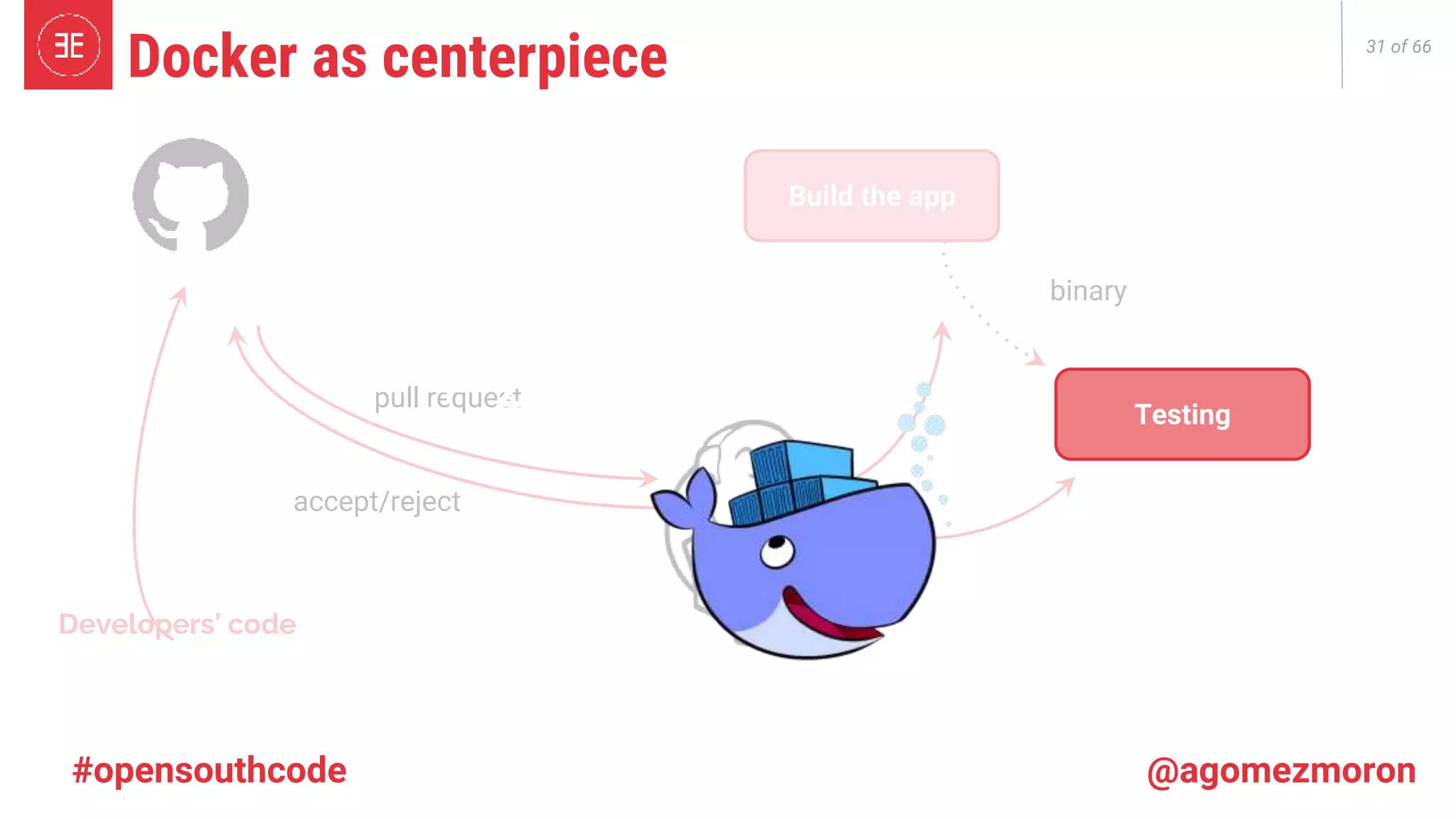

- 31. 31 of 66 pullrequest accept/reject Developers’ code Build the app Testing binary Testing + ZRAM + Docker as centerpiece #opensouthcode @agomezmoron

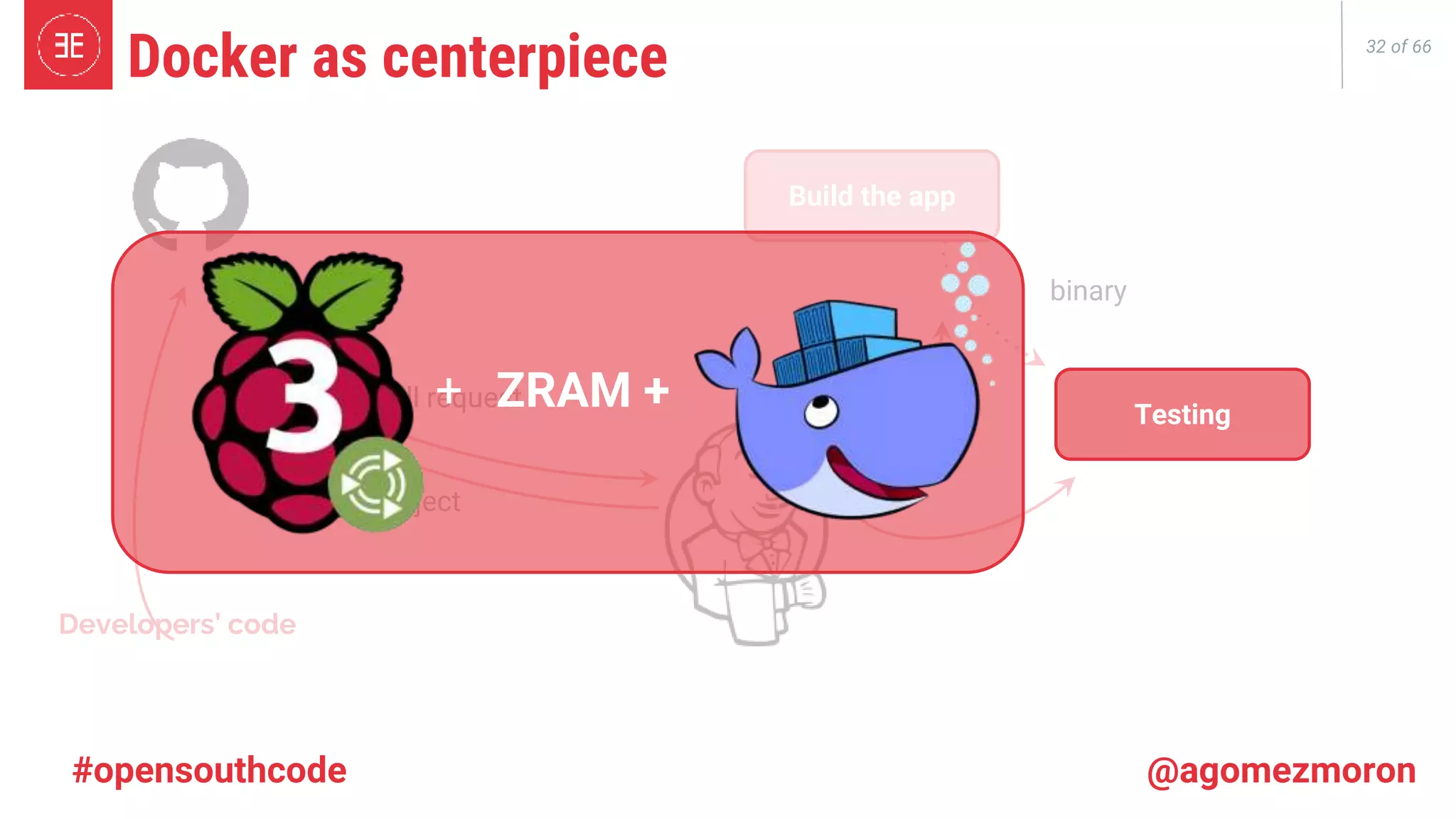

- 32. 32 of 66 pullrequest accept/reject Developers’ code Build the app Testing binary Testing + ZRAM + Docker as centerpiece #opensouthcode @agomezmoron

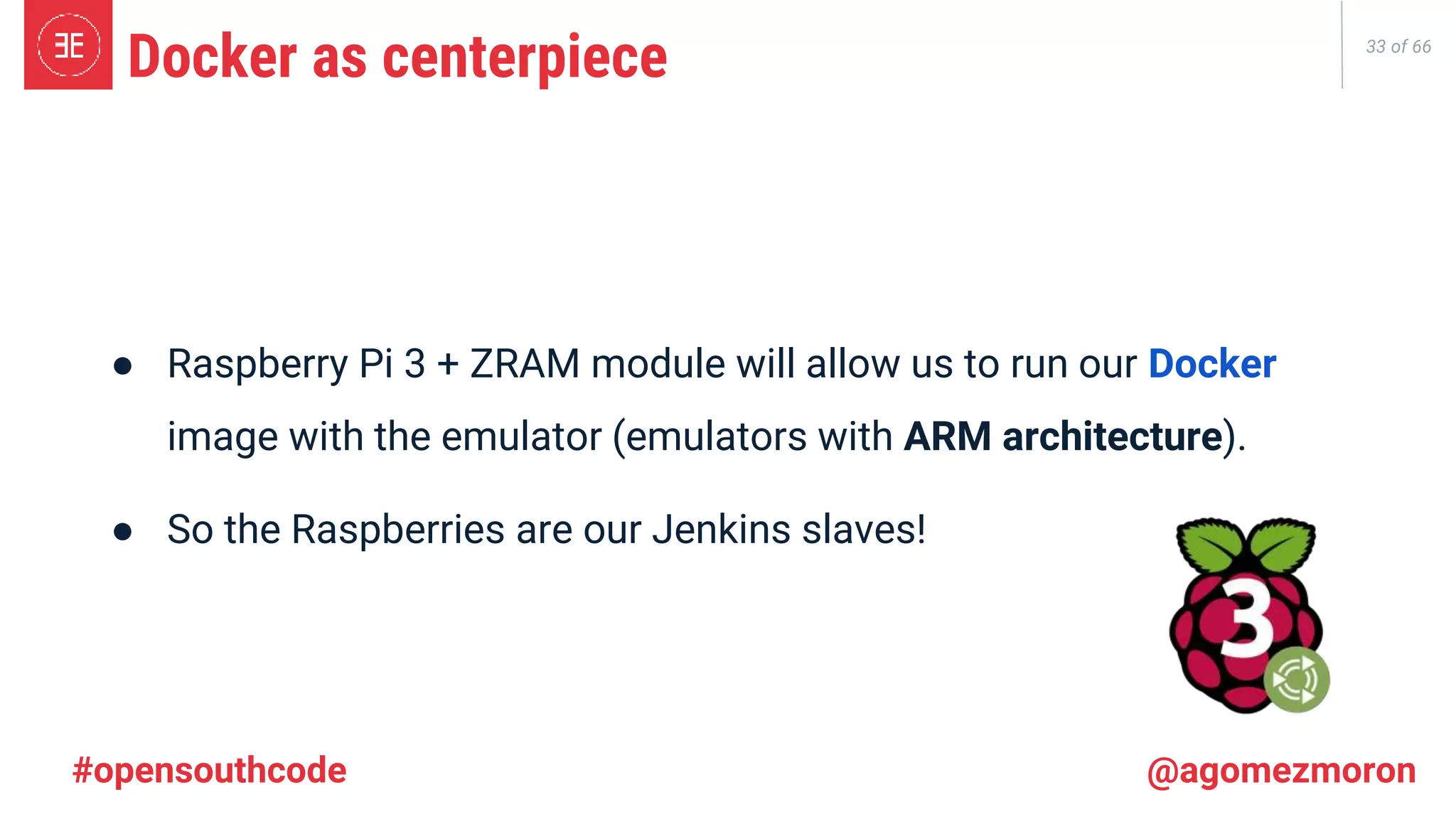

- 33. 33 of 66 ●Raspberry Pi 3 + ZRAM module will allow us to run our Docker image with the emulator (emulators with ARM architecture). ● So the Raspberries are our Jenkins slaves! Docker as centerpiece #opensouthcode @agomezmoron
- 34.

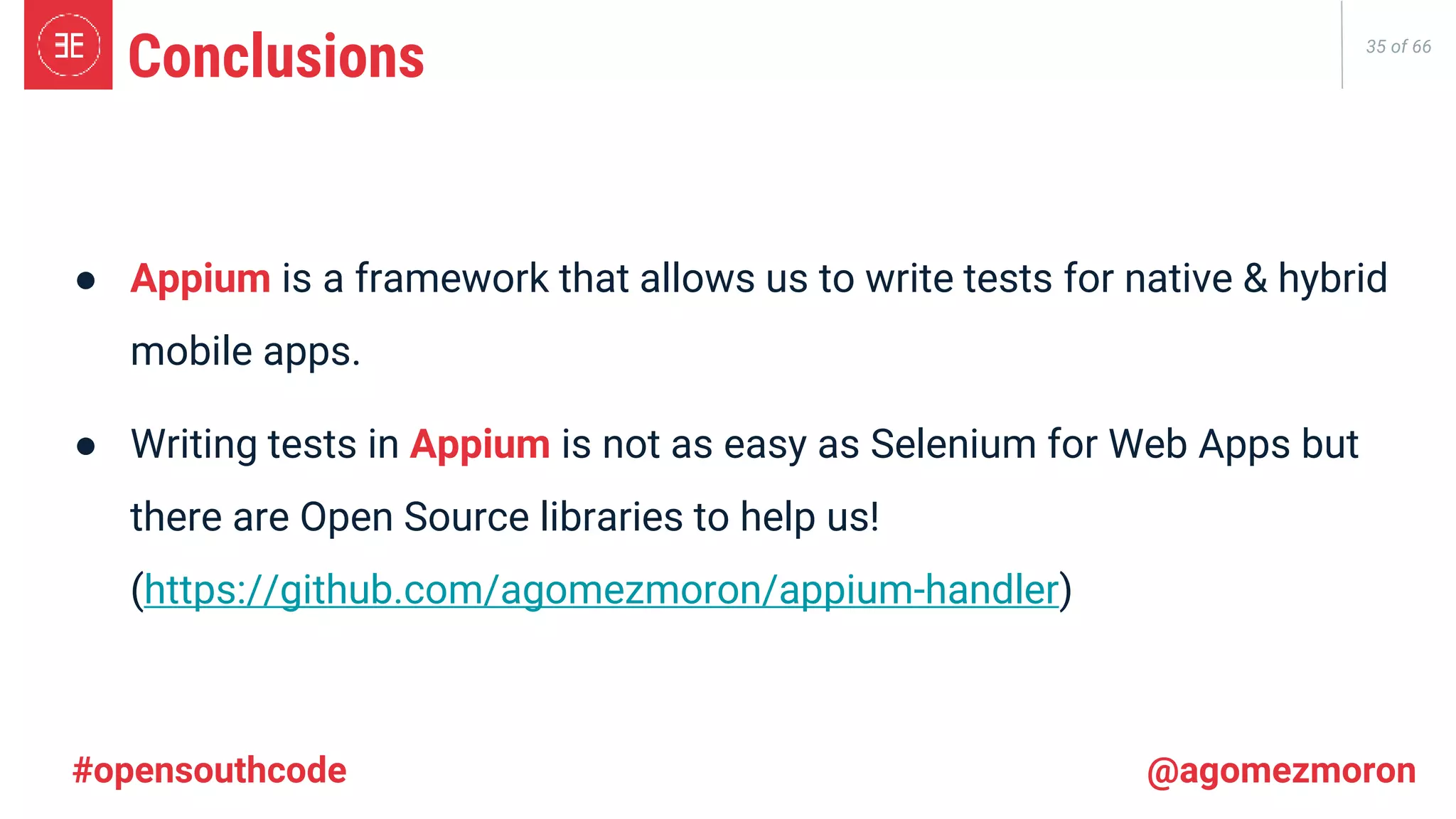

- 35. 35 of 66 ●Appium is a framework that allows us to write tests for native & hybrid mobile apps. ● Writing tests in Appium is not as easy as Selenium for Web Apps but there are Open Source libraries to help us! (https://github.com/agomezmoron/appium-handler) Conclusions #opensouthcode @agomezmoron

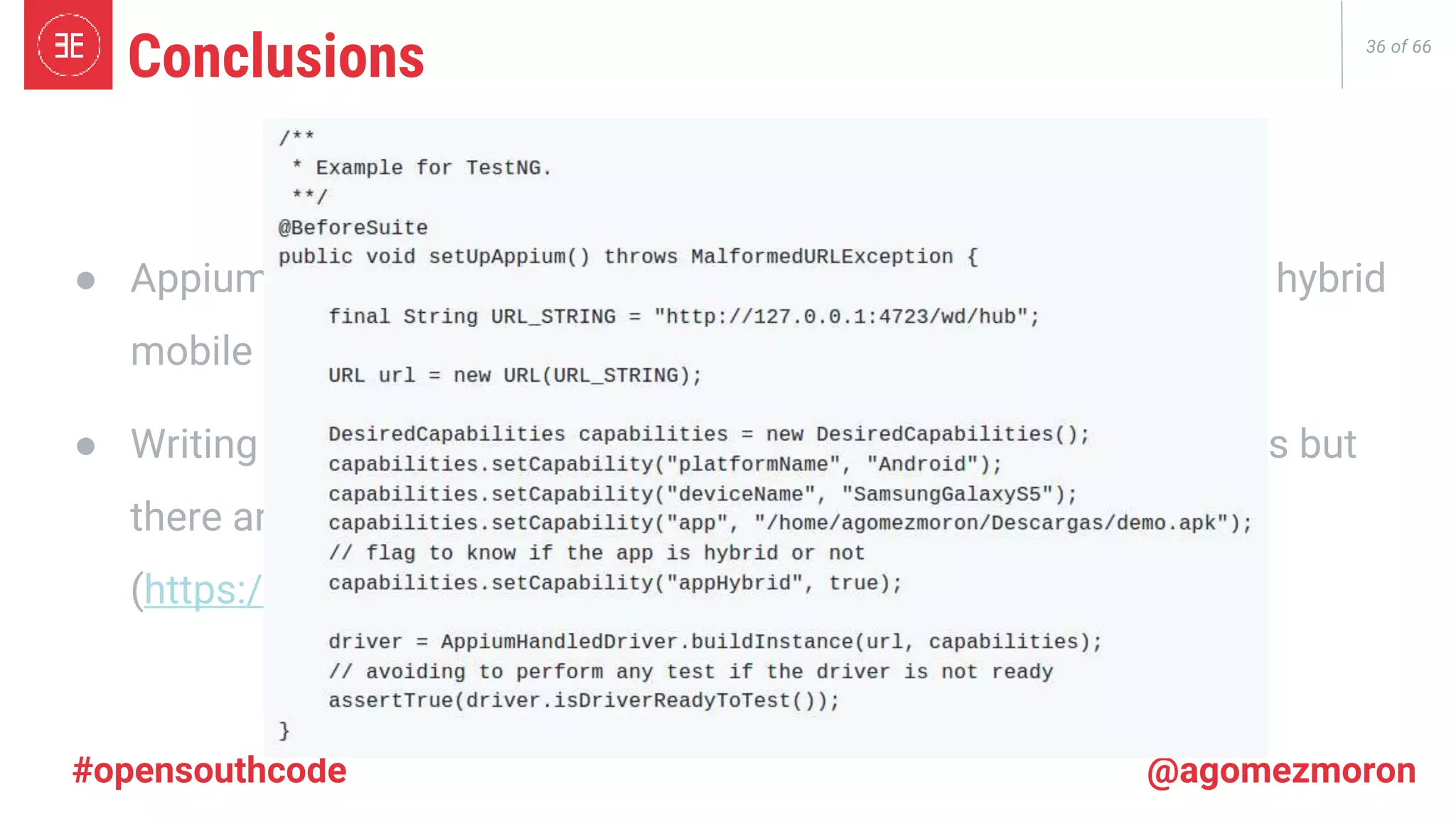

- 36. 36 of 66 #opensouthcode@agomezmoron ● Appium is a framework that allows us to write tests for native & hybrid mobile apps. ● Writing tests in Appium is not as easy as Selenium for Web Apps but there are Open Source libraries to help us! (https://github.com/agomezmoron/appium-handler) Conclusions

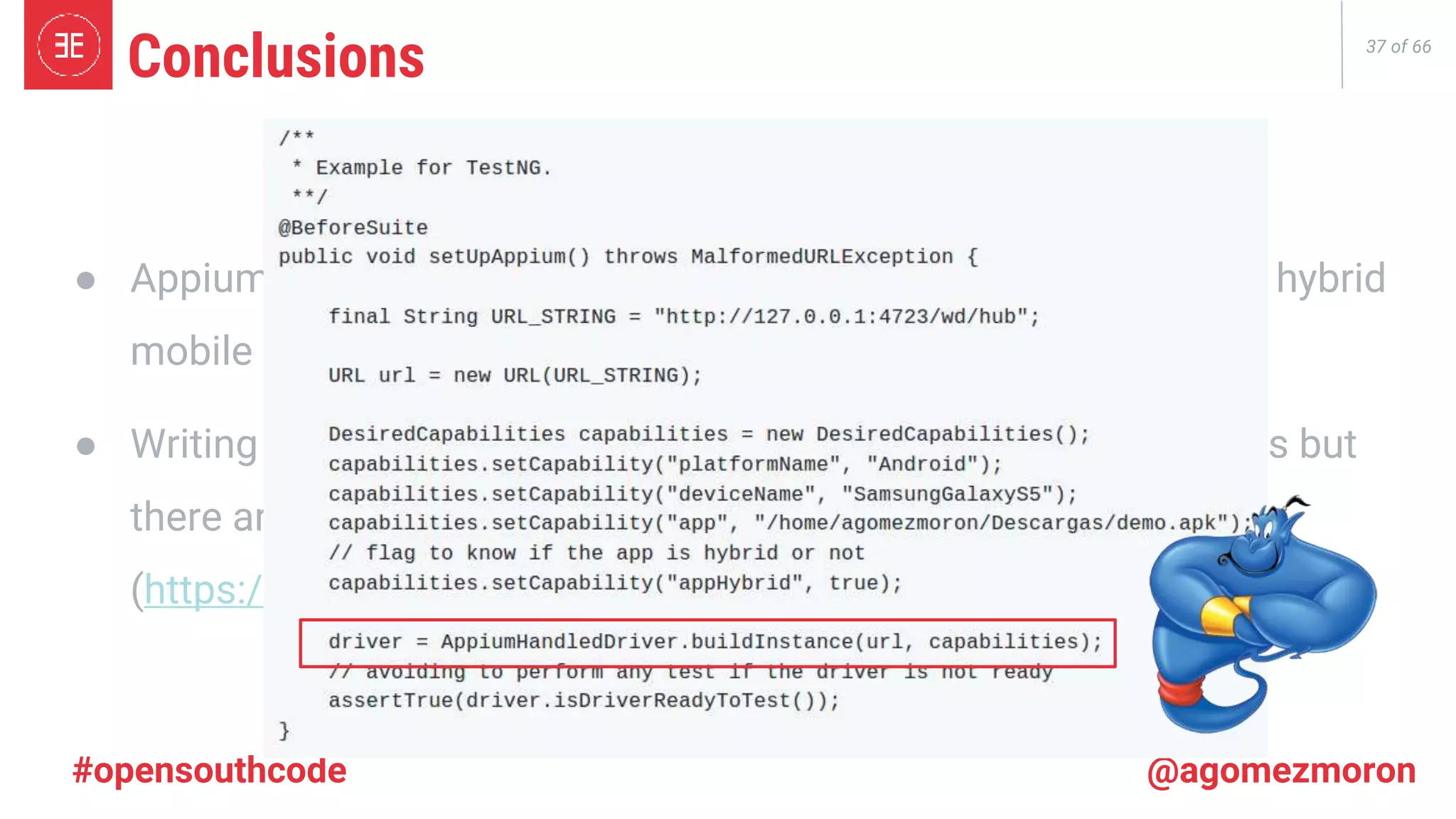

- 37. 37 of 66 #opensouthcode@agomezmoron ● Appium is a framework that allows us to write tests for native & hybrid mobile apps. ● Writing tests in Appium is not as easy as Selenium for Web Apps but there are Open Source libraries to help us! (https://github.com/agomezmoron/appium-handler) Conclusions

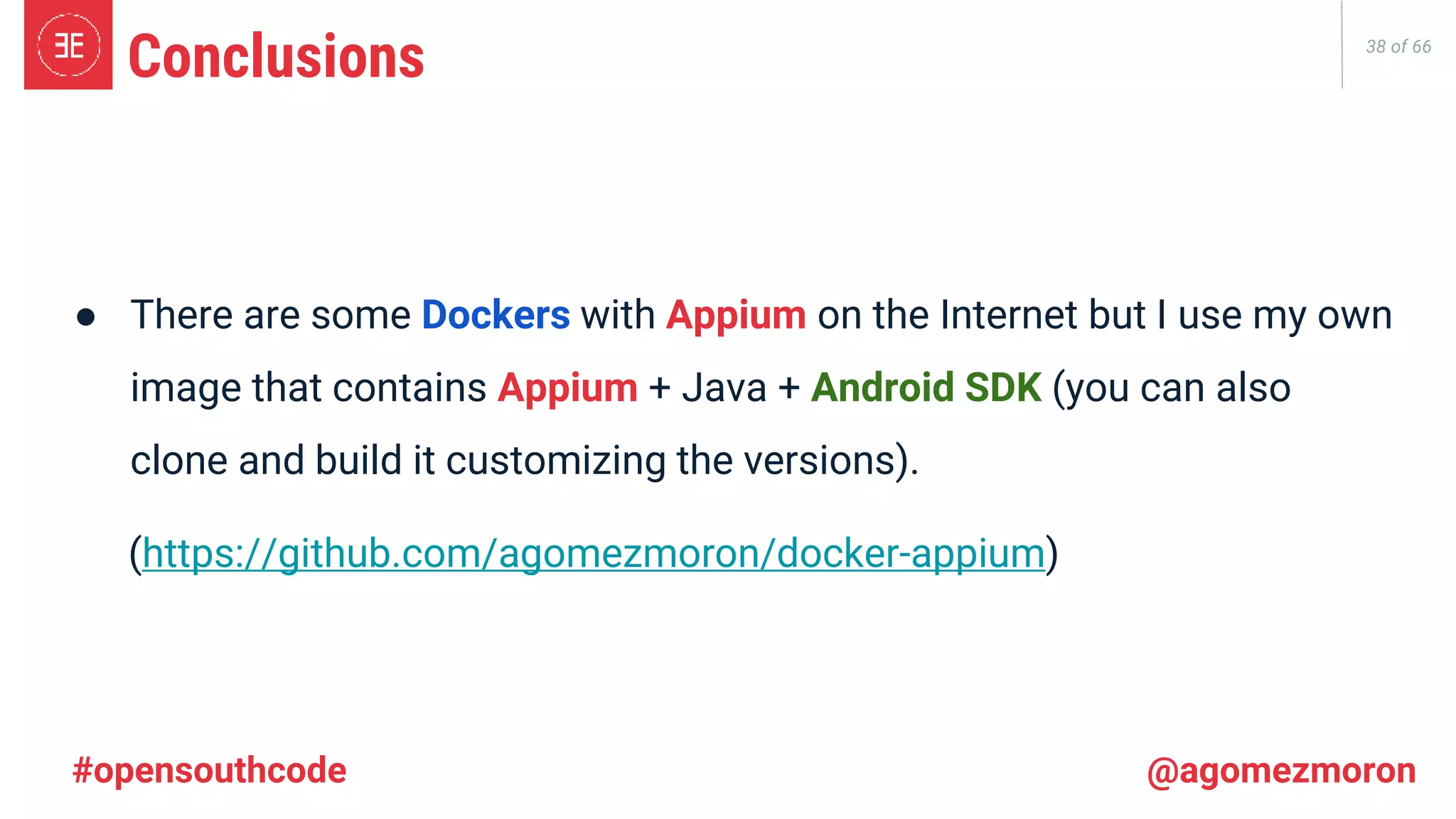

- 38. 38 of 66 ●There are some Dockers with Appium on the Internet but I use my own image that contains Appium + Java + Android SDK (you can also clone and build it customizing the versions). (https://github.com/agomezmoron/docker-appium) Conclusions #opensouthcode @agomezmoron
