Implementing Right to Erasure with CSFLE

Encryption Key Management

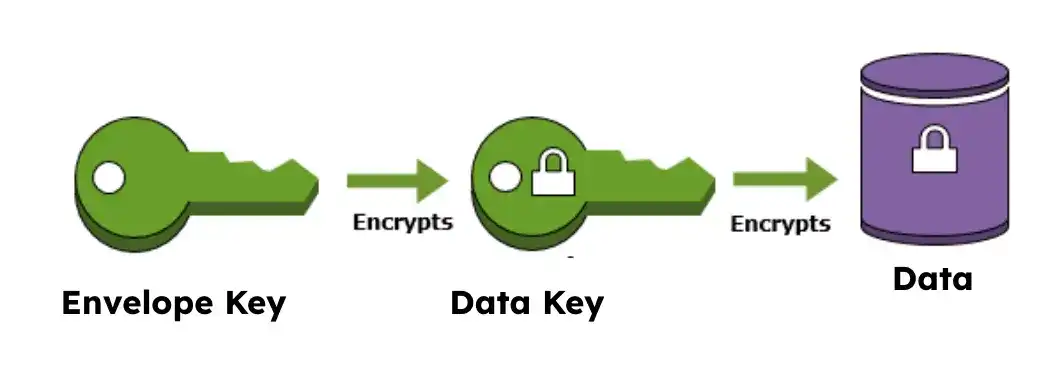

CMKs are usually managed by a Key Management Service (KMS). CSFLE supports multiple KMSs, including Amazon Web Services (AWS), Azure Key Vault, Google Cloud Platform (GCP), and keystores that support the KMIP standard, such as Hashicorp Keyvault. The sample app uses Amazon Web Services as the KMS.

Automatic and Explicit Encryption

CSFLE can be used in automatic or explicit mode, or a combination of both. The sample app uses explicit encryption.

• With automatic encryption, you perform encrypted read and write operations based on a defined encryption schema, so you don't need application code to specify how to encrypt or decrypt fields.

• With explicit encryption, you use the MongoDB driver's encryption library to manually encrypt or decrypt fields in your application.

Adding Users

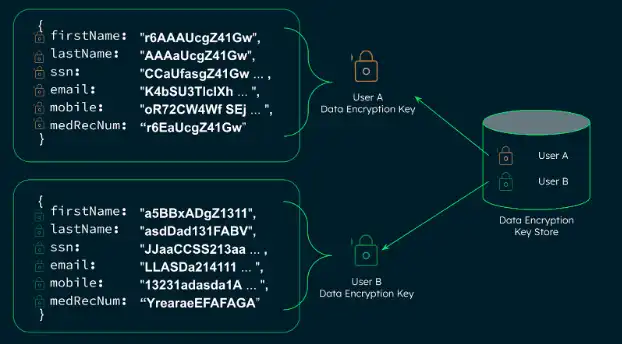

The app instantiates the ClientEncryption class by initializing an app.mongodb_encryption_client object. This encryption client is responsible for generating DEKs, and then encrypting them using a CMK from the AWS KMS.

When a user signs up, the application generates a unique DEK for them using the create_data_key method, then returns the data_key_id:

# flaskapp/db_queries.py
@aws_credential_handler
def create_key(userId):
 data_key_id = \app.mongodb_encryption_client.create_data_key
 (kms_provider, master_key, key_alt_names=[userId])
 return data_key_id

The app then uses this method when saving user information:

# flaskapp/user.py
def save(self):
 dek_id = db_queries.create_key(self.username)
 result = app.mongodb[db_name].user.insert_one(
 {
 "username": self.username,
 "password_hash": self.password_hash,
 "dek_id": dek_id,
 "createdAt": datetime.now(),
 }
 )
 if result:
 self.id = result.inserted_id
 return True
 else:
 return False

Adding and Encrypting Data

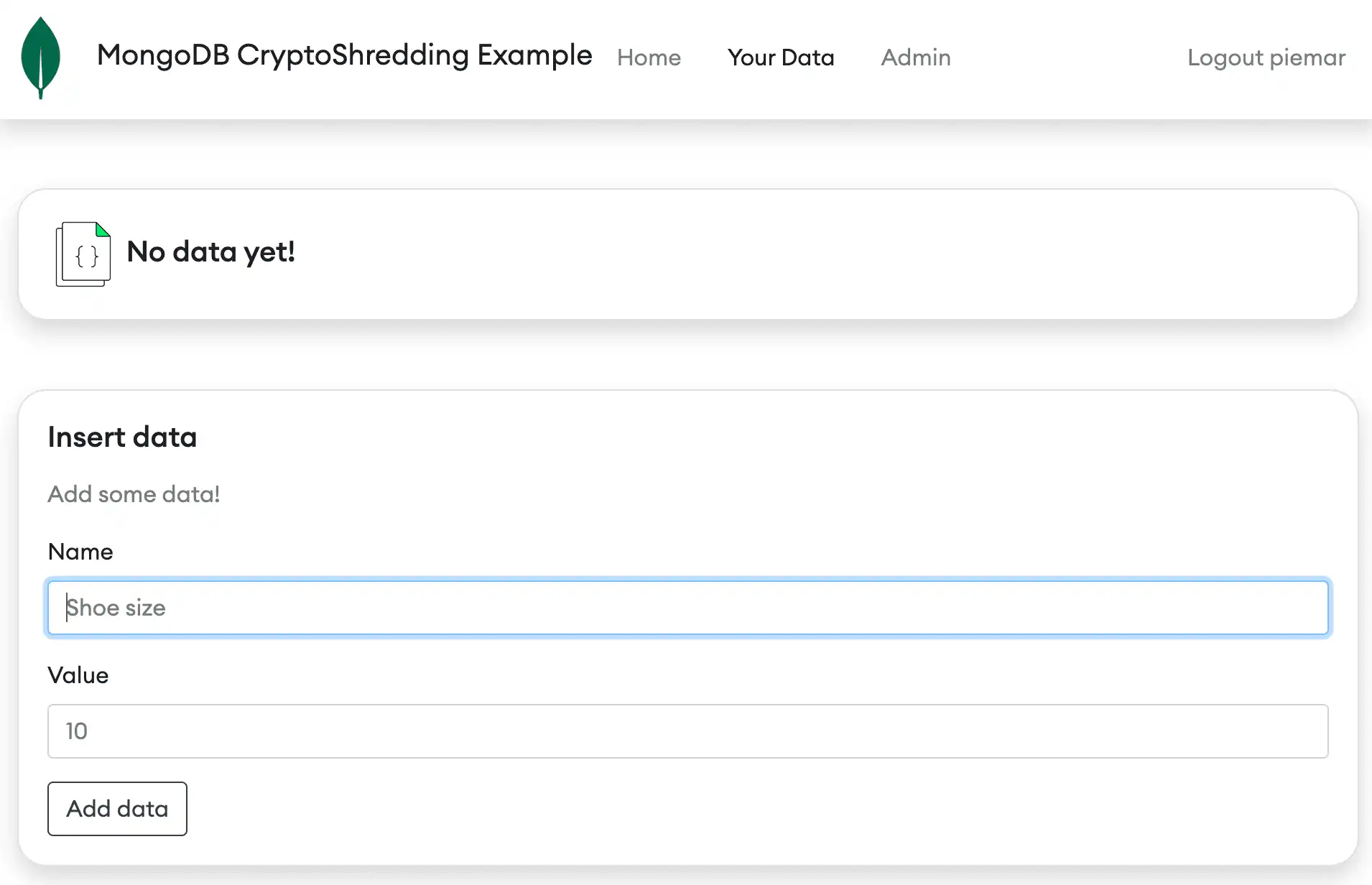

Once registered, a user can log in and enter data as key-value pairs via an input form:

The database stores this data in a MongoDB collection named “data,” where each document includes the username and the key-value pair:

{
 "name": "shoe size",
 "value": "10",
 "username": "tom"
}

The sample app encrypts the value and username fields, but not the name. The app encrypts fields with the user's DEK and a specified encryption algorithm:

# flaskapp/db_queries.py
# Fields to encrypt, and the algorithm to encrypt them with
ENCRYPTED_FIELDS = {
 # Deterministic encryption for username, because we need to search on it
 "username": Algorithm.AEAD_AES_256_CBC_HMAC_SHA_512_Deterministic,
 # Random encryption for value, as we don't need to search on it
 "value": Algorithm.AEAD_AES_256_CBC_HMAC_SHA_512_Random,
}

The insert_data function takes an unencrypted document and loops over the ENCRYPTED_FIELDS to encrypt them:

# flaskapp/db_queries.py
def insert_data(document):
 document["username"] = current_user.username
 # Loop over the field names (and associated algorithm) we want to encrypt
 for field, algo in ENCRYPTED_FIELDS.items():
 # if the field exists in the document, encrypt it
 if document.get(field):
 document[field] = encrypt_field(document[field], algo)
 # Insert document (now with encrypted fields) to the data collection
 app.data_collection.insert_one(document)

If the specified field exists in the document, the function calls encrypt_field to encrypt it using the specified algorithm:

# flaskapp/db_queries.py
# Encrypt a single field with the given algorithm
@aws_credential_handler
def encrypt_field(field, algorithm):
 try:
 field = app.mongodb_encryption_client.encrypt(
 field,
 algorithm,
 key_alt_name=current_user.username,
 )
 return field
 except pymongo.errors.EncryptionError as ex:
 # Catch this error in case the DEK doesn't exist. Log a warning and
 # re-raise the exception
 if "not all keys requested were satisfied" in ex._message:
 app.logger.warn(
 f"Encryption failed: could not find data encryption key for user: {current_user.username}"
 )
 raise ex

After adding data, you can see it in the Web app:

Deleting an Encryption Key

Now let's see what happens when you delete the DEK. The sample app does this from an admin page, which should be restricted to only those individuals with authorization to manage keys:

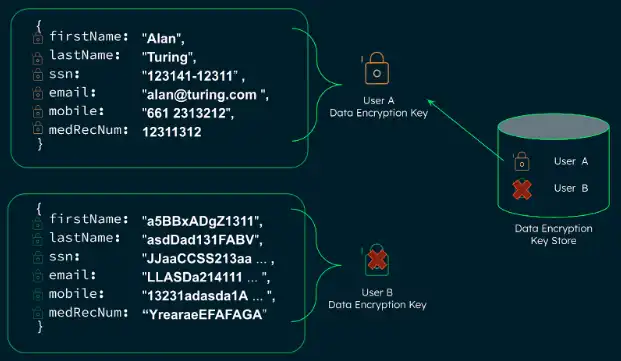

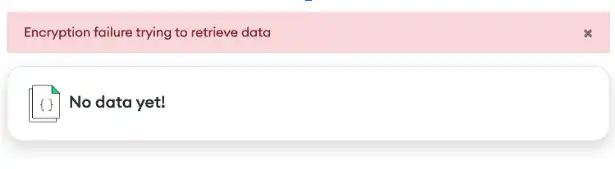

The "Delete data encryption key" option removes the DEK, but leaves the user's encrypted data in place. After that, the application can no longer decrypt the data. Trying to retrieve the data for the logged in user throws an error:

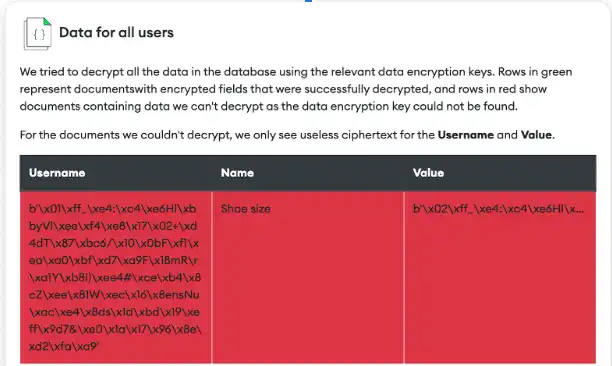

But what is actually left in the database? You can review the information by returning to the Admin page and clicking Fetch data for all users. This view doesn't throw an exception if the application can't decrypt the data. Instead, it shows exactly what is stored in the database.

Even though you haven't actually deleted the user's data, because the data encryption key no longer exists, the application can only show the ciphertext for the encrypted fields "username" and "value".

Here is the code used to fetch this data. It uses similar logic to the encrypt method shown earlier. The application runs a find operation without any filters to retrieve all data, then loops over the ENCRYPTED_FIELDS dictionary to decrypt fields:

# flaskapp/db_queries.py
def fetch_all_data_unencrypted(decrypt=False):
 results = list(app.data_collection.find())
 if decrypt:
 for field in ENCRYPTED_FIELDS.keys():
 for result in results:
 if result.get(field):
 result[field], result["encryption_succeeded"] = decrypt_field(result[field])
 return results

The decrypt_field function is called for each field to be decrypted, but in this case the application catches the error if it can't successfully decrypt it due to a missing DEK:

# flaskapp/db_queries.py
# Try to decrypt a field, returning a tuple of (value, status). This will be
either (decrypted_value, True), or (raw_cipher_text, False) if we
couldn't decrypt
def decrypt_field(field):
 try:
 # We don't need to pass the DEK or algorithm to decrypt a field
 field = app.mongodb_encryption_client.decrypt(field)
 return field, True
 # Catch this error in case the DEK doesn't exist.
 except pymongo.errors.EncryptionError as ex:
 if "not all keys requested were satisfied" in ex._message:
 app.logger.warn(
 "Decryption failed: could not find data encryption key to decrypt the record."
 )
 # If we can't decrypt due to missing DEK, return the "raw" value.
 return field, False
 raise ex

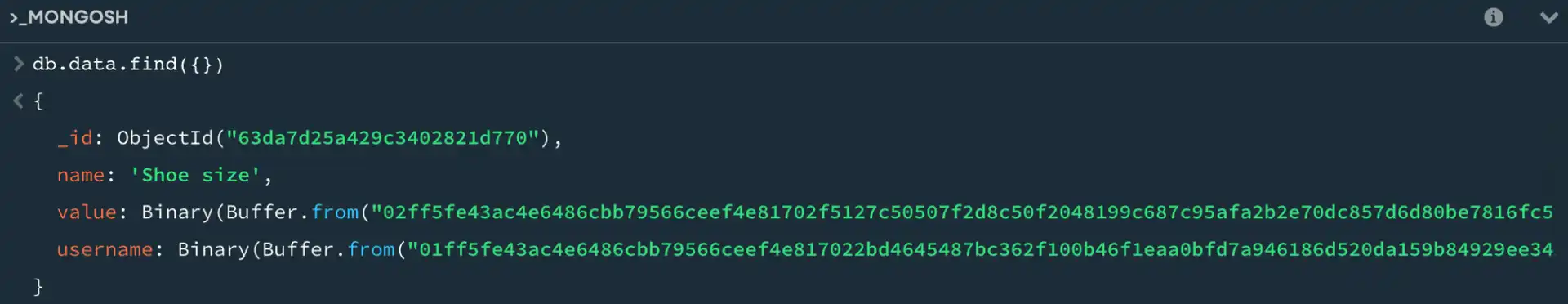

You can also use the mongosh shell to check directly in the database, to prove that there's nothing readable:

At this point, the user's encrypted data is still present. Someone could gain access to it by restoring their encryption key, such as from a database backup.

To prevent this, the sample application uses two separate database clusters: one for storing data, and one for storing DEKs (the "key vault"). Using separate clusters decouples the restoration of backups for application data and the key vault. Restoring the data cluster from a backup doesn't restore any DEKs that were deleted from the key vault cluster.
