Spreadsheets Extension for Qlik Sense

Downloading and Installing

Qlik Sense Desktop

To install Spreadsheets Extension in Qlik Sense Desktop, do the following:

1. Download Spreadsheets Extension for Qlik Sense.
2. Extract the archive.
3. Open a Windows Explorer window and navigate to the Qlik Sense Extensions directory:
   ..\Users\<UserName>\Documents\Qlik\Sense\Extensions.
4. Copy the anychart–4x–spreadsheets folder to the Extensions directory.
5. Relaunch Qlik Sense Desktop.

Qlik Sense Server

To install Spreadsheets Extension on a Qlik Sense server,

1. Download Spreadsheets Extension for Qlik Sense.
2. Open Qlik Management Console (QMC): https://<QPS server name>/qmc
3. Select Extensions on the QMC start page or from the Start drop–down menu.
4. Click Import in the action bar.
5. In the dialog, select the downloaded archive. Leave the password area blank.
6. Click Open in the file explorer window.
7. Click Import.

Qlik Sense Cloud

To install Spreadsheets Extension in Qlik Sense Cloud, do the following:

1. Download Spreadsheets Extension for Qlik Sense Cloud.
2. Extract the archive.
3. Access the Management Console:
   • add /console to your tenant address: https://<your tenant address>/console
   • or use the navigation link Administration under the user profile in the hub
4. Go to the Extensions page and click Add.
5. In the dialog, select the archive with the extension in the bundle — for example, anychart–4x–spreadsheets.zip.
6. Click Add.
7. Repeat the steps above to add other extensions.
8. In the Management Console, go to the Content Security Policy section and click Add.
9. In the dialog, give the Content Security Policy a name — for example, AnyChart.
10. Type the address of the origin server: qlik.anychart.com
11. Select the following directives:
    • connect–src
    • font–src
    • img–src
    • script–src
    • style–src
12. Click Add.

Overview

AnyChart Spreadsheets brings a powerful, Excel–like table editing experience directly into Qlik Sense. With support for native Excel formulas, rich formatting, multi–sheet setups, and interactive data exploration, this extension enables users to manipulate and analyze data with the flexibility of a full–featured spreadsheet.

Explore the Quick Start section to get hands–on experience on the Spreadsheets extension.

Quick Start

Create a Basic Table

This tutorial walks you through creating a basic Spreadsheets visualization from scratch.

Video walkthrough:

Step 1: Add an Empty Visualization

1. In your Qlik Sense app, go to the Assets Panel.
2. Navigate to Custom objects → AnyChart 4.
3. Drag the Spreadsheets Table visualization onto your sheet.

Step 2: Turn on Autosave

1. Select the visualization and open the Properties Panel.
2. Go to the Settings → Autosave section
3. Select Browser IndexedDB storage option

Step 3: Add a Data Section

1. Go to the Data section.
2. Click the Add button to create a new Data Section.
3. Select the newly created Data Section.
4. Ensure the Create synced sheet toggle is turned on.
5. Click Edit data and select Data.
6. Add your desired Columns.

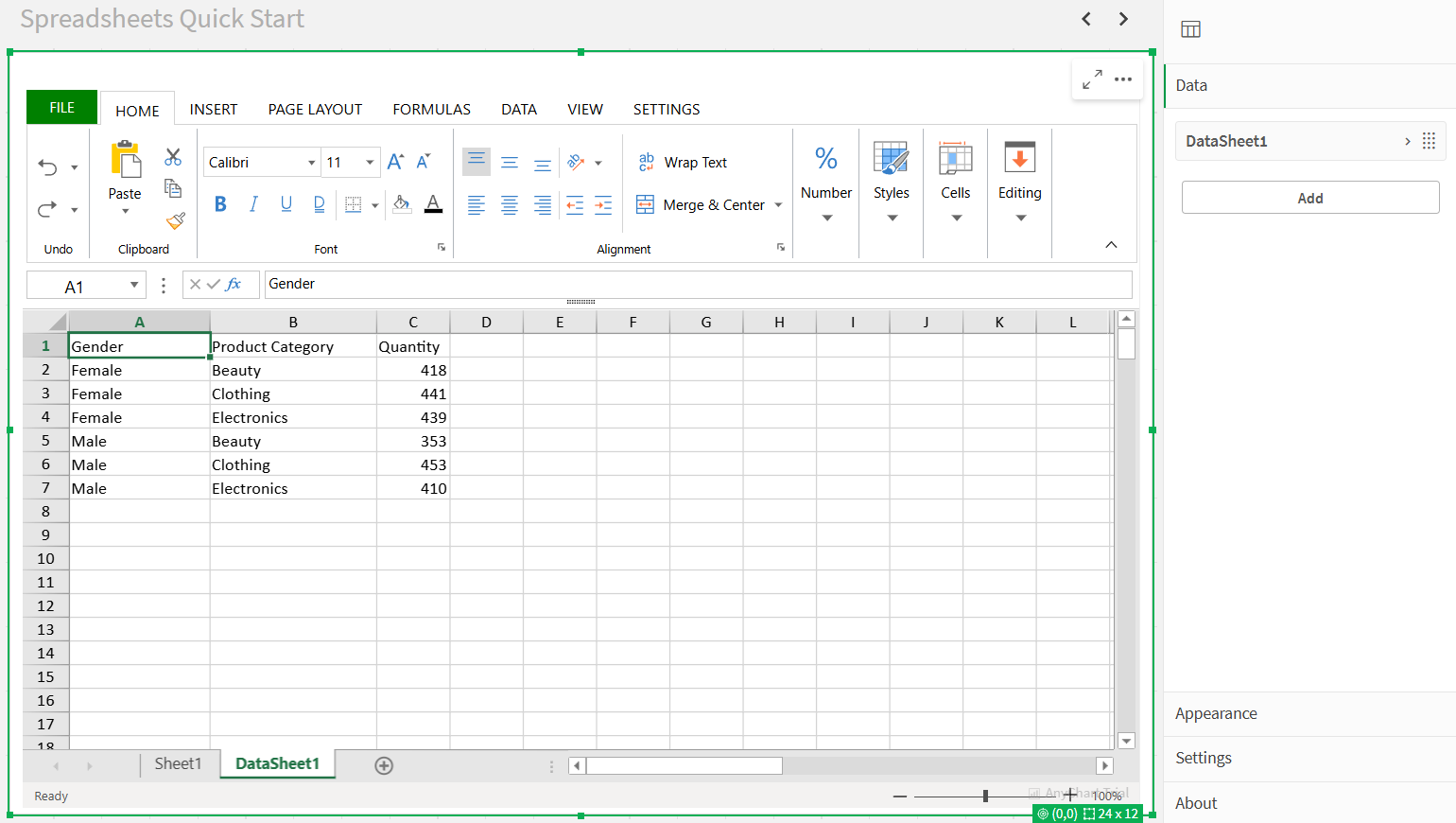

After completing these steps, your visualization will contain:

• One empty sheet: Sheet1
• One data–populated sheet from the Data Section: DataSheet1

Step 4: Format the Spreadsheet

1. Remove the empty sheet:
   • Right click on Sheet1 and select Delete.
2. Create a table on the remaining data sheet:
   • Select all cells containing data.
   • Go to the INSERT section in the Ribbon Menu.
   • Click Table, then confirm in the pop–up window.
3. Adjust formatting:
   • Resize columns and rows as needed.
   • Customize font styles using the HOME tab.

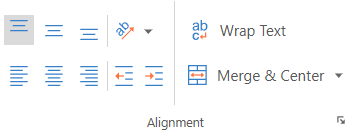

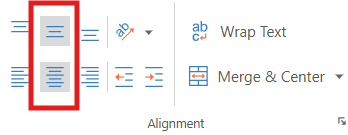

   • Select your header cells and use alignment tools under Font Alignment.



Step 4: Add a Chart

1. Select all cells containing data.
2. Go to the INSERT tab in the Ribbon Menu.
3. Click Insert Chart and choose a chart type that fits your data.
4. Click OK.
   Reposition your chart anywhere on the sheet.

Optional: Export Your Spreadsheet to Excel

If you want to continue working in another tool like Excel:

1. Go to the FILE tab in the Ribbon Menu.
2. Click Export.
3. Select the Excel file option.
4. Configure your export settings using Save Flags.
5. Click the Export Excel File button.
6. Name your file in the pop-up window and click OK.

After that, the download will start automatically, and your .xlsx file will be ready to open in Excel or any compatible software.

Use existing excel template

This guide walks you through how to use the AnyChart Spreadsheets extension in Qlik Sense to turn an Excel template into a fully interactive, data–driven spreadsheet.

Video walkthrough:

Prerequisites

• Qlik Sense app with the AnyChart Spreadsheets extension installed.
• Template file: personal-budget.xlsx

Step 1: Load Data into Qlik

1. Upload the personal–budget.xlsx file to the Attached Files of your Qlik app.
2. Open the Data Load Editor and use the following script to load the Budget and Transactions tables:

    LOAD Category, Budget FROM [lib://AttachedFiles/personal–budget.xlsx] (ooxml, embedded labels, header is 3 lines, table is Budget) Where Upper(Trim(Category)) <> 'TOTAL'; LOAD "Date", Description, Category, Amount FROM [lib://AttachedFiles/personal–budget.xlsx] (ooxml, embedded labels, header is 1 line, table is Transactions);

3. Click Load Data.

Step 2: Add the Spreadsheets Extension

1. Create a new sheet in your Qlik app and open it.
   Enter Edit Mode.
2. From the Custom Objects → AnyChart section, drag the Spreadsheets Table visualization onto the canvas.

Step 3: Turn on Autosave

1. Select the visualization and open the Properties Panel.
2. Go to the Settings → Autosave section.

Step 4: Import the Excel Template

1. With the visualization selected, go to the FILE tab in the ribbon menu.
2. Click Import Excel File.
3. Select the personal–budget.xlsx file.

The template contains two sheets:

• A Budget sheet
• A Transactions sheet

Step 5: Create Data Sections

1. Open the Properties Panel and navigate to the Data tab.
2. Click Add to create the first Data Section:
   • Add dimension:
     • Category
   • Add measures:
     • Sum(Budget)
     • Sum(Amount)
     • Sum(Budget) – Sum(Amount)
3. Click Add again to create the second Data Section:
   • Add dimensions:
     • Date
     • Description
     • Category
   • Add measure:
     • Sum(Amount)
4. Customize measure labels (e.g., rename Sum(Amount) to Amount).

Step 6: Prepare Template for Qlik Data

1. Switch to each sheet in the spreadsheet view.
2. Clear static cell values where Qlik data will be injected.
3. Set those cells' format to General using the ribbon (this is important for formulas to work properly).

Step 7: Insert QLIK.DATA Formulas

Budget Sheet

1. In the starting cell of the budget table (e.g., A4), enter:

   =QLIK.DATA(0,,,TRUE,"TOP")

   This pulls data from the first Data Section and enables both labels and totals.

2. Format data cells (e.g., Budget, Amount, and Difference columns) as Currency.

Transactions Sheet

1. In the starting cell of the transactions table (e.g., A2), enter:

   =QLIK.DATA(1,,,TRUE)

   This uses the second Data Section and shows labels.

2. Format the Date column as Short Date, and the Amount column as Currency.

Step 8: Final Formatting and Save

1. Make any final formatting adjustments.
2. Click the USER tab in the ribbon and select Save to app to store your changes.

Result

You now have a fully interactive spreadsheet that combines:

• A familiar Excel layout
• Live Qlik data
• Dynamic calculations using QLIK.DATA

Demos

Coming soon.

Sheets

The Spreadsheets extension supports working across multiple sheets — just like in Excel–enabling you to organize your data, calculations, and layouts across logical layers of a workbook.

Each sheet can contain a mix of:

• Static values — manually typed-in text or numbers.
• Functions — including references to other cells, ranges, or calculations.
• Data–linked cells — dynamically populated from Qlik data or QLIK formulas.

Sheets are fully independent:

• You can use different layouts and designs per sheet.
• Each sheet may display different hypercube data or none at all.
• The structure and formatting on one sheet will not interfere with another.

Sheet-to-Sheet References

Just like in Excel, you can reference cells from other sheets using the SheetName!CellReference format.

For example: =Sheet2!A1

This formula pulls the value from cell A1 on a sheet named Sheet2.

This makes it easy to create summary sheets, aggregate values, or build dashboards that combine multiple sheet outputs.

You can rename sheets and rearrange their tabs freely, offering flexibility in how you design the workbook structure.

Data

The Spreadsheets extension introduces a data model that integrates Qlik's associative engine with a flexible, Excel–like editing environment. This section covers how Qlik data is structured inside the extension and how it can be connected to spreadsheet content.

Data Sections

Data Sections define reusable datasets built from Qlik dimensions and measures. These act as the bridge between Qlik and the Spreadsheets canvas.

Overview

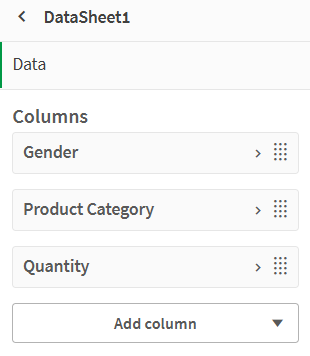

• A Data Section consists of Columns, where each column is a Dimension or a Measure from Qlik.
• The order of Columns is customizable.
• Data Sections are managed from the Properties Panel of the Spreadsheets extension.
• Each Data Section can be reused across sheets or tables and supports multiple connection modes (see Connecting Data Sections).

Totals

Each Data Section supports automatic totals per Measure columns:

• Enable totals from the Presentation tab of the Data Section configuration.
• Configure:
  • Position: Top / Bottom / None
  • Label: Customize text (e.g., "Total", "Summary")

Totals are calculated by Qlik and dynamically updated based on selections.

Columns

Each column in a Data Section represents either a Qlik dimension or measure, similar to fields in native Qlik tables. Columns are rendered in the spreadsheet to display actual values from the Qlik engine.

By default, columns are rendered in the order they are added — top to bottom — starting from the top-left corner of the sheet or the assigned data region.

Range

You can optionally specify a range for each column to control where exactly its values should appear in the sheet.

• Example (vertical): C1:C5 will place the column's values into cells C1 through C5.
• Example (horizontal): C3:H3 will populate cells horizontally across row 3.

Only values that fit within the defined range will be shown. If more values exist than available cells, the column is automatically truncated.

Ensuring Data Ranges Fit Within the Sheet

When using custom ranges for columns — whether vertical (e.g., C1:C10) or horizontal (e.g., C3:H3) — it's important to make sure the spreadsheet has enough space to display the data.

The rendered data must fit within the current sheet range, which is defined by the number of visible rows and columns. If the specified column range exceeds these limits, some data may be cut off, fail to render correctly, or cause unexpected behavior.

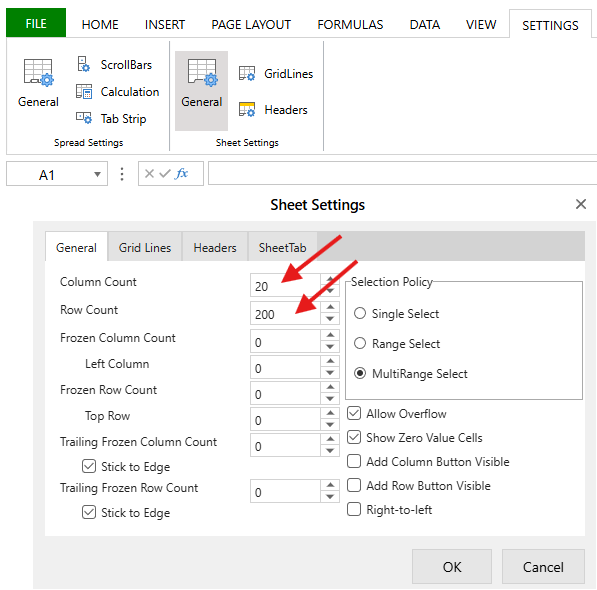

Adjusting Sheet Dimensions

To avoid such issues:

1. Go to the Settings tab in the Ribbon Menu.
2. Select General under Sheet Settings.
3. Increase the Row Count and/or Column Count as needed.

Known Behaviors and Limitations:

• Scrolling: Range settings may impact scroll behavior (see Scrolling section).
• Offsets: If different columns have different start positions (e.g., A1, B5, C10), data loading and scrolling will align based on the first column's offset.
• Mixed Offsets: Using non-uniform starting points (like A3, C5, E7) may result in gaps or unexpected rendering during data loading.
• Data Loading: The first-load and scroll-triggered loading always respect the offset of the first column when calculating how many rows to fetch.

Connecting Data Sections

Once a Data Section is defined, you can connect it to your spreadsheet in three main ways:

Overview

Each connection method offers a different balance of automation and control and suitable for different use cases, each having certain pros and cons:

Method	Use Case	Control	Best For
Synced Sheet (default)	Auto-populate a new sheet with data	Low	Quick previews, one section/sheet
Table Binding	Link a Data Section to a spreadsheet table	Medium	Tabular data views, fixed layouts
QLIK Formulas	Insert data manually via formulas	High	Custom templates, advanced layouts

Create Synced Sheet

• Enabled via the Create Synced Sheet toggle when adding a Data Section.
• Automatically creates a sheet named after the section label and injects the data.
• Suits for fast iteration and testing new data configurations.

Sheet is automatically updated if the Data Section changes.

Table Binding

Bind a Data Section directly to an existing table inside the spreadsheet.

Steps:

1. Select a table in the spreadsheet view.
2. Go to the Table Design tab in the Ribbon Menu.
3. Open the Select Source dropdown.
4. Select a Data Section.

The table will auto-populate with data from the selected section, with columns mapped in order.

This is ideal for pre-designed layouts or when you want to use Excel features like structured table formulas, formatting, or charts on live Qlik data.

QLIK Formulas

Power users can manually insert data using Qlik-aware formulas. These allow full control over layout and logic:

• QLIK.DATA() — inject data block
• QLIK.DATA.LABEL() — insert column labels
• QLIK.DATA.TOTAL() — insert total row values

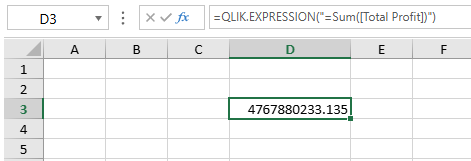

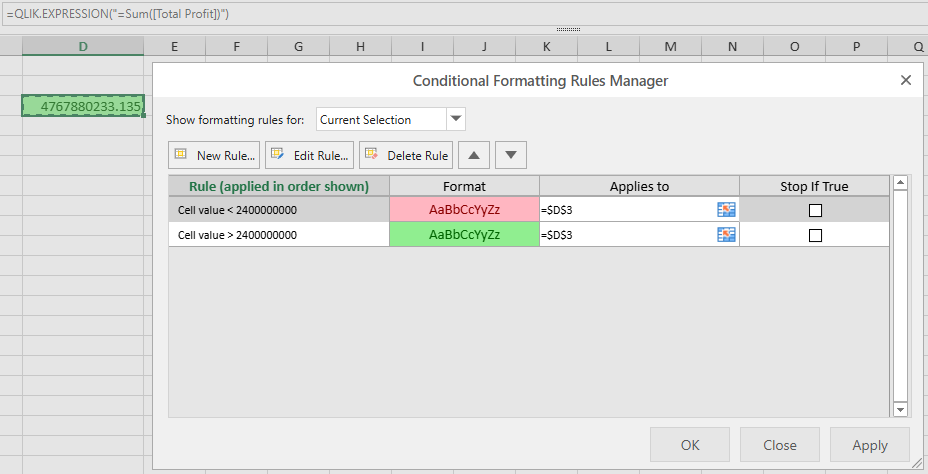

In addition to the data-binding functions above, the QLIK.EXPRESSION() formula allows you to evaluate arbitrary Qlik expressions directly inside the spreadsheet — dynamically reflecting changes in Qlik selections.

Note: Since these formulas are powered by live Qlik data, updates in the Qlik app (e.g., filters, selections, or underlying data changes) will immediately affect the spreadsheet. This can result in the number of populated cells increasing or decreasing, so plan your layout accordingly.

For detailed syntax and examples, see Qlik-Related Functions section

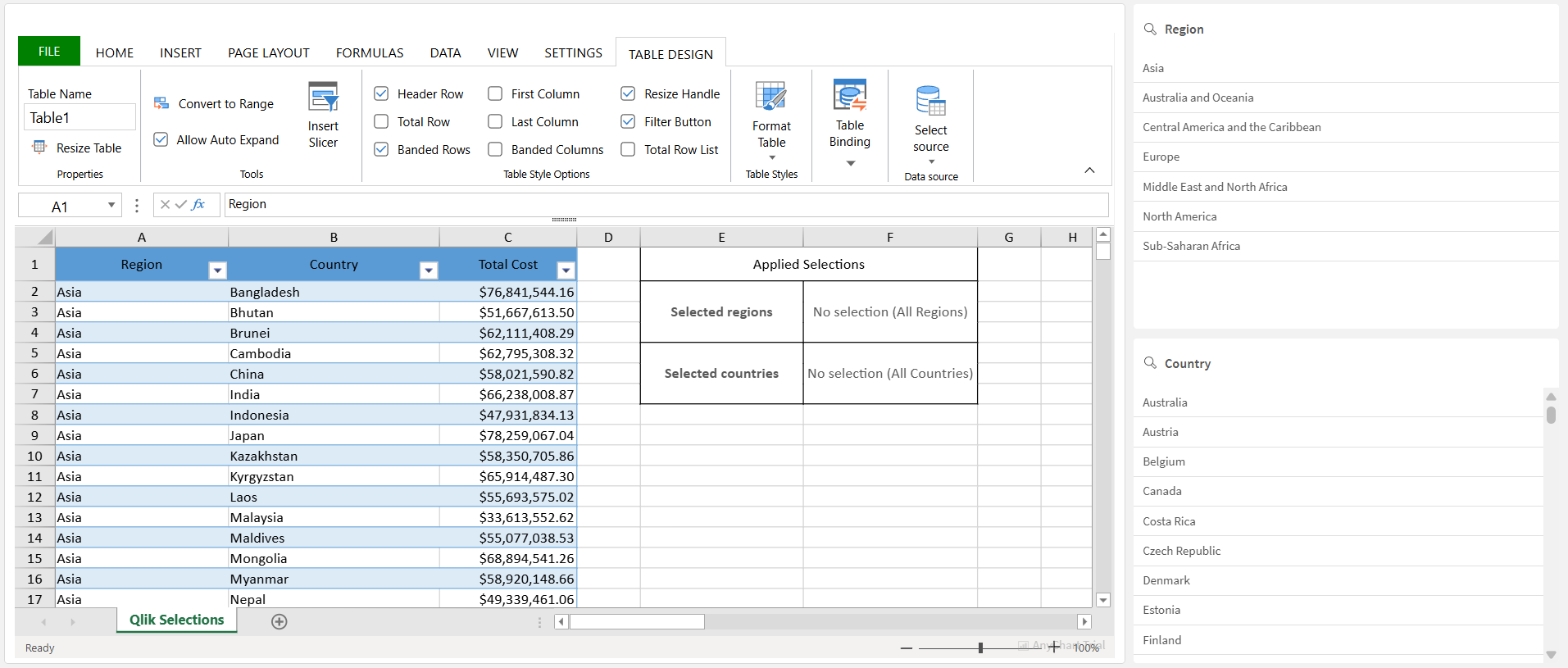

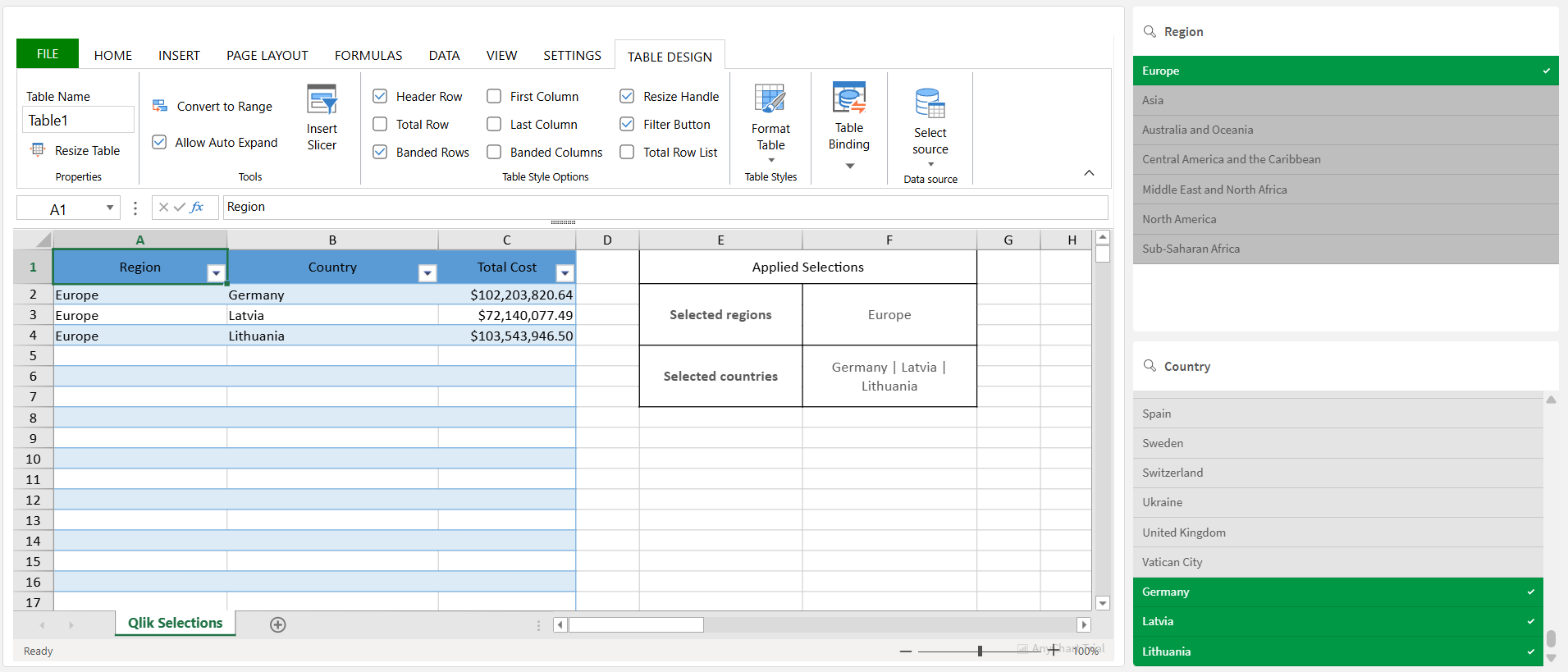

Qlik Selections

If your Spreadsheet is built on Data Sections, it will dynamically respond to Qlik selections.

You can also perform Qlik selections directly from the Spreadsheets extension.

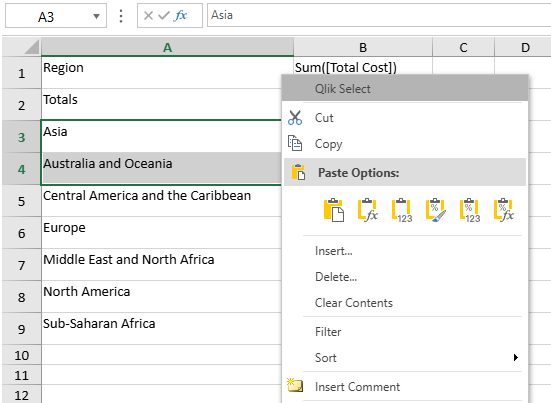

How to apply selection from the Spreadsheet

1. Select the cells you want to filter.
2. Right-click the selection.
3. Choose Qlik Select from the context menu.

The Spreadsheets extension will automatically detect valid selections and apply them to the Qlik app.

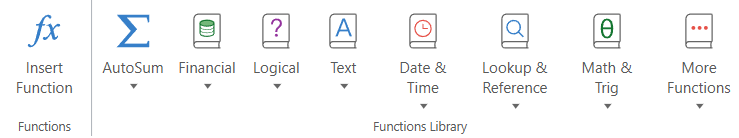

Excel Functions

The extension supports most native Excel functions, including:

• Math & Trig: SUM, AVERAGE, ROUND, INT
• Logic: IF, AND, OR, NOT
• Text: CONCATENATE, LEFT, RIGHT, TEXTJOIN
• Lookup: VLOOKUP, INDEX, MATCH
• Date & Time: TODAY, NOW, DATEDIF, EOMONTH
• Array: UNIQUE, SORT, FILTER

And many others.

Feel free to explore a full list of available Excel functions in the Formulas section of the Ribbon Menu

Qlik–Related Functions

The Spreadsheets extension supports a set of Qlik–specific formulas that allow you to interact with data sections, extract values, labels, totals, or evaluate expressions directly in spreadsheet cells.

Each function runs asynchronously and returns dynamic values based on Qlik's associative model.

QLIK.DATA

Fetches and inserts data values from a preconfigured Data Section.

=QLIK.DATA(data_section_label_or_index, [column_label_or_index], [is_horizontal], [show_label], [show_total], [limit])

Arguments:

• data_section_label_or_index — Label or index of the Data Section.
• column_label_or_index — (Optional) Label or index of the column (dimension or measure).
• is_horizontal — (Optional) If true, data fills horizontally instead of vertically.
• show_label — (Optional) If true, includes column labels.
• totals_position — (Optional, Enum) Controls if and where total values are inserted.
  • "INHERIT" — Use total settings defined in the Qlik panel (definition section).
  • "TOP" — Insert total values above the data range.
  • "BOTTOM" — Insert total values below the data range.
  • "NONE" (default) — No totals are inserted.
  • Invalid values will be treated as "NONE".
• limit — (Optional) Sets the maximum number of rows (or columns, if horizontal) to return from the Data Section. This is not the same as setting limitations in the Data Section, this is a hard limit on the number of rows, please use Data Section limitation if you need proper limitation on measure.

Use cases:

• Embedding Qlik data into specific spreadsheet regions.
• Populating sheets with multiple datasets independently.
• Displaying data when automatic sheet–to–section binding is not desired.

QLIK.DATA.LABEL

Returns the label of a specific dimension or measure from a Data Section.

=QLIK.DATA.LABEL(data_section_label_or_index, column_label_or_index)

Arguments:

• data_section_label_or_index — Label or index of the Data Section.
• column_label_or_index — Label or index of the dimension or measure.

Use cases:

• Dynamically showing column headers.
• Building generic or reusable templates with flexible data inputs.

QLIK.DATA.TOTAL

Returns the total aggregation value for a specific measure in a Data Section.

=QLIK.DATA.TOTAL(data_section_label_or_index, column_label_or_index)

Arguments:

• data_section_label_or_index — Label or index of the Data Section.
• column_label_or_index — Label or index of the column.

Use cases:

• Displaying total rows or summary KPIs outside the main data block.
• Referencing Qlik–calculated totals without manual summing.

QLIK.EXPRESSION

Evaluates a Qlik expression and returns the result.

=QLIK.EXPRESSION("=Today()")

Arguments:

• query_string — A Qlik expression wrapped in quotes (must start with =).

Use cases:

• Display aggregated measures (KPI)

• =QLIK.EXPRESSION("=Sum(Sales)")
• Combine with spreadsheet features like conditional formatting to highlight:
  • Green if above target
  • Red if below
• Display applied selections
  • =QLIK.EXPRESSION("=GetSelectedCount(Country)")
  • =QLIK.EXPRESSION("=GetFieldSelections(Region, ' | ')")
• Display system values
  • =QLIK.EXPRESSION("=Now()")
  • =QLIK.EXPRESSION("=OSUser()")
  • =QLIK.EXPRESSION("=ReloadTime()")

Live Expression Evaluation

All values returned by QLIK.EXPRESSION() are dynamic and update in real time based on:

• Selections made in the Qlik app
• Underlying data changes
• System or session context

These values can change between sessions or users — ideal for live dashboards or personal views.

Tip: Use this function alongside native Excel logic (IF, TEXT, ROUND, etc.) to create smart dashboards directly inside the spreadsheet.

Practical Examples

KPI

It is possible to build KPIs based on Qlik formulas and then apply conditional formatting rules to highlight results visually.

1. Insert KPI Formula

   Enter a Qlik expression into a cell. For example, to calculate the total profit:

   =QLIK.EXPRESSION("=GetFieldSelections(Region, '|')")



2. Apply Conditional Formatting

   Use Spreadsheet's Conditional Formatting feature to dynamically style the cell based on the KPI result.

   Example rules:

   • Green if Total Profit is greater than 2,400,000,000
   • Red if Total Profit is less than 2,400,000,000



3. Live Updates

   When selections are applied in Qlik, the KPI value will automatically update, and formatting will be re-evaluated in real time.

   This makes it easy to build live KPI dashboards where visual indicators instantly respond to Qlik filters and selections.

Selection Status Banner

A Selection Status Banner allows you to show which values are currently selected in the Qlik app. This makes it easy to provide context inside your spreadsheet reports, ensuring that end users always know which filters are active.

Unlike simple KPIs, here we are using more complex Qlik formulas that combine multiple functions (IF, GetSelectedCount(), GetFieldSelections()). This demonstrates that you are not limited to basic expressions — it is possible to construct flexible formulas to match your exact reporting needs.

1. Insert Selection Formulas

   • To show the selected Region:=QLIK.EXPRESSION("=IF(GetSelectedCount(Region) = 0, 'No selection (All Regions)', GetFieldSelections(Region, ' | '))")
   • To show the selected Country:=QLIK.EXPRESSION("=IF(GetSelectedCount(Country) = 0, 'No selection (All Countries)', GetFieldSelections(Country, ' | '))")



2. Result with Active Selections

   When the user applies selections in the Qlik app, the banner automatically updates to reflect the chosen values.

   • If Europe is selected in Region → the cell shows Europe.
   • If Germany, Latvia, Lithuania are selected in Country → the cell shows Germany | Latvia | Lithuania.



   This example uses an IF wrapper to handle the “No selection” case, but you can adapt the logic:

   • Replace text strings with your own wording ("All Regions" → "All Values").
   • Concatenate multiple fields into one line (e.g., Region + Year).
   • Apply conditional formatting to highlight when filters are too narrow or too broad.

App & System Meta (Live)

It is possible to display application metadata directly in the spreadsheet using Qlik system functions. This ensures that every report clearly communicates which app it came from and when the data was last refreshed.

1. Insert Metadata Formulas

   • Document name: =QLIK.EXPRESSION("=DocumentName()")
   • Reload timestamp: =QLIK.EXPRESSION("=ReloadTime()")



Formatting

The Spreadsheets extension offers a comprehensive suite of formatting tools available in the Ribbon Panel, organized by sections. Below are the most frequently used tools from the Home tab, helping you quickly style and structure your spreadsheet content.

Home

• Fonts: font size, color, bold, italic, underline, background fill, borders

• Text Aligning: Vertical and horizontal alignment, Orientation, Indent, Wrap, Merge and Center

• Number formats: currency, percentage, custom formats

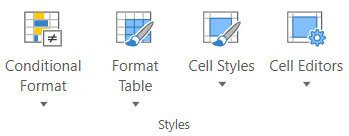

• Cell Styling: Conditional Format, Table Format, Cell Styles, Cell Editors

• Cells: Insert, Delete, Format

• Editing: Insert Function, Fill, Clear, Sort and Filter, Find


Scrolling

The Spreadsheets extension implements vertical scrolling to support smooth interaction with large datasets, especially when using Qlik-connected Data Sections. This behavior is automatic and depends on the sheet type and how data is connected.

This section describes how scrolling affects data loading and rendering, and outlines important details for advanced use cases.

General

• As the user scrolls vertically and approaches the bottom of the visible area, the system checks whether more rows should be added or data should be loaded.
• Horizontal scrolling is supported for navigation only and does not trigger data loading or range expansion.

Synced Data Sheets

When using the Create Synced Sheet for the Data Section, the spreadsheet will automatically handle large datasets by loading more rows as you scroll.

As you move down the sheet, if more Qlik data is available, it will seamlessly appear below the visible rows — no need to manually trigger or reload anything. This makes working with long tables feel fluid and uninterrupted.

If there's no more data left to load, the sheet will still let you scroll further, but the new rows will appear empty.

This behavior ensures:

• You never hit a hard stop while scrolling.
• New data appears only when needed.
• Layout remains consistent, even when reaching the end of the data.

You can control how much data is loaded initially by adjusting the Rows Count setting in the sheet's settings.

On Other Sheets

Sheets that are not linked to Data Sections through Create Synced Sheet do not trigger any automatic row addition or data loading during scrolling.

Range Offset and Data Loading

The system respects the range offset of the first column in a Data Section when calculating data loading behavior.

• If the first column's range starts at a lower row (e.g., A100), the sheet begins rendering from that position.
• All scrolling and data fetching logic is based on that first-column offset.

Limitations and Edge Cases

• Horizontal ranges (e.g., A1:Z1) will render data correctly for the first set of values but will not support additional data loading during vertical scrolling. The user must manage layout and visibility manually in such cases.
• Mixed column offsets (e.g., A1, B5, C10) may result in:

• Inconsistent alignment
• Gaps in the displayed data
• Data appearing only partially loaded

Data fetching is always aligned with the first column's offset, regardless of how other columns are configured.

Performance Considerations

Custom ranges with large offsets or very high row counts can significantly increase data volume during load.

For example:

• A Data Section with 5 columns and a user-defined row limit of 10,000 will attempt to load and render 50,000 cells.
• This may affect performance, especially in older browsers or lower-end machines.

To maintain responsiveness, consider:

• Limiting the number of rows where possible.
• Avoiding unnecessarily large starting offsets.

Open / Save

The Open / Save functionality in the File Menu allows you to preserve, reuse, and share the content of your Spreadsheet.

You can choose from 2 storage locations for saving and loading your Spreadsheet configurations. Each option can be enabled or disabled in the Properties Panel. Once enabled, the corresponding section will appear in the File Menu.

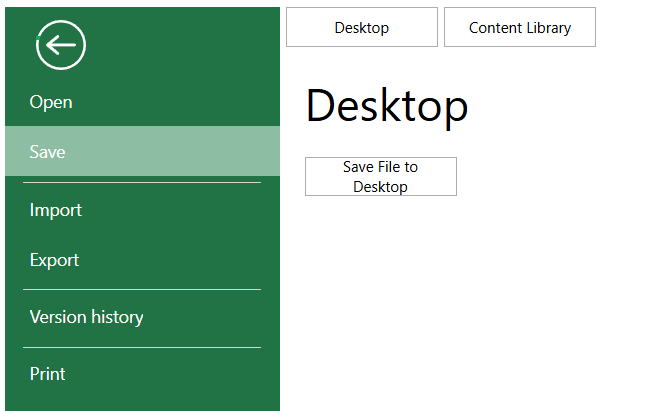

Option 1: Desktop

• Saves your Spreadsheet configuration as a JSON file on your computer.
• Best for sharing directly with individual users or keeping private copies.

To open a saved file:

1. Go to the File Menu → Open → Desktop.
2. Click Select File.
3. Choose the previously saved JSON configuration file.

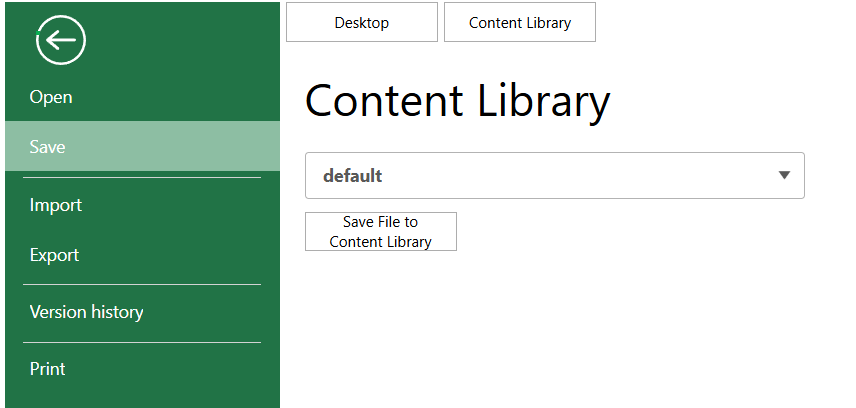

Option 2: Content Library

• Saves your configuration as a JSON file inside the chosen Qlik Content Library.
• Similar to the Desktop option, but the file is stored in Qlik rather than locally.
• Best for maintaining multiple versions of Spreadsheet setups accessible to all users with Content Library access.

Tip: For automatic changes that don't need explicit saving, use the Autosave functionality.

Autosave

The Autosave functionality lets you preserve changes in your Spreadsheet without explicitly saving them to a stable configuration.

When enabled, any change you make is automatically recorded after 3 seconds of inactivity. These autosaved changes are stored locally in your browser and are only available to you (not shared with other users).

There are three storage options:

Option 1: Window Session

• Saves the current configuration in your browser session.
• Changes remain available as long as the browser window stays open.
• Closing the browser will discard all autosaved changes.

Option 2: Browser IndexedDB

• Saves the current configuration in the browser's IndexedDB storage.
• Changes are preserved even after closing and reopening the browser.
• Best for keeping your personal work-in-progress across multiple sessions.

Option 3: Disabled

• Completely turns off Autosave.
• No changes are preserved automatically.

Note: Use Window Session for temporary work, IndexedDB for persistent personal drafts, or Disabled if you only want manual saves. At the same time, it is not recommended to store impactful changes long-term with Autosave. Consider using the stable saving options for long-term changes.

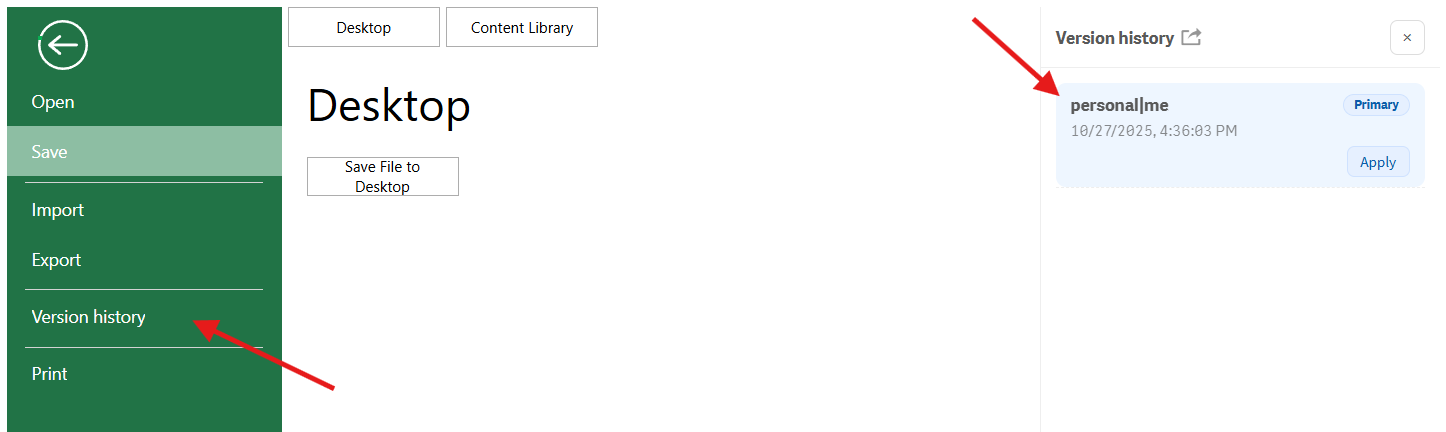

Version History

When the Autosave functionality is enabled, the Version History option becomes available in the File Menu.

Version History allows you to access the latest autosaved versions of all authorized users who have access to the application.

In other words, when users make changes to the Spreadsheet, their most recent autosaved versions will appear in the Version History tab — making it easy to review and restore them.

You can browse each saved version to inspect its contents.

Click Apply to restore a selected version as your current Spreadsheet state.

• If you are not the owner of the Qlik application, the applied version will affect only your personal last saved version of the Spreadsheet.
• If you are the owner of the application, applying a version will update the default configuration of the Spreadsheet for all users.

Import / Export

The Spreadsheets extension provides robust tools for importing and exporting data, enabling smooth interaction with external files and software

Importing Excel or CSV Files

To import data, open the FILE tab in the ribbon menu and select Import. You can upload either an .XLSX (Excel) or .CSV file.

Each import type includes a set of configurable options that control how the file is processed. Depending on the selected format, you may be able to preserve formatting, formulas, merged cells, calculation settings, and more. These options ensure that imported content behaves and appears as expected in the Qlik environment.

Once imported, the spreadsheet maintains its structure and styling, making it easy to continue working with existing data or templates. You can also enrich the imported file with Qlik-driven charts, additional sheets, or calculated logic.

Exporting to Excel, CSV, or PDF

To export your spreadsheet, go to the FILE tab and choose Export. You can save the current workbook in .XLSX, .CSV, or .PDF format, depending on your needs.

Each export format includes its own configuration panel, allowing you to tailor the output. For example, you may choose to include styles, formulas, layout elements, headers, or control how merged and empty cells are handled. These options help ensure your exported document preserves the desired structure and content fidelity.

Note: when exporting to Excel, make sure the Include Binding Source flag is turned on. Otherwise the export may be corrupted.

AI Formula

The AI Formula feature allows you to run natural language queries using a connected AI model (in alpha version supports connection only with OpenAI). This enables spreadsheets to become interactive, intelligent tools — capable of generating or transforming content on the fly using language-based prompts.

Configuration (Property Panel)

To use AI formulas, go to the AI Formula section in the properties panel of the extension and configure the following settings:

• AI server URL

  The endpoint for the OpenAI API (e.g., https://api.openai.com/v1/chat/completions)

• AI model

  Currently supports:

  • Gpt-3.5-turbo
  • Gpt-4

    (Additional models will be added in the future)

• Max tokens per request

  Controls the length of the AI's response (default: 4000)

• Formula evaluation mode

  Determines when the AI is queried:

  • On recalculation
  • Once
  • On interval

• API Key

  Your OpenAI secret key (must have valid access rights to the selected model)

Using the AI() Formula in the Spreadsheet

Once the above settings are configured, you can use the following formula directly in spreadsheet cells:

=AI("Translate this sentence to Spanish: " & A2)

Formula Syntax:

AI(query_string)

• query_string — A string prompt that will be sent to the selected model (can be static or dynamic using cell references)

The result will be displayed directly in the cell where the formula is entered.

Conversion from table extension

You can convert a standard Qlik Table chart into the Spreadsheets extension.

• All configured Columns from the original Table are automatically transferred into the default Data Section of the Spreadsheet.
• A corresponding sheet is created, containing all the same columns as the original Table.

How to convert a Table chart:

1. Make sure you have a Table chart with data on the sheet of your app.
2. Enter Edit Mode and open the Assets panel.
3. Go to Custom Objects.
4. Find the Spreadsheets extension.
5. Drag and drop it onto the existing Table chart.
6. Select Convert.

Note: Conversion works only one way. Converting a Spreadsheet back into a standard Qlik Table chart is not supported.

Tip: Use this feature to quickly migrate existing tables into Spreadsheets and unlock advanced editing and interaction features.

Hotkeys

The list of hotkeys available to usage with the Spreadsheet extension.

KEY	ACTION
Ctrl+Z	undo
Ctrl+Y	redo
Ctrl + Down	navigationBottom
Down	navigationDown
End	navigationEnd
Ctrl+Right	navigationEnd
Ctrl+Home	goToSheetBeginning
Home	navigationHome
Ctrl+Left	navigationHome2
Ctrl+End	goToSheetBottomRight
Left	navigationLeft
Tab	moveToNextCell
PageDown	navigationPageDown
PageUp	navigationPageUp
Ctrl+PageUp	NavigationPreviousSheet
Shift+Tab	moveToPreviousCell
Right	navigationRight
Up	navigationUp
Delete	clear
Enter	commitInputNavigationDown
Shift+Enter	commitInputNavigationUp
ESC	cancelInput
Shift+Left	selectionLeft
Shift+Right	selectionRight
Shift+Up	selectionUp
Shift+Down	selectionDown
Shift+Home	selectionHome
Ctrl+Shift+Left	selectionHome
Shift+End	selectionEnd
Ctrl+Shift+Right	selectionEnd
Shift+PageUp	selectionPageUp
Shift+PageDown	selectionPageDown
Ctrl+Shift+Up	selectionTop
Ctrl+Shift+Down	selectionBottom
Ctrl+Shift+Home	selectionFirst
Ctrl+Shift+End	selectionLast
Ctrl+C	Copy
Ctrl+X	Cut
Ctrl+V	Paste
Alt+Enter	InputNewLine
