点面判断、按面圈选点或其他对象，是GIS几何应用中非常典型的需求。
在PostgreSQL中通过建立GiST索引可以加速这类判断，然而，建立索引就够了吗？
很多时候建立索引是不够的，性能没有到达巅峰，如果要更低的延迟，更少的CPU开销，还有什么优化手段呢？
实际上我以前写过一篇类似的文章，讲的是BTree索引访问的优化，当数据存放与索引顺序的线性相关性很差时，引入了一个问题，访问时IO放大：
原理和解决办法上面的文档已经讲得很清楚了。对于空间索引也有类似的问题和优化方法。但是首先你需要了解空间索引的构造：
然后你可以通过空间聚集，来降低空间扫描的IO。
下面以一个搜索为例，讲解空间包含搜索的优化方法：
在表中有1000万空间对象数据，查询某个多边形覆盖到的空间对象。这个查询有一个特点，这个多边形是一个长条条的多边形，包含这个多边形的BOUND BOX是比较大的。
构建这个多边形的方法
postgres=# select st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326); st_setsrid ---------------------------- 0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000 (1 row) 优化手段1 - 空间聚集
1、建表
postgres=# create table e(id int8, pos geometry); CREATE TABLE 2、写入空间测试数据（1000万个随机点，覆盖 +-50 的经纬度区间）
postgres=# insert into e select id, st_setsrid(st_makepoint(50-random()*100, 50-random()*100), 4326) from generate_series(1,10000000) t(id); INSERT 0 10000000 3、创建空间索引
postgres=# create index idx_e on e using gist(pos); CREATE INDEX 4、查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from e where pos @ st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326); QUERY PLAN ----------------------- Index Scan using idx_e on public.e (cost=0.42..12526.72 rows=10000 width=40) (actual time=0.091..39.449 rows=35081 loops=1) Output: id, pos Index Cond: (e.pos @ '0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry) Buffers: shared hit=35323 Planning time: 0.108 ms Execution time: 41.222 ms (6 rows) 搜索了35323个数据块，返回了35081条记录。
5、查询被这个多边形包含的对象。
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from e where st_contains(st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326), pos); QUERY PLAN ----------------------- Index Scan using idx_e on public.e (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.077..49.015 rows=8491 loops=1) Output: id, pos Index Cond: ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ e.pos) Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, e.pos) Rows Removed by Filter: 26590 Buffers: shared hit=35323 Planning time: 0.085 ms Execution time: 49.460 ms (8 rows) 搜索了35323个数据块，搜索了35081条记录，返回了8491条记录，过滤了26590条不满足条件的记录。
5和4的查询差异是BOUND BOX包含、实际的轮廓包含。索引的基础是bound box。在以下文档中我们也可以学习到这个原理。
我们看到，复合条件的记录并不多，但是搜索了很多数据块，通过空间聚集可以减少数据块的扫描。
6、创建另一张表，按空间聚集，调整数据存储顺序。并建立空间索引。
postgres=# create table f(like e); CREATE TABLE postgres=# insert into f select * from e order by st_geohash(pos,15); INSERT 0 10000000 postgres=# create index idx_f on f using gist(pos); CREATE INDEX 7、优化后：
查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where pos @ st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326); QUERY PLAN ----------------------- Index Scan using idx_f on public.f (cost=0.42..12526.72 rows=10000 width=40) (actual time=0.081..9.702 rows=35081 loops=1) Output: id, pos Index Cond: (f.pos @ '0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry) Buffers: shared hit=1648 Planning time: 0.096 ms Execution time: 11.404 ms (6 rows) 8、优化后：
查询被这个多边形包含的对象。从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where st_contains(st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326), pos); QUERY PLAN ----------------------- Index Scan using idx_f on public.f (cost=0.42..15026.72 rows=3333 width=40) (actual time=1.216..32.398 rows=8491 loops=1) Output: id, pos Index Cond: ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ f.pos) Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, f.pos) Rows Removed by Filter: 26590 Buffers: shared hit=1648 Planning time: 0.101 ms Execution time: 32.837 ms (8 rows) 使用空间聚集，从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。
优化手段2 - 空间分裂查询
空间聚集的优化手段，解决了IO放大的问题，另一个优化点和空间索引的结构有关，是BOUND BOX放大的问题。
从本文的例子中，我们也看到了，空间索引实际上是针对bound box的，所以在有效面积占比较低时，可能圈选到多数无效数据，导致IO和CPU同时放大，我们就来解决它。

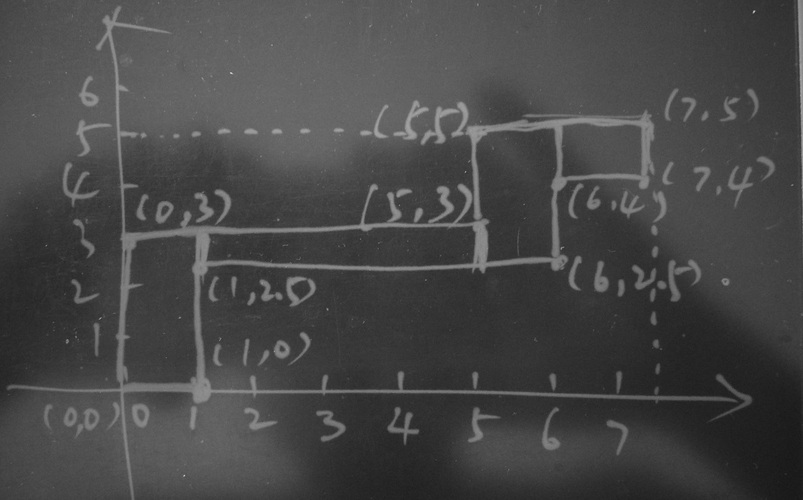

下图虚线部分包含的区间就是这个长条条的BOUND BOX。目前数据库在使用GiST索引查询满足这个多边形包含的POS的条件时，会将落在这个BOUND BOX中的对象都弄出来。
优化思路：

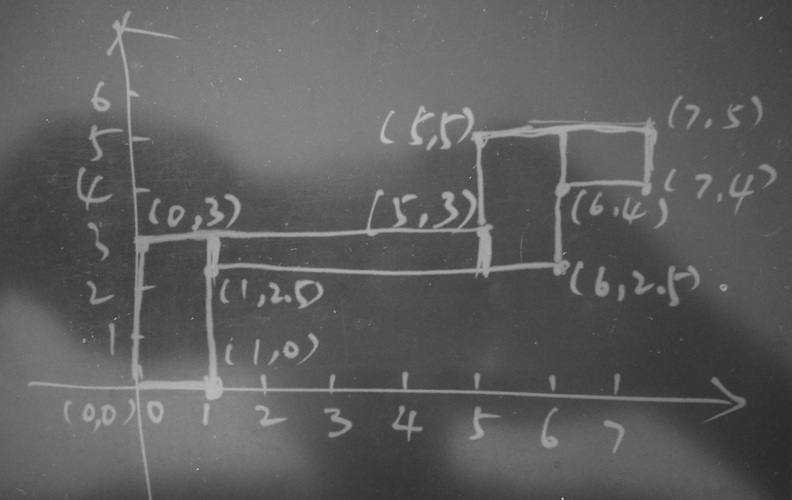

将这个多边形，拆成4个BOX，完全杜绝bound box放大的问题。
explain (analyze,verbose,timing,costs,buffers) select * from f where st_contains(st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326), pos); explain (analyze,verbose,timing,costs,buffers) select * from f where pos @ st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326); 1、组合1和2的优化手段后：
查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。从扫描1648个数据块降低到了访问243个数据块。质的飞跃。
explain (analyze,verbose,timing,costs,buffers) select * from f where pos @ st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326) or pos @ st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326); QUERY PLAN ----------------------- Bitmap Heap Scan on public.f (cost=10000000690.01..10000037405.46 rows=39940 width=40) (actual time=1.502..2.329 rows=8491 loops=1) Output: id, pos Recheck Cond: ((f.pos @ '0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry) OR (f.pos @ '0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry) OR (f.pos @ '0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry) OR (f.pos @ '0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry)) Heap Blocks: exact=119 Buffers: shared hit=243 -> BitmapOr (cost=690.01..690.01 rows=40000 width=0) (actual time=1.483..1.483 rows=0 loops=1) Buffers: shared hit=124 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.461..0.461 rows=3077 loops=1) Index Cond: (f.pos @ '0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry) Buffers: shared hit=37 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.423..0.423 rows=1991 loops=1) Index Cond: (f.pos @ '0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry) Buffers: shared hit=33 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.366..0.366 rows=2435 loops=1) Index Cond: (f.pos @ '0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry) Buffers: shared hit=31 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.232..0.232 rows=988 loops=1) Index Cond: (f.pos @ '0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry) Buffers: shared hit=23 Planning time: 0.104 ms Execution time: 2.751 ms (21 rows) 2、组合1和2的优化手段后：
查询被这个多边形包含的对象。从扫描1648个数据块降低到了访问243个数据块。质的飞跃。
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where st_contains(st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326), pos) or st_contains(st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326), pos); QUERY PLAN -------------------------------------------- Bitmap Heap Scan on public.f (cost=663.40..77378.85 rows=13327 width=40) (actual time=1.496..11.038 rows=8491 loops=1) Output: id, pos Recheck Cond: (('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos) OR ('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos) OR ('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos) OR ('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos)) Filter: ((('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos) AND _st_contains('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry, f.pos)) OR (('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos) AND _st_contains('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry, f.pos)) OR (('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos) AND _st_contains('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry, f.pos)) OR (('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos) AND _st_contains('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry, f.pos))) Heap Blocks: exact=119 Buffers: shared hit=243 -> BitmapOr (cost=663.40..663.40 rows=40000 width=0) (actual time=1.472..1.472 rows=0 loops=1) Buffers: shared hit=124 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.436..0.436 rows=3077 loops=1) Index Cond: ('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos) Buffers: shared hit=37 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.438..0.438 rows=1991 loops=1) Index Cond: ('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos) Buffers: shared hit=33 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.365..0.365 rows=2435 loops=1) Index Cond: ('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos) Buffers: shared hit=31 -> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.234..0.234 rows=988 loops=1) Index Cond: ('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos) Buffers: shared hit=23 Planning time: 0.163 ms Execution time: 11.497 ms (22 rows) 优化手段2，将长条条的polygon拆分成多个小的box，将大的bound box消除，搜索的BLOCK再次降低到243。质的飞跃。
将两个手段合并起来用，起到了双剑合璧的效果。
st_split 切分对象
PostGIS提供了切分对象的方法。
http://postgis.net/docs/manual-2.4/ST_Split.html

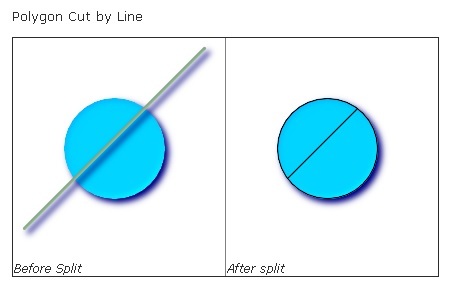

-- this creates a geometry collection consisting of the 2 halves of the polygon -- this is similar to the example we demonstrated in ST_BuildArea SELECT ST_Split(circle, line) FROM (SELECT ST_MakeLine(ST_MakePoint(10, 10),ST_MakePoint(190, 190)) As line, ST_Buffer(ST_GeomFromText('POINT(100 90)'), 50) As circle) As foo; -- result -- GEOMETRYCOLLECTION(POLYGON((150 90,149.039264020162 80.2454838991936,146.193976625564 70.8658283817455,...), POLYGON(...))) -- To convert to individual polygons, you can use ST_Dump or ST_GeometryN SELECT ST_AsText((ST_Dump(ST_Split(circle, line))).geom) As wkt FROM (SELECT ST_MakeLine(ST_MakePoint(10, 10),ST_MakePoint(190, 190)) As line, ST_Buffer(ST_GeomFromText('POINT(100 90)'), 50) As circle) As foo; -- result -- wkt --------------- POLYGON((150 90,149.039264020162 80.2454838991936,...)) POLYGON((60.1371179574584 60.1371179574584,58.4265193848728 62.2214883490198,53.8060233744357 ...))

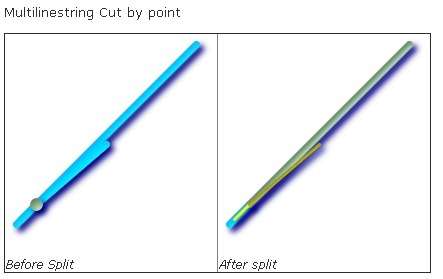

SELECT ST_AsText(ST_Split(mline, pt)) As wktcut FROM (SELECT ST_GeomFromText('MULTILINESTRING((10 10, 190 190), (15 15, 30 30, 100 90))') As mline, ST_Point(30,30) As pt) As foo; wktcut ------ GEOMETRYCOLLECTION( LINESTRING(10 10,30 30), LINESTRING(30 30,190 190), LINESTRING(15 15,30 30), LINESTRING(30 30,100 90) ) 我后面写了一篇文档来简化SPLIT：
《PostgreSQL 空间切割(st_split)功能扩展 - 空间对象网格化》
st_snap
http://postgis.net/docs/manual-2.4/ST_Snap.html
@, ~ 与 ST_Contains, ST_Within的区别
@, ~ 与 ST_Contains, ST_Within都是对象包含的操作符或函数，他们有什么区别呢？
@
A @ B Returns TRUE if A's bounding box is contained by B's.
~
与 @ 含义相反。
A ~ B Returns TRUE if A's bounding box contains B's.
ST_Contains
ST_Contains(A, B) Returns true if and only if no points of B lie in the exterior of A, and at least one point of the interior of B lies in the interior of A.
ST_Within
与 ST_Contains 含义相反。
ST_Within(A, B) Returns true if the geometry A is completely inside geometry B
区别
@ 和 ~的操作并不是直接针对几何对象，而是针对A和B的bound box的，也就是说包含对象的左下和右上的点组成的BOX。 ST_Within和ST_Contains是针对几何对象的，但是从GiST索引搜索角度来看，是需要先用BOUND BOX去搜索，再通过CPU进行计算来判断的。 例子
A @ Polygon，返回真 B @ Polygon，返回真 C @ Polygon，返回真 ST_Contains(Polygon, A)，返回假 ST_Contains(Polygon, B)，返回真 ST_Contains(Polygon, C)，返回假 小结
空间搜索的两个可以优化的点，原理如下：
1、空间数据在存储时乱序存放，导致搜索一批数据时扫描的数据块很多。（点查感觉不到这个问题。）
2、PostGIS的GiST空间索引，采用了BOUND BOX作为KEY，搜索时也是使用对象的BOUND BOX进行搜索，因此当对象是长条条时，可能造成大量的BOUND BOX空洞，放大了扫描范围（对st_contains, st_within来说），增加了CPU过滤的开销。
优化手段1：空间聚集，解决IO放大问题。
优化手段2：对输入条件（长条条的多边形）进行SPLIT，降低BOUND BOX放大引入的扫描范围（对st_contains, st_within来说）放大的问题。
数据量：1000万。
点面判断（长条形多边形，或者离散多个多边形对象覆盖的空间对象）。
| 优化前 | 优化1（空间聚集） | 优化1,2(SPLIT多边形) |
|---|---|---|
| 访问35323块 | 访问1648块 | 访问243块 |
| 过滤26590条 | 过滤26590条 | 过滤0条 |
