WebSocket协议相关的测试命令工具使用简介

root@test ~]# wscat --help Usage: wscat [options] (--listen <port> | --connect <url>) Options:  -V, --version output the version number  --auth <username:password> add basic HTTP authentication header  --ca <ca> specify a Certificate Authority (--connect only)  --cert <cert> specify a Client SSL Certificate (--connect only)  --host <host> optional host  --key <key> specify a Client SSL Certificate's key (--connect only)  --max-redirects [num] maximum number of redirects allowed (default: 10)  --no-color run without color  --passphrase [passphrase] specify a Client SSL Certificate Key's passphrase (--connect only). If you don't provide a value, it will be prompted for  --proxy <[protocol://]host[:port]> connect via a proxy. Proxy must support CONNECT method  --slash enable slash commands for control frames (/ping [data], /pong [data], /close [code [, reason]]) (--connect only)  -c, --connect <url> connect to a WebSocket server  -H, --header <header:value> set an HTTP header. Repeat to set multiple (--connect only) (default: [])  -l, --listen <port> listen on port  -L, --location follow redirects  -n, --no-check do not check for unauthorized certificates (--connect only)  -o, --origin <origin> optional origin  -p, --protocol <version> optional protocol version  -P, --show-ping-pong print a notification when a ping or pong is received (--connect only)  -s, --subprotocol <protocol> optional subprotocol. Repeat to specify more than one (default: [])  -w, --wait <seconds> wait given seconds after executing command (-1 to hold open)  -x, --execute <command> execute command after connecting. Repeat to execute more than one (--connect only) (default: [])  -h, --help display help for command

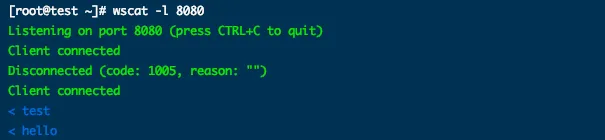

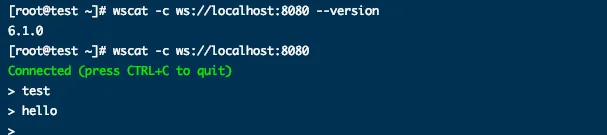

--connect, -c：连接到指定的 WebSocket URL。 示例：wscat -c ws://example.com/socket --listen, -l：作为 WebSocket 服务器监听指定的端口或地址。 示例：wscat -l 8080 --protocol <protocol>：需要指定WebSocket子协议时使用。 示例：wscat -c ws://example.com/socket --protocol chat --origin <origin>：设置请求头中的 Origin 字段值。 示例：wscat -c ws://example.com/socket --origin http://example.com --header <key:value>：添加额外的 HTTP 头信息，可以多次使用以添加多个头部。  示例：wscat -c ws://example.com/socket --header "Authorization: Bearer token" --no-color：禁用输出的颜色编码。 --version：显示 wscat 的版本号。 --help：显示帮助信息。

下载对应版本的文件： wget https://github.com/vi/websocat/releases/download/v1.14.0/websocat.x86_64-unknown-linux-musl 添加可执行的权限： chmod +x websocat.x86_64-unknown-linux-musl 移动到 /usr/local/bin/： sudo mv websocat.x86_64-unknown-linux-musl /usr/local/bin/websocat 完成上述步骤后，可以在终端中输入 websocat --version 来检查是否安装成功以及查看其版本号。 [root@test]$ websocat --version websocat 1.14.0

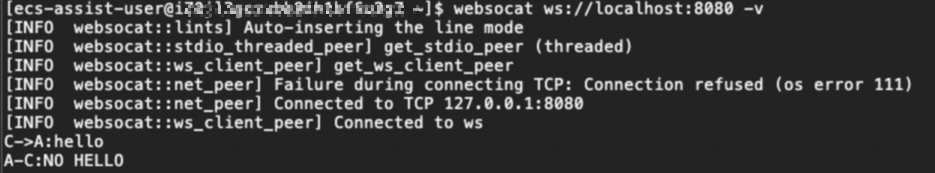

[root@test]]$ websocat --help websocat 1.14.0 Vitaly "_Vi" Shukela <vi0oss@gmail.com> Command-line client for web sockets, like netcat/curl/socat for ws://. USAGE:  websocat ws://URL | wss://URL (simple client)  websocat -s port (simple server)  websocat [FLAGS] [OPTIONS] <addr1> <addr2> (advanced mode) FLAGS:  (some flags are hidden, see --help=long)  -e, --set-environment  Set WEBSOCAT_* environment variables when doing exec:/cmd:/sh-c:  Currently it's WEBSOCAT_URI and WEBSOCAT_CLIENT for  request URI and client address (if TCP)  Beware of ShellShock or similar security problems.  -E, --exit-on-eof Close a data transfer direction if the other one reached EOF  --jsonrpc  Format messages you type as JSON RPC 2.0 method calls. First word becomes method name, the rest becomes  parameters, possibly automatically wrapped in [].  -0, --null-terminated Use \0 instead of \n for linemode  --no-fixups to discover what is being inserted automatically and read the full manual about Websocat  internal workings.  -1, --one-message Send and/or receive only one message. Use with --no-close and/or -u/-U.  --oneshot Serve only once. Not to be confused with -1 (--one-message)  --print-ping-rtts  Print measured round-trip-time to stderr after each received WebSocket pong.  -q Suppress all diagnostic messages, except of startup errors  -s, --server-mode Simple server mode: specify TCP port or addr:port as single argument  -S, --strict  strict line/message mode: drop too long messages instead of splitting them, drop incomplete lines.  -k, --insecure Accept invalid certificates and hostnames while connecting to TLS  -u, --unidirectional Inhibit copying data in one direction  -U, --unidirectional-reverse  Inhibit copying data in the other direction (or maybe in both directions if combined with -u)  -v Increase verbosity level to info or further  -b, --binary Send message to WebSockets as binary messages  -n, --no-close Don't send Close message to websocket on EOF  -t, --text Send message to WebSockets as text messages  --base64  Encode incoming binary WebSocket messages in one-line Base64 If `--binary-prefix` (see `--help=full`) is  set, outgoing WebSocket messages that start with the prefix are decoded from base64 prior to sending. OPTIONS:  (some options are hidden, see --help=long)  --socks5 <auto_socks5>  Use specified address:port as a SOCKS5 proxy. Example: --socks5 127.0.0.1:9050  --basic-auth <basic_auth>  Add `Authorization: Basic` HTTP request header with this base64-encoded parameter. Also available as  `WEBSOCAT_BASIC_AUTH` environment variable  --basic-auth-file <basic_auth_file>  Add `Authorization: Basic` HTTP request header base64-encoded content of the specified file  -B, --buffer-size <buffer_size> Maximum message size, in bytes [default: 65536]  --close-reason <close_reason>  Close connection with a reason message. This option only takes effect if --close-status-code option is  provided as well.  --close-status-code <close_status_code> Close connection with a status code.  -H, --header <custom_headers>...  Add custom HTTP header to websocket client request. Separate header name and value with a colon and  optionally a single space. Can be used multiple times. Note that single -H may eat multiple further  arguments, leading to confusing errors. Specify headers at the end or with equal sign like -H='X: y'.  --server-header <custom_reply_headers>...  Add custom HTTP header to websocket upgrade reply. Separate header name and value with a colon and  optionally a single space. Can be used multiple times. Note that single -H may eat multiple further  arguments, leading to confusing errors.  --header-to-env <headers_to_env>...  Forward specified incoming request header to H_* environment variable for `exec:`-like specifiers.  -h, --help <help>  See the help.  --help=short is the list of easy options and address types  --help=long lists all options and types (see [A] markers)  --help=doc also shows longer description and examples.  --max-messages <max_messages>  Maximum number of messages to copy in one direction.  --max-messages-rev <max_messages_rev>  Maximum number of messages to copy in the other direction.  --conncap <max_parallel_conns>  Maximum number of simultaneous connections for listening mode  --origin <origin> Add Origin HTTP header to websocket client request  --pkcs12-der <pkcs12_der>  Pkcs12 archive needed to accept SSL connections, certificate and key.  A command to output it: openssl pkcs12 -export -out output.pkcs12 -inkey key.pem -in cert.pem  Use with -s (--server-mode) option or with manually specified TLS overlays.  See moreexamples.md for more info.  --pkcs12-passwd <pkcs12_passwd>  Password for --pkcs12-der pkcs12 archive. Required on Mac.  -p, --preamble <preamble>...  Prepend copied data with a specified string. Can be specified multiple times.  -P, --preamble-reverse <preamble_reverse>...  Prepend copied data with a specified string (reverse direction). Can be specified multiple times.  --restrict-uri <restrict_uri>  When serving a websocket, only accept the given URI, like `/ws`  This liberates other URIs for things like serving static files or proxying.  -F, --static-file <serve_static_files>...  Serve a named static file for non-websocket connections.  Argument syntax: <URI>:<Content-Type>:<file-path>  Argument example: /index.html:text/html:index.html  Directories are not and will not be supported for security reasons.  Can be specified multiple times. Recommended to specify them at the end or with equal sign like `-F=...`,  otherwise this option may eat positional arguments  --ua <useragent>  Set `User-Agent` request header to this value. Similar to setting it with `-H`.  --protocol <websocket_protocol>  Specify this Sec-WebSocket-Protocol: header when connecting  --server-protocol <websocket_reply_protocol>  Force this Sec-WebSocket-Protocol: header when accepting a connection  --websocket-version <websocket_version> Override the Sec-WebSocket-Version value  --ping-interval <ws_ping_interval> Send WebSocket pings each this number of seconds  --ping-timeout <ws_ping_timeout>  Drop WebSocket connection if Pong message not received for this number of seconds ARGS:  <addr1> In simple mode, WebSocket URL to connect. In advanced mode first address (there are many kinds of  addresses) to use. See --help=types for info about address types. If this is an address for  listening, it will try serving multiple connections.  <addr2> In advanced mode, second address to connect. If this is an address for listening, it will accept only  one connection. Basic examples:  Command-line websocket client:  websocat ws://ws.vi-server.org/mirror/   WebSocket server  websocat -s 8080   WebSocket-to-TCP proxy:  websocat --binary ws-l:127.0.0.1:8080 tcp:127.0.0.1:5678  Partial list of address types:  ws:// Insecure (ws://) WebSocket client. Argument is host and URL.  wss:// Secure (wss://) WebSocket client. Argument is host and URL.  ws-listen: WebSocket server. Argument is host and port to listen.  wss-listen: Listen for secure WebSocket connections on a TCP port  tcp: Connect to specified TCP host and port. Argument is a socket address.  tcp-listen: Listen TCP port on specified address.  ssl-listen: Listen for SSL connections on a TCP port  sh-c: Start specified command line using `sh -c` (even on Windows)  cmd: Start specified command line using `sh -c` or `cmd /C` (depending on platform)  readfile: Synchronously read a file. Argument is a file path.  writefile: Synchronously truncate and write a file.  appendfile: Synchronously append a file.  udp: Send and receive packets to specified UDP socket, from random UDP port  udp-listen: Bind an UDP socket to specified host:port, receive packet  - Read input from console, print to console. Uses threaded implementation even on UNIX unless requested by `--async-stdio` CLI option.  mirror: Simply copy output to input. No arguments needed.  literalreply: Reply with a specified string for each input packet.  literal: Output a string, discard input.  random: Generate random bytes when being read from, discard written bytes. Partial list of overlays:  broadcast: Reuse this connection for serving multiple clients, sending replies to all clients.  autoreconnect: Re-establish underlying connection on any error or EOF  foreachmsg: Execute something for each incoming message.  log: Log each buffer as it pass though the underlying connector. See more address types with the --help=long option. See short examples and --dump-spec names for most address types and overlays with --help=doc option

基本连接： -b 或 --binary: 以二进制模式运行，而不是文本模式。 -t 或 --text: 强制使用文本模式（默认）。 连接类型： ws://... 或 wss://...: 指定要连接的WebSocket URL。 tcp-listen:: 监听TCP端口，等待传入连接并将其转换为WebSocket连接。 unix-l:: 类似于tcp-listen，但使用Unix域套接字。 双向通信： 可以通过指定两个方向（如 websocat ws://example.com/ws tcp-listen:1234）来进行不同协议间的转发。 其他常用选项： -H <header> 或 --header <header>: 添加HTTP头到客户端握手请求中。 -E 或 --ping-interval <seconds>: 设置发送PING帧的时间间隔，维持连接活跃。 -v 或 --verbose: 提供详细输出，便于调试。 -q 或 --quiet: 减少输出信息，仅显示错误信息。 -V 或 --version: 显示版本信息并退出。 安全相关： 使用 wss:// 来指示应使用加密的WebSocket连接。 --ca-file <path>: 指定CA证书文件路径，用于验证服务器证书。 --insecure: 跳过SSL/TLS证书验证（不推荐在生产环境中使用）。
