Upload files to Amazon S3

Adobe Commerce as a Cloud Service (SaaS) supports file uploads through GraphQL mutations. This feature allows you to upload files such as images, documents, and other media to the server. Sharing objects with presigned URLs describes how presigned URLs work.

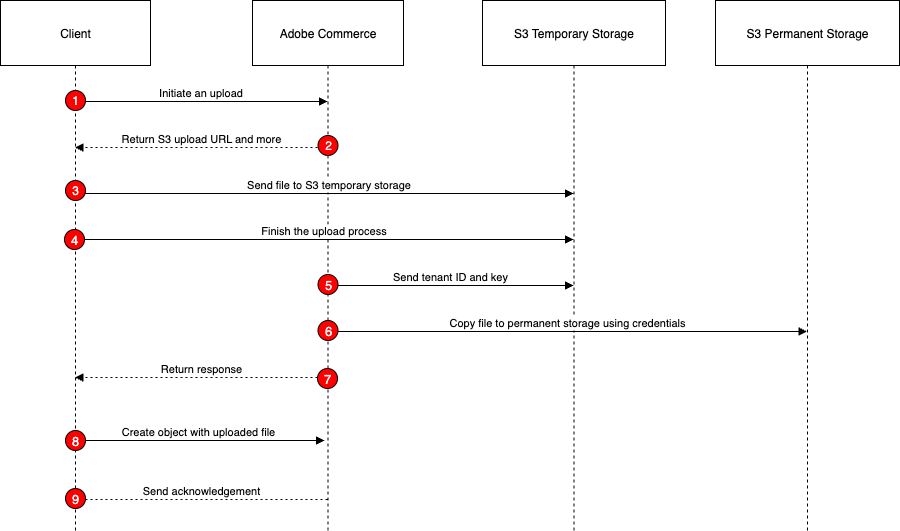

Uploading files is a multi-step process, as shown in the following diagram:

1. Inititiate the upload: The shopper clicks an Upload File button on the storefront. The Javascript code on the page uses the initiateUpload mutation to start the upload process. The mutation specifies the file name provided by the shopper. Commerce uses the AWS SDK to generate the URL to which the file will be uploaded.

2. Receive the response: The response from the initiateUpload mutation includes a presigned URL, a unique key for the file, and an expiration time for the URL. The client code extracts these values from the response.

3. Upload the file: The client code uses the presigned URL to upload the file directly to a temporary location in the Amazon S3 bucket. This is done using a standard HTTP PUT request.

   The following curl command demonstrates how to upload a file using the presigned URL:

   Copy
   Copied to your clipboard
   curl --fail --show-error --silent -X PUT --data-binary @./cat.jpg 'https://<bucket>.s3.<region>.amazonaws.com/<path-to-temp-file>?X-Amz-Content-Sha256=UNSIGNED-PAYLOAD&X-Amz-Security-Token=<token>&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=<value>&X-Amz-Date=<value>&X-Amz-SignedHeaders=host&X-Amz-Expires=<value>&X-Amz-Signature=<value>...'

4. Finalize the upload: After the file is successfully uploaded to S3, the client code calls the finishUpload mutation to complete the upload process. The mutation includes the unique key received from the initiateUpload response.

5. Perform validation: Commerce uses a HEAD request on S3 Temporary to validate the key and size.

6. Move the file: Commerce performs a CopyObject operation to move the file from the temporary location to a permanent location in the S3 bucket.

7. Receive the final response: The response from the finishUpload mutation includes the unique key for the uploaded file. The client code extracts this key from the response.

8. Create or update the entity: After finishUpload succeeds, the client creates or updates the entity (such as a customer) using the returned hashed key as the attribute value, not a URL or full S3 path.

9. Receive the create/update response: The response from the create or update mutation includes the details of the created or updated entity.

Add the uploaded file to an entity

Your Adobe Commerce instance must define a customer custom attribute that has an input type of file or image. Navigate to Stores > Attributes > Customer in the Admin and click Add Attribute. Your custom attribute must have the following properties:

• Attribute Code: A unique identifier for the attribute, such as profile_picture.

• Input Type: Set to File (attachment) or Image file.

• Maximum File Size: The default file size limit on S3 is 16 MB (16777216 bytes).

Once the custom attribute is created, you can use the key returned by the finishUpload mutation to set the value of the attribute when creating or updating a customer. For example, if the custom attribute code is profile_picture, you would include it in the input of the createCustomerV2 mutation as follows:

Copy
Copied to your clipboard
mutation {
 createCustomerV2(
 input: {
 email: "john.doe@example.com"
 firstname: "John"
 lastname: "Doe"
 password: "wzB43LF4svFd"
 custom_attributes: [
 {
 attribute_code: "profile-picture"
 value: "cat_106d42b2ee34de81db31d958.jpg"
 }
 ]
 }
 ) {
 customer {
 email
 firstname
 lastname
 }
 }
 }

Attribute interfaces and implementations provides an example of how to retrieve a file uploaded to Amazon S3.

Last updated 9/30/2025
